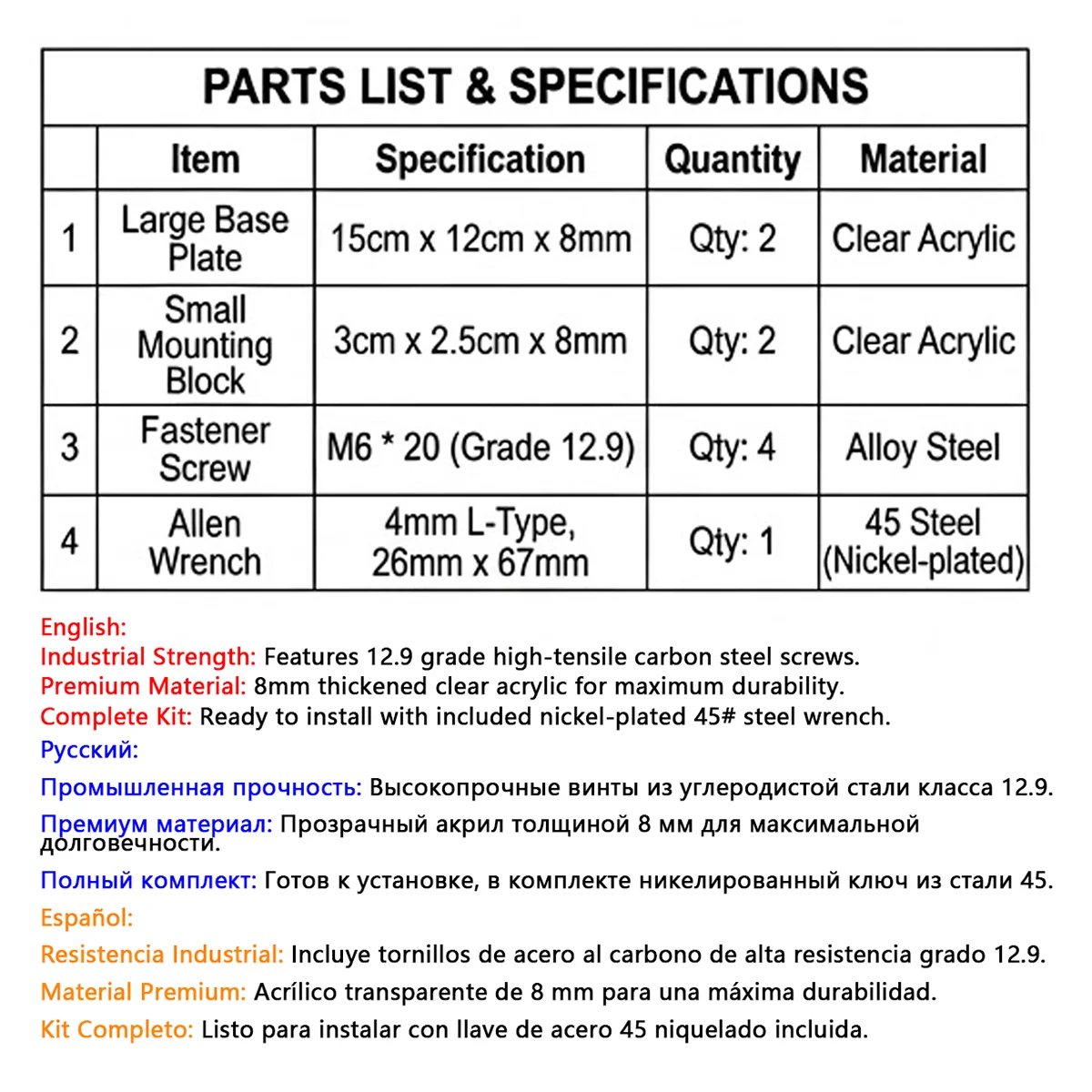

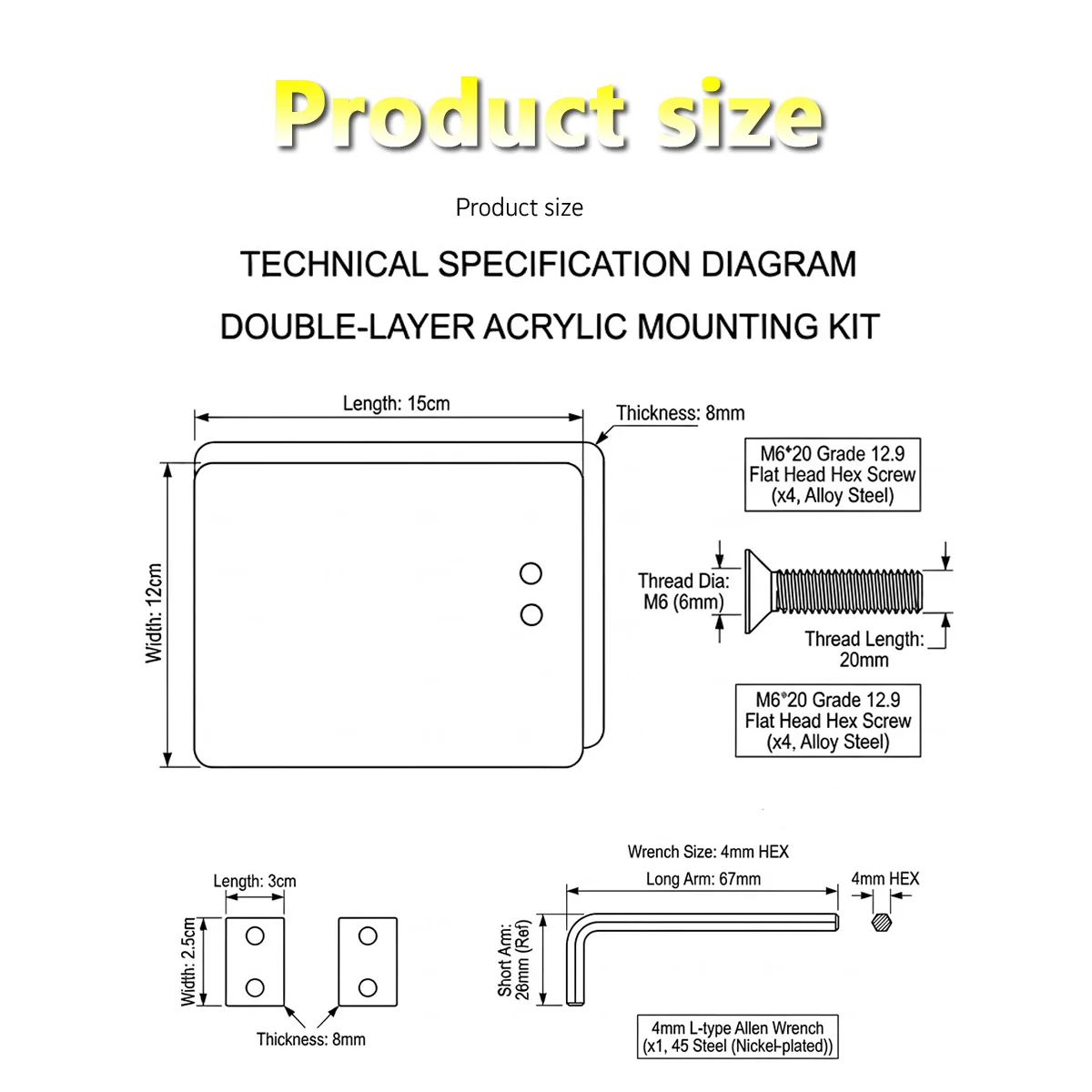

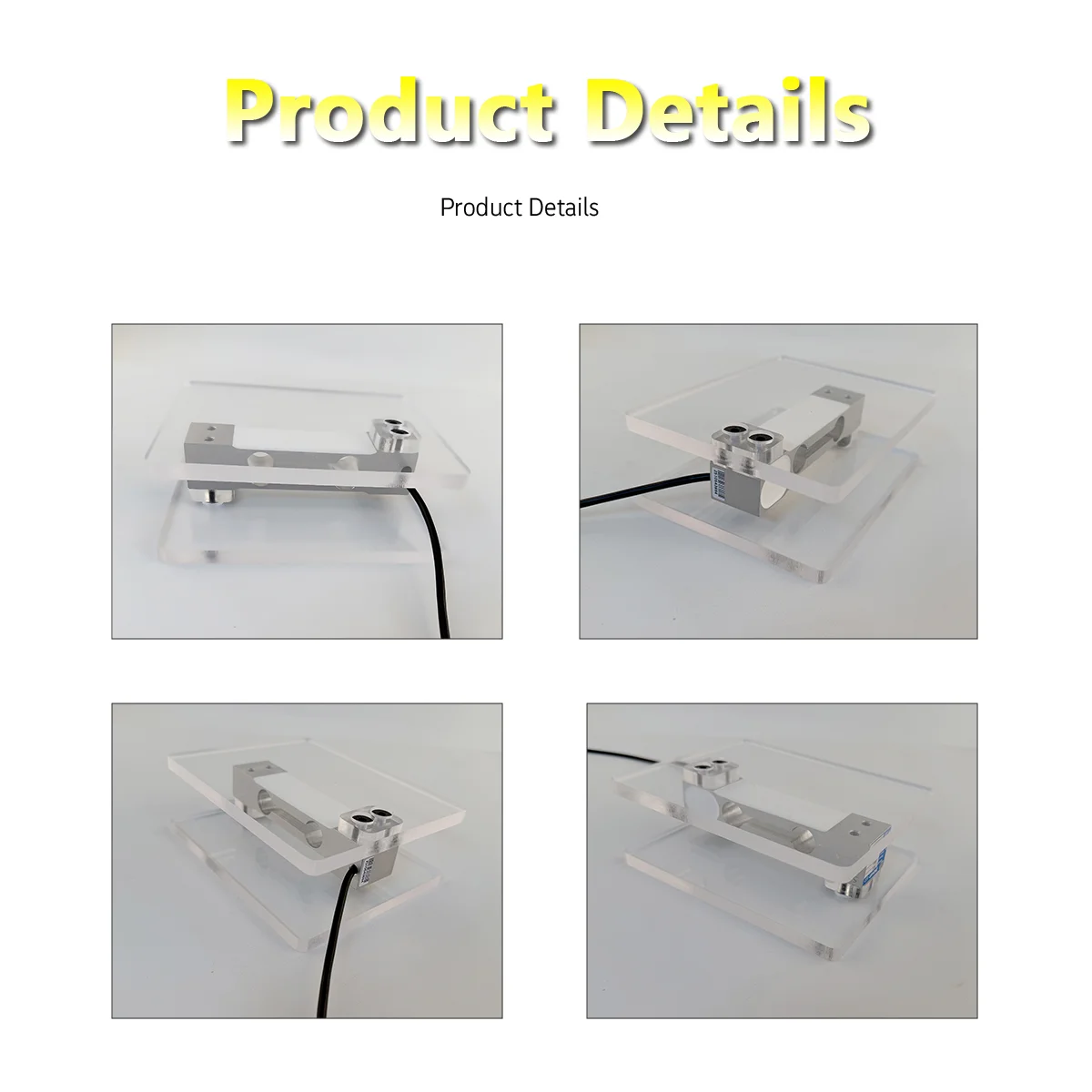

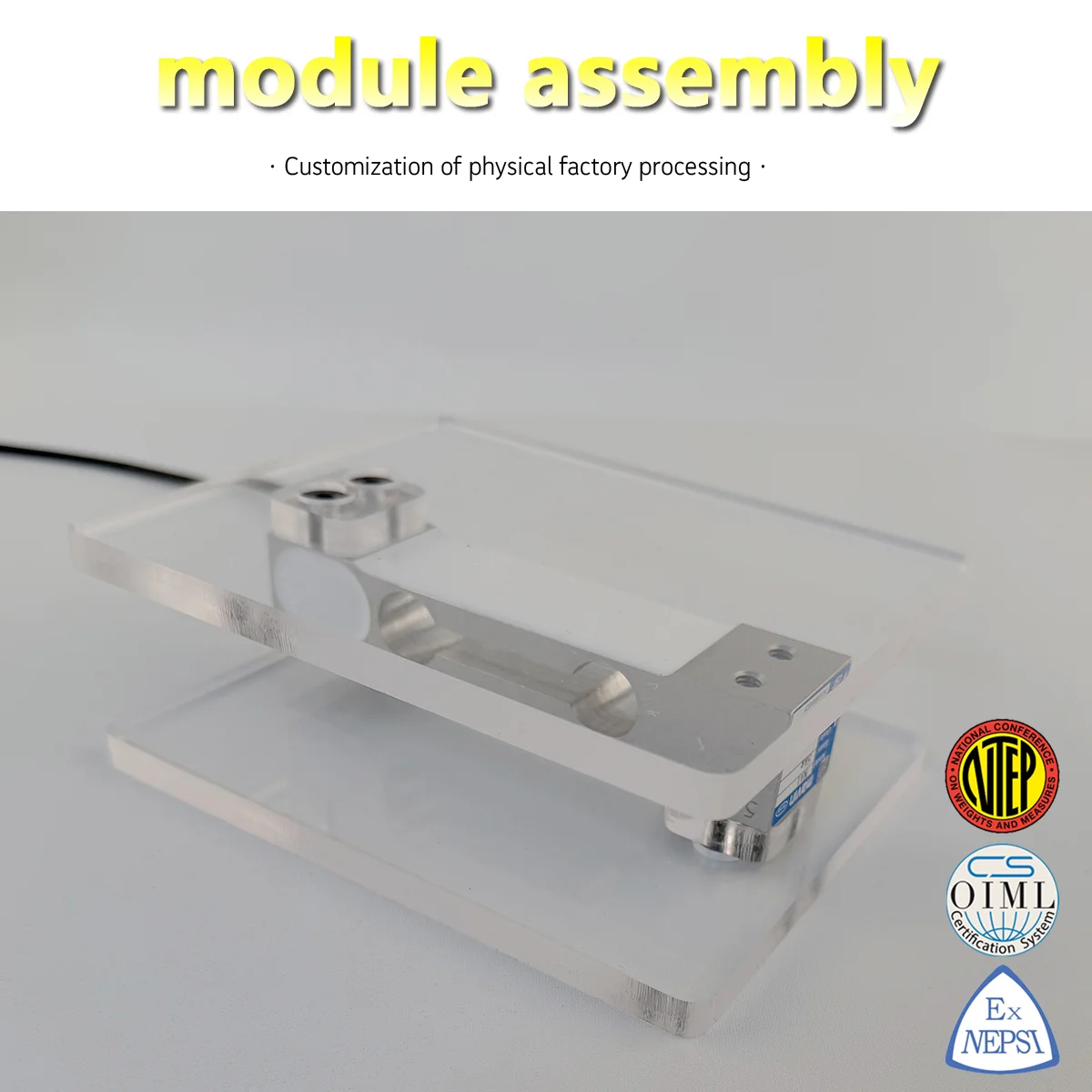

130mm Single Point Weighing Sensor Kit - Mavin Load Cell + 8mm Acrylic Plates + High Tensile Screws + Wrench with Mounting Tools

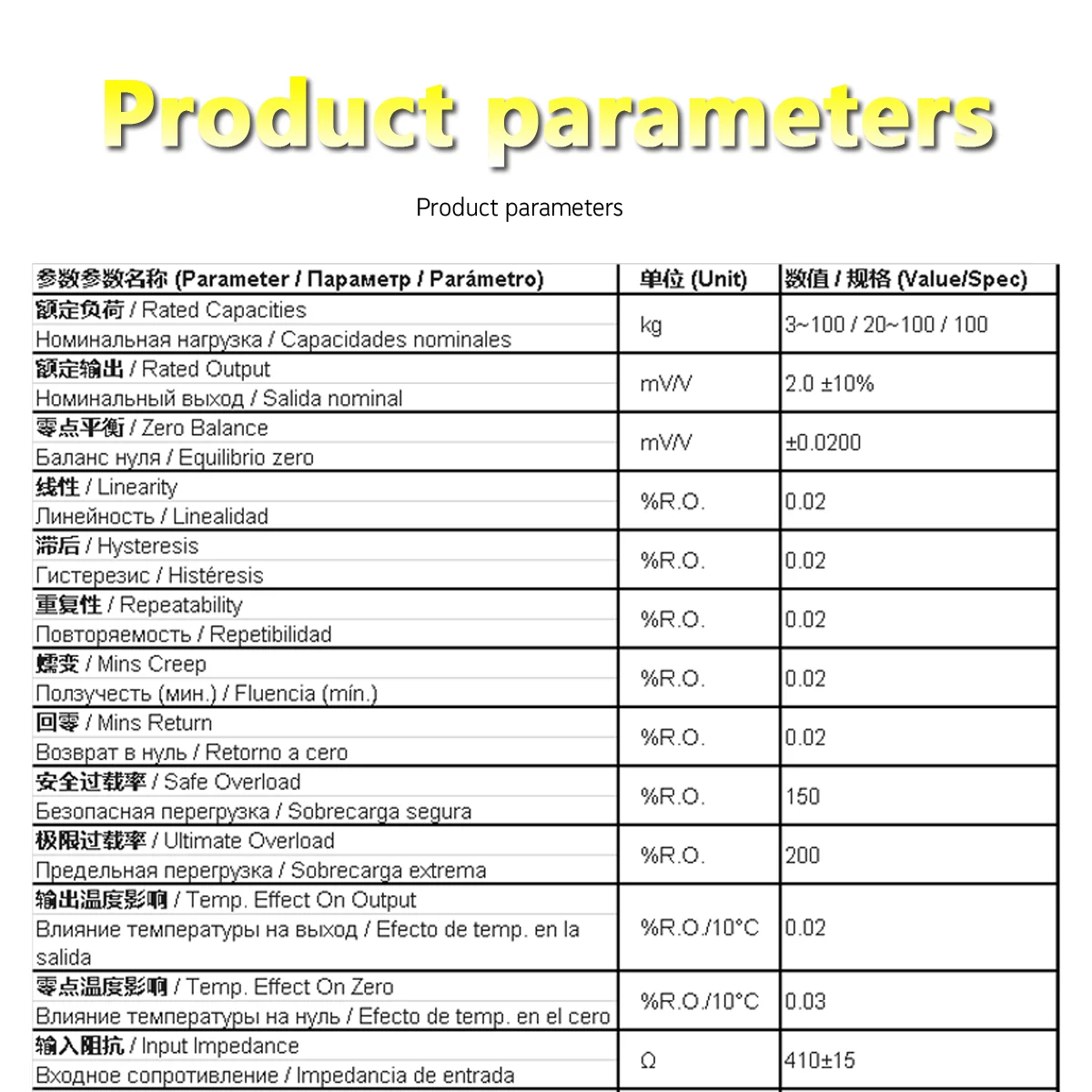

参数名称 (Parameter)
单位 (Unit)
数值 / 规格 (Value/Specification)
额定负荷 Rated Capacities
kg
3~100 / 20~100 / 100
额定输出 Rated Output
mV/V
2.0 ±10%
零点平衡 Zero Balance
mV/V
±0.0200
线性 Linearity
%R.O.
0.02
滞后 Hysteresis
%R.O.
0.02
重复性 Repeatability
%R.O.
0.02
蠕变 Mins Creep
%R.O.
0.02
回零 Mins Return
%R.O.
0.02
安全过载率 Safe Overload
%R.O.
150
极限过载率 Ultimate Overload
%R.O.
200
输出温度影响 Temp. Effect On Output
%R.O./10°C
0.02
零点温度影响 Temp. Effect On Zero
%R.O./10°C
0.03
输入阻抗 Input Impedance
Ω
410±15

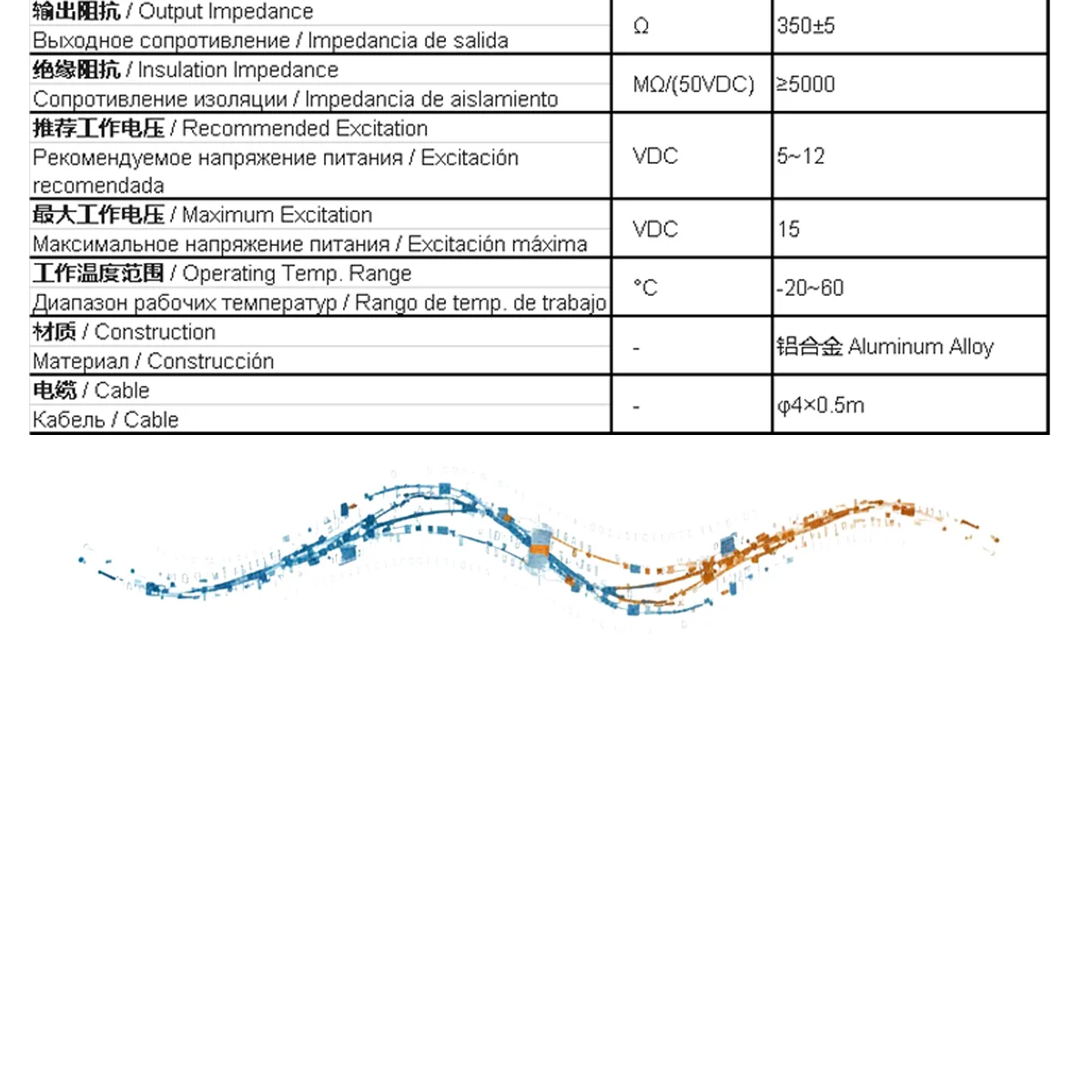

输出阻抗 Output Impedance
Ω
350±5
绝缘阻抗 Insulation Impedance
MΩ/(50VDC)
≥5000
推荐工作电压 Recommended Excitation
VDC
5~12
最大工作电压 Maximum Excitation
VDC
15
工作温度范围 Operating Temp. Range
°C
-20~60
材质 Construction
-
铝合金 Aluminum Alloy
电缆 Cable
-
φ4×0.5m

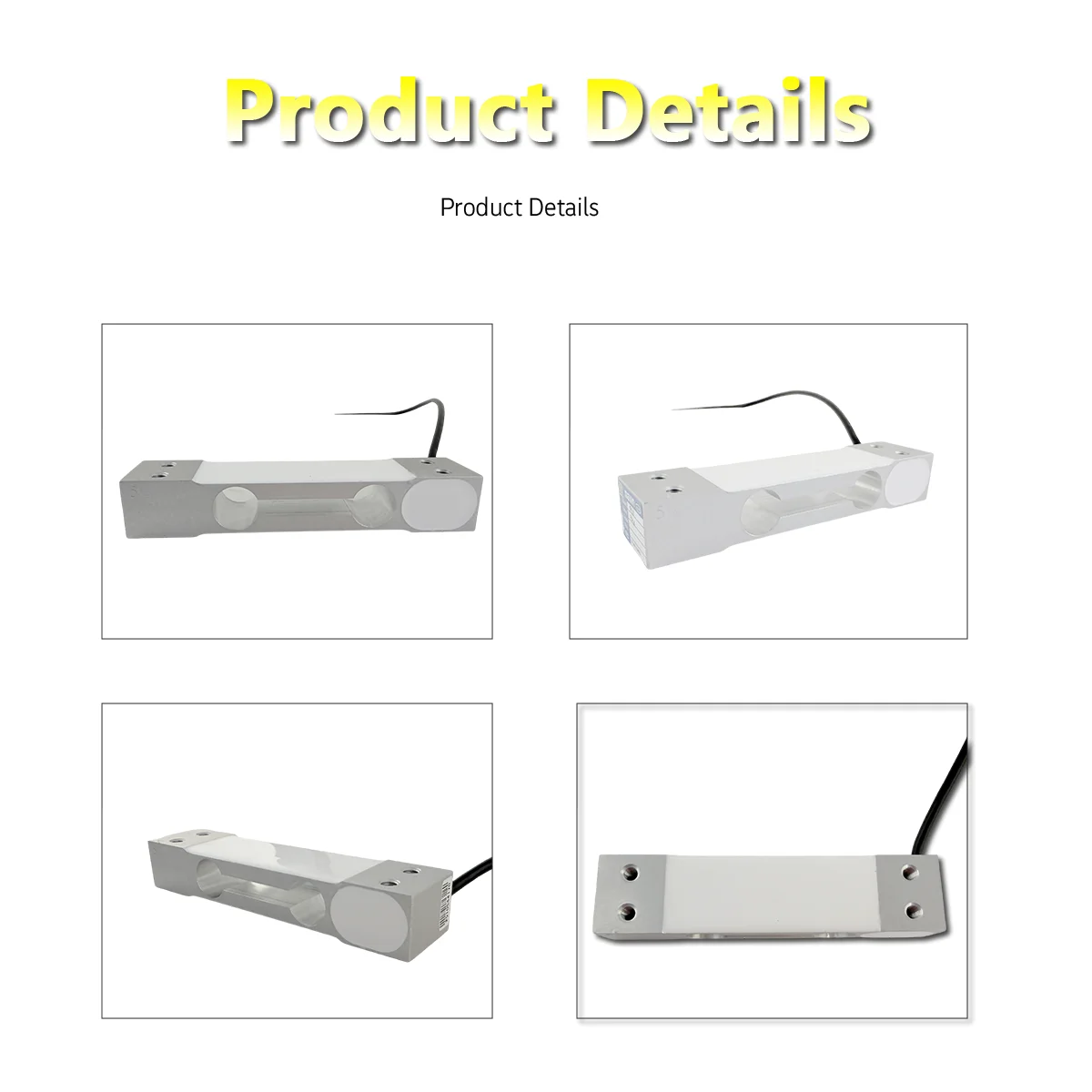

This Single Point Load Cell is a premier choice for electronic scale manufacturing and industrial pressure monitoring. Constructed from high-strength aluminum alloy and integrated with precision strain gauge technology, it delivers a highly stable signal output (2.0 mV/V). Its compact 130mm length and parallel beam design ensure superior resistance to off-center loads, making it widely used in retail scales, bench scales, packaging machines, and automated measurement systems. With multiple capacity options ranging from 3kg to 100kg, this sensor meets diverse accuracy requirements from laboratories to factory floors.
