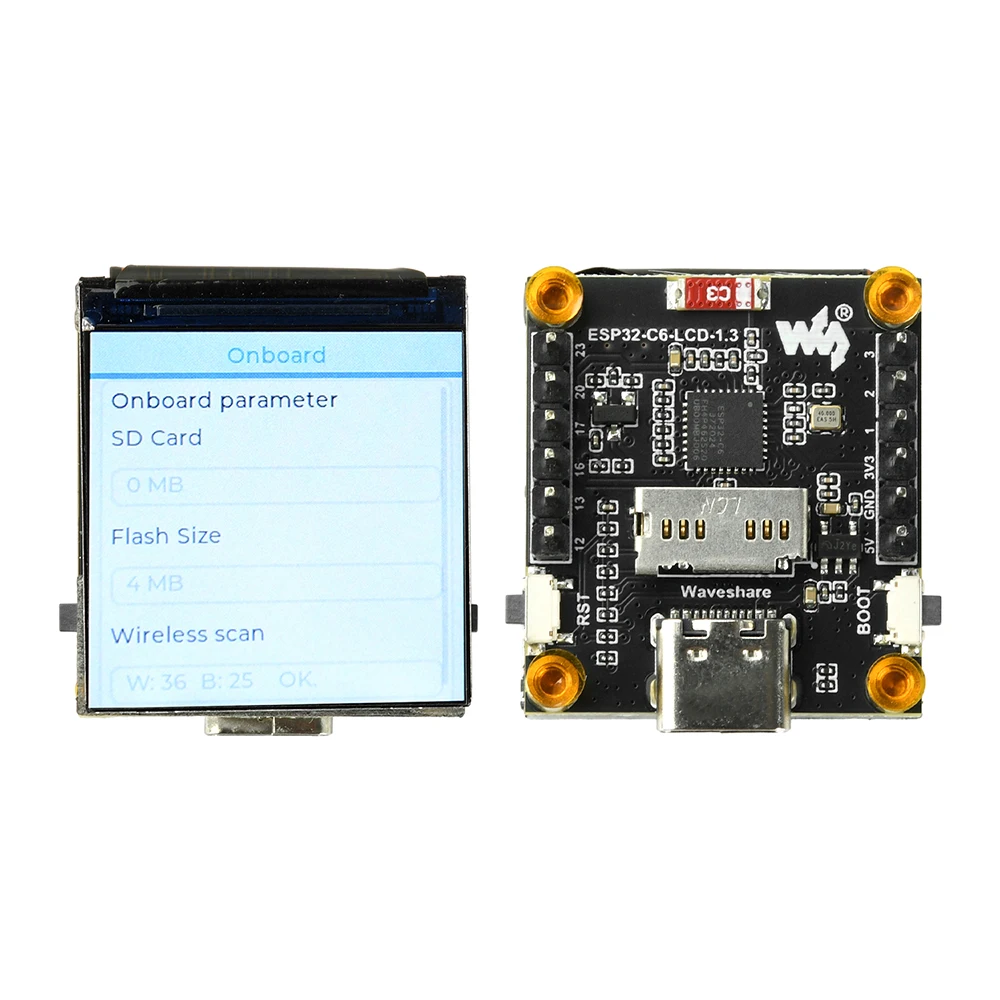

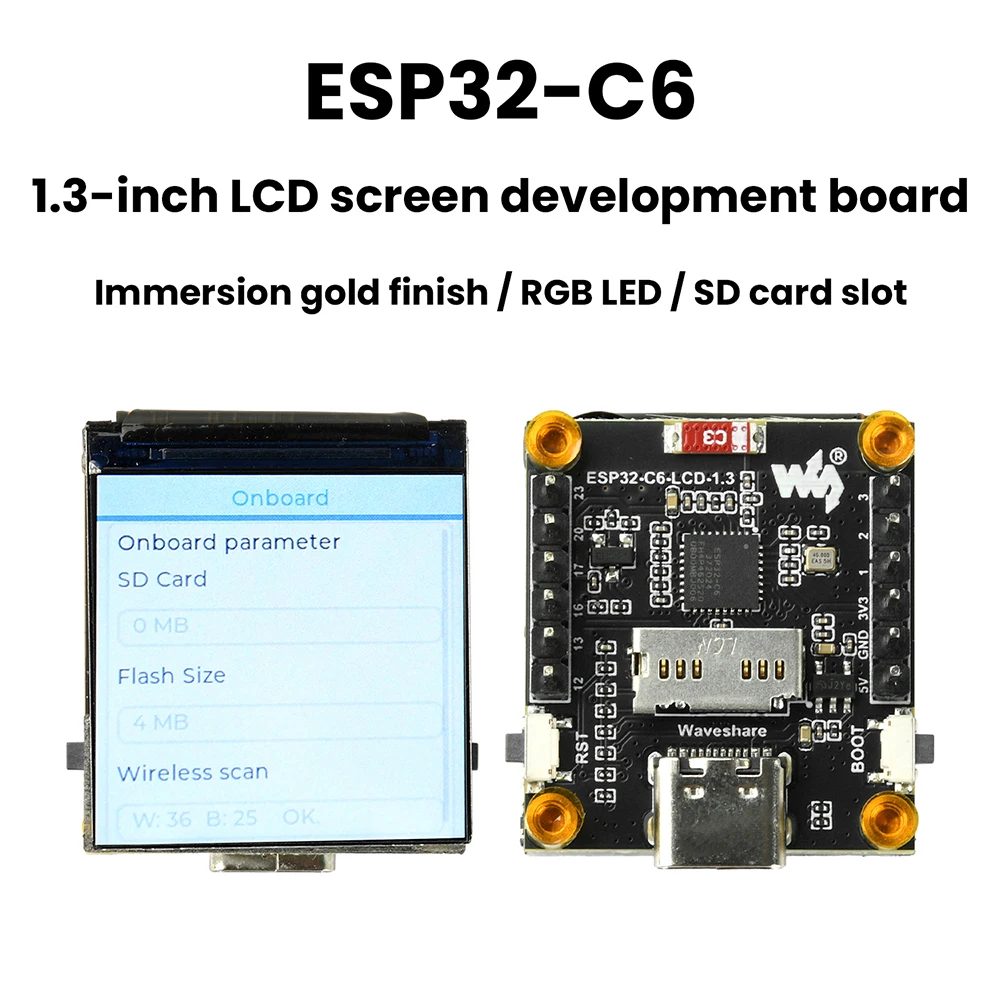

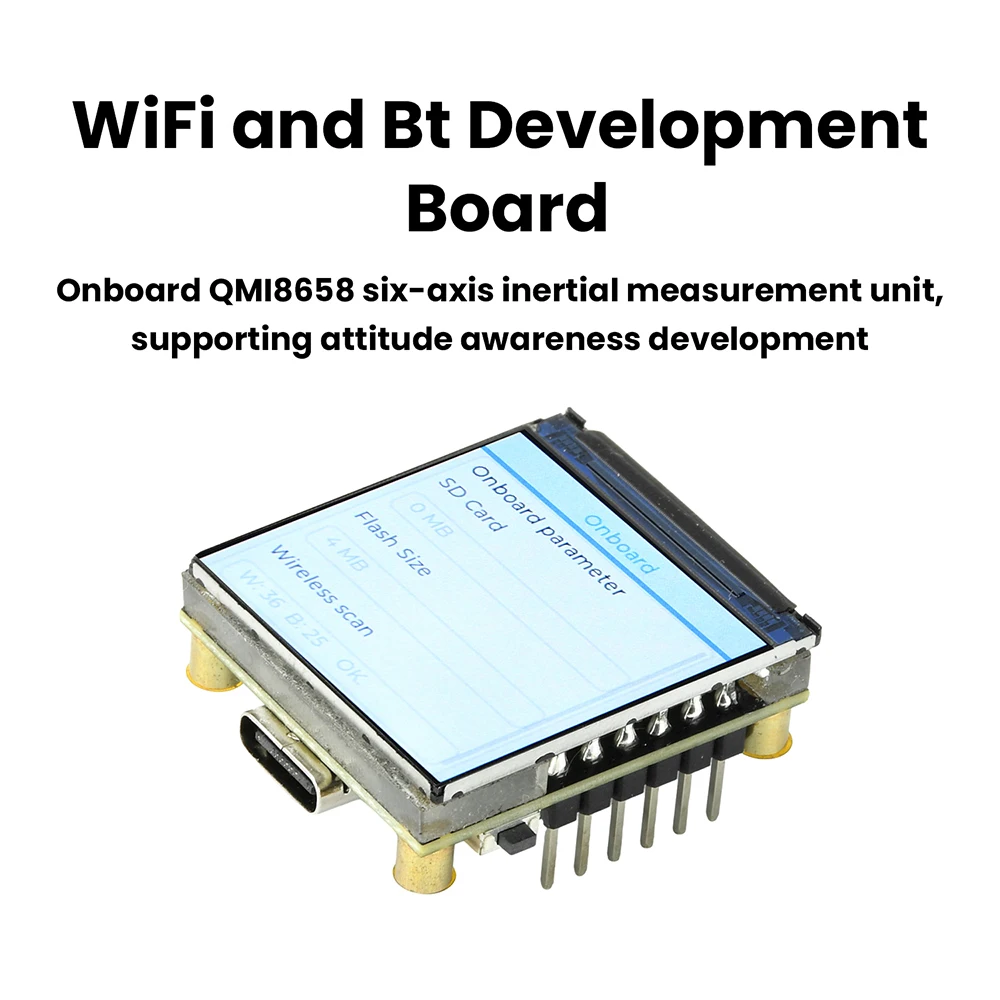

ESP32-C6 Wi-Fi and Bluetooth Development Board, 1.3-Inch LCD Digital Display Development Module, ST7789 Driver IC, Type-C Port

Product Features:

1. Equipped with a 32-bit single-core RISC-V processor, offering low power consumption and high performance

2. Supports Wi-Fi 6 + BLE 5 wireless transmission, with an on-board antenna

3. Features an on-board 1.3-inch LCD display with a resolution of 240×240, capable of clearly displaying colour images

4. Built-in 320 KB SRAM and 4 MB stacked Flash

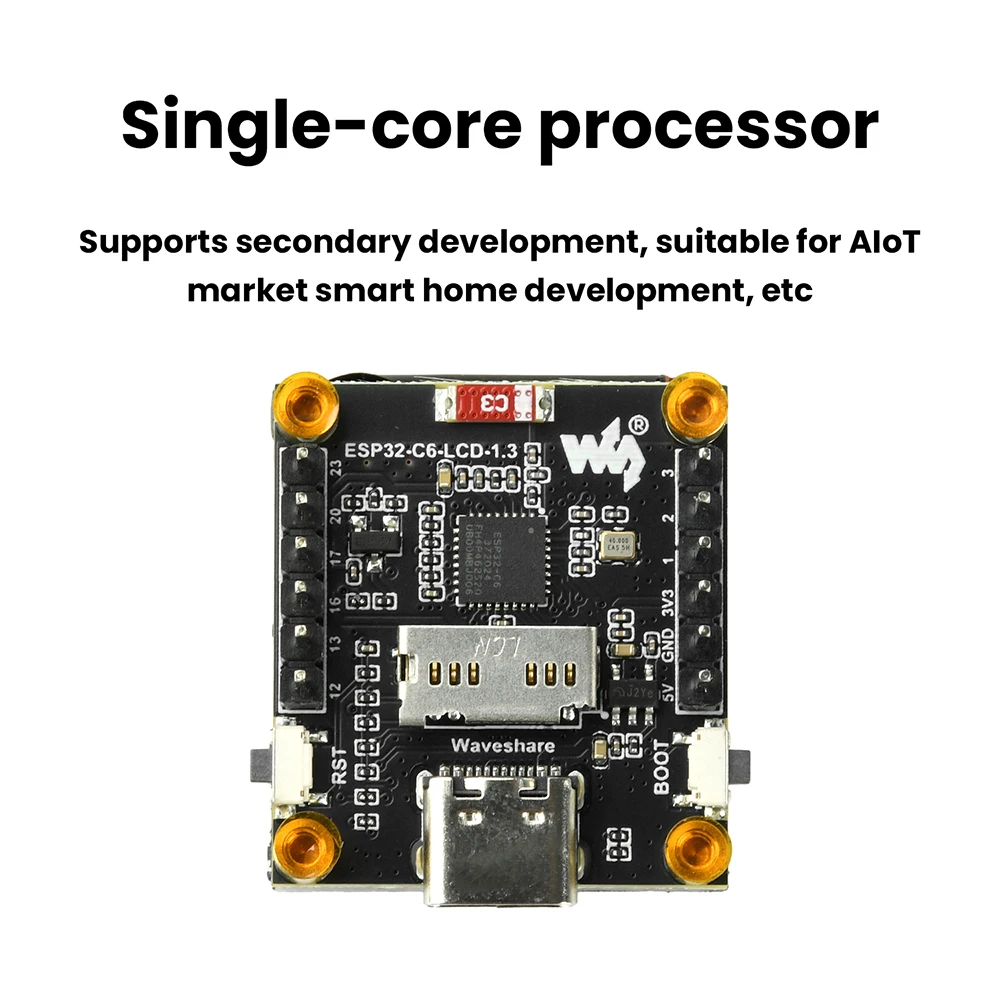

5. Supports secondary development, suitable for applications in the AIoT market, such as smart home devices.

Technical Specifications:

Low-power SoC powered by a RISC-V 32-bit single-core processor, with a clock speed of up to 160 MHz

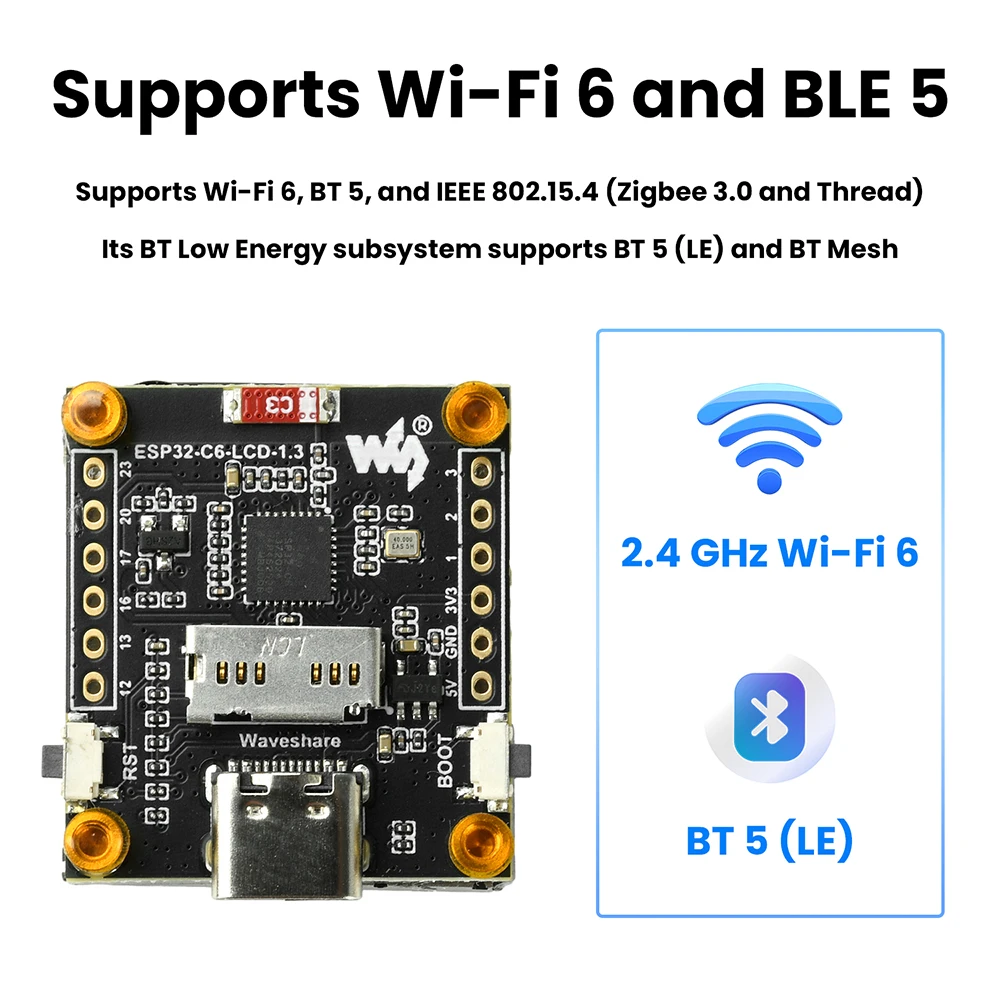

Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with on-board antennas

Built-in 320 KB SRAM and 4 MB Flash in a stacked package

Features a Type-C interface, eliminating the need to worry about which way round to plug it in

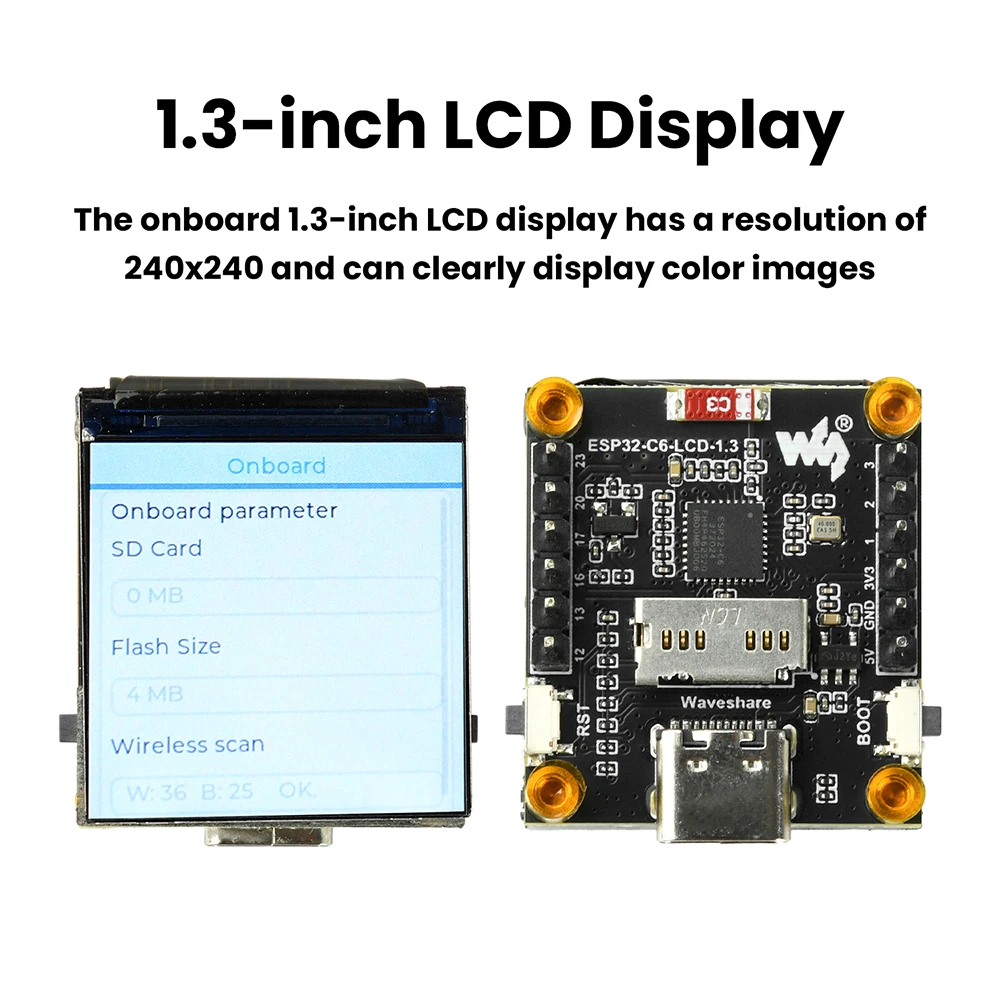

On-board 1.3-inch LCD screen with a resolution of 240 × 240 and 262K colours, capable of clearly displaying colour images

Built-in ST7789V2 driver chip; uses SPI, so it does not occupy excessive interface pin resources

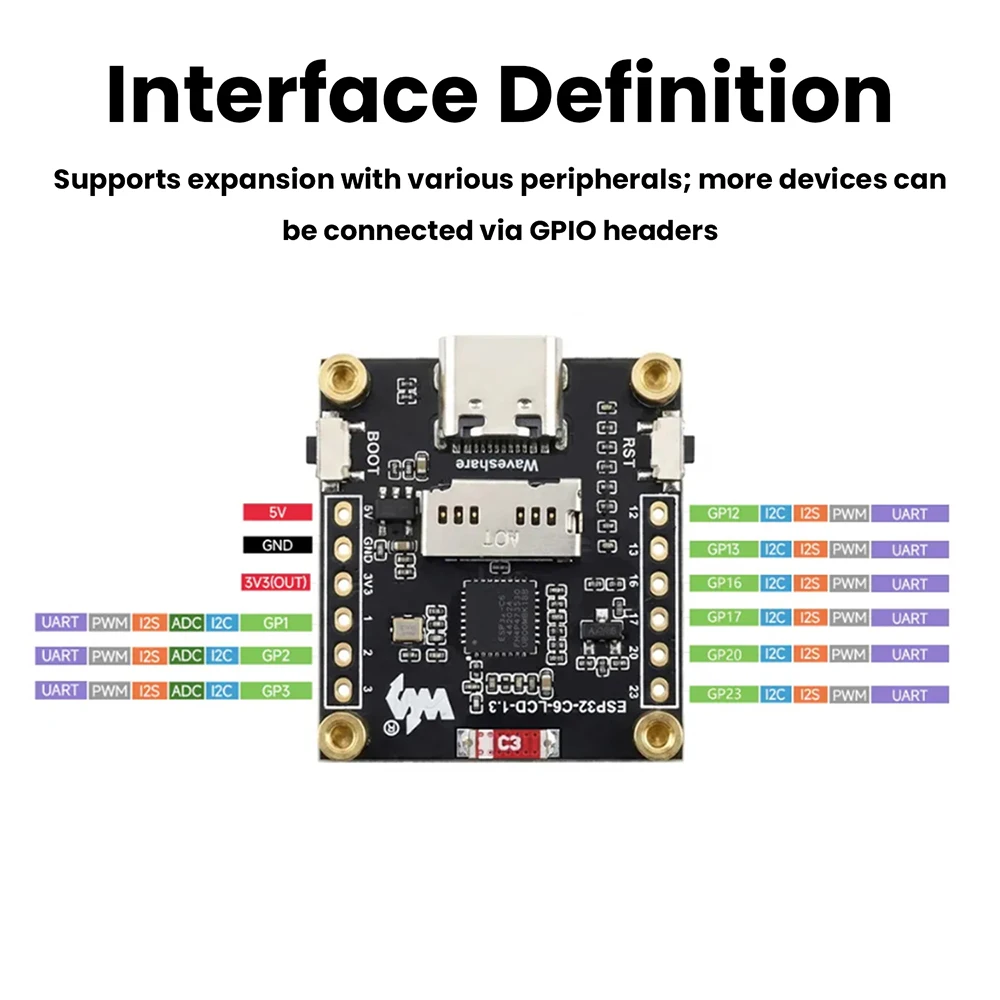

Features a 9-pin GPIO interface with 2.54 mm pitch, available for external devices and debugging, allowing flexible configuration of peripheral functions

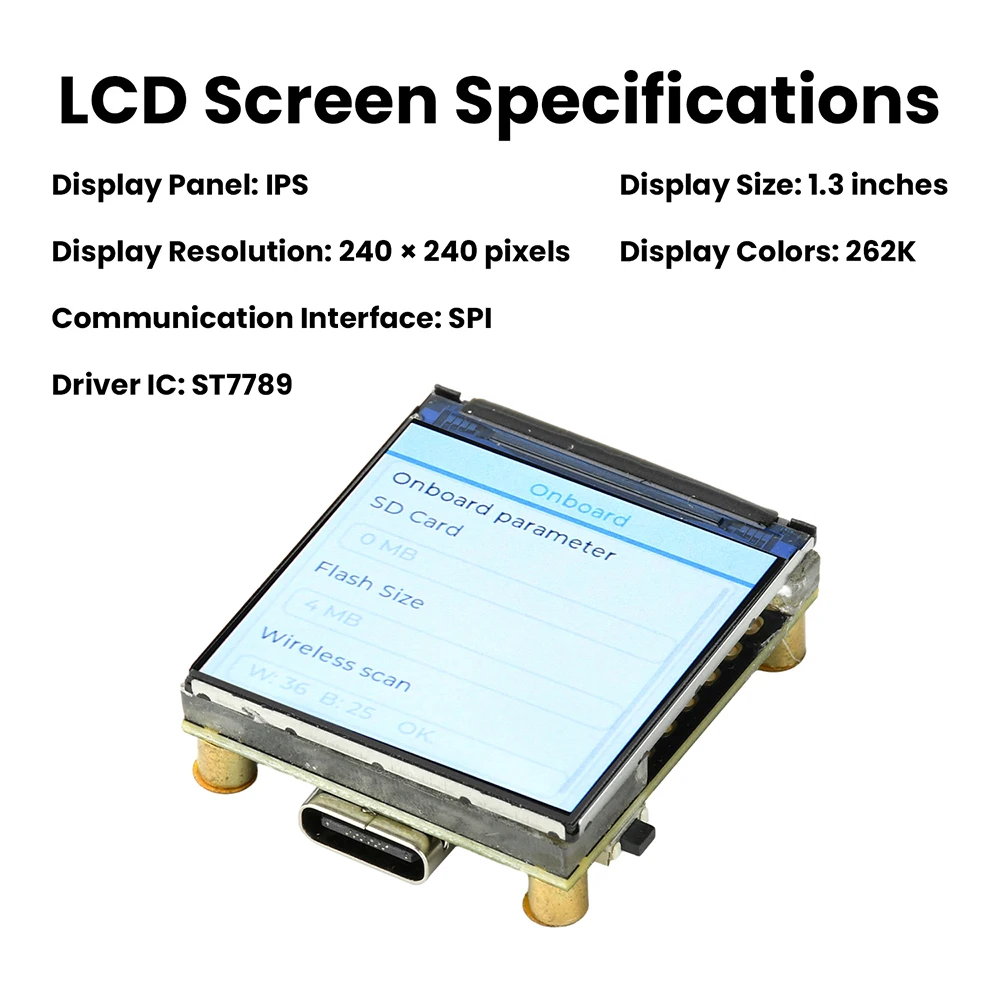

LCD Specifications:

Display Panel: IPS

Display Size: 1.3 inches

Display Resolution: 240 × 240 pixels

Colour Depth: 262K

Communication Interface: SPI

Driver IC: ST7789

Product Contents:

1 × Development Board
