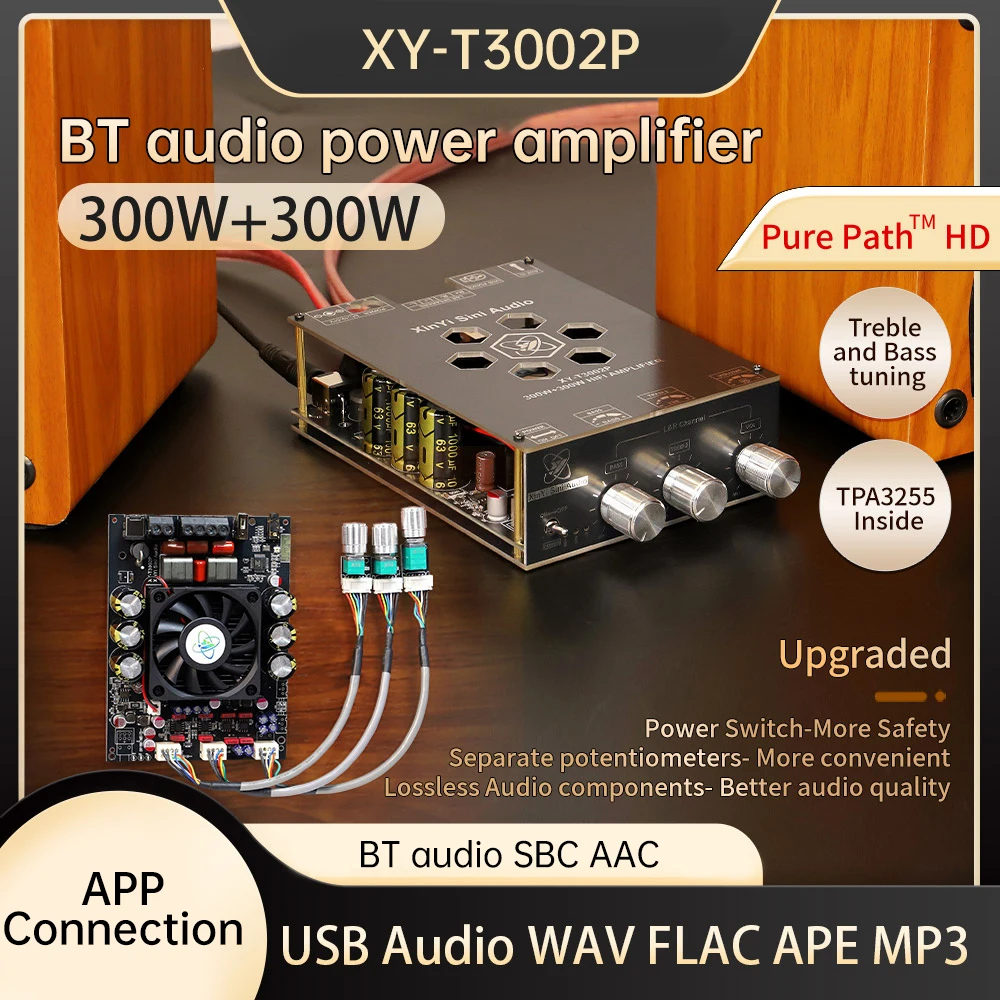

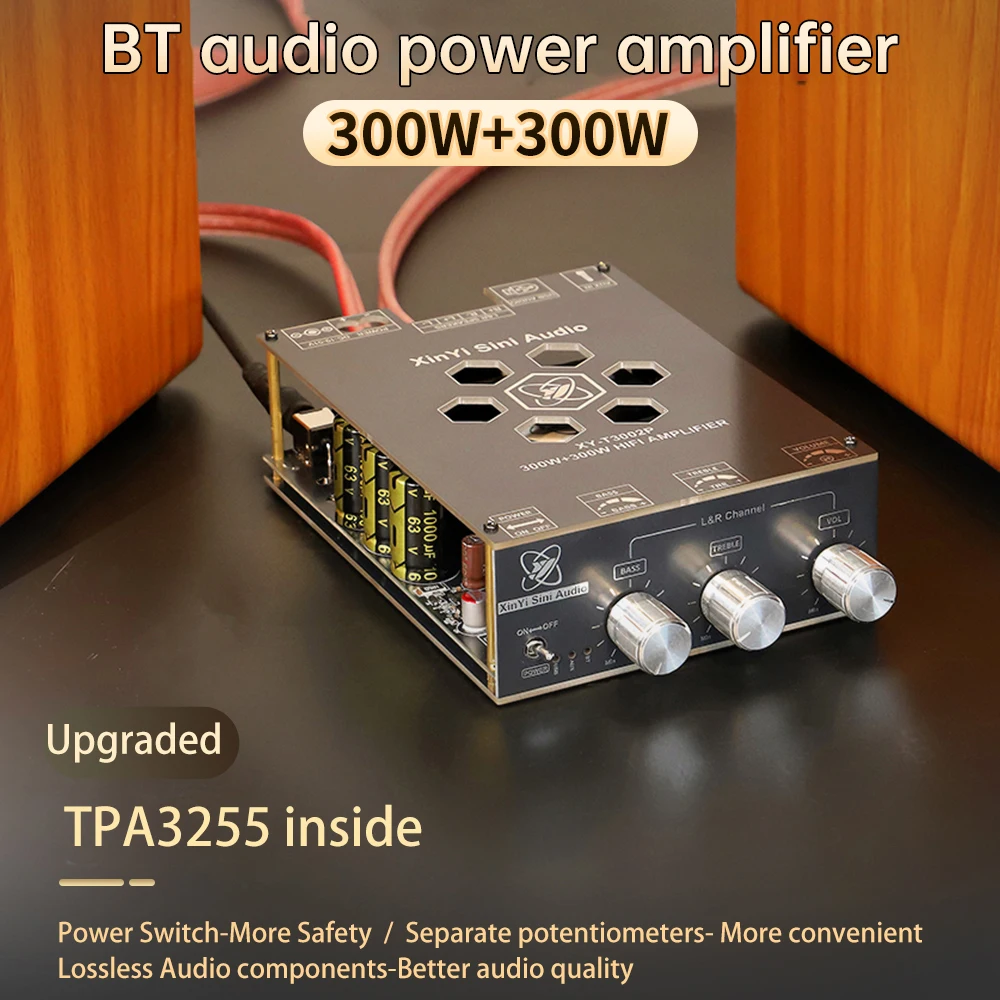

T3002P upgraded version 300WX2 Bluetooth digital amplifier board module with high and low frequency adjustment, imported TPA3255

Product features:

1. High-performance TPA3255 chip: The TPA3255 chip is used to support lossless component sound quality, providing a clearer and more delicate audio experience.

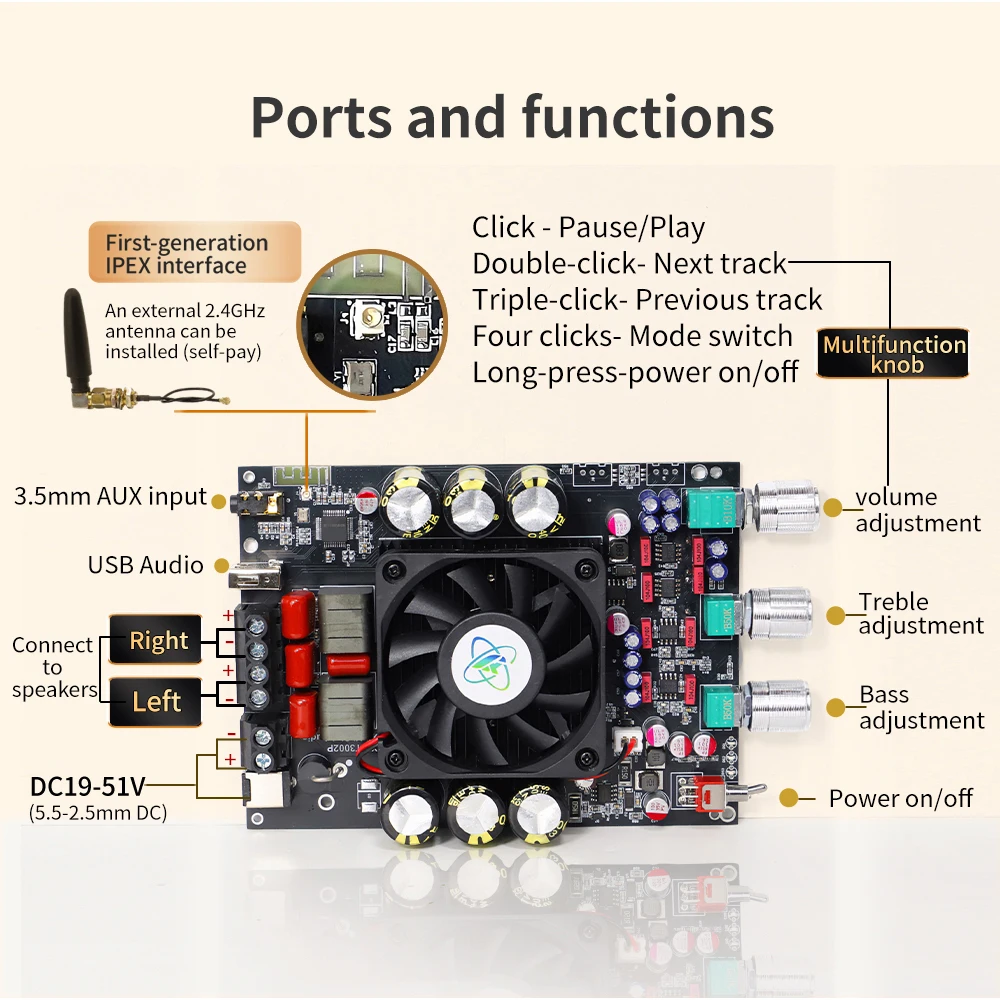

2. Multi-function volume knob: Integrate a variety of operation functions, click pause/play, double click the next song, three clicks on the previous song, four clicks to switch mode, long press the switch machine, convenient and efficient operation.

3. High-power output design: Support up to 300W+300W output power, adapt to different voltage requirements, meet the multi-scene application, sound shock.

4. A variety of audio input methods: Support Bluetooth 5.2, AUX, U disk, USB sound card and other input methods, compatible with WAV, FLAC, APE and other lossless formats, to meet the needs of diverse audio sources.

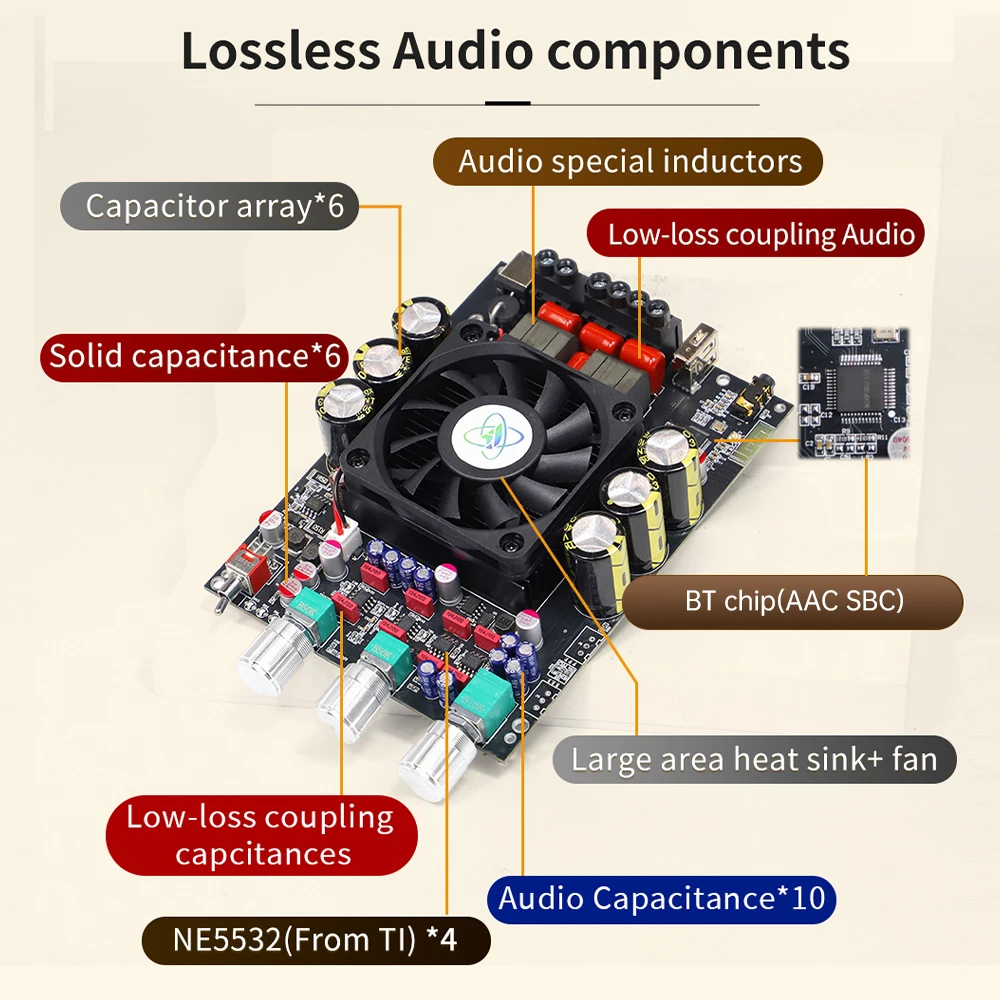

5. High-quality components selection: Equipped with digital power amplifier dedicated low loss inductors, large capacity black gold capacitors and metal film capacitors, to ensure stable and efficient audio performance, more pure sound quality.

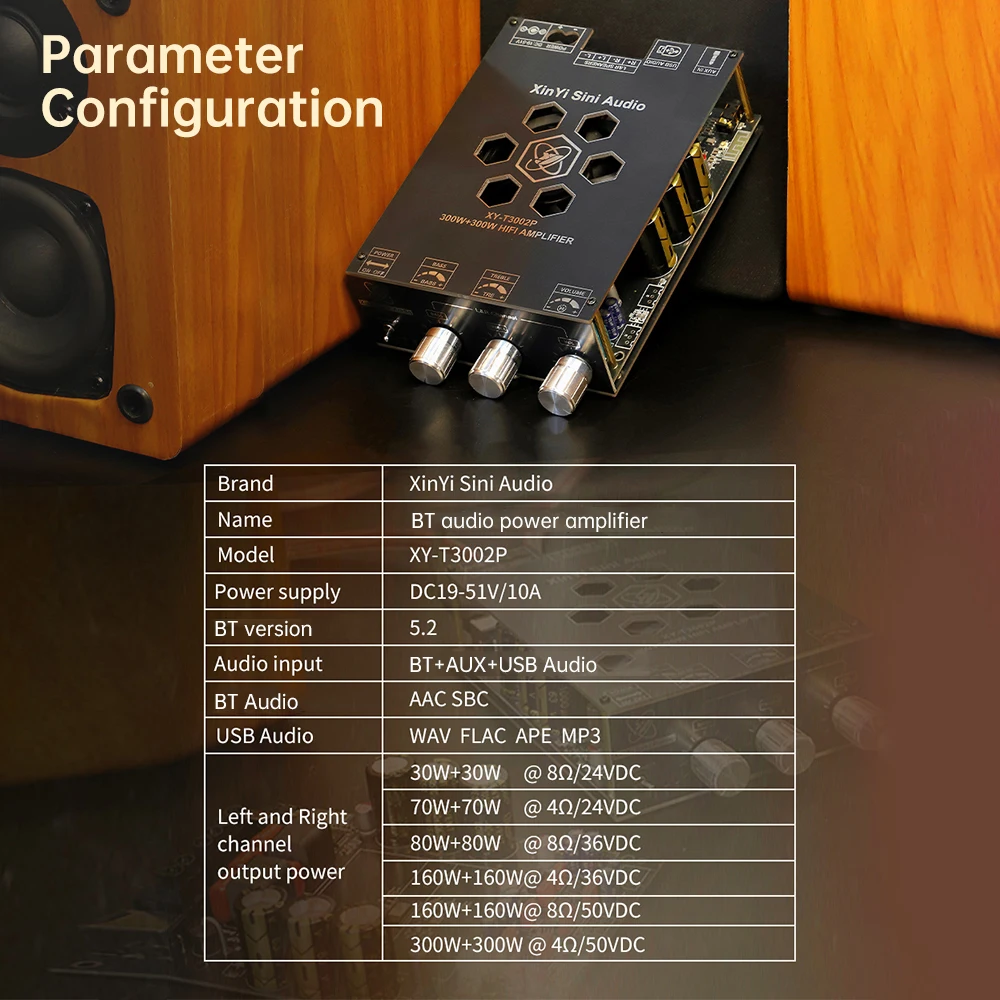

Product parameters:

Product name: Bluetooth digital audio amplifier board

Product model: T3002P

Power supply: DC19-51V/10A or more

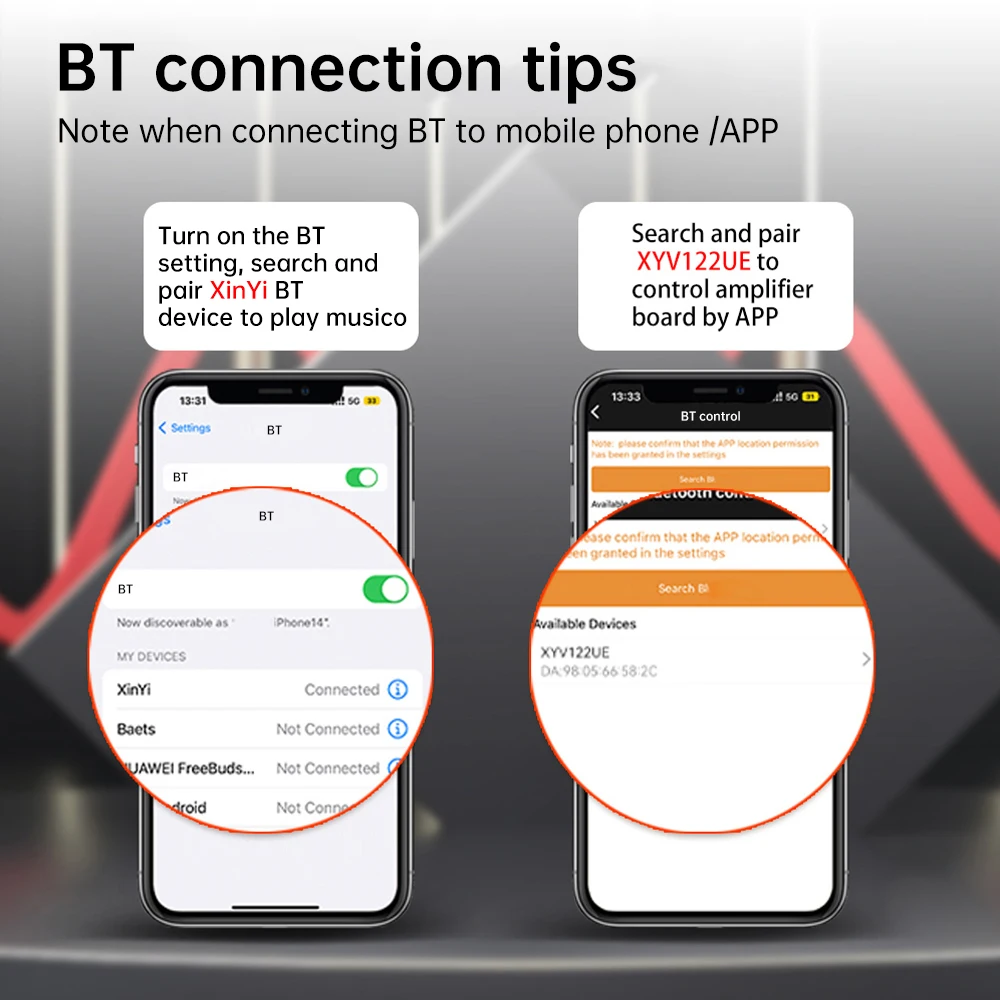

Bluetooth version: 5.2

Audio input: Bluetooth /AUX/U disk /USB sound card

Bluetooth audio decoding: AAC SBC

U disk lossless decoding: WAV FLAC APE MP3

Left and right channel output power:

30W+30W @8Ω/24VDC

70W+70W @4Ω/24VDC

80W+80W @8Ω/36VDC

+ 160 w, 160 w @ 4 Ω / 36 VDC

160 w + 160 w @ 8 Ω / 50 VDC

300 w + 300 w @ 4 Ω / 50 VDC

Product list:

1X power amplifier board

1X screwdriver
