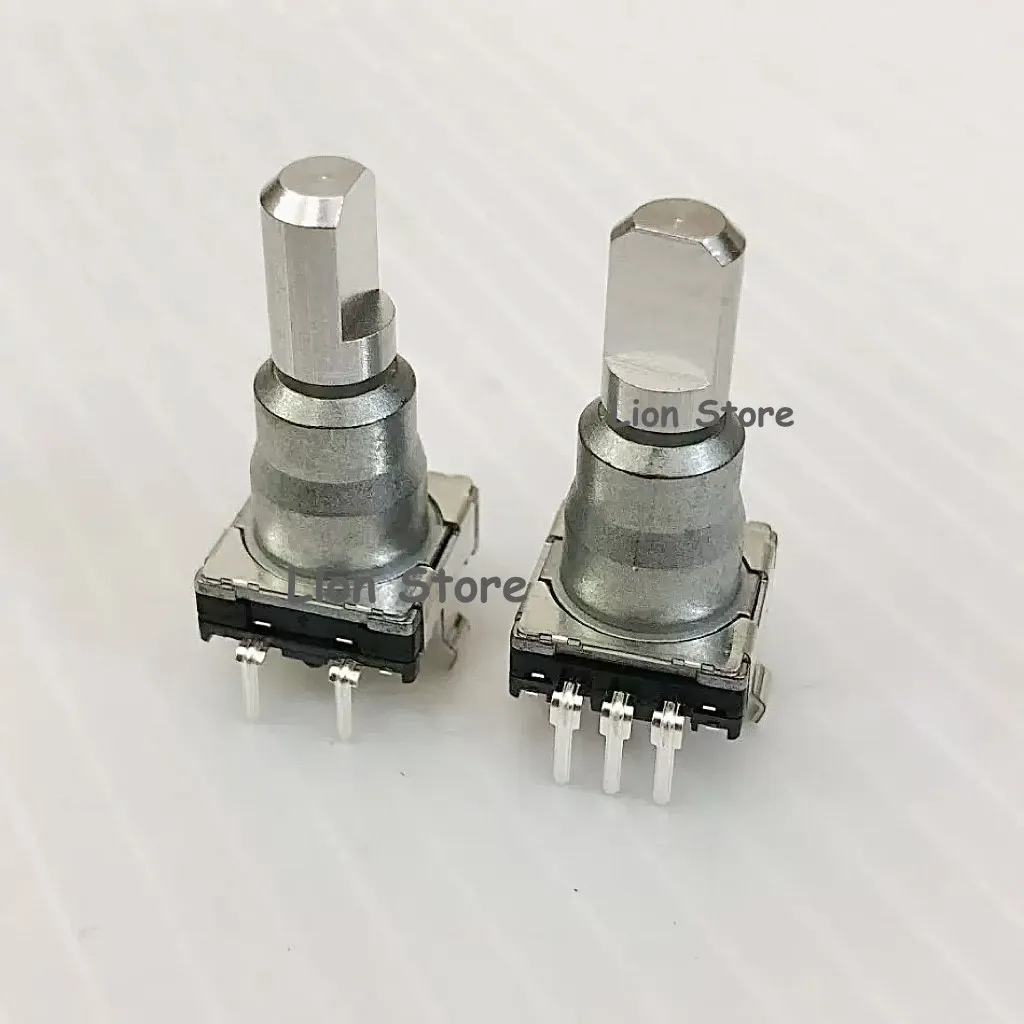

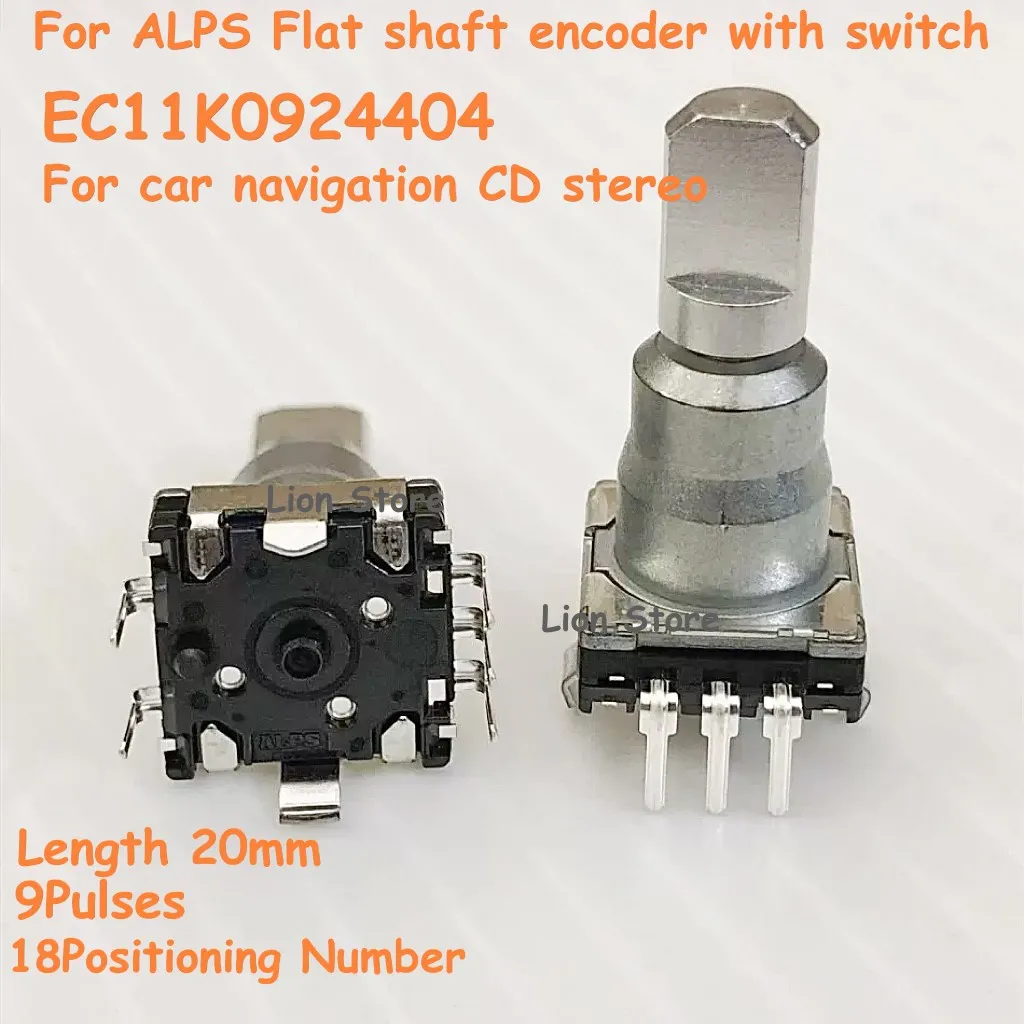

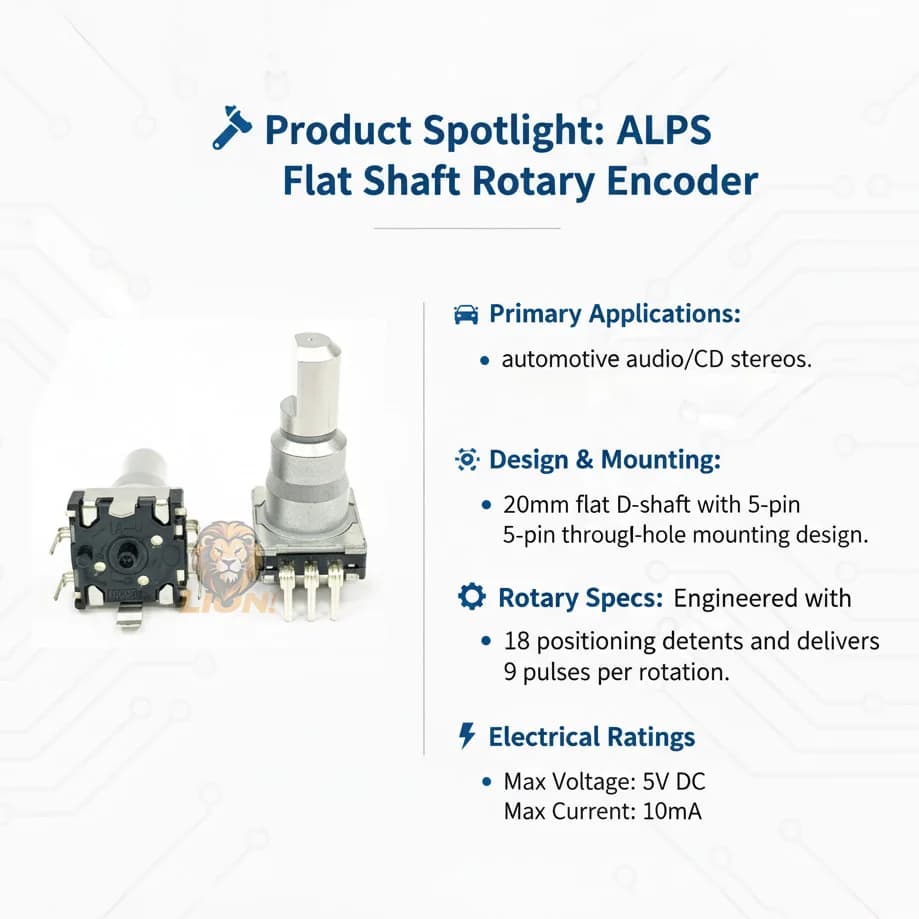

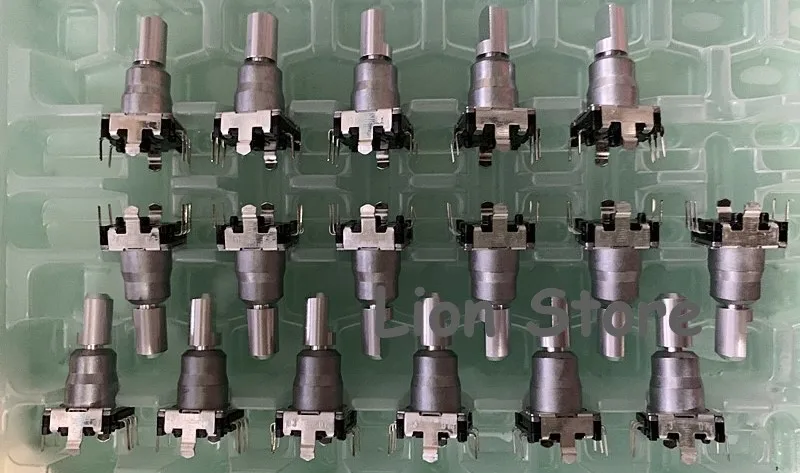

10-200pcs EC11K0924404 For ALPS Encoder with switch car navigation stereo Length20mm 18Positioning 9Pulses 1,000,000 times life
50.67$
50.55$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping

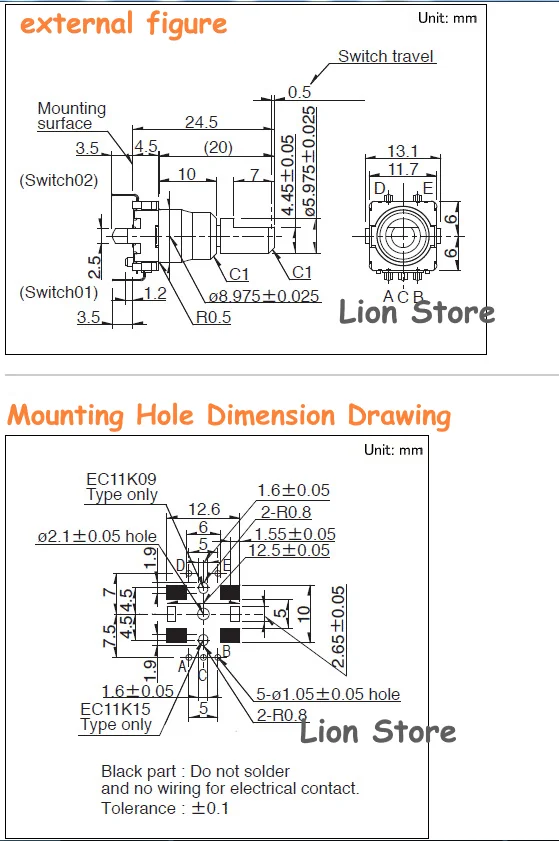

Product Code: EC11K0924404
Structure: Vertical
Shape of operating part: Flat shaft
Operating length: 20mm
Positioning: 18
Number of pulses: 9
Push-to-open switch: Yes
Push-to-open switch stroke: 0.5mm
Operating life: 100,000 cycles
Operating temperature range: -40°C to +85°C
Electrical Performance
Rated: 10mA 5V DC

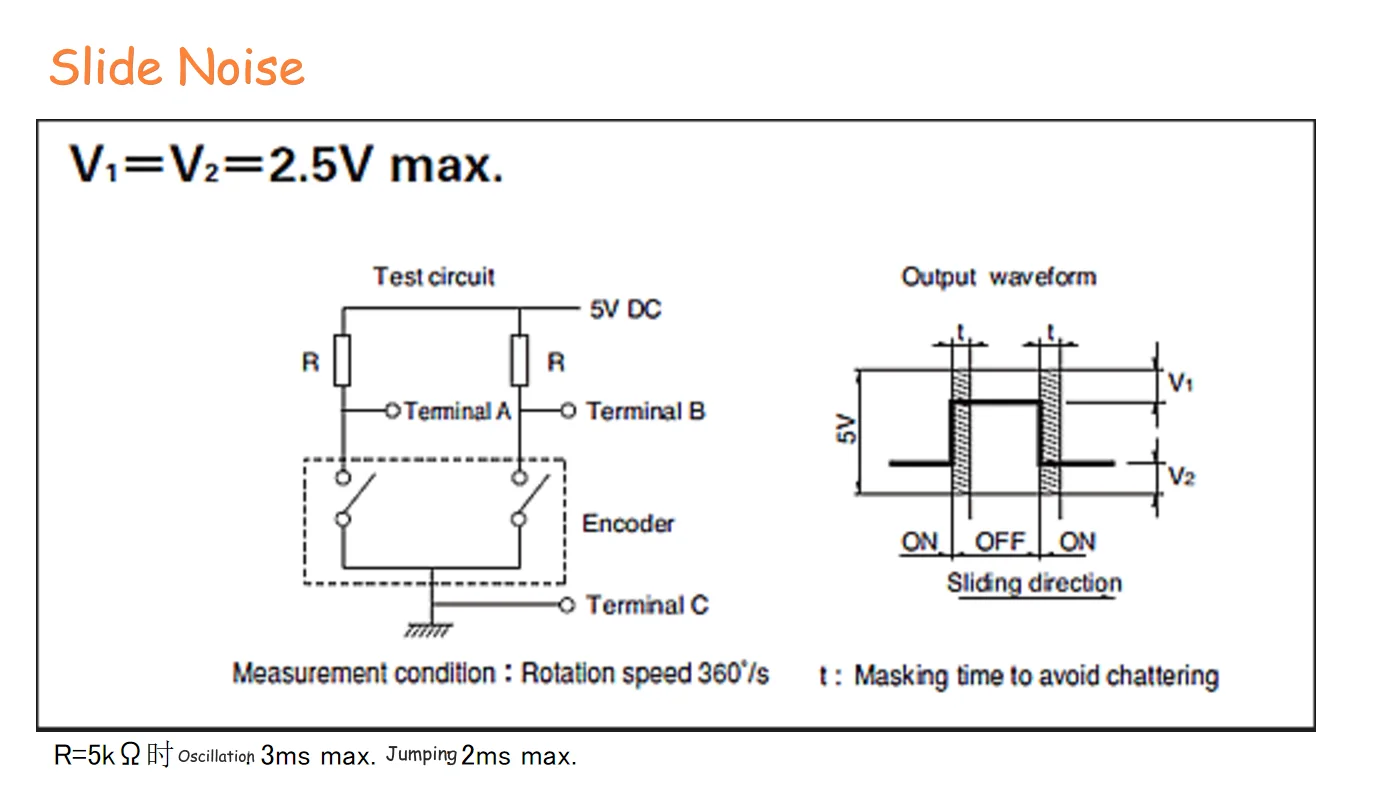

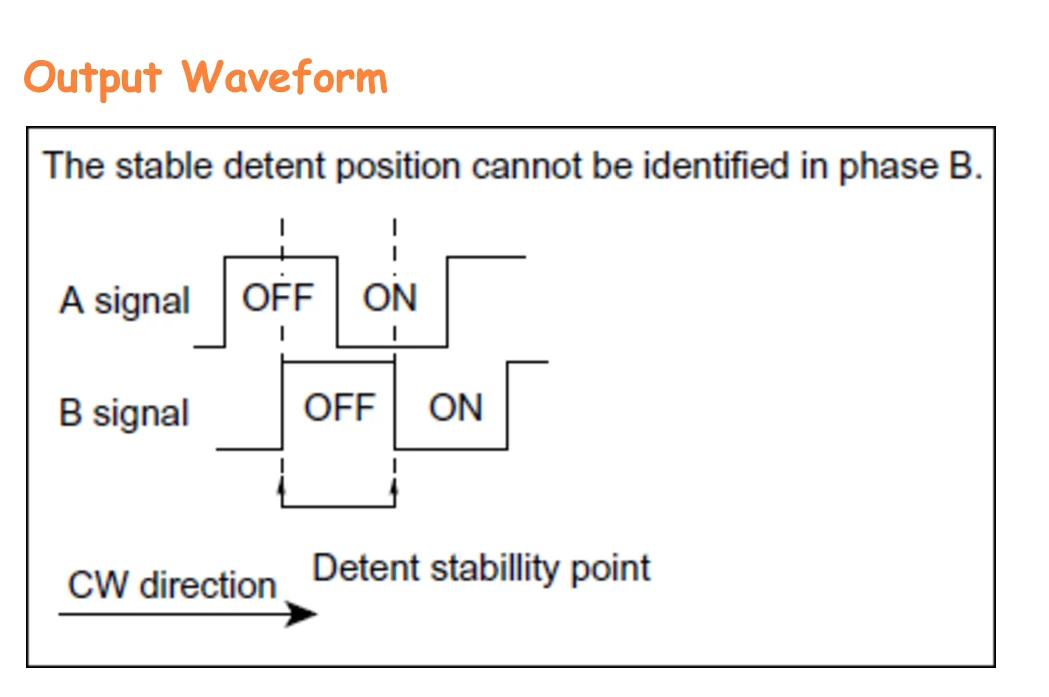

Output signals: A, B, 2-phase outputs
Maximum/minimum operating current (resistive load): 10mA/1mA
Insulation resistance: 100MΩ min. 250V DC
Withstanding voltage: 300V AC for 1 minute or 360V AC for 1s
Mechanical Performance
Positioning torque: 12±5mN-m
Shaft Push-Pull Strength: 100N
Push-to-open switch specifications
Circuit-contact number: single-pole single-throw (push-to-open)
Stroke: 0.5±0.3mm
Action force: 5±2N
Rated: 0.1A 5V DC (1mA 5V DC min. ratings)
Contact resistance (initial/after life): 100mΩ max./200mΩ max.
