Mini Column Load Cell 5kg 10kg 20kg 30kg 50kg Stainless Steel Pressure Sensor High Precision Weighing Sensor

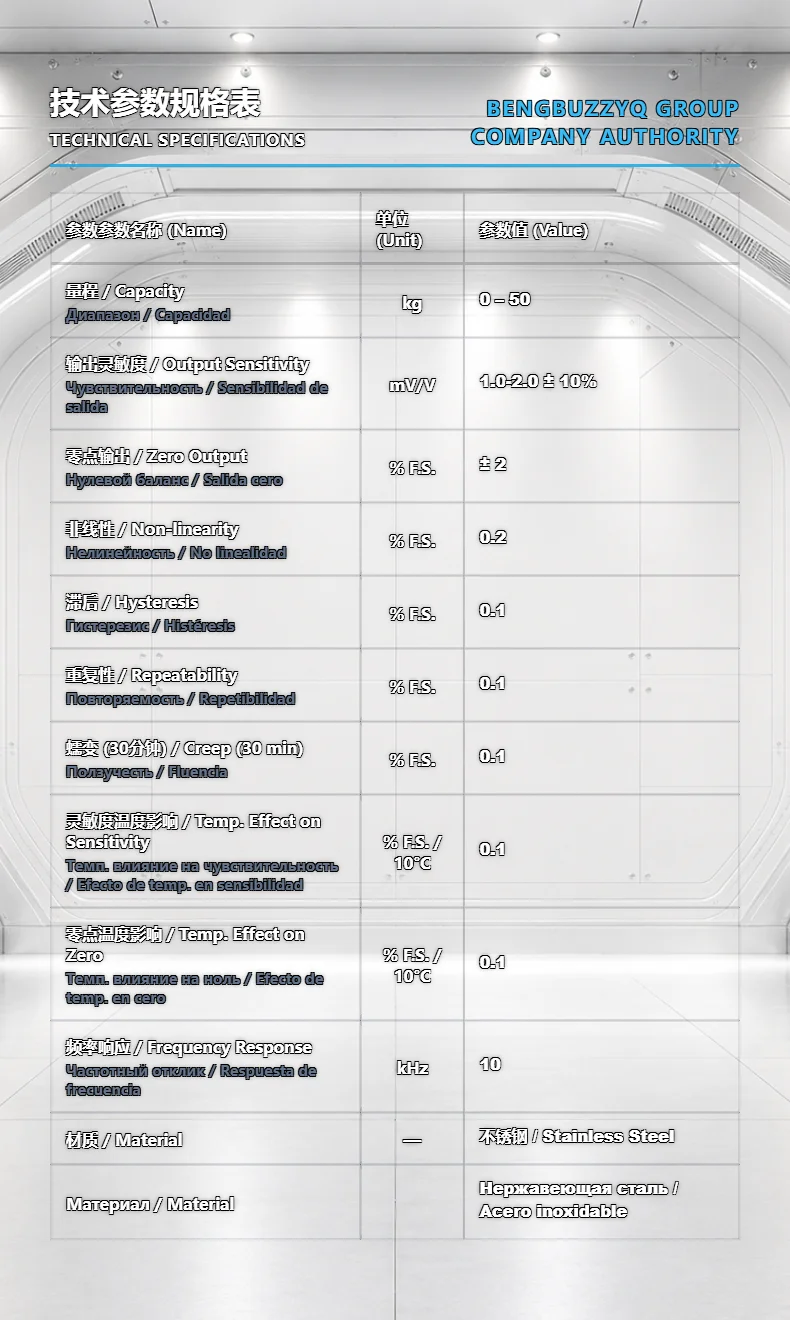

Item

Specification

Capacity

0–50 kg

Output Sensitivity

2.0 ± 10% mV/V

Zero Output

±2% F.S.

Non-linearity

0.2% F.S.

Hysteresis

0.1% F.S.

Repeatability

0.1% F.S.

Creep (30 min)

0.1% F.S.

Temperature Effect on Sensitivity

0.1% F.S. / 10°C

Temperature Effect on Zero

0.1% F.S. / 10°C

Frequency Response

10 kHz

Material

Stainless Steel

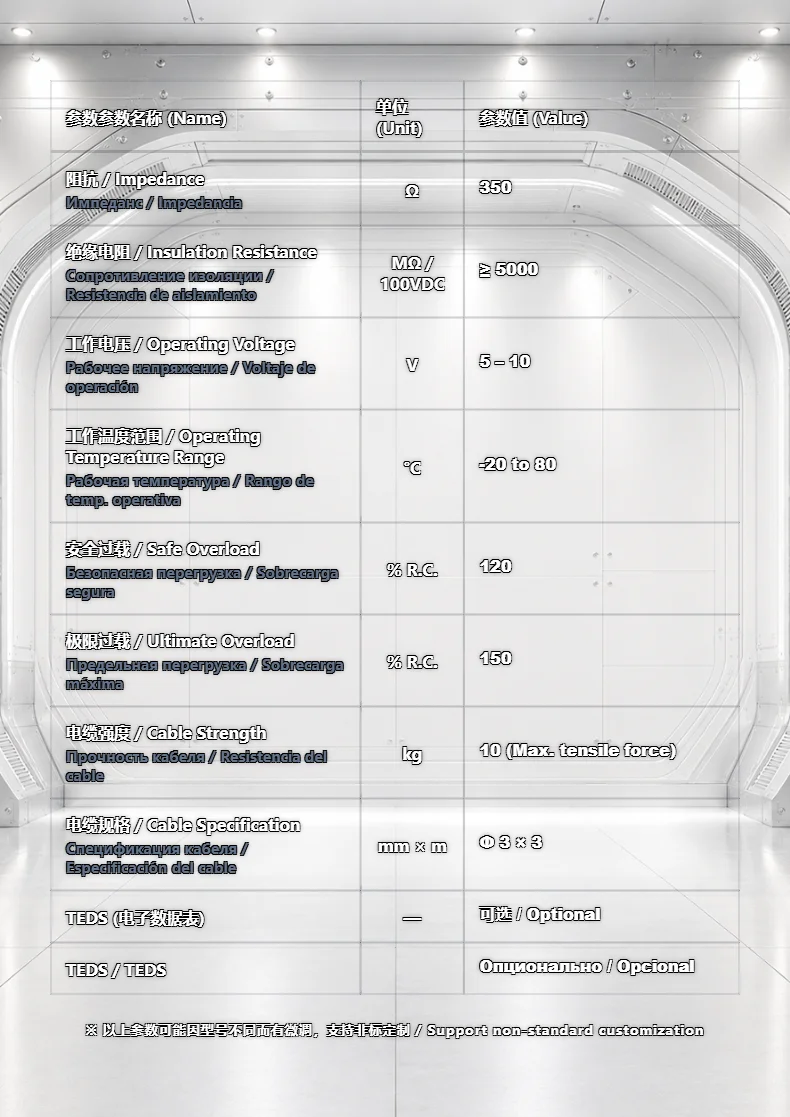

Impedance

350 Ω

Insulation Resistance

≥5000 MΩ / 100VDC

Operating Voltage

5–10 V

Operating Temperature Range

-20°C to 80°C

Safe Overload

120% R.C.

Ultimate Overload

150% R.C.

Cable Strength

10 kg (maximum tensile force)

Cable Specification

φ3 mm × 3 m

TEDS

Optional

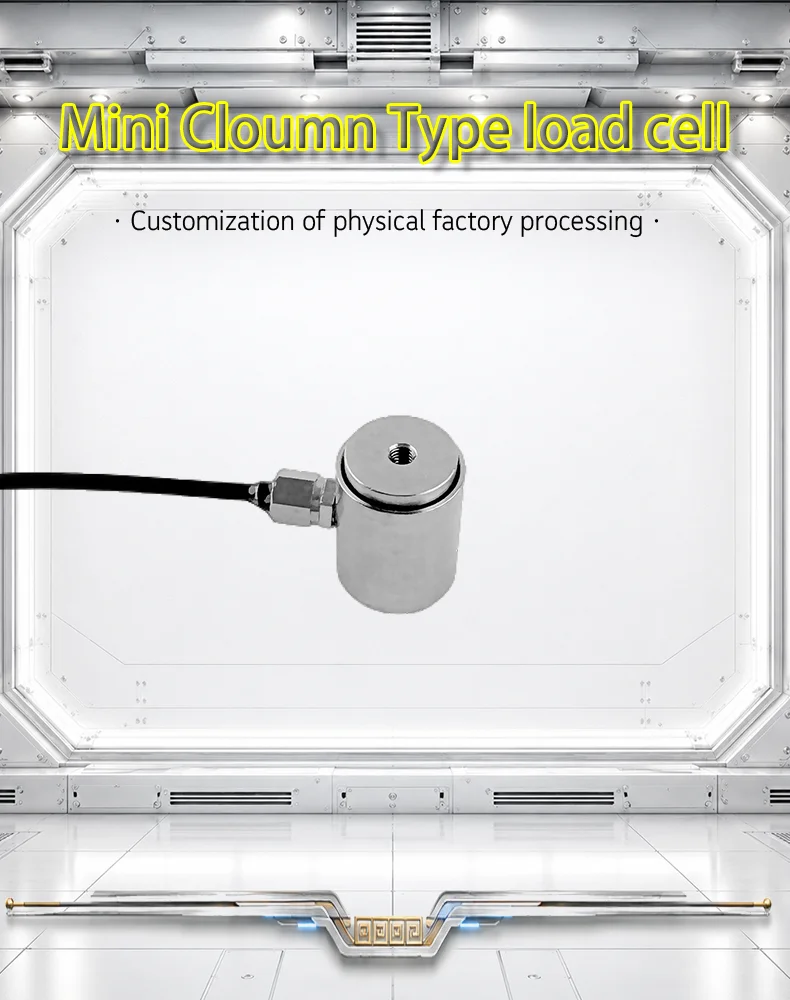

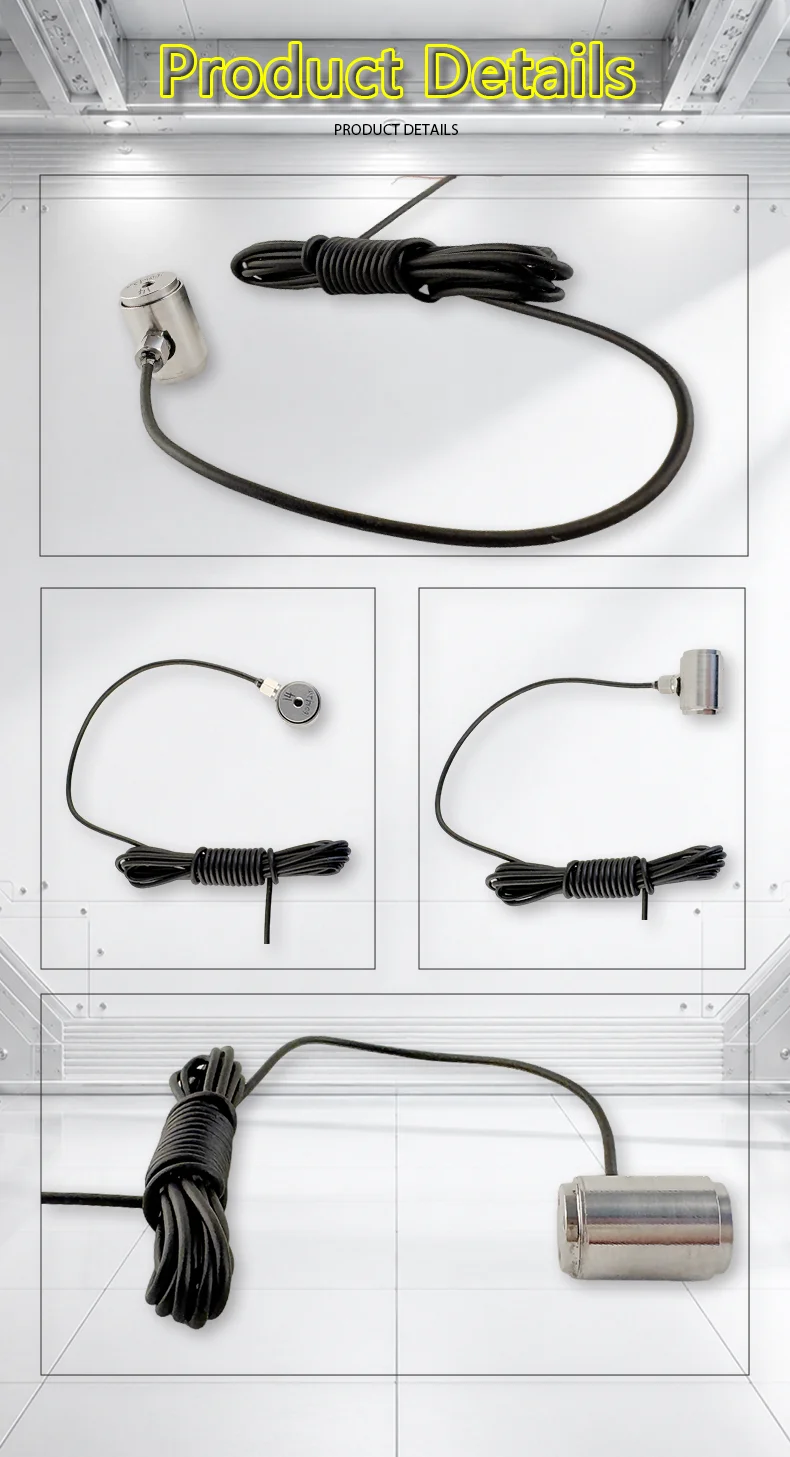

This miniature column-type load cell is made of high-strength stainless steel with a compact and durable structure. Designed for 0–50kg compression measurement, it features a high-accuracy strain gauge with a sensitivity of 2.0mV/V and a fast 10kHz response frequency, ideal for dynamic and high-speed industrial applications. The sensor provides excellent temperature stability, low hysteresis, low nonlinearity, and strong insulation performance, operating reliably from -20°C to 80°C. Equipped with a Φ3*3m reinforced cable (10kg pull resistance), optional TEDS, and suitable for automation, industrial force control, jigs, robotics, and measurement systems.
