XKC-KL800 Distance Laser Sensor 2% Hign Accuracy Small Angle Object Human Presence Proximity IR Infrared Sensor

OVERVIEW:

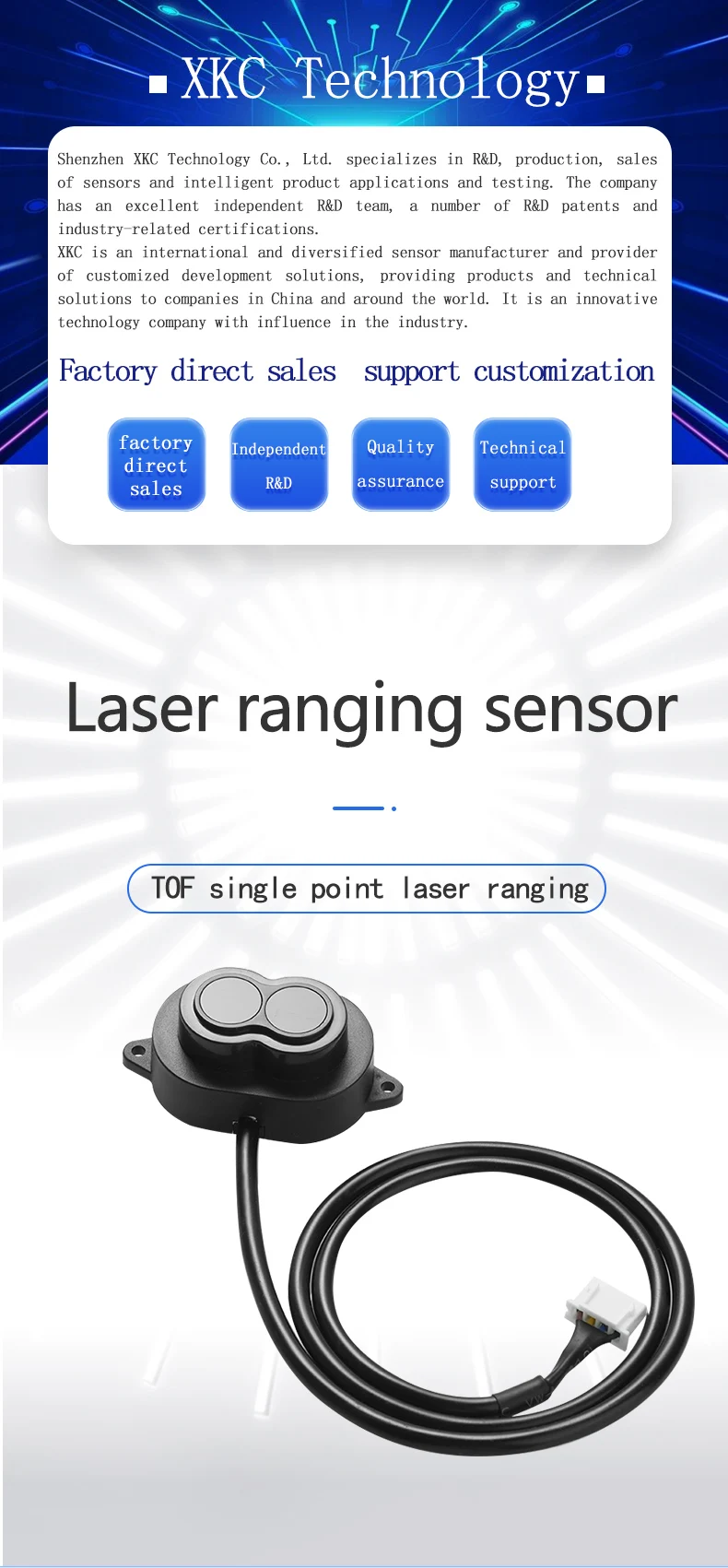

XKC-KL800 is a single-point ranging sensor based on the ToF principle. The product has a variety

of application environments and targets. With the unique optical and electrical design, it can achieve

stable, accurate and highly sensitive distance measurement in a complex environment.

When the measured object enters the Fov of the sensor; the sensor will judge whether the

measured object enters the induction interval set by the sensor internal system according to the

distance measured in real time; if the measured object enters the induction interval behind the sensor,

when the indicator light of the sensor leaves the induction interval, the indicator light goes off; the

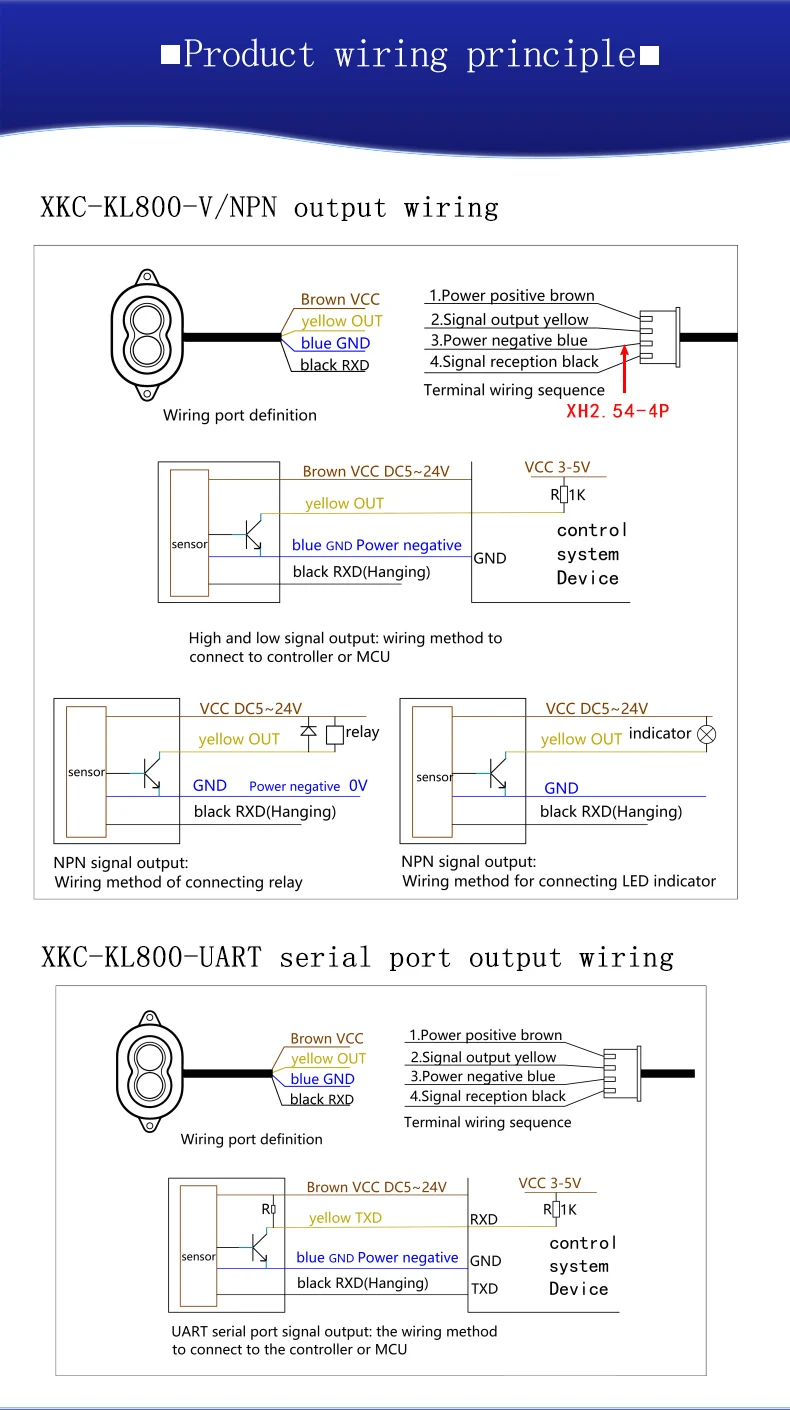

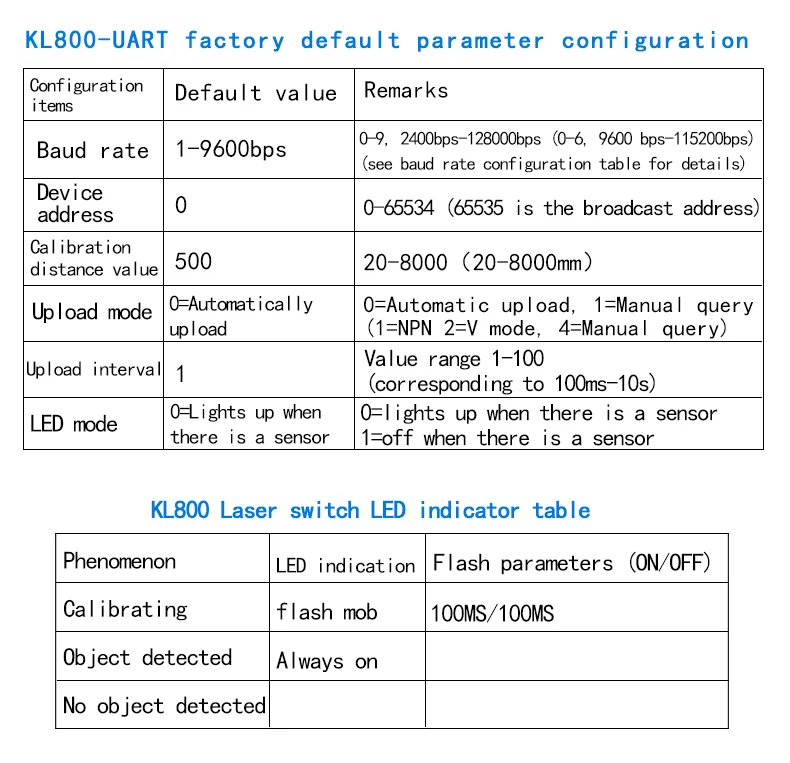

sensor output mode includes UART serial port, high and low level or NPN, which can be selected.

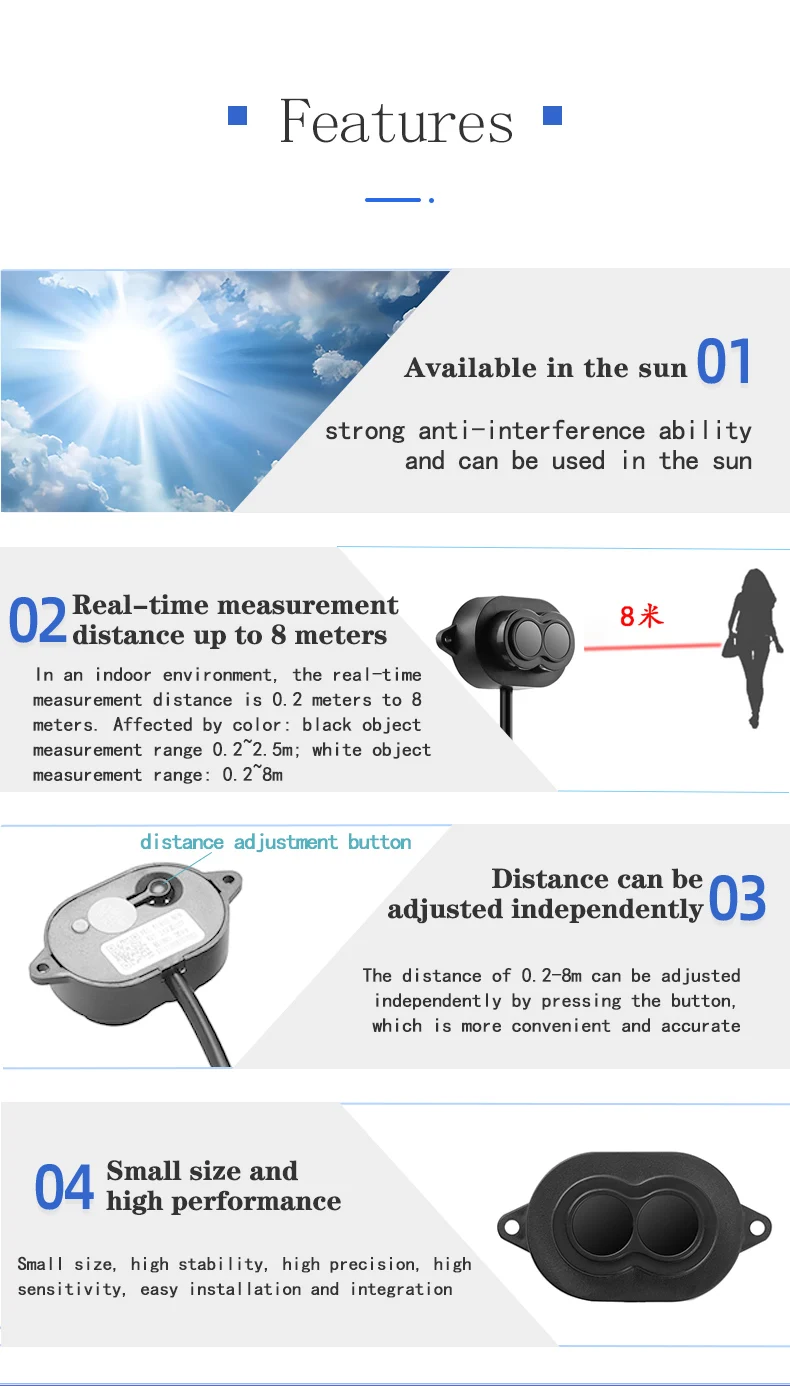

Functional characteristics :

1. Strong anti-interference ability, which can be used in the sun.

2. Intelligent induction of non-contact switch, safety and health.

3. The induction angle is small.

4. Small in size and easy to install.

5. A variety of ways to output, simple and easy to use.

6. High protection level, with overcurrent, overvoltage, anti-back connection and other protection

circuit.

7. In the indoor environment, the real-time measurement distance is up to 8 meters.

8. Multi-layer filter cover, with more stable induction.

Application Range:

1. Intelligent induction sanitary ware, such as: faucet induction, urine and feces bucket automatic

flushing, automatic drying phone, etc.

2. Home security, such as: burglar, automatic doorbell, stair aisle induction, TV close watch TV

reminder, etc.

3. Intelligent detection, intelligent control, such as: automatic door, advertising light box, automatic

trash can, etc.

4. Identification of robots, drones and other obstacles.

5. Real-time detection distance of industrial automation equipment.
