M5Stack A164 Tab5 Keyboard

Description

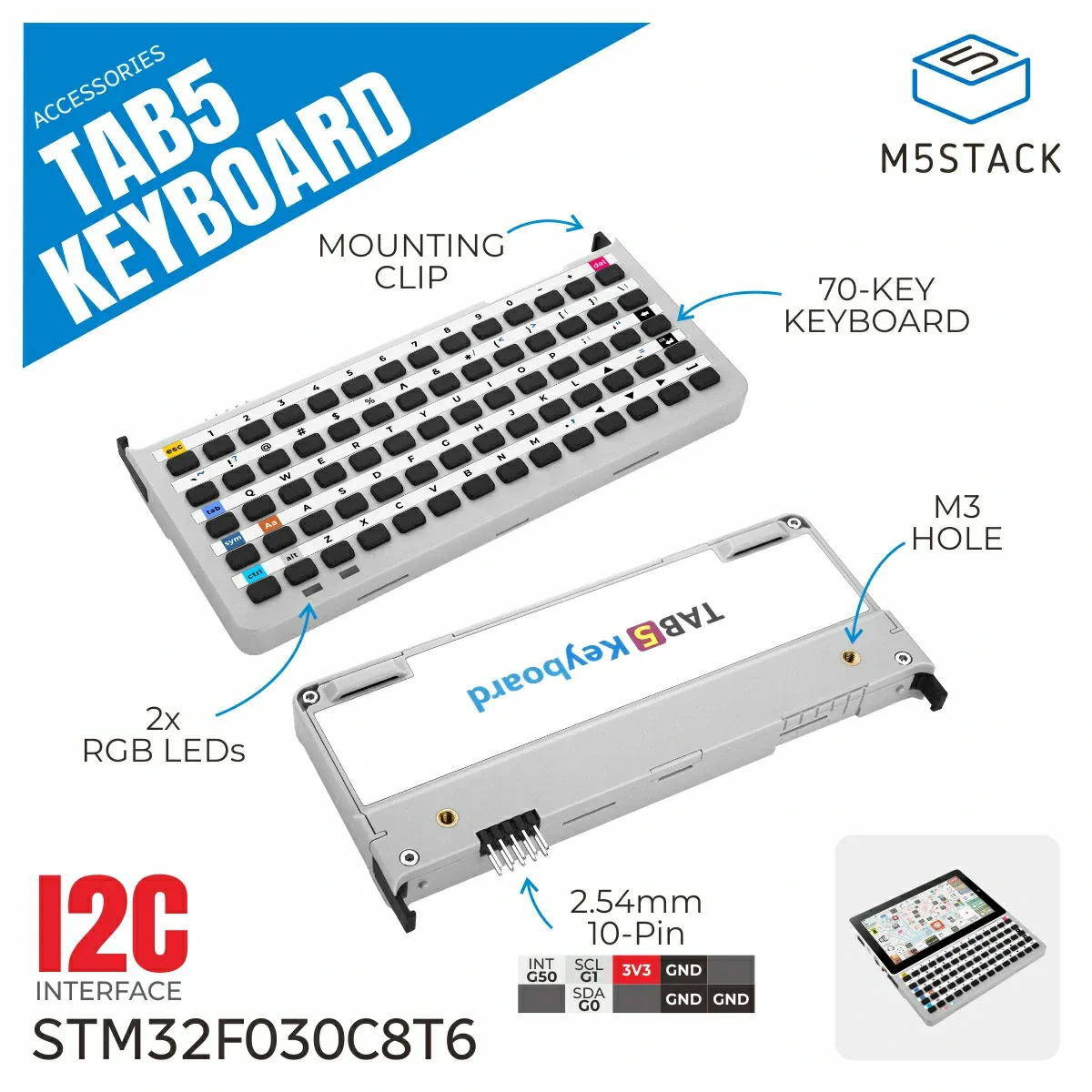

Tab5 Keyboard is a 70-key physical keyboard input expansion module designed specifically for Tab5. It connects directly to the host via Tab5 Ext.Port1, enabling a plug-and-play input experience. The module integrates an STM32F030C8T6 main control chip, responsible for keyboard matrix scanning and communication processing. The preloaded firmware supports three operating modes: Normal, HID, and Character, adapting to different interaction requirements. The keyboard adopts a 14 x 5 matrix design, supports multiple simultaneous key presses, and provides a complete set of letters, numbers, symbols, and commonly used function keys such as Aa, Ctrl, Sym, Alt, Tab, Esc, and arrow keys. The device communicates with Tab5 via I2C and provides an independent interrupt pin for low-latency real-time reporting of key events. Two onboard RGB LEDs can be used for full-color status indication. With a compact structure and simple connection method, it is suitable for text input, command interaction, and various portable applications that require a physical keyboard.

Features

Uses STM32F030C8T6 as the main control chip

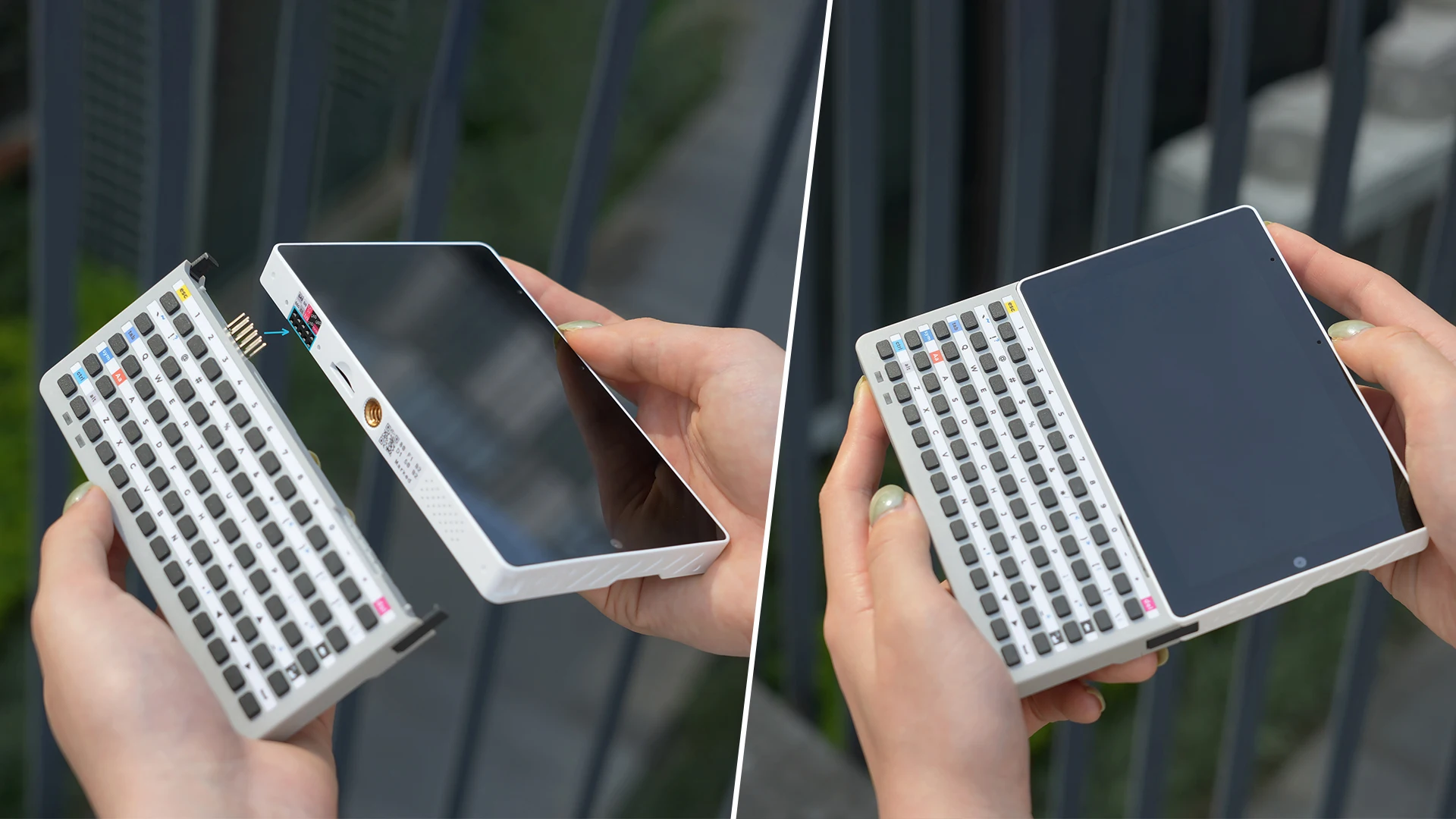

Designed for Tab5, plug and play via direct connection to the expansion port
Three operating modes to meet diverse requirements
14 x 5 matrix, supports multiple simultaneous key presses

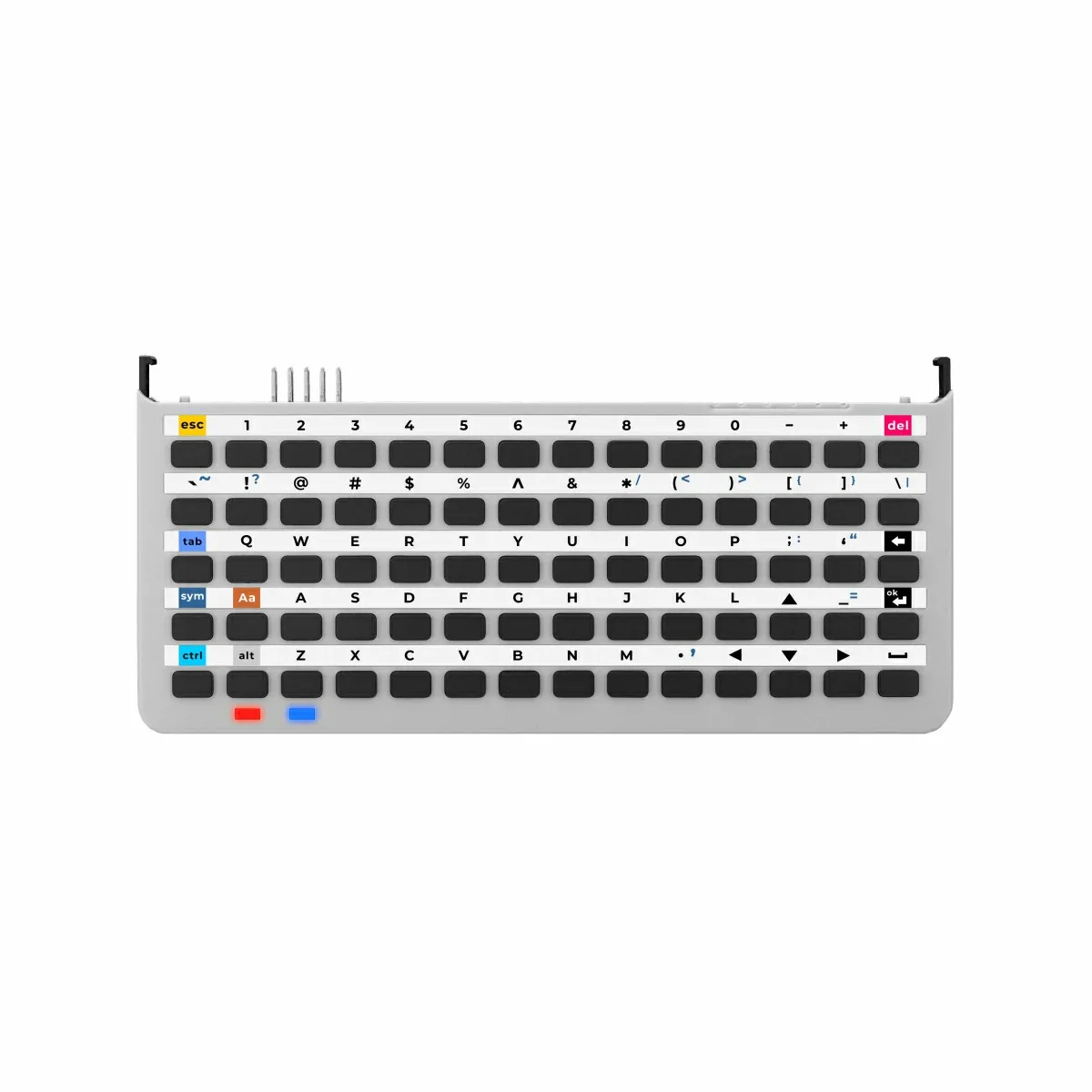

Complete key layout with various commonly used function keys
I2C communication with low-latency reporting through an interrupt pin
Onboard dual RGB LEDs for colorful status indication

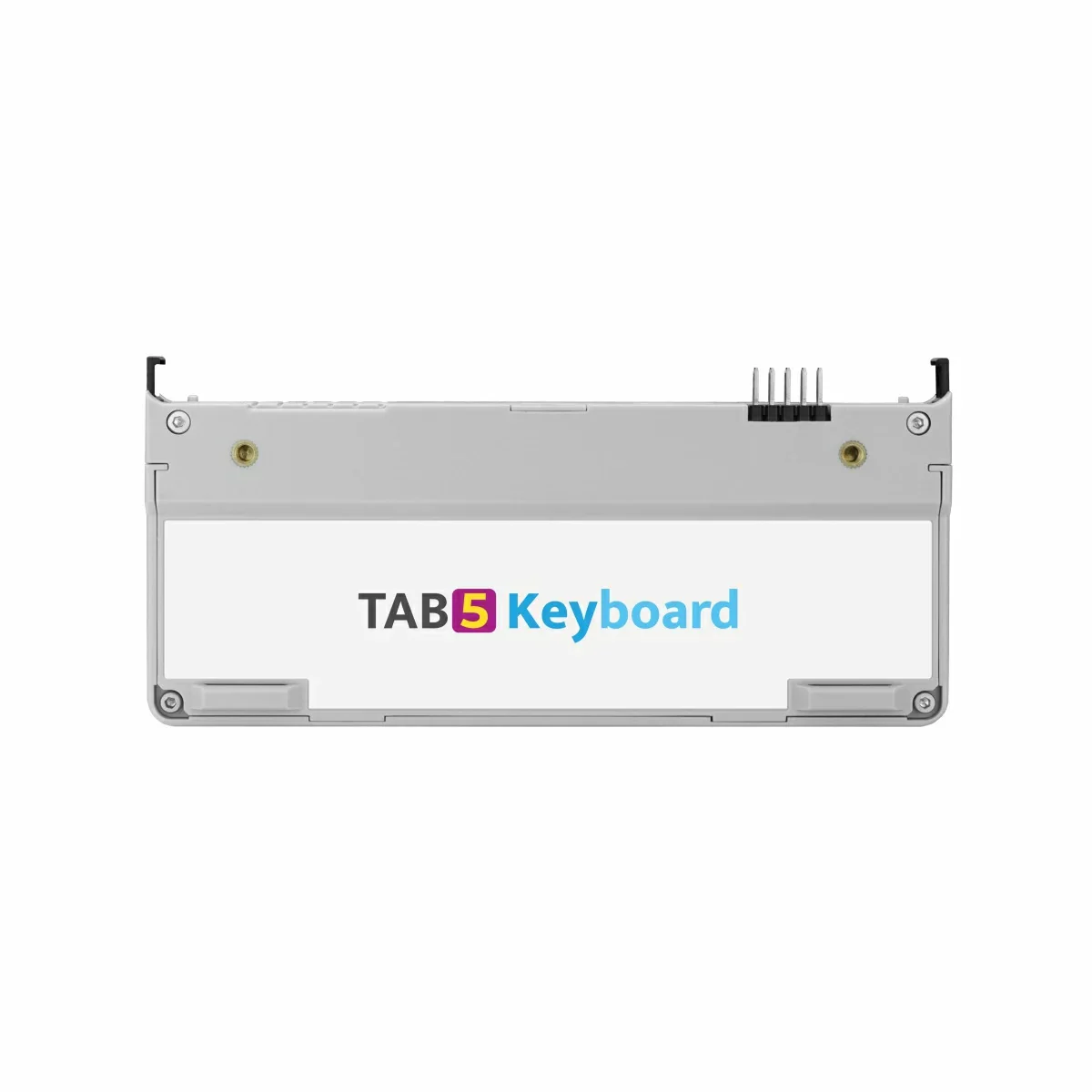

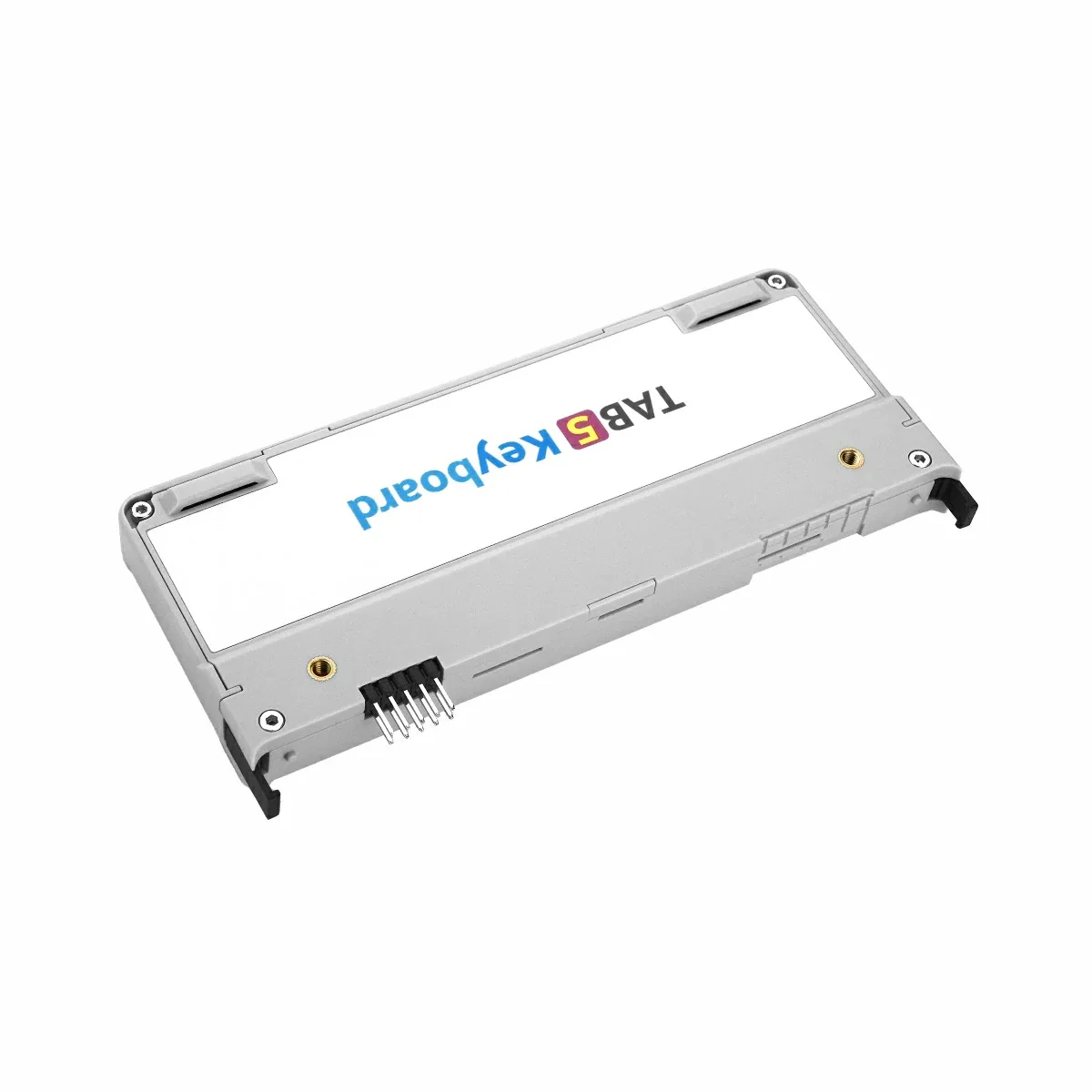

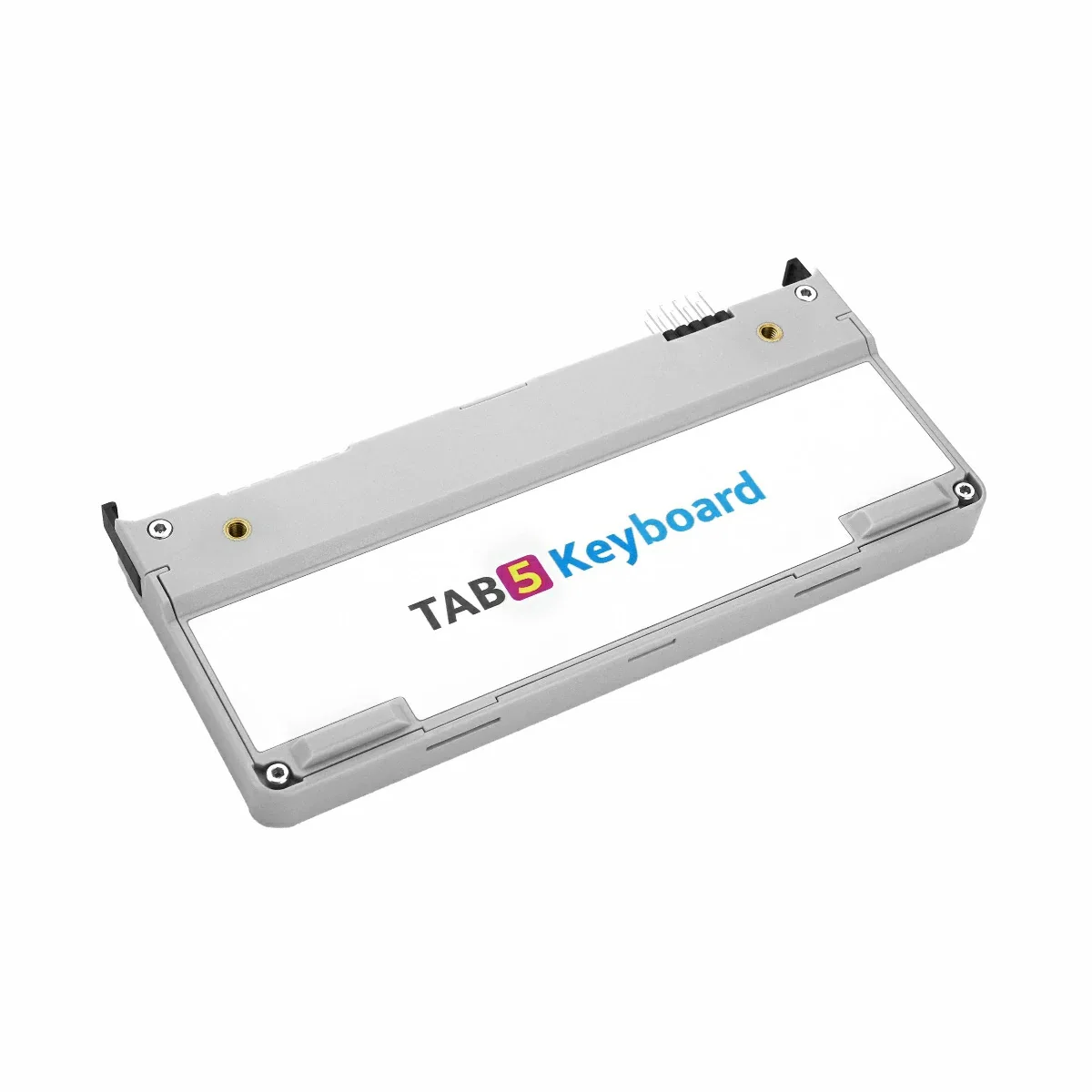

Side latches securely lock onto Tab5; two M3 screw mounting holes reserved on the back
Compact structure with strong adaptability for portable scenarios

Product Details

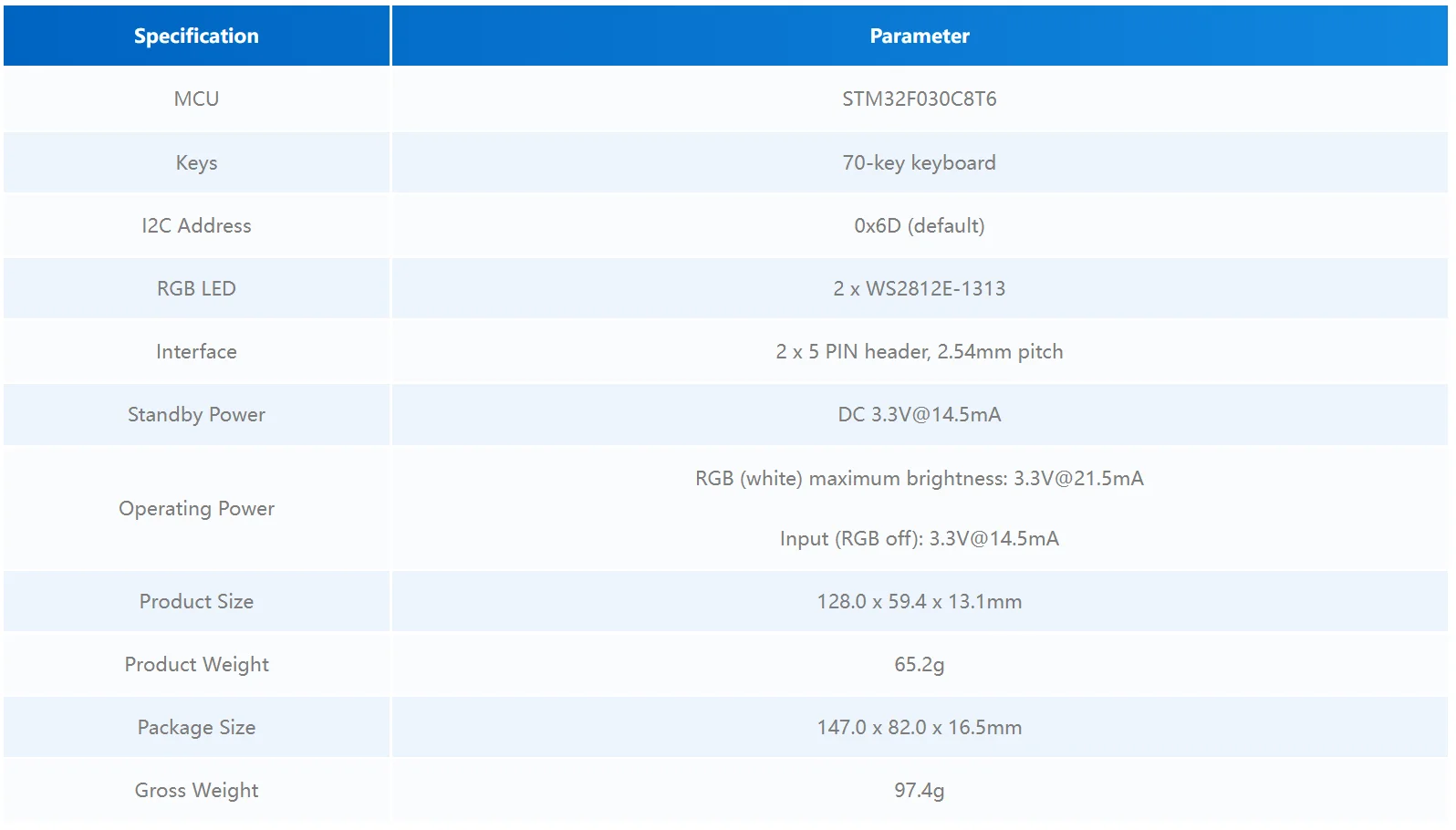

Specifications

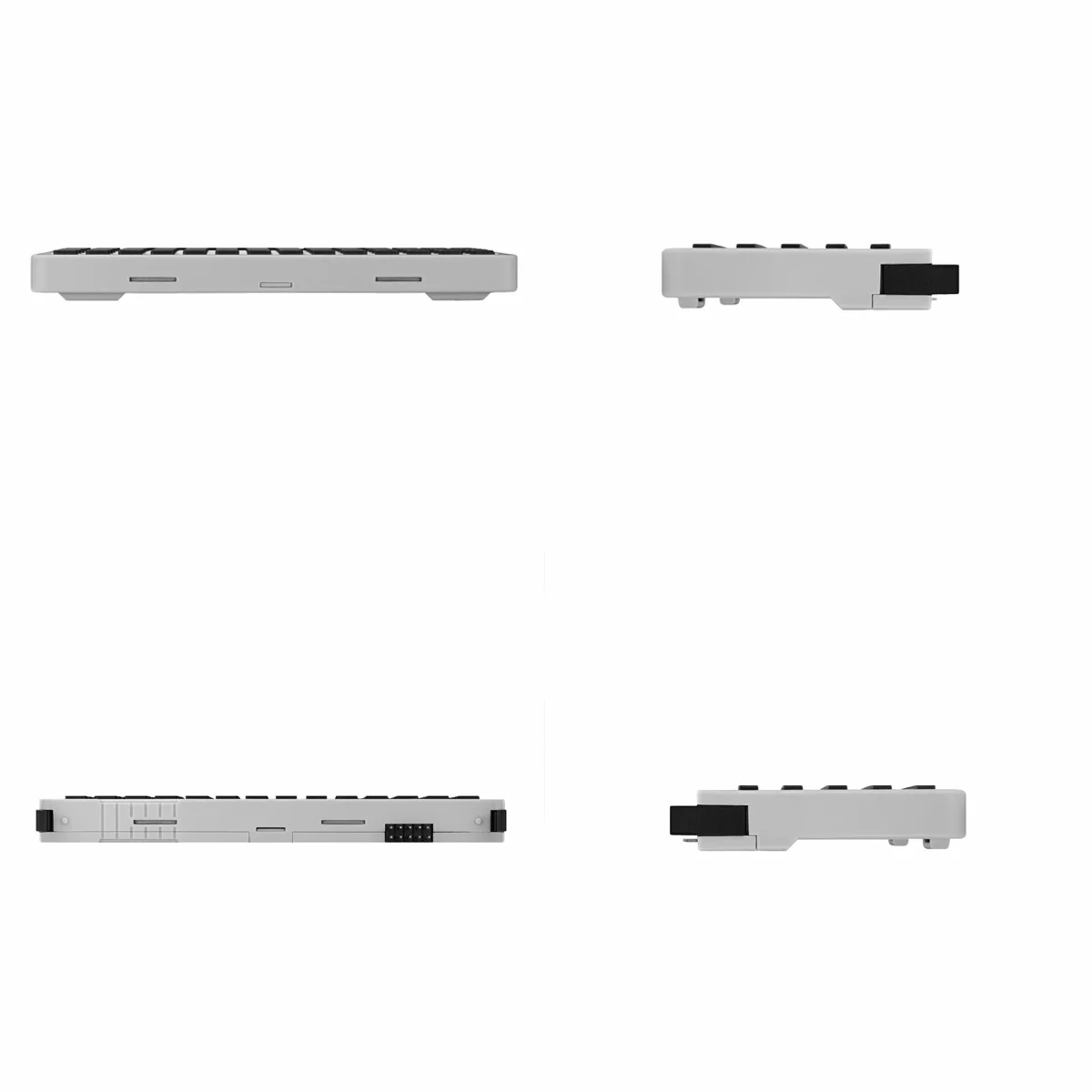

Model Size

Device Connection Diagram
