A-200AF-5 Chuanglian 5V40A 200W Power Supply For Large Commercial LED Video Display

A-200AF-5 Chuanglian 5V40A 200W Power Supply For Large Commercial LED Video Display

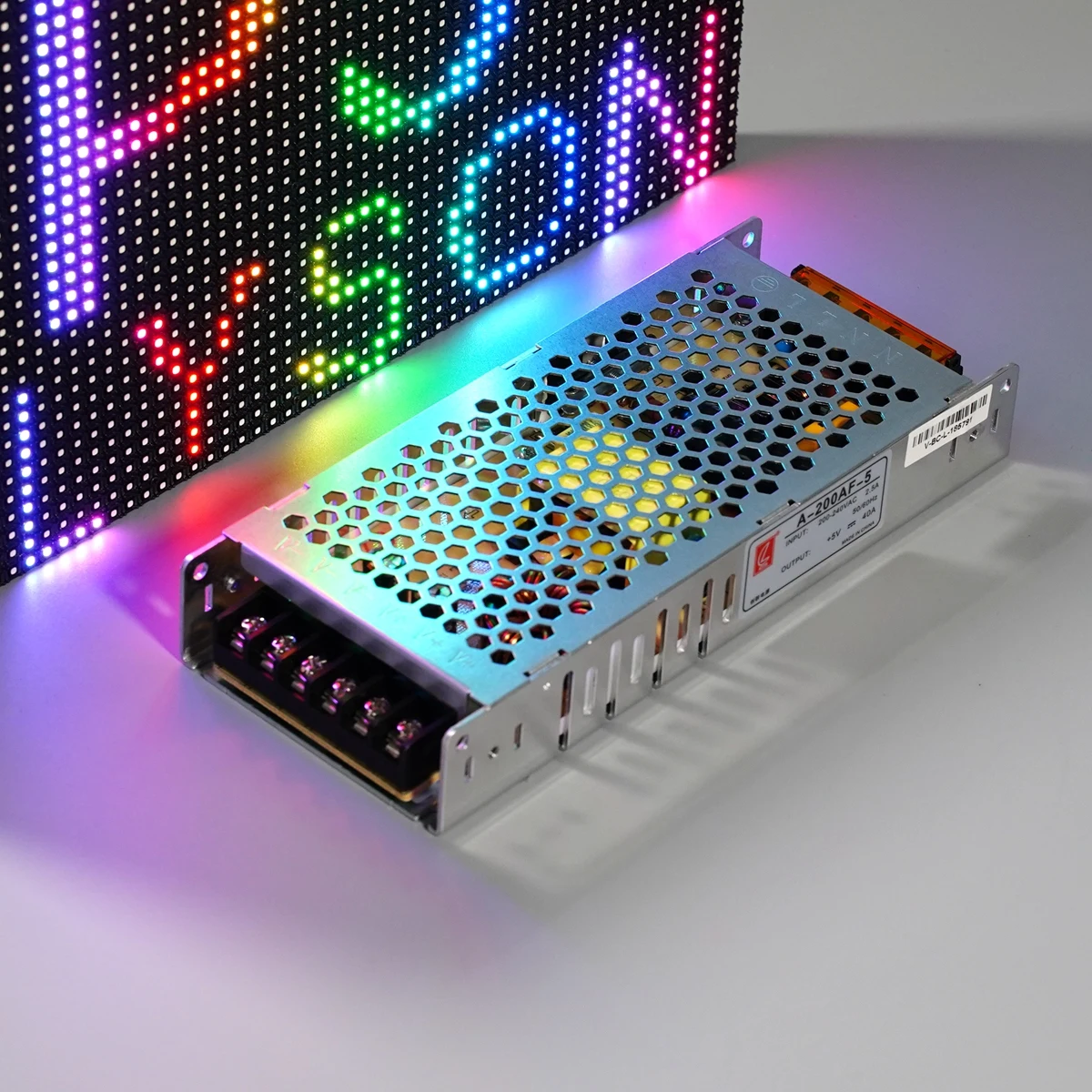

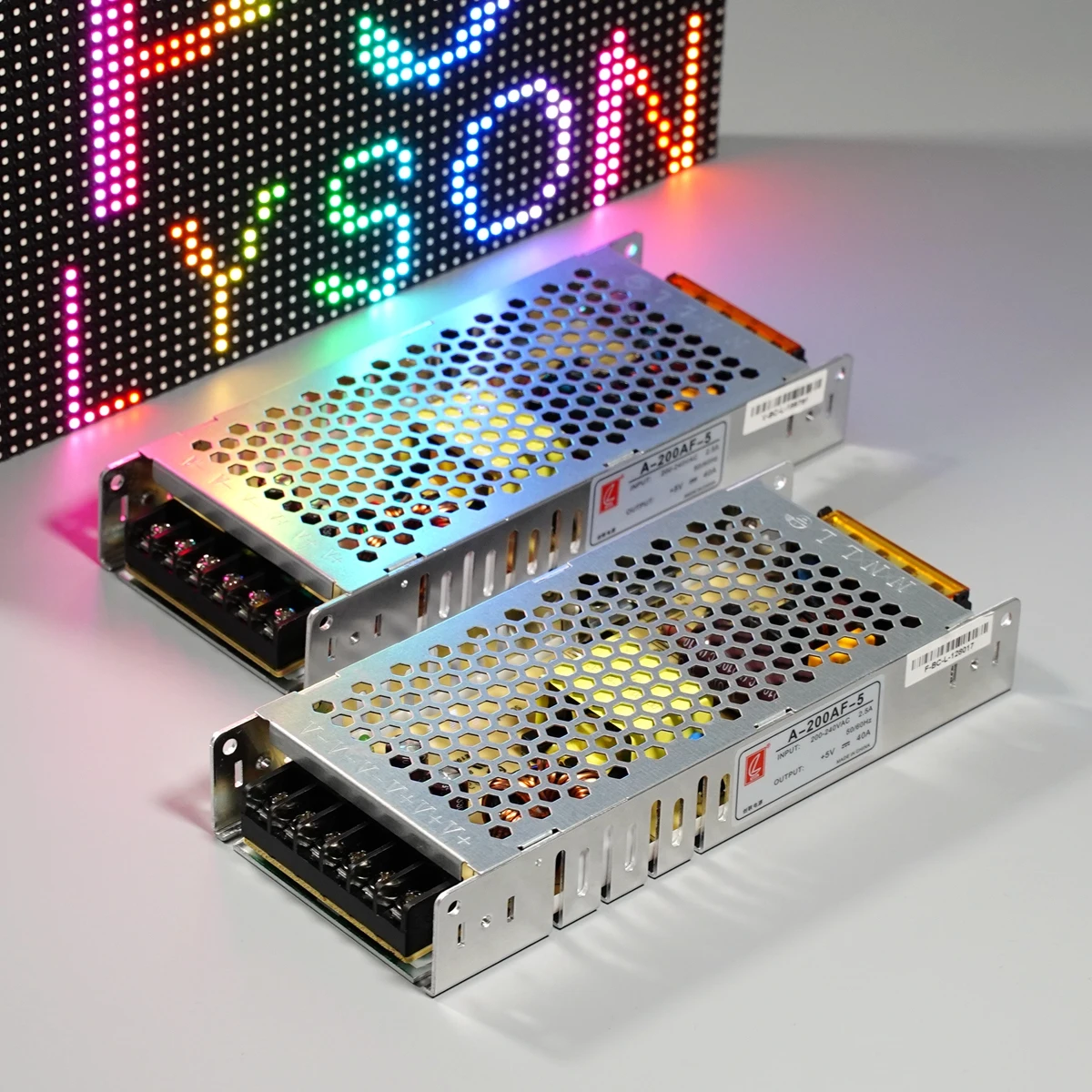

Features

Standard slim model，height 30mm
-20~+70 ℃working temperature
(refer to derating curve)
Protections: short circuit/overload
100% full load burn-in test
High efficiency, High reliability
2 years warranty

Applications

LED display、LED indicator light、LED TV wall and so on.

Product description

A-200AF-5 is Led display power supply without fans. The input voltage rang is 100～264VAC and output voltage is DC 5V. It can be applied to Led display、LED indicator light and other Led display fileds. This series product is ultra-thin design, with a height of only 30mm, and can adapt to a variety of box size requirements. Super high efficiency, compact shell design and good heat dissipation ensure the long-term stable work of this series of products

Specification

Efficiency:86%
Frequency range:47～63HZ
Output voltage: DC 5V
Output rated current:40A
Power:200W
Voltage adjust range : ±3.0%
Ripple and noise:150mVp-p
Set up,rise time:2000ms，50ms/230VAC 100% load
Hold up time:20ms/230VAC 100% load
EMC:Design refer to:EN55022，Class A
Working temperature and humidity:-20~70
Storage temperature and humidity:-40 ℃~85
Size:190*82*30 mm（L*W*H）
Packing:0.36Kg/piece,30pieces/carton，11KG/carton


Note:
*In order to extend the lifetime, it is recommended to configure the load more than 30% of the remaining allowance. For example: the power of the device requires 100W, then use the power of not less than 130W.

*Ripple test method: 20MHz oscilloscope in power output terminal test, oscilloscope probe wire length is not more than 12mm, and input parallel 47uF electrolytic capacitors and 0.1uF high frequency capacitance probe.

*All electrical performance tests are performed at 25 C.

*When the product is used in full load, the aluminum plate with an area of 400 * 400 * 3mm shall be added for auxiliary heat dissipation.

*The power supply is a part of the components of the equipment system. All EMC tests are conducted by installing the sample on the metal plate. The power supply shall be confirmed with the terminal equipment for electromagnetic compatibility.

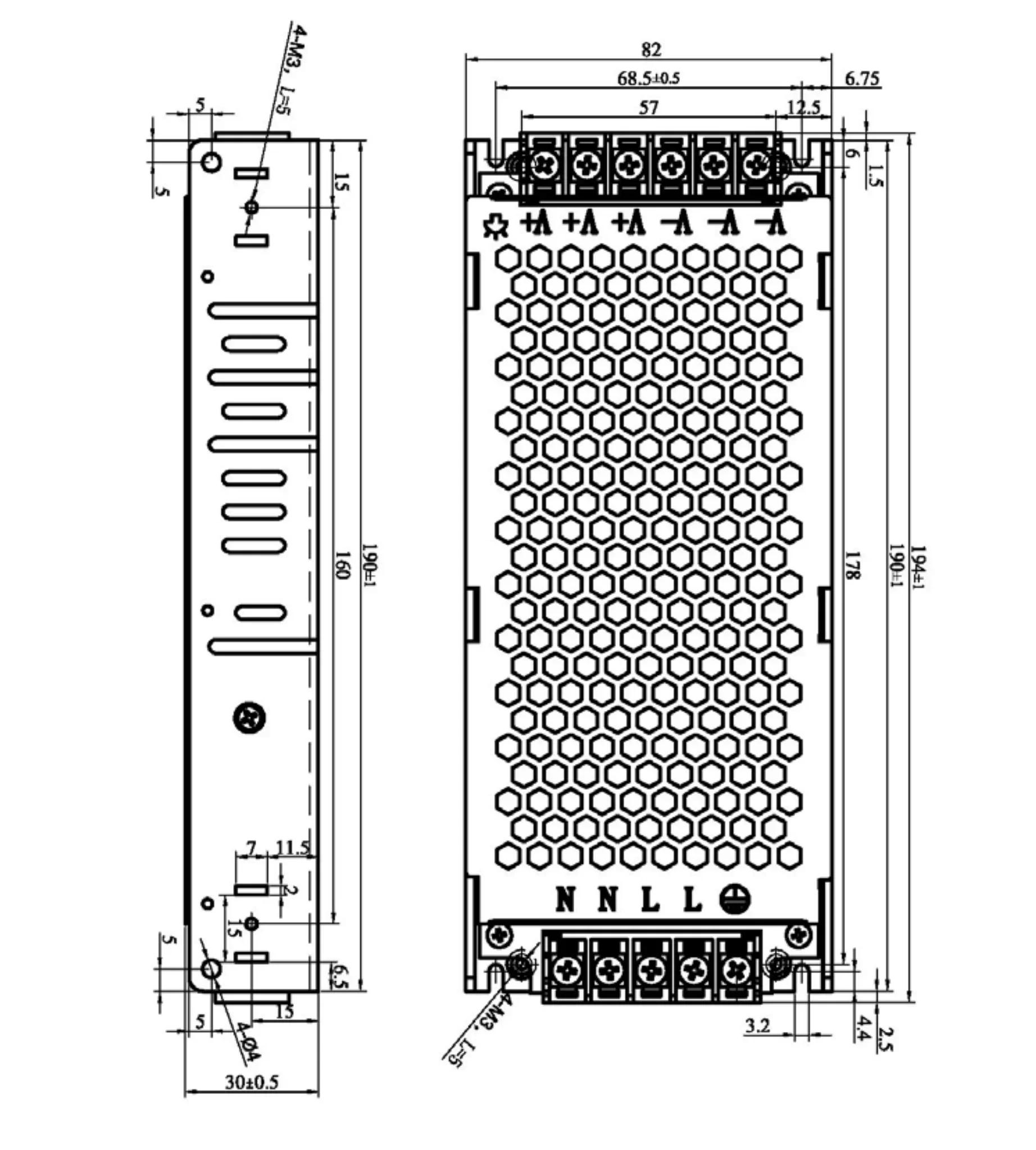

Size Diagram

Installation

Warning

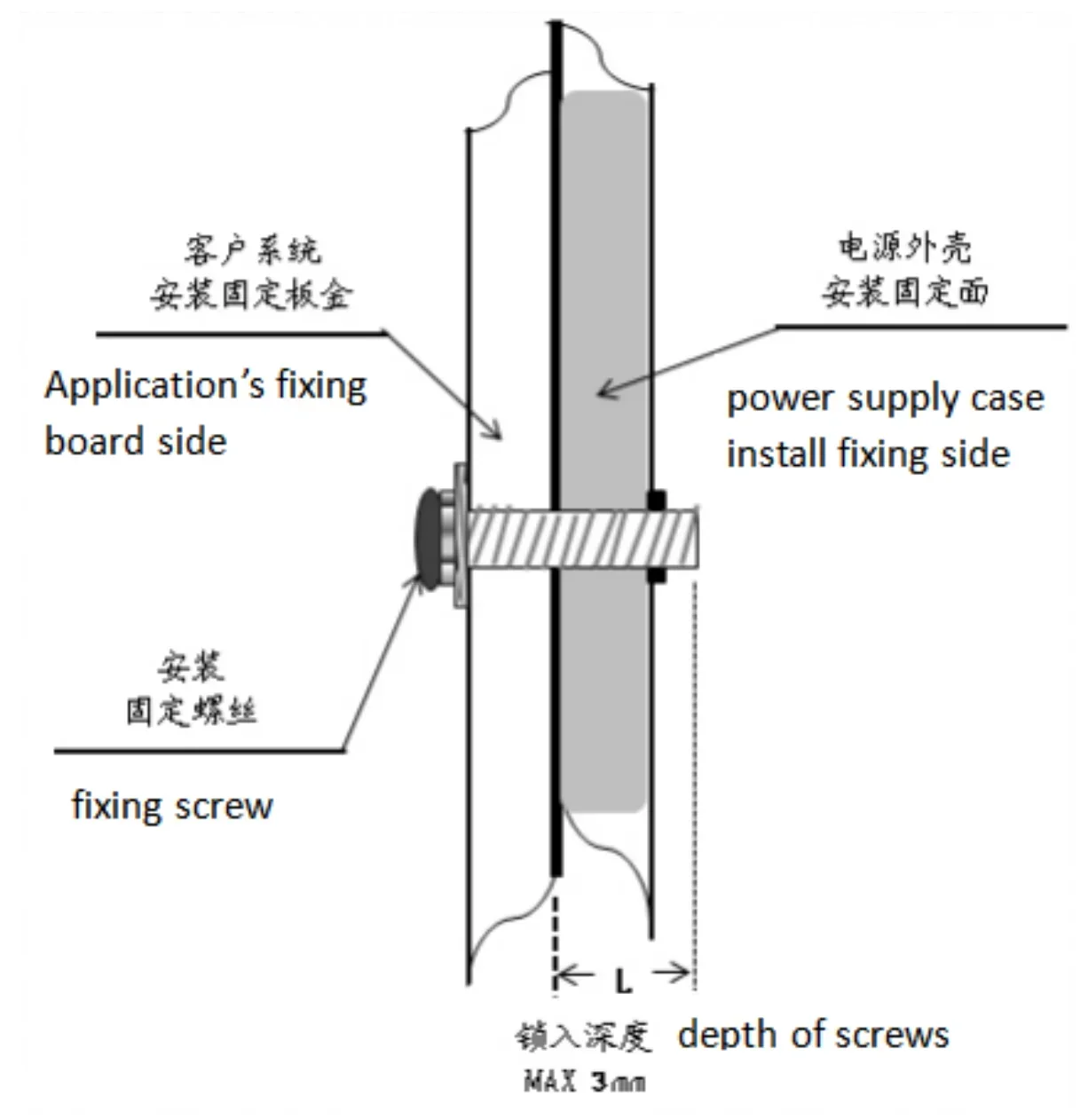

• Using the mounting screws M3*6mm，
• Deep housing screw depth Max 4mm，
• As shown on the right

1、When installing, please follow the mechanical size and installation method.
2、Before commissioning, please check and proofread the connections on the terminals to make sure that the
input and output, AC and DC, positive and negative poles, voltage and current values are correct, to prevent the
occurrence of reverse connection errors and to avoid damage to power supply and user equipment.
3、Please use the multimeter to measure whether the fire line, zero line and ground line are short-circuited and
whether the output terminal is short-circuited before power is turned on.
4、Do not exceed the nominal value of the power supply in use, so as to avoid affecting the reliability of the
product. If you need to change the output parameters of the power supply, please consult the technical department
of our company before using the power supply to ensure the effectiveness and reliability of the use.
5、To ensure safety and reduce interference, ensure reliable grounding of grounding end (grounding
wire>AWG18#).
6、If the power supply fails, please do not repair it without authorization. Please contact our customer service
department as soon as possible
