ESP32 Dev Board 3A Motor Driver (4 DC or 4 Encoder/4 Servo) 2.4GHz WiFi & Bluetooth ESP32-WROOM-32E 6-16V DC Input USB-C 4*I2C

DOCS: github.com/nulllaborg/maker-esp32-pro

  SKU List

A:Maker-esp32-pro

B:Maker-esp32-pro + Building Block Shell

C:Maker-esp32-pro + 18650 Battery Module

D:Maker-esp32-pro Main Board + PS3 Gamepad

E:Maker-esp32-pro Main Board + PS3 Gamepad + 18650 Battery Module

F:Maker-esp32-pro Main Board + 18650 Battery Module + Four TT Motors

G:Maker-esp32-pro Main Board  + 18650 Battery Module + Four Encoder Motors

H:Maker-esp32-pro + PS3 Gamepad + 18650 Battery Module + Four TT Motors

I:Maker-esp32-pro  + PS3 Gamepad + 18650 Battery Module  + Four Encoder Motors

  Brief introduction

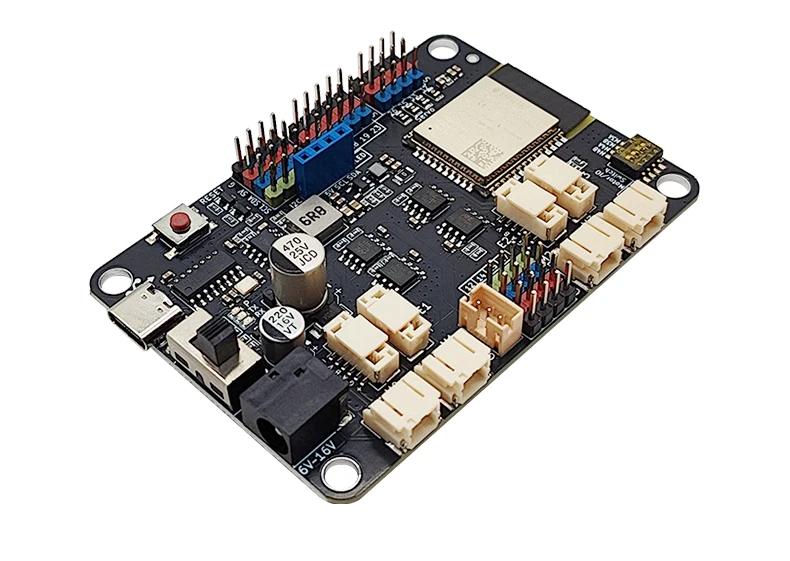

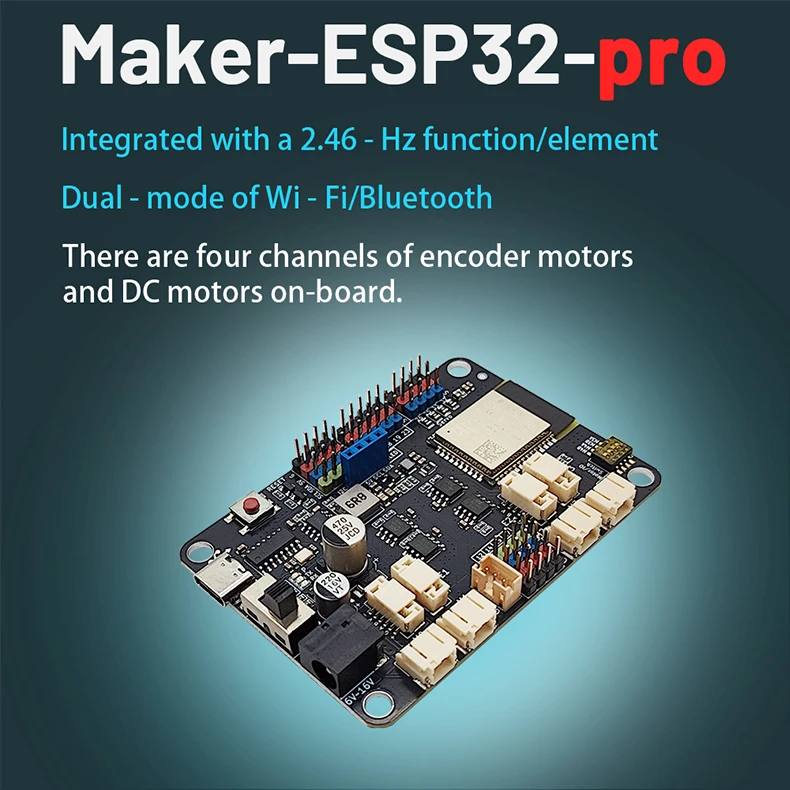

MAKER-ESP32-PRO is a signature product for maker education developed based on

Espressif Systems' ESP32-WROOM-32 module, featuring 4MB Flash and a single-chip

solution integrating 2.4 GHz Wi-Fi + Bluetooth dual-mode.

Onboard, it supports 4-channel encoder motors and DC motors with a maximum driving

current of 3A. The encoder/DC motors share the same driver pins the same port cannot

drive encoder and DC motors simultaneously.

  Technical specifications

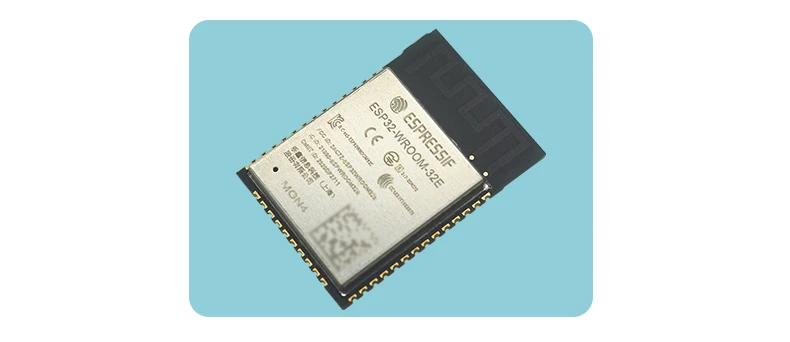

Specifications of the Module Used in MAKER-ESP32-PRO

448 KB ROM, 520 KB SRAM, 16 KB RTC SRAM

QSPI supports multiple flash/SRAM.

Built - in 8 MHz oscillator.

Supports self - calibration.

Built - in RC oscillator, supporting self - calibration.

Supports an external main crystal oscillator ranging from 2 MHz to 60 MHz (Currently, only a 40 MHz crystal oscillator is supported if Wi - Fi/Bluetooth functions are used).

Supports an external 32 kHz crystal oscillator for the RTC, supporting self - calibration.

Two timer groups, each group including two 64 - bit general - purpose timers and one main system watchdog.

One RTC timer.

RTC watchdog.

34 GPIO ports.

12 - bit SAR ADC with up to 18 channels.

Ethernet MAC interface with dedicated DMA, supporting IEEE 1588.

Two - wire automotive interface (TWAI , compliant with ISO11898 - 1).

IR (TX/RX)

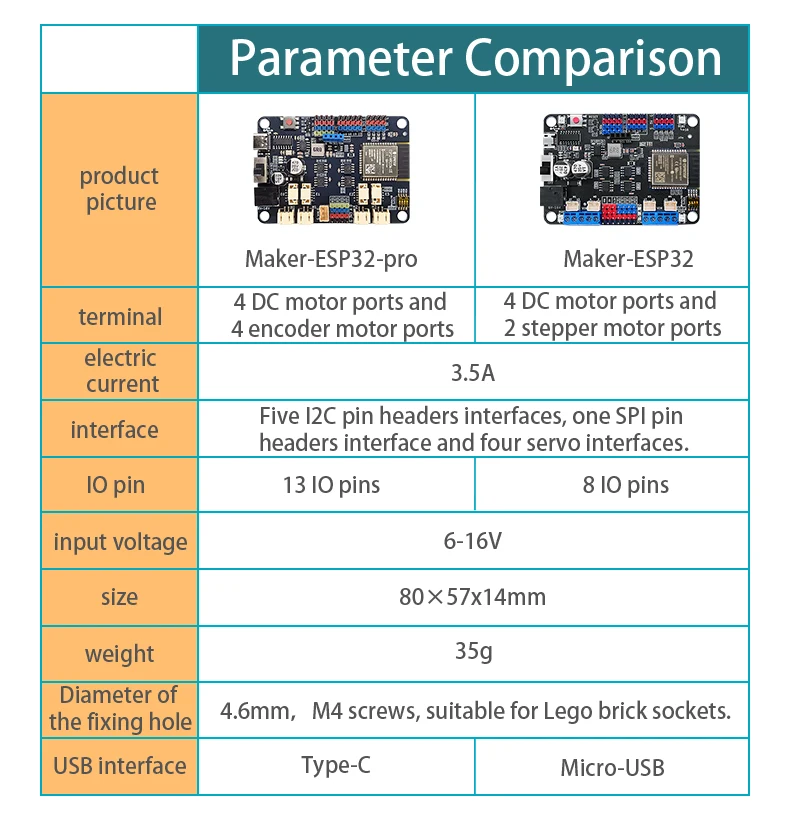

MAKER-ESP32-PRO specifications and specification comparison

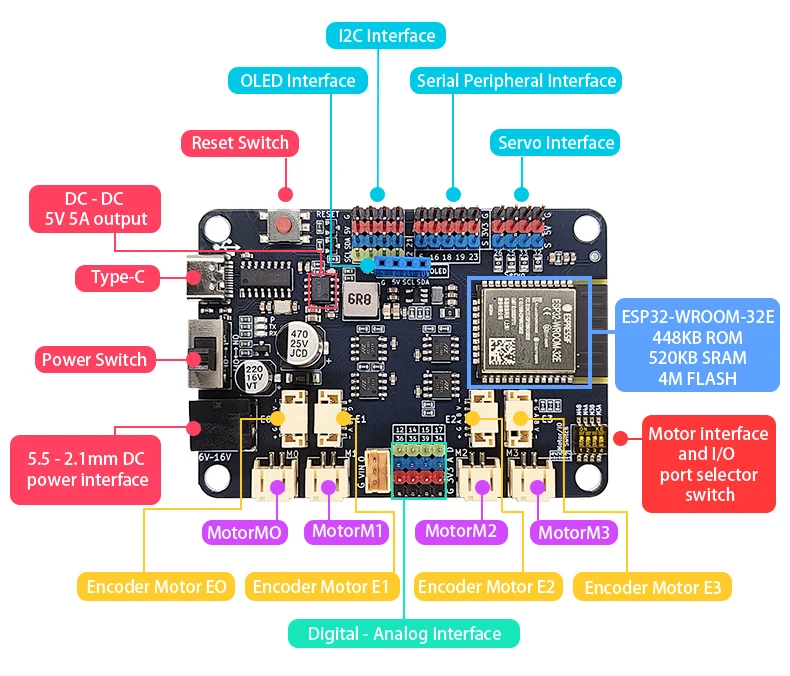

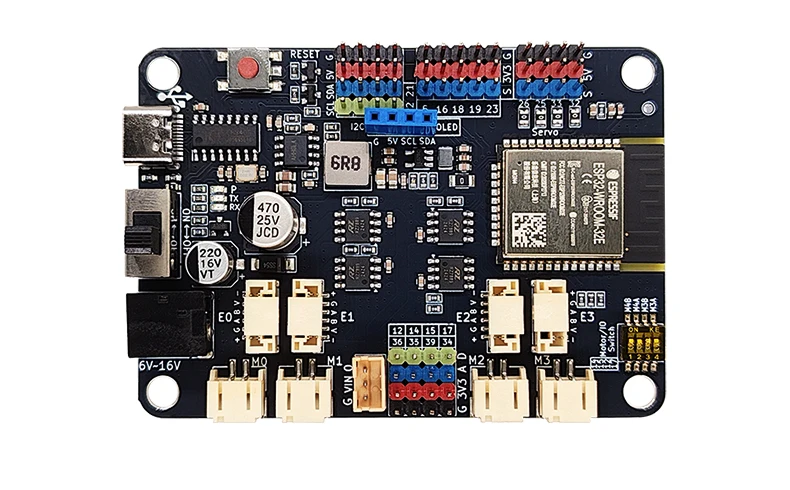

Four encoder motor ports (E0, E1, E2, E3); four DC motor ports (M0, M1, M2, M3), which share the same ports with the encoder motors. The maximum current can reach 3A.

Among them, E0 (A: 18, B: 19, +: 27, -: 13), E1 (A: 5, B: 23, +: 4, -: 2), E2 (A: 35, B: 36, +: 17, -: 12), E3 (A: 34, B: 39, +: 15, -: 14).

Five I2C pin headers and one SPI pin header.

Four servo interfaces (25, 26, 32, 33).

Thirteen IO pins (5, 12, 14, 15, 16, 17, 18, 19, 23, 34, 35, 36, 39).

Input voltage: 6 - 16V.

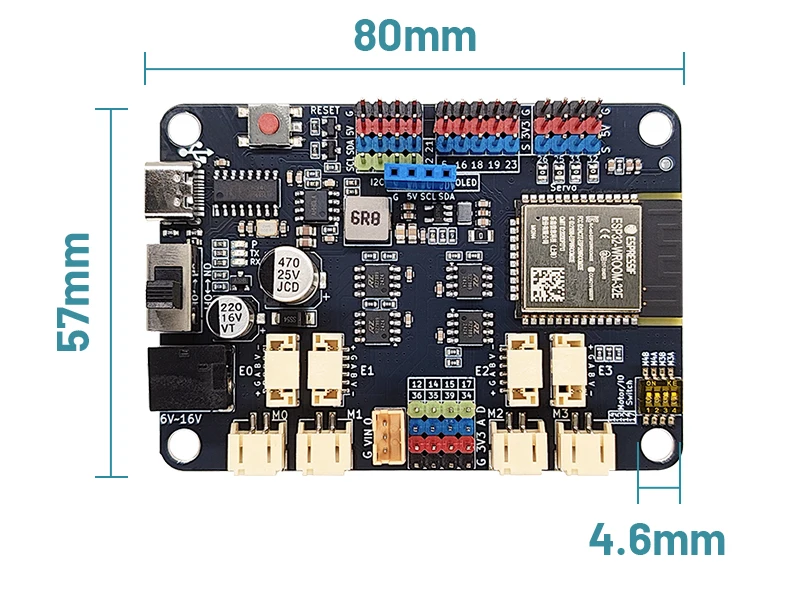

Product dimensions: 80mm * 57mm; PCB thickness: 1.6mm; Net weight: 35g.

Diameter of M4 locating holes: 4.6mm, compatible with Lego.

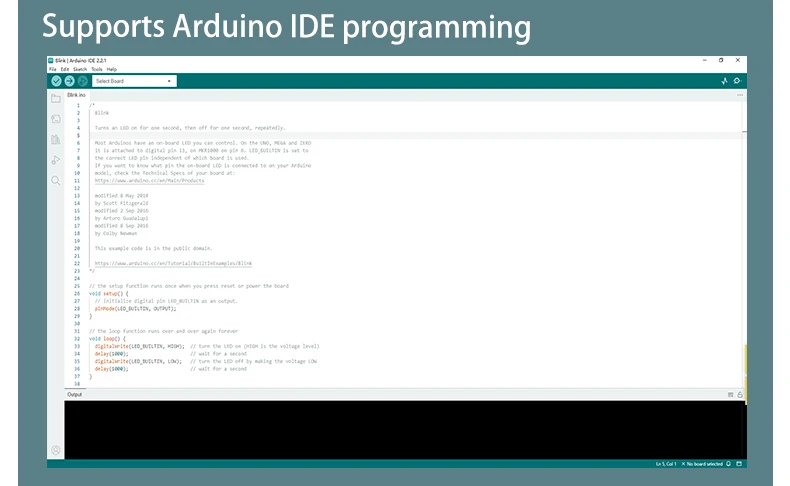

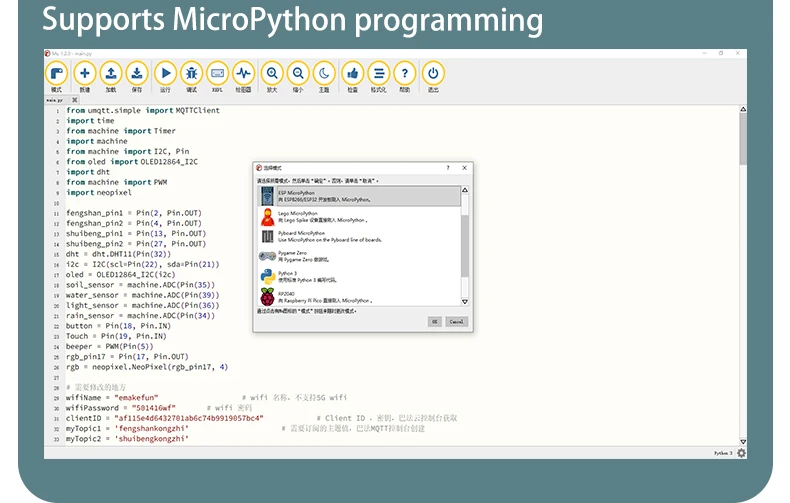

Software support: Arduino IDE, Micropython.

  Experimental scenario

  Exhibition display
