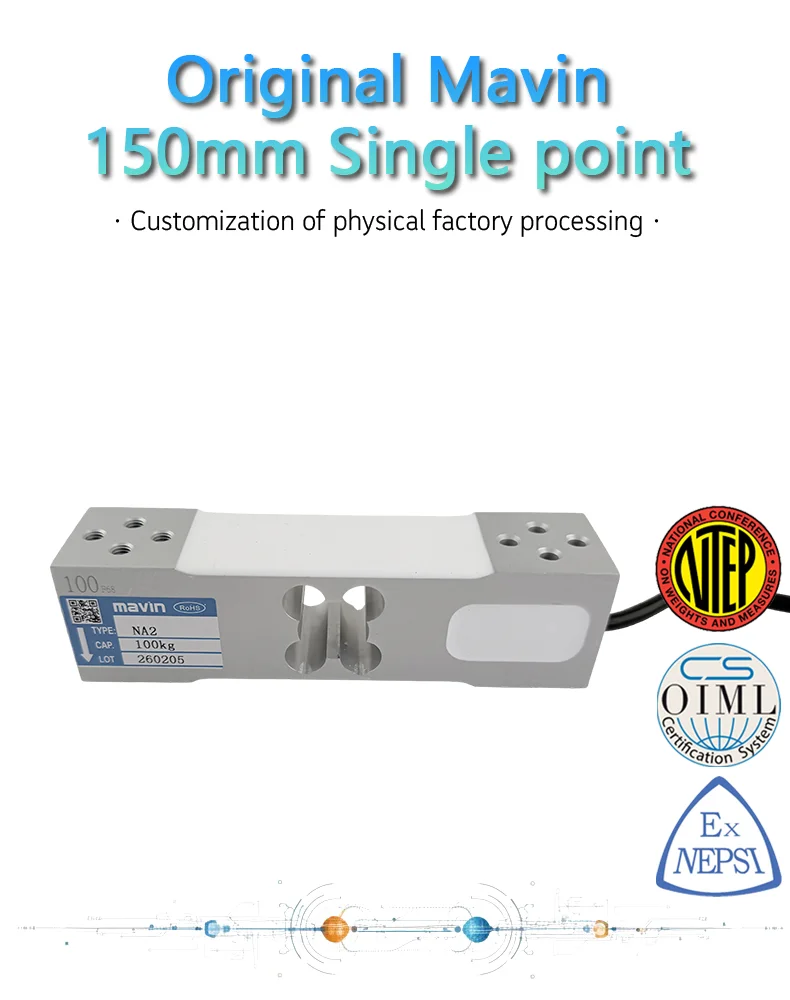

Mavin ZZPH1 Single Point Load Cell 60kg 100kg 200kg 500kg High Precision Aluminum Alloy Weight Sensor for Platform Scale

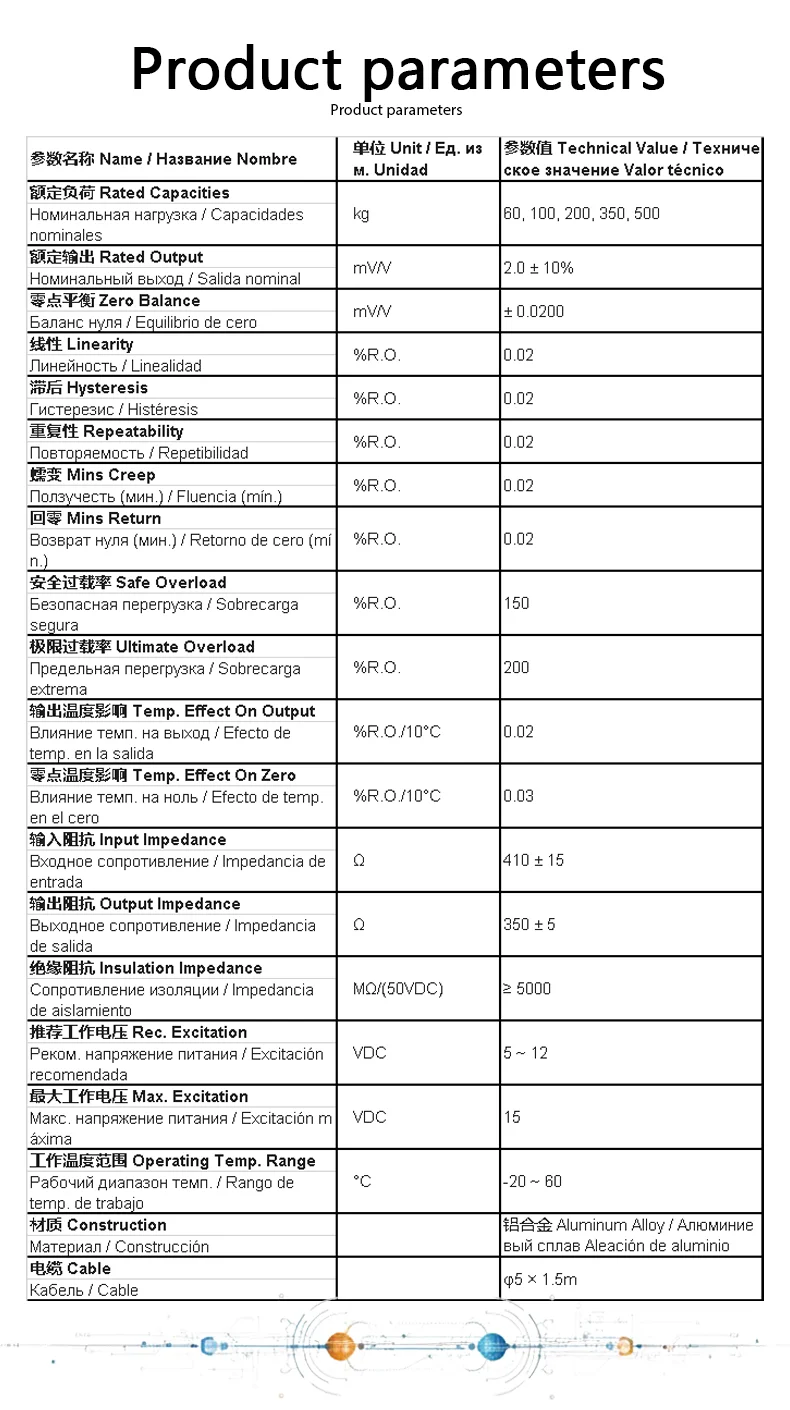

技术参数 Specification
单位 Unit
技术指标 Technical Value
额定负荷 Rated Capacities
kg
60, 100, 200, 350, 500
额定输出 Rated Output
mV/V
2.0 ± 10%
零点平衡 Zero Balance
mV/V
± 0.0200
线性 Linearity
%R.O.
0.02
滞后 Hysteresis
%R.O.
0.02
重复性 Repeatability
%R.O.
0.02
蠕变 Mins Creep
%R.O.
0.02
回零 Mins Return
%R.O.
0.02
安全过载率 Safe Overload
%R.O.
150
极限过载率 Ultimate Overload
%R.O.
200
输出温度影响 Temp. Effect On Output
%R.O./10°C
0.02
零点温度影响 Temp. Effect On Zero
%R.O./10°C
0.03
输入阻抗 Input Impedance
Ω
410 ± 15
输出阻抗 Output Impedance
Ω
350 ± 5
绝缘阻抗 Insulation Impedance
MΩ/(50VDC)
≥ 5000
推荐工作电压 Rec. Excitation
VDC
5 ~ 12
最大工作电压 Max. Excitation
VDC
15
工作温度范围 Operating Temp. Range
°C
-20 ~ 60
材质 Construction
铝合金 Aluminum Alloy
电缆 Cable
φ5 × 1.5m

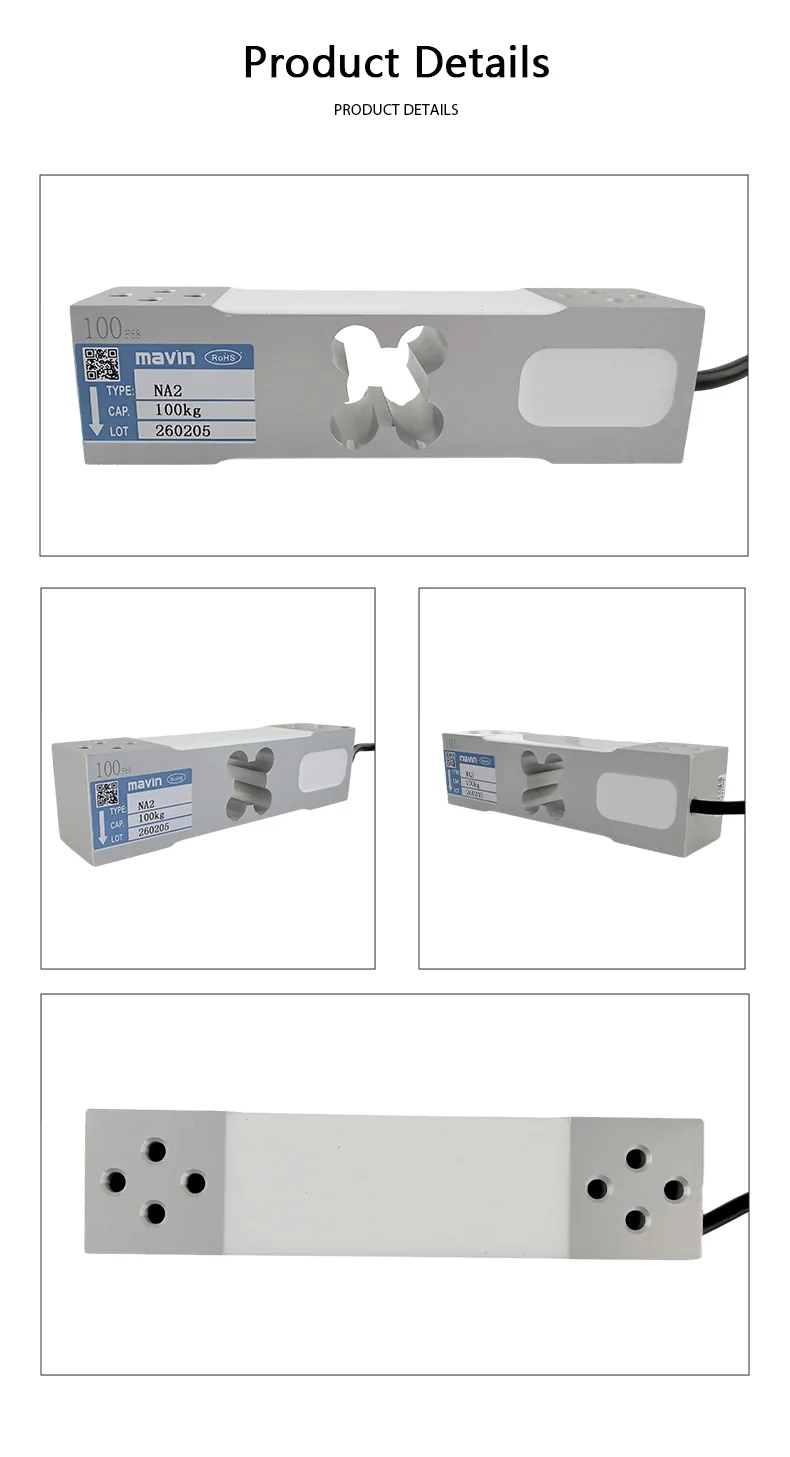

The Mavin ZZPH2 Series Single Point Load Cell is engineered for high-accuracy industrial and commercial weighing applications. Constructed from premium aluminum alloy with a parallel beam design, it ensures superior linearity and repeatability. Available in capacities ranging from 60kg to 500kg, it is widely used in bench scales, platform scales, retail scales, and various automated weighing systems. The sensor surface is anodized for enhanced corrosion and moisture resistance, ensuring stable performance across a wide temperature range of -20°C to +60°C.
