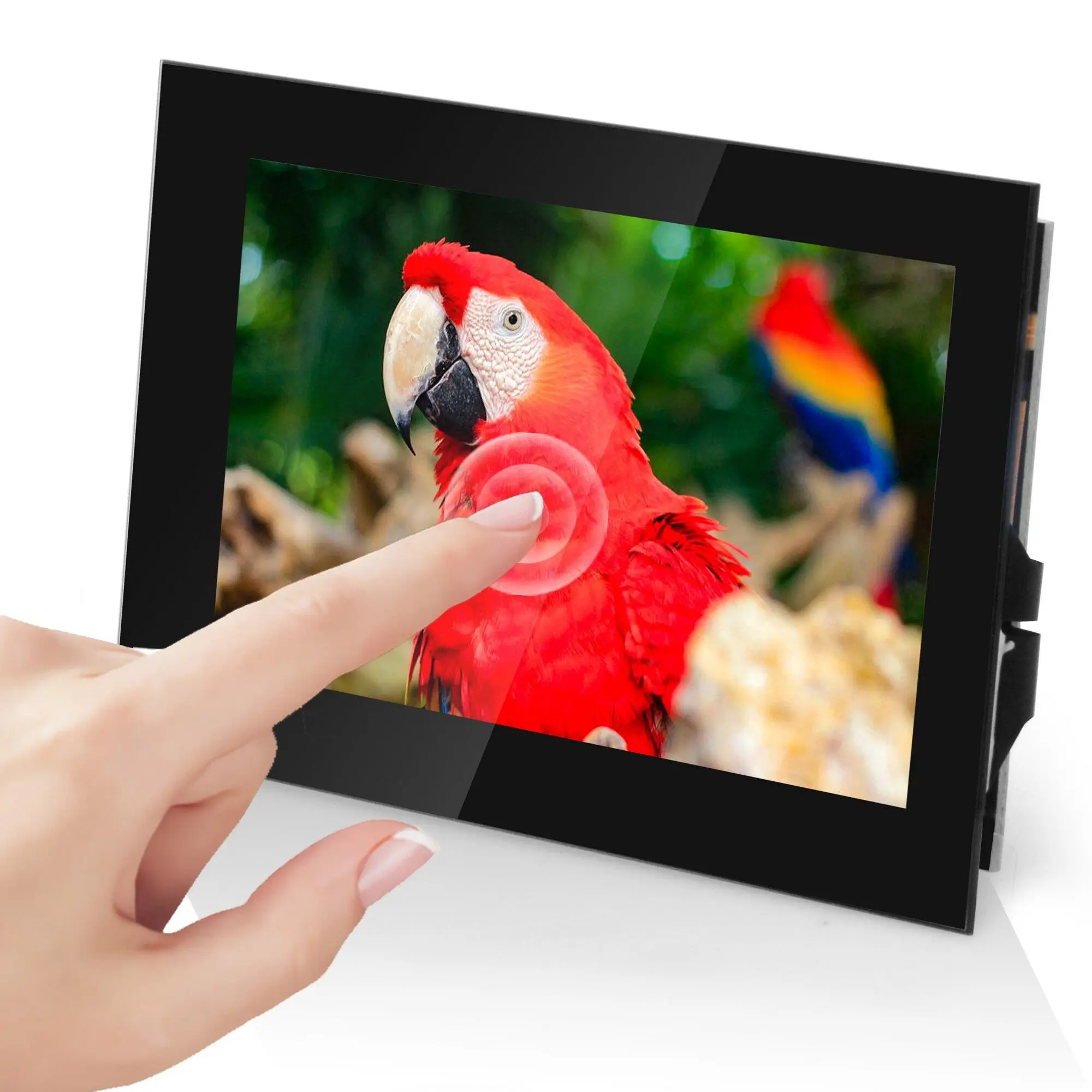

OSOYOO 3.5 RPi5 DSi Touchscreen LCD Display Capacitive Touch Screen Plug and Play Monitor for Raspberry Pi5 4 3 2 B B+

OSOYOO 3.5" DSI Touch Screen for Raspberry Pi 2/3/4/5

Note: The interface of this screen is the same with Raspberry Pi Official 7" DSI screen. Please choose correct DSI cable for this screen at the bottom of description.

Feature for 3.5" DSI

3.5inch IPS screen with a hardware resolution of 800 x 480.

Capacitive touch panel

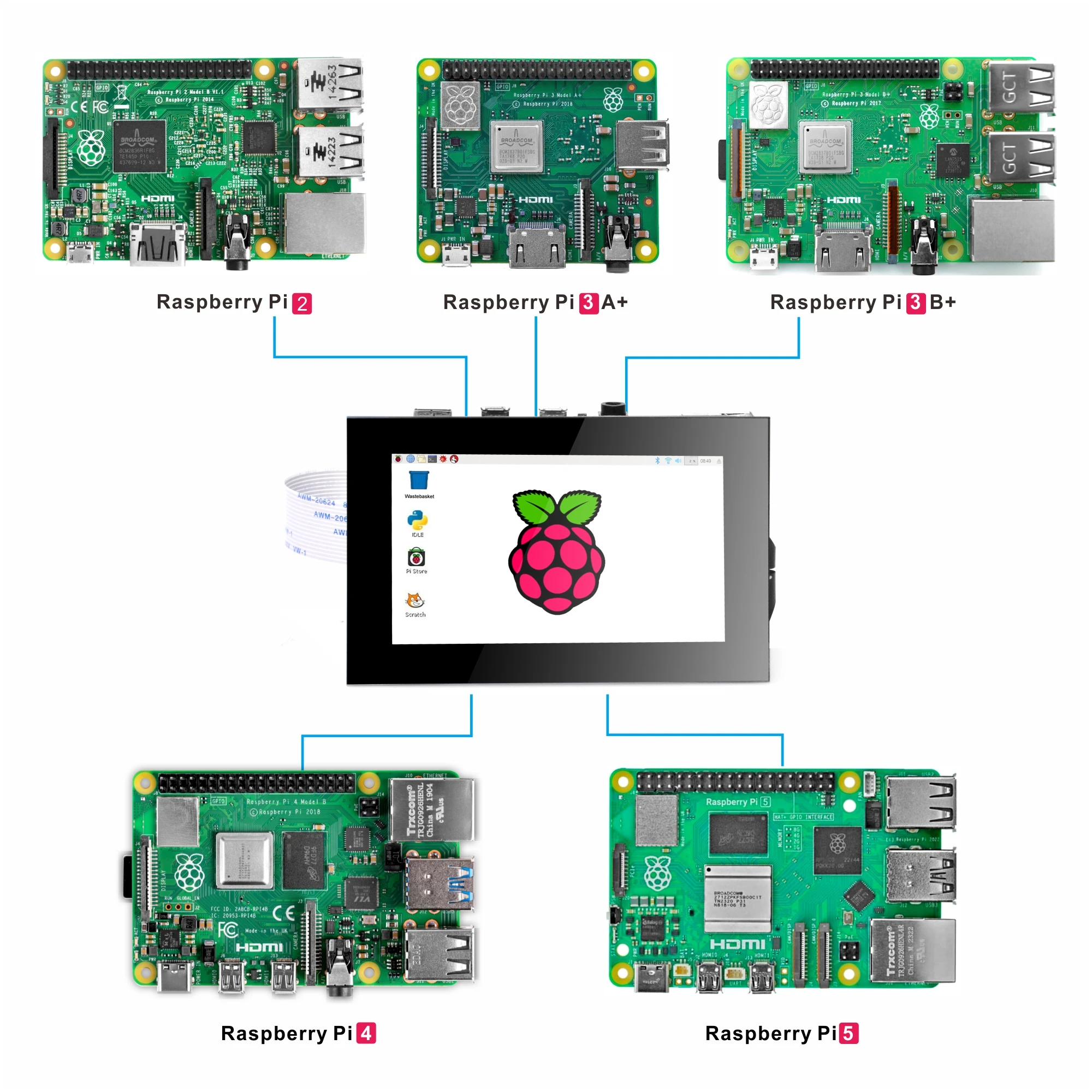

Supports Raspberry Pi 5/4B/3B+/3A+/3B/2B/B+/A+

As it directly drives LCD by the DSI interface of Raspberry Pi, the refreshing rate is up to 60Hz.

Supports Raspberry Pi OS / Ubuntu / RetroPie / OctoPrint when used with Raspberry Pi, drive-free.

Backlight adjustable via the software.

Viewing angle: 85°, 85°, 85°, 85°

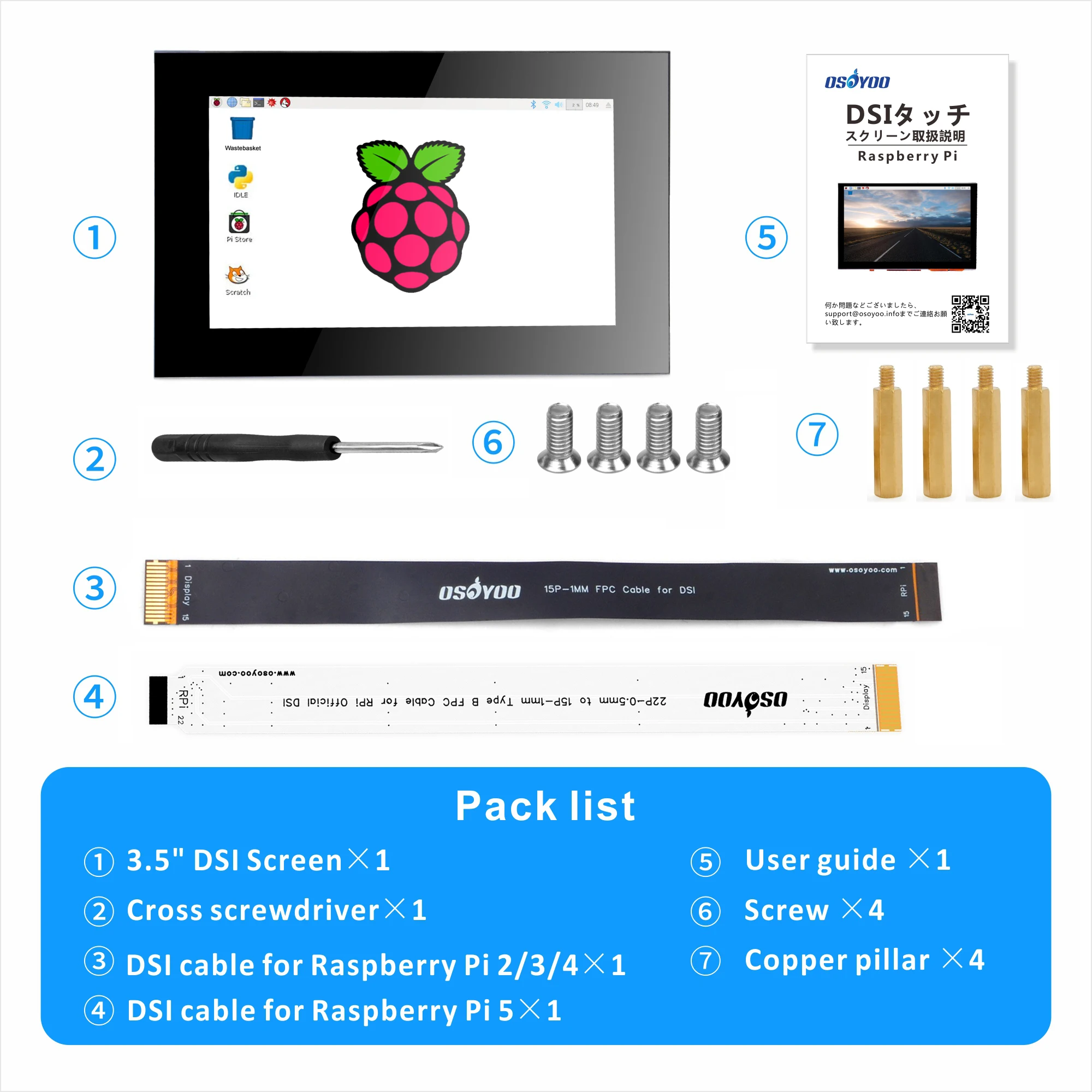

Value Bundle set:

1 piece 3.5" DSI Touch LCD Screen for Raspberry Pi,

1 pc 15 pin to 15 pin DSI FFC Cable for Raspberry Pi 2/3/4/ (the metal connectors of two side is at the opposite side)

1 pc 15pin-1mm to 22pin-0.5mm DSI FPC cable for Raspberry Pi 5 (This is a custom DSI cable, the metal connector is different from the official Raspberry Pi DSI cable, but it is really compatible with the official Raspberry Pi screen)

1 pc Philips screwdriver,

1 pc user guide manual come in the nice box

Note: DSI cables for OSOYOO 3.5 inch DSI screen are the same with Official Raspberry Pi DSI cable.Please choose correct DSI cable for this screen at the bottom of description.

Creative for DIY

Excellent sensitivity capacitive technology and multitouch capability, you can place it your way to get things done easily (Raspberry Pi OS just supports one point finger touch) Ideal touchscreen monitor for DIY projects! Equipped with reserved fixing holes for control boards - Support Raspberry Pi 2, 3 Model B, 3 B+, 4, 5

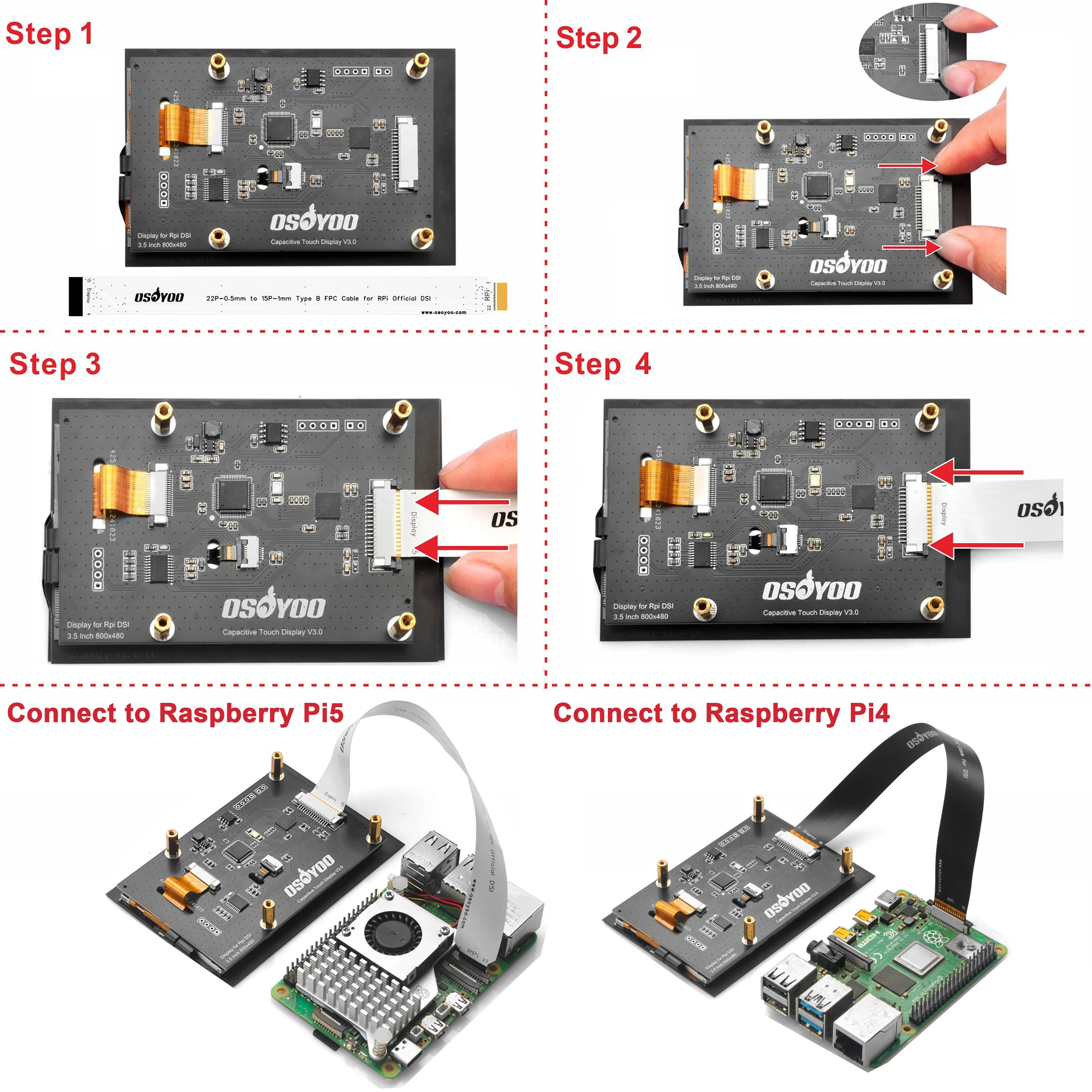

How to install 3.5 inch DSI screen

Prepare 3.5 inch DSI screen and DSI ribbon cable

Toggle DSI interface with your finger

Insert the end of cable to DSI interface

Fasten DSI interface tightly

Install the DSI screen with Raspberry Pi

Note:

1. if you use the screen with Raspberry Pi , please replace the DSI cable with 15pin-1mm to 15pin-1mm DSI FPC cable.

2. If you get DSI cable which different from the DSI cable as photo, it doesn't matter and the colour and length of DSI cable does not affect use

DSI connector No need additional power

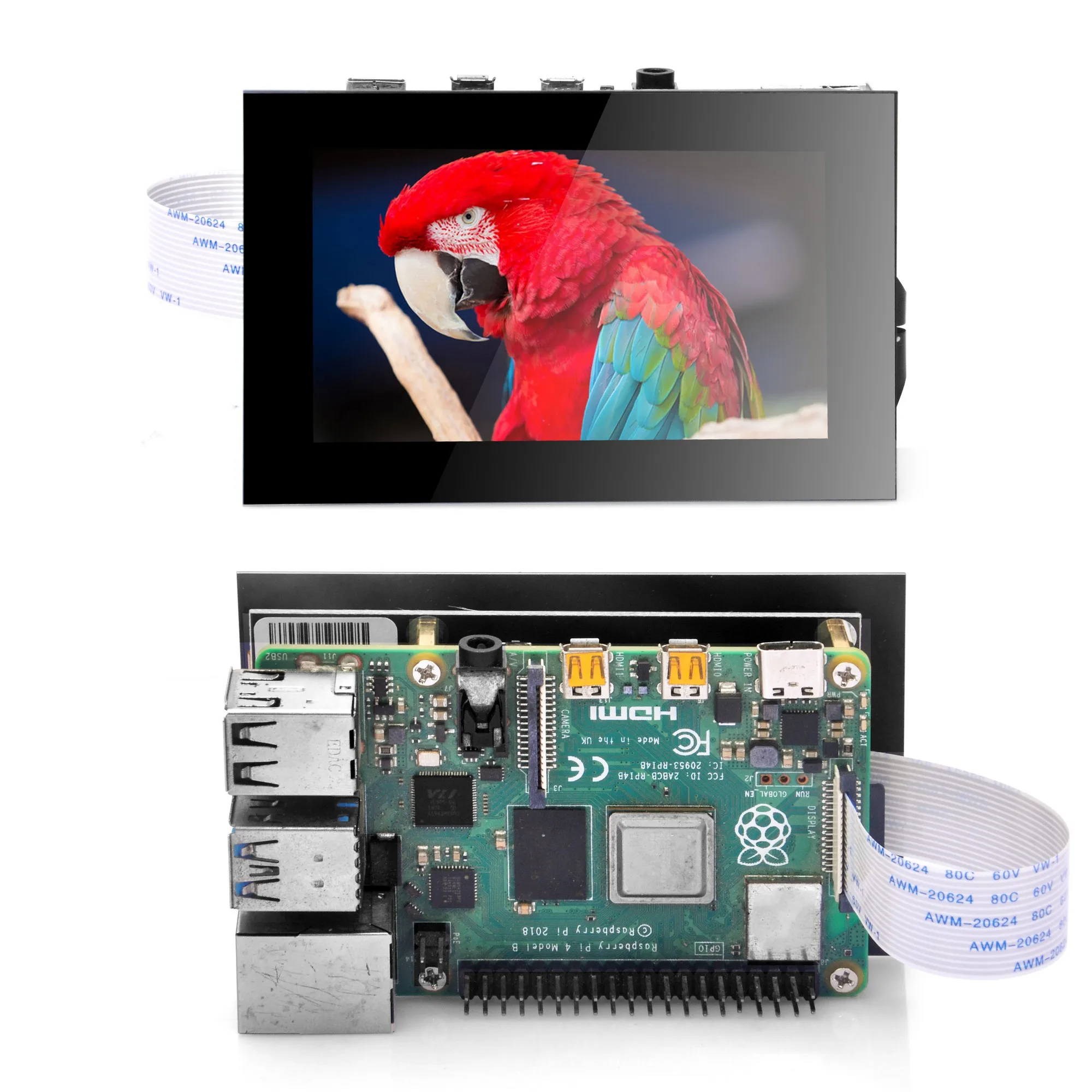

Raspberry Pi hobbyist could not miss this perfect monitor! Easily mount your Raspberry Pi to the exposed backside.

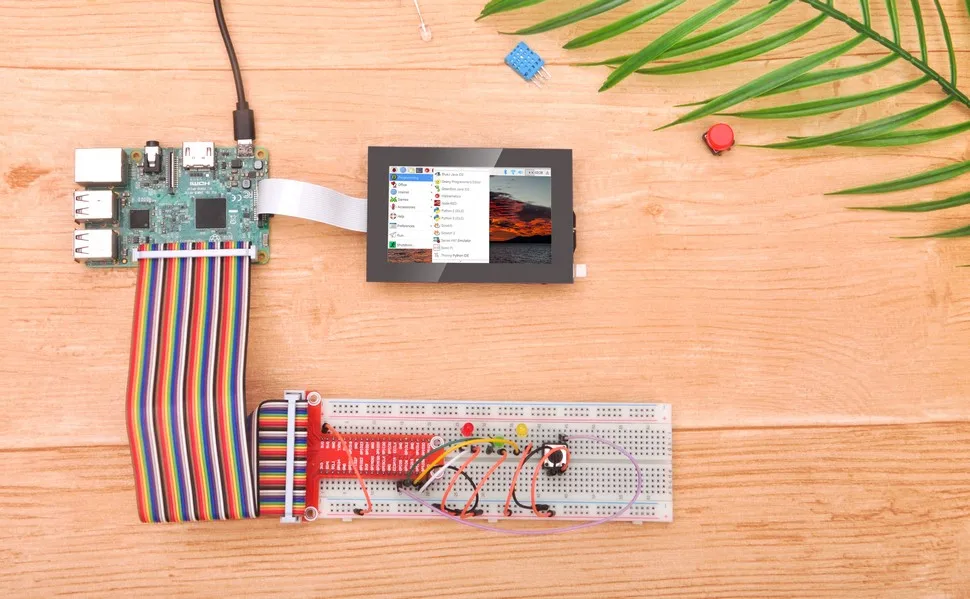

Raspberry adaptor board is built in. Save your space, keep your desktop neat. As no use GPIO, you can work to your DIY IoT projects when you use this screen at the same time.

Wide Viewing Angel

IPS Panel 3.5" DSI Capacitive Touch Screen with an expansive 170° viewing angles is ideal for work. It can deliver multiple people in the room a great viewing experience. Perfect for creating portable. Capacitive Touch Screen, Finger Touch, better touch response, 800 x 480 pixel resolution.

#Please Choose correct DSI cable for OSOYOO 3.5inch TN DSI screen V2.0, V3.0

DSI cable for OSOYOO 3.5inch DSI screen to Raspberry Pi 5(18cm)

-------------
