Industrial Load Cell Signal Amplifier 4 Channels 4-20mA 0-10V Converter High Precision Weighing Transmitter Aluminum Box

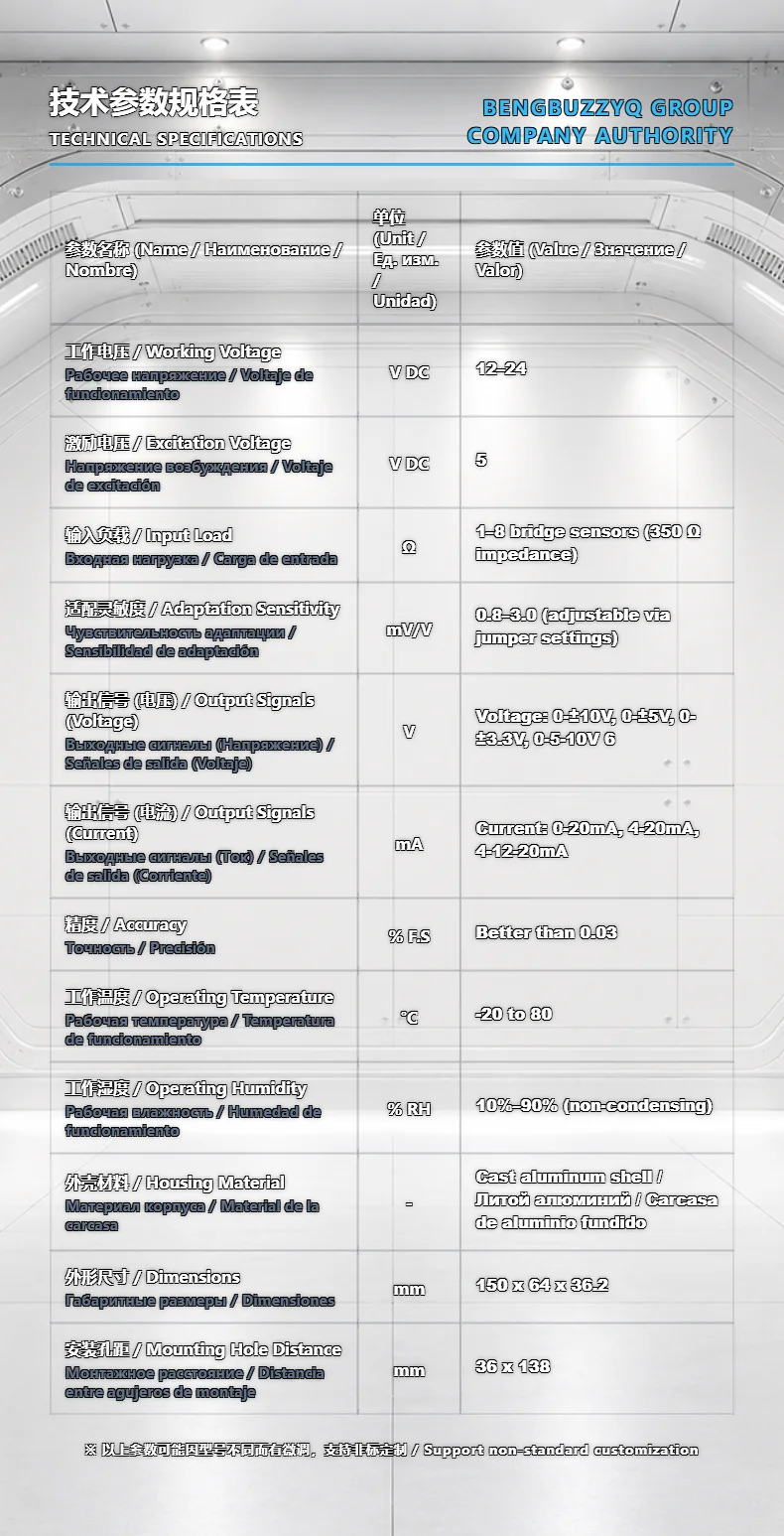

Item

Specification

Operating Voltage

DC 12-24V

Excitation Voltage

DC 5V

Input Load

1-8 bridge sensors, 350Ω

Supported Sensitivity

0.8-3.0 mV/V

Output Signal

0-±10V, 0-±5V, 0-±3.3V, 0-20mA, 4-20mA, 4-12-20mA

Accuracy

Better than 0.03% F.S.

Operating Temperature

−20~80℃

Operating Humidity

10%RH-90%RH (non-condensing)

Housing Material

Aluminum alloy

Dimensions

100.9 × 80 × 40 mm

Mounting Size

66 × 57.8 mm

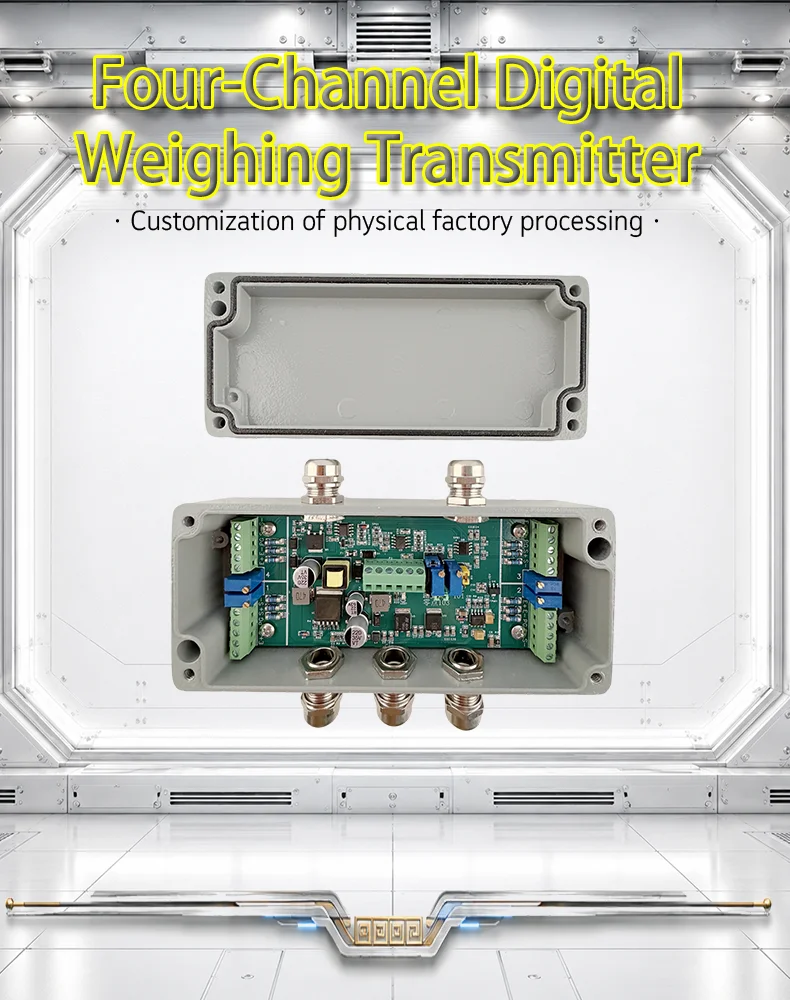

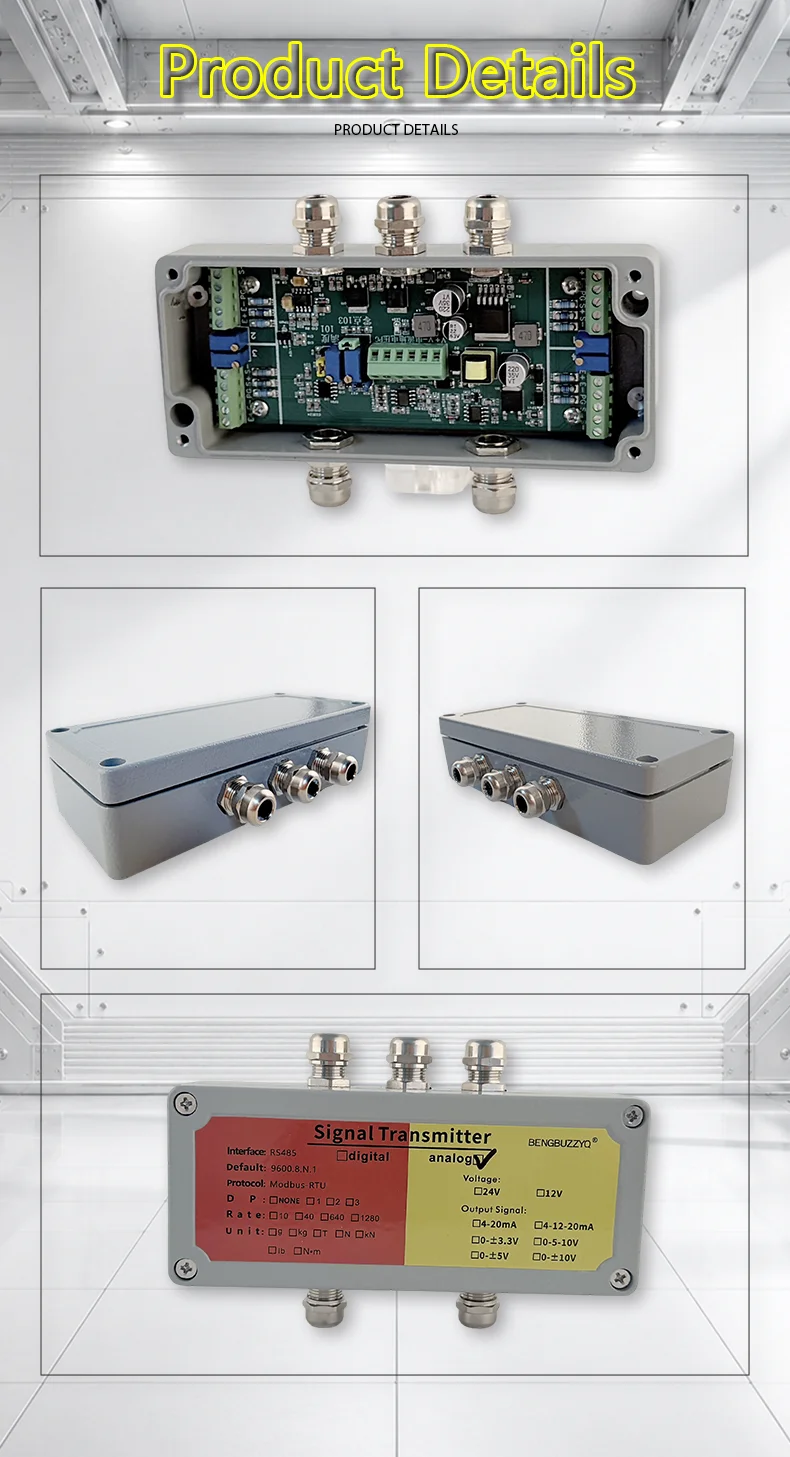

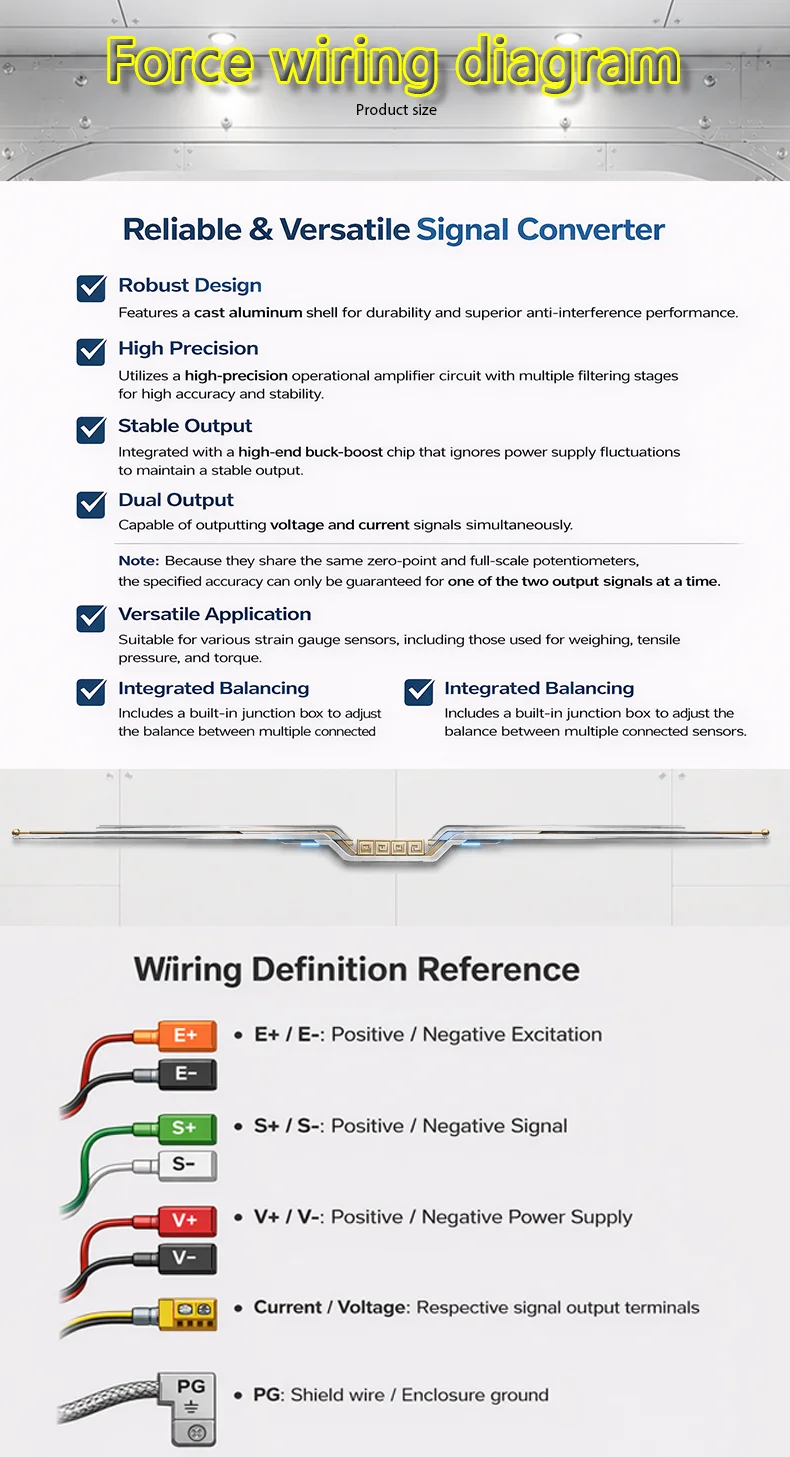

This 4-Channel Digital Weighing Transmitter is an ideal solution for industrial weighing and force measurement. Featuring a robust die-cast aluminum housing, it offers superior anti-interference performance and durability. The device integrates signal amplification, filtering, and multi-channel balancing, allowing multiple load cells to be connected simultaneously. It converts micro-signals into standard 4-20mA current or 0-10V voltage outputs. With high-precision operational amplifiers and built-in buck-boost chips, it guarantees measurement stability and exceptional accuracy even in demanding industrial conditions.
