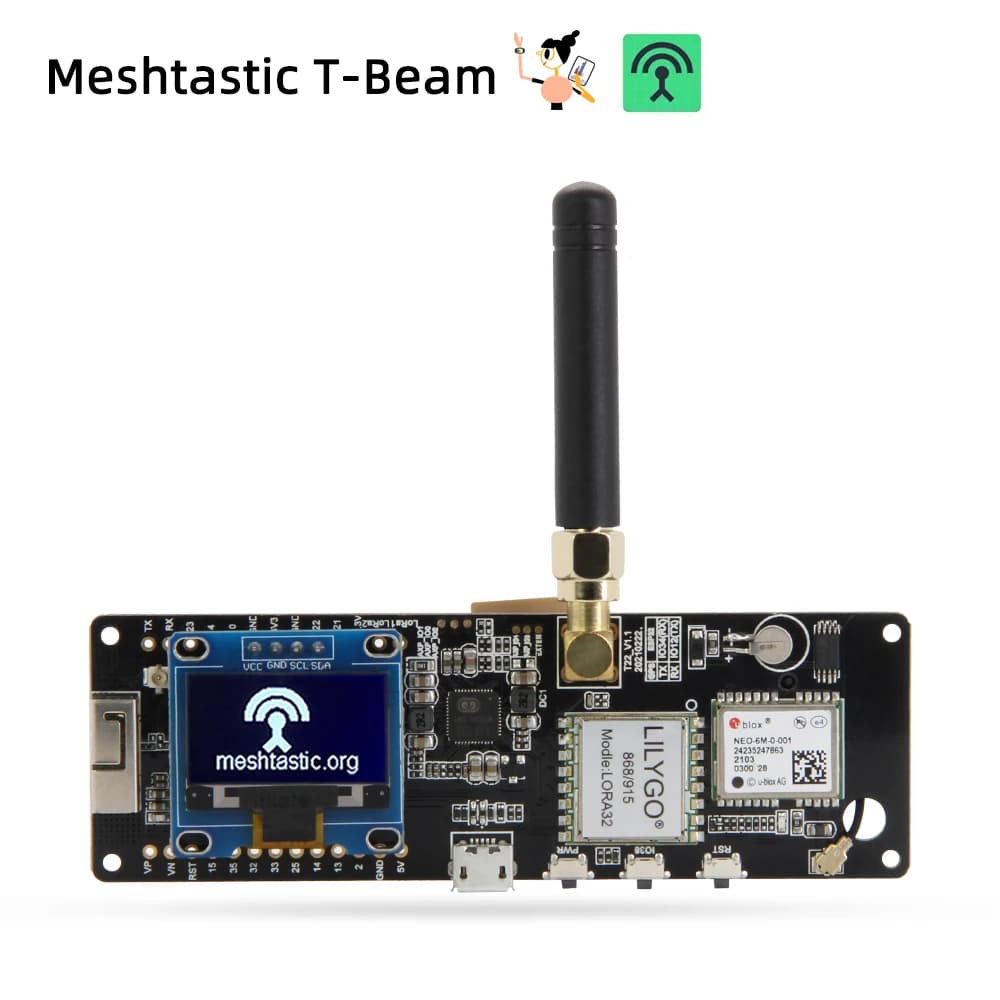

LILYGO® Meshtastic T-Beam ESP32 Module LoRa Development Board Support WiFi Bluetooth GPS Battery OLED LoRaWAN 433/868/915MHz

ESP32

Series of SoCs Embedded, Dual-core 32-bit Microprocessor

Wireless features:
Wi-Fi 802.11 b/g/n, Bluetooth v4.2 and Bluetooth LE Specifications

Programming Platforms:
Arduino-ide, Micropython

Clock Frequency:
Main Frequency up to 240MHz

Onboard Functions

Flash: 4M
PSRAM: 8MB
Driver: CH9102F
PMU: AXP2101
Button: Power + Resrt + IO38
Power Supply Mode: Support USB / 18650 Battery

NEO-6M GPS Modules

Support: GPS Protocol
Support: Interrupt/wakeup
Oscillator: RTC Crystal
GPS MAX Update Frequency: 5Hz
Long Range Low Power LoRa Transceiver
High Sensitivity: -148 dBm
Transceive Rate: 300 kbps
Optisnal Chip: SX1278 or SX1276

0.96 Inch OLED

Size: 0.96 inch
High resolution: 128 * 64px
Color: White Letters on Blue Background
Driver IC: SSD1306

What's in the box?

1 X T-Beam Modules
1 X LoRa Antenna
2 X Pin

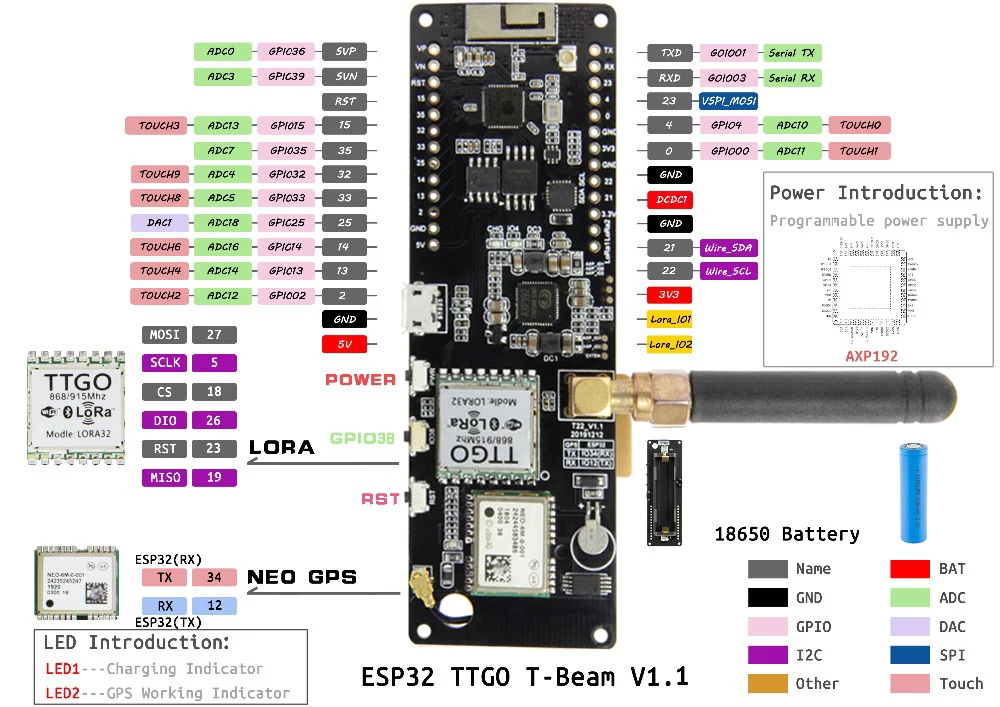

PIN MAP

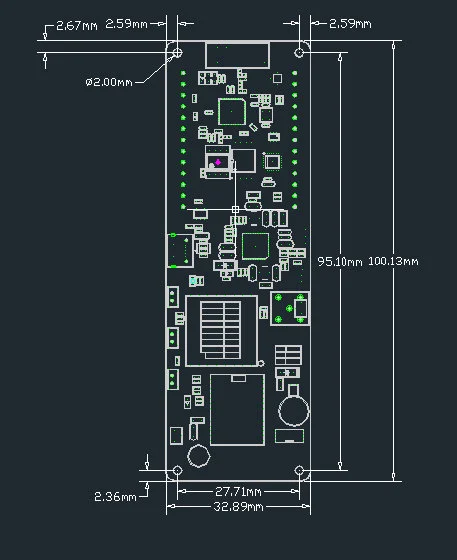

Product Size

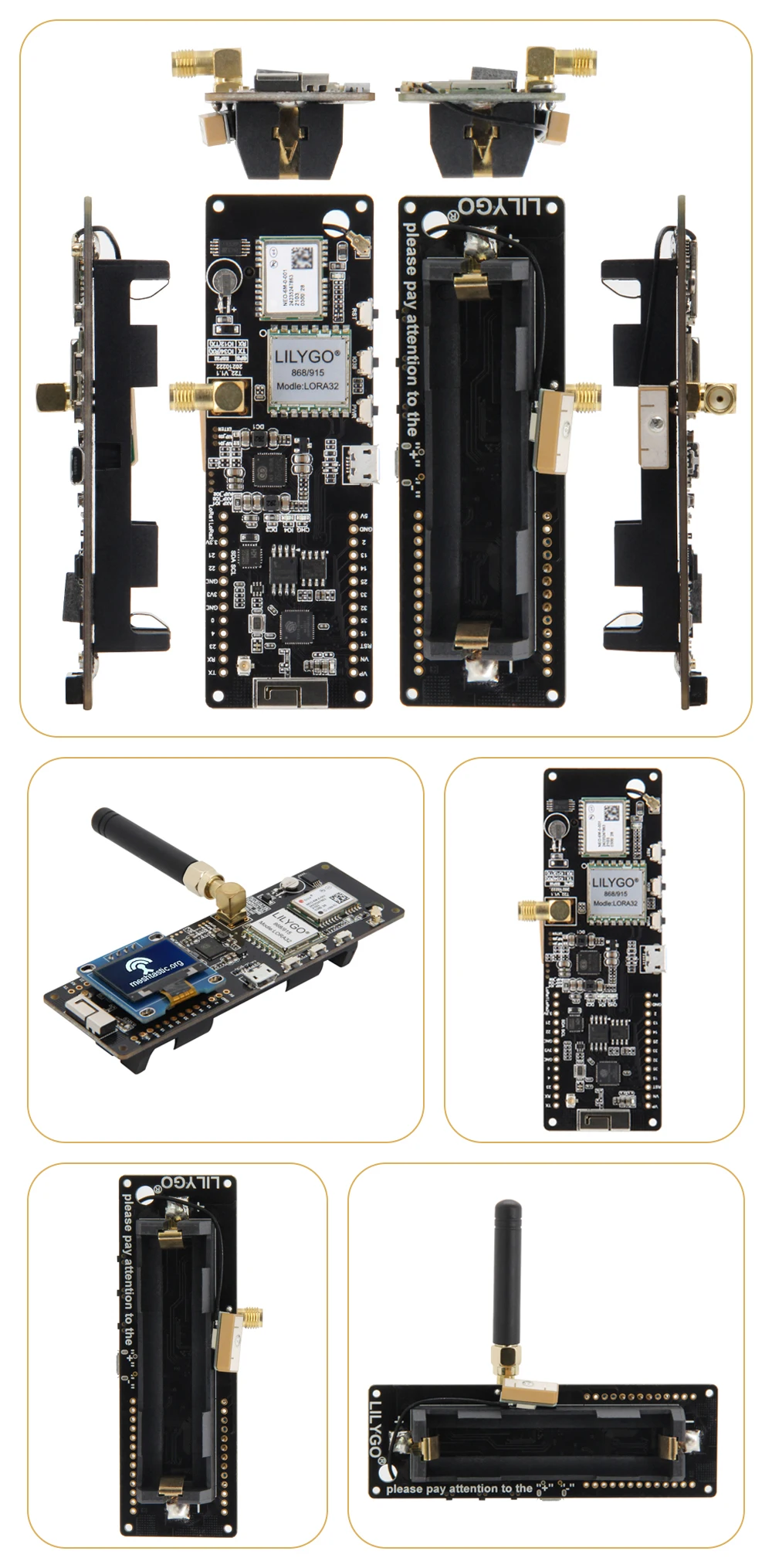

Product Real Shot
