ZB2 Small Column Load Cell Force Sensor 2mV/V 350Ω 5kg 10kg for Press Force Measuring Automation

Technical parameters
Range
0-100N/5KG 0-500N/10KG
Output sensitivity
2.0±0.05%mV/V
Zero output
±2%F.S.
nonlinearity
0.05%F.S.
hysteresis
0.05%F.S.
repeatability
0.05%F.S.
Creep (30 minutes)
0.05%F.S.
Temperature sensitivity drift
0.05%F.S./10℃
Zero temperature drift
0.05%F.S./10℃
Response frequency
10kHz
impedance
350Ω
Insulation resistance
>5000MΩ/100VDC
Service voltage
5-10v
Operating temperature range
-20-80℃
Safety overload
150%
Ultimate overload
200%
Cable ultimate tension
10kg

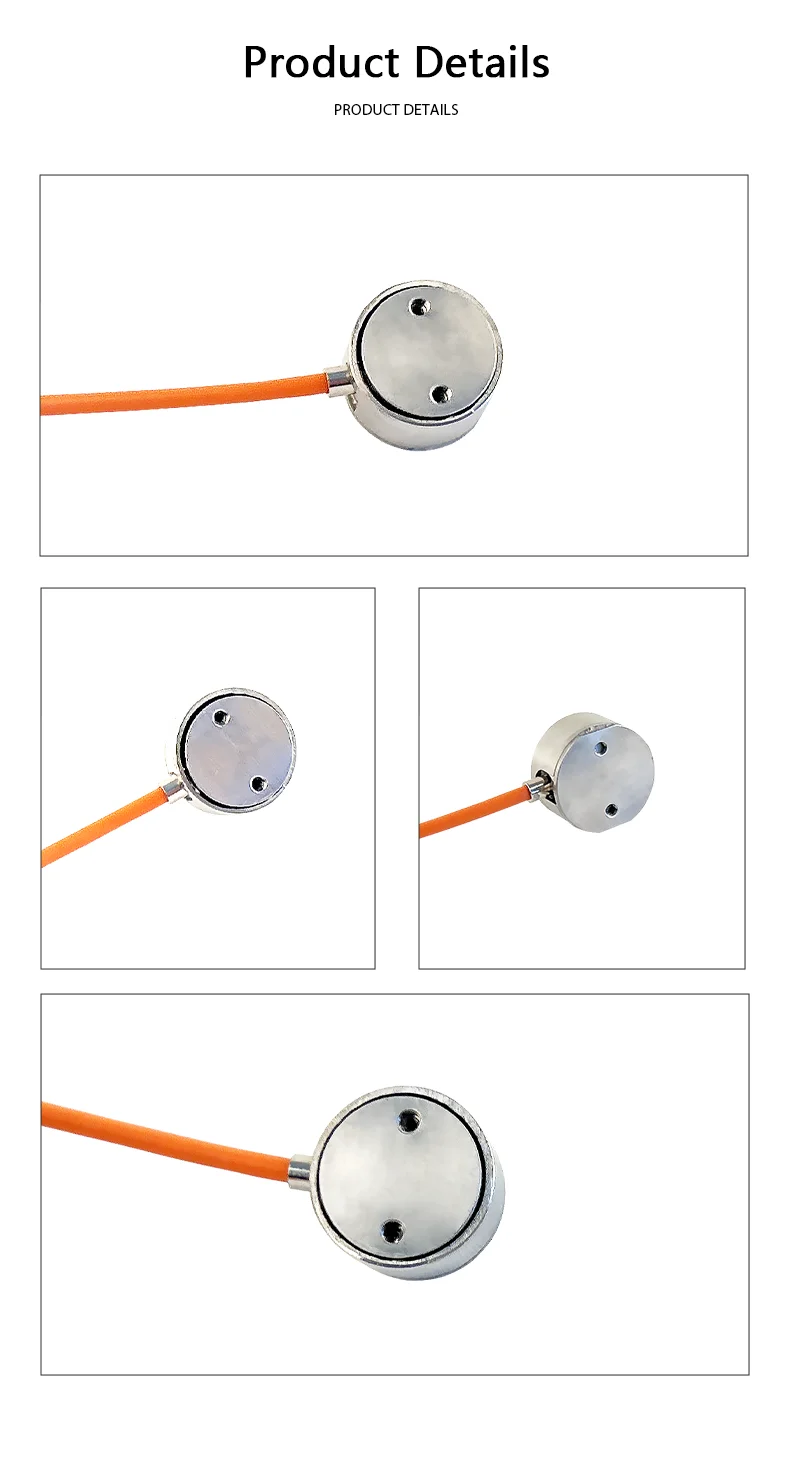

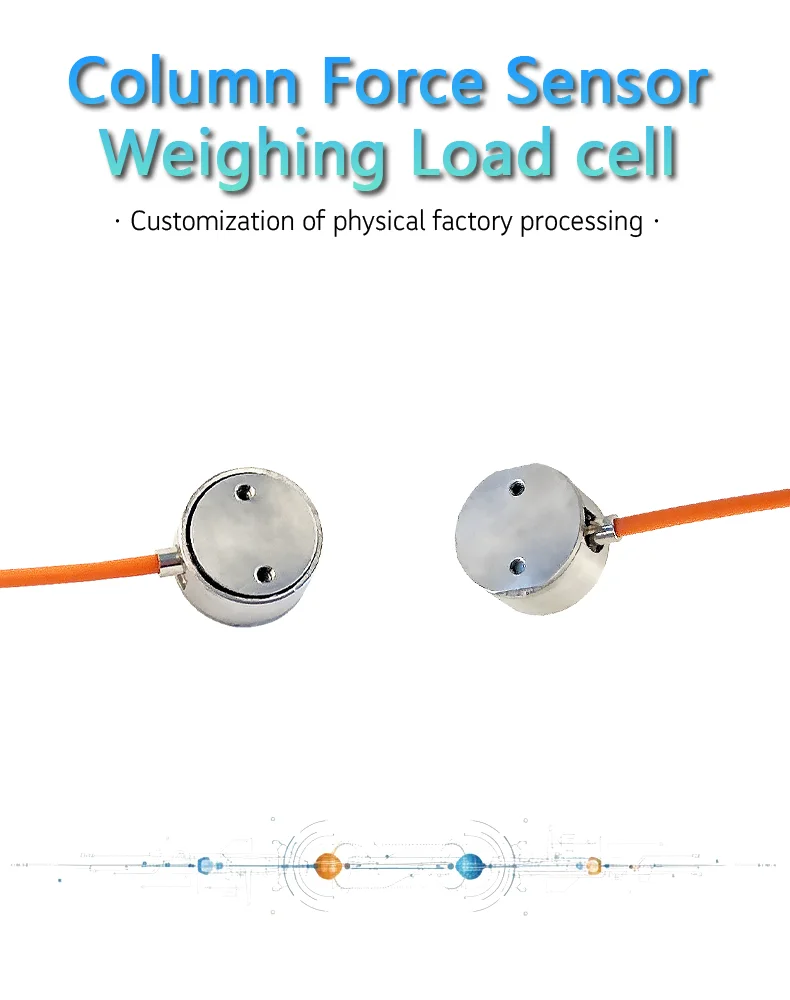

The mini column force sensor is a compact compression load cell designed for press force measurement and micro weighing applications. It comes in 5kg (0–100N) and 10kg (0–200N) ranges, featuring a 350Ω Wheatstone bridge with 1.0-2.0mV/V sensitivity and up to 10kHz response. With low creep, controlled temperature drift, and strong overload protection (150% safe / 200% ultimate), it is suitable for automation equipment, force test fixtures, quality inspection, and force monitoring systems.
