RX3364PRO 3.3GHz FPV Receiver Module With RSSI Analog Wireless Audio Video Transmission VRX Image Receiving Module For Drone

Features:

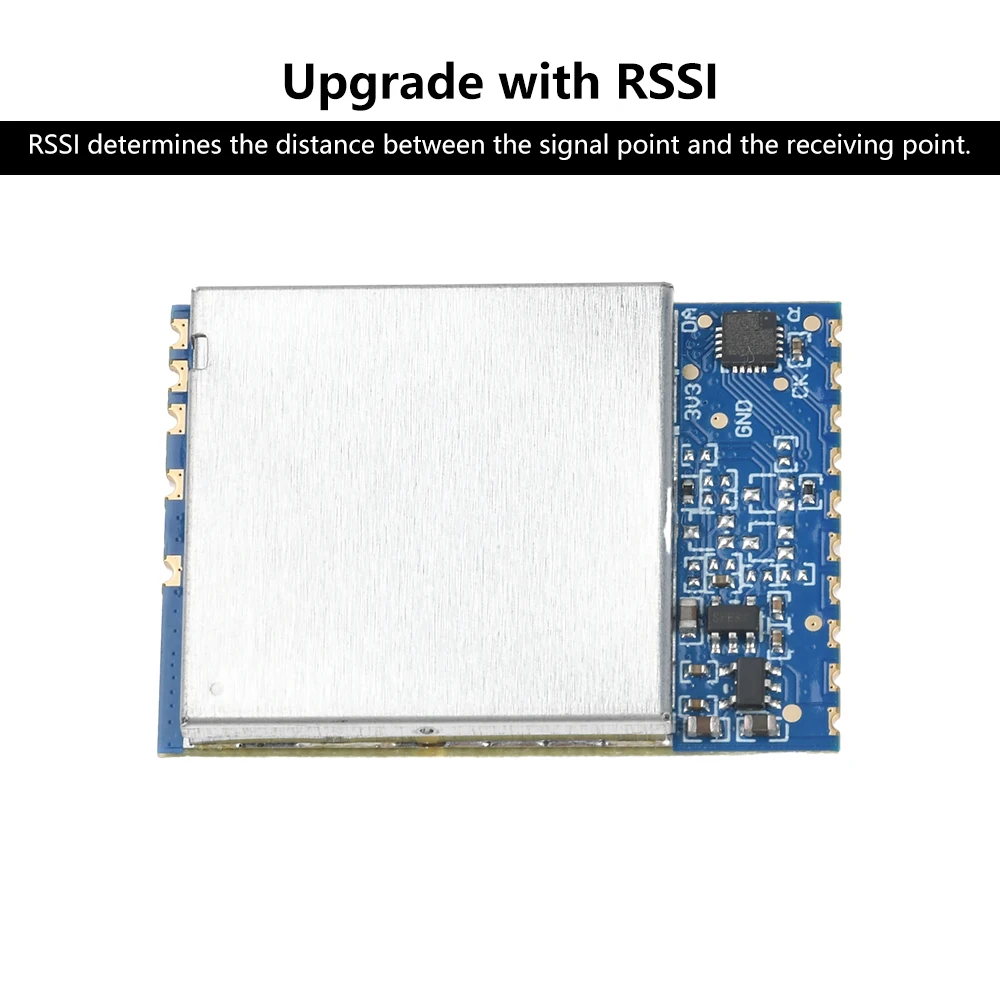

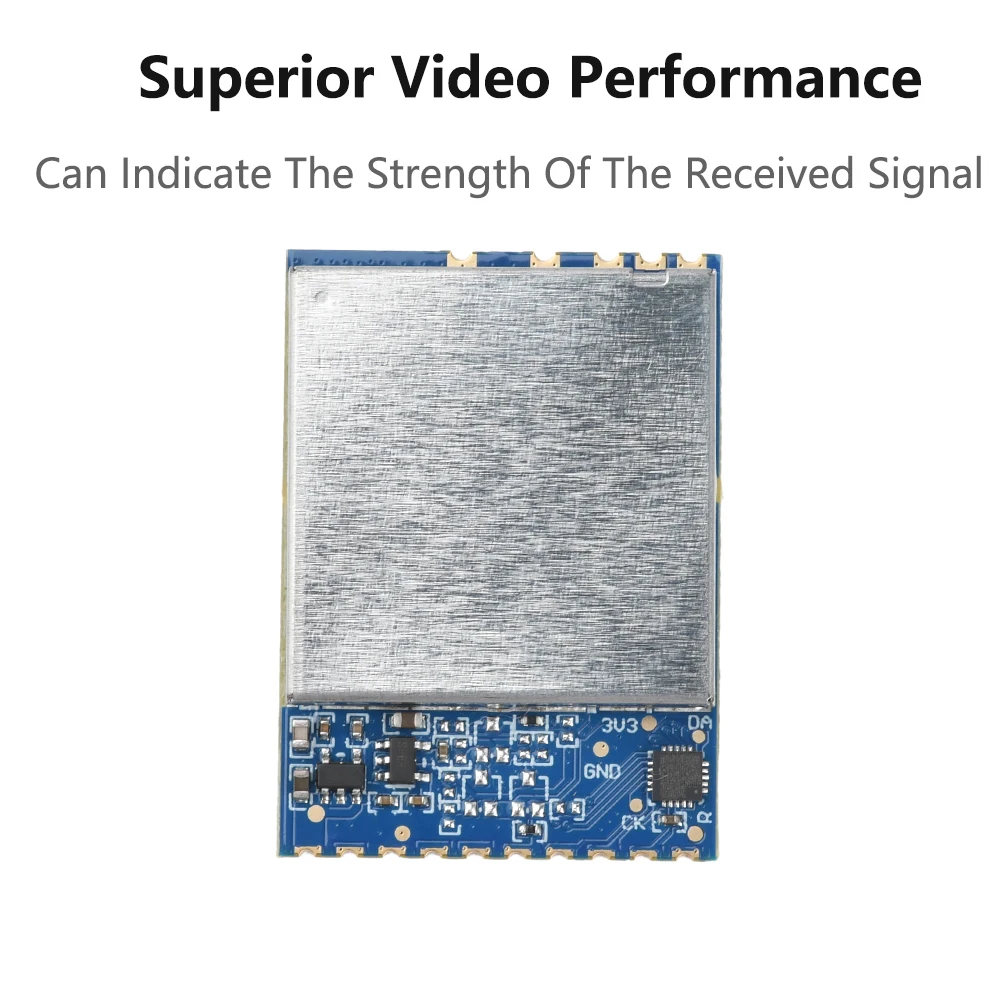

1. High integration design: The upgraded version comes with RSSI function, Can indicate the strength of the received signal.

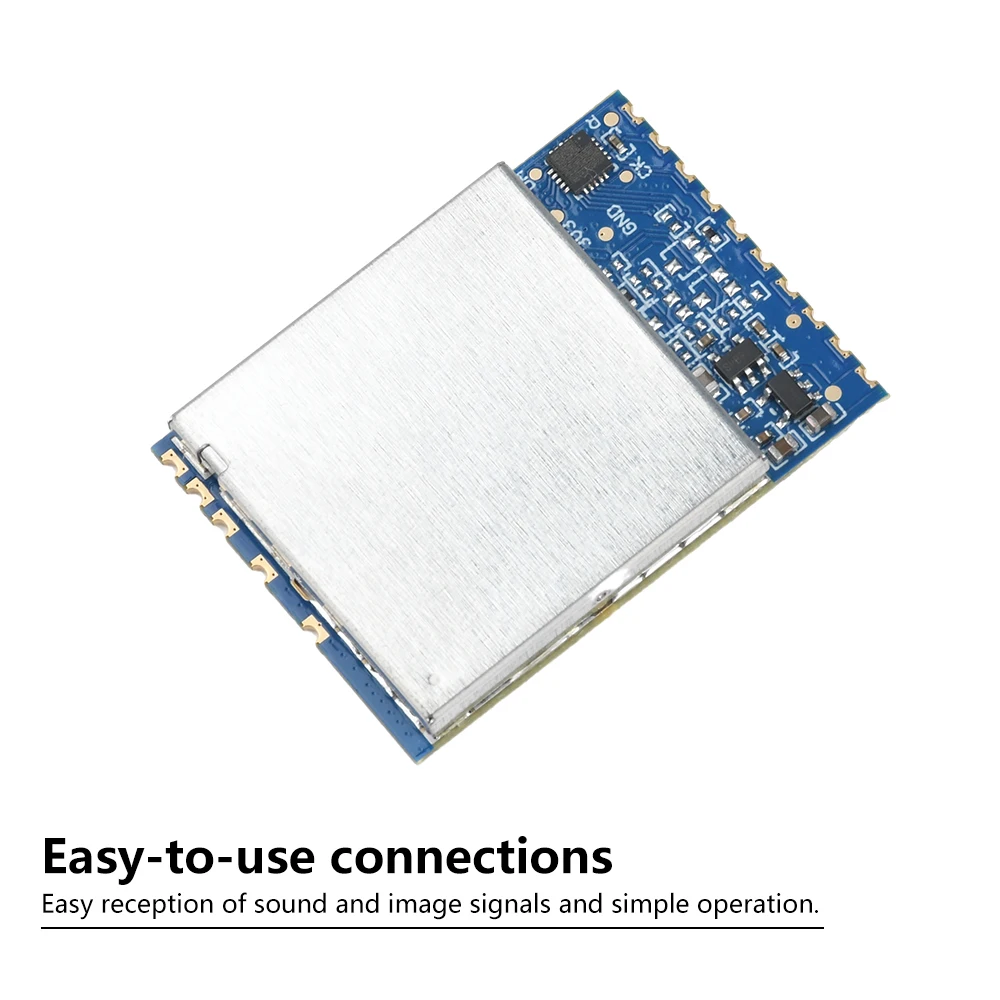

2. Simple and easy-to-use connection method: Simply connect the antenna to easily receive sound and image signals, with easy operation.

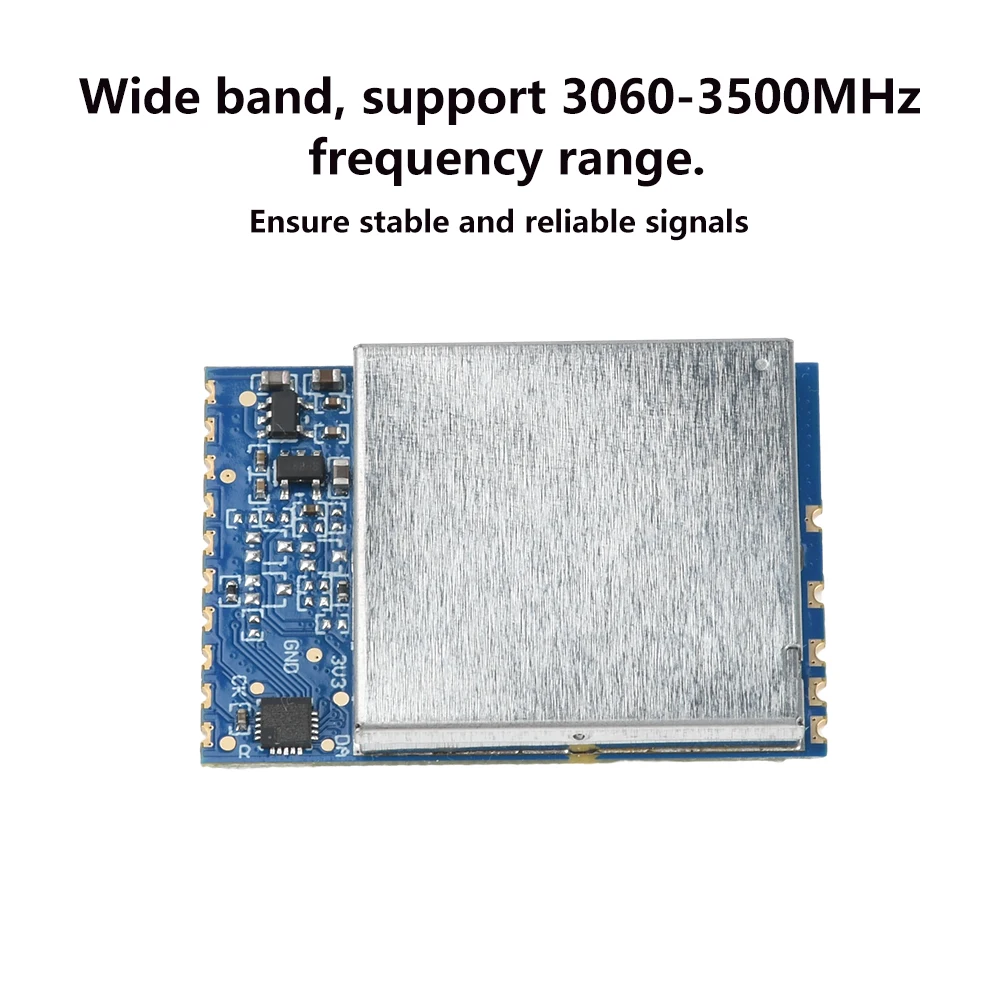

3. Broadband reception capability: Supports a reception frequency range of 3060-3500MHz to ensure stable and reliable signals.

4. Excellent video performance: The video output impedance is 75 Ω, providing clear and stable image quality.

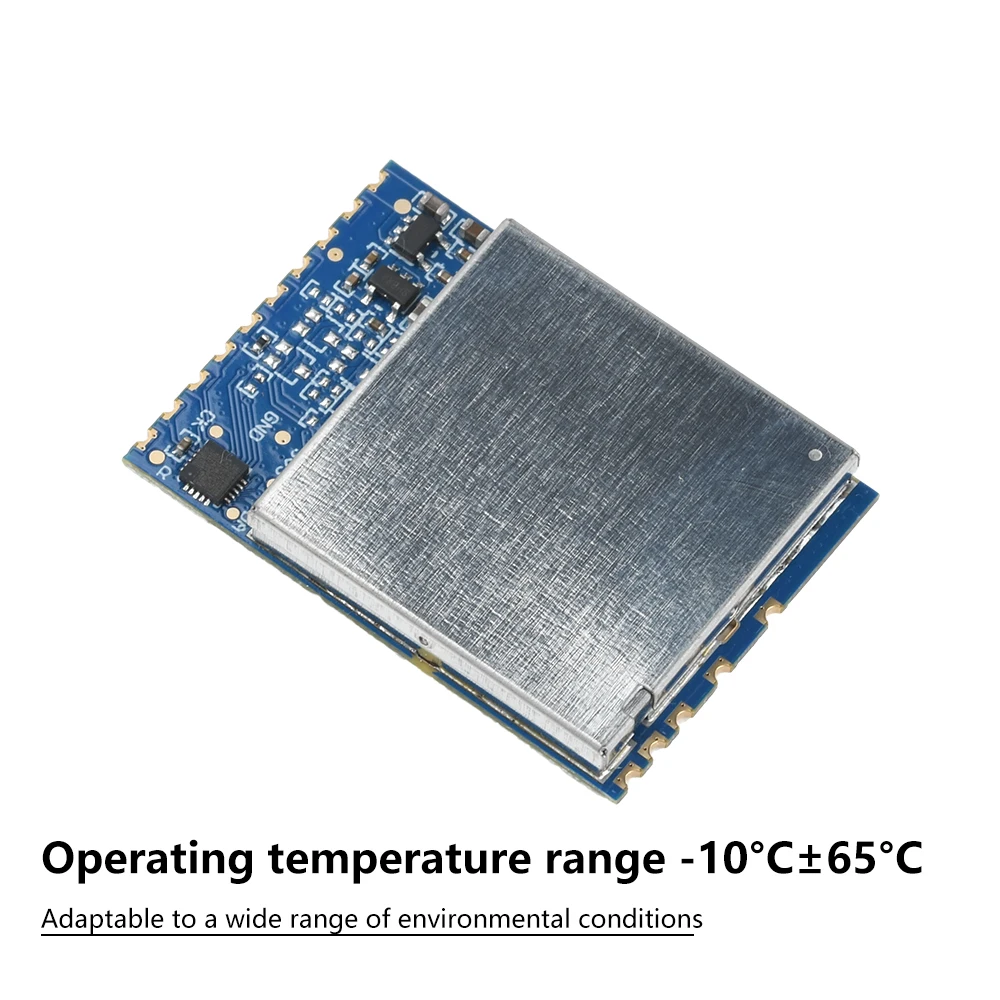

5. Excellent environmental adaptability: The working temperature range is -10 ° C to+65 ° C, which can adapt to the usage needs of various environmental conditions.

Parameter:

Supply voltage: 5.0V

Current consumption: (380 ± 30) mA

Receiving frequency range: 3060-3500MHz

Output to standing wave ratio: 2:1

Modulation formula: FM/PLL

Intermediate frequency IF: 480MHz

Antenna port impedance: 50 Ω, Typ

Stability of local oscillator frequency: ± 200kHz

Local oscillator frequency accuracy: ± 200kHz

Local oscillator control: PLL

Input end local oscillator leakage: -65dBm

Receiver sensitivity: -93dBm ± 2

Input level range: -93 dBm~+5 dBm

Video output impedance: 75 Ω, Typ

Video output level: 1 ± 0.2Vp-p, Typ

Video polarity: Negative

Video frequency response: ± 5 dB, Max. 50Hz~6MHz

Differential gain: ± 5%, Max

Differential phase: ± 5 Deg., Max 3dB

Intermediate frequency bandwidth: 16.5MHz

Signal to Noise Ratio (S/N): 38dB, Min

Working temperature: -10~+65 º C

Storage temperature: -30~+85 º C

Working humidity: 85% RH

Package Include:

1X module
