256X128mm Size LED Full-Color Display Screen Module P4 Indoor HD Rental Electronic Advertising Screen Unit Board Free Shipping

P4 Indoor LED display module 256mm x 128mm

Product parameter:

Module Size: 256mm x 128mm.

Module Pixel Pitch: 4mm.

Module Resolution: 64dots x 32dots.

Pixel Density: 62500dots/sqm.

Color Configuration: 1R1G1B 3 in 1.

LED Package: SMD2121/2020.

Drive Mode: 1/16Scan Constant Current.

Brightness: 800-2500 cd/sqm(adjustable).

Drive IC: 2037 or same level.

Refresh Rate: 1920HZ.

Frame Rate: 120frame/sec.

Grey Scale: 16.7M colors.

Interface: HUB75E.

Viewing Angle: H: 160°; V:160°.

Color Temperature: 256 level(adjustable).

Power Input: DC5V.

Ave Power Consumption: 280W/sqm.

Storage Temperature: -30~+70 degree.

Working Temperature: -20~+50 degree.

IP grade: IP50(Not waterproof).

Operating Humidity: 10%~95%.

Blind Spot Rate: <1/10000.

Life Span: >100,000 Hours.

Warranty: 3 Years.

Certificate: CE, FCC, PSE, RoHS.

Tips：

1. About LED controlle

The price does not include the sending card and video processor, please contact us to buy if you need it.

The screen panel power supply and receiving card will be replaced according to customer needs, so it may be different from the picture.

2. About different batches of LED displays

Due to product upgrades, the batches of LED modules are different, and the module plastic casing, chip IC, PCB board, screw position, LED color, cabinet and other components may be different from the picture.

LED displays of different batches or LED displays of different companies are not compatible, please do not mix them together.

If you buy LED displays at different times, we will not guarantee that their appearance is the same.

If you buy it for repair, please contact us to confirm whether it is the same batch before placing an order.

If you want buy multiple LED modules to build a large screen, but had to buy multiple times separately, in this case, please contact us at the first purchase, so that we can Mark batch number of the LED modules for you, and let us confirm whether it is possible Keep enough of the same batch of LED modules for you to purchase multiple times, and complete the purchase within a specific time.

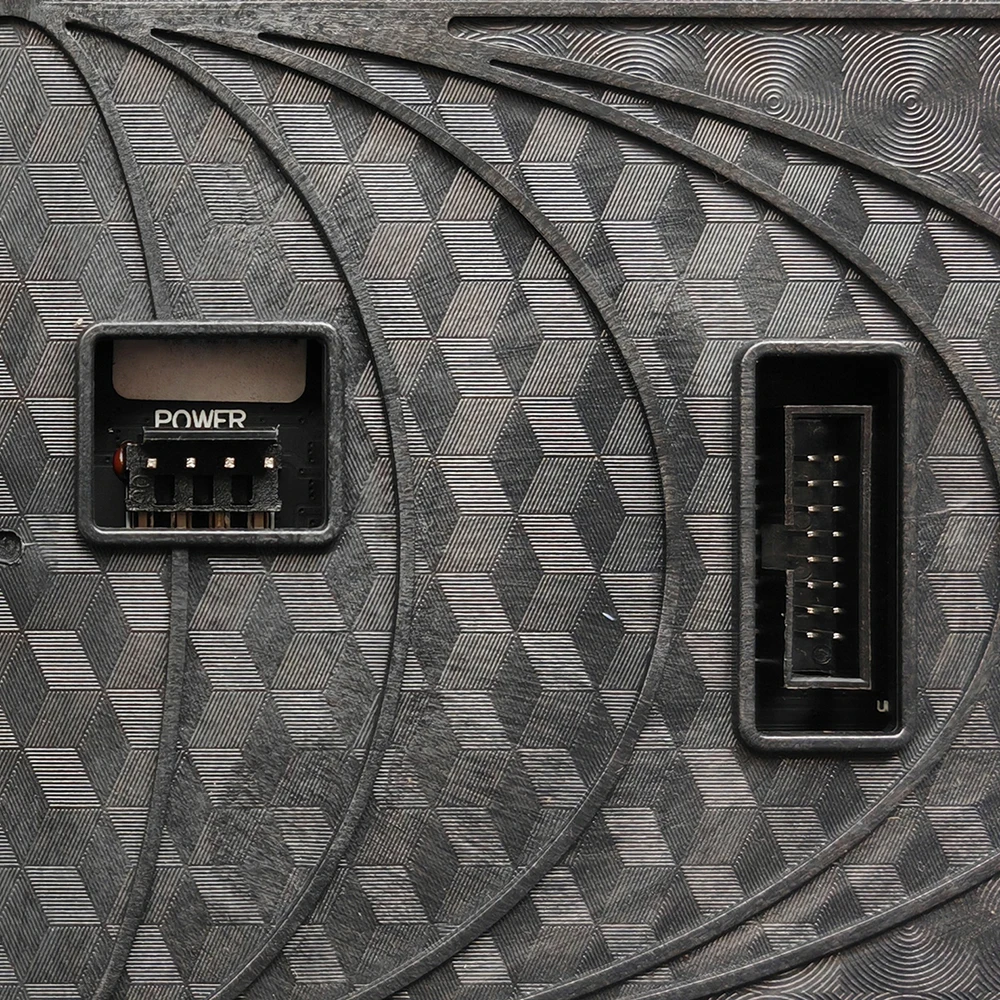

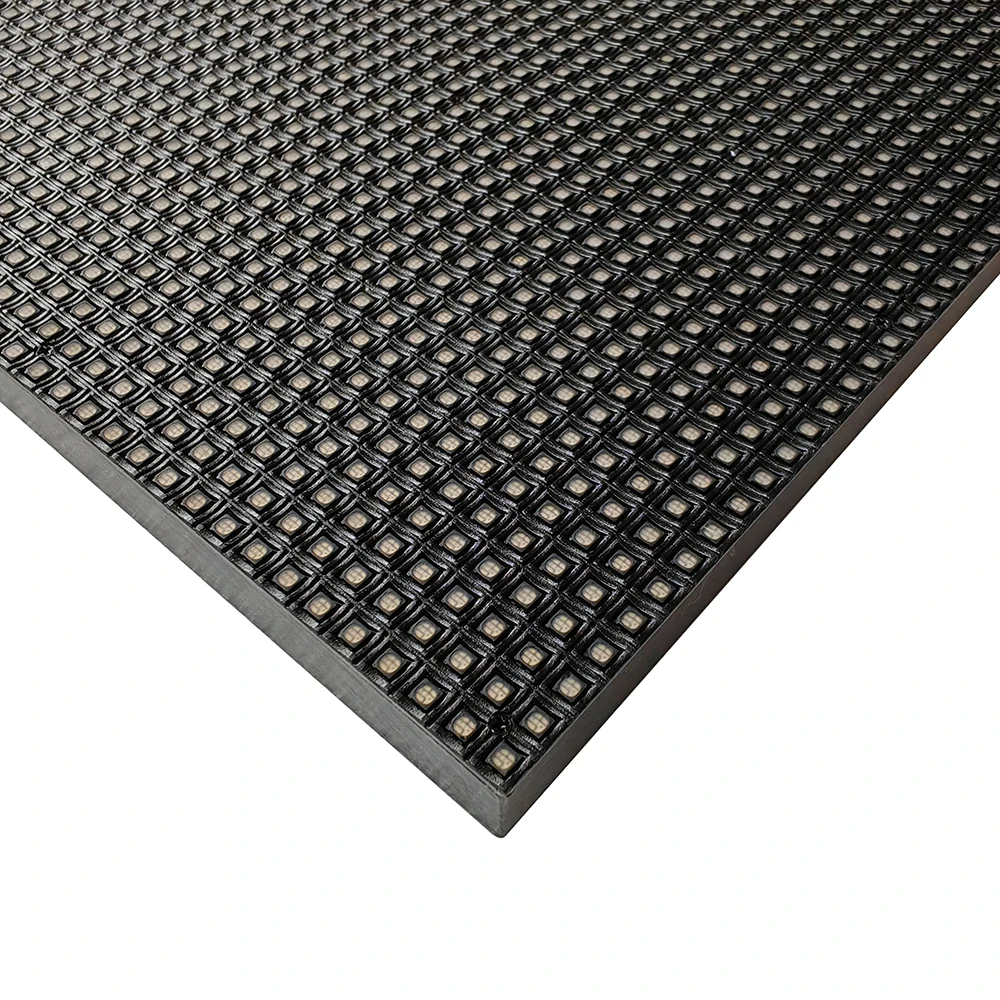

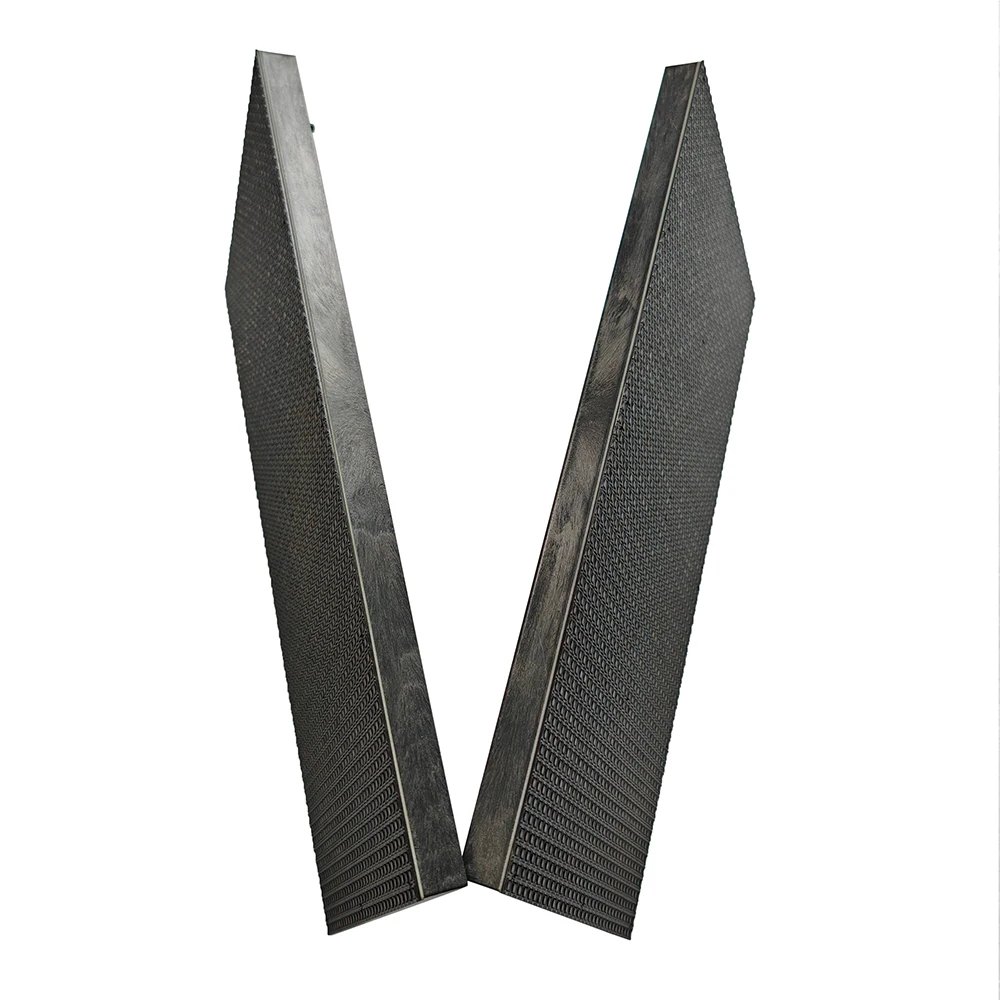

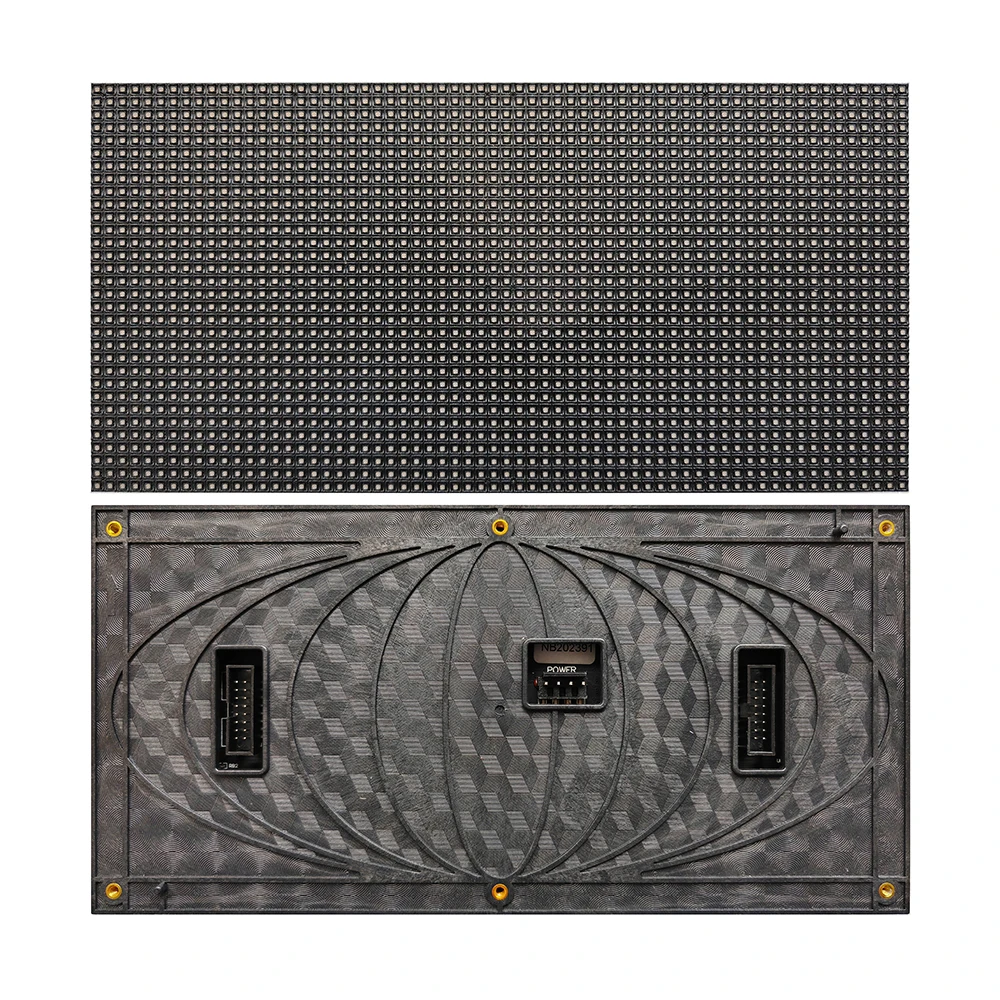

Product display:

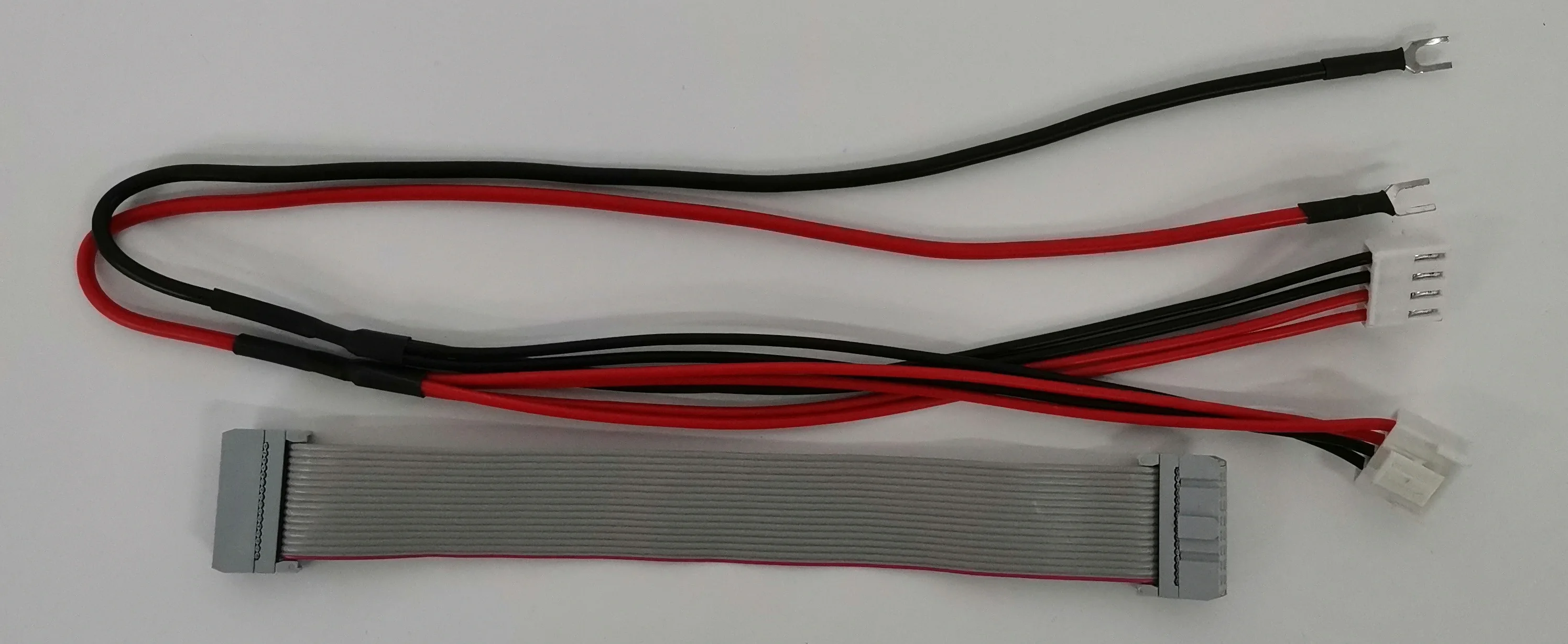

Packing list for purchasing N LED modules:

1.N LED modules

2.N data lines

3.N / 2 power cords (because 1 power cord can support 2 LED modules.)

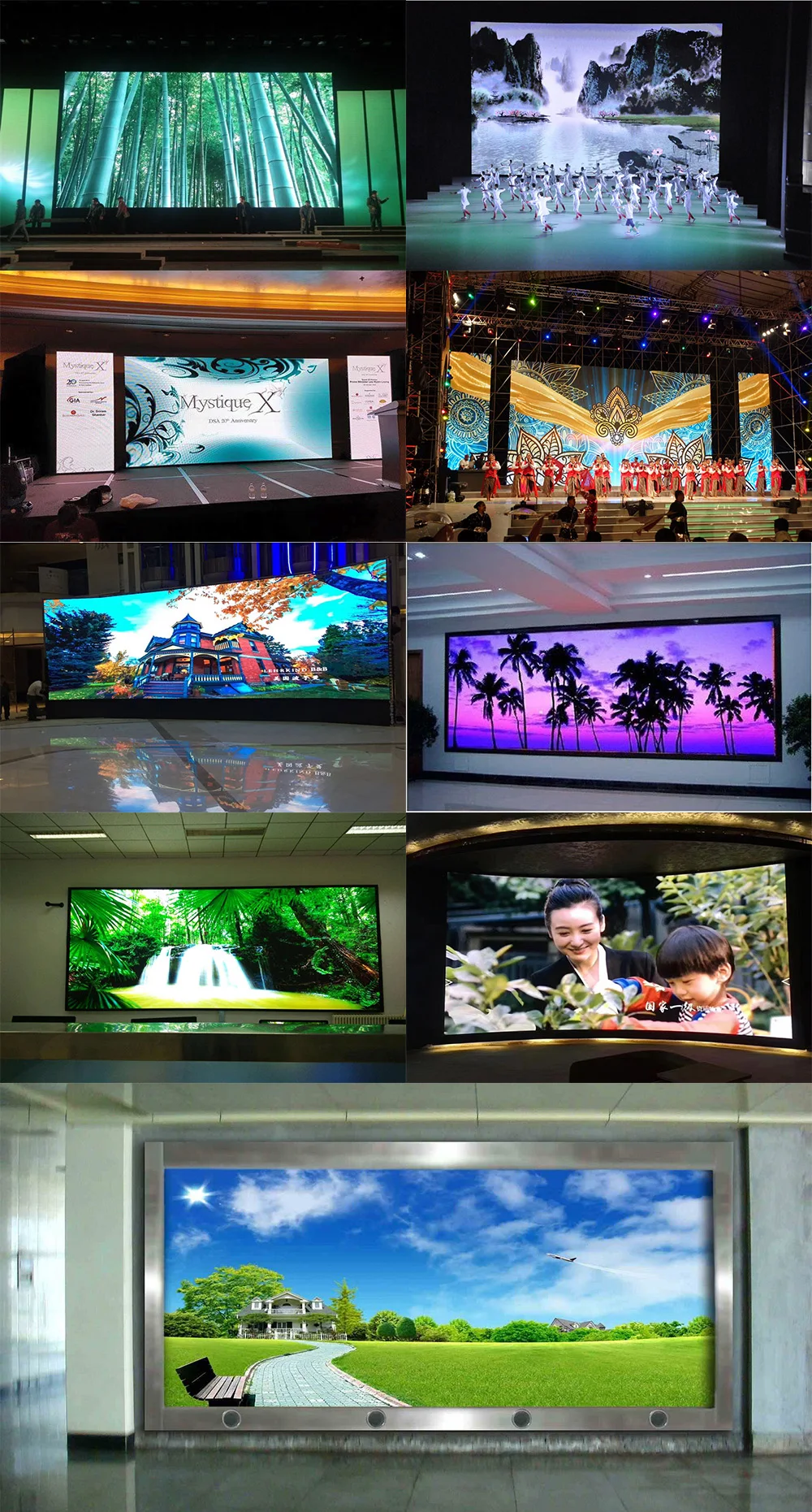

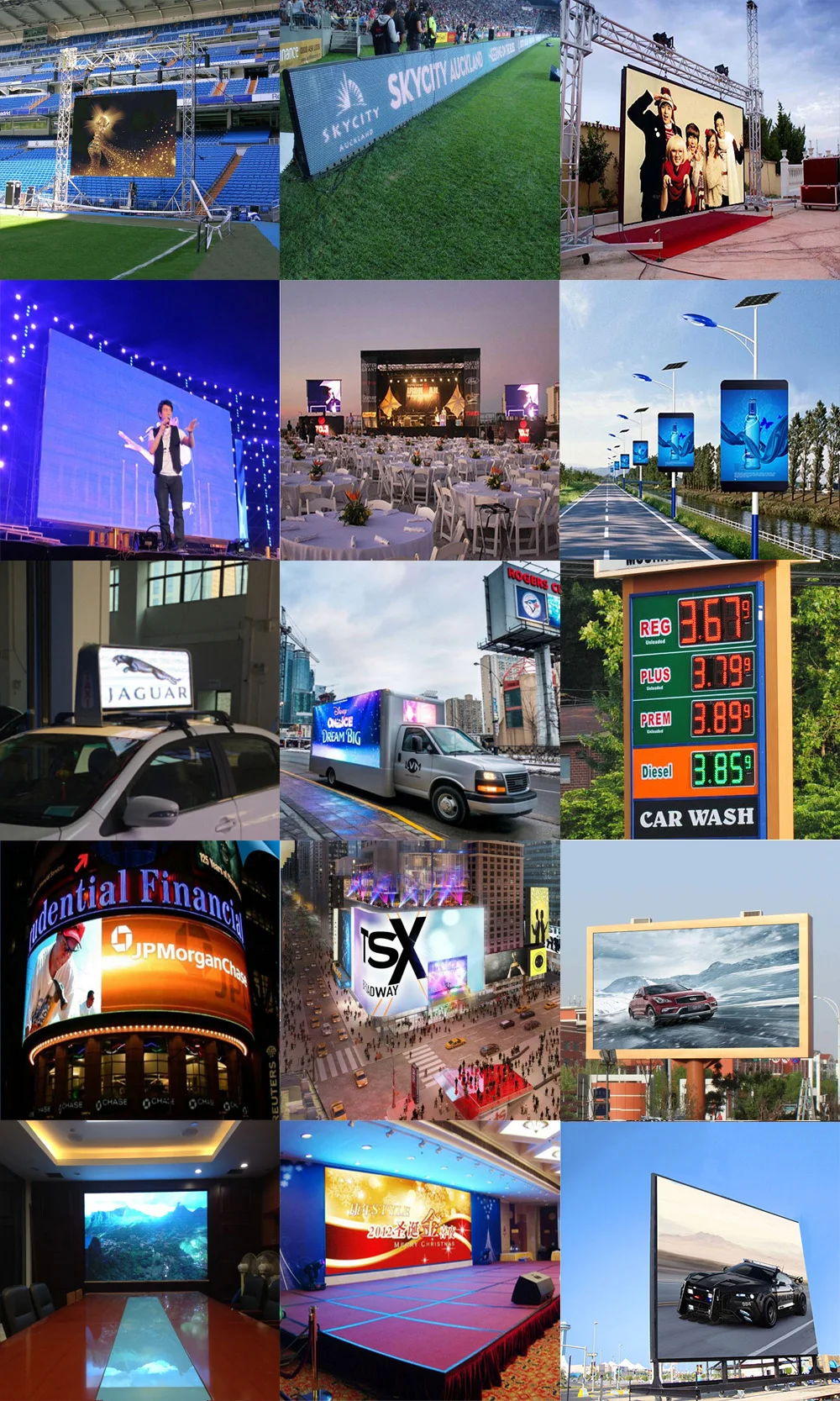

Effect display:

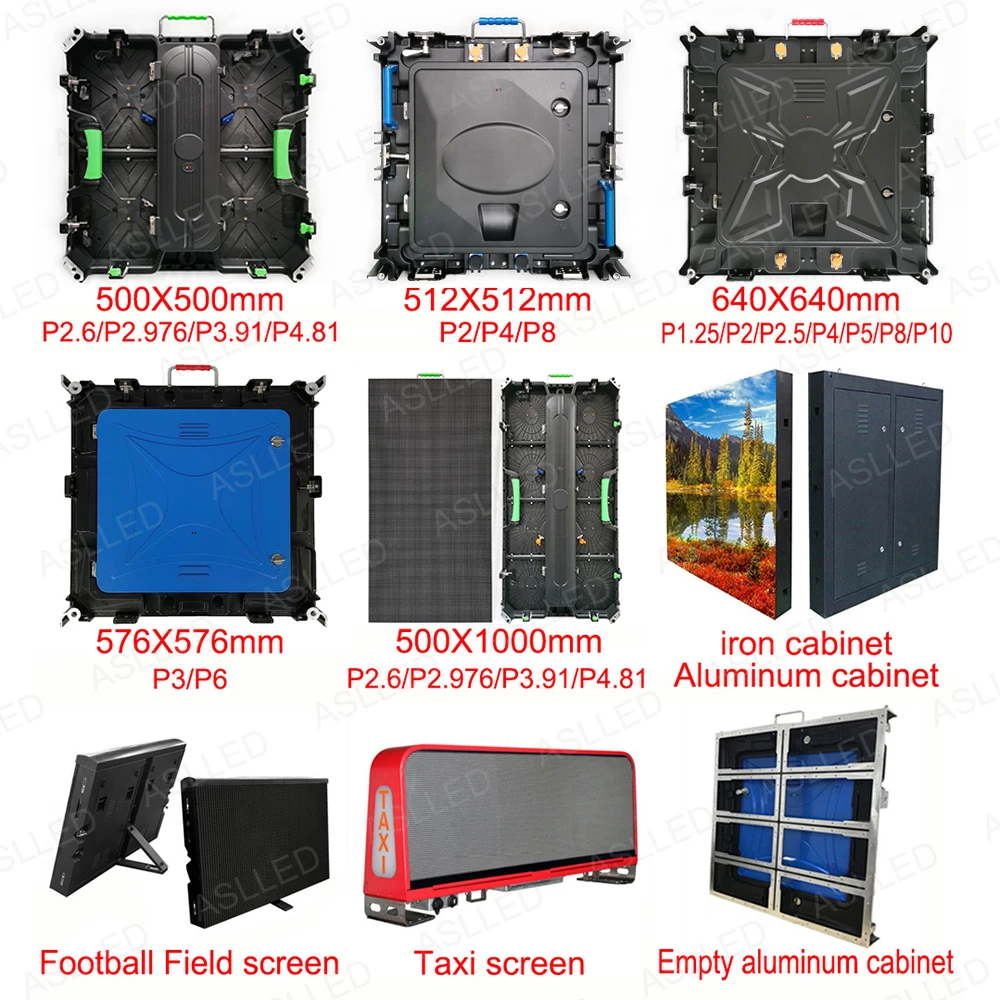

Products Recommended:

We have different types of LED cabinets for indoor and outdoor use. If you need other specifications, please contact us. We can customize the LED display you need.

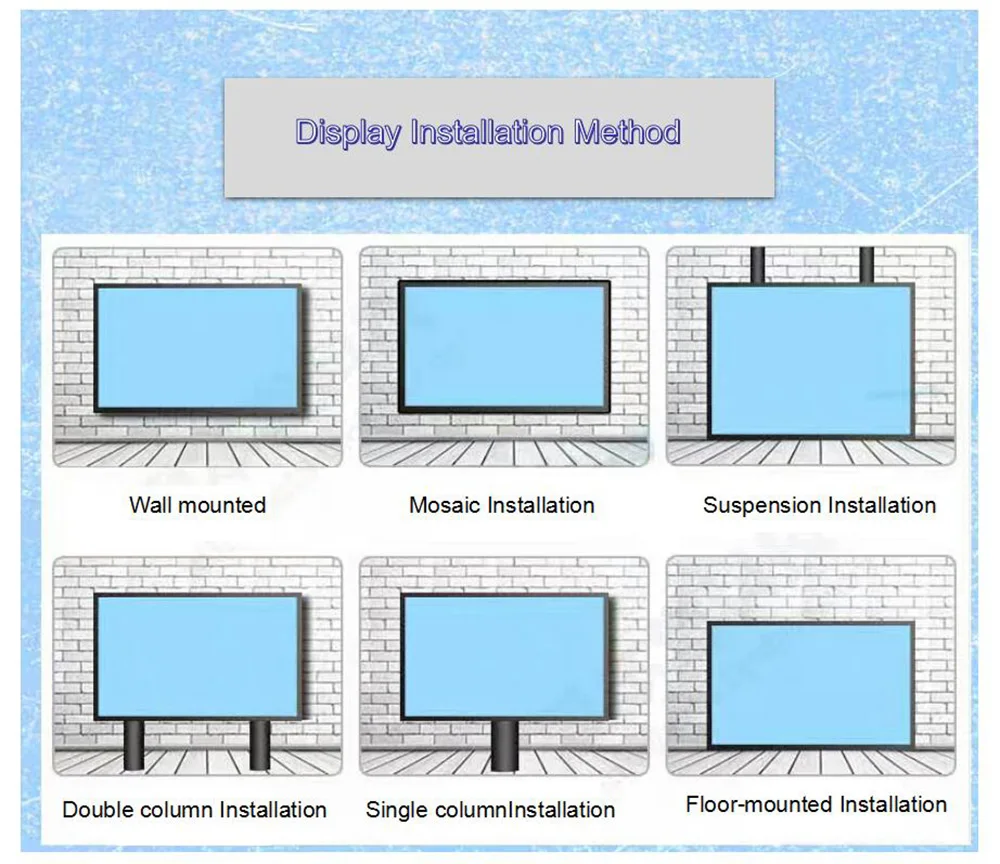

Display installation method:

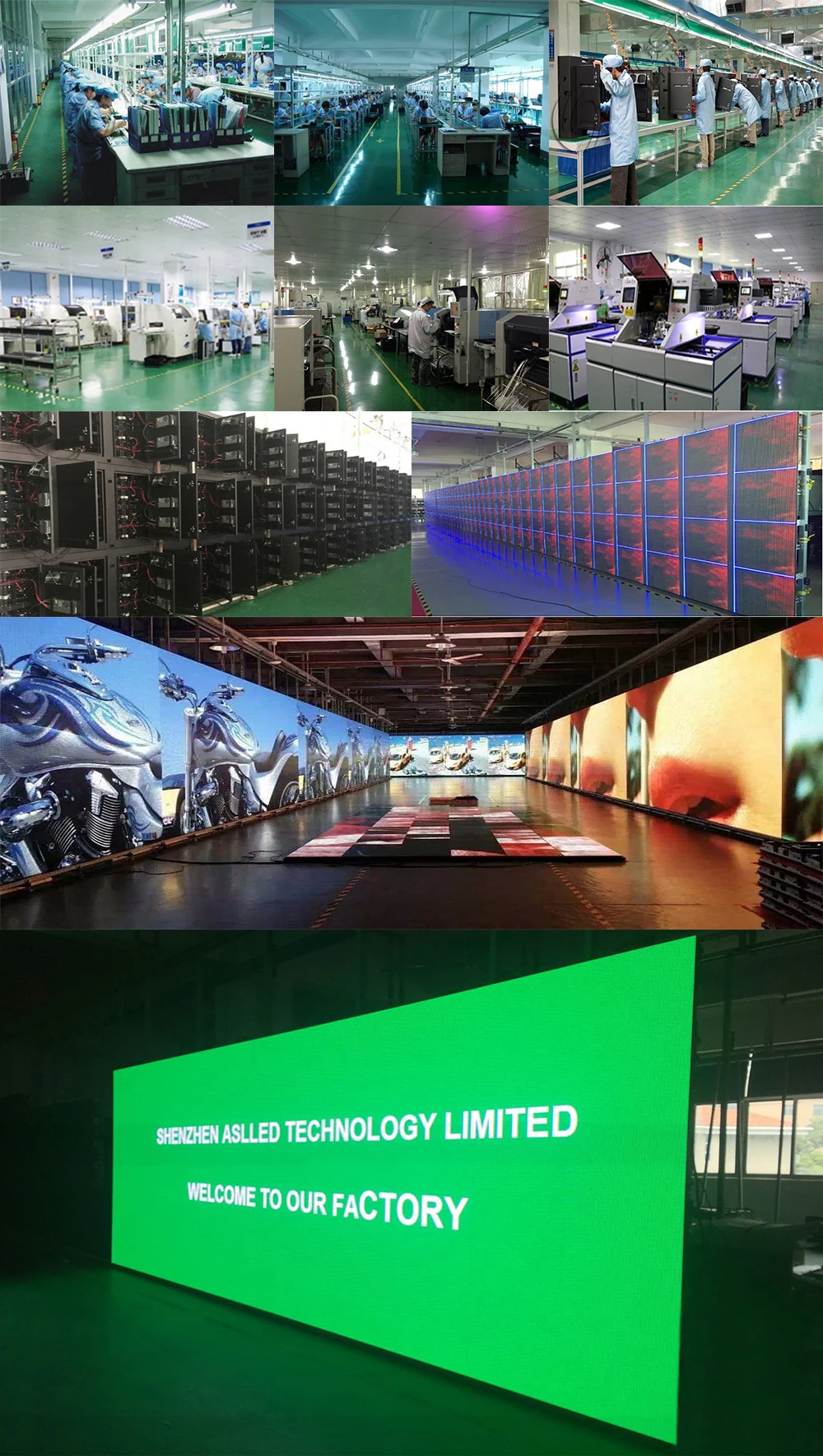

Our company:
