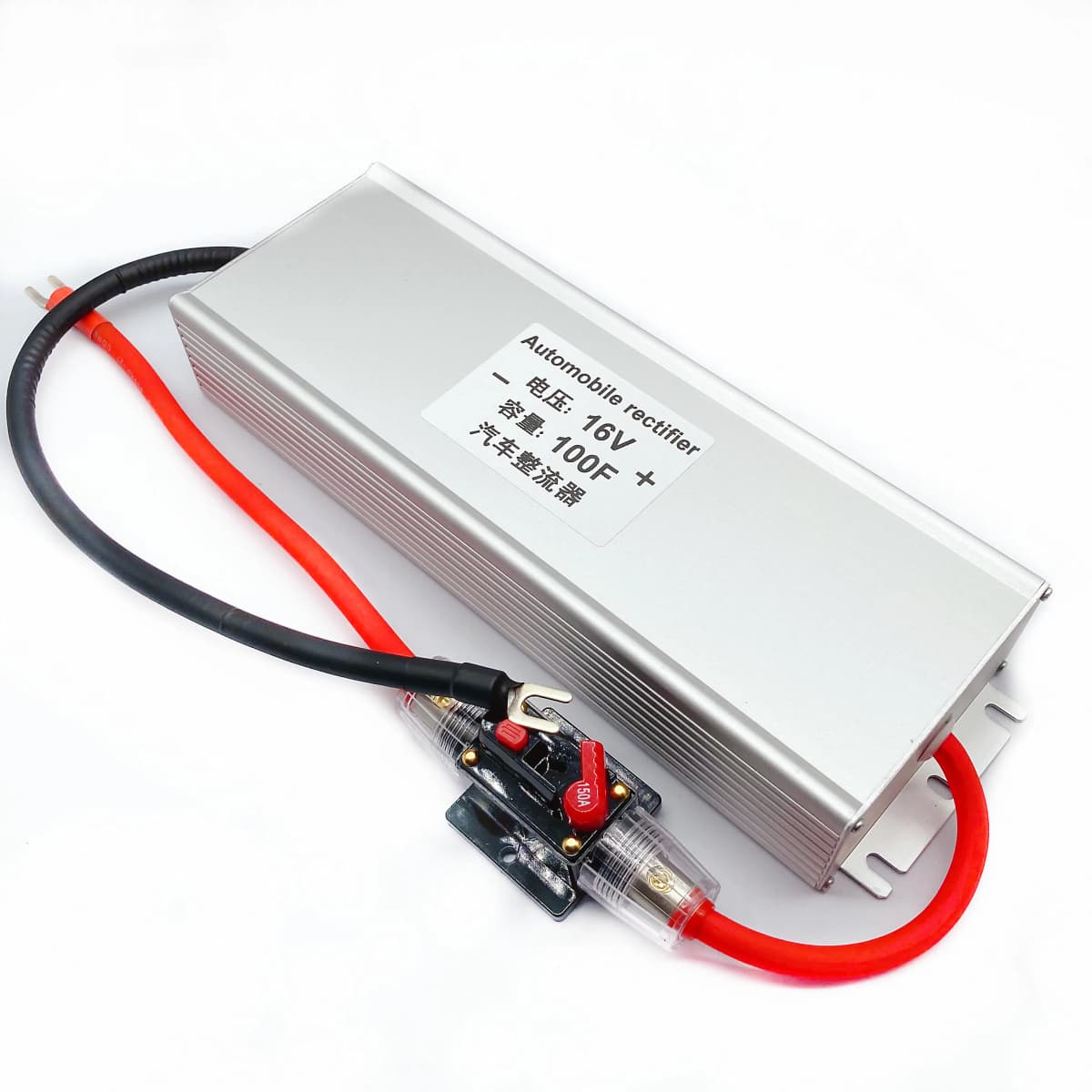

Maxwell Super Farad Capacitor 16V100F Improves Battery Short-Circuit Protection and Winter Battery Cold Start Rectifier

Brand: Maxwell

Capacity: 16V100F

Size: 280 * 45 * 90mm

2. Anti-vibration: Place a silicone soft pad at the bottom, secure it in the trunk/cockpit of the vehicle

3. Charging Operation Standards (Top Priority)

Rated charging voltage

• 6S 16.2V module: Long-term float charge ≤14.5V (perfectly compatible with automotive alternator 13.8~14.4V), strictly prohibit prolonged charging above 15.5V

2. Initial Slow Charging Procedure upon First Power-On

1. No-load state, precharge with a current-limited power supply at a low current (1/10 of the capacity current), with voltage rising gradually

2. Fully charge only after the voltage reaches 90% of the rated value. Direct high-power charging is prohibited (to prevent instantaneous impact damage)

3. Prohibited Actions

❌ Prohibit prolonged constant-voltage overcharging; overpressure may cause electrolyte decomposition, gas generation, casing pressure relief, leakage, and scrapping

Super Capacitor Applications

1. Automotive/Motorcycle Modification (Highest Sales)

1. Automotive voltage stabilization startup: Parallel 12V battery, delivers high current surge at ignition, facilitates cold-start performance, enhances idle stability, prevents weak bass in audio systems, reduces headlight flickering, and protects the battery to prolong its lifespan.

2. Motorcycle/Electric Vehicle: Modified voltage stabilization to improve weak starting and dimming headlights; modified start-stop power system.

3. Trucks, agricultural machinery, and construction equipment: Cold starts at low temperatures, the challenge of starting diesel vehicles in winter.

2、 Energy storage backup power supply

1. UPS backup power outage: access control, cameras, routers, water meters, gas meters, and smart meters will be powered off for a short period of time.

2. Industrial control equipment PLC、 Servo: save parameters in case of power failure, short-term backup power supply.

3. Solar energy mini system: equipped with solar panels, street lights, courtyard lights, and monitoring energy storage, capable of charging and discharging tens of thousands of times.

3、 Small daily use&digital

1. Hand cranked flashlight, emergency power bank: fast charging and discharging, fully charged in a few seconds and instantly discharged.

2. Remote controlled toys and smart door locks: replace small batteries, repeatedly charge without frequent battery changes.

4、 Industrial specific

1. Forklifts and AGV carts: frequent start stop high-power power supply.

2. Wind power variable pitch and rail transit: high-power instant energy storage buffering.

3. Backup power supply for elevator leveling: When the elevator is trapped due to a power outage, the leveling door will open for a short period of time.

Product advantages (for writing details)

Charging and discharging over 500000 times, with a lifespan far exceeding that of lead-acid and lithium batteries

-40 ℃ low temperature normal discharge, not afraid of power loss in winter

Fast charging takes a few seconds to fully charge, with high current output instantly
