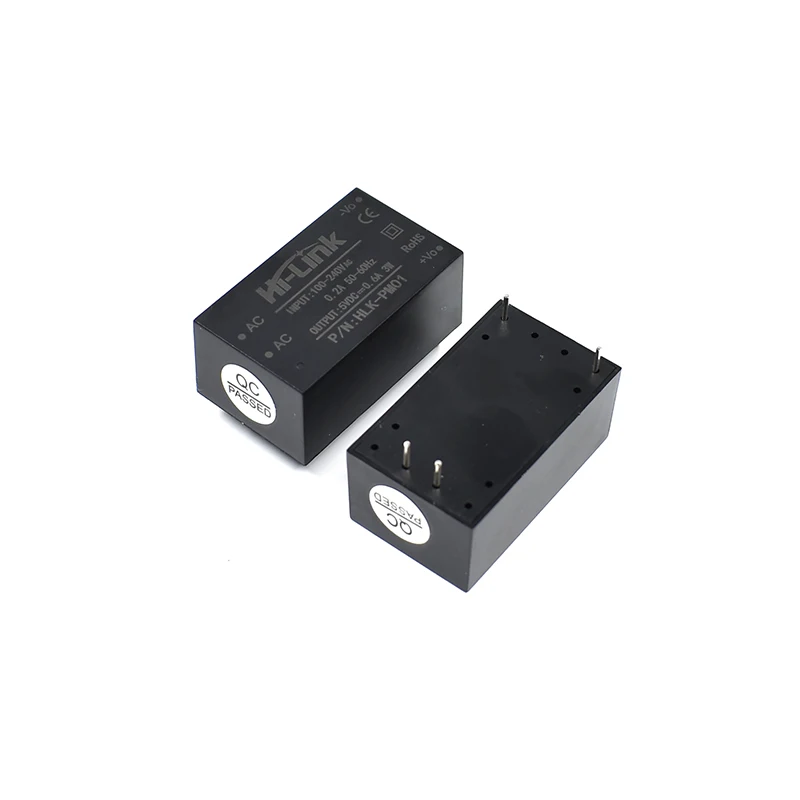

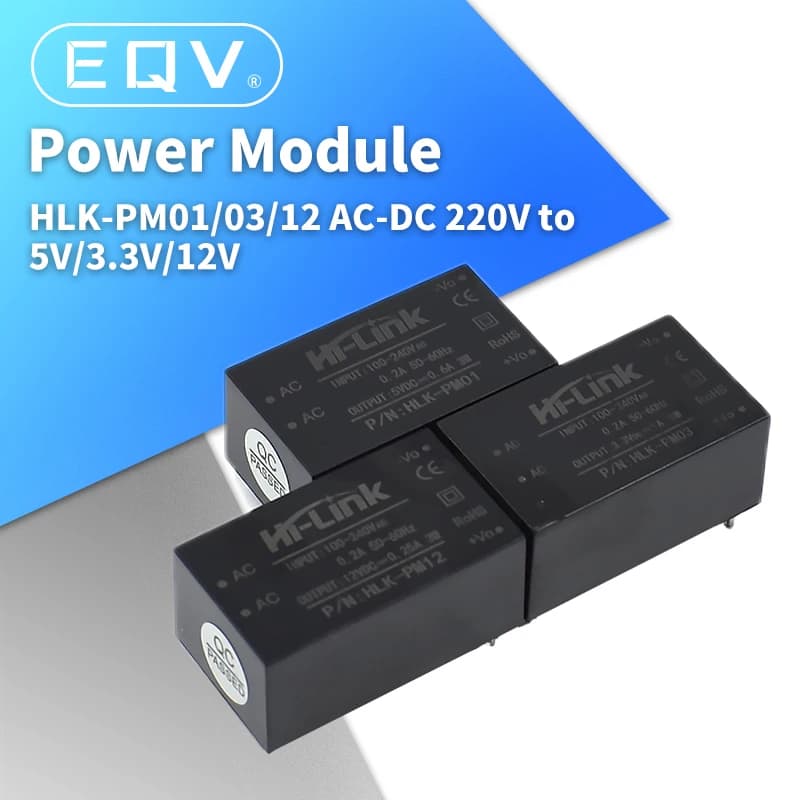

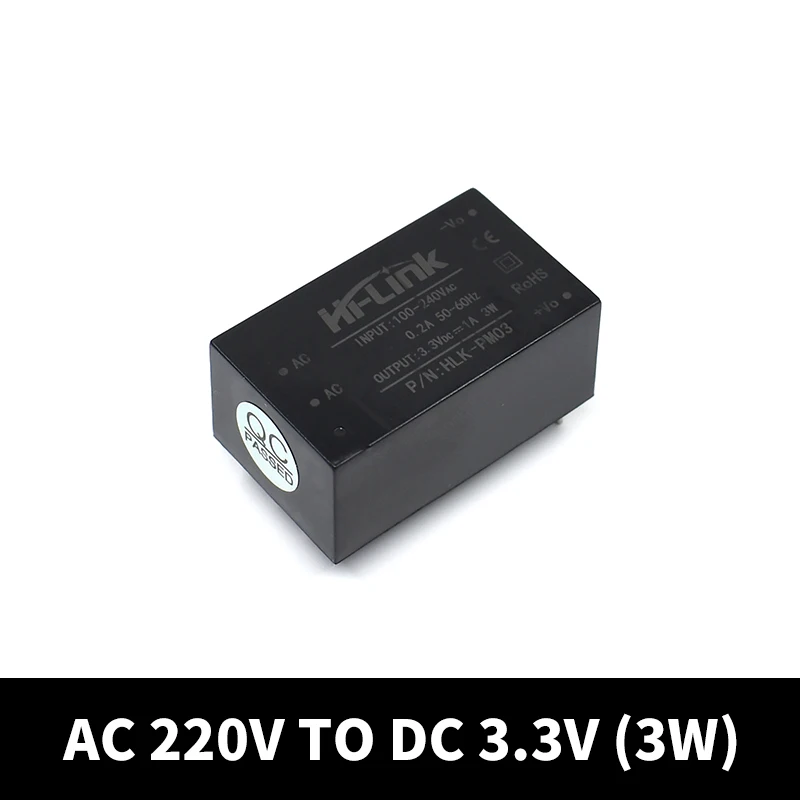

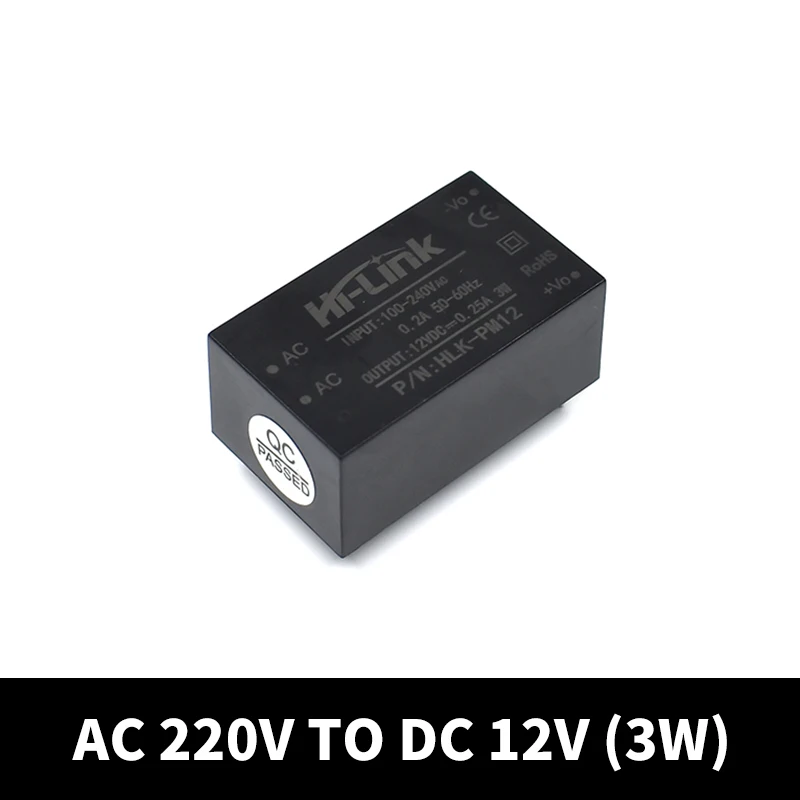

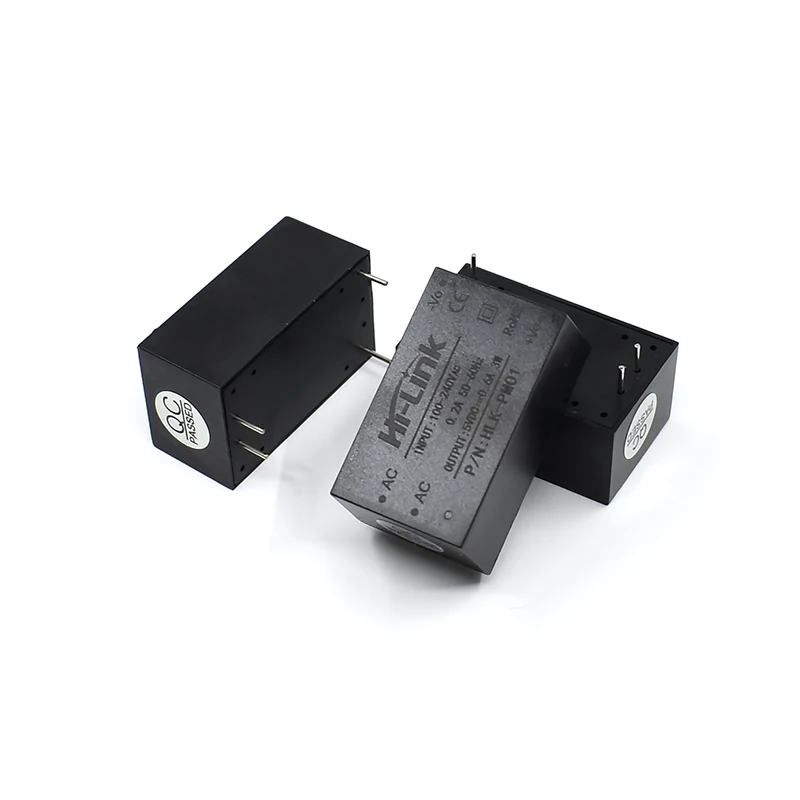

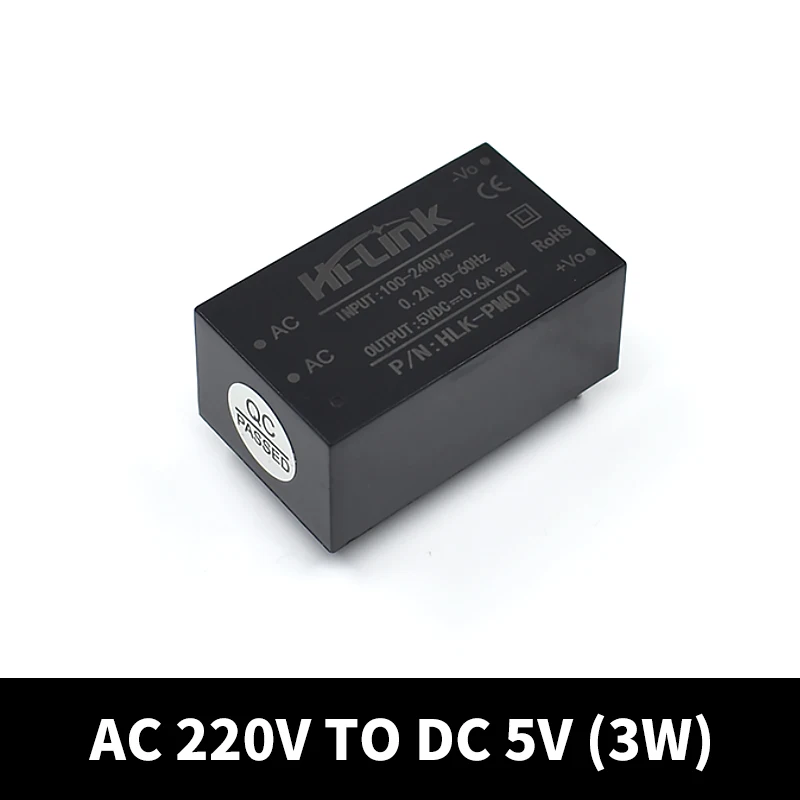

10pcs/lot HLK-PM01 HLK-PM03 HLK-PM12 AC-DC 220V to 5V mini power supply module,intelligent household switch power supply module

220V 5V AC - DC terisolasi, Rumah pintar HLK-PM01, Beralih step down modul power supply
1.Product Features
1). The ultra-thin, subminiature
2). The full voltage input (90 ~ 264 Vac)
3). Low ripple and low noise
4). Output overload short circuit protection function
5). High efficiency and power density

6). Product design to meet the EMC and safety testing requirements
7). Low power consumption, green environmental protection,no-load loss < 0.1 W
8). 100% load test
9). Meet the requirements of UL, CE,
2. Environmental Conditions
1). Working temperature: -20- + 60 Celsius
2). Storage temperature: -40- + 80 Celsius
3). Relative Humidity: 5-95%
4). Cooling: natural cooling
5). Atmospheric pressure: 80-106 Kpa
6). Altitude: ≤2000m
7). Vibration: Vibration coefficient 10 ~ 500Hz, 2G10min / 1cycle, 60min.each along X, Y, Z axes
3.Electrical Characteristics (at ambient temperature test)
1). Rated input voltage: 100-240 VAc
2). Input voltage range: 90-264VAc
3). Maximum input current: ≤0.2A
4). Input current surge: ≤10A
5). Maximum input voltage: ≤270VAc
6). Enter slow start: ≤50mS
7). Input Low Voltage Efficiency: Vin = 110VAc, full load ≥69%
8). Input High Voltage Efficiency: Vin = 220VAc, full load ≥70%
9). Long-term reliability: MTBF≥100,000h
10). Load rated output voltage:+ 5 0.1VDc
11). Full rated output voltage: + 5 0.2VDc
12). Short-term maximum output current: ≥1000mA
13). Maximum output current for a long time: ≥600mA
14). Voltage Regulation: 0.2%
15). Load regulation: 0.5%
16). Output ripple and noise (mVp-p): ≤50
17). Switch overshoot amplitude:( rated input voltage, output load plus 10%) ≤5% VO
18). Output over-current protection: output maximum load of 150-200% A
