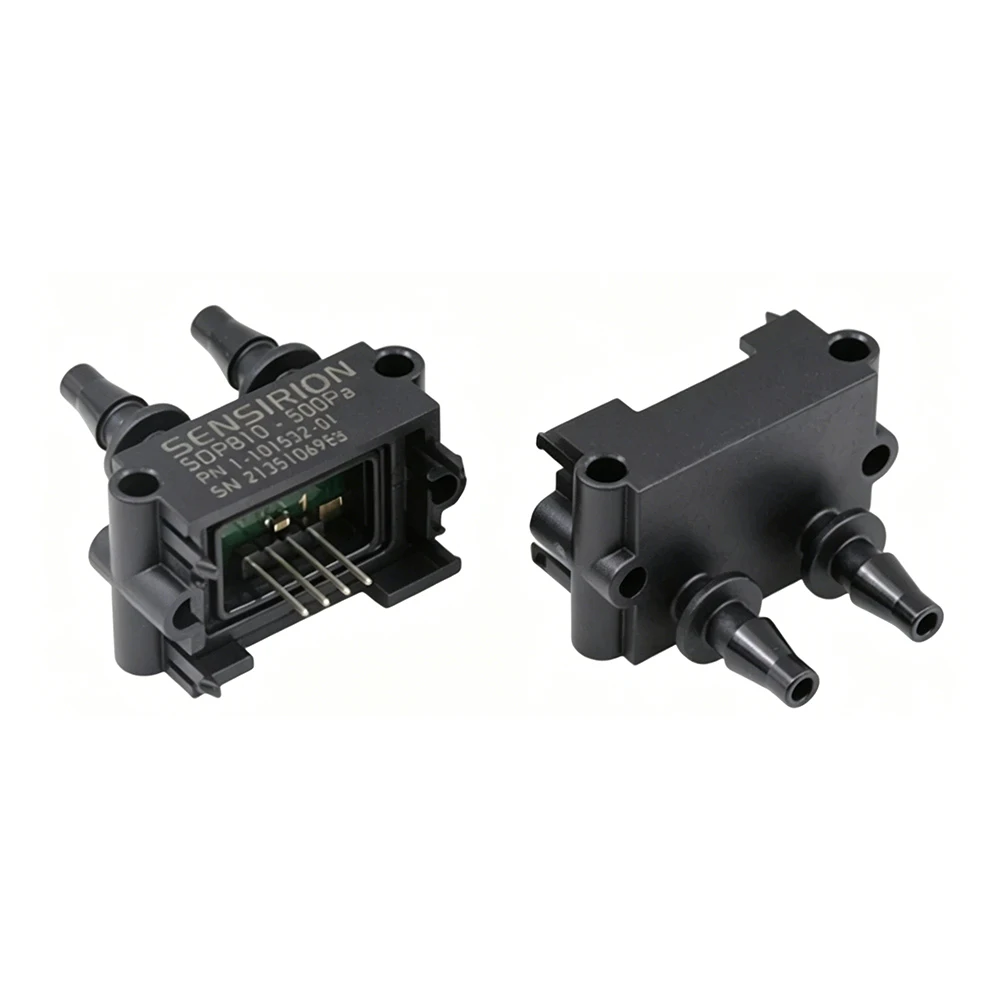

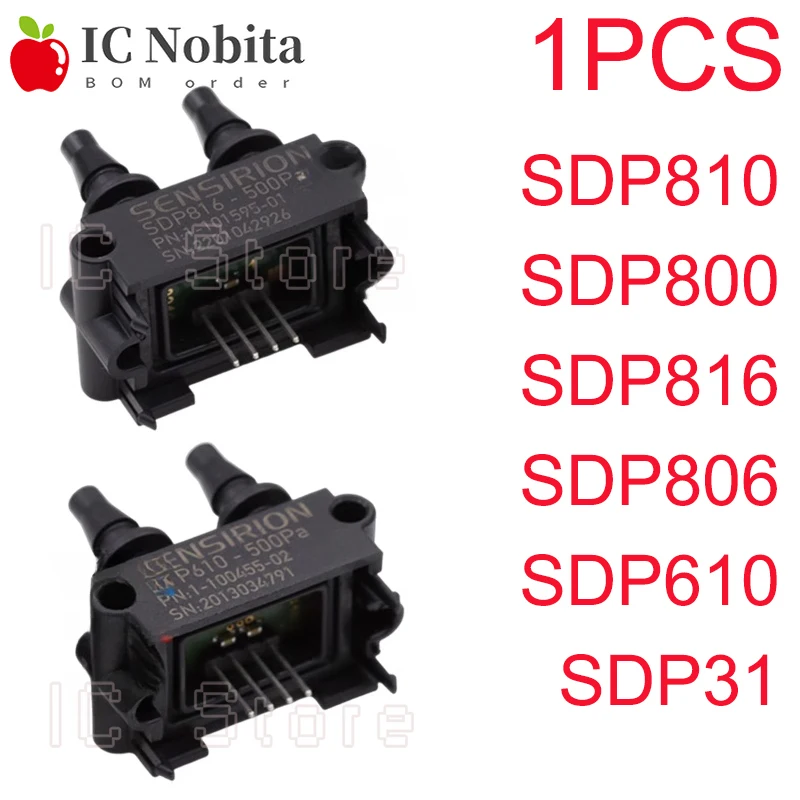

1PCS Differential Pressure Sensor SDP810 SDP800 SDP816 SDP806 SDP610 SDP31 125PA 500PA Sensor for Ventilator

SDP800-500PA
Product Category:Board Mount Pressure Sensors
Pressure Type:Differential
Operating Pressure:- 500 Pa to 500 Pa
Accuracy:3 %
Output Type:Digital
Mounting Style:Through Hole
Interface Type:I2C
Operating Supply Voltage:2.7 V to 5.5 V
Port Type:Dual Axial Barbless
Resolution:16 bit
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Series:SDP8xx-Digital
Operating Supply Current:3.8 mA
Product Type:Board Mount Pressure Sensors
Subcategory:Sensors
Supply Voltage - Max:5.5 V
Supply Voltage - Min:2.7 V
Tradename:CMOSens

SDP800-125PA
Product Category:Board Mount Pressure Sensors
Pressure Type:Differential
Operating Pressure:- 125 Pa to 125 Pa
Accuracy:3 %
Output Type:Digital
Mounting Style:Through Hole
Interface Type:I2C
Operating Supply Voltage:2.7 V to 5.5 V
Port Type:Dual Axial Barbless
Resolution:16 bit
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Series:SDP8xx-Digital
Operating Supply Current:3.8 mA
Product Type:Board Mount Pressure Sensors
Subcategory:Sensors
Supply Voltage - Max:5.5 V
Supply Voltage - Min:2.7 V
Tradename:CMOSens

SDP810-125PA
Product Category:Board Mount Pressure Sensors
Pressure Type:Differential
Operating Pressure:- 125 Pa to 125 Pa
Accuracy:3 %
Output Type:Digital
Mounting Style:Through Hole
Interface Type:I2C
Operating Supply Voltage:2.7 V to 5.5 V
Port Type:Dual Axial Barbless
Resolution:16 bit
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Series:SDP8xx-Digital
Operating Supply Current:3.8 mA
Product Type:Board Mount Pressure Sensors
Subcategory:Sensors
Supply Voltage - Max:5.5 V
Supply Voltage - Min:2.7 V
Tradename:CMOSens

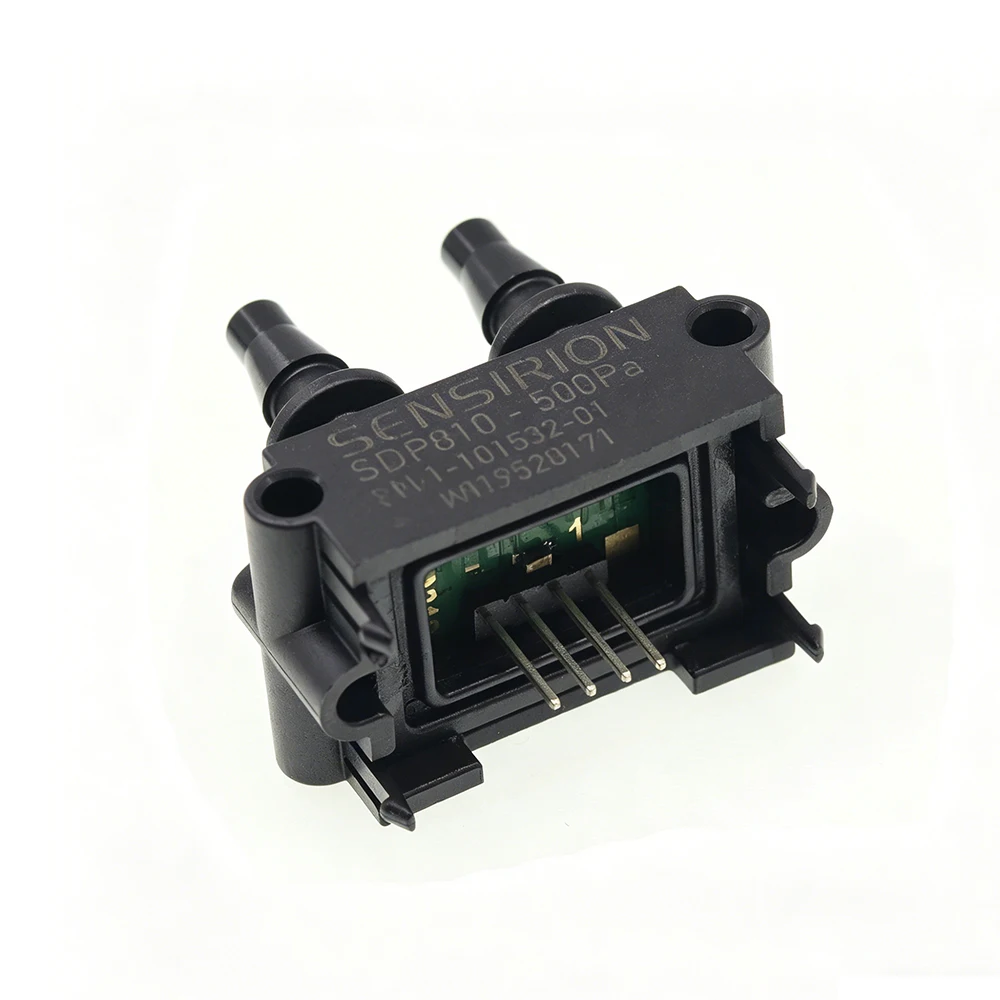

SDP810-500PA
Product Category:Board Mount Pressure Sensors
Pressure Type:Differential
Operating Pressure:- 500 Pa to 500 Pa
Accuracy:3 %
Output Type:Digital
Mounting Style:Through Hole
Interface Type:I2C
Operating Supply Voltage:2.7 V to 5.5 V
Port Type:Dual Axial Barbless
Resolution:16 bit
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Series:SDP8xx-Digital
Operating Supply Current:3.8 mA
Product Type:Board Mount Pressure Sensors
Subcategory:Sensors
Supply Voltage - Max:5.5 V
Supply Voltage - Min:2.7 V
Tradename:CMOSens

SDP816-125PA
Product Category:Board Mount Pressure Sensors
Pressure Type:Differential
Operating Pressure:- 125 Pa to 125 Pa
Accuracy:3 %
Output Type:Analog
Mounting Style:Through Hole
Interface Type:I2C
Operating Supply Voltage:2.7 V to 5.5 V
Port Type:Dual Axial Barbless
Resolution:16 bit
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Series:SDP8xx-Analog
Product Type:Board Mount Pressure Sensors
Subcategory:Sensors
Supply Voltage - Max:5.5 V
Supply Voltage - Min:2.7 V
Tradename:CMOSens

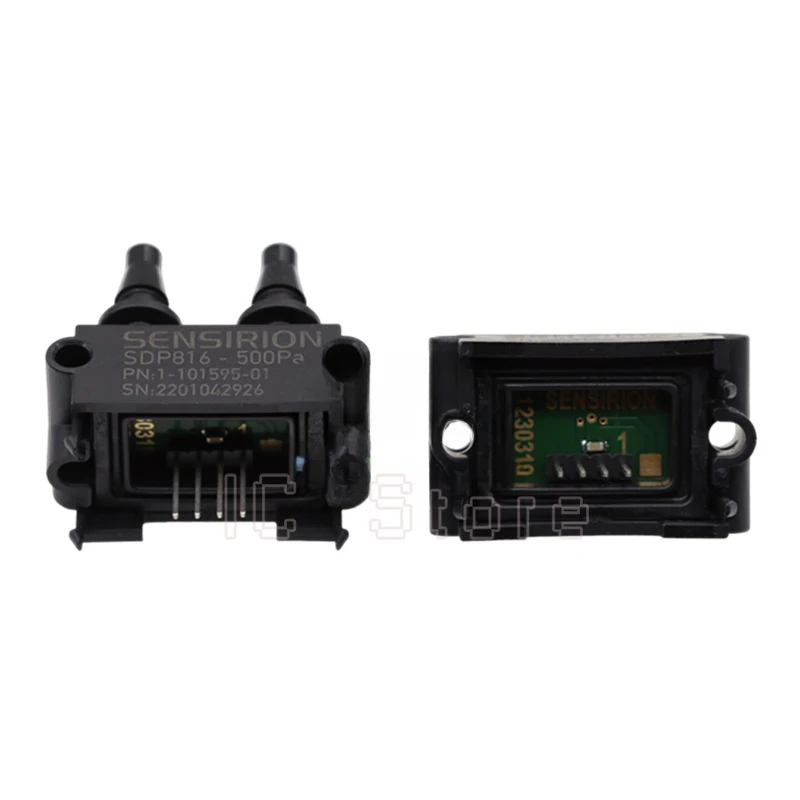

SDP816-500PA
Product Category:Board Mount Pressure Sensors
Pressure Type:Differential
Operating Pressure:- 500 Pa to 500 Pa
Accuracy:3 %
Output Type:Analog
Mounting Style:Through Hole
Interface Type:I2C
Operating Supply Voltage:2.7 V to 5.5 V
Port Type:Dual Axial Barbless
Resolution:16 bit
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Series:SDP8xx-Analog
Product Type:Board Mount Pressure Sensors
Subcategory:Sensors
Supply Voltage - Max:5.5 V
Supply Voltage - Min:2.7 V
Tradename:CMOSens

SDP806-125PA
Product Category:Board Mount Pressure Sensors
Pressure Type:Differential
Operating Pressure:- 125 Pa to 125 Pa
Accuracy:3 %
Output Type:Analog
Mounting Style:Through Hole
Interface Type:I2C
Operating Supply Voltage:2.7 V to 5.5 V
Port Type:Dual Axial Barbless
Resolution:16 bit
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Series:SDP8xx-Analog
Product Type:Board Mount Pressure Sensors
Subcategory:Sensors
Supply Voltage - Max:5.5 V
Supply Voltage - Min:2.7 V
Tradename:CMOSens

SDP806-500PA
Product Category:Board Mount Pressure Sensors
Pressure Type:Differential
Operating Pressure:- 500 Pa to 500 Pa
Accuracy:3 %
Output Type:Analog
Mounting Style:Through Hole
Interface Type:I2C
Operating Supply Voltage:2.7 V to 5.5 V
Port Type:Dual Axial Barbless
Resolution:16 bit
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Series:SDP8xx-Analog
Product Type:Board Mount Pressure Sensors
Subcategory:Sensors
Supply Voltage - Max:5.5 V
Supply Voltage - Min:2.7 V
Tradename:CMOSens

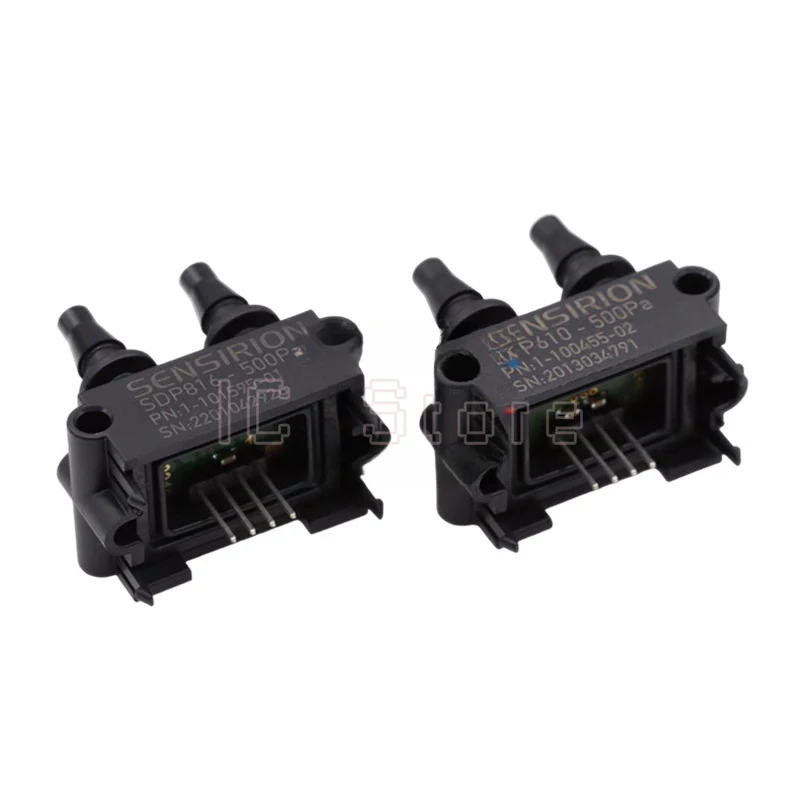

SDP610-500Pa
Product Category:Board Mount Pressure Sensors
Pressure Type:Differential
Operating Pressure:- 500 Pa to 500 Pa
Accuracy:3 %
Output Type:Digital
Mounting Style:Through Hole
Interface Type:I2C
Operating Supply Voltage:3 V
Port Type:Dual Axial Barbless
Resolution:12 bit
Minimum Operating Temperature:- 20 C
Maximum Operating Temperature:+ 80 C
Series:SDP600/SDP500
Port Size:3.5 mm
Product Type:Board Mount Pressure Sensors
Subcategory:Sensors
Supply Voltage - Max:3.6 V
Supply Voltage - Min:3 V

SDP31
Product Category:Board Mount Pressure Sensors
Pressure Type:Differential
Operating Pressure:- 500 Pa to 500 Pa
Accuracy:3 %
Output Type:Digital
Mounting Style:SMD/SMT
Interface Type:I2C
Port Type:Dual Radial Barbless
Resolution:16 bit
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Series:SDP3x Digital
Moisture Sensitive:Yes
Product Type:Board Mount Pressure Sensors
Subcategory:Sensors
Supply Voltage - Max:3.3 V
Tradename:CMOSens
