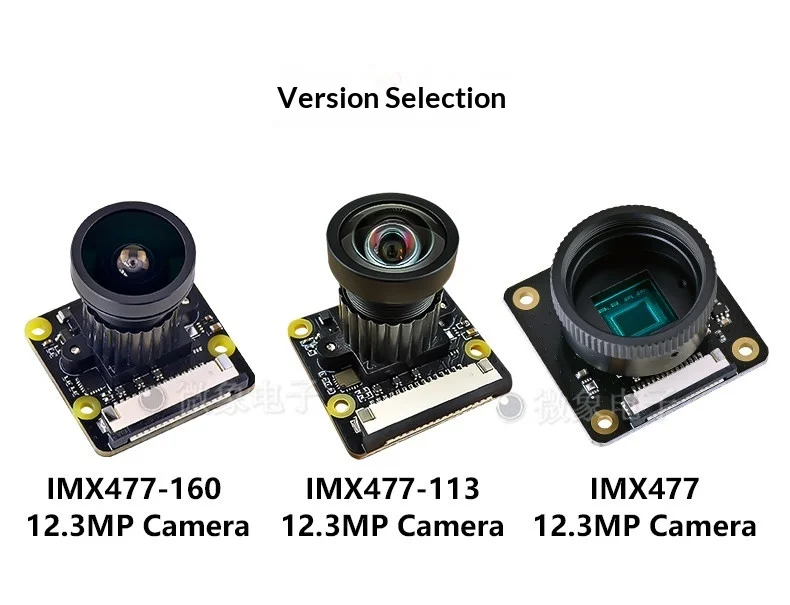

IMX477 12.3MP HQ Camera Module Global Shutter 4056x3040 for Raspberry Pi & Jetson Nano C/CS Mount Lens Optional

12.3MP IMX477 HQ Camera Module - Elevate Your Visual Capture Experience

Upgrade your imaging projects with our high-performance IMX477 camera module, engineered for both industrial precision and consumer creativity. Built around the advanced IMX477R sensor, this camera delivers stunning image quality that outperforms standard alternatives like the IMX219.

✨ Key Highlights That Stand Out

12.3MP Ultra-High Resolution

Capture every detail with 4056x3040 pixel output—ideal for applications demanding crystal-clear visuals, from security surveillance to product photography.

50% Higher Light Sensitivity

Boasting 1.55μm×1.55μm large pixel size (50% bigger than IMX219), the camera excels in low-light environments, ensuring vivid, noise-free images even in dim conditions.

Global Shutter Technology

Eliminate motion blur completely! Perfect for capturing fast-moving objects, industrial inspection, and machine vision tasks where timing accuracy is critical.

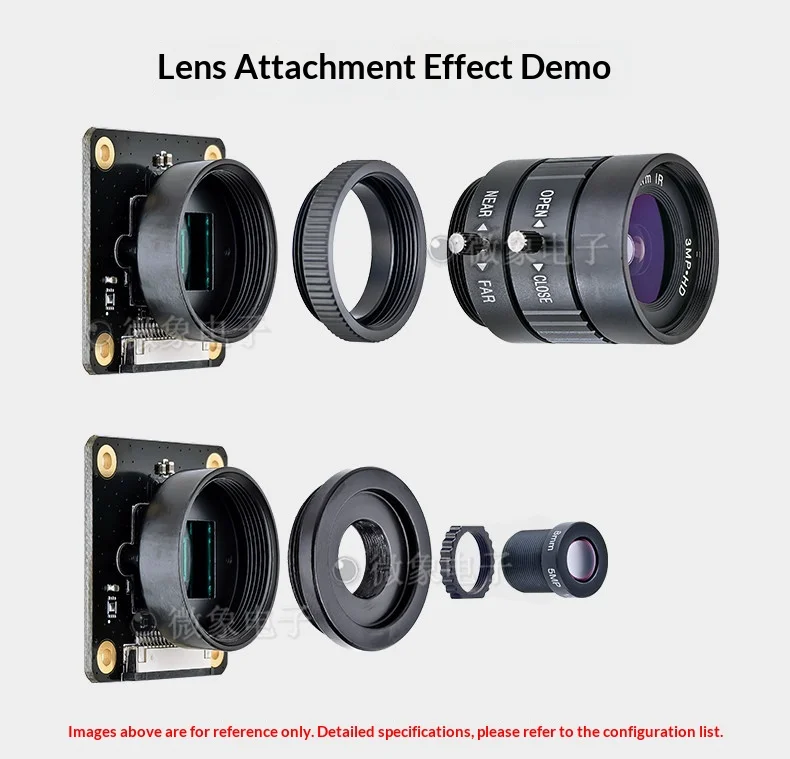

Flexible Lens Compatibility

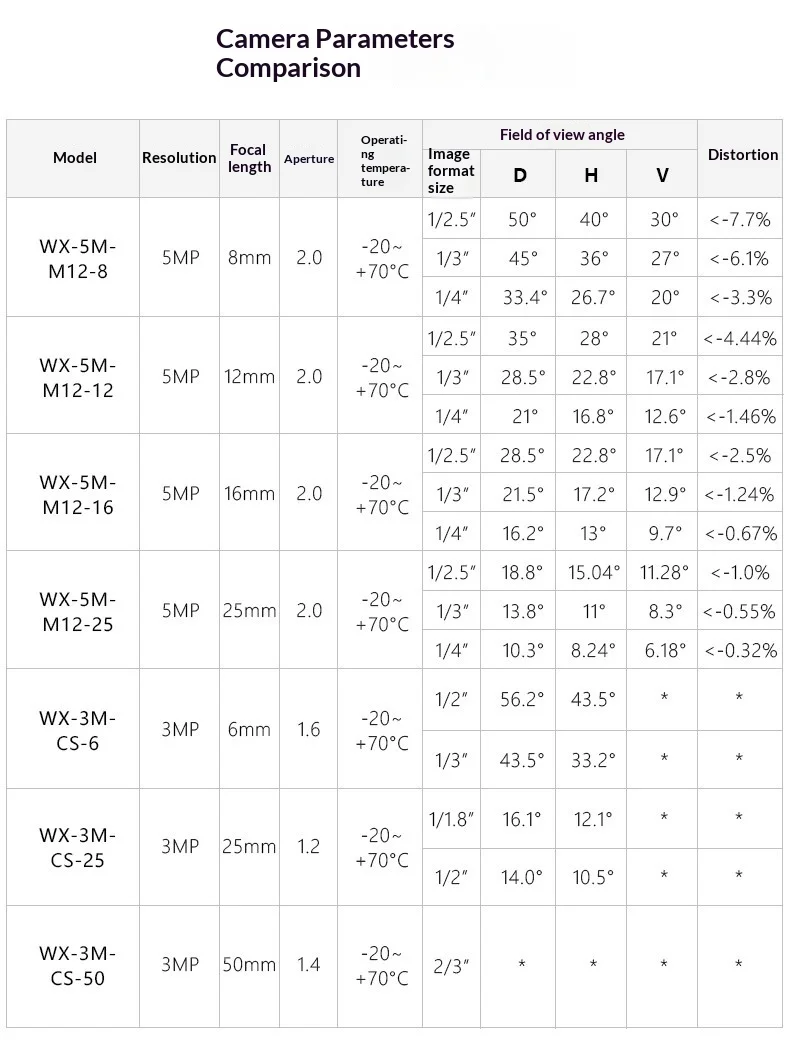

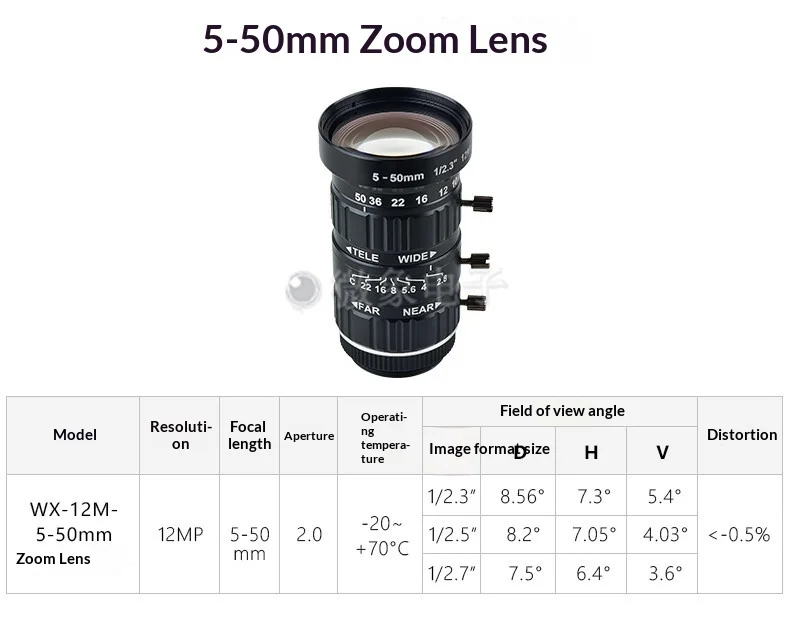

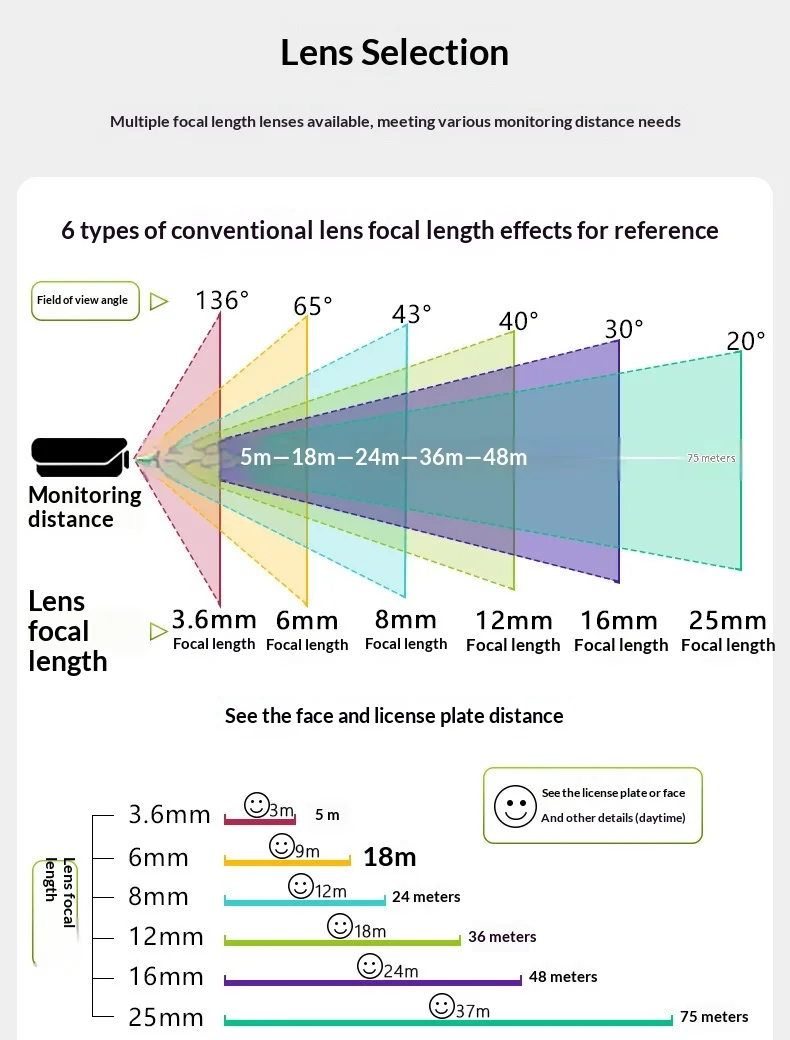

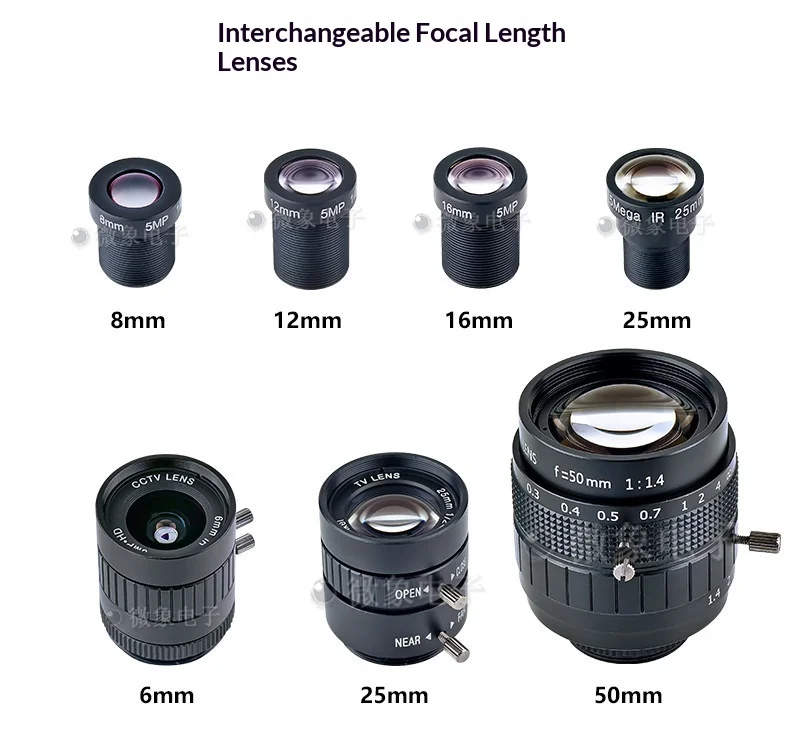

Support C/CS mount lenses with optional focal lengths (6mm/8mm/12mm/16mm/25mm/50mm) to adapt to diverse shooting needs—wide-angle for panoramic views or telephoto for long-distance capture.

Broad Device Compatibility

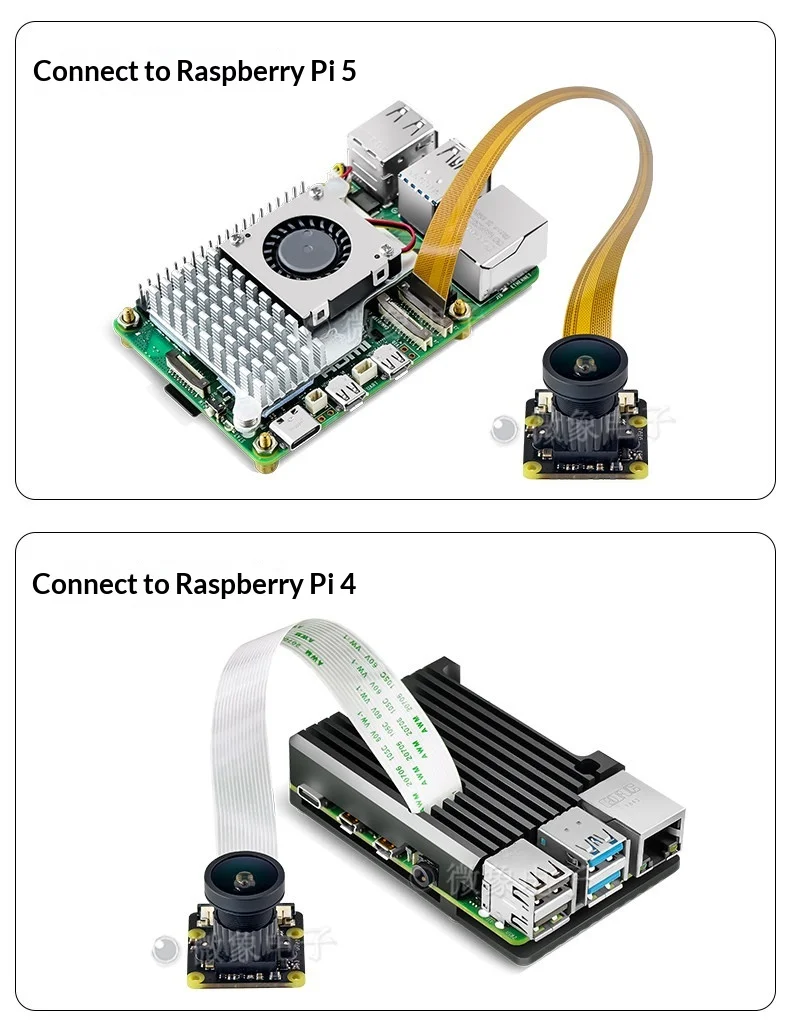

Seamlessly works with Raspberry Pi series and NVIDIA Jetson Nano/Compute Modules, plug-and-play for quick integration into your DIY or professional projects.

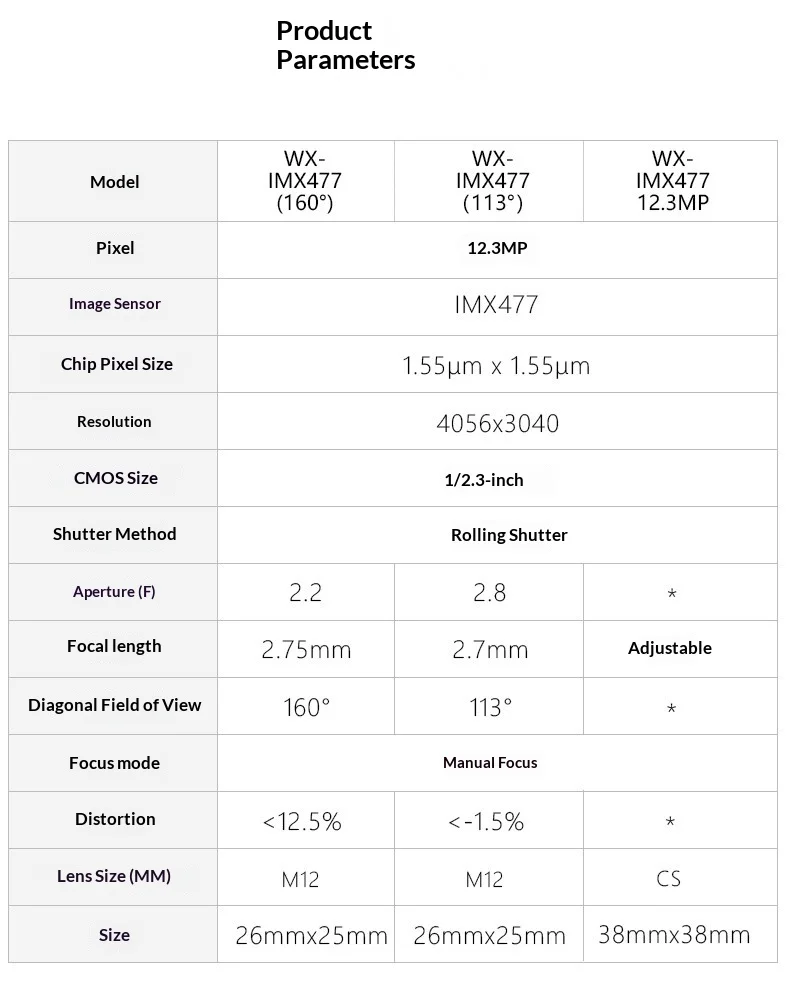

📊 Core Technical Specifications

🎯 Wide Range of Applications

This camera module is your perfect partner for:

Industrial Scenarios: Factory automation, quality inspection, robot vision systems

Security & Surveillance: High-definition monitoring cameras for home, office, and warehouse

Consumer Projects: DIY photography setups, drone imaging, smart home devices

Professional Fields: Academic research, machine learning, and computer vision development

📌 Quick Installation Tips

The camera requires a C or CS mount lens (not included in standard package) for optimal performance.

Manual focus design allows precise adjustment to meet your specific shooting distance requirements.

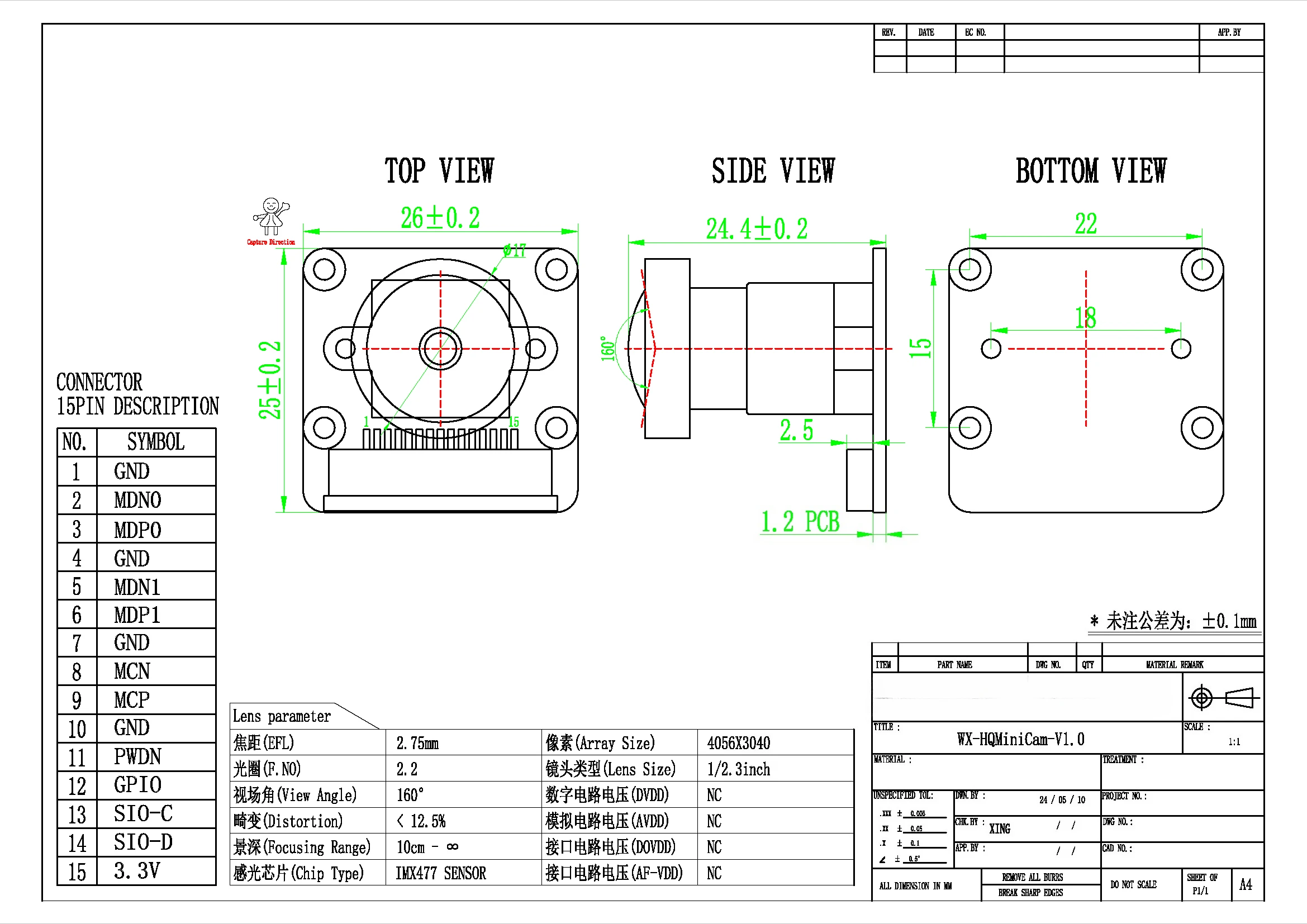

Compact 38mm×38mm size fits easily into tight spaces for embedded projects.

Level up your imaging solutions today—choose our IMX477 12.3MP HQ Camera Module for unbeatable clarity and versatility!

Switch Camera Model to IMX477 on JetPack 4.6 and Above

Enter the command in terminal:

plaintext

sudo /opt/nvidia/jetson-io/jetson-io.py

Select Configure Jetson Nano CSI Connector → Configure compatible hardware → Choose the required configuration:

Camera IMX219 Dual: Set both camera interfaces to IMX219

Camera IMX477 Dual: Set both camera interfaces to IMX477

Camera IMX477-A and IMX219-B: One camera interface set to IMX477, the other set to IMX219

Select Save Pin changes → Save and reboot to reconfigure pins → Press any key to reboot.

JetPack Versions Below 4.6 (Excluding JetPack 4.6)

Additional driver installation is required.

After driver installation, it will interfere with the original IMX219 camera. We recommend backing up the system before installing the driver.

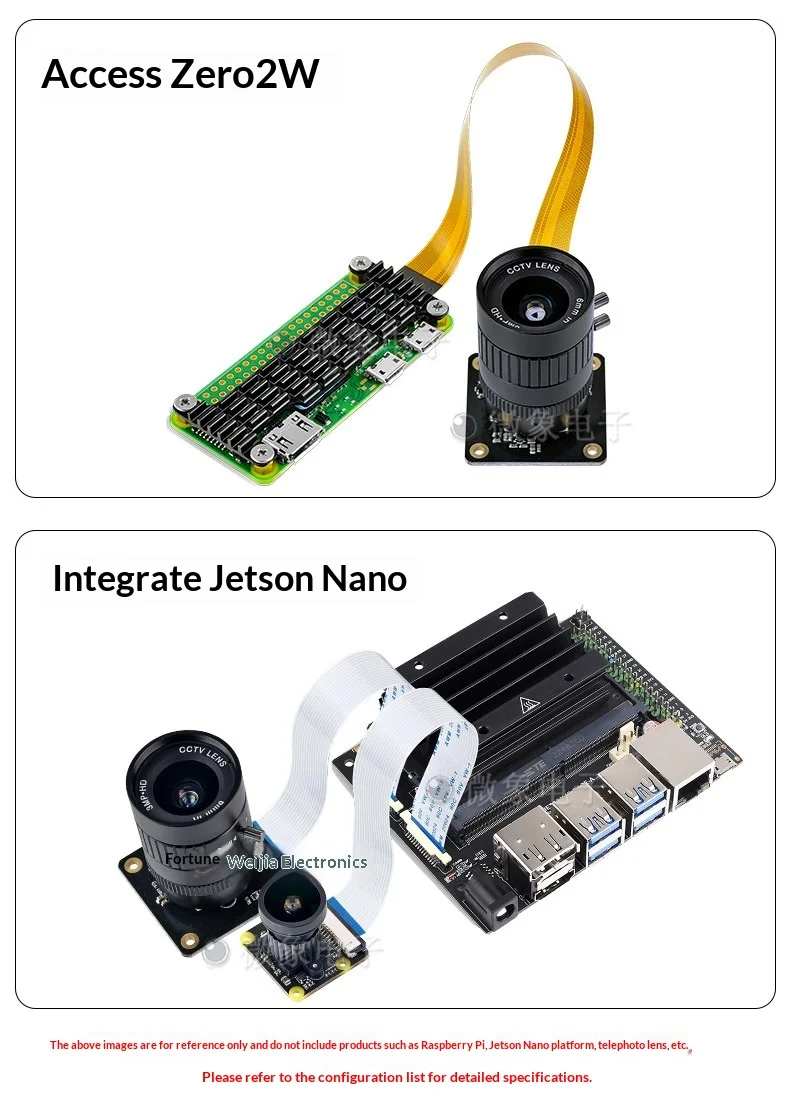

Hardware Connection

Insert the camera ribbon cable into the CSI port on the Jetson Nano Developer Kit, with the metal side facing the heatsink.

Power on the Jetson Nano.

Camera Testing

Open the terminal (press Ctrl+ALT+T to launch terminal), run the command below to test the camera:

plaintext

DISPLAY=:0.0 gst-launch-1.0 nvarguscamerasrc ! 'video/x-raw(memory:NVMM), width=1920, height=1080, format=(string)NV12, framerate=(fraction)20/1' ! nvoverlaysink -e

Dual Camera Test

Add

sensor-id=x

to select target camera, where x = 0 or 1.

plaintext

# Test camera sensor-id 0

DISPLAY=:0.0 gst-launch-1.0 nvarguscamerasrc sensor-id=0 ! 'video/x-raw(memory:NVMM), width=1920, height=1080, format=(string)NV12, framerate=(fraction)20/1' ! nvoverlaysink -e

# Test camera sensor-id 1

DISPLAY=:0.0 gst-launch-1.0 nvarguscamerasrc sensor-id=1 ! 'video/x-raw(memory:NVMM), width=1920, height=1080, format=(string)NV12, framerate=(fraction)20/1' ! nvoverlaysink -e

Notes: The preview stream outputs to HDMI or DP display. Please connect a monitor to Jetson Nano before testing.

Camera Capture Tool: nvgstcapture-1.0

Run the command below in terminal to view tool usage:

plaintext

nvgstcapture-1.0 -h
