Compression/Tension Ø58mm 10kHz Response PM58 58mm Flat Load Cell Disc Force Sensor 0-2T 350Ω 1-2mV/V 4-Wire for Press/Weighing

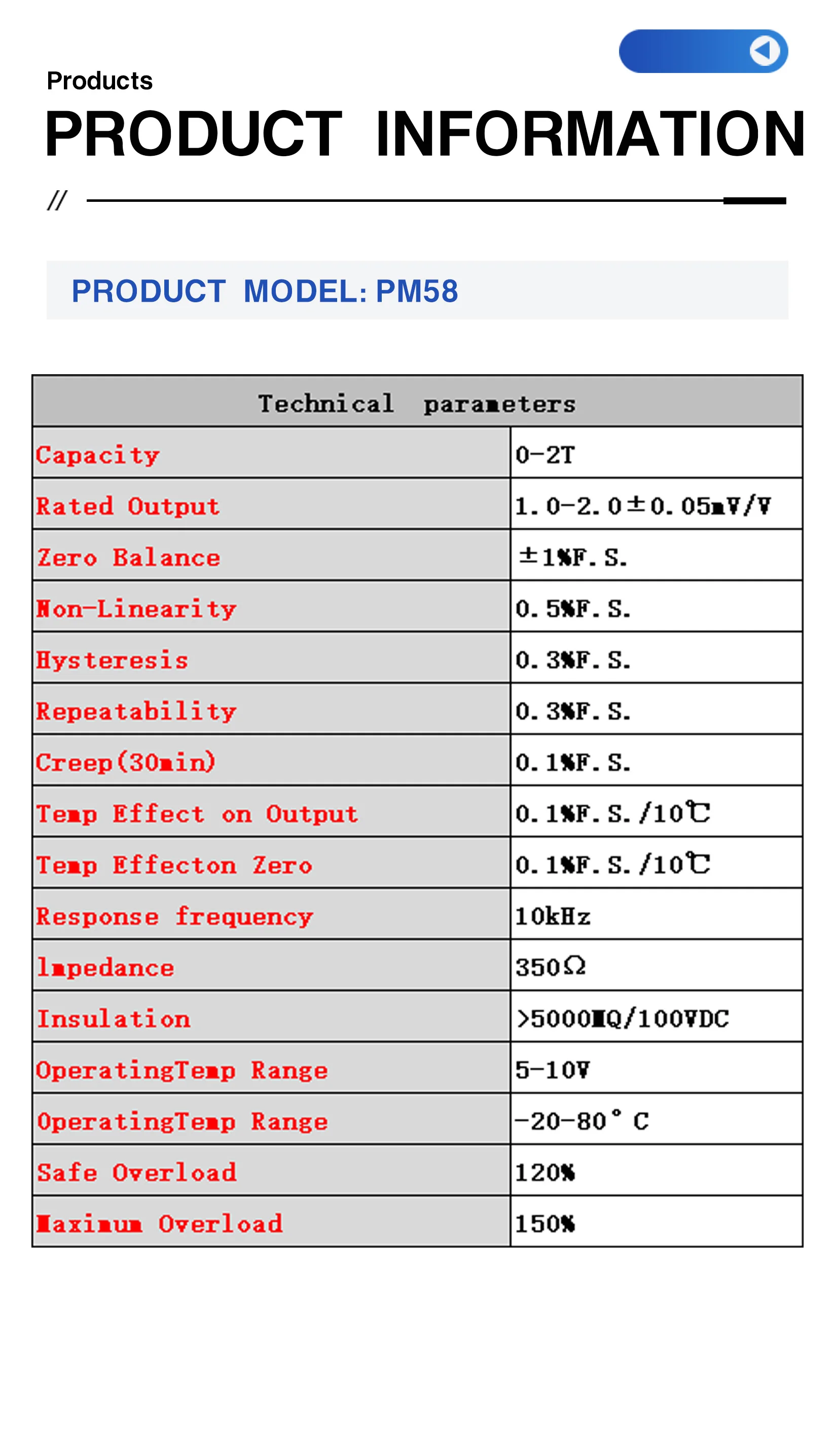

Technicalparameter
Rated load
10kg~5t
0utputsensitivity
1.0~2.0±0.05 mV/V
Non-linearity
±0.3~±0.5 %F.S
Lag error
±0.3 %F.S
Repeatability
±0.3 %F.S
Creep
±0.1 %F.S
Zerotemperaturecoefficient
±0.1%F.S/10℃
Sensitivitytemperaturecoefficient
±0.1%F.S/10℃
Inputresistance
380±30Ω
0utputresistance
350±5Ω
Workingtemperature
-20℃~+70℃
Safeoverload
120 %F.S
Insulationresistance
≥2000M2
Incentivevoltage
5V~12V
Protectionclass
IP66
Material
Alloy steel, stainless steel
This industrial 58mm load cell paired with a digital indicator forms a complete force and weight measurement system. It is widely used in press machines, tension testing, filling equipment, and automation lines. The sensor is available in capacities from 10kg to 5 tons, offering high accuracy and stable performance. The indicator supports high resolution, analog output, relay control, and RS485 communication, making it suitable for various industrial applications. Durable construction and easy installation ensure reliable long-term operation.
