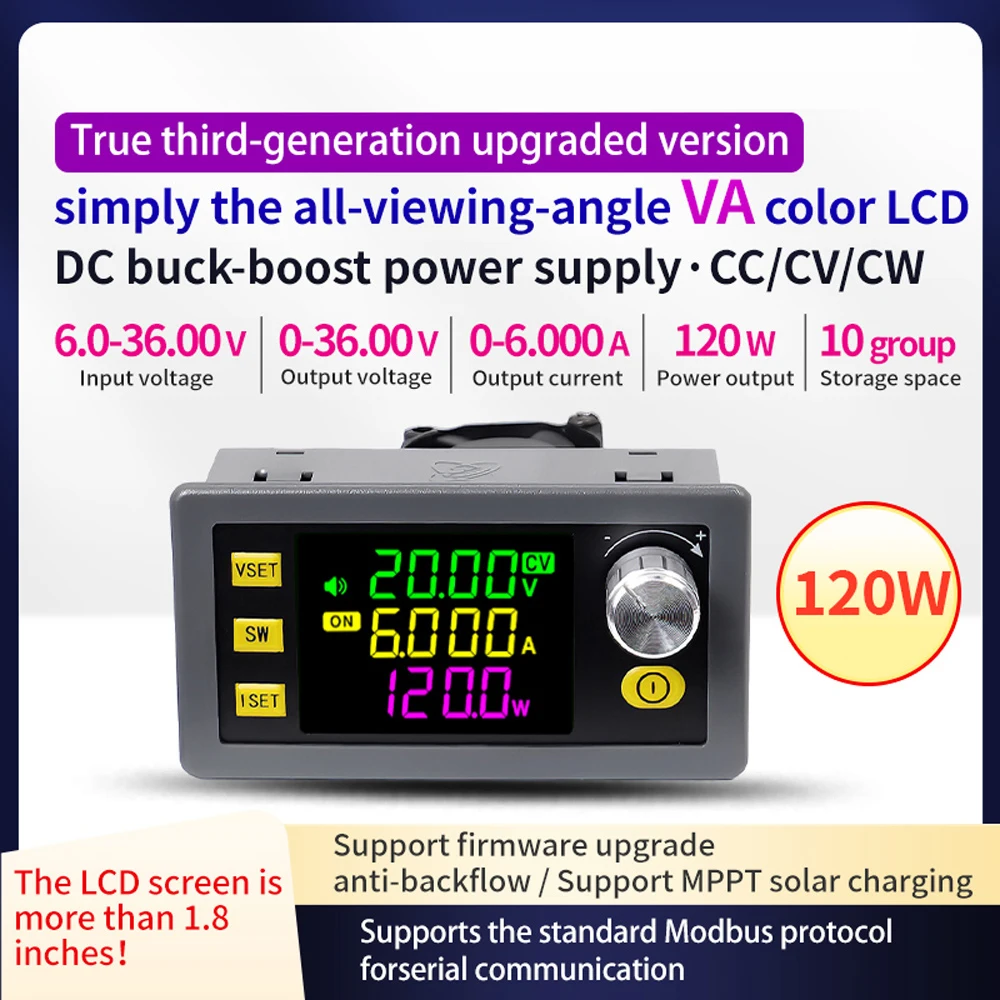

SK60/SK120/SK150 DC Buck Boost Converter CNC Adjustable Regulated Laboratory Power Supply Constant Voltage Current Module

Features:

1. The use of high-quality PCB materials, quality assurance, greatly improving the service life of the product

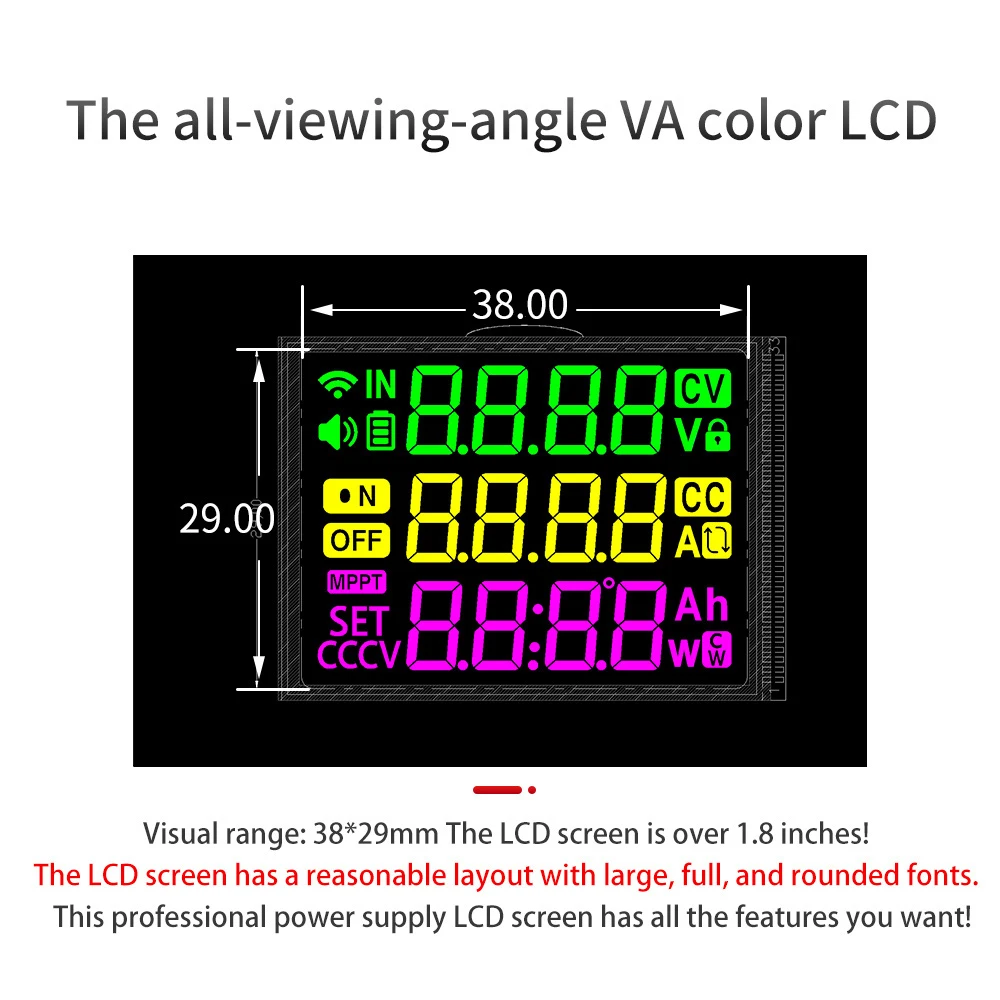

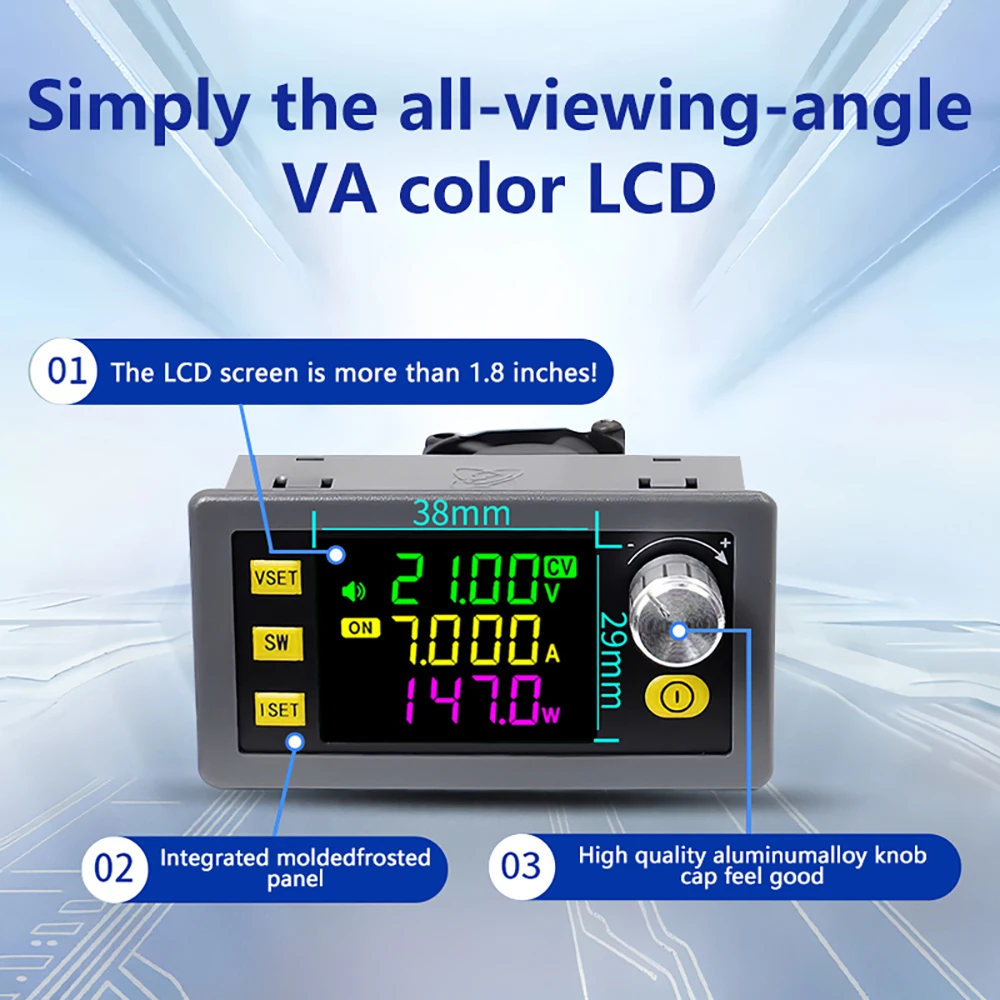

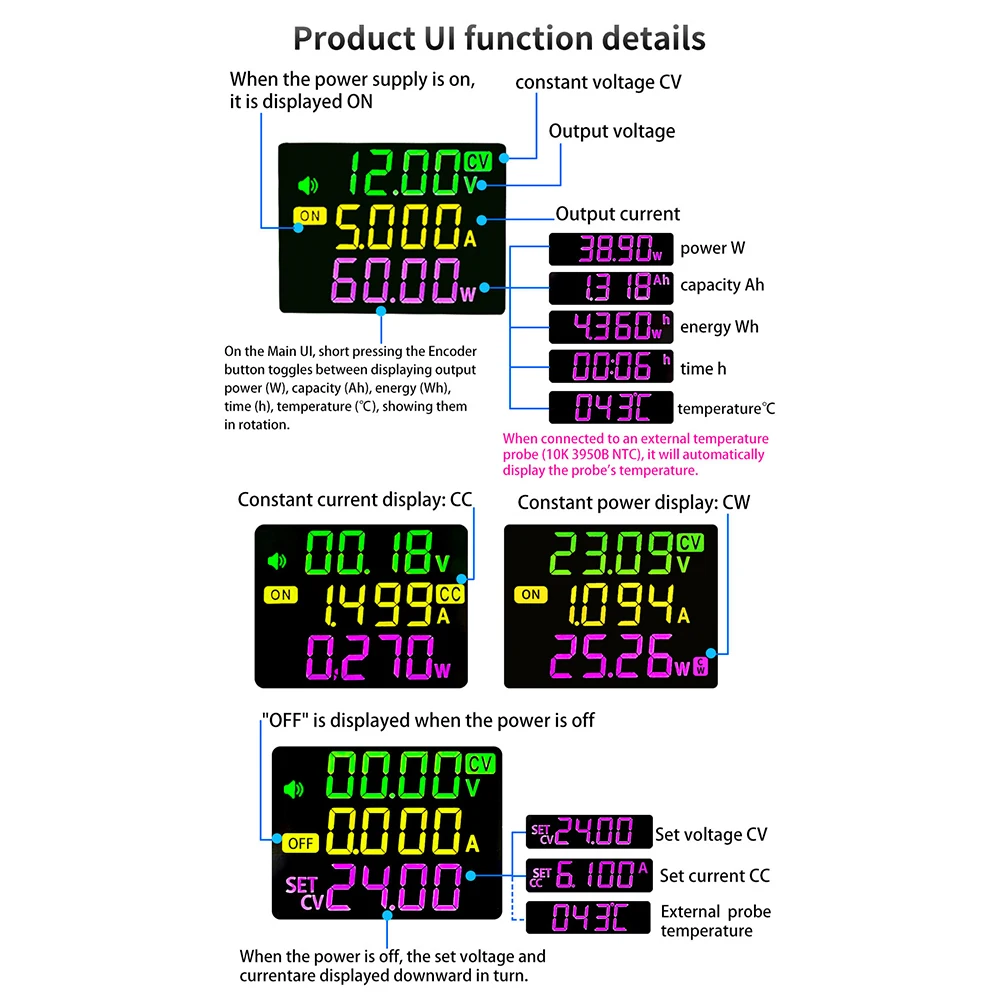

2. LCD screen layout is reasonable, the font is large and full of rounded, professional power supply LCD screen, you want the function it has!

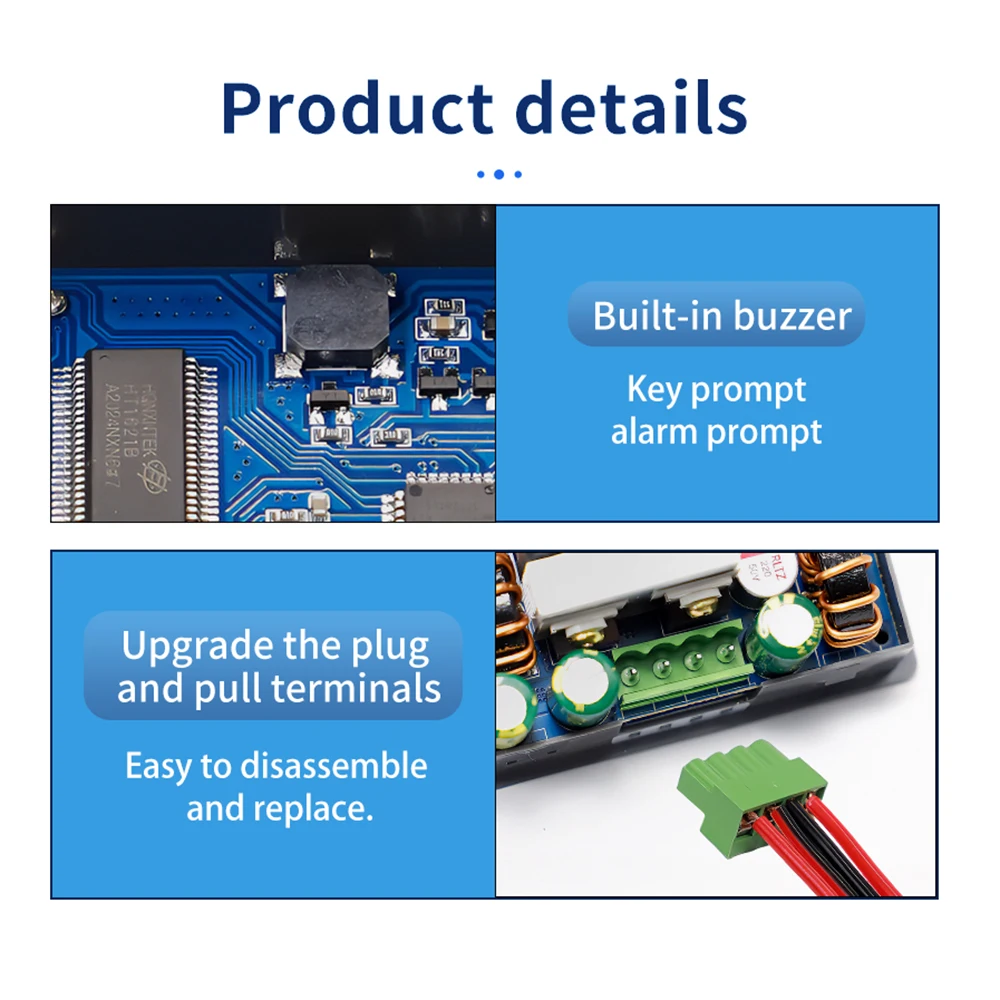

3. Built-in buzzer, key prompts, alarm prompts, safer and more secure use.

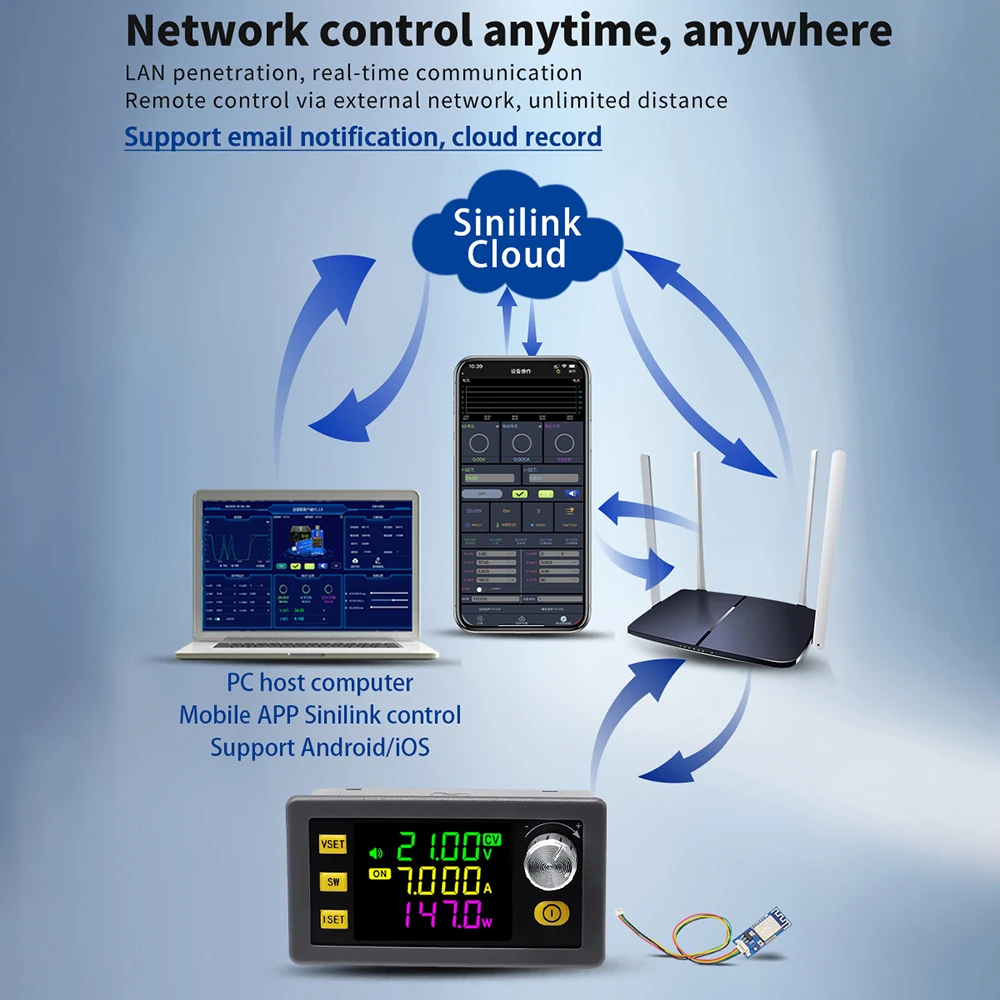

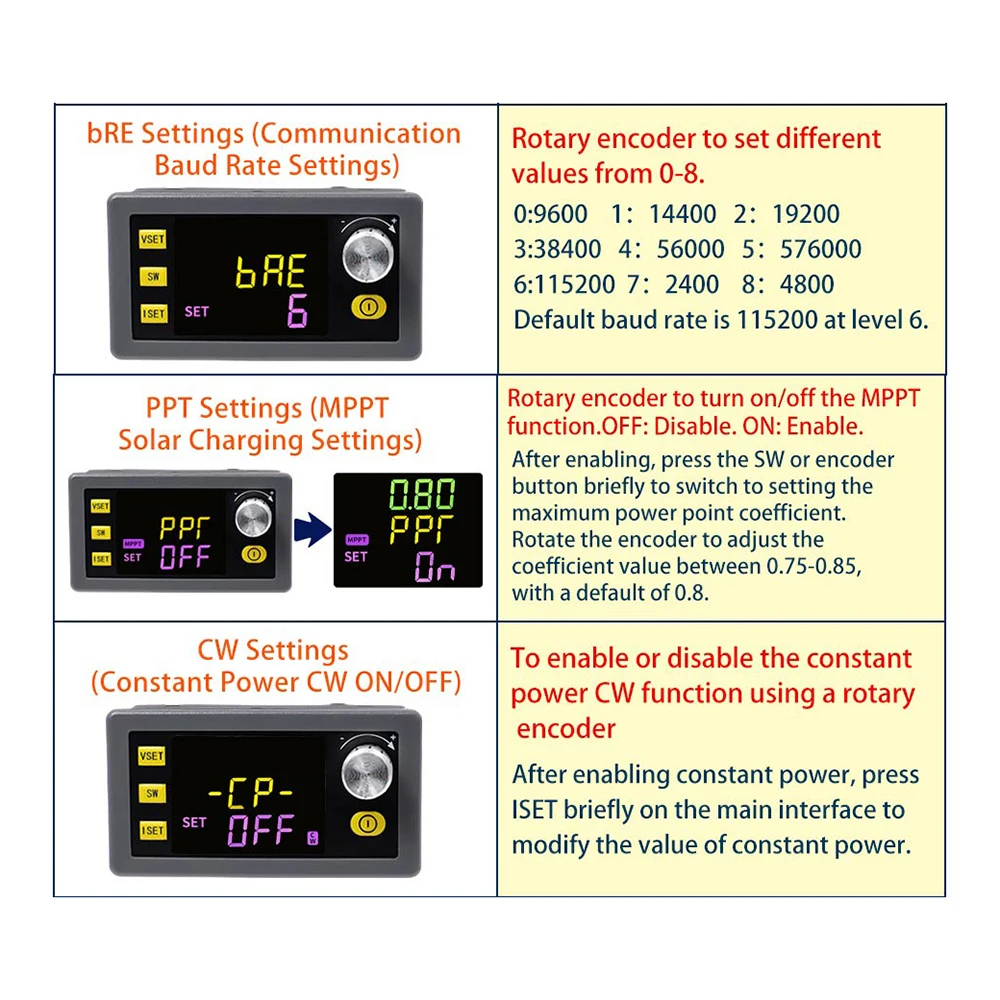

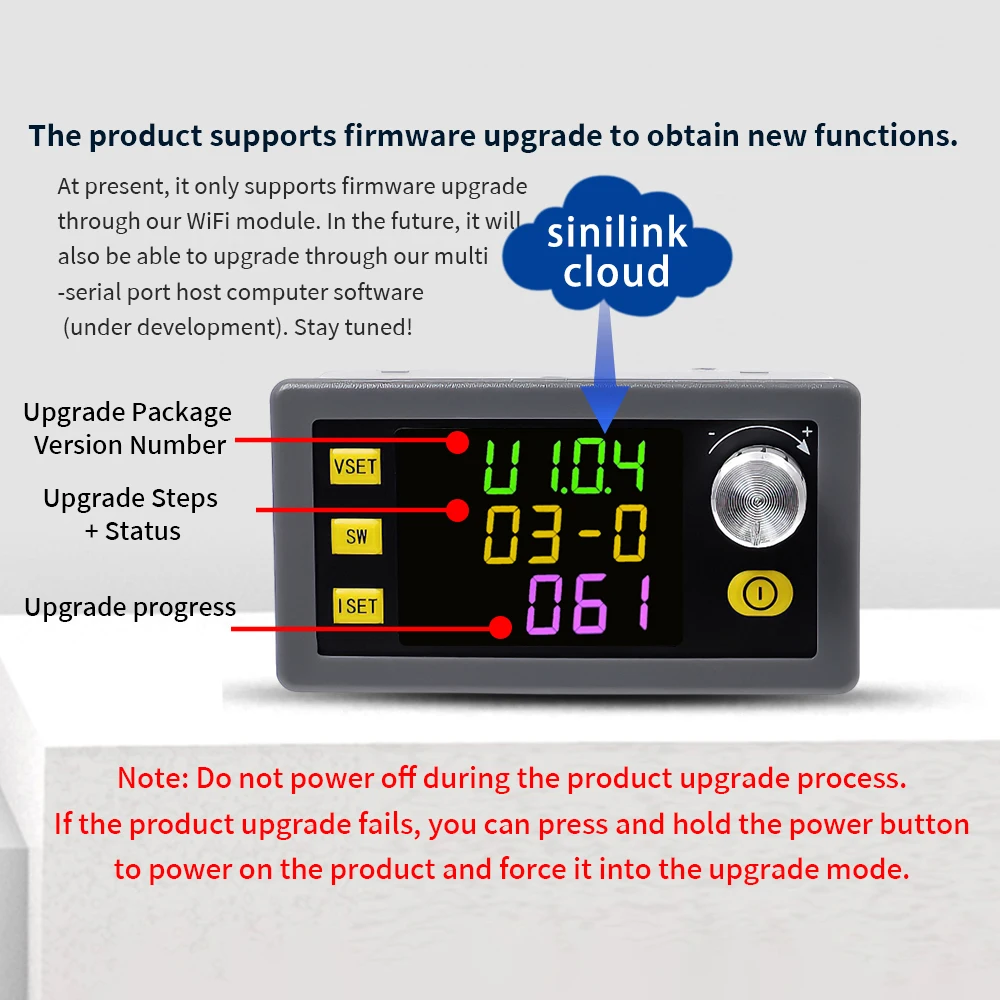

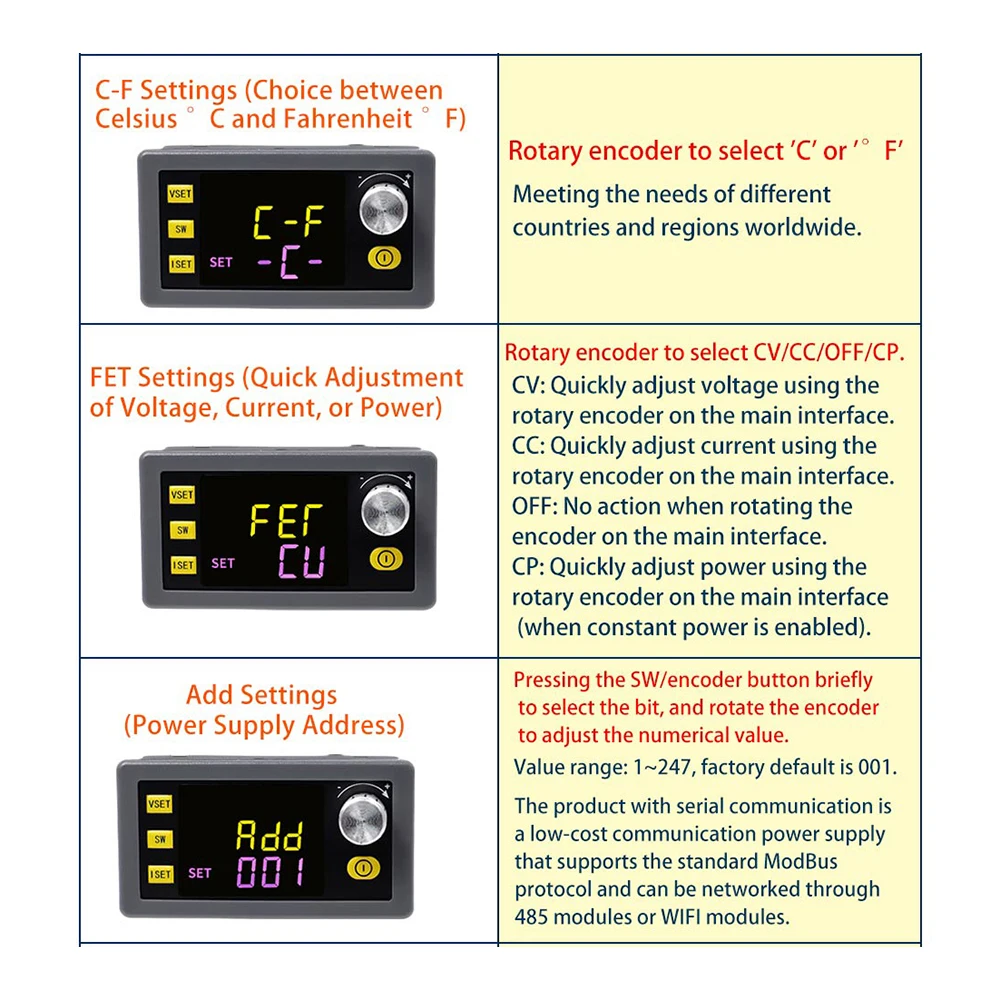

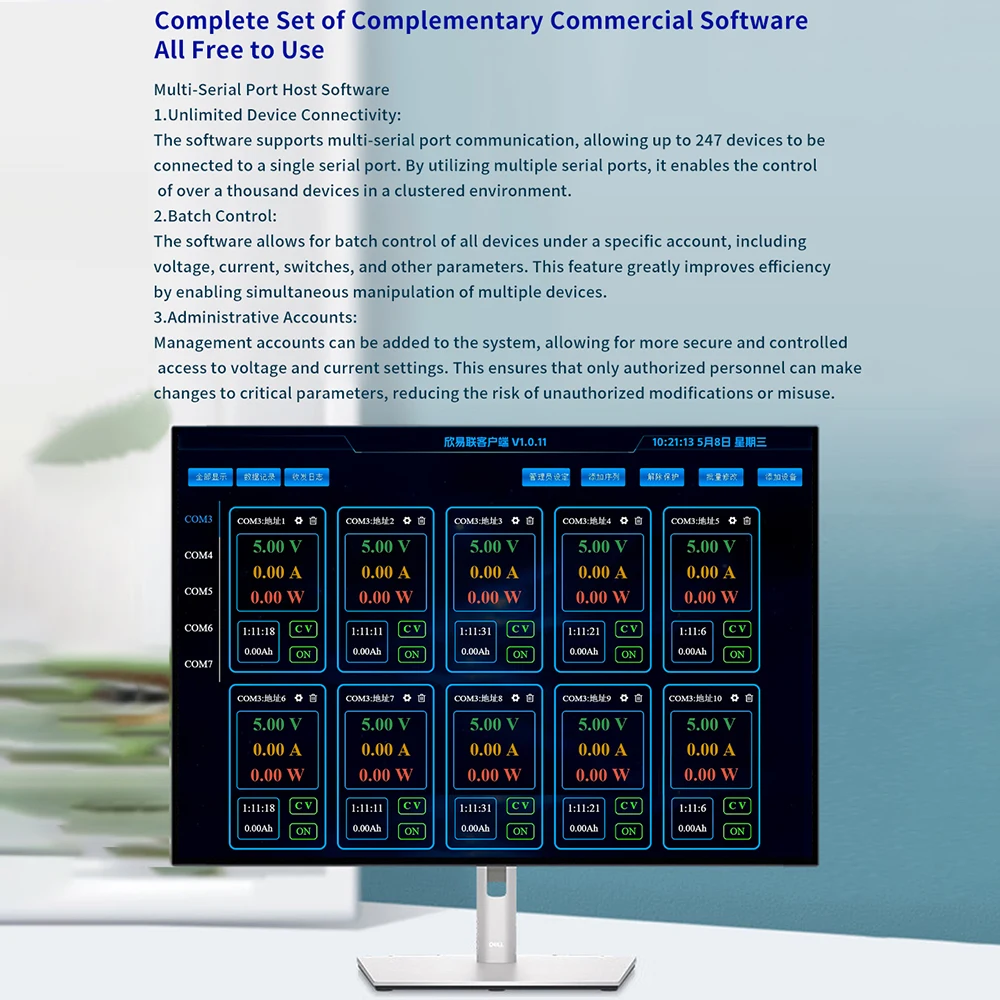

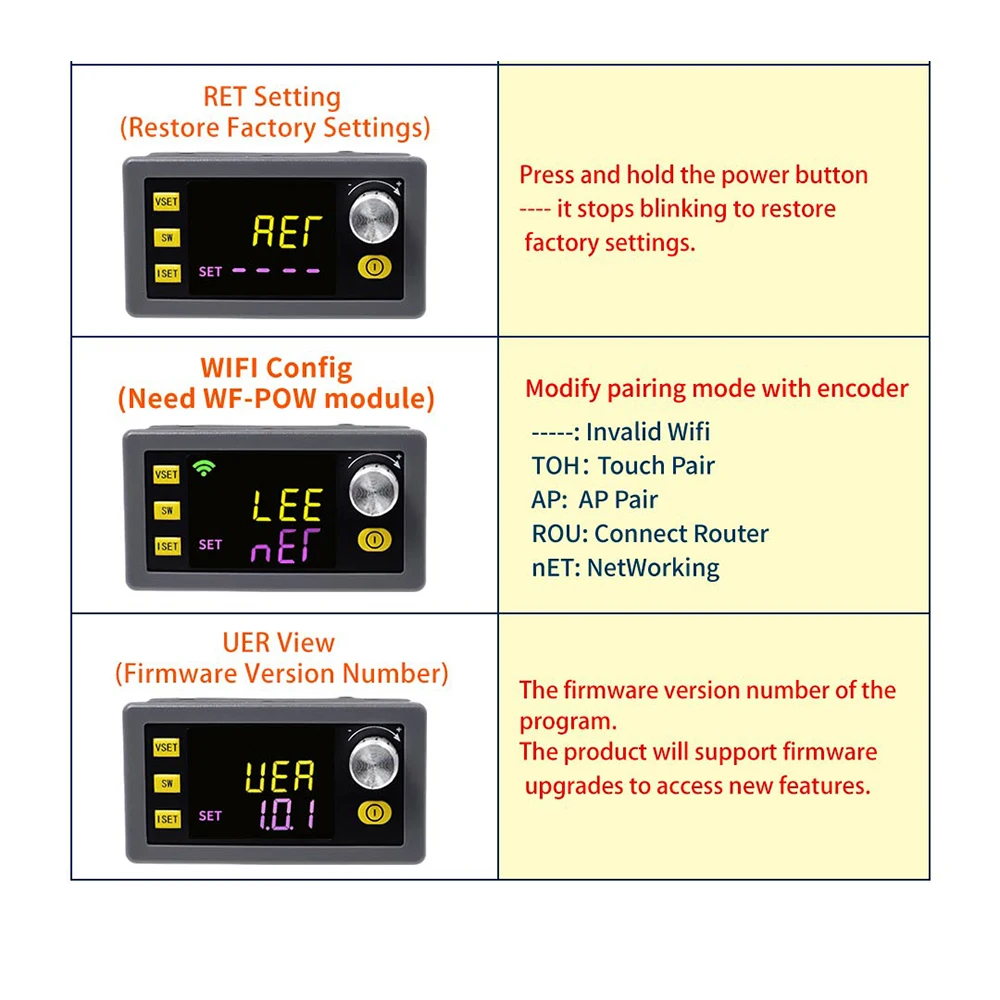

4. The product supports serial communication standard Modbus protocol, support for firmware upgrade, support for MPPT solar charging, comprehensive functions.

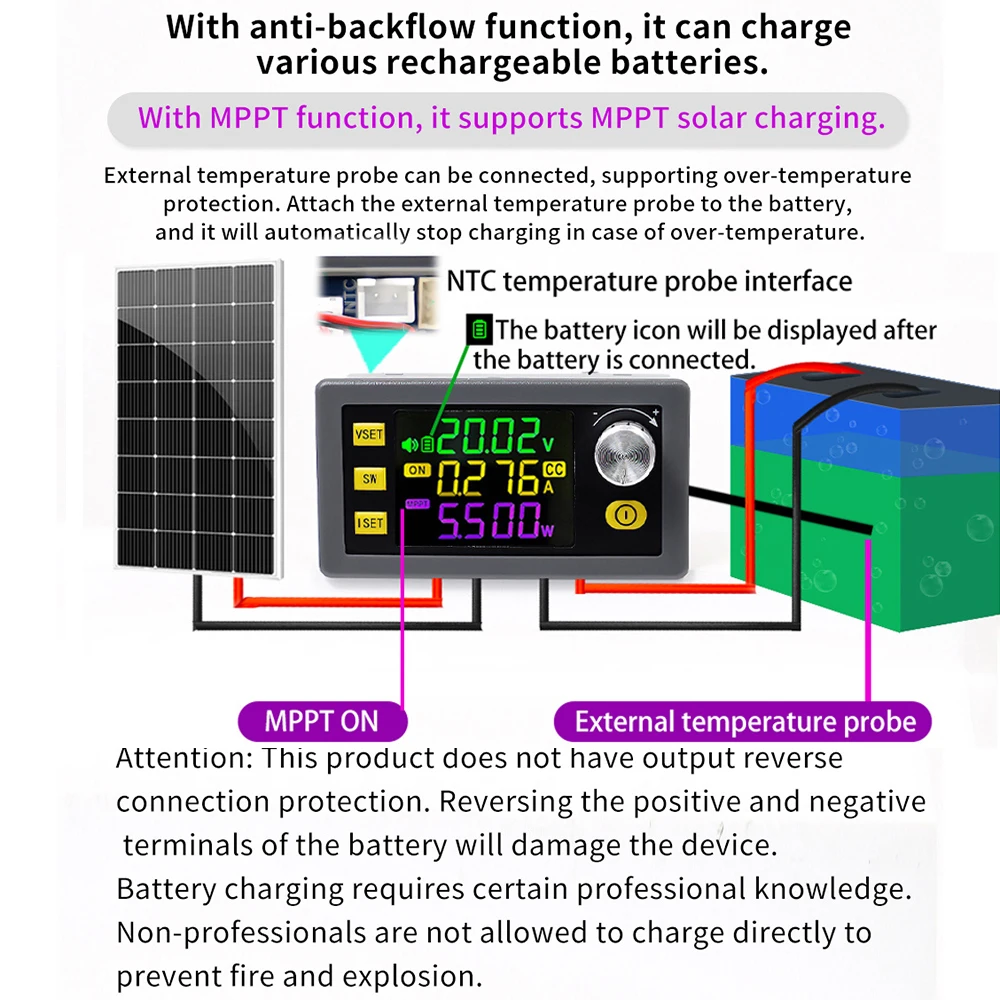

5. The product has a wide range of applications, there is a backflow prevention function can be charged to a variety of rechargeable batteries, and with MPPT function to support MPPT solar charging, can be connected to the external temperature probe to support over-temperature protection and so on!

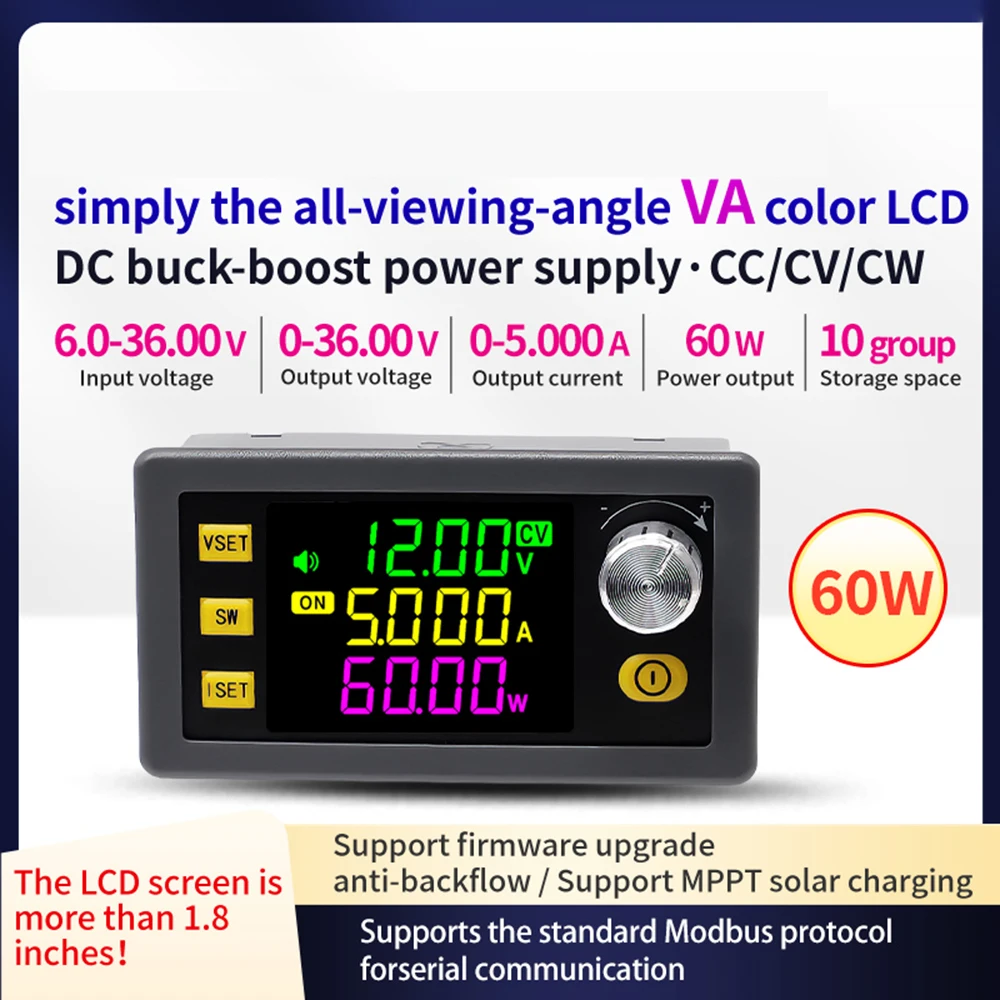

SK60:

Parameter:

Input voltage: 6.0~36V

Output current: 0~5.000A

Output power: 60W

Voltage resolution: 0.01V

Conversion efficiency: 88% or so

Output Voltage: 0~36V

Voltage accuracy: ±0.5%+1 word

Current accuracy: ±0.5%+3 words

Current resolution: 0.01A

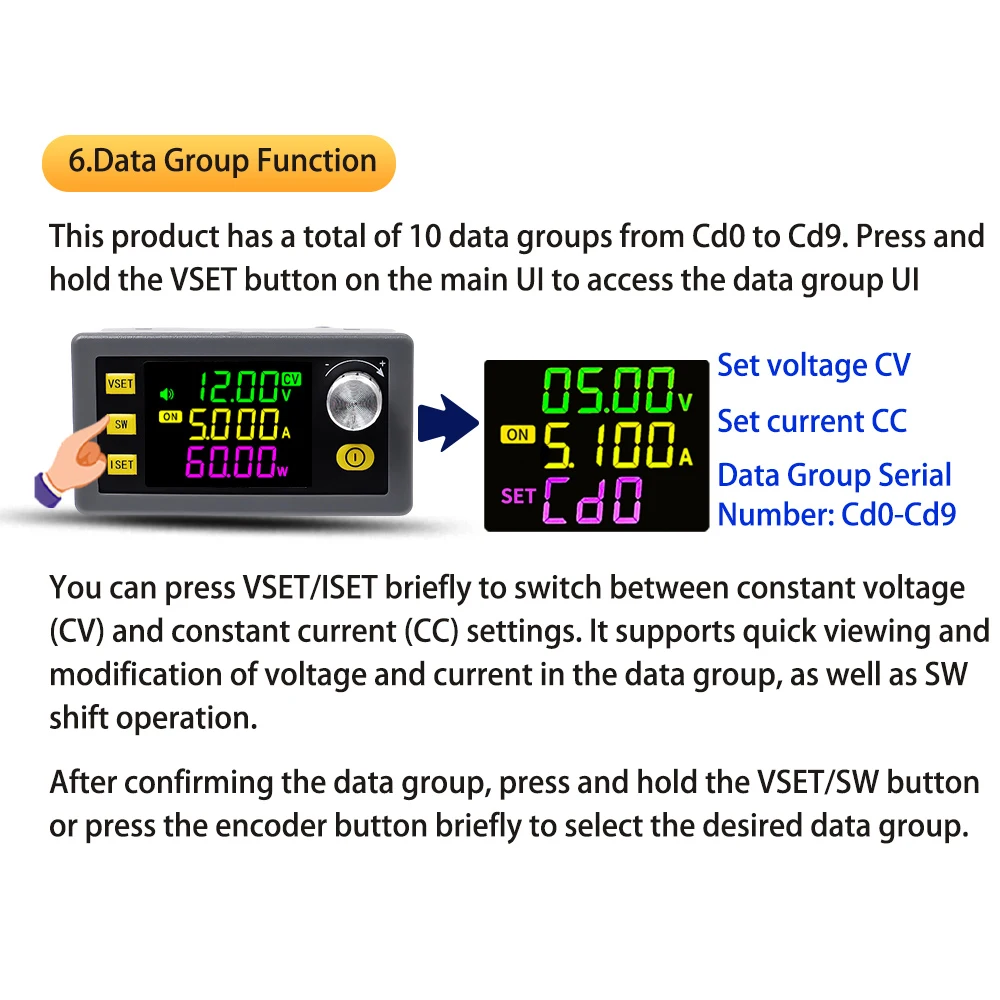

Storage data group: 10 groups

MPPT function: Support MPPT solar energy

Charging buzzer: Yes

Soft start: Yes

Protection mechanism:

Input anti-reverse connection: Yes

Output anti-reverse: Yes

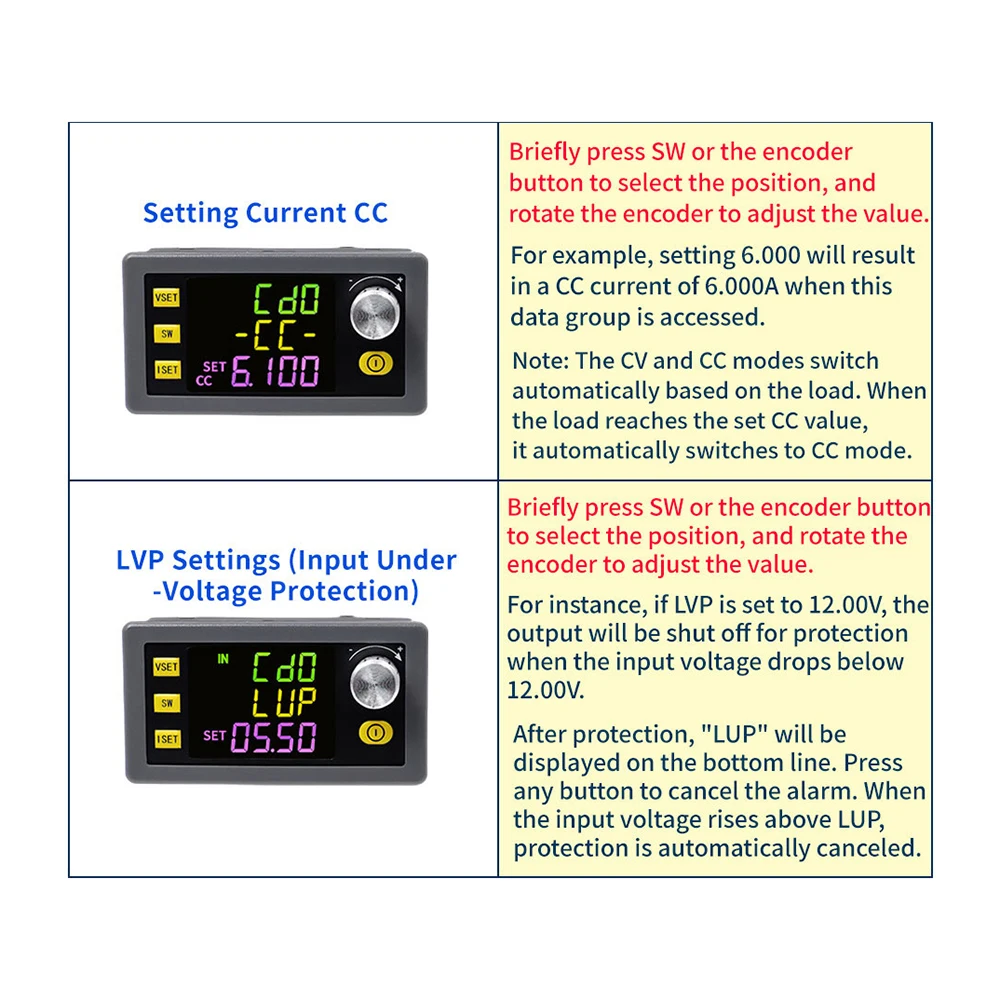

Input undervoltage protection: 5.5-36V adjustable, default 5.5V

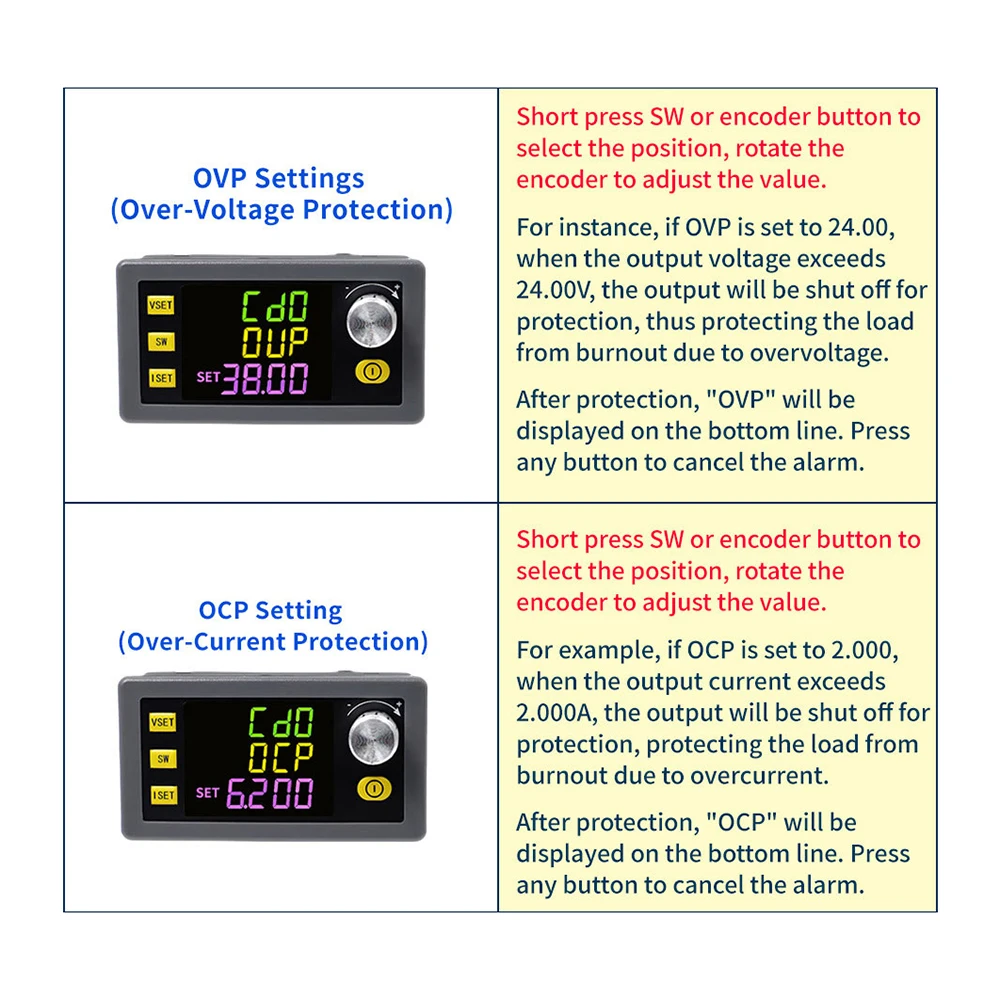

Output over-voltage protection: 0-38V adjustable, default 38V

Output overcurrent protection: 0 -5.2A adjustable, default 5.2A

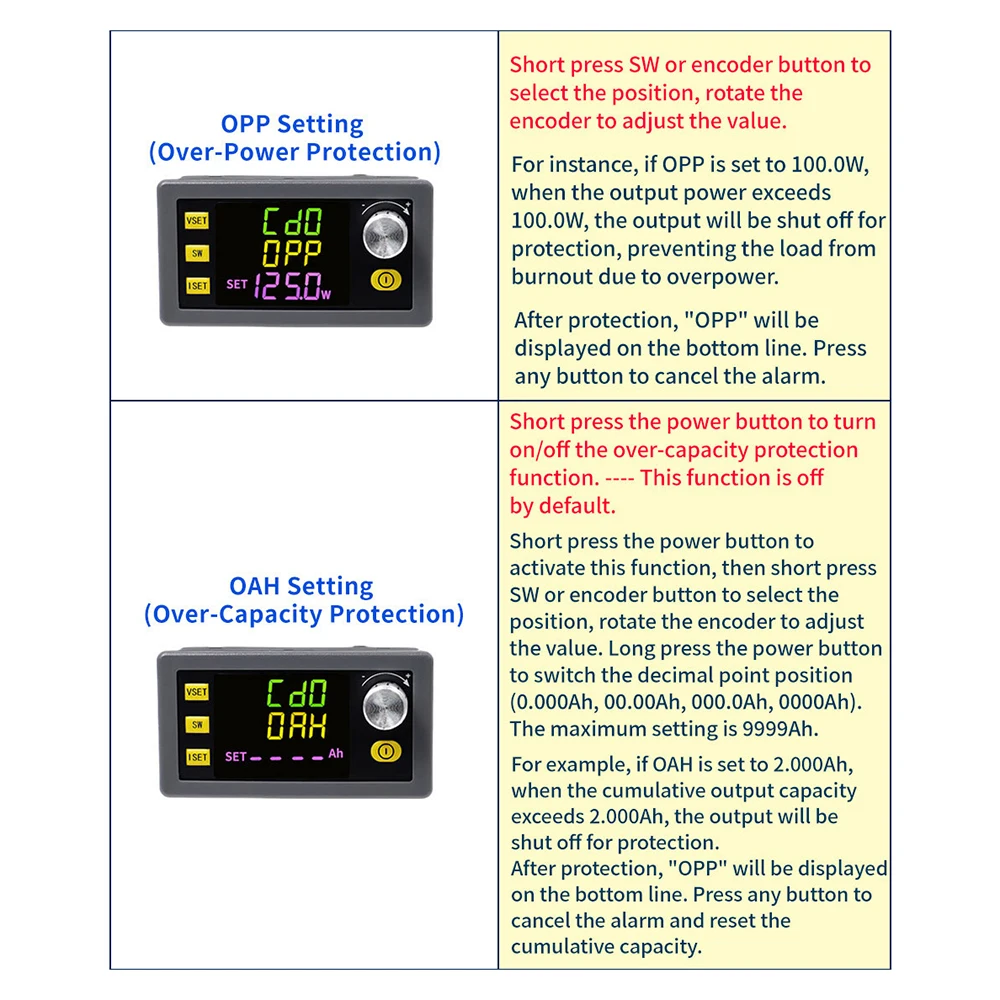

Output over power protection: 0 -80W adjustable, default 65W

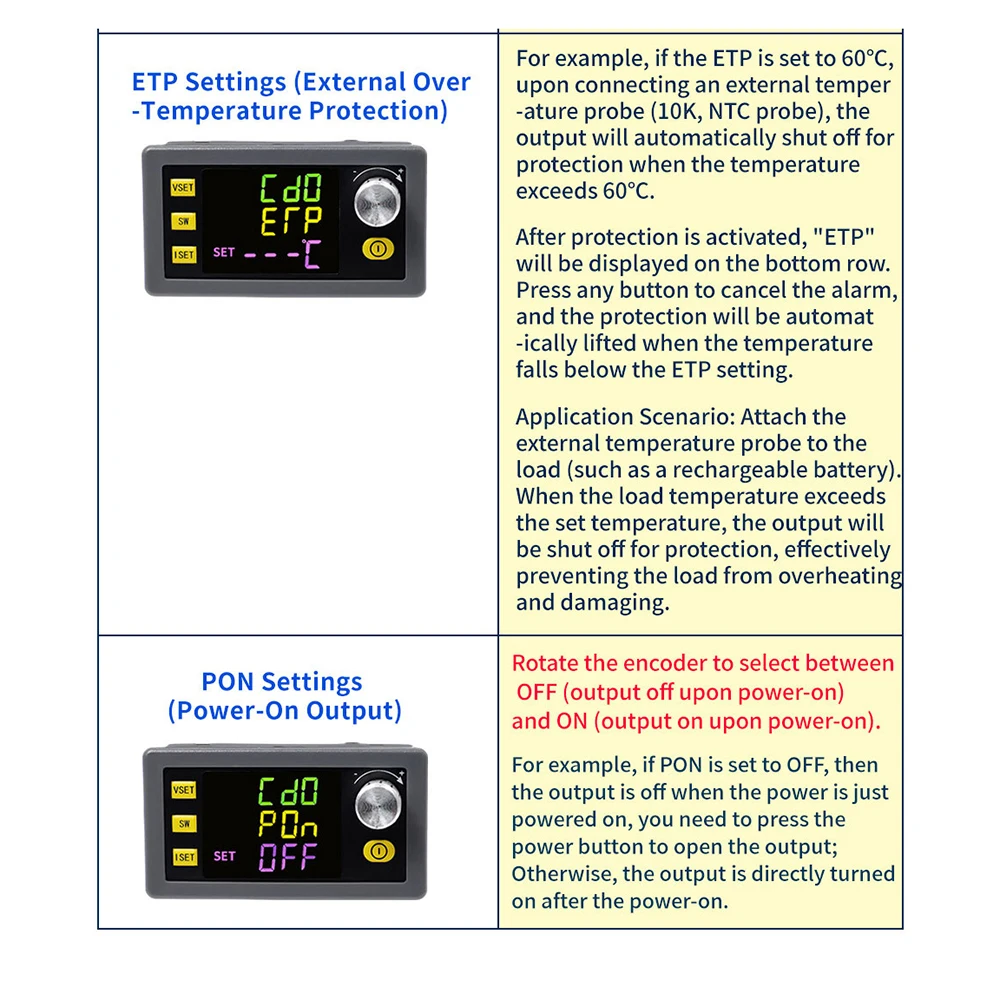

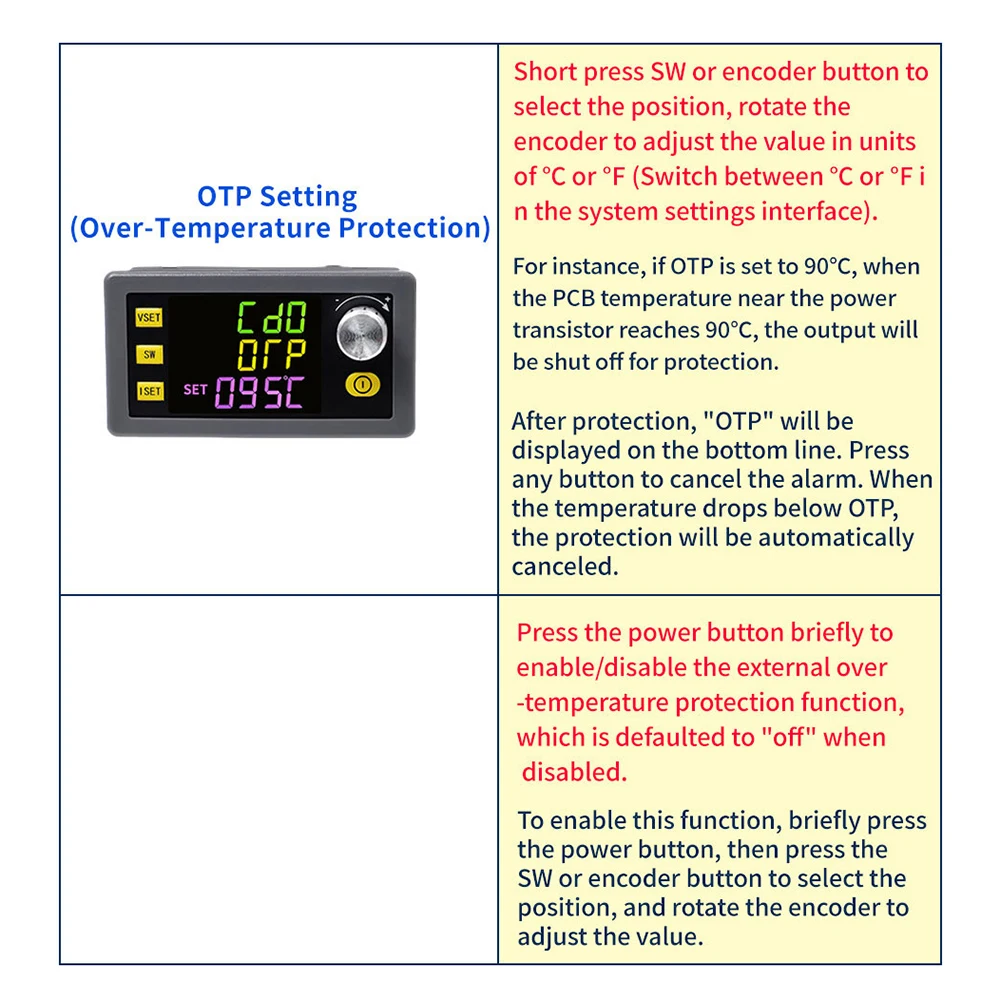

Over-temperature protection: 0-110°C adjustable, default 95°C

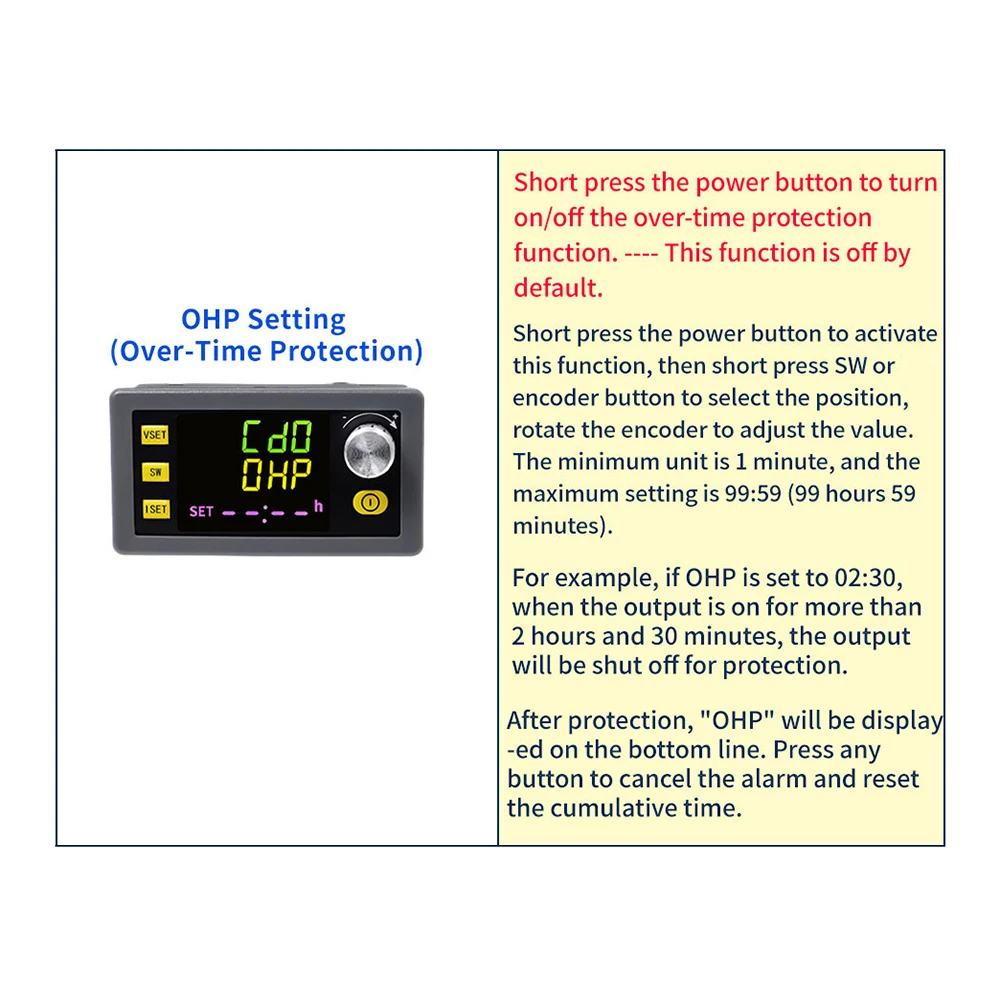

Timeout protection: 0 -100H adjustable, default off

Over capacity protection: 0~9999AH adjustable, default off

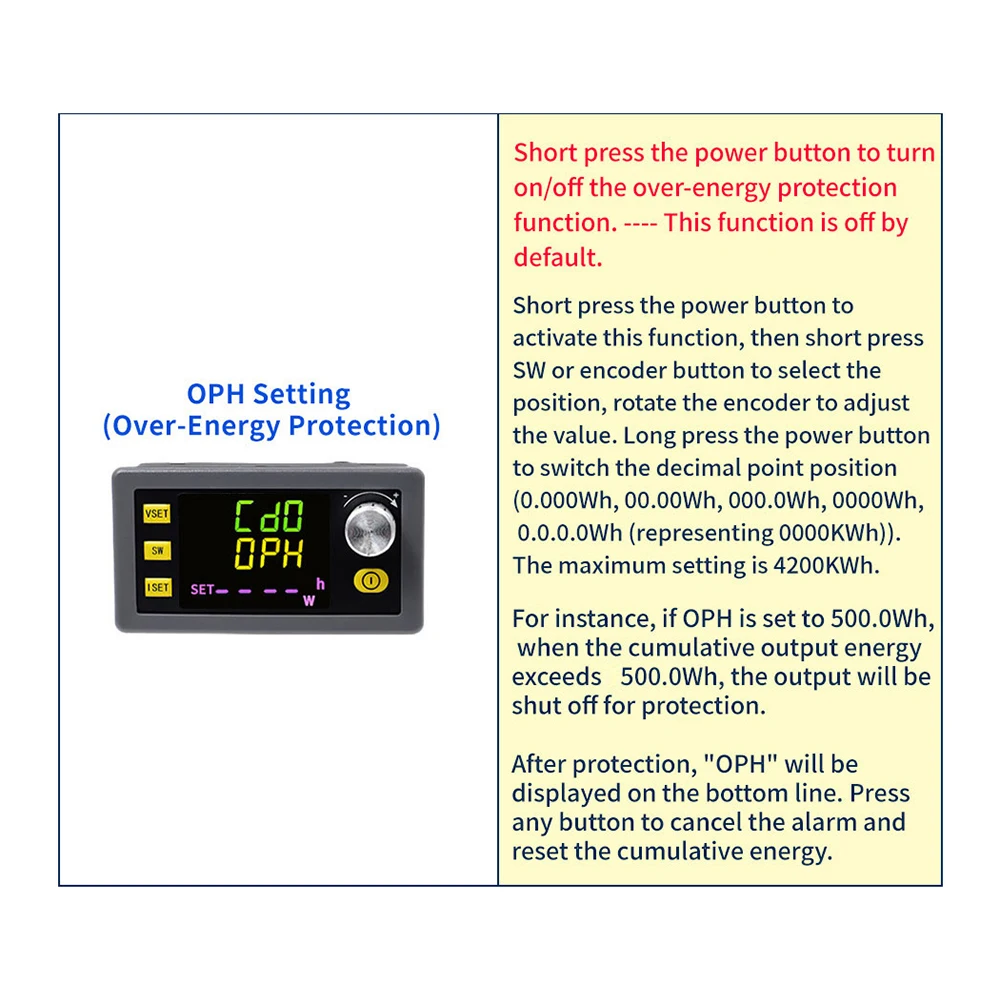

Super energy protection: 0~4200KWH adjustable, default off

Package include:

Adjustable boost and buck module *1

SK120

Parameter:

Input voltage: 6.0~36V

Output current: 0~6.000A

Output power: 120W

Voltage resolution: 0.01V

Conversion efficiency: 88% or so

Output Voltage: 0~36V

Voltage accuracy: ±0.5%+1 word

Current accuracy: ±0.5%+3 words

Current resolution: 0.001A

Storage data group: 10 groups

MPPT function: support MPPT solar charging

Buzzer: Yes

Soft start: Yes

Protection mechanism:

Input anti-reverse connection: Yes

Output anti-reverse: Yes

Input undervoltage protection: 5.5-36V adjustable, default 5.5V

Output over-voltage protection: 0-38V adjustable, default 38V

Output overcurrent protection: 0 -6.2A adjustable, default 6.2A

Output over power protection: 0-150W adjustable, default 125W

Over-temperature protection: 0-110°C adjustable, default 95°C

Timeout protection: 0 -100H adjustable, default off

Over capacity protection: 0~9999AH adjustable, default off

Super energy protection: 0~9999KWH adjustable, default off

Package include:

Adjustable boost and buck module *1

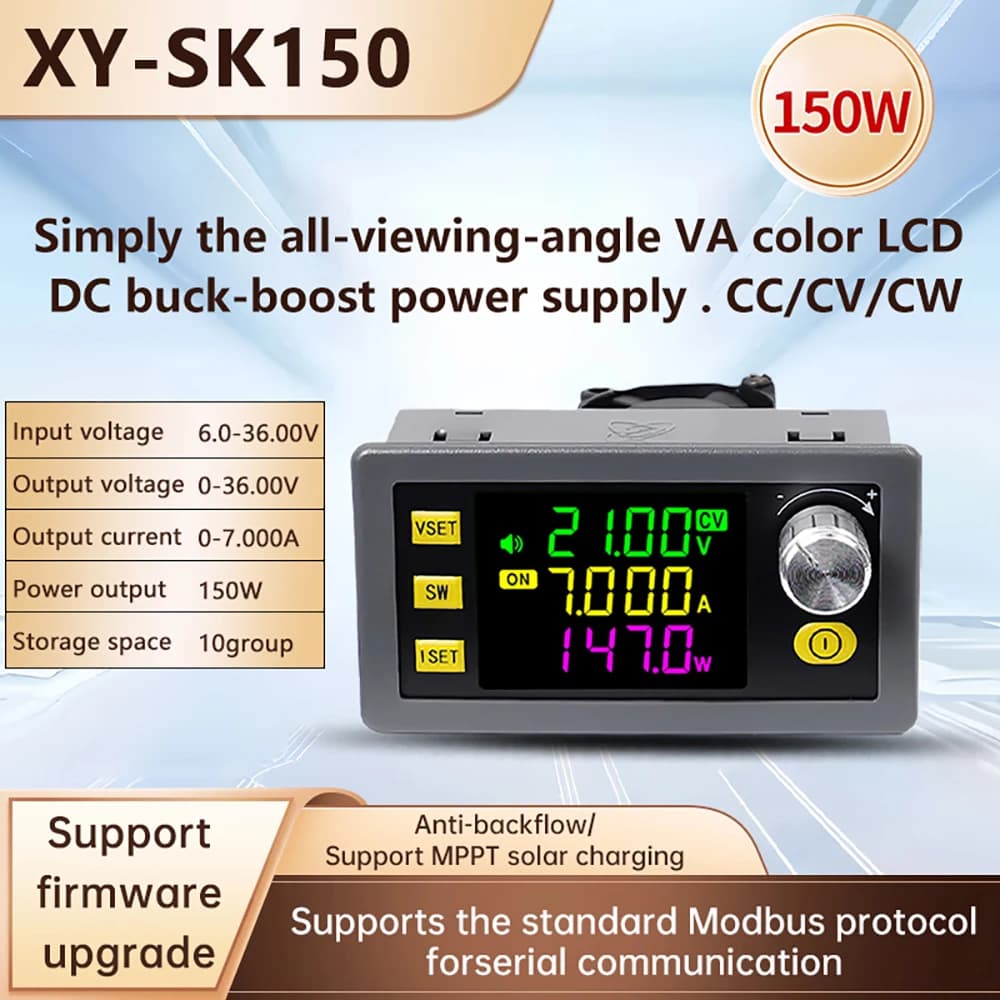

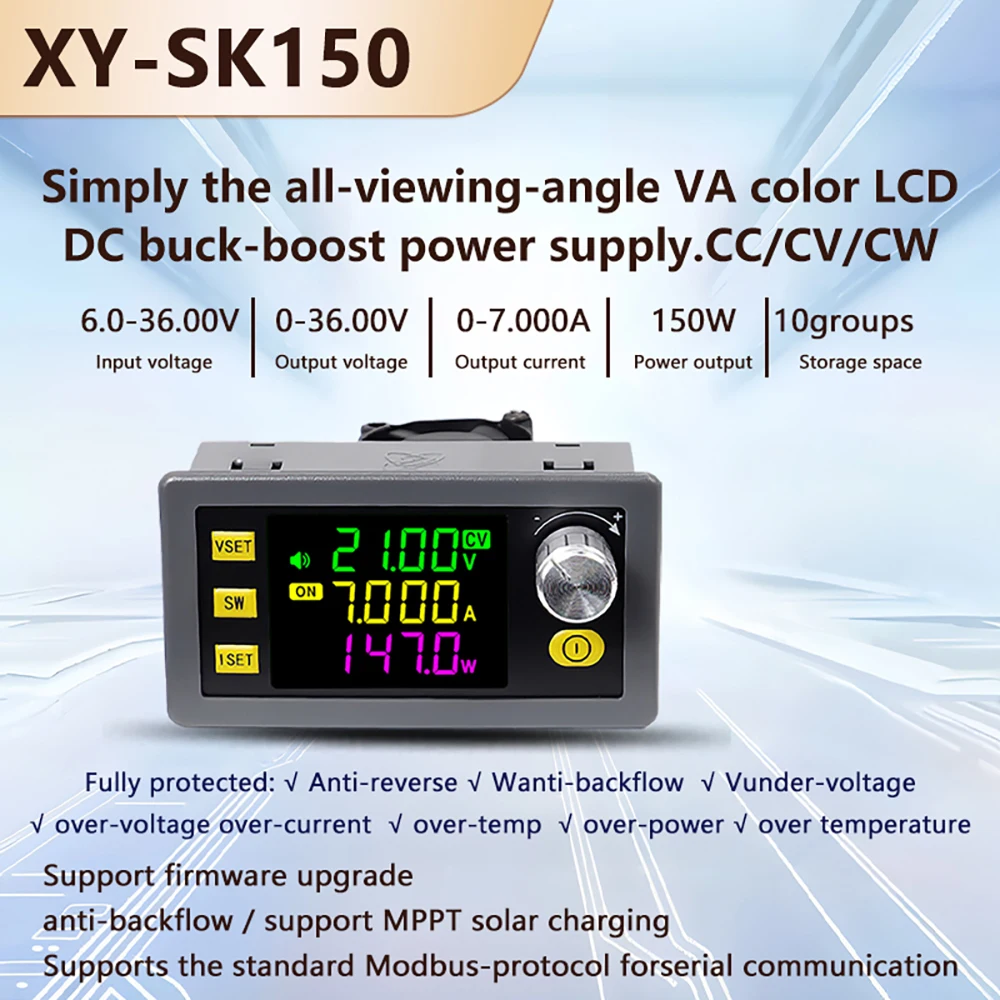

SK150

Parameter:

Input voltage: 6.0~36V

Output current: 0~7.000A

Output power: 150W

Voltage resolution: 0.01V

Conversion efficiency: 88% or so

Output Voltage: 0~36V

Voltage accuracy: ±0.5%+1 word

Current accuracy: ±0.5%+3 words

Current resolution: 0.001A

Storage data group: 10 groups

MPPT function: support MPPT solar charging

Buzzer: Yes

Soft start: Yes

Protection mechanism:

Input anti-reverse connection: Yes

Output anti-reverse: Yes

Input under-voltage protection: 5.5-36V adjustable, default 5.5V output

Over-voltage protection: 0-38V adjustable, default 38V output

Over-current protection: 0 -7.2A adjustable, default 7.2A output

Over power protection: 0-180W adjustable, default 160W

Over-temperature protection: 0-110°C adjustable, default 95°C

Timeout protection: 1 minute -99 hours 59 minutes, default off

Over capacity protection: 0~9999AH adjustable, default off

Super energy protection: 0~9999KWH adjustable, default off

Package include:

Adjustable boost and buck module *1
