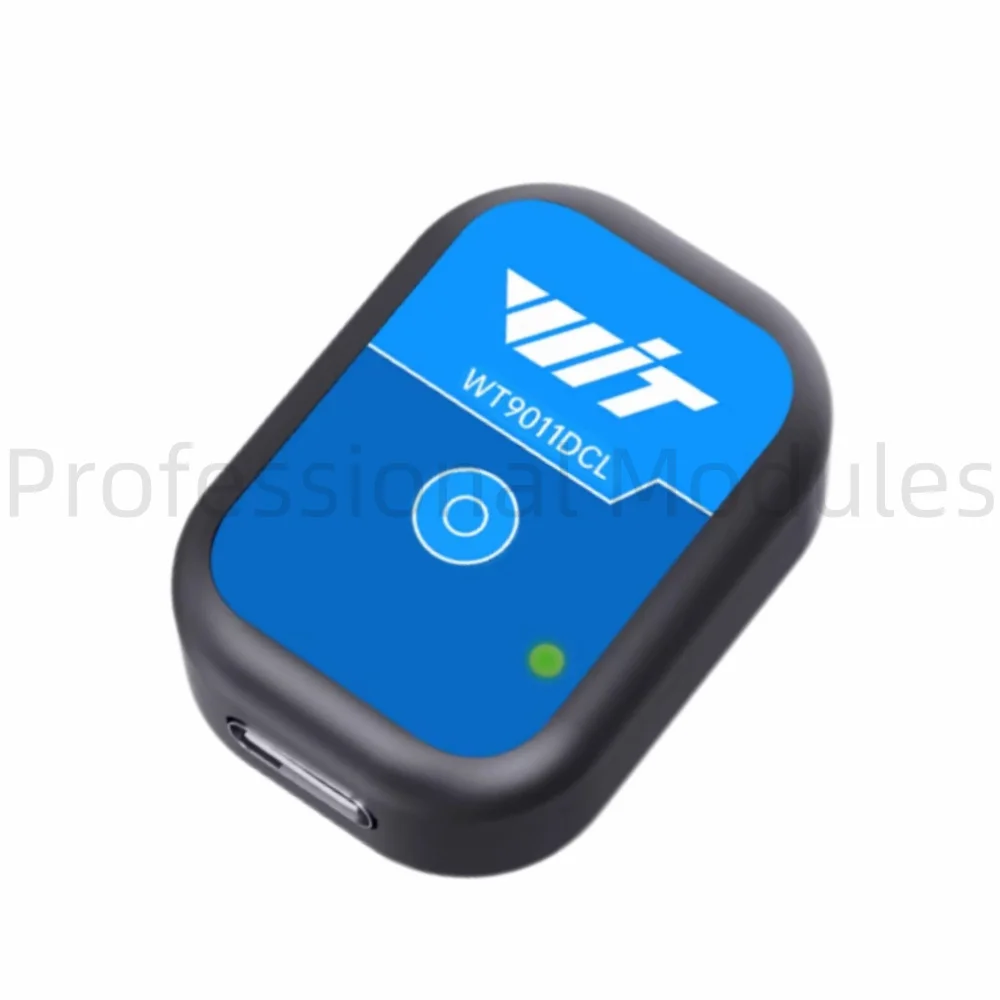

WT9011DCL-BT50 3-axis Accelerometer Gyroscope 9DOF Angle Sensor Electronic Compass Magnetometer Inclinometer Bluetooth 5.0

WT9011DCL-BT50 9-Axis Attitude Sensor with BT 5.0 - Gyro, Accelerometer, Magnetometer & Tilt Inclinometer

WT9011DCL-BT50 High-Precision BT Inertial Measurement Unit (IMU)

Compact and lightweight, this high-performance IMU delivers precise motion tracking and orientation data wirelessly via BT5.0, ideal for applications in robotics, UAVs, wearable devices, and motion analysis.

Key Specifications

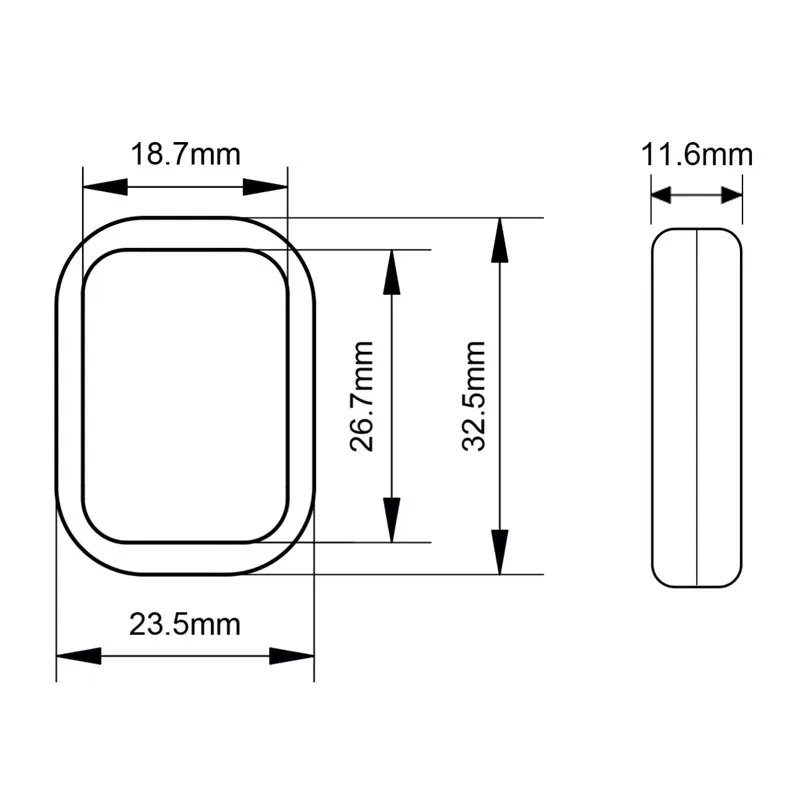

Dimensions: 23.5 × 18.7 × 11.6 mm

Wireless Communication: BT5.0, range up to 50 m (open area)

Output Frequency: 0.2–200 Hz

Data Output:

Tri-axis: Acceleration, Angular Velocity, Magnetic Field, Euler Angles

Quaternion

Port Status

Power Consumption:

Operating: 4.5 mA

Broadcasting: 21 mA

Standby: 14–30 µA

Charging Voltage: 5 V

Battery Voltage: 3.7 V

Accuracy (after calibration, without magnetic interference):

X/Y Axis: 0.2°

Z Axis: 1°

Battery Life: Up to 20 hours

Weight: 9 g

Designed for efficiency and reliability, the WT9011DCL-BT50 combines low power consumption with robust wireless performance, making it suitable for long-term use in dynamic and mobile environments.
