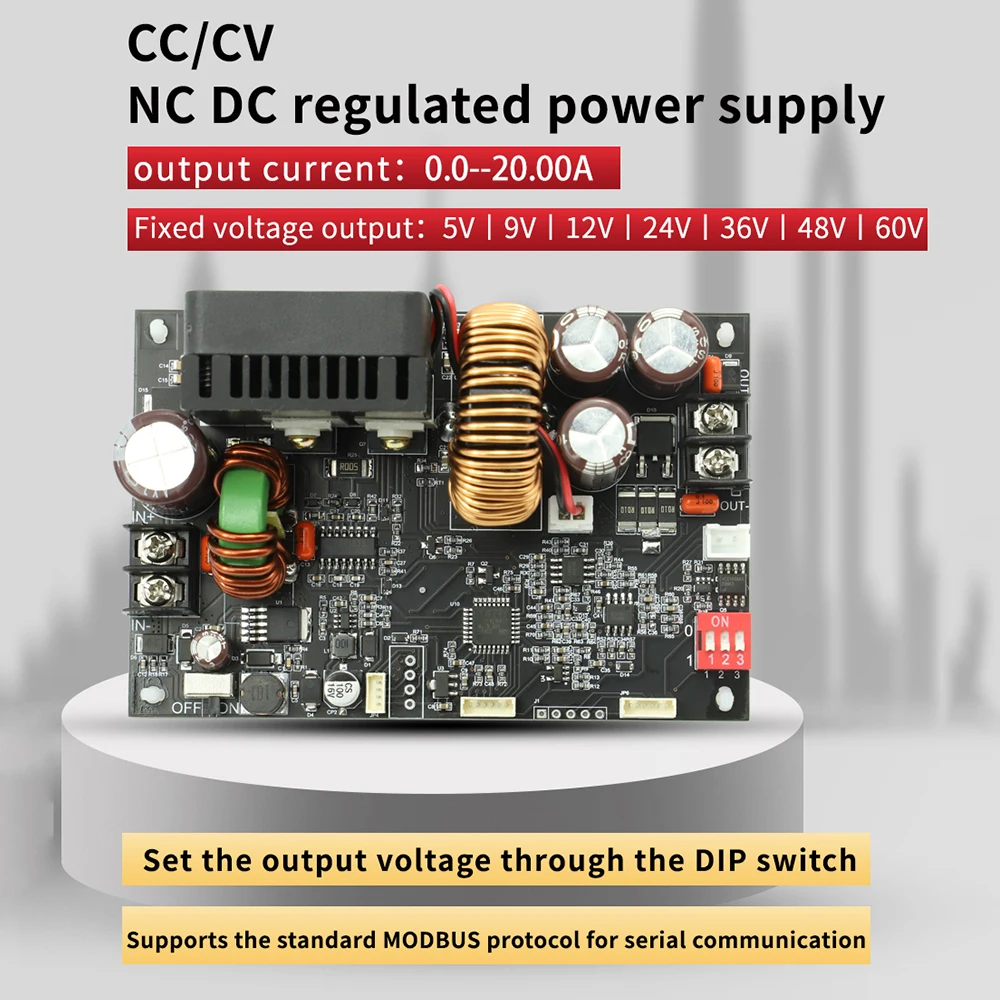

XY6020L CNC Direct Current Stabilized Voltage Power Supply Base Plate Constant Voltage and Current Step-down Module

Product selling points:

1. Using high quality materials, durable and long-lasting

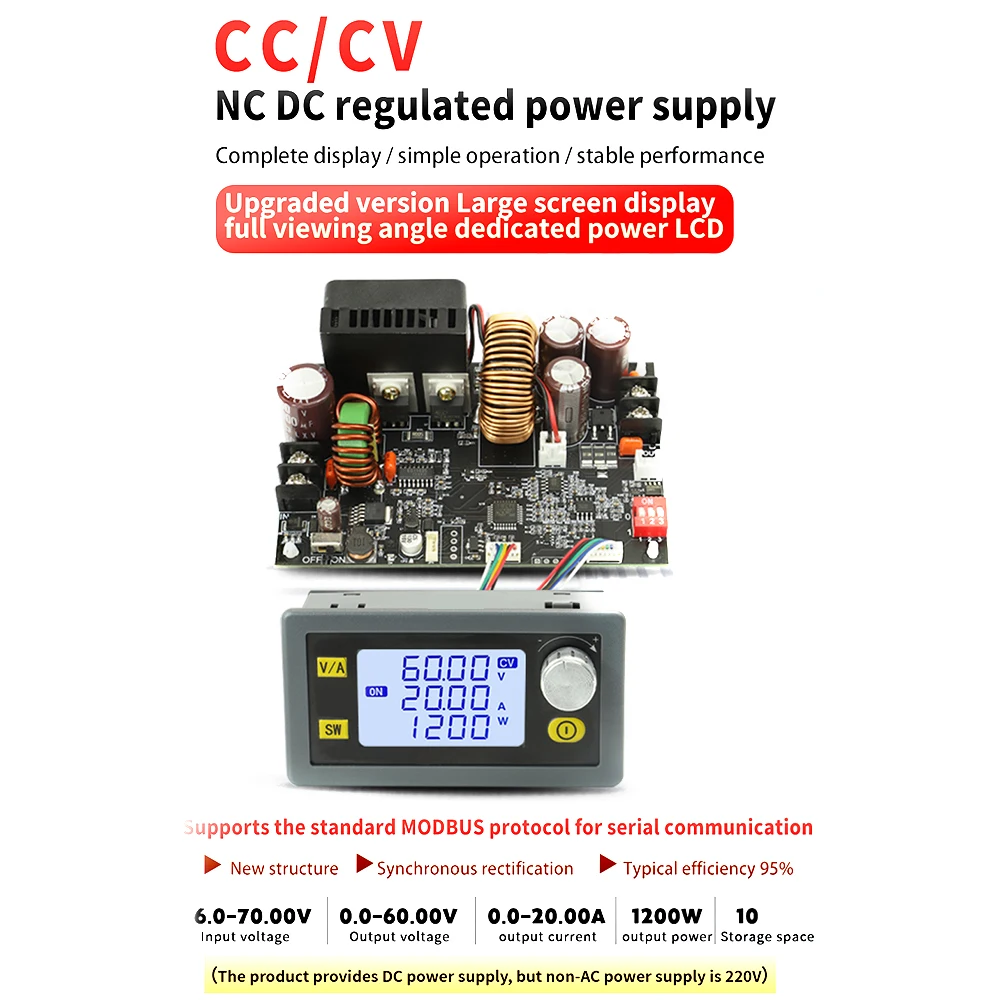

2. Constant voltage and constant current CNC DC stabilized power supply

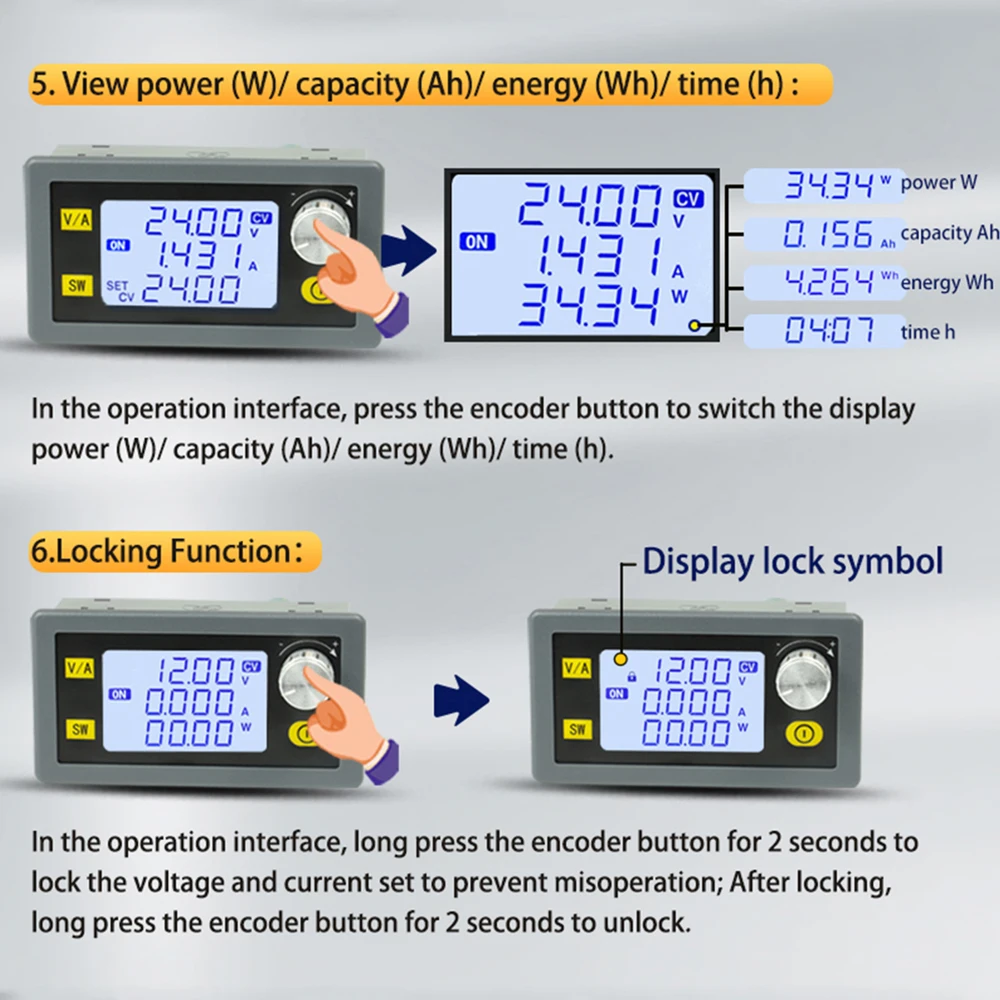

3. Large screen display, full-view angle special power supply liquid crystal

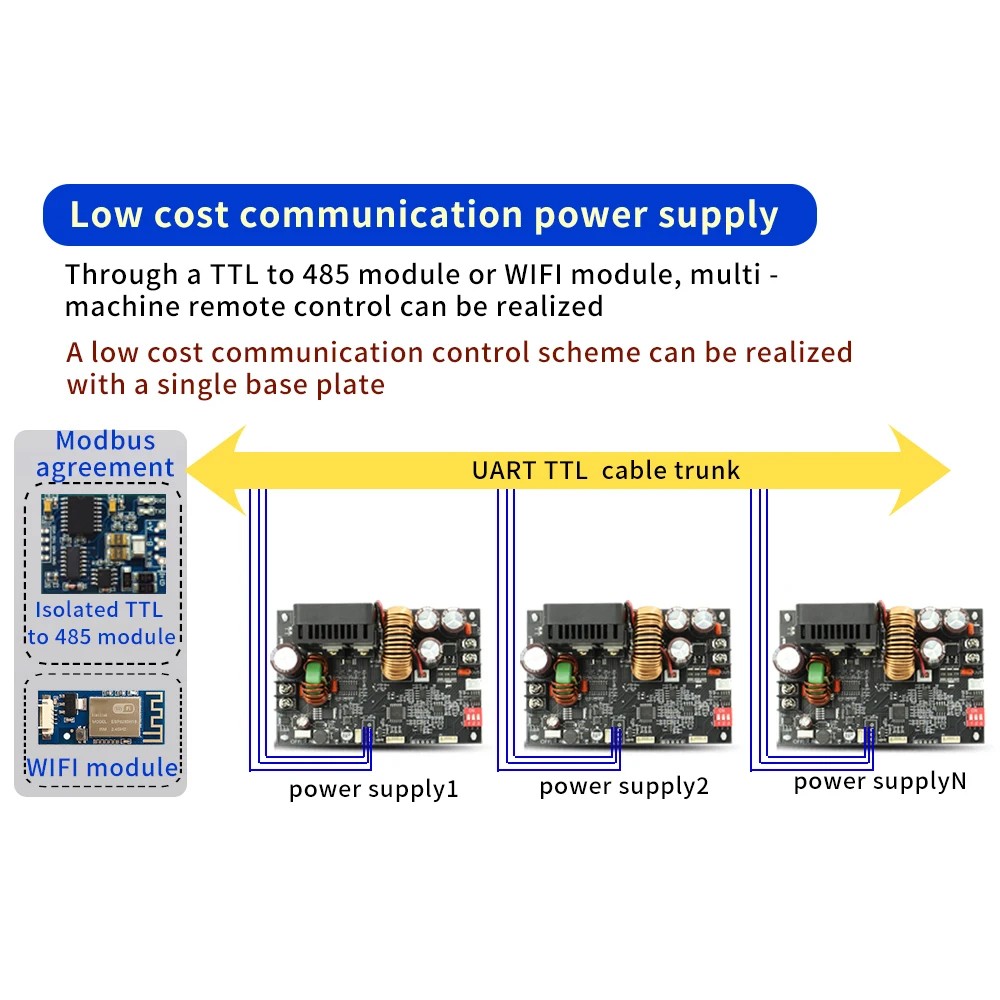

4. Support serial communication, standard MODBUS protocol

5. Complete display, simple operation, stable performance

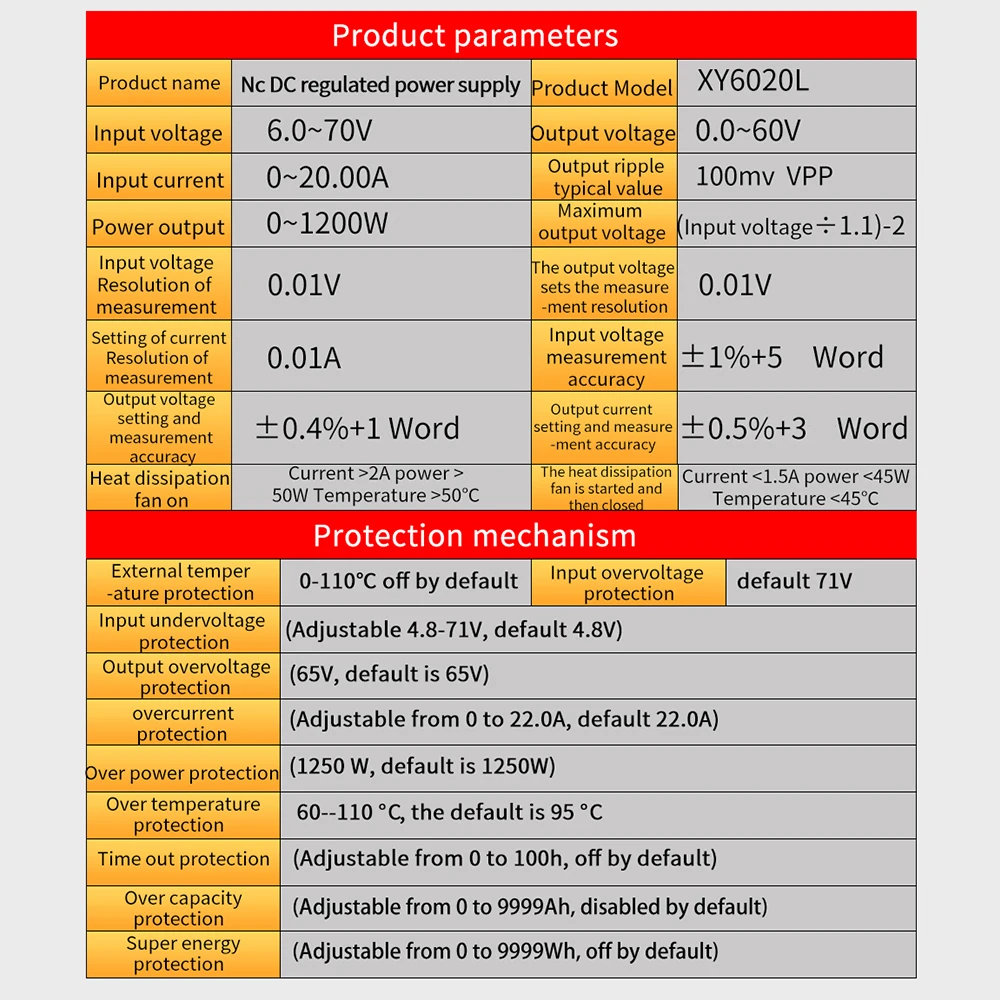

Parameters:

Input voltage: 6.0~70V

Output voltage: 0.0~60V

Output current: 0~20.00A

Output Ripple Typical Value: 100mv VPP

Output Power: 0~1200W

Maximum Output Voltage: (Input Voltage + 1.1)-2

Input voltage measurement resolution: 0.01V

Output voltage setting measurement resolution: 0.01V

Current setting measurement resolution: 0.01A

Input voltage measurement accuracy: ±1% + 5 words

Output voltage setting and measurement accuracy: ±0.4% + 1 word

Output current setting and measurement accuracy: ±0.5% + 3 words

Cooling fan on: Current > 2A Power > 50W Temperature > 50°C

Cooling fan on and off: current <1.5A power <45W temperature <45°C

Protection mechanism:

External temperature protection: 0--110°C default off

Input over-voltage protection: 71V default

Input undervoltage protection: 4.8-71V adjustable default 4.8V

Output overvoltage protection: 0-65V default 65V

Output overcurrent protection: 0-16A default 16A

Output over power protection: 0-950W Default 950W

Over Temperature Protection: 60-110°C Default 95°C

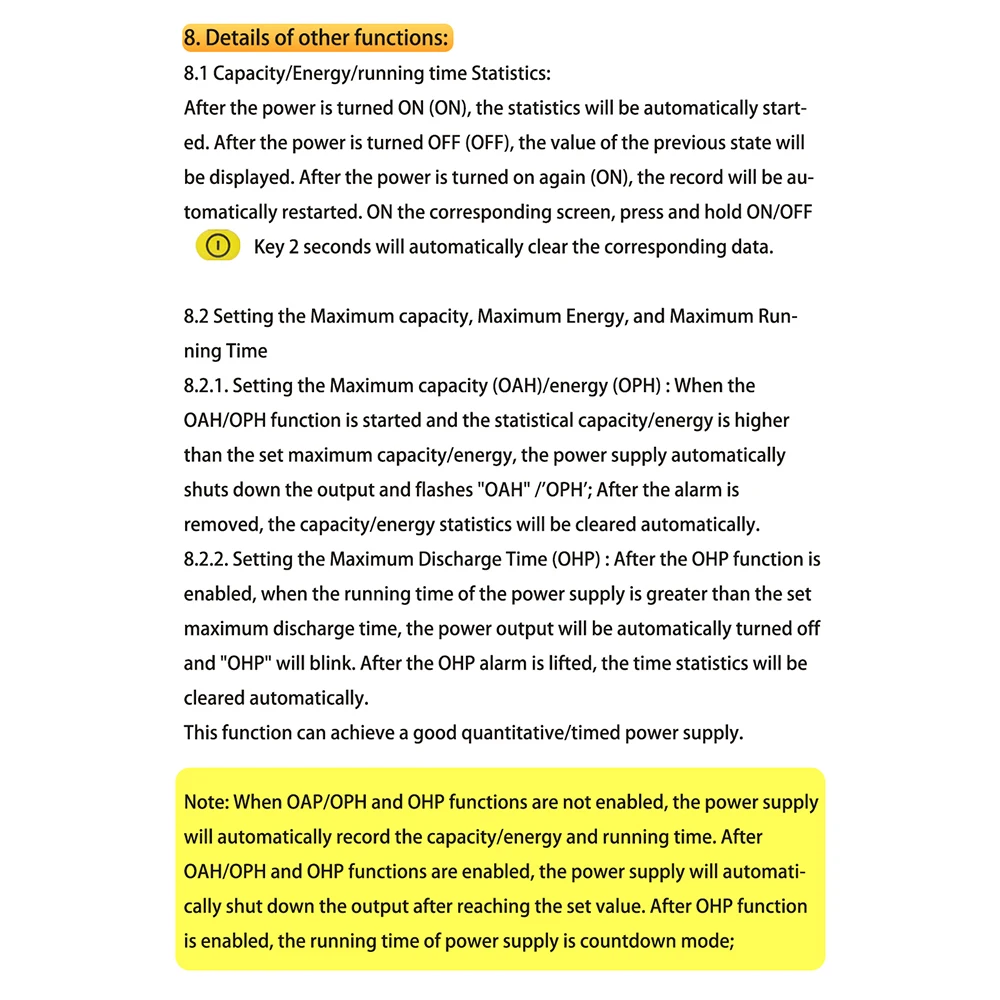

Timeout protection: 0 -100H adjustable Default off

Over capacity protection: 0~9999AH adjustable Default off

Super energy protection: 0~9999WH adjustable Default off

Package list:

Package A:

Meter head*1

Base plate *1

Wire *2

Package B:

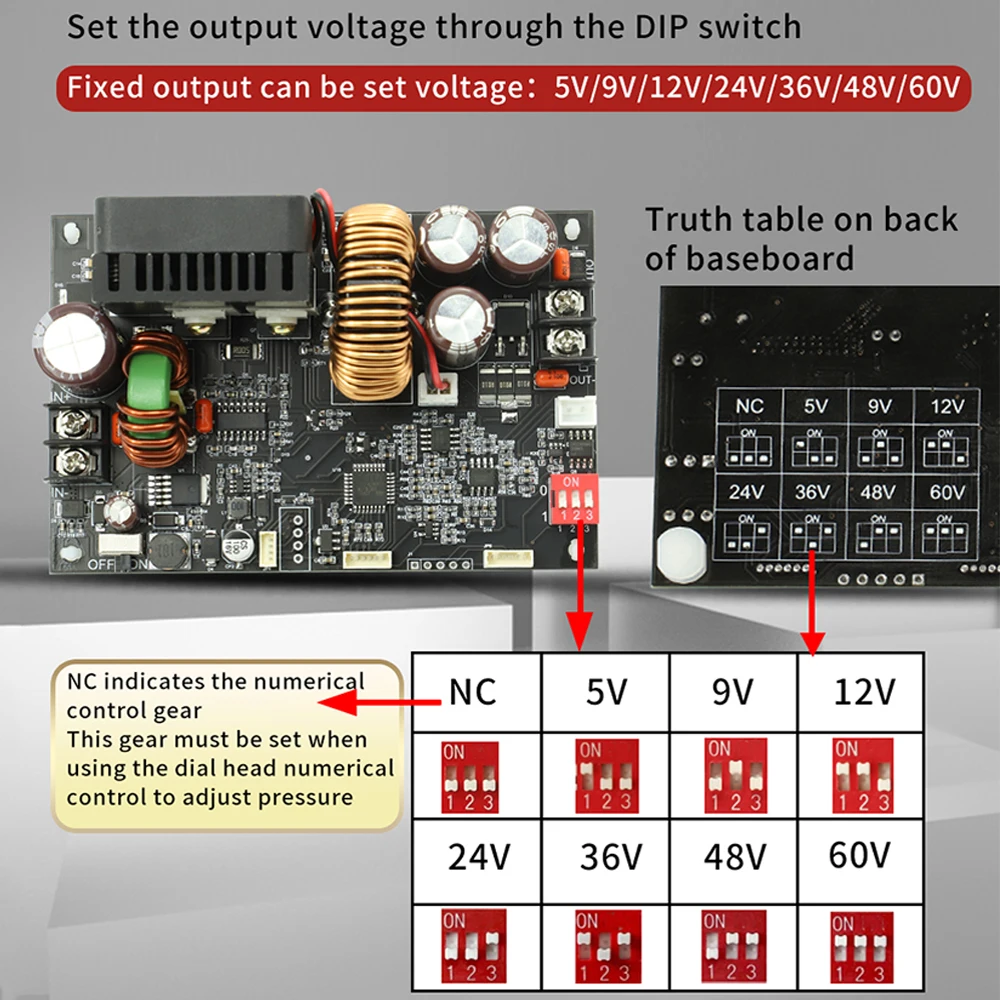

Base plate *1 (base plate can be used separately Output current 0-20A)
