CrowPanel Advance 2.8''-HMI ESP32 AI Functions Display 320x240 IPS Touch Screen Support Arduino/LVGL/Micropython

The Advance ESP32 2.8-inch AI display is an upgraded version of the CrowPanel HMI 2.8-inch display. It is a powerful HMI touch display feature with a 320*240 resolution IPS screen. It uses the ESP32-S3 chip as the core processor, equipped with an Xtensa 32-bit LX7 dual-core processor and a main frequency of up to 240MHz. It has 512KB SRAM, 8M PSRAM, and 16M Flash. This gives it strong data processing power. The 2.4GHz Wi-Fi and BLE functions, with a built-in RF antenna, ensure a stable, reliable wireless connection. Also, the diverse interfaces and low power make this 2.8” screen ideal for HMI applications that need strong wireless connectivity. It supports the Arduino IDE, Espressif IDF, PlatformIO and MicroPython. It is compatible with the LVGL graphics library and supports MicroPython and C++.

This 2.8” screen uses an IPS panel, and the 178°wide viewing angle allows you to enjoy a vivid visual experience at any angle. Capacitive touch technology enables smooth, responsive interactions. It makes every touch accurate and intuitive.

A notable feature of the CrowPanel Advance 2.8” display is its integrated AI function. Users can interact by using the microphone and speaker. This includes voice recognition and speech synthesis. They can have seamless conversations with smart assistants to get information.

Another highlight of this screen is its modular design. It provides diverse wireless options. Users can replace modules as needed. They support multiple protocols: Zigbee, LoRa, nRF2401, Matter, Thread, and Wi-Fi 6. In addition, when paired with the SX1262 wireless module, One screen and different modules can connect wirelessly in any scenario.

This upgrade integrates the latest wireless tech, an optimized port layout, a great touch display, and larger storage. These improvements enhance the flexibility and reliability of connectivity, provide users with more diverse choices and wider application possibilities, and meet the stringent requirements of modern intelligent systems for remote monitoring and control.

Designed and manufactured by Elecrow, customized requests can be discussed(based on MOQ), you can contact us at [email protected].

Note: The LoRa module purchased on this page does not include the Meshtastic firmware and is intended solely for LoRa communication.

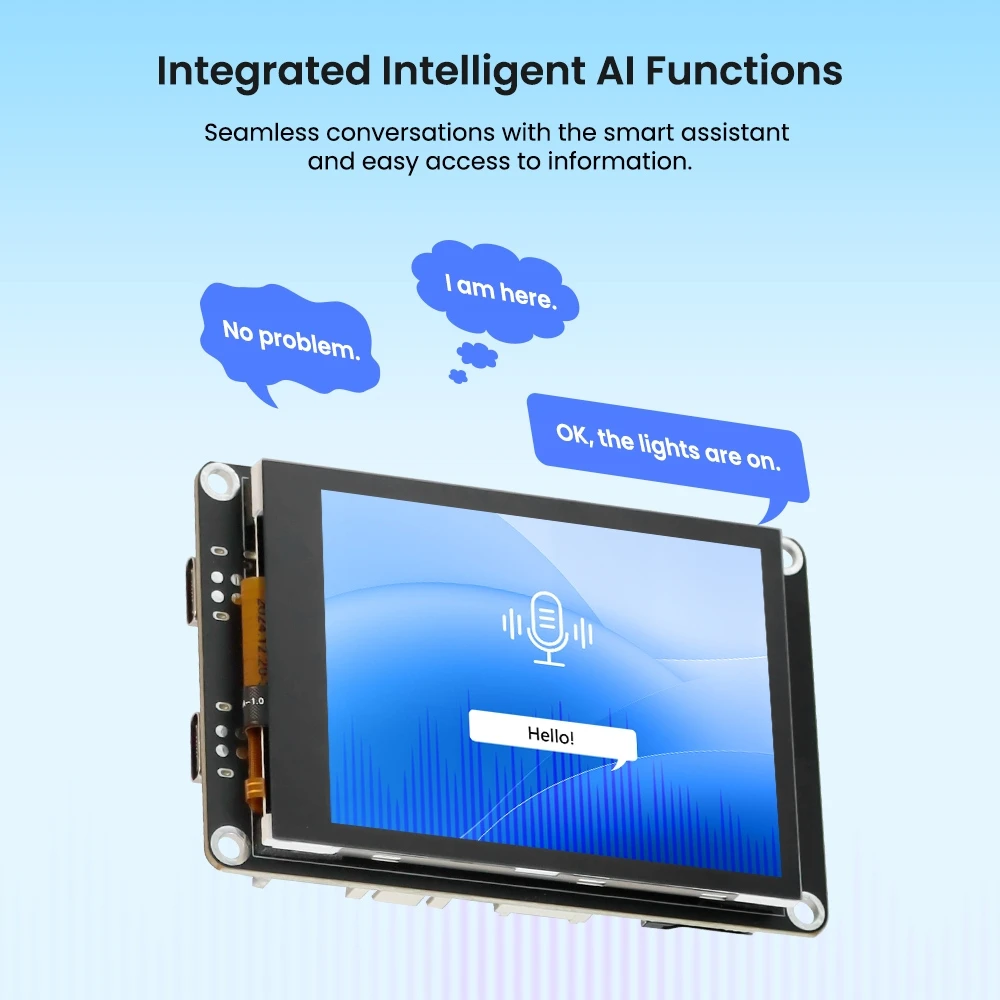

Integrated Intelligent AI Functions

Voice interaction is achieved through the microphone and speaker, allowing seamless conversations with the smart assistant and easy access to information.

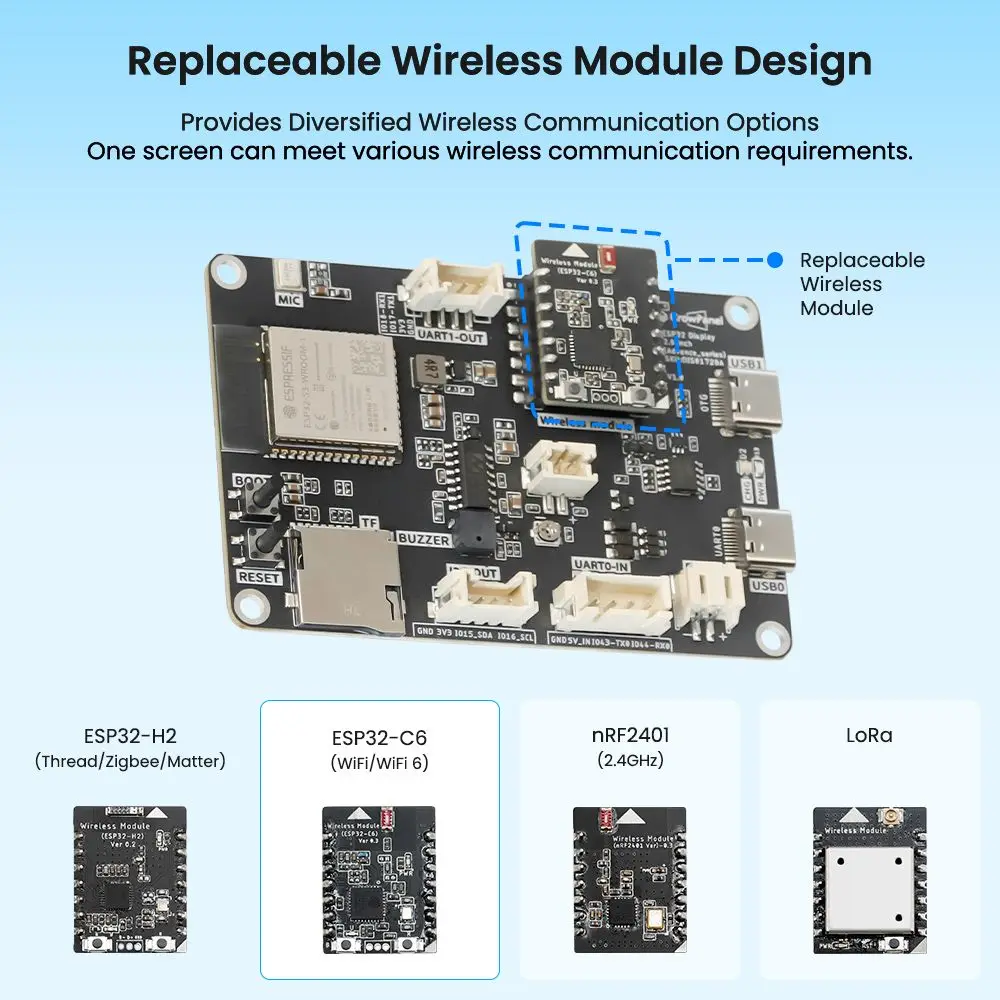

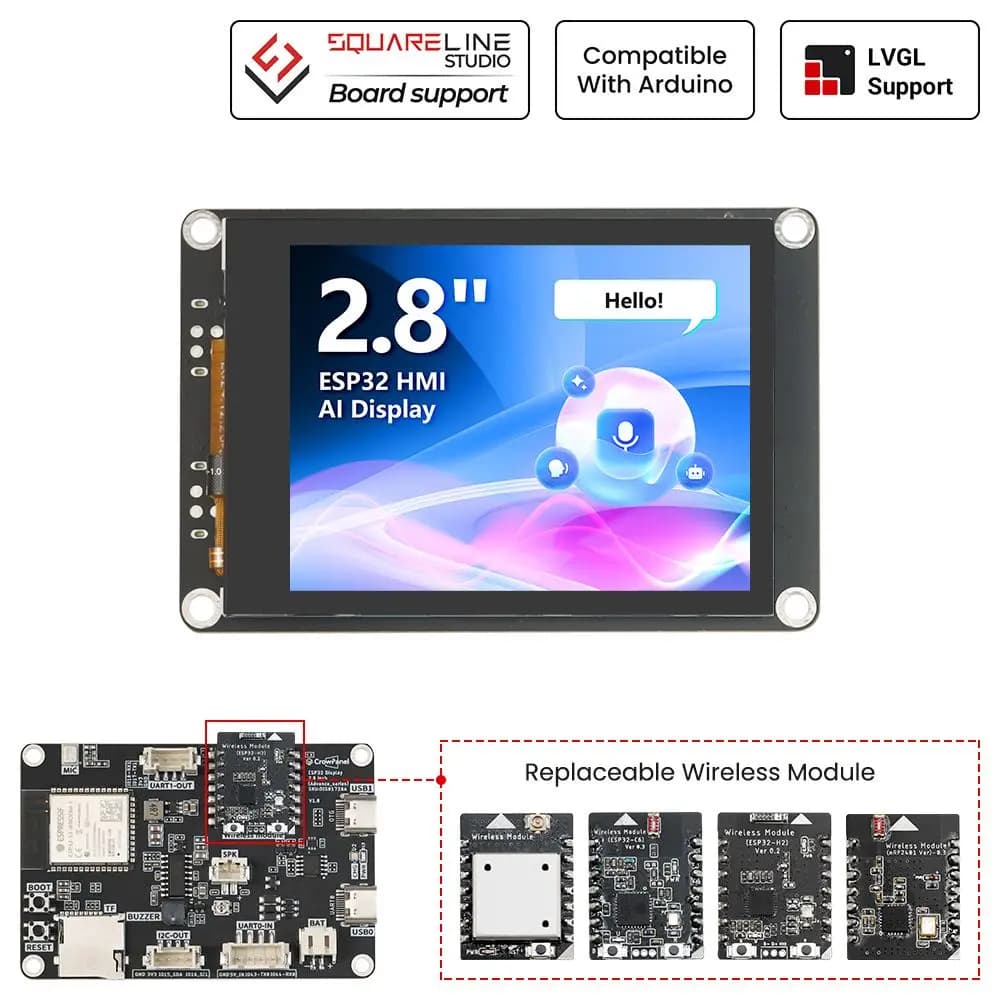

Replaceable Wireless Module Design, Provides Diversified Wireless Communication Options

By replacing the module, it supports multiple communication protocols such as Zigbee, LoRa, nRF2401, Matter, Thread and Wi-Fi 6. One screen can meet various wireless communication requirements.

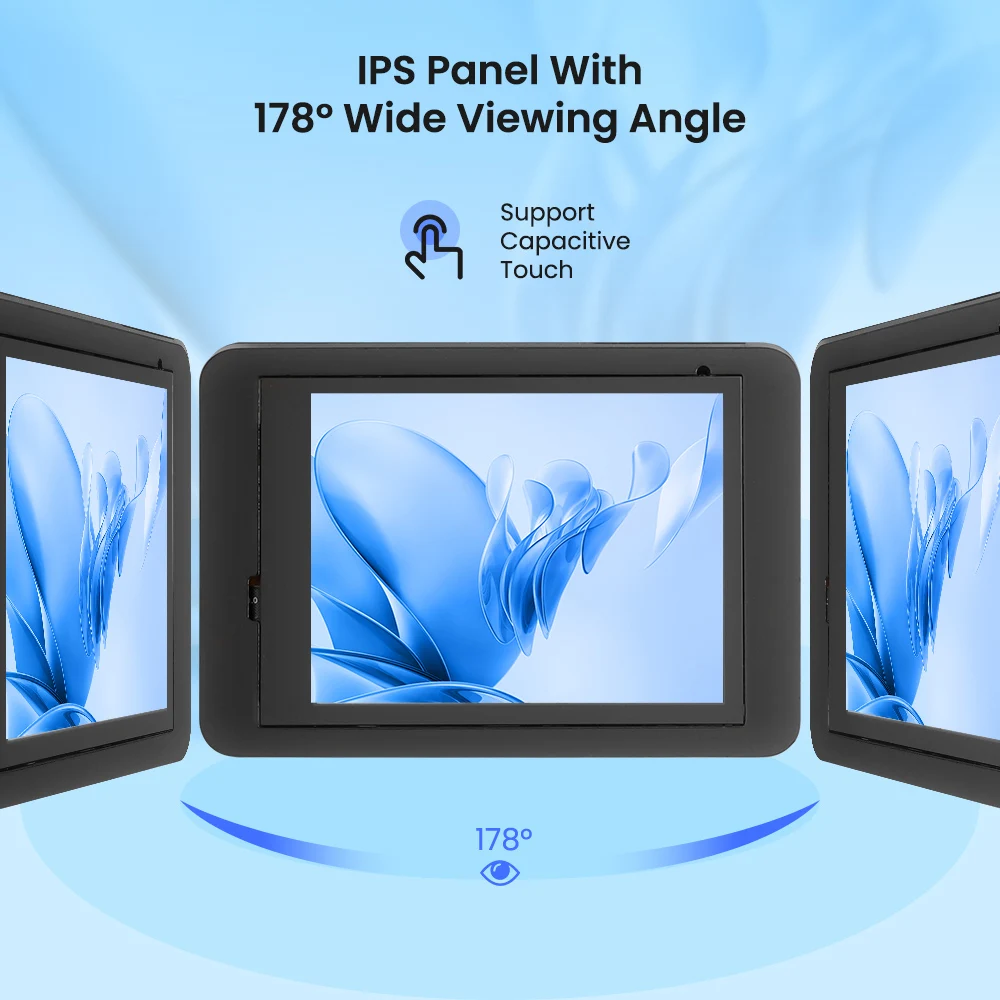

IPS Panel With 178°Wide Viewing Angle

The 178°wide viewing angle allows you to enjoy a vivid visual experience at any angle.

Support Multiple Development Environments

It supports multiple development environments such as Arduino IDE, Espressif IDF, PlatformIO and MicroPython, and development languages like MicroPython, and C++ to meet the needs of different developers and make every project possible.

Support Open Source Graphics Library - LVGL

It supports the LVGL graphics library, and you can design various UIs.

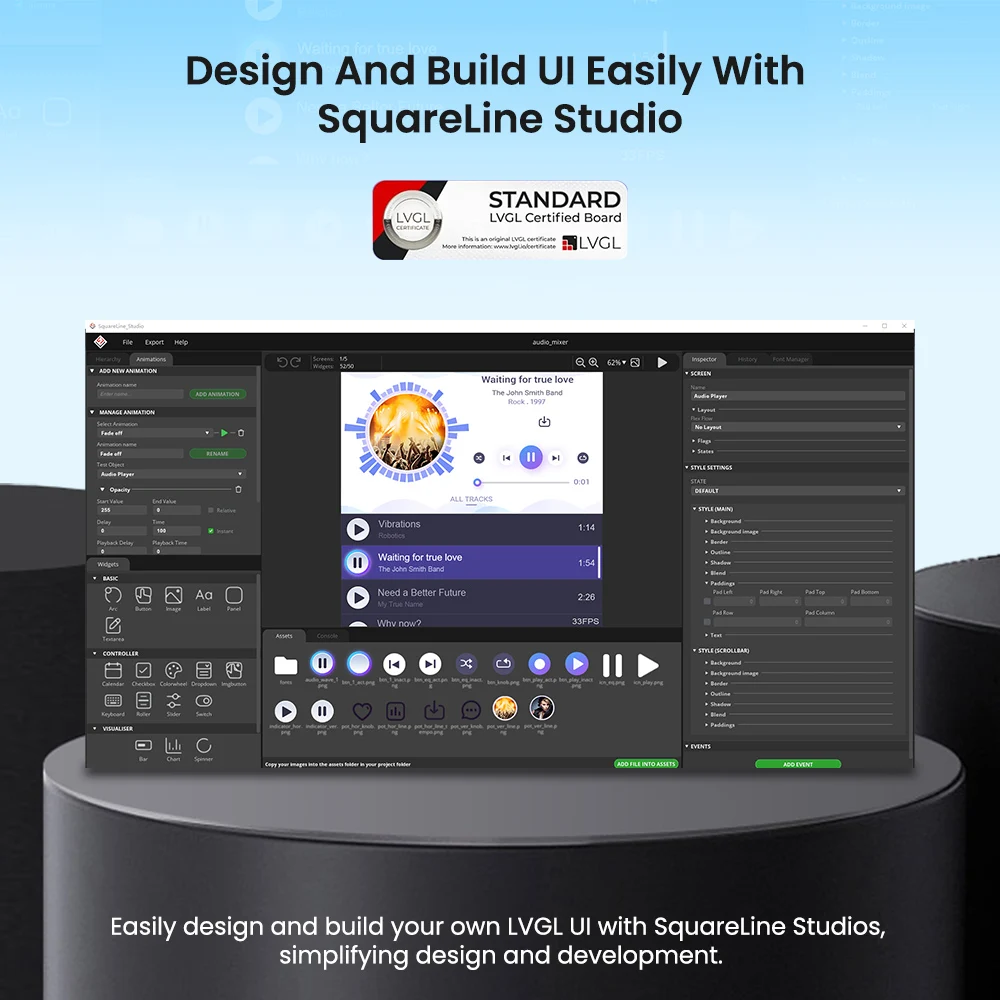

Design And Build UI Easily With SquareLine Studio

Easily design and build your own LVGL UI with SquareLine Studios, simplifying design and development.

Squareline Vision has entered BETA, sign up now to get 40% off all licenses. https://vision.squareline.io/

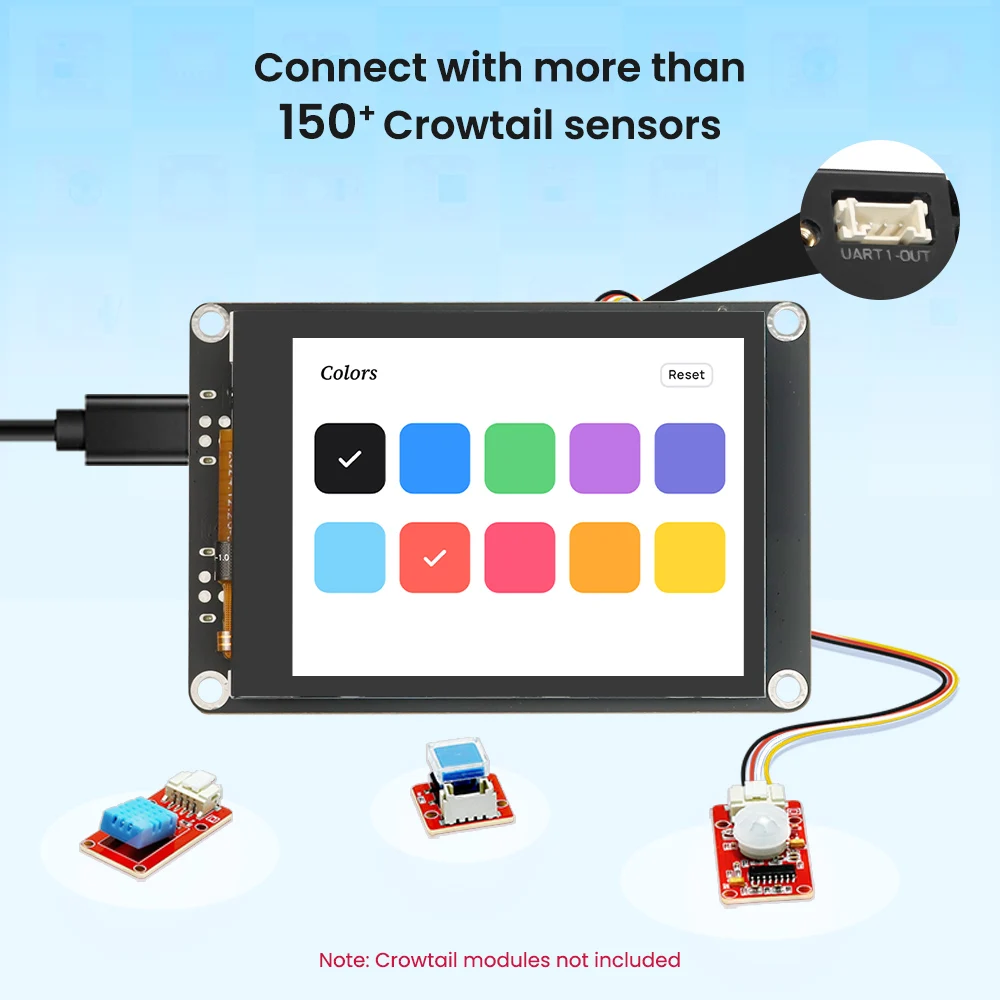

Connect With More Than 150+ Crowtail Sensors

Application Scenario

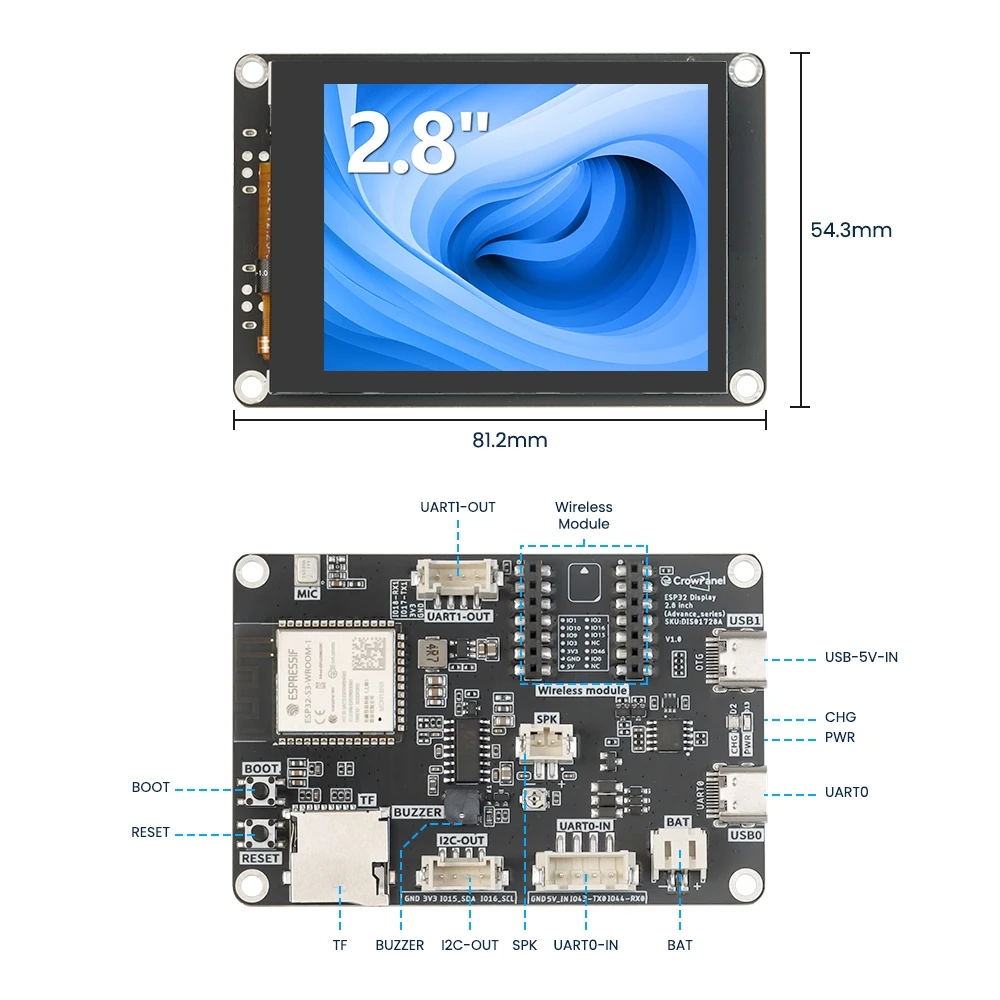

Hardware Overview

Feature

Equipped with ESP32-S3-WROOM-1 module as the core controller, it provides more excellent performance;

Main frequency up to 240MHz, equipped with 512KB SRAM, 8M PSRAM and 16M Flash;

320*240 2.8 inches, with driver IC ST7789;

IPS panel, 178° wide viewing angle, supports capacitive touch;

Intelligent AI function, equipped with high-performance microphone and speaker, users can have seamless conversations with smart assistants through voice command interaction, voice recognition and speech synthesis;

Replaceable wireless communication module, can support multiple communication protocols such as Zigbee, LoRa, nRF2401, Matter, Thread and Wi-Fi 6 by replacing different modules;

Built-in LVGL demonstration interface and Arduino examples, plug and play；

The peripheral port adopts vertical and built-in terminal design, which is more in line with the compact an integrated design requirements of embedded devices.

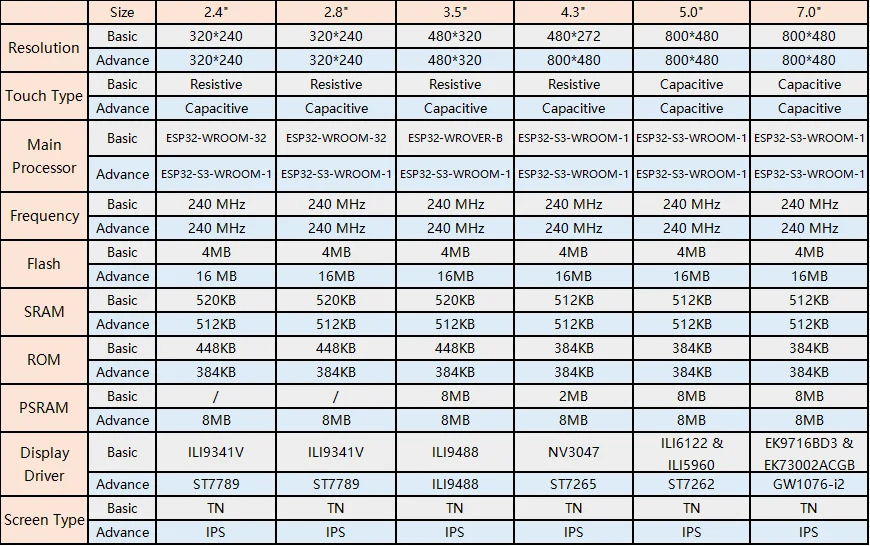

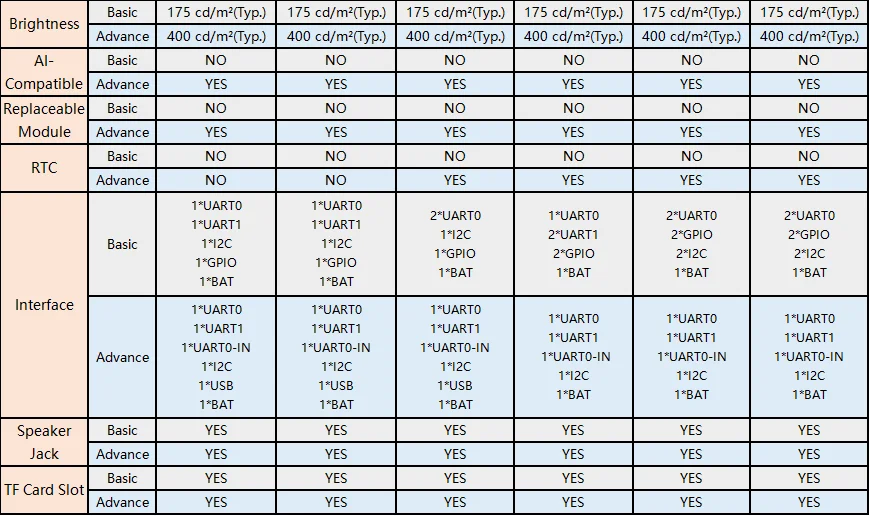

CrowPanel Basic Series Compare With Advance Series

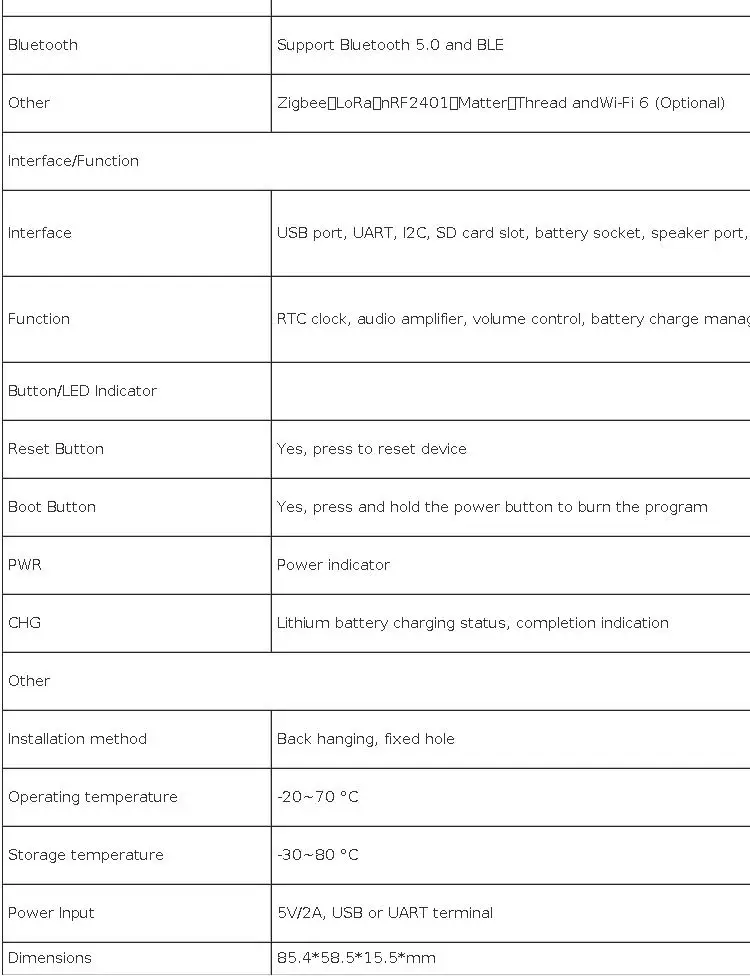

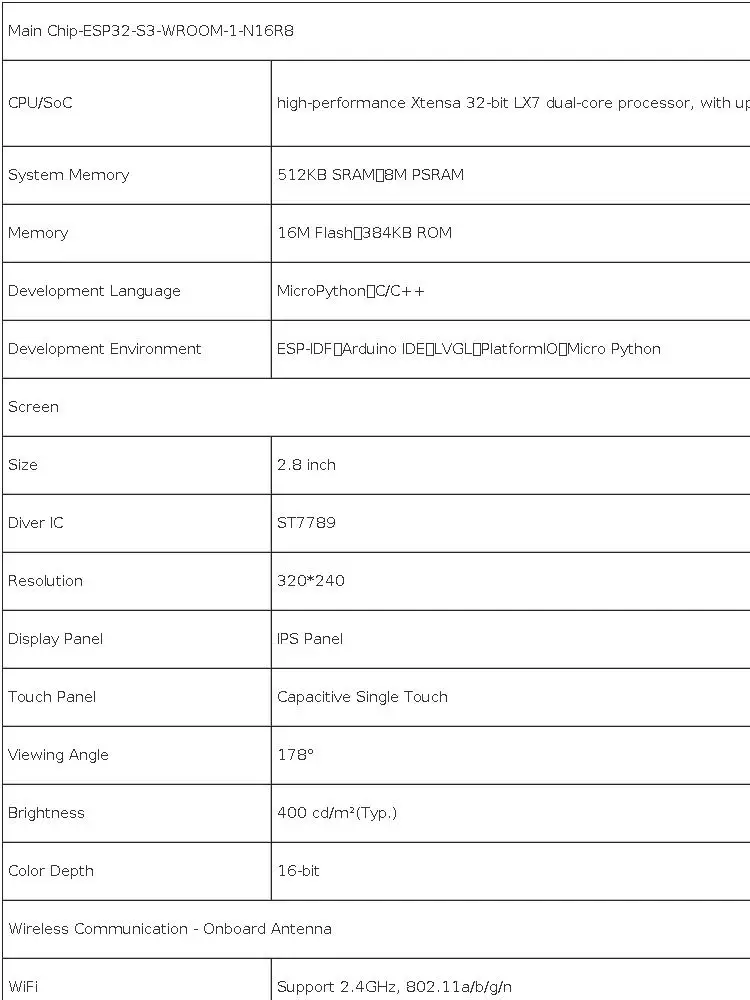

Specification

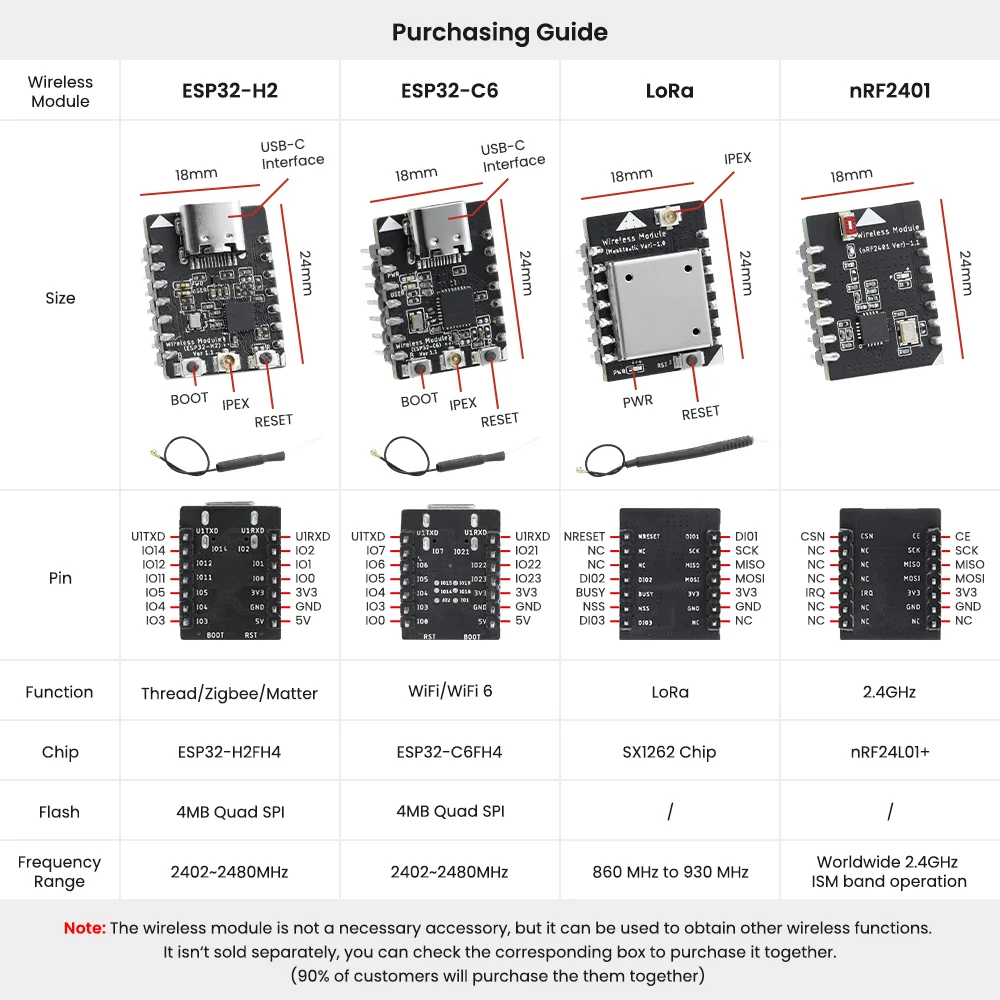

Four Wireless Module Details

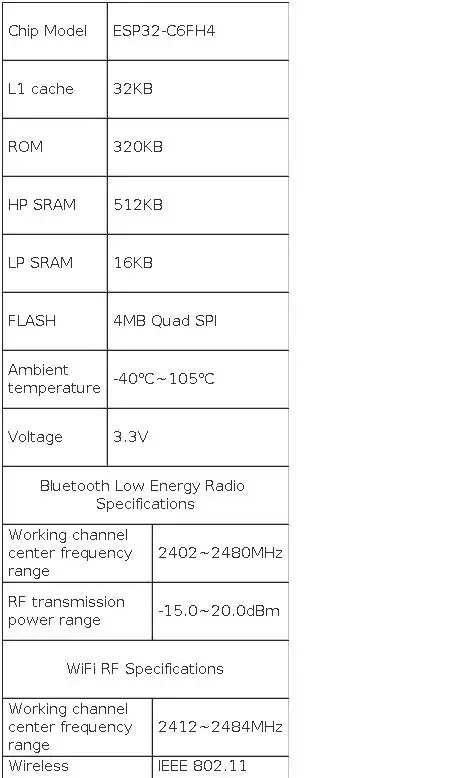

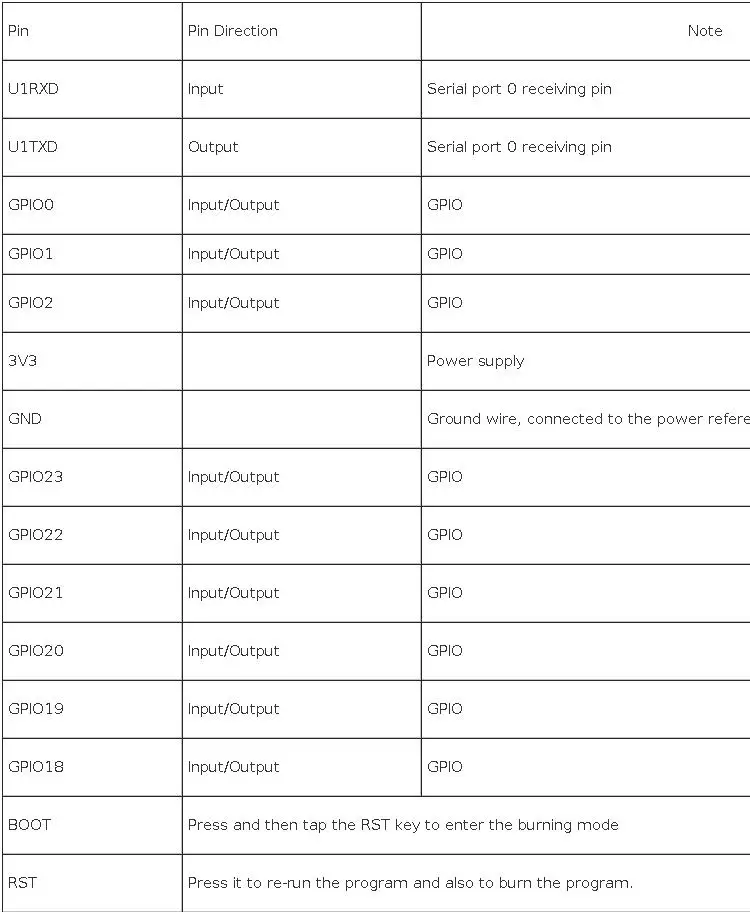

ESP32-C6 Wireless Module

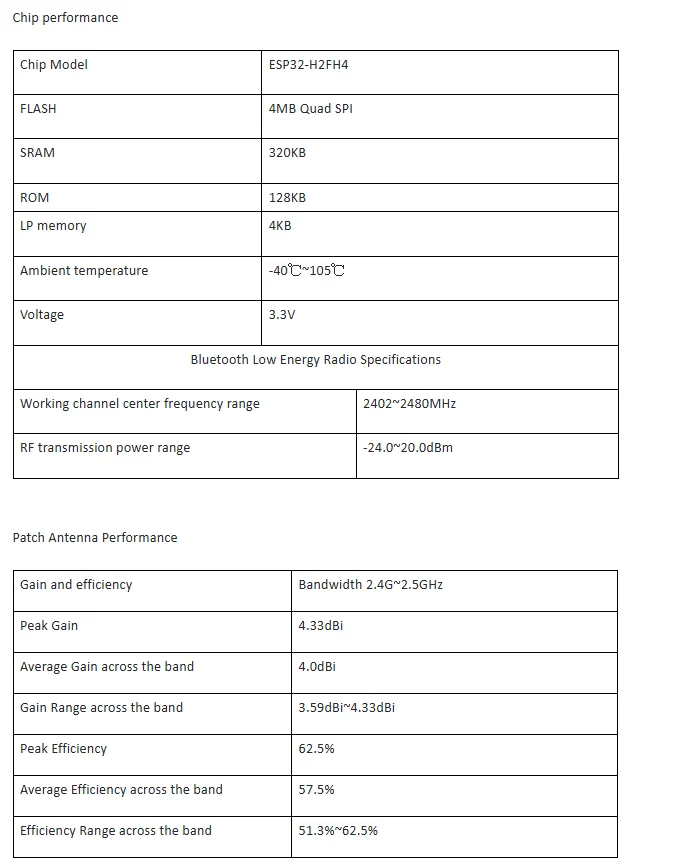

Chip performance

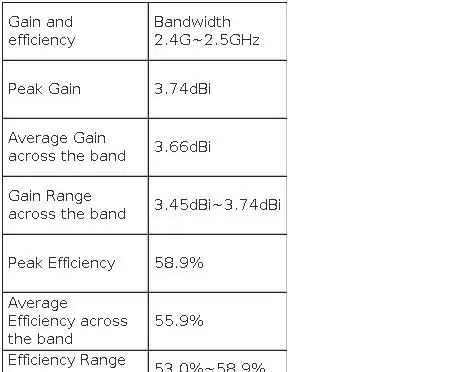

Patch Antenna Performance

nRF2401 Wireless Module

Chip performance

Chip Model：nRF24L01+

Worldwide 2.4GHz ISM band operation

250kbps, 1Mbps and 2Mbps on-air data rates

Ultra-low power operation

11.3mA TX at 0dBm output power

13.5mA RX at 2Mbps air data rate

900nA in power down

On-chip voltage regulator

1.9 to 3.6V supply range

Patch Antenna Performance

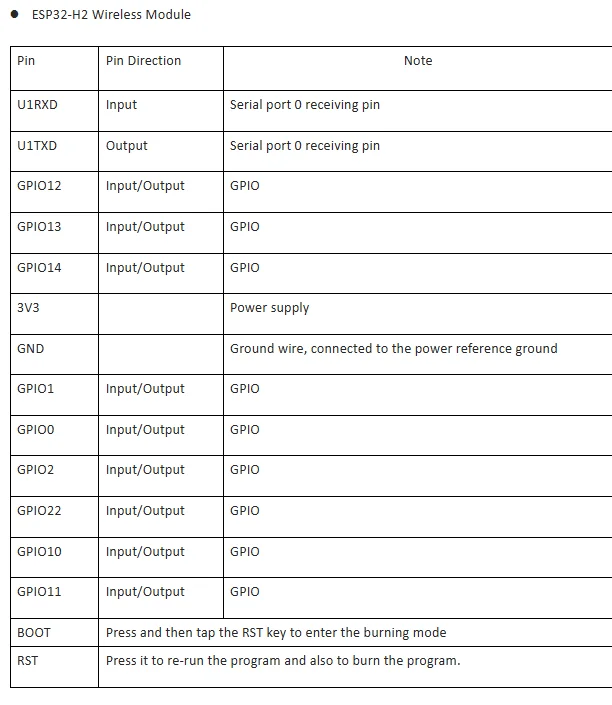

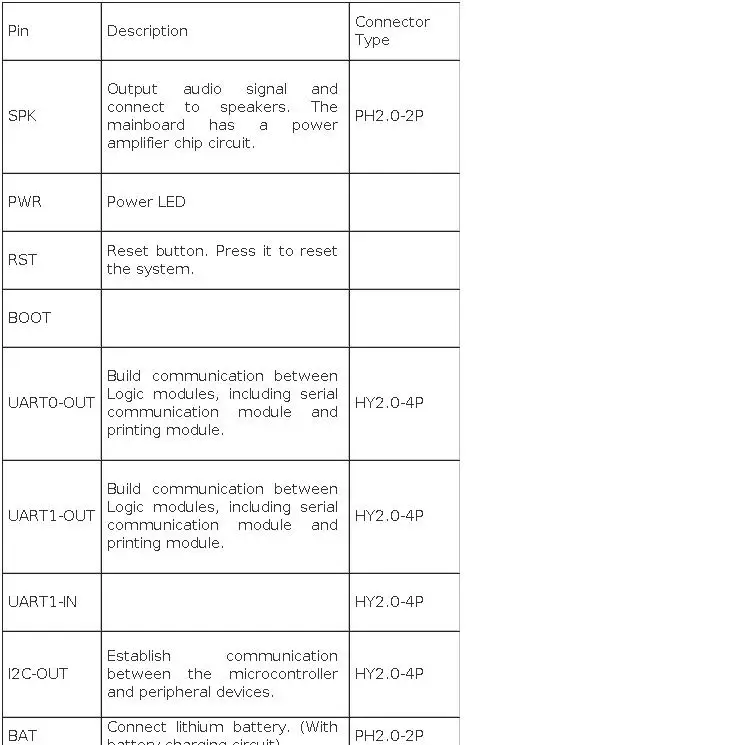

Display Pin Definition

For more pin functions, see Wiki.

Package List

1x CrowPanel Advance ESP32 Display-2.8 inch

1x Wireless Module-ESP32-H2 Optional

1x Wireless Module-ESP32-C6 Optional

1x Wireless Module-nRF2401 Optional

1x USB-A to Type-C Cable

1x Crowtail/Grove 4pin DuPont cable
