Product Introduction:

This professional-grade DAC module is built around the high-performance DAC8568 chip from Texas Instruments. It is a low-power, 8-channel, 16-bit, voltage-output digital-to-analog converter that delivers exceptional accuracy and stability. The module operates on a single 5V power supply and generates a wide analog output voltage range of ±10V on all eight independent channels.

Key Features & Specifications:

Core Chip: Texas Instruments DAC8568

High Resolution: True 16-bit

Multi-Channel Output: 8 independent voltage output channels

Wide Output Range: ±10V

Integrated Precision Reference: Features a high-stability internal 2.5V reference with an initial accuracy of 0.004% and a low temperature drift of 2ppm/°C.

High-Speed SPI Interface: Utilizes a versatile 3-wire serial interface compatible with standard SPI, QSPI, MICROWIRE, and DSP protocols, supporting clock rates up to 50MHz.

Logic Level: 3.3V

Low Output Impedance

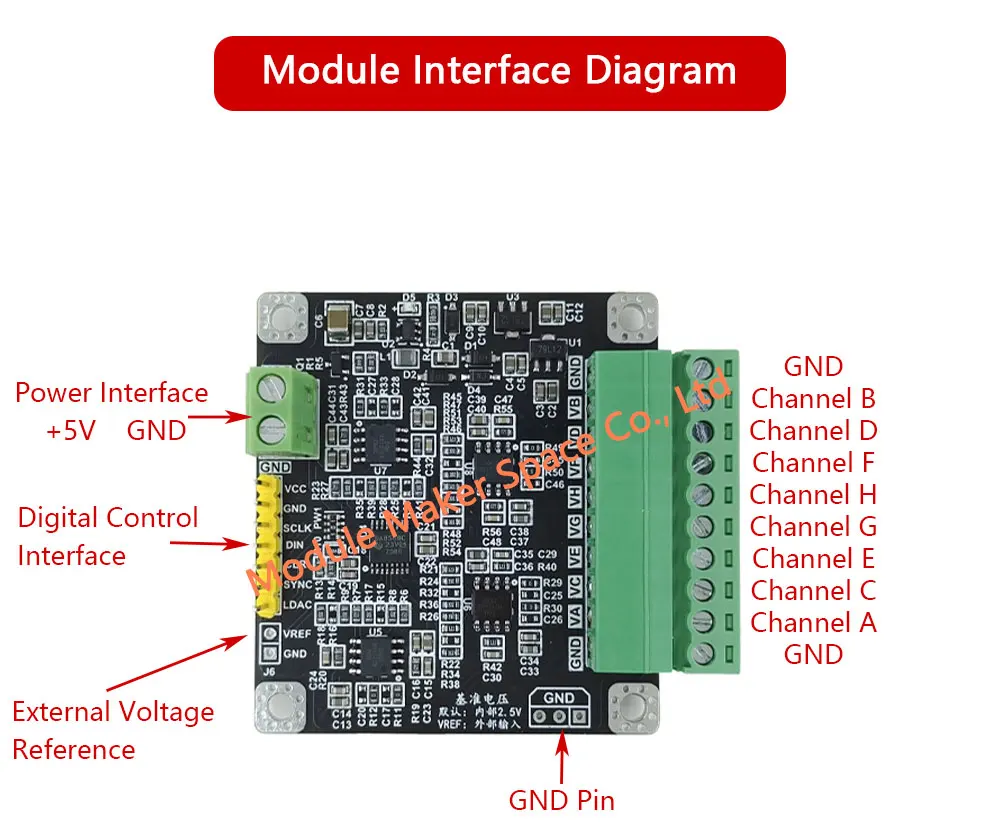

Single-Ended Outputs accessible via terminal blocks.

Built-in Protection: Includes reverse polarity protection for the power supply (note: no over-voltage protection).

Developer-Friendly: Complete example code provided for popular platforms including STM32 (STM32F103ZET6) and FPGA (EP4CE10F17).

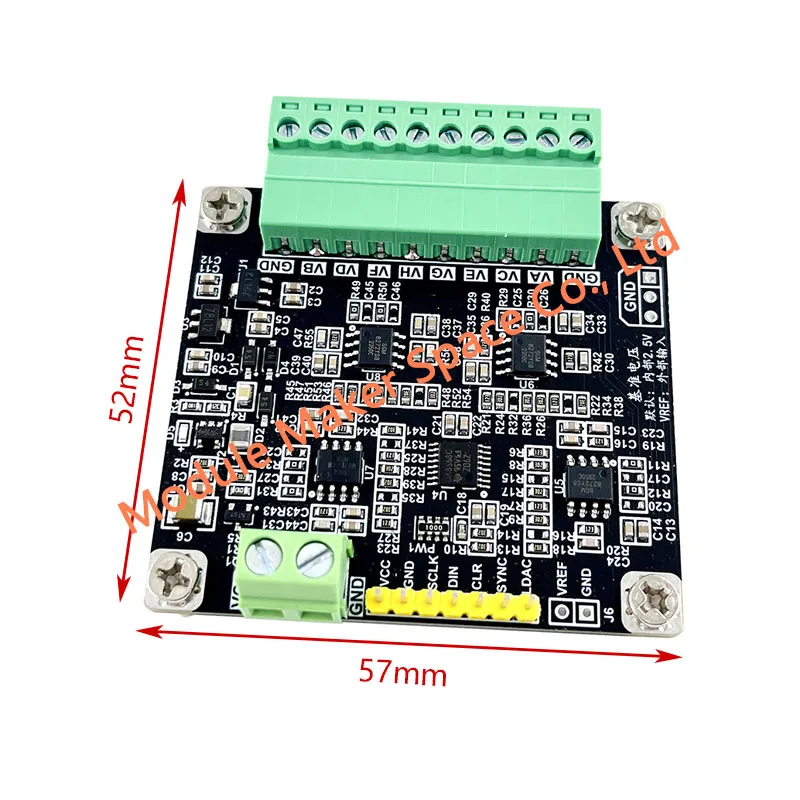

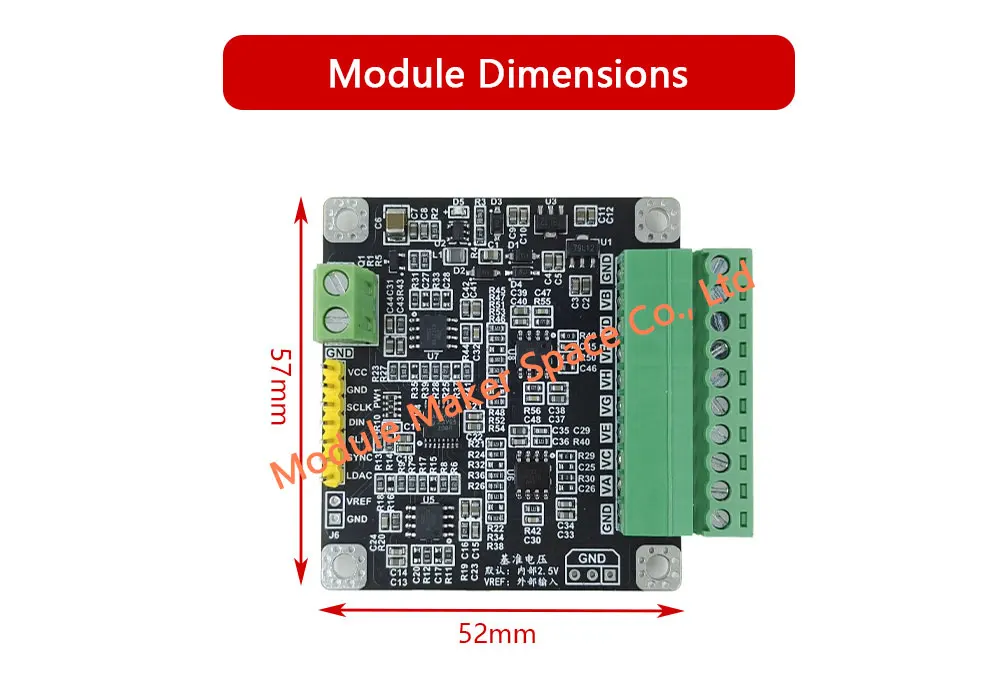

Compact Size: 5.2cm x 5.7cm.

Typical Applications:

Ideal for a wide range of applications such as portable instrumentation, closed-loop servo control, process control, data acquisition systems, programmable attenuation, digital gain and offset adjustment, and programmable voltage/current sources.

About us:

We deal in all kinds of lC brands world-wide.

Our products are widely applied in civilian, industrial and military fieldslE work, communication, home appliances, RF, video display, memoriesRAM development, medical instruments, power supply system, programcontrolleddevices,digital devices,industrial equipments, aviation andnavigation equipments, etc.

We also supply Amplifier board,LCD Display,Soldering iron ,Temperature controller ,mppt solar controller,charger,Active balancer,BMS,battery tester,indicator ,esp8266 and so on

We have extensive industry knowledge and sufficient inventory. This enables us to provide a complete and versatile technical supports to our customers. Our products have been exported to many countries and regions around the world, and we have a good reputation among our customers. We welcome customers, chambers of commerce, and friends from all over the world to contact us and seek mutually beneficial cooperation.

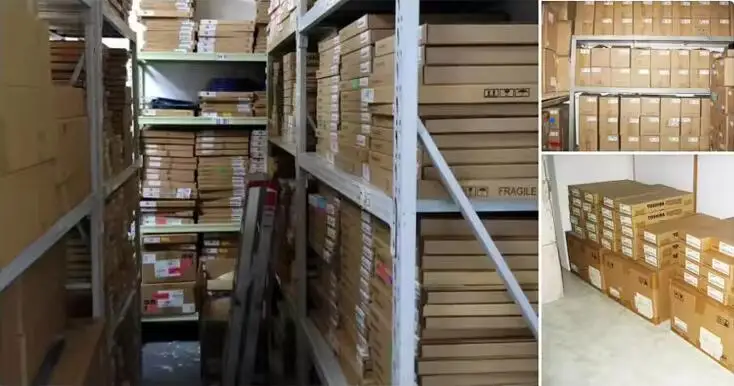

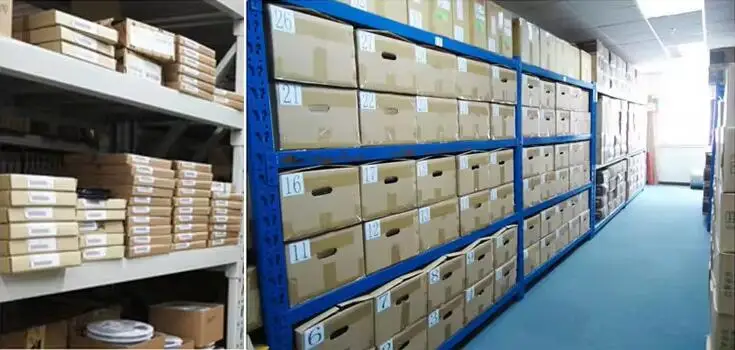

Company warehouse:
