DWIN 7.0 Inch Display 1024*600 HMI Smart Module IPS-TFT-LCD Module Capacitive Touch Panel Wide Viewing Angle DMG10600C070_03W

Features

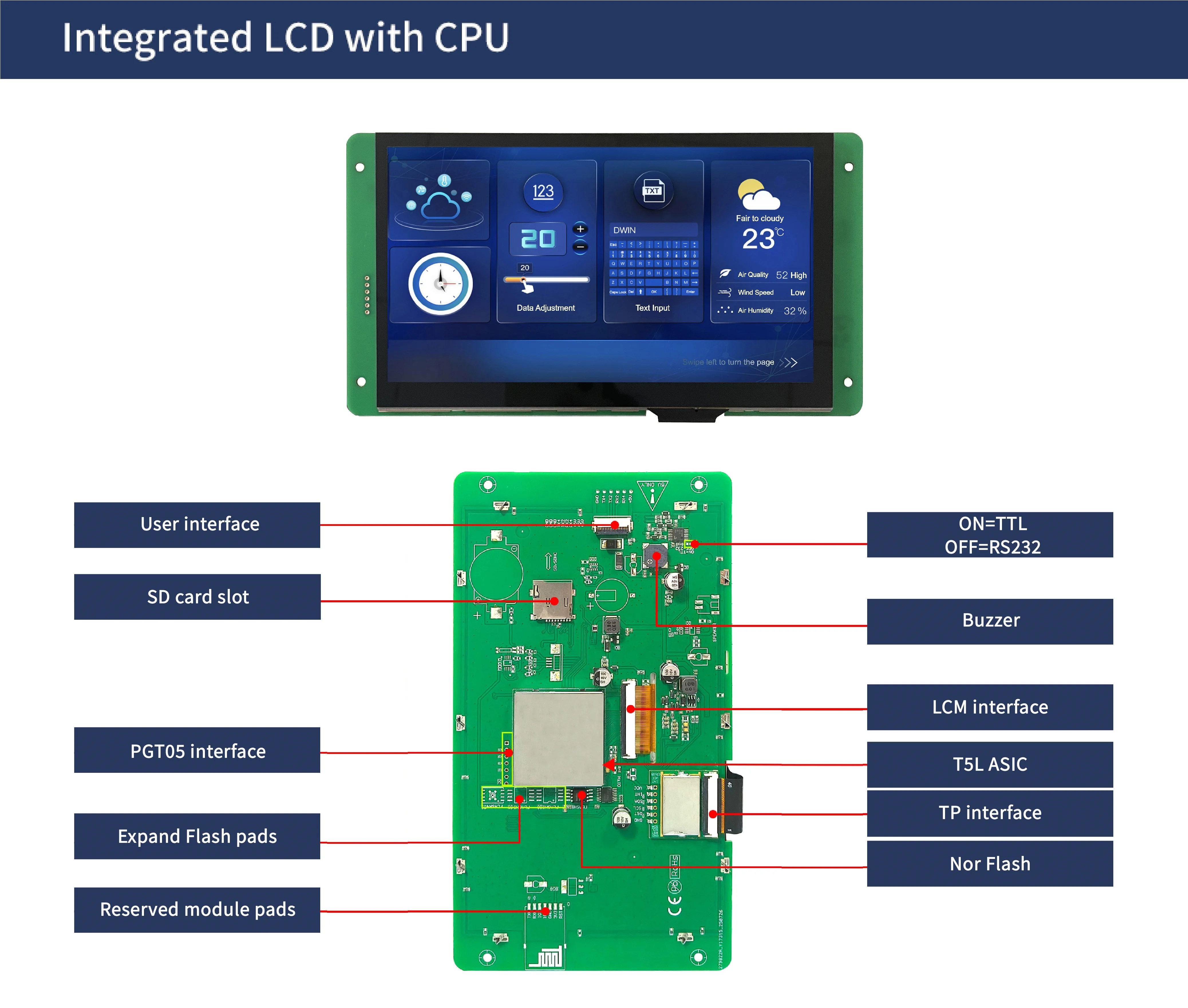

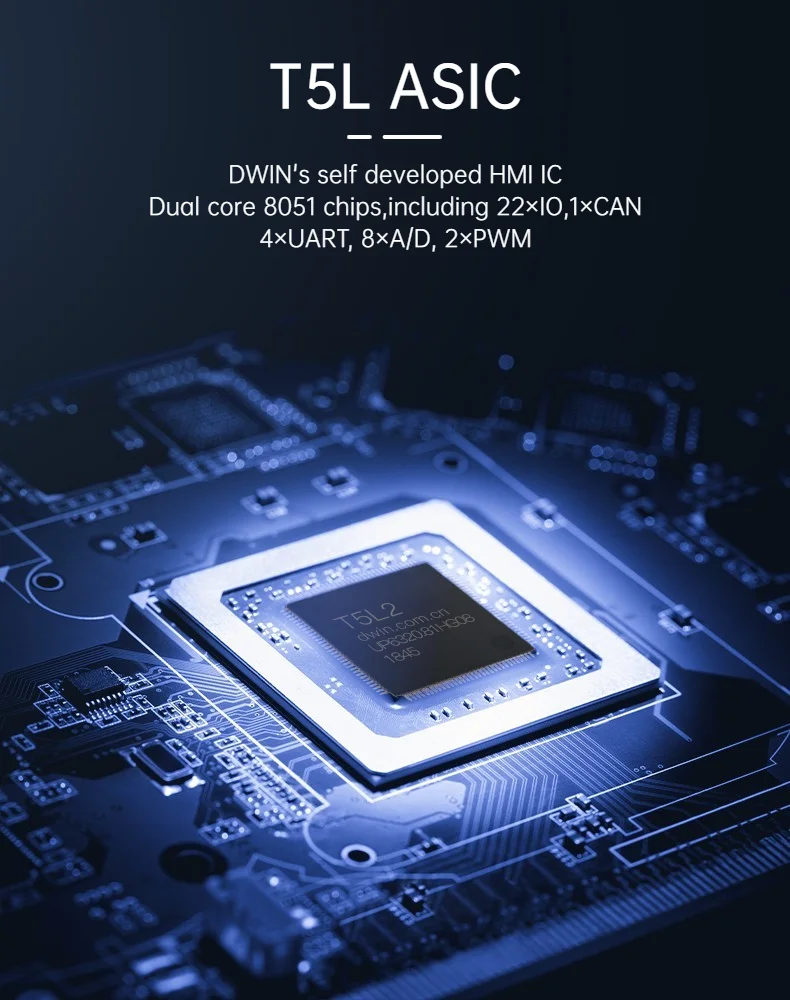

Based on T5L ASIC 7.0 Inches, 1024xRGBx600, 16.7M Colors, IPS screen;

None touch;Resistive /Capacitive touch panel;

UART2: ON=TTL/CMOS; OFF=RS232;UART4: ON=TTL/CMOS; OFF=RS232; 10Pin_1.0mm FCC Socket;

Download methods:via SD card or on-line serial port;

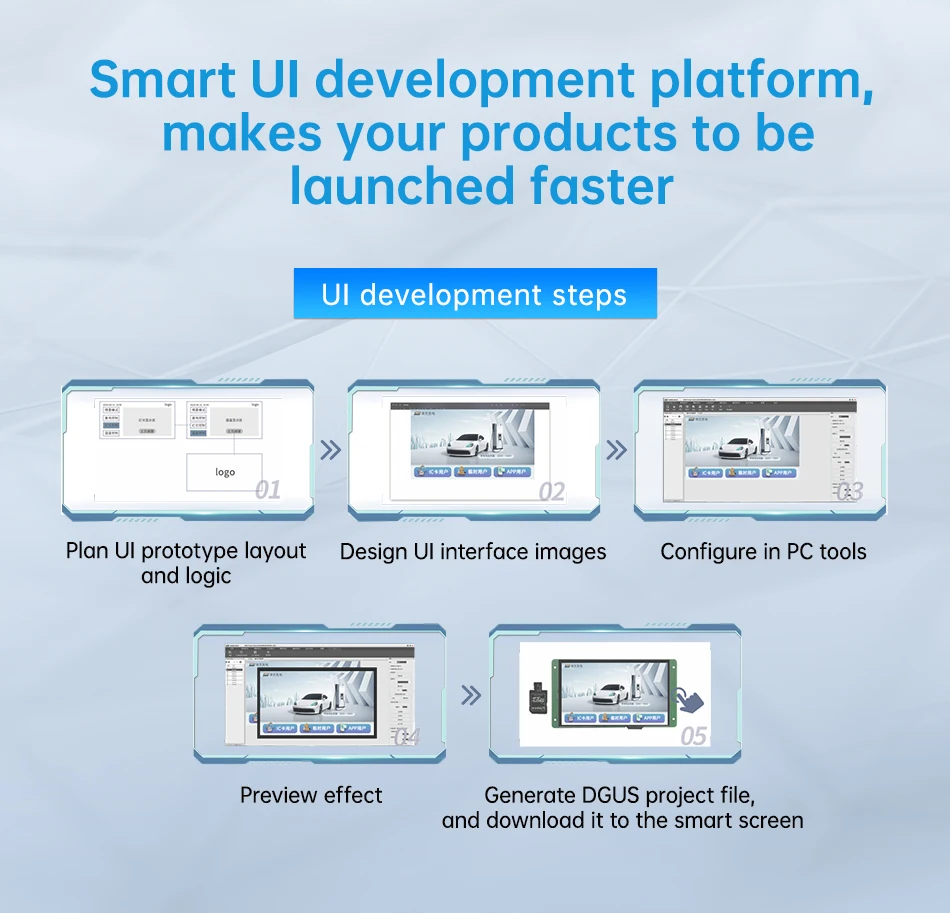

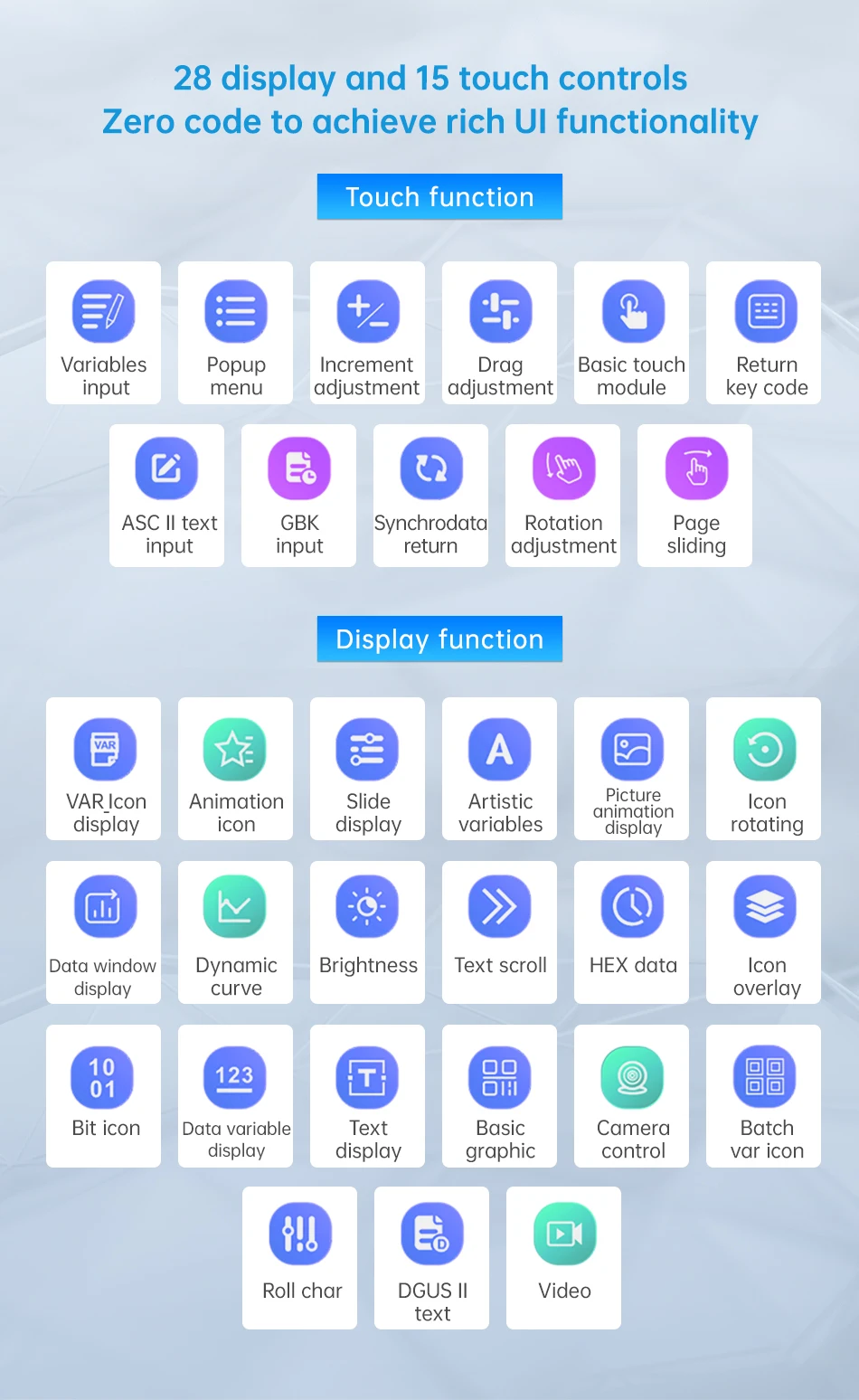

Easy-to-use DWIN DGUS V7.6 GUIs Development.no coding skills required;

Dual Development System:DGUSⅡ/TA(Instruction set);

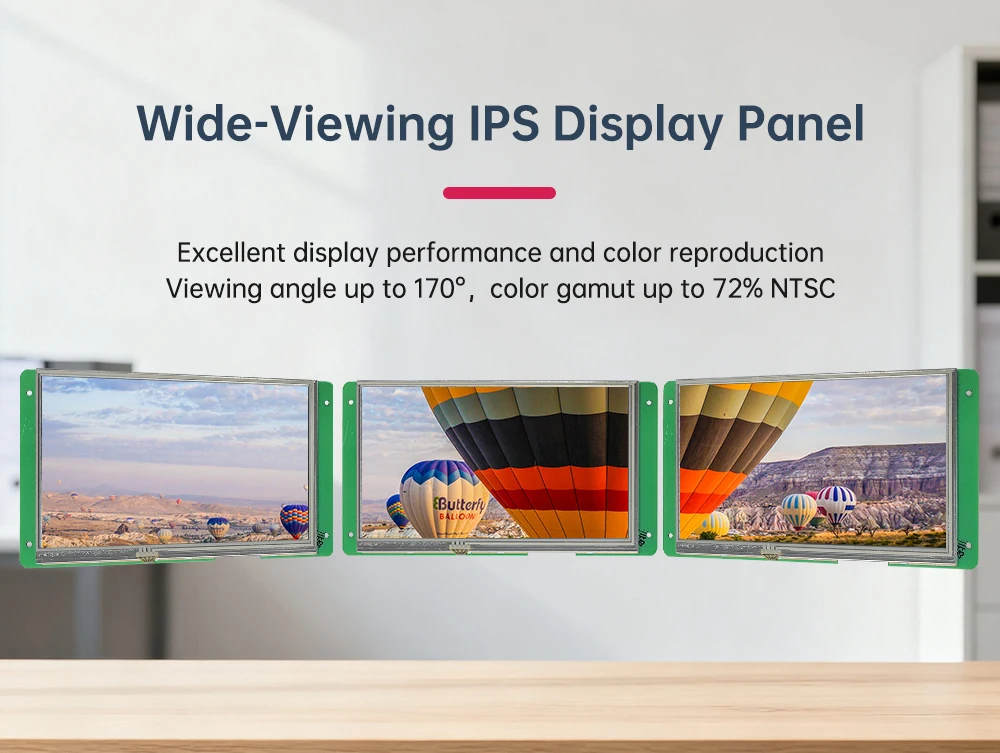

LCD:IPS View Angle:85/85/85/85(L/R/U/D);

With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or C51.

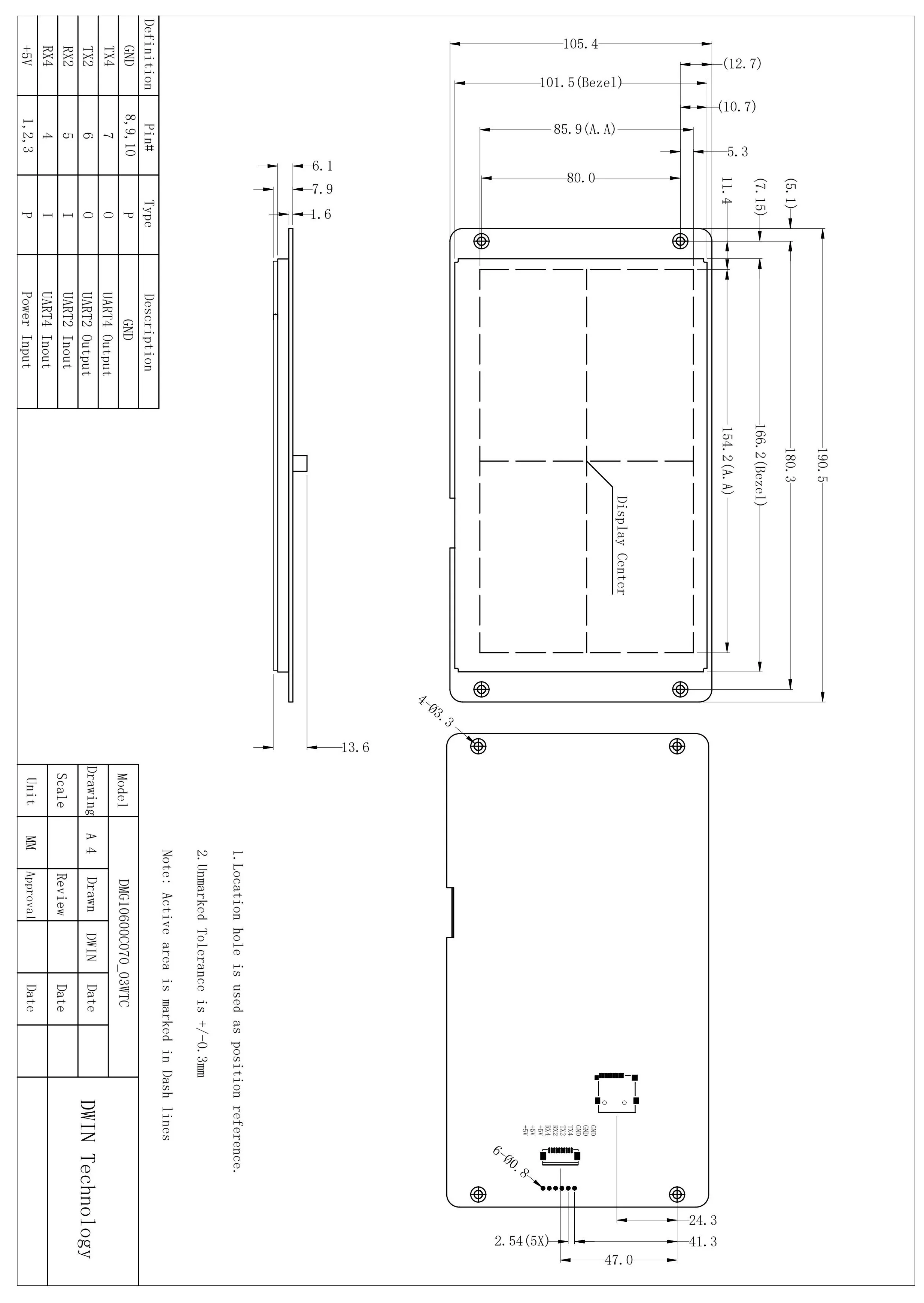

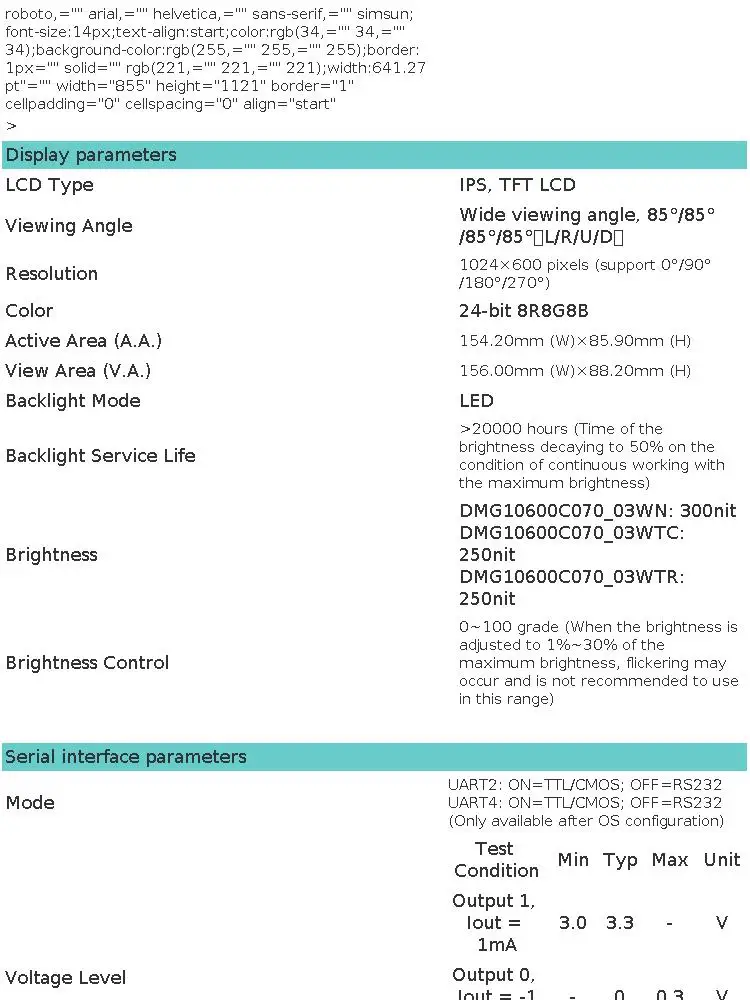

Specification

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?

Answer:

No, you should update the program to LCD at first, and then assemble it.

Step 1, check the software platform of the screen, it mentioned in datasheet.

Step 2, use the correct development SDK (different platform use different SDK) to finish developing.

Step 3, update software program and test

Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?

Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?

Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?

Answer:

Yes,of course, below ways you can get technical support.

- Whatsapp: +86 19192113166

- Customer service email: [email protected]

- DWIN Developer Forum:

https://forums.dwin-global.com/

-

 International website:

https://www.dwin-global.com/

- Development tool:

https://www.dwin-global.com/tool-page/

- Development guide:

https://www.dwin-global.com/development-guide/

- DGUS video tutorial:

https://www.dwin-global.com/t5l-dgus-v7-6-video-tutorial/

- Leave messages to us on Aliexpress.
