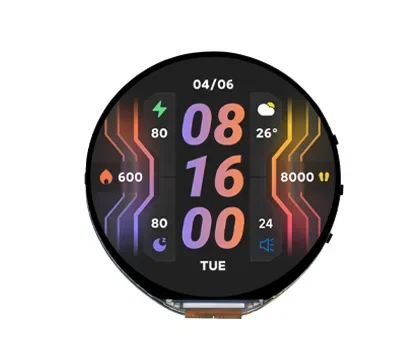

Waveshare ESP32-S3 1.85 inch IPS Round Display Development Board 360x360 TFT LCD Support WiFi Bluetooth for HMI/LVGL GUI/Arduino

ESP32-S3 1.85″ LCD Development Board

Integrates QSPI interface display, multiple peripheral interfaces

Features

ESP32-S3-LCD-1.85 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.85inch LCD display which can smoothly run GUI programs such as LVGL, optional for capacitive touch function. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 1.85inch LCD display, 360×360 resolution, 262K color
Optional for capacitive touch function controled via I2C interface, with interrupt support

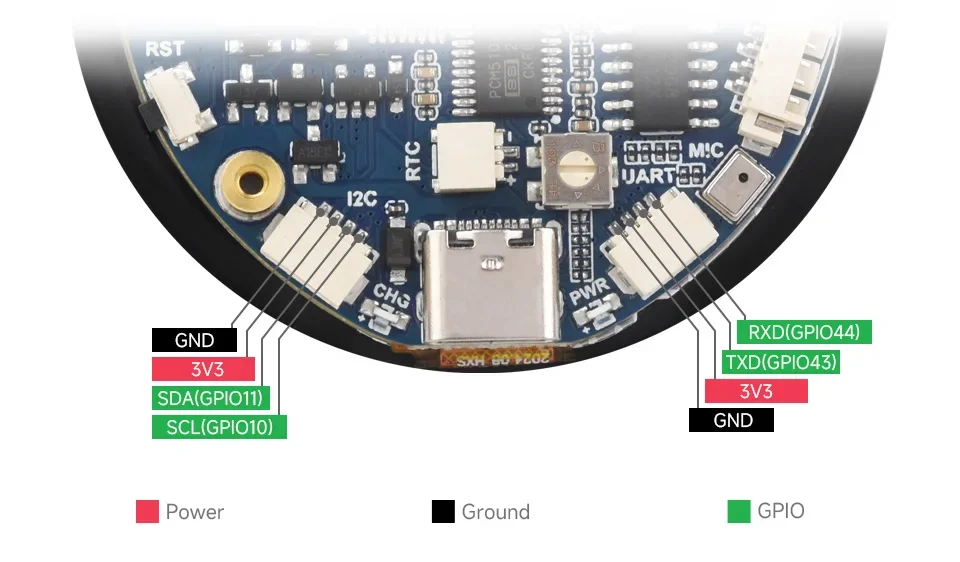

Adapting UART, I2C and some IO interfaces
Onboard audio decoder, Microphone, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Version Options

ESP32-S3-LCD-1.85 without touch control

ESP32-S3-Touch-LCD-1.85

with touch control
Application Scenarios

IPS Display Panel

262K color, 360×360 resolution, wide viewing angle

Capacitive touch

Optional for capacitive touch function controled via I2C interface for flexible operation and smooth UI interaction, with interrupt support

Note: this function is only available on ESP32-S3-Touch-LCD-1.85 version.

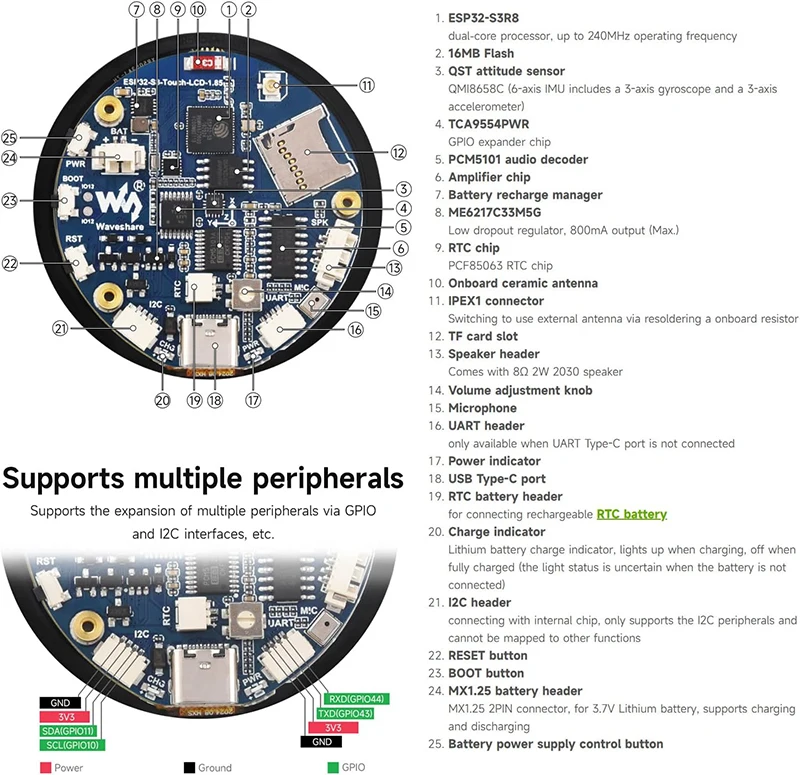

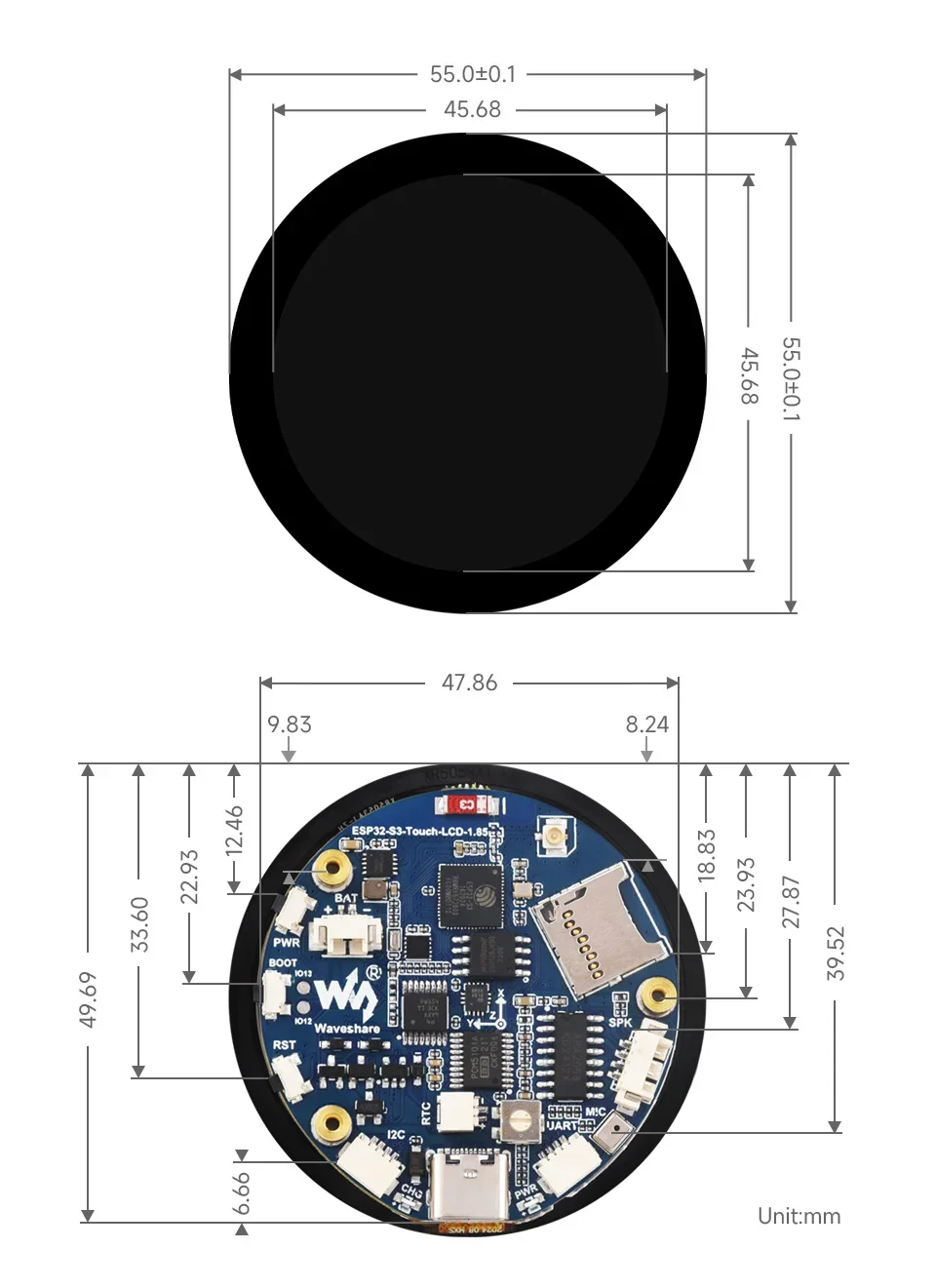

What's On Board

ESP32-S3-LCD-1.85

ESP32-S3-Touch-LCD-1.85
