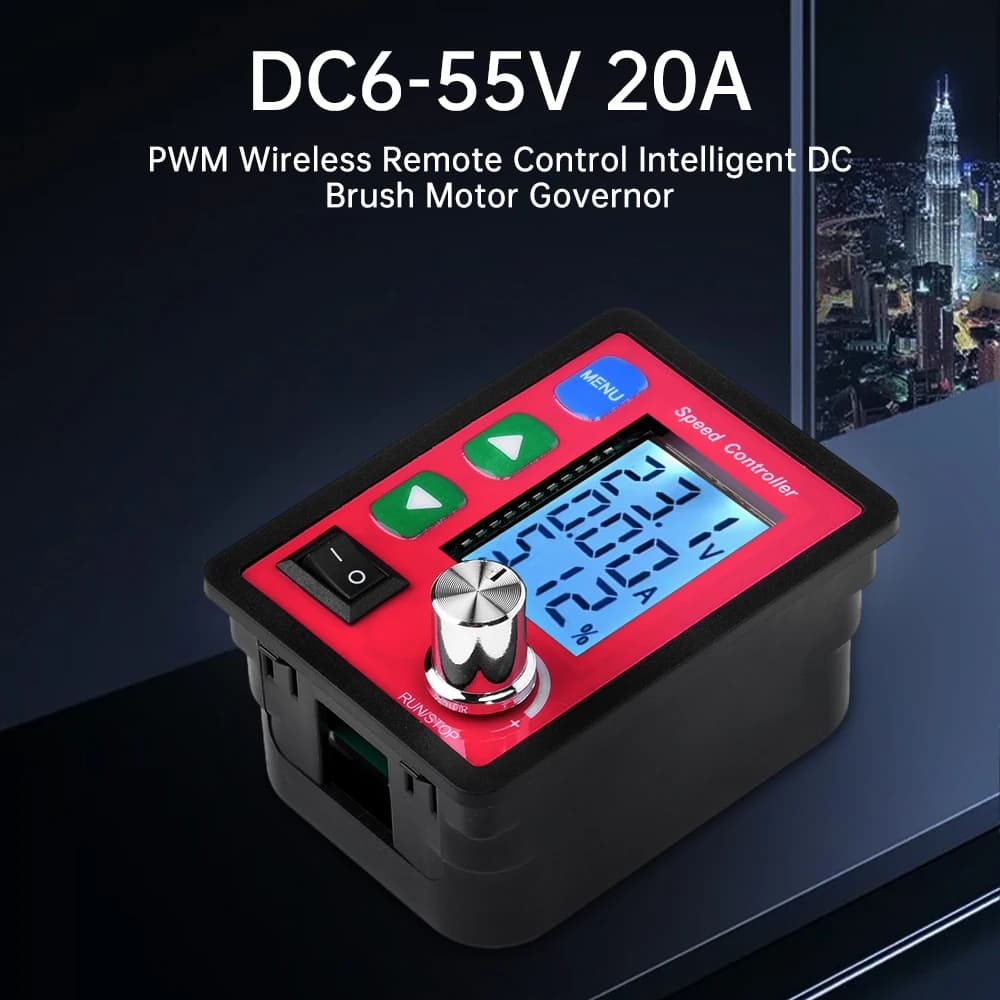

PWM Wireless Remote Control Intelligent DC Brush Motor Speed Controller Support voltage and current monitoring DC6V-55V 20A

Features:

1. The use of high-quality PCB + ABS shell material, quality assurance, greatly improving the service life of the product

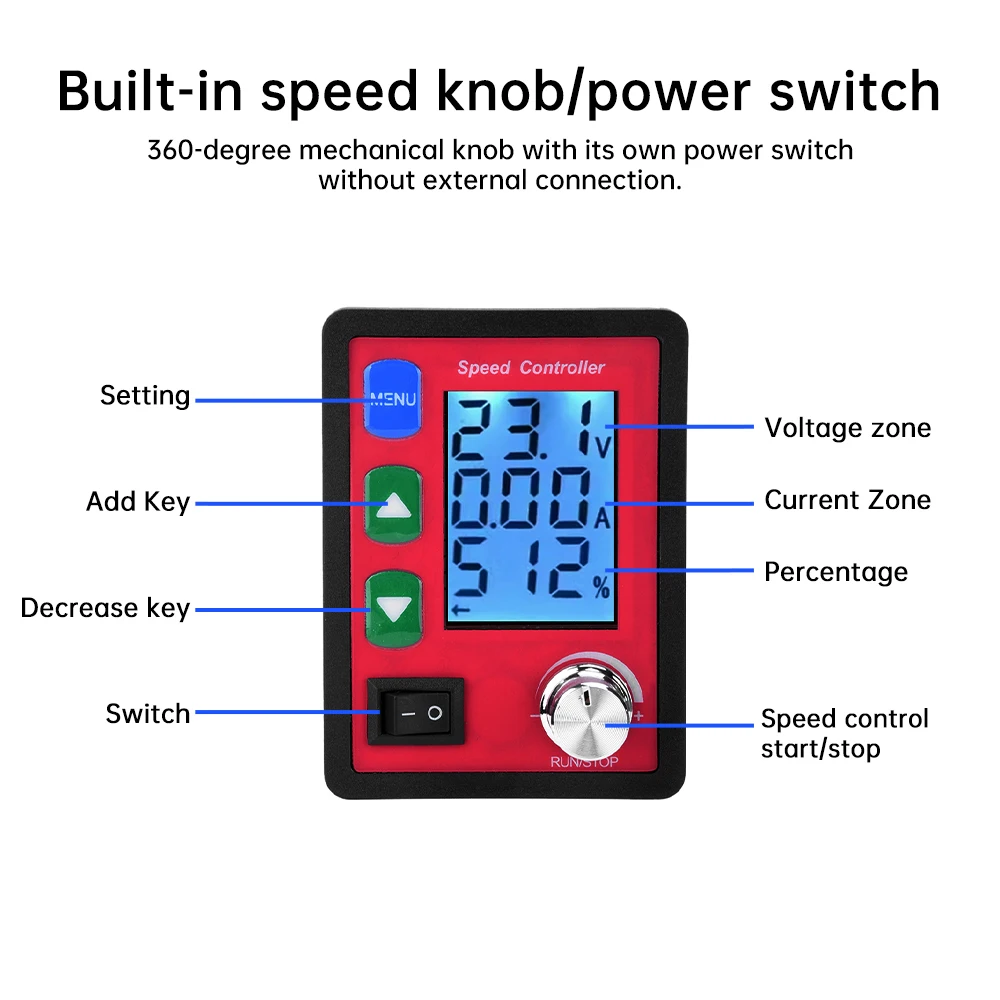

2. On-board knob/switch, 360-degree mechanical feel, better sense of use.

3. Multiple start-up modes, more diverse control, more versatile

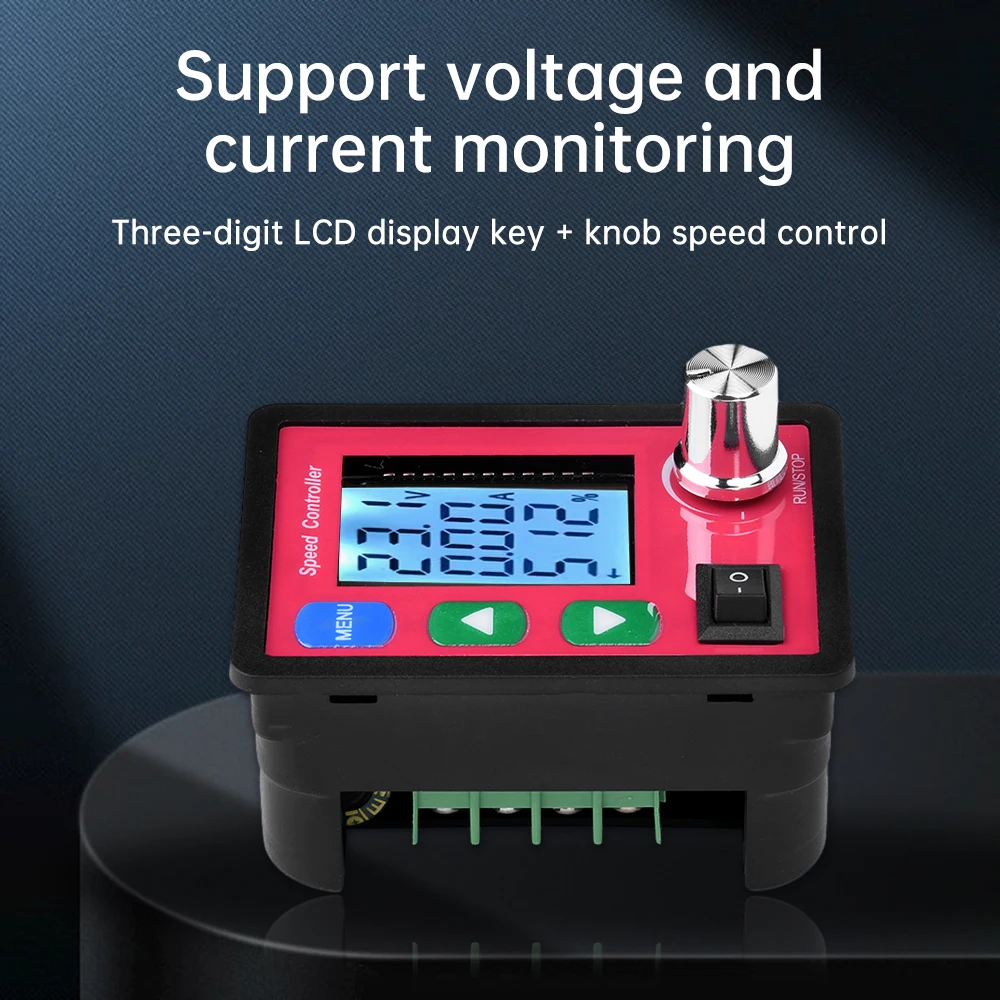

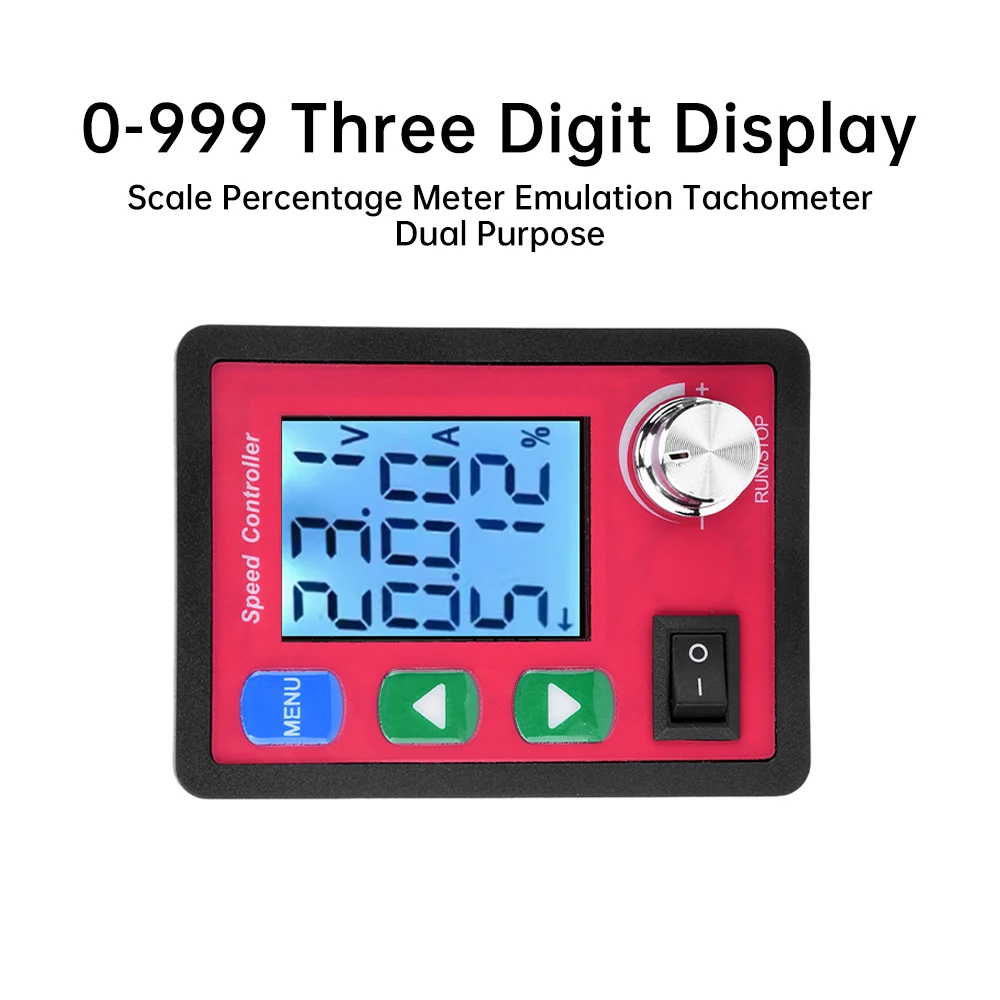

4.0-999 three-digit digital display scale percentage table, simulation tachometer dual-use

5. The product is soft start and soft stop and comes with voltage over limit protection, current over limit protection, safer to use.

Parameter:

Input voltage: DC 6-55V

Maximum current: 20A

Display: liquid crystal digital display

Speed regulation type: current regulation

Speed regulation mode: key plus knob

Overload protection: Yes

Support load: DC brush motor

Wireless remote control: Yes

Installation: embedded

Set the number of functions: 13

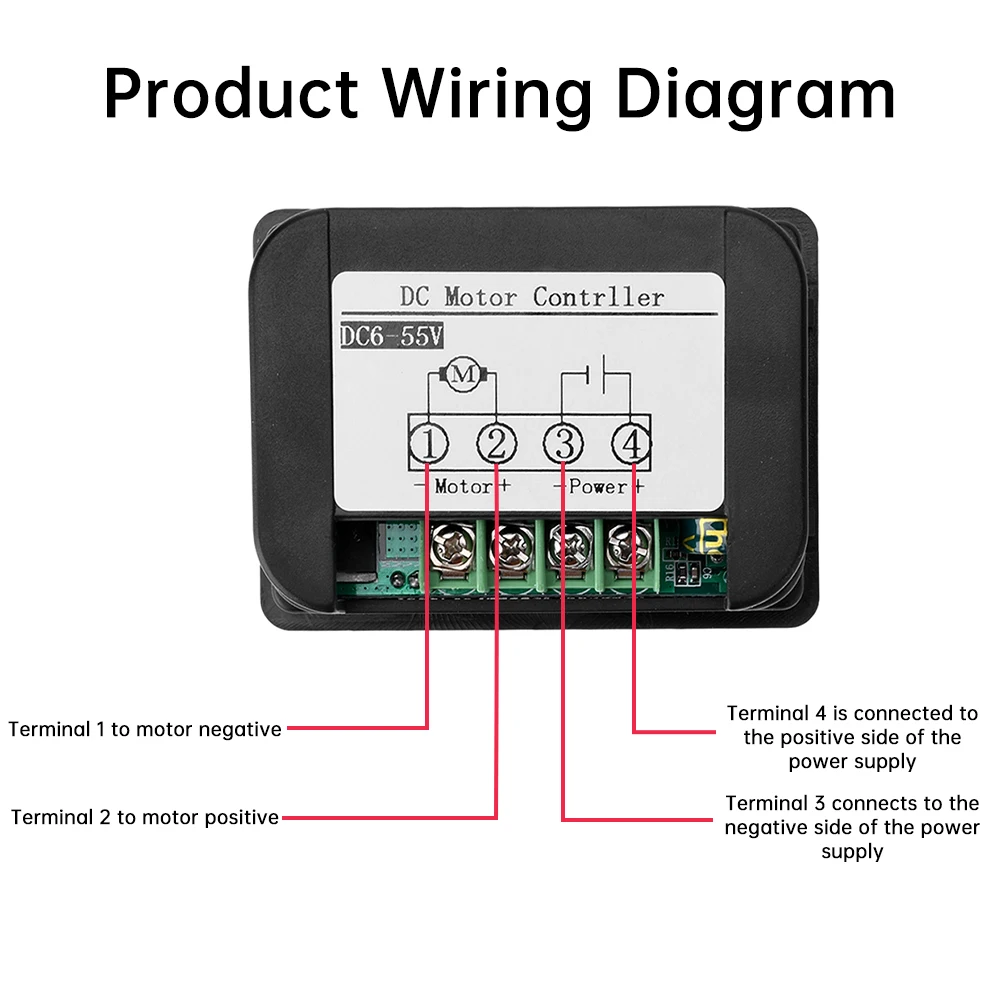

Wiring type: fence terminal

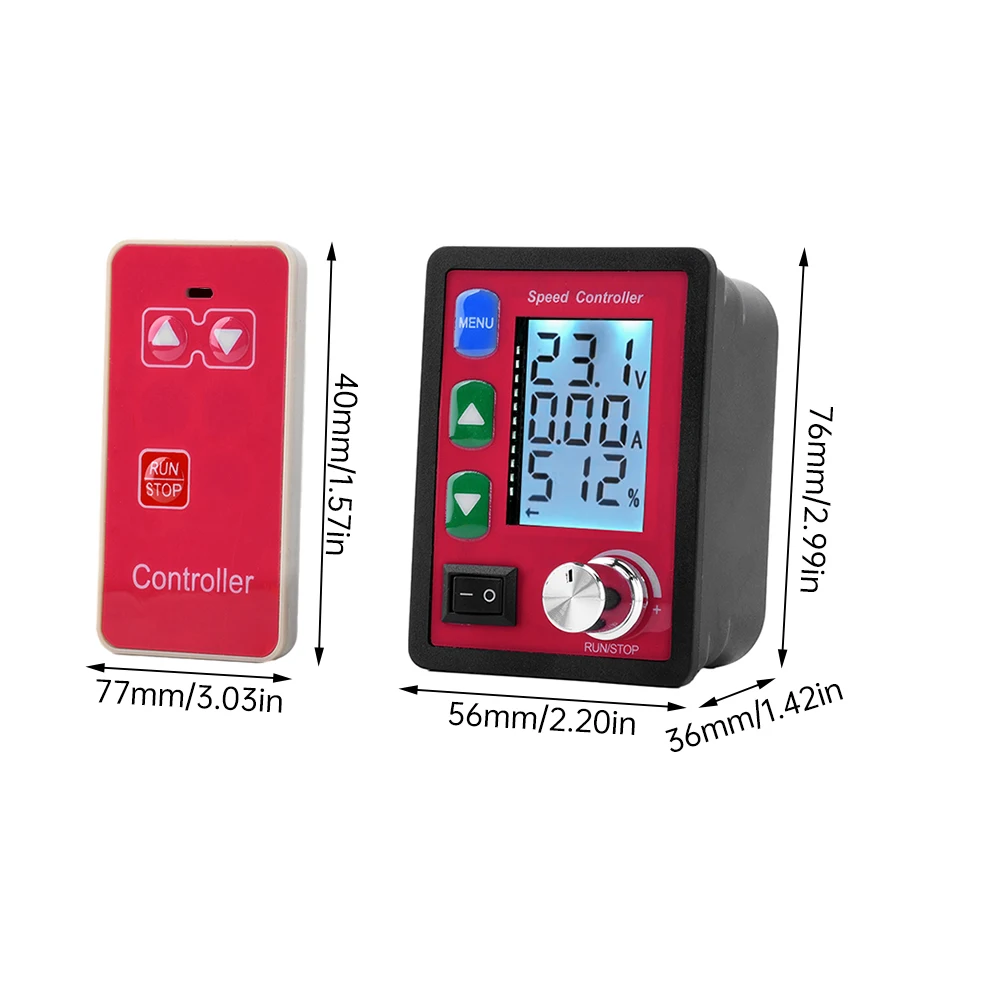

Product size: 77mm*57mm+38mm

Opening size: 72mm*52mm

Package include:

Speed controller*1

Remote control *1 (built-in battery)
