Miniature S-Type Load Cell Sensor 30kg 100kg 200kg, Tension and Compression Bi-directional Force Transducer, Professional Grade
69.51$
36.78$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping

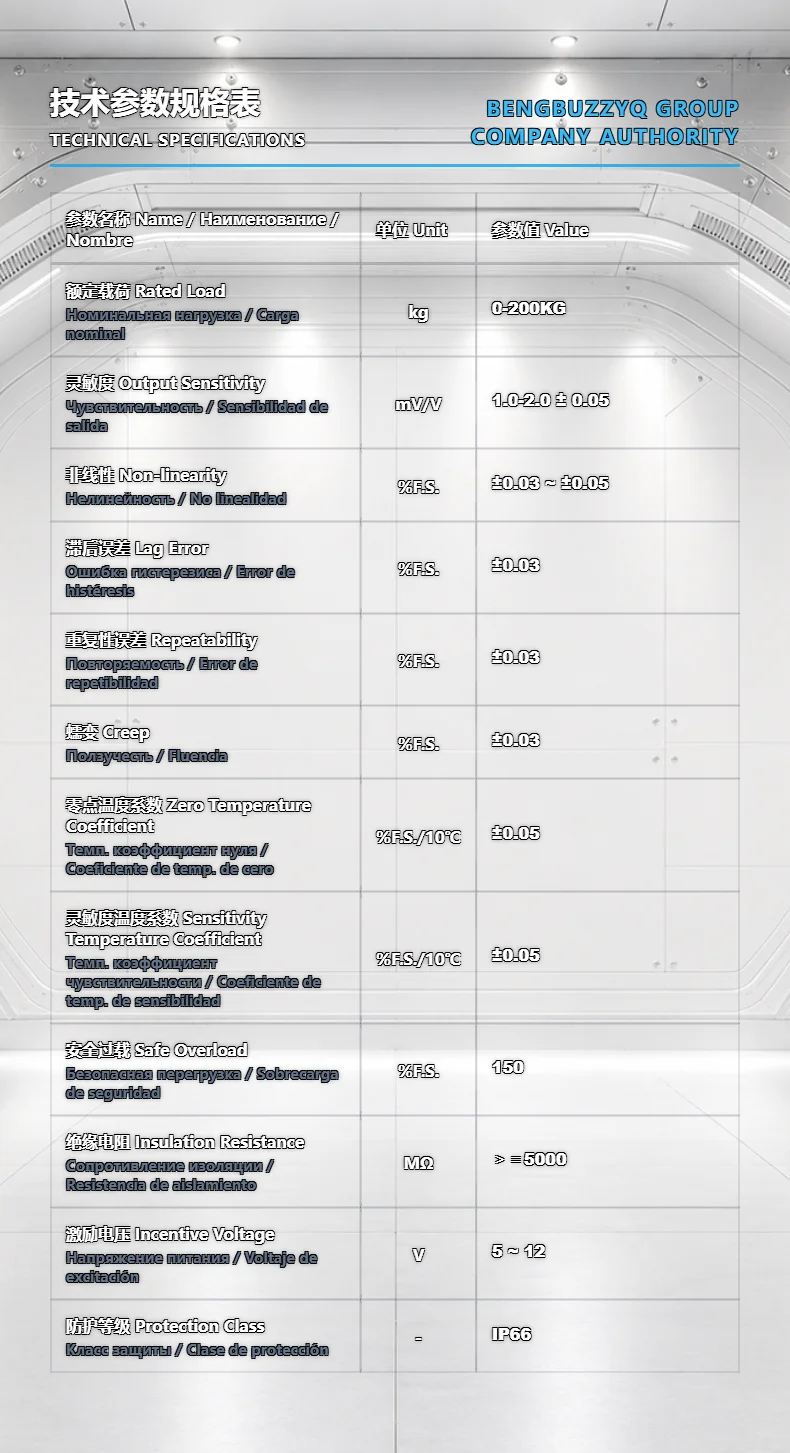

参数名称 Name / Наименование / Nombre
单位 Unit
参数值 Value
额定载荷
Rated Load
kg
0-200KG
Номинальная нагрузка / Carga nominal
灵敏度
Output Sensitivity
mV/V
1.0-2.0 ± 0.05
Чувствительность / Sensibilidad de salida
非线性
Non-linearity
%F.S.
±0.03 ~ ±0.05
Нелинейность / No linealidad
滞后误差
Lag Error
%F.S.
±0.03
Ошибка гистерезиса / Error de histéresis
重复性误差
Repeatability
%F.S.
±0.03
Повторяемость / Error de repetibilidad
蠕变
Creep
%F.S.
±0.03
Ползучесть / Fluencia
零点温度系数
Zero Temperature Coefficient
%F.S./10℃
±0.05
Темп. коэффициент нуля / Coeficiente de temp. de cero
灵敏度温度系数
Sensitivity Temperature Coefficient
%F.S./10℃
±0.05
Темп. коэффициент чувствительности / Coeficiente de temp. de sensibilidad
安全过载
Safe Overload
%F.S.
150
Безопасная перегрузка / Sobrecarga de seguridad
绝缘电阻
Insulation Resistance
MΩ
＞＝
5000
Сопротивление изоляции / Resistencia de aislamiento
激励电压
Incentive Voltage
V
5 ~ 12
Напряжение питания / Voltaje de excitación
防护等级
Protection Class
-
IP66
Класс защиты / Clase de protección

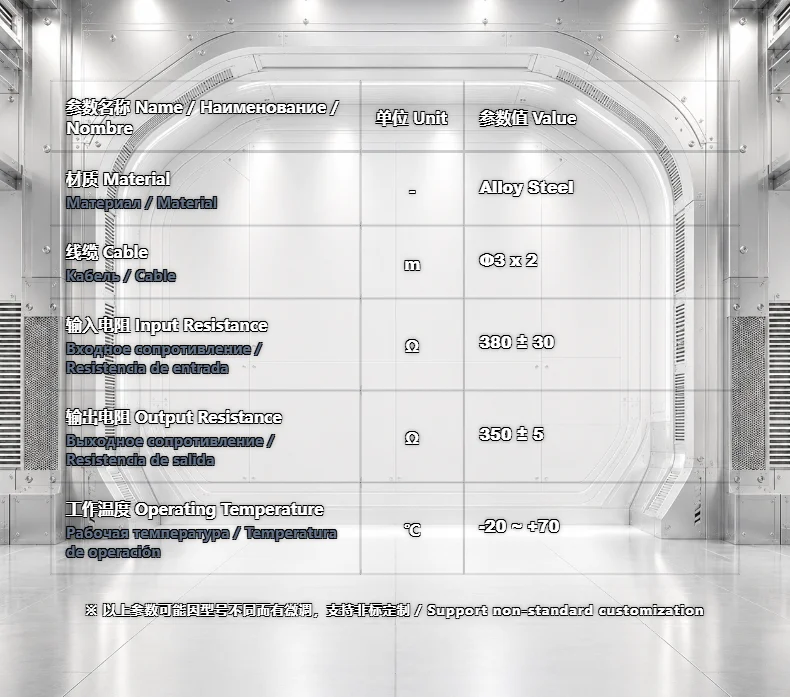

材质
Material
-
Alloy Steel
Материал / Material
线缆
Cable
m
Φ
3
x
2
Кабель / Cable
输入电阻
Input Resistance
Ω
380 ± 30
Входное сопротивление / Resistencia de entrada
输出电阻
Output Resistance
Ω
350 ± 5
Выходное сопротивление / Resistencia de salida
工作温度
Operating Temperature
℃
-20 ~ +70
Рабочая температура / Temperatura de operación

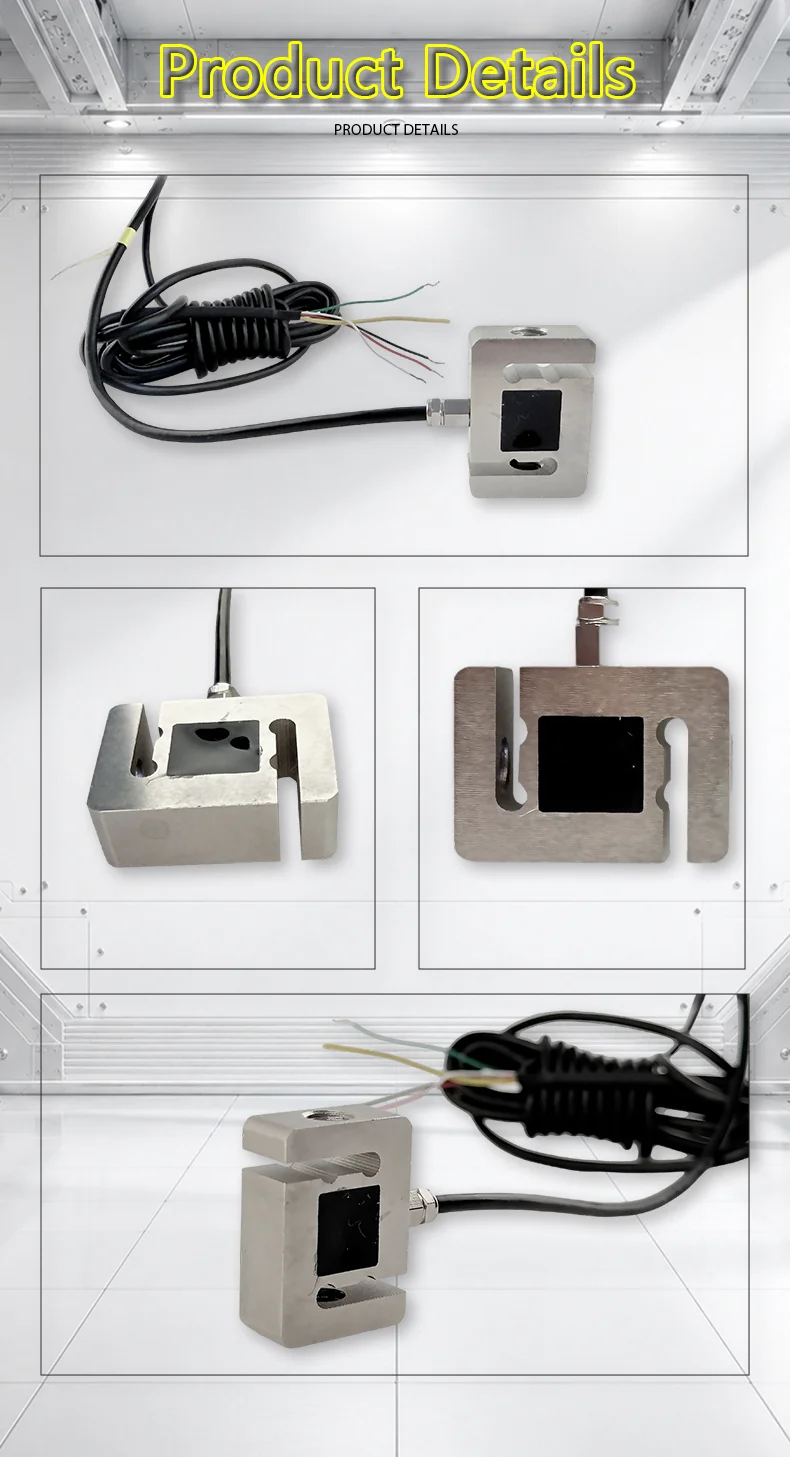

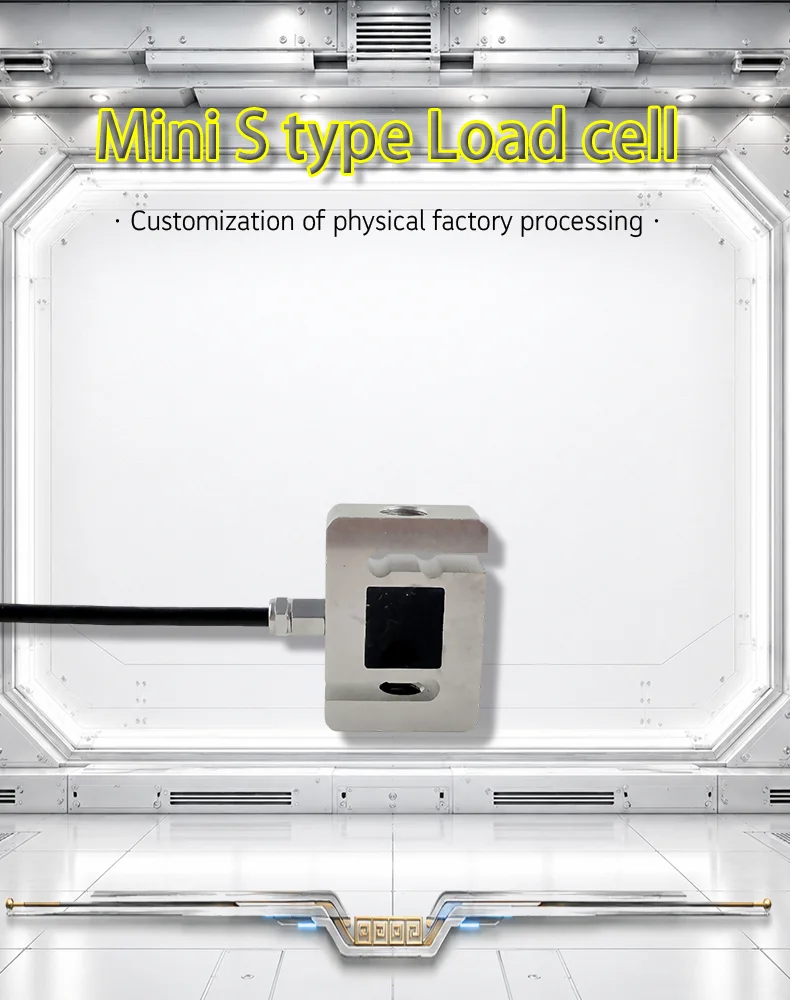

This miniature S-type load cell is engineered for industrial automation, force measurement systems, and small weighing equipment. Crafted from premium alloy steel, it offers exceptional long-term stability and high sensitivity. The unique S-shaped structure supports bi-directional force (tension and compression), making it easy to install with its IP66 protection rating, suitable for various complex industrial environments.

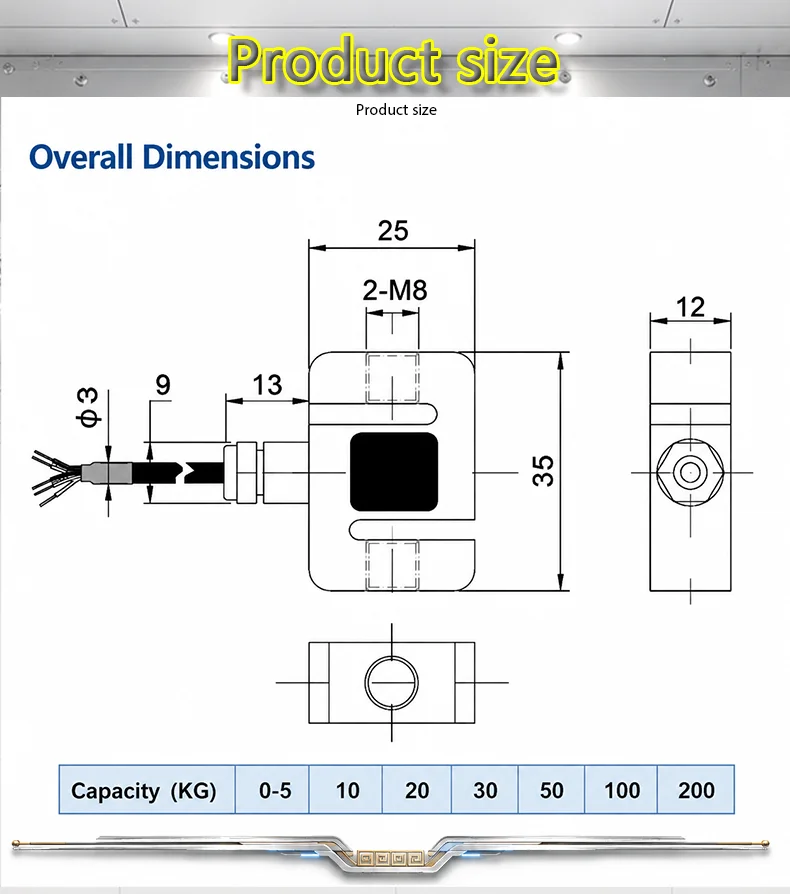

Dimensions: Height 35mm, Width 25mm, Thickness 12mm, with M8 threaded interfaces.
