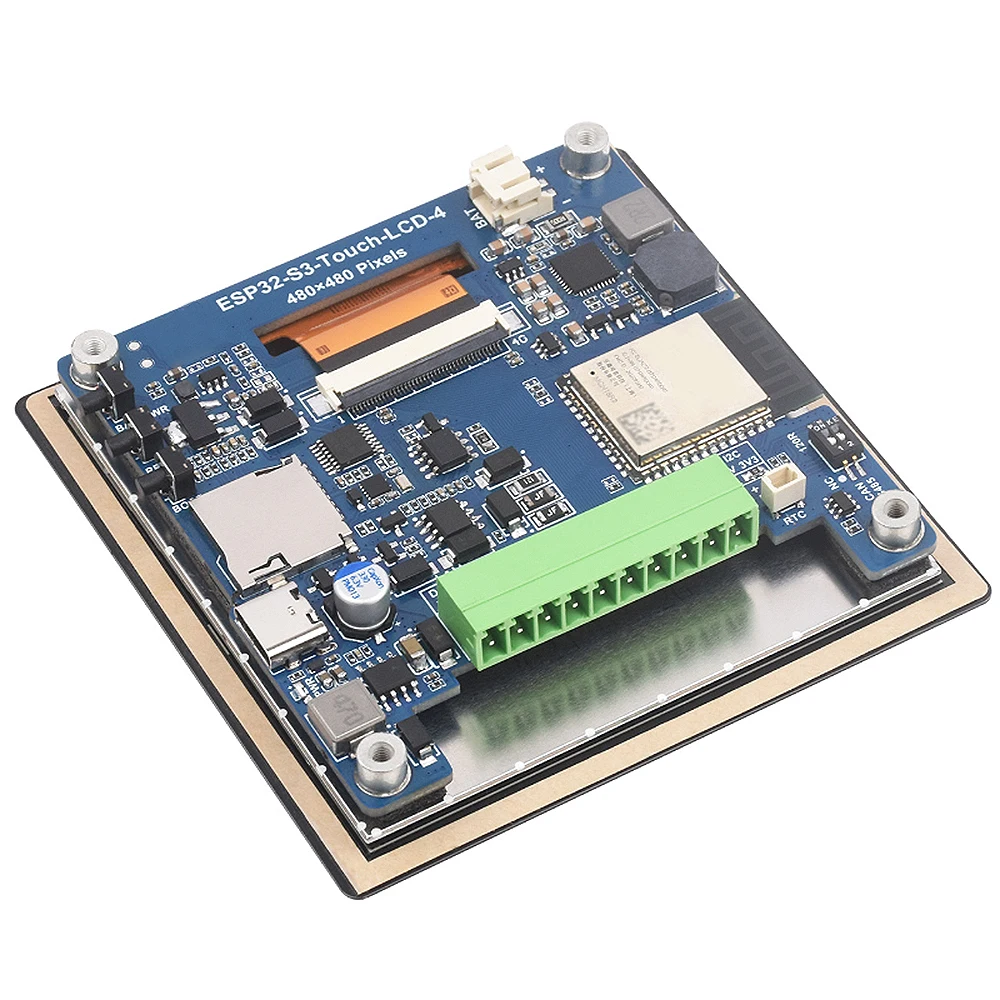

ESP32 S3 4-inch LCD Development Board Capacitive Touch Display 480x480 ESP32-S3-Touch-LCD-4 Support WiFi and Bluetooth

✨Product features:

1. Equipped with high-performance Xtensa 32-bit LX7 dual core processor, with a clock speed of up to 240 MHz.

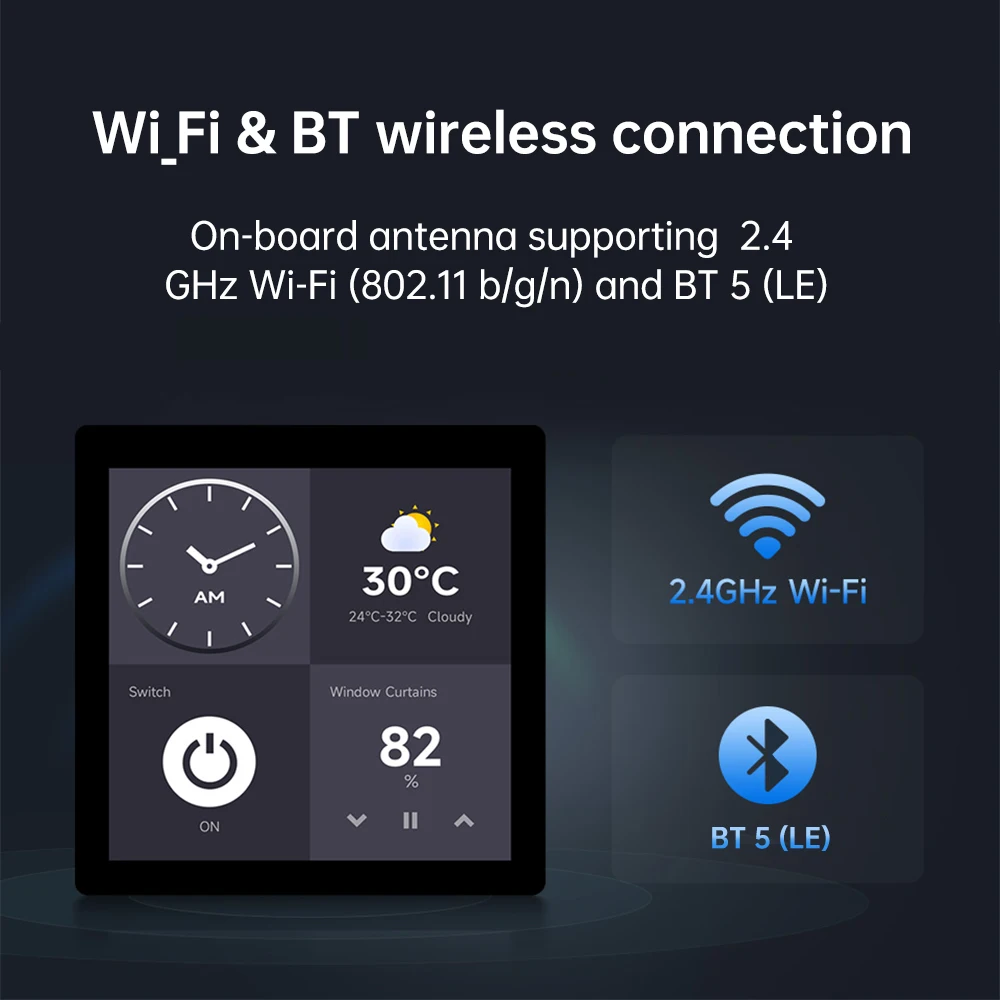

2. Supports 2.4 GHz Wi Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna.

3. Built in 512KB SRAM and 384KB ROM, stacked with 16MB Flash and 8MB PSRAM.

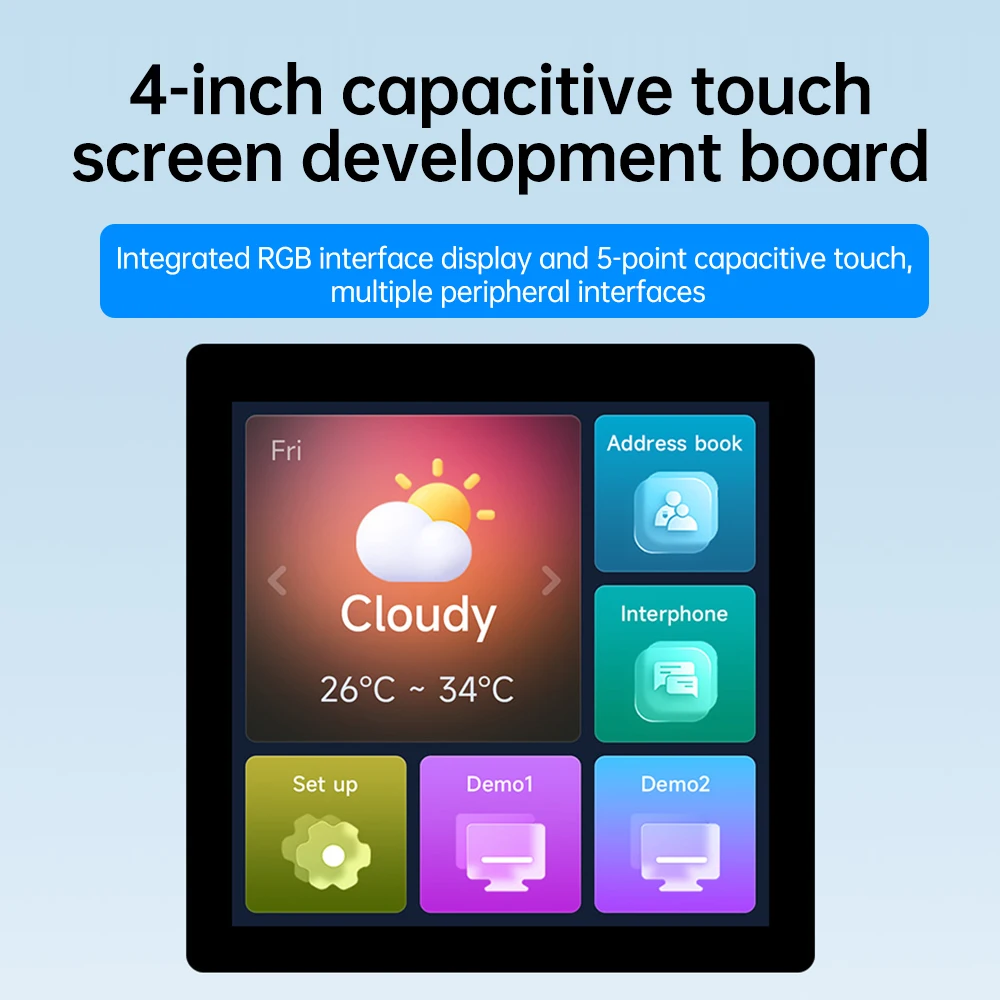

4. Onboard 4-inch capacitive touch screen, 480 × 480 resolution, 65K color.

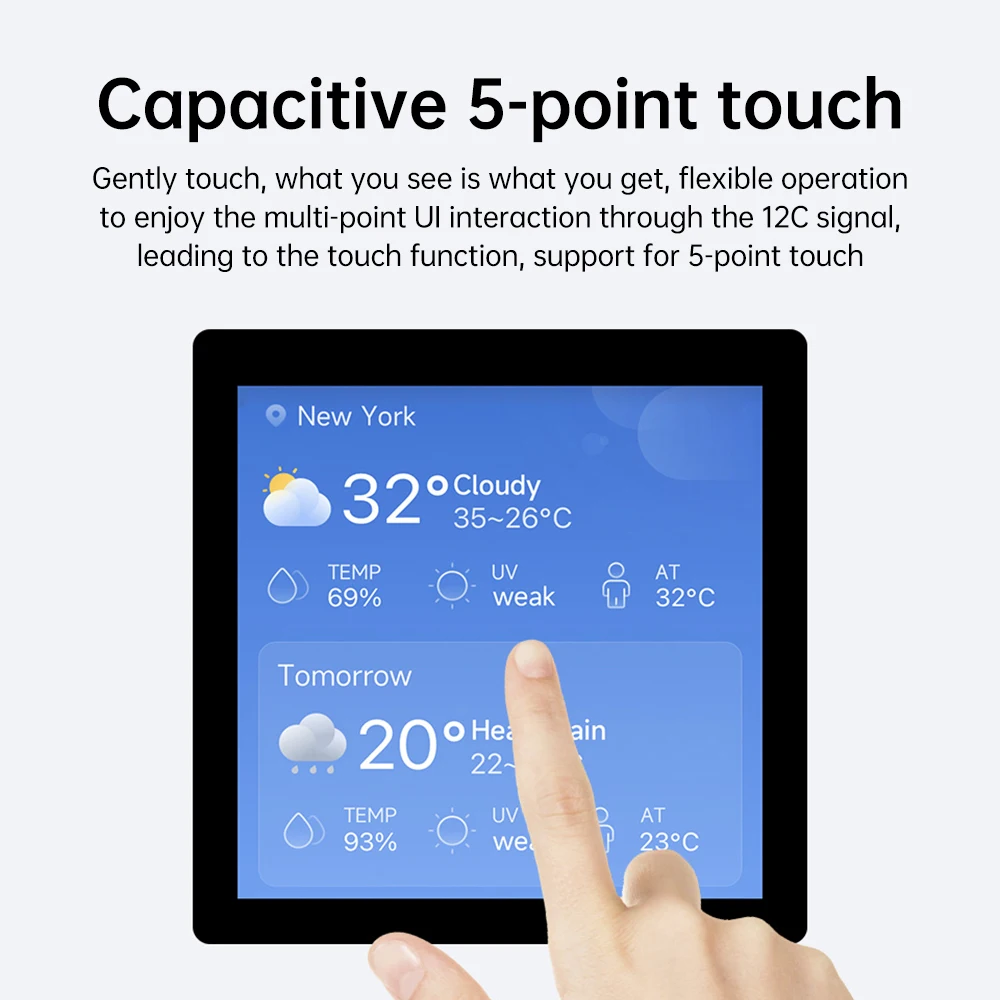

5. Supports I2C interface to control capacitive touch, 5-point touch, and interrupts.

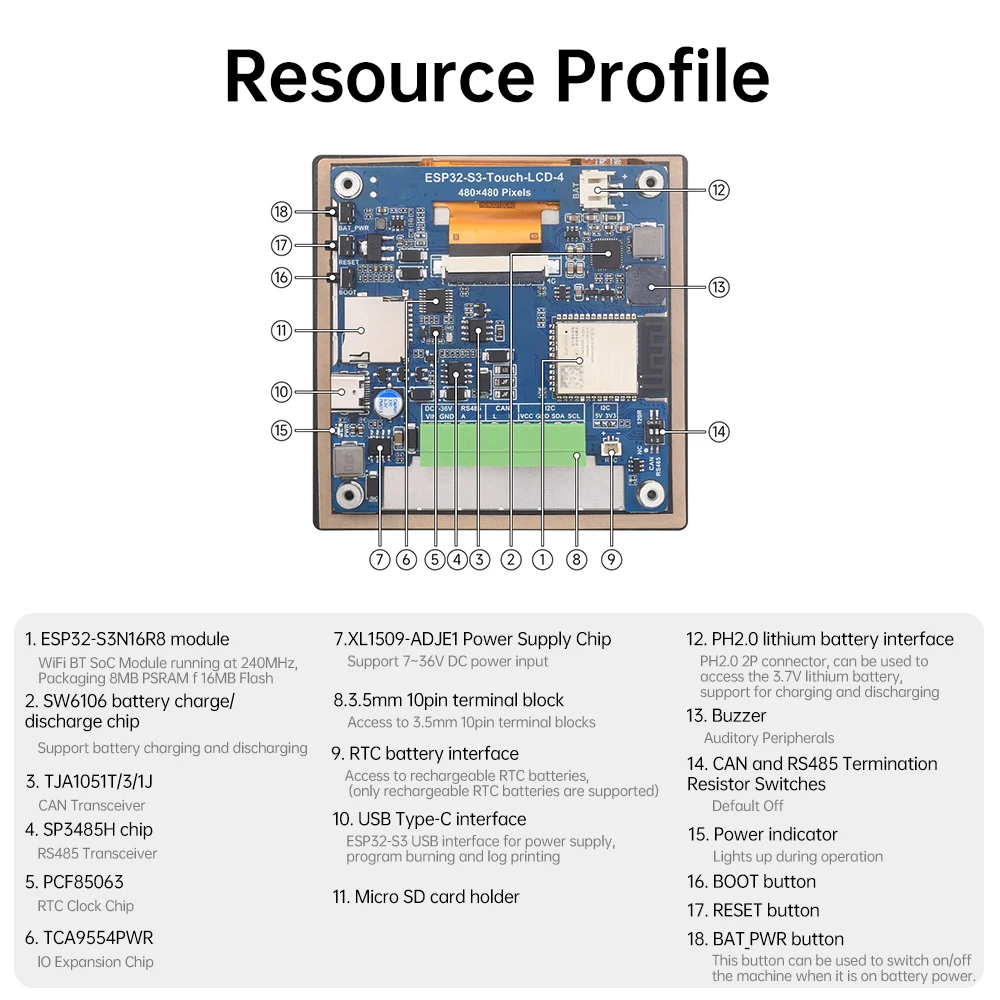

6. Onboard CAN, RS485, I2C interfaces and Micro SD card sockets, integrated with full speed USB serial port.

7. Supports precise control such as flexible clock and separate module power settings, achieving low-power mode in multiple scenarios.

✨Product Features：

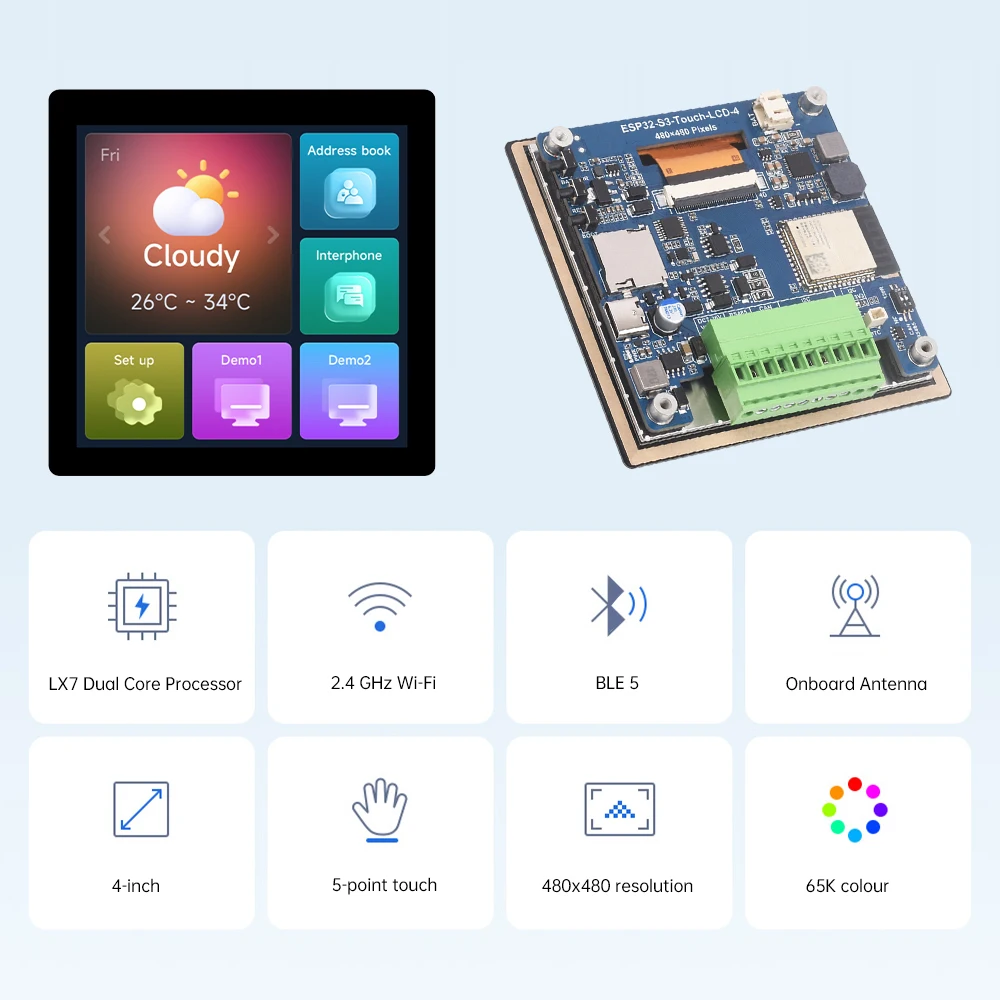

ESP32-S3-Touch-LCD-4 is a development board equipped with ESP32-S3 2.4GHz WiFi and BLE 5 module, integrating 16 MB Flash and 8 MB PSRAM. A capacitive touch screen with a 4-inch 480 × 480 resolution RGB interface onboard, capable of smoothly running GUI interface programs such as LVGL; Combining multiple peripheral interfaces, quickly develop HMI for ESP32-S3, suitable for scenarios such as intelligent central control panels, home gateways, intelligent interactive panels, industrial control, and intelligent light control.

✨Parameter:

Processor: High performance Xtensa 32-bit LX7 dual core processor with a clock speed of up to 240MHz

Wifi/Bluetooth: Supports 2.4 GHz Wi Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna

Flash：16MB Flash

PSRAM：8MB PSRAM

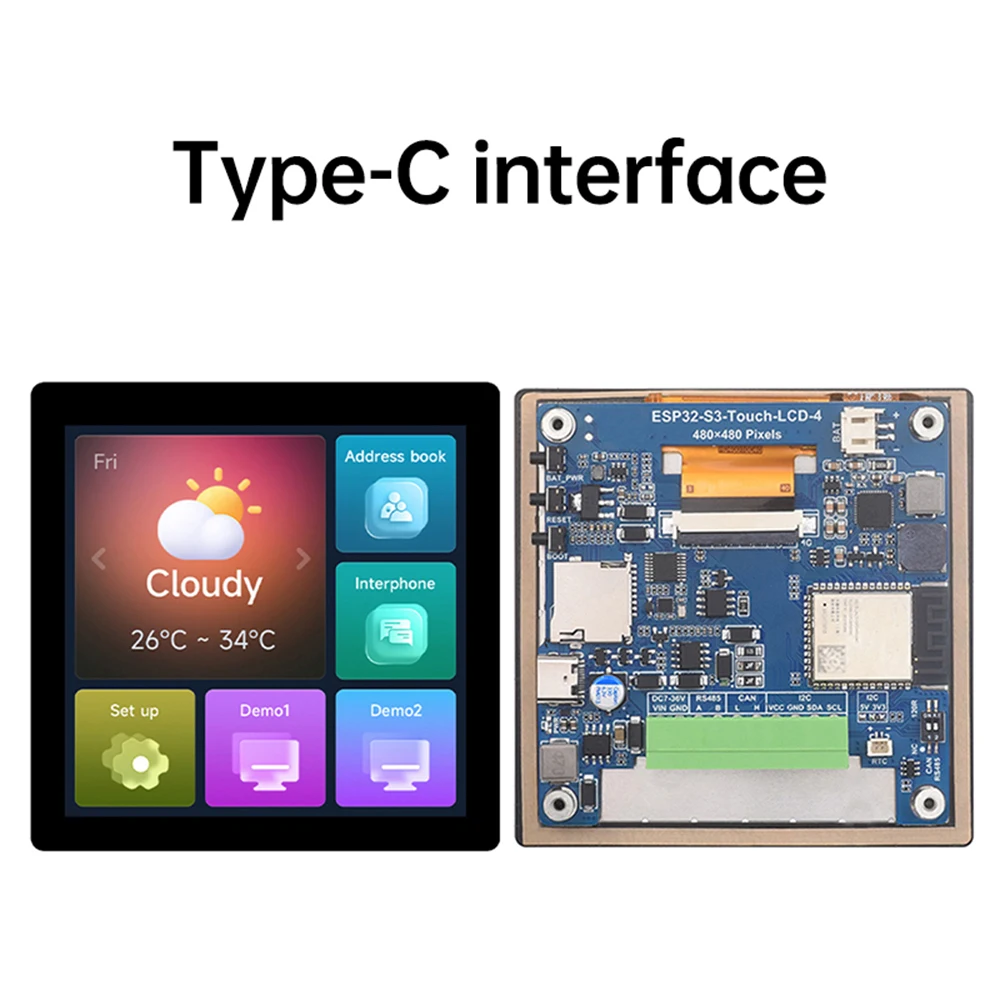

Power supply range: TypeC 5V + DC 7-36V

✨Screen parameters:

Resolution: 480 × 480

Display interface: RGB

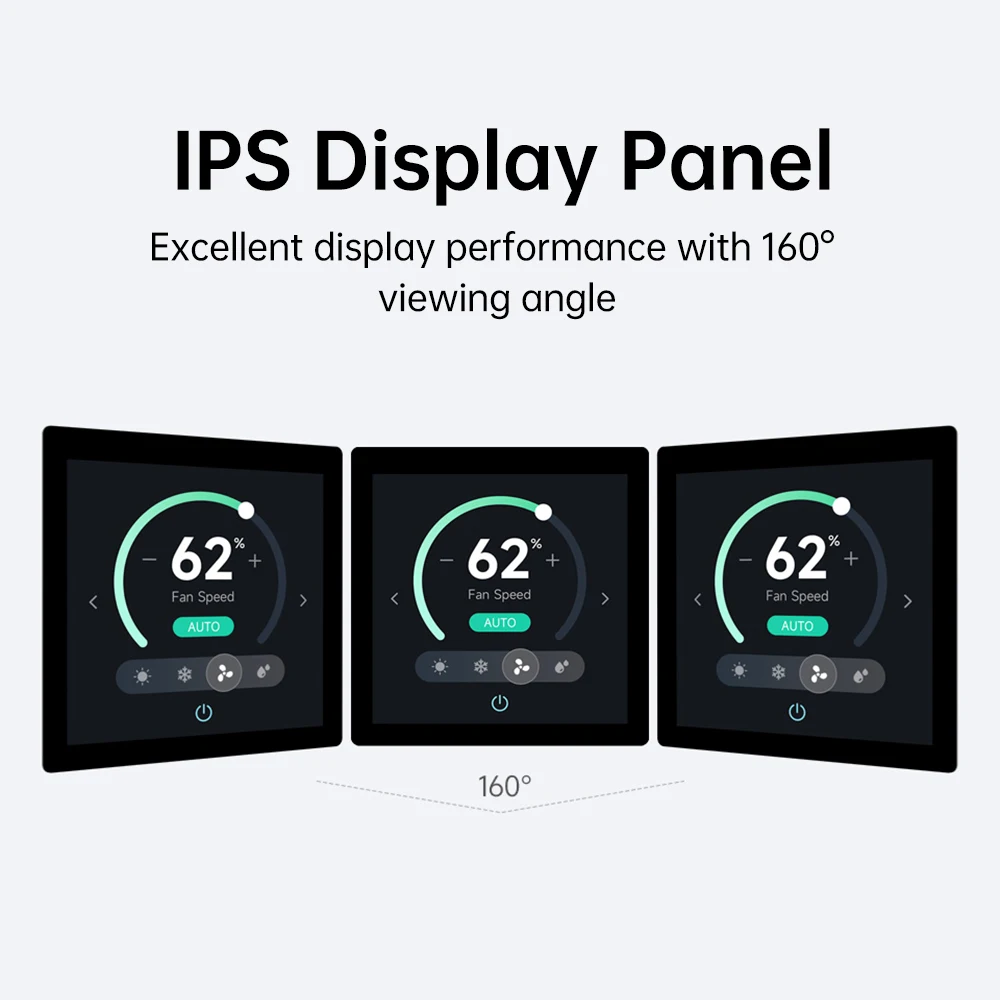

Display panel: IPS

Viewing angle: 160 °

Touch type: capacitor

Touch panel: tempered glass

Communication interface: CAN、RS485、I2C、USB

Operating temperature: 0 ℃~65 ℃

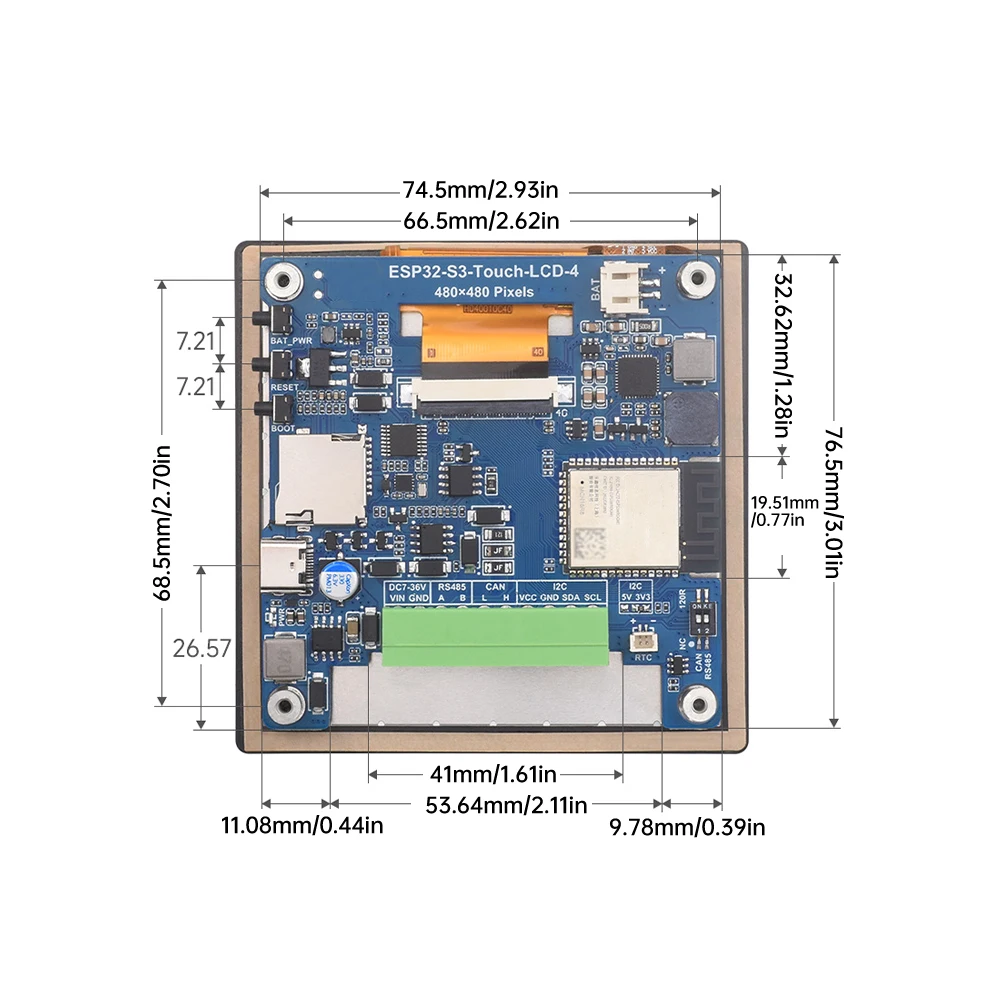

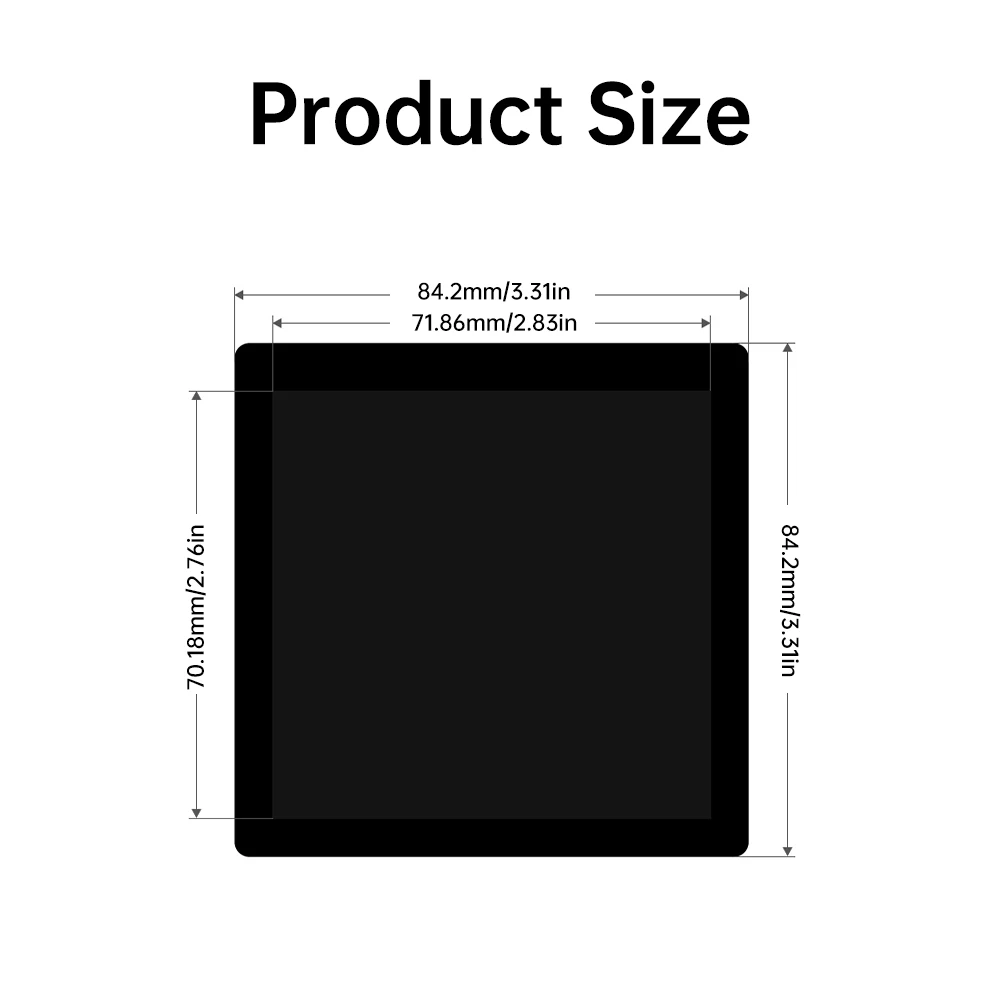

Product size (L × W): 84.2 × 84.2mm

✅Product List:

ESP32-S3-Touch-LCD-4 motherboard x 1

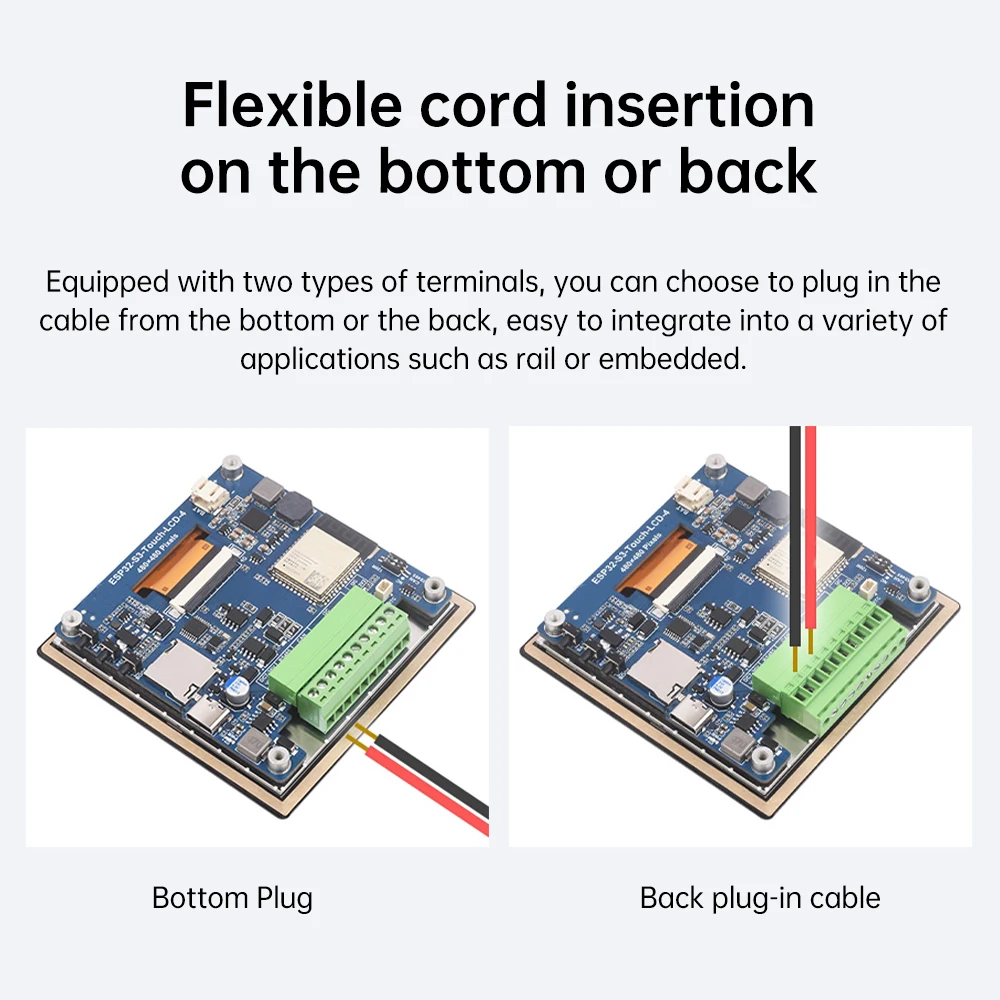

Terminal block 10P spacing 3.5mm KA plug x 1

Terminal block 10P, spacing 3.5mm, plug x 1
