5inch DSI Capacitive Touch Display,720 × 1280,IPS,Optical Bonding Toughened Glass Panel,DSI Interface,5-Point Touch, Aluminum

SKU:31669

Part No.:5-DSI-TOUCH-A

Brand:Waveshare

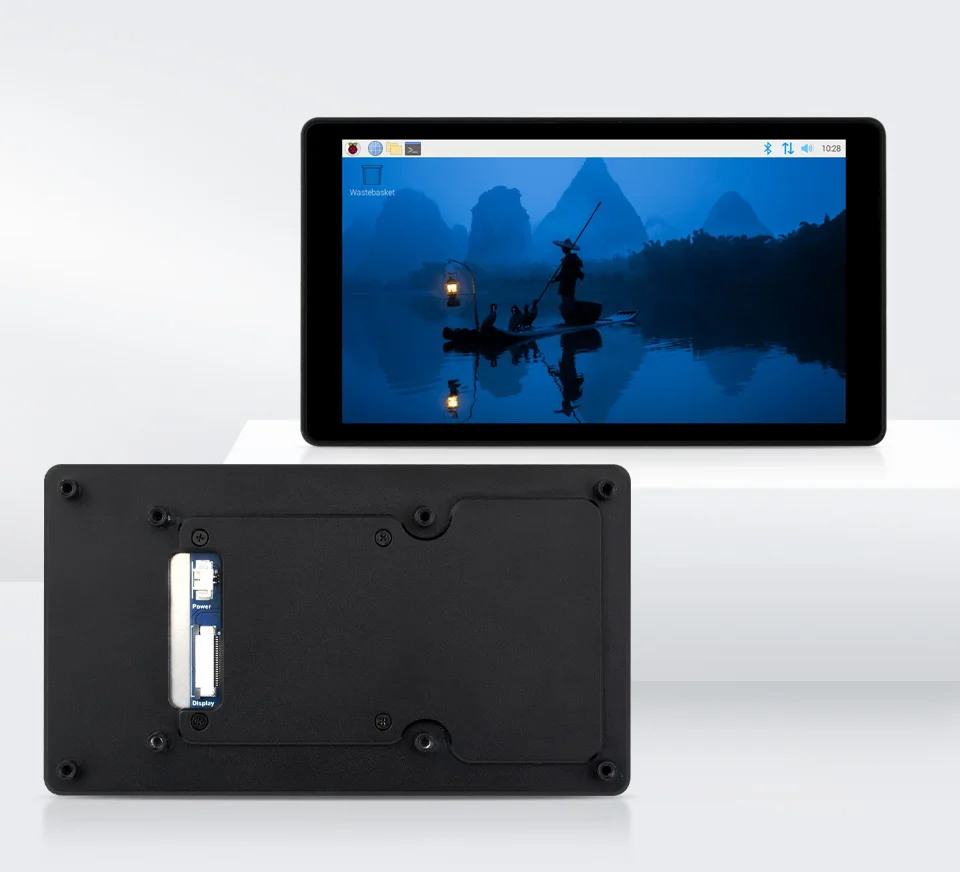

5inch DSI Capacitive Touch Display, 720 × 1280, IPS, Optical Bonding Toughened Glass Panel, DSI Interface, 5-Point Touch, Aluminum Alloy Case

5″ DSI Capacitive Touch Display

The display orientation is portrait by default, with 720×1280 resolution (H×V). Change the software config for landscape display.

Size

5″

Resolution

720×1280

Display Interface

DSI

Display Panel

IPS

Viewing Angle

178°

Touch Type

Capacitive

Touch Points

5-Point

Touch Panel

Toughened Glass

Touch Panel Tech

Optical Bonding

Touch Interface

I2C

Enclosure

Aluminium Alloy

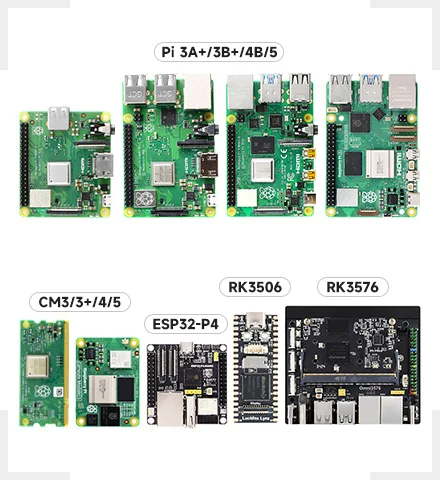

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-point touch

ESP32-P4

Supports LVGL GUI programs, 5-point touch

RK3506

Supports Buildroot, Ubuntu, 5-point touch

RK3576

Supports Buildroot, Debian, Ubuntu, and Android, 5-point touch

Connection Examples

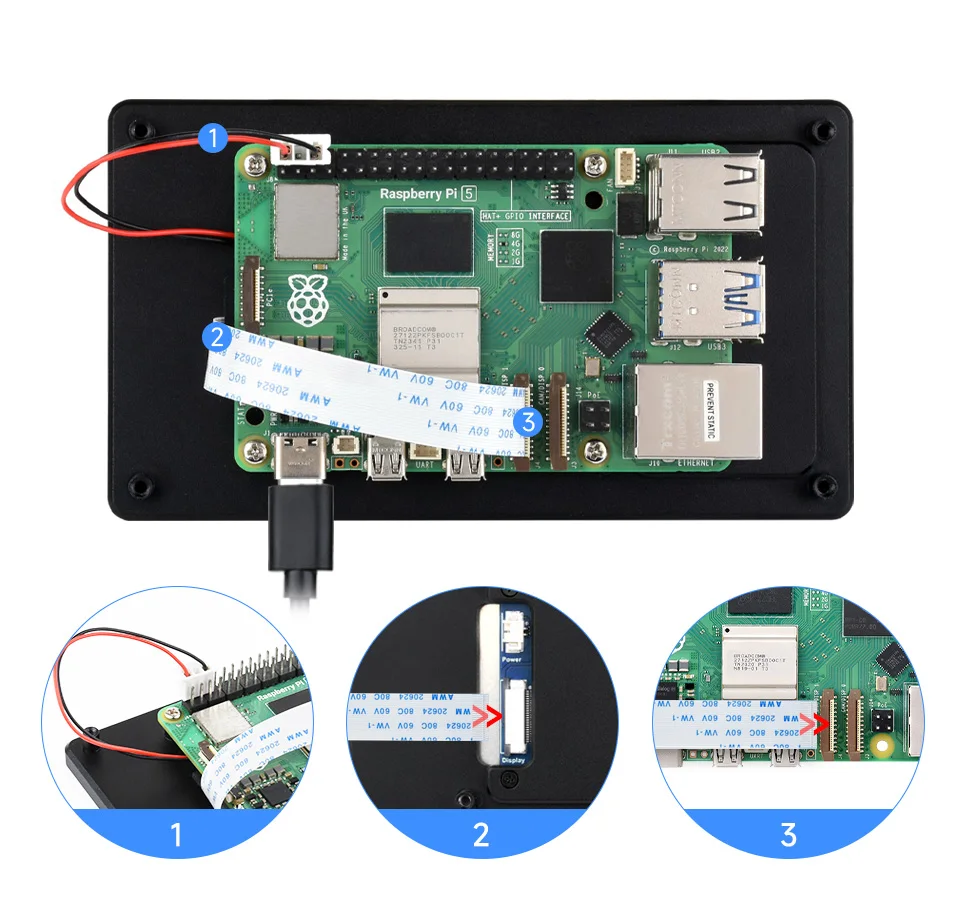

Working with Raspberry Pi 5

Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

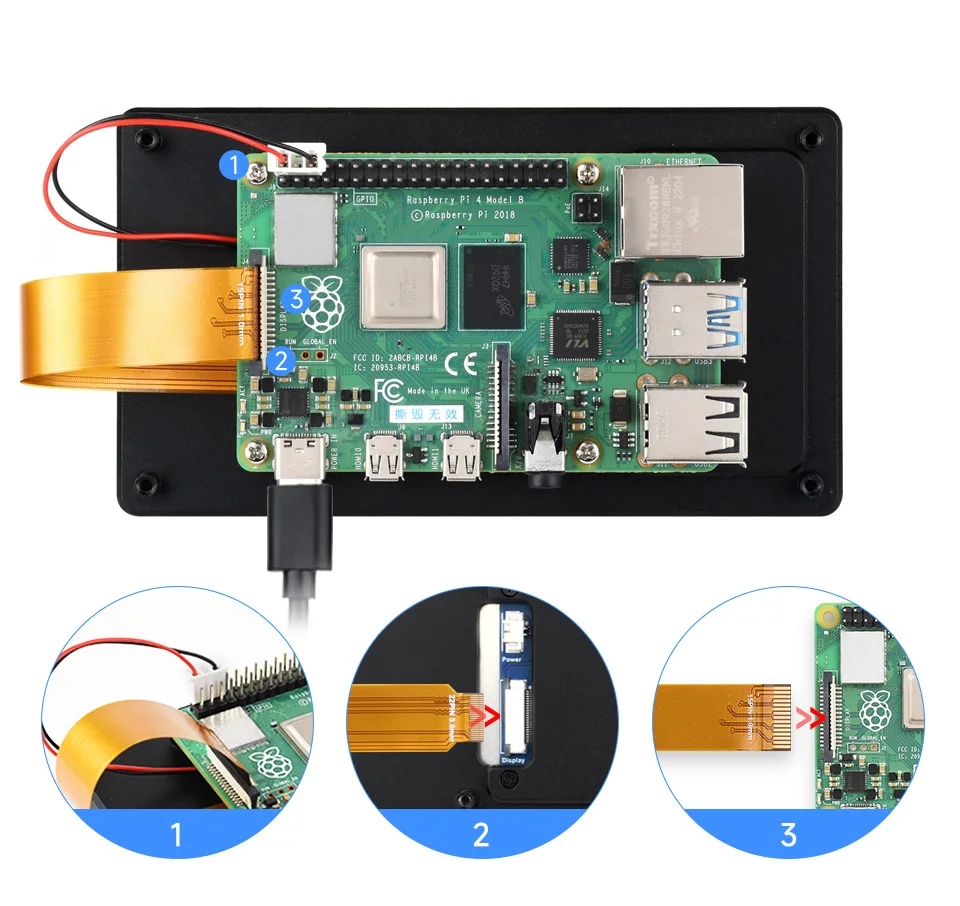

Working with Raspberry Pi 4B

Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

Working with ESP32-P4-NANO

Working with Luckfox Lyra

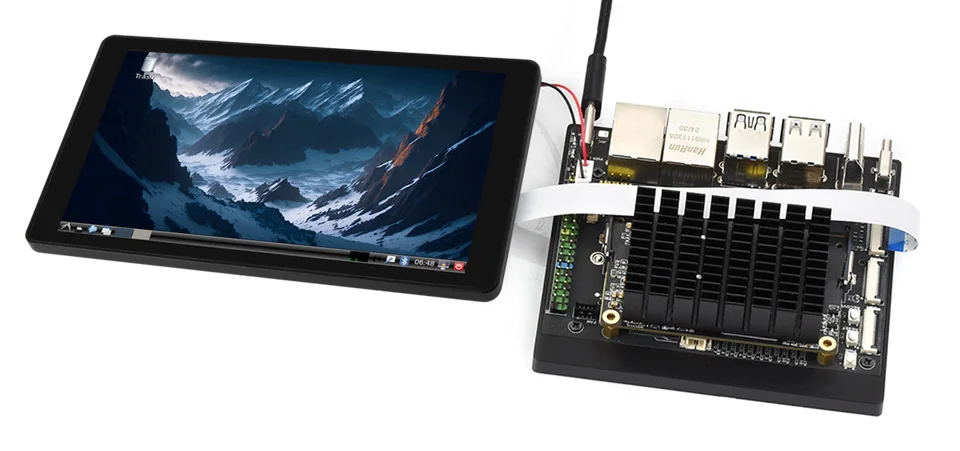

Working with Luckfox Omni3576

* for reference only, the above controller boards or hosts are NOT included

IPS Display Panel

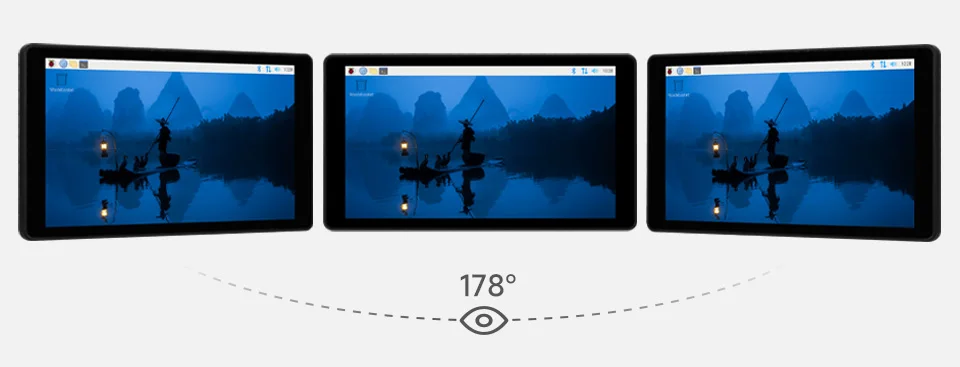

Excellent Display Performance With 178° Wide Viewing Angle

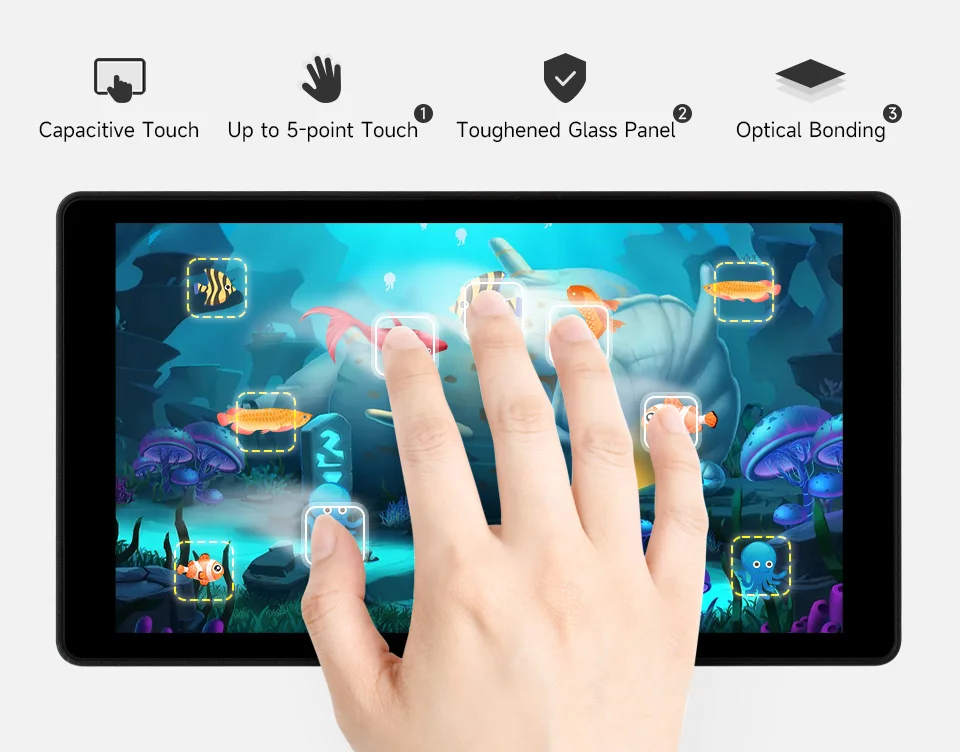

5-Point Capacitive Touch

up to 5-point touch, depending on the operating system

up to 6H hardness toughened glass panel

Optical bonding, provides clear image, dustproof

Adjustable Brightness Via Software

Thinner and space saving

the total thickness of the LCD is only 7.8mm, lightweight and nice looking

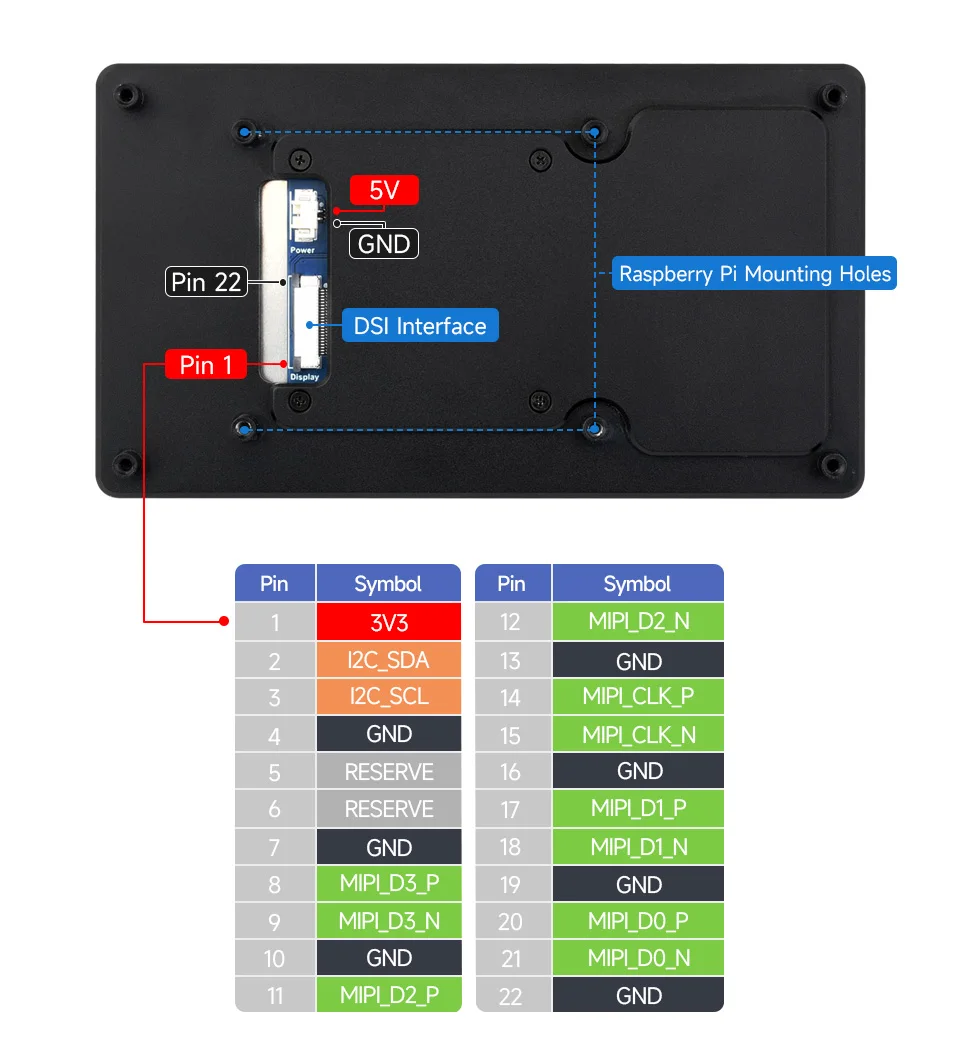

Interface Introduction

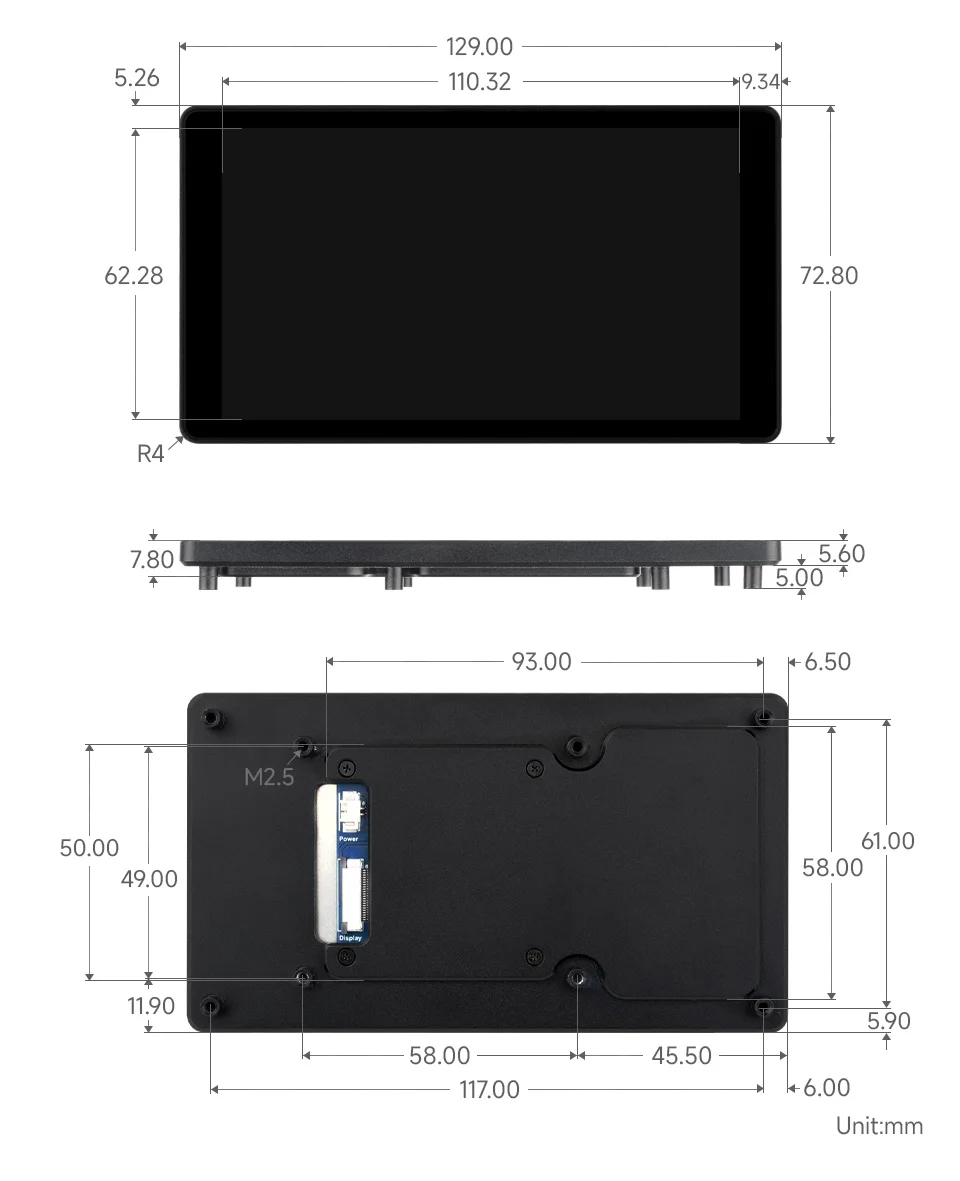

Dimensions

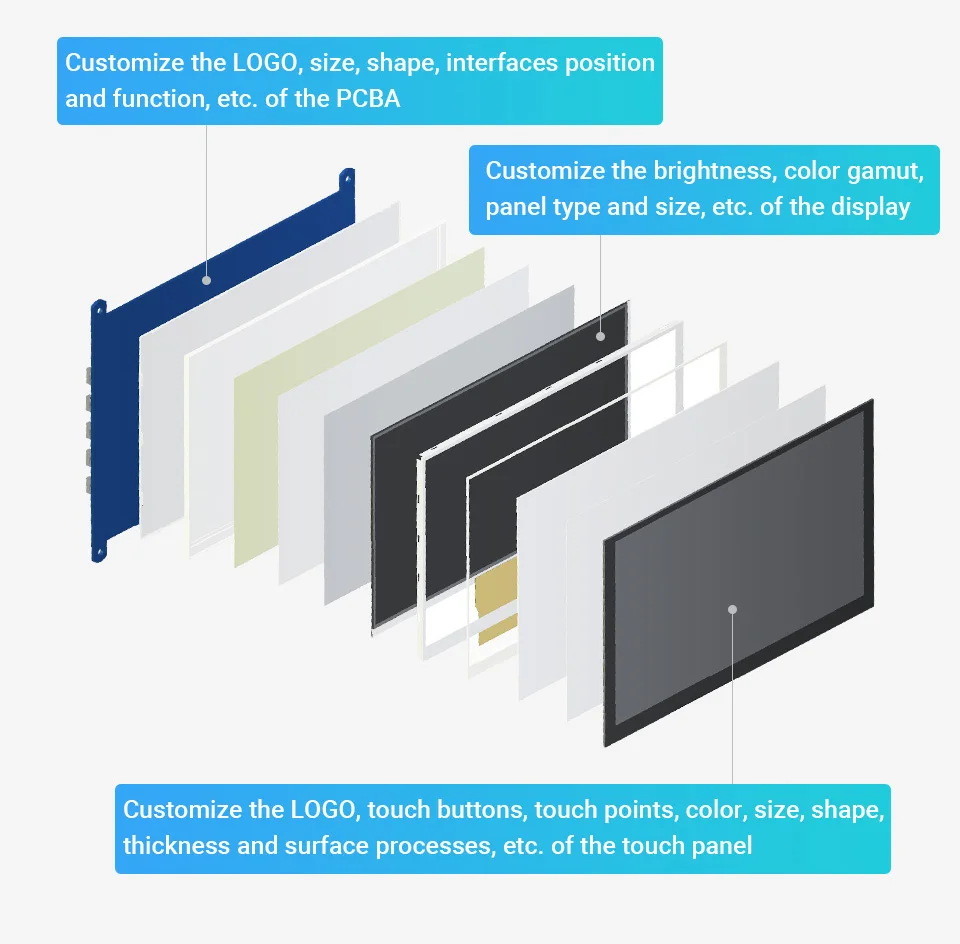

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade

Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.
