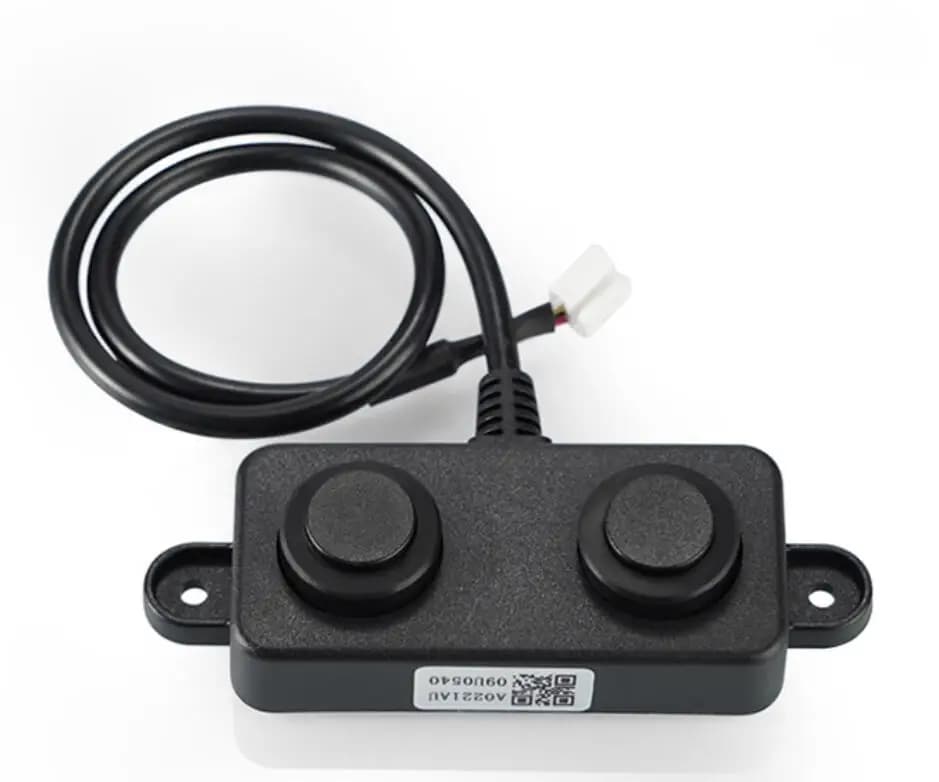

A02 A02YYUW ultrasonic waterproof ranging module waterproof probe robot obstacle avoidance ultrasonic sensor

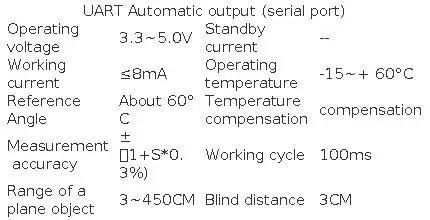

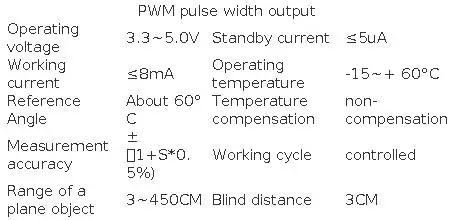

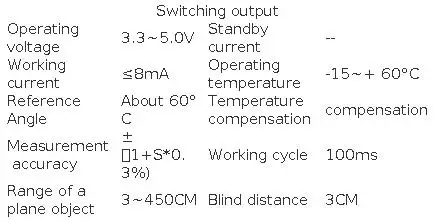

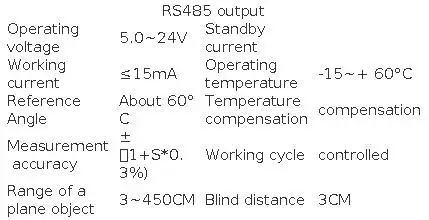

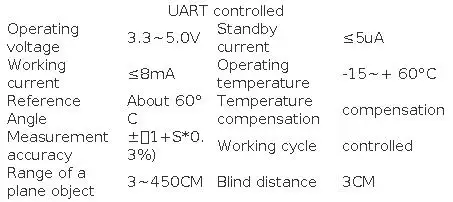

Product parameter

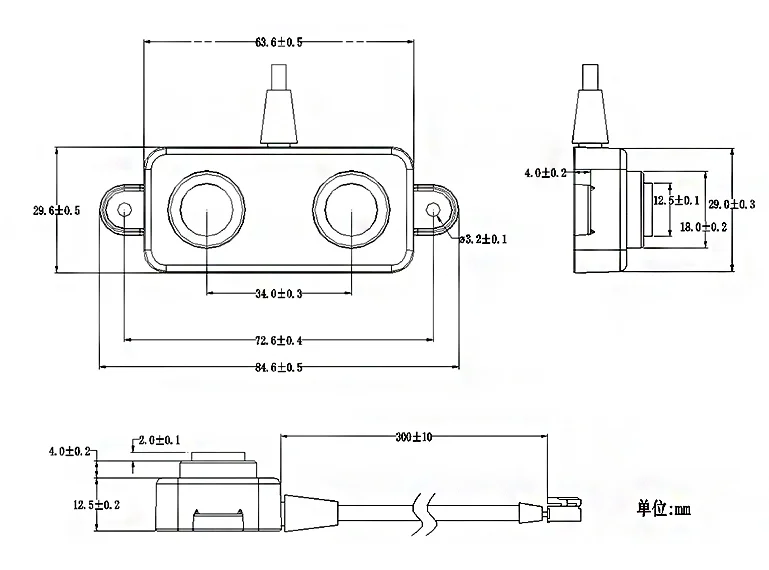

Product size

There are waterproof housing module sizes

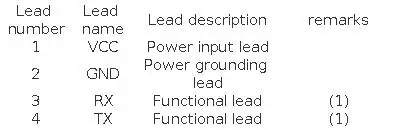

Has waterproof enclosure module interface

Note: (1) Lead and pin functions correspond to the output mode of product model one by one, and cannot coexist with other output modes

High protection design

Closed split waterproof probe IP67 high level protection water dust, anti-condensation, anti-static, strong adaptability to the working environment

Small blind area design

3cm small blind area is suitable for different detection conditions, simple operation and low power consumption, standby current < 5uA, long life

High performance design

Fast response, high measurement accuracy, within the range of ± (1+S*0.5%)cm, data output is stable and reliable
