100PCS MP1584EN LM2596s MP1584 Adjustable 3A DC-DC Converter Step Down Voltage Regulator Module Replace Buck Board 5V 12V

Product Description:
This MP1584EN DC-DC step-down power module is a high-efficiency, compact adjustable step-down module with a 3A output current capacity, outperforming the LM2596 module.

Product Features:
High-Efficiency Step-Down Conversion: Utilizes the MP1584EN chip, reaching a maximum conversion efficiency of 96%, providing stable and efficient voltage regulation.
Powerful Output Capability: Delivers a maximum output current of 3A, suitable for a variety of electronic devices.
Ultra-Compact Design: Smaller than the common LM2596 module, making it easy to integrate into space-limited designs.
Wide Input Voltage Range: From 4.5V to 28V, accommodating a variety of power inputs.
Adjustable Output Voltage: From 0.8V to 20V, easily set via an external knob.
Specifications:
Model/Name: Ultra-small DC-DC Step-Down Power Module
Input Voltage: 4.5V-28V
Output Voltage: 0.8V-20V
Output Current: 3A (maximum)
Conversion Efficiency: Up to 96%
Output Ripple: <30mV
Switching Frequency: Up to 1.5MHz (typically 1MHz)
Operating Temperature: -45℃ to +85℃

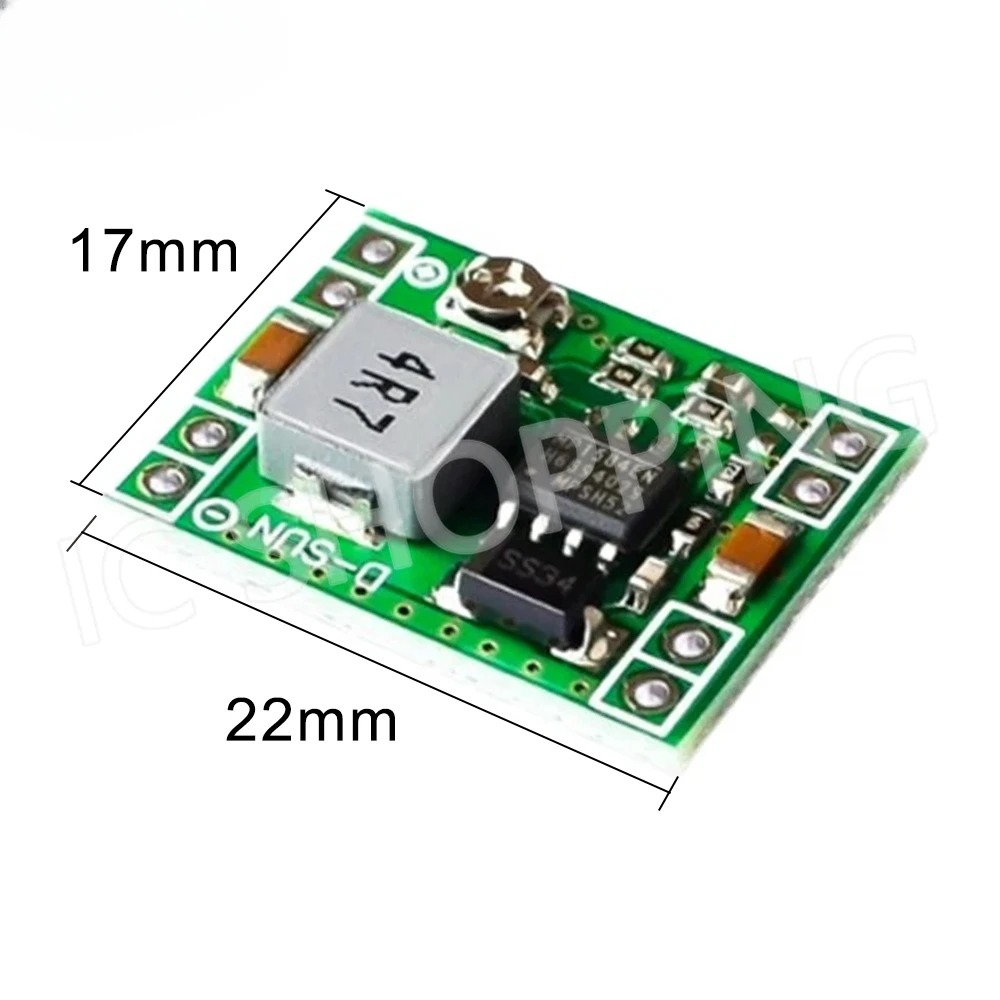

Dimensions: 22mm x 17mm x 4mm (Length x Width x Height)
Application Areas:
DIY Portable Power Supplies
Surveillance Power Supplies
Children's Vehicle Power Supplies
Camera Power Supplies
Vehicle Power Supplies
Power Supplies for Communication Equipment
Applications requiring strict volume and weight constraints (such as model aircraft).
Shipping List:

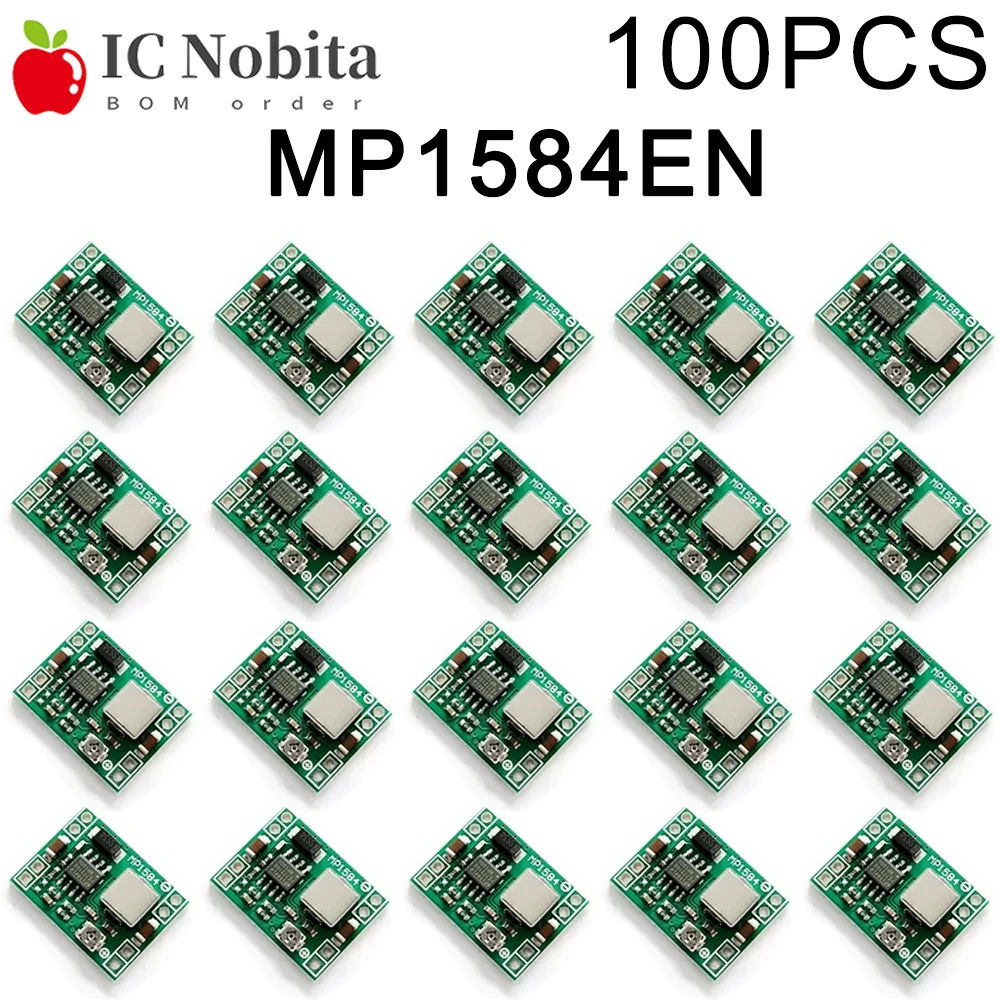

MP1584EN Step-Down Modules x 100
