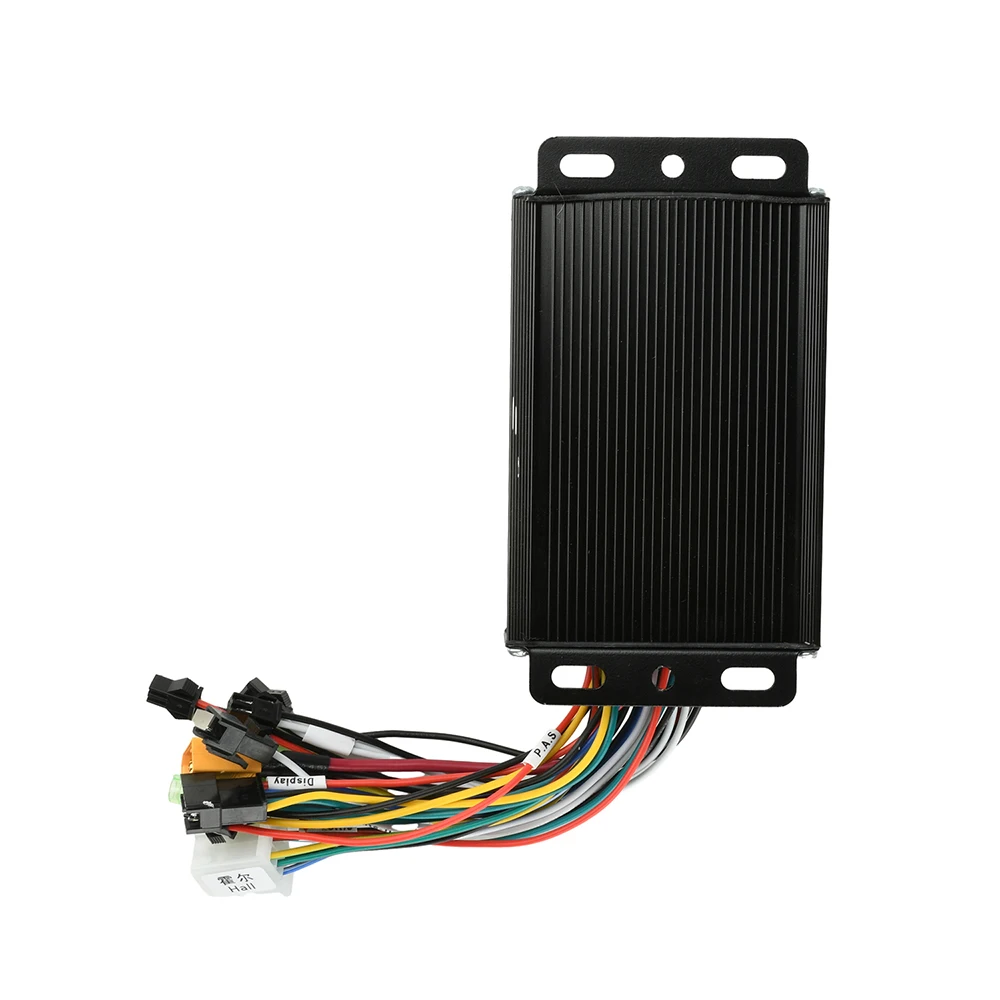

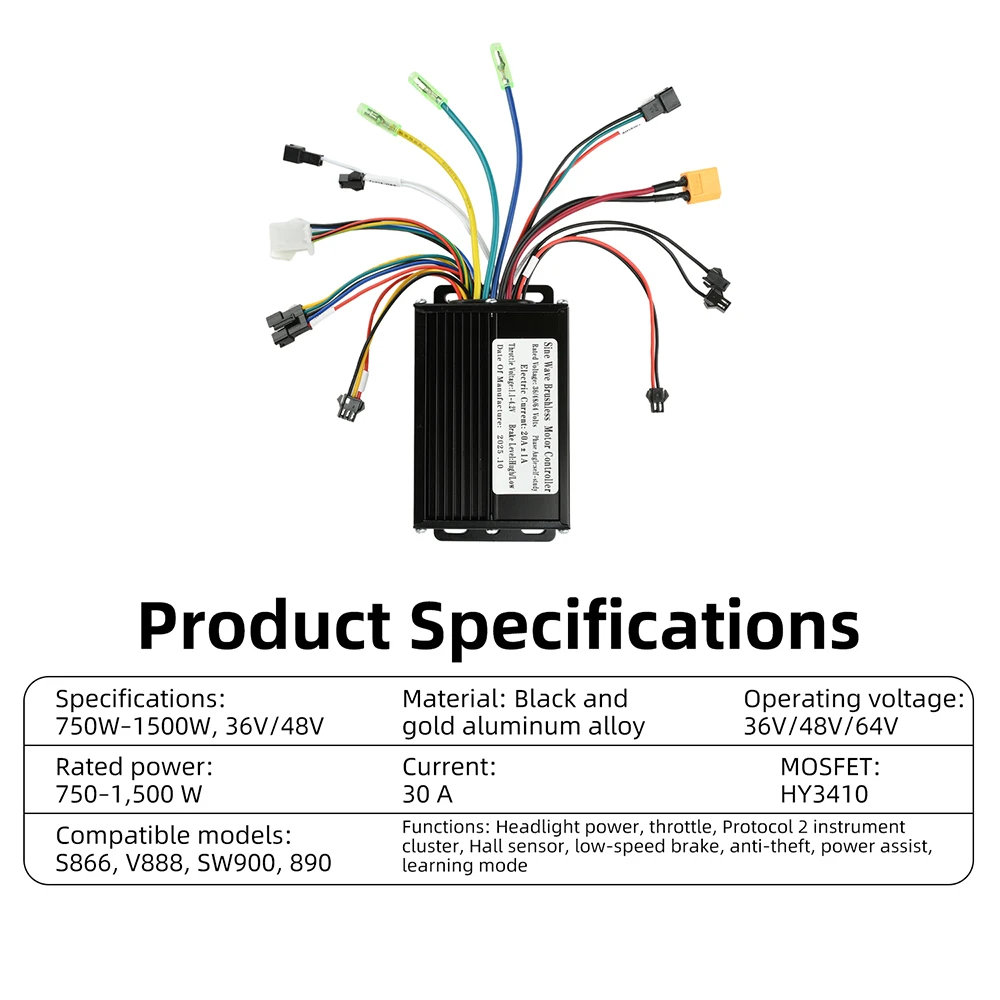

36V 48V 64V 30A Electric Vehicle Motor Controller 750-1500W Sine Wave Three-Mode Driver SM Connector Instrument Bicycle S866

Features

1. Supports multiple voltage inputs of 36V, 48V, and 64V, compatible with various battery systems, ensuring strong compatibility

2. Utilizes sine wave control technology for smoother operation, lower noise levels, and an enhanced riding experience

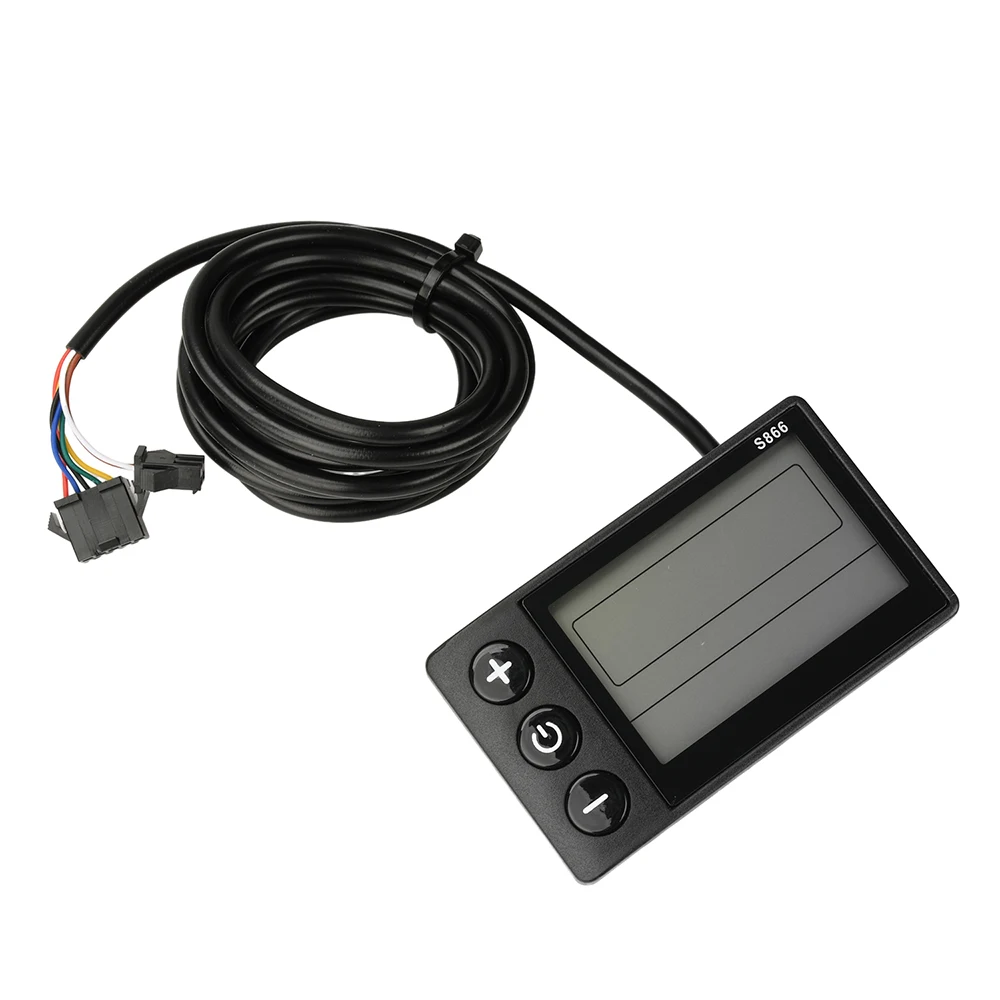

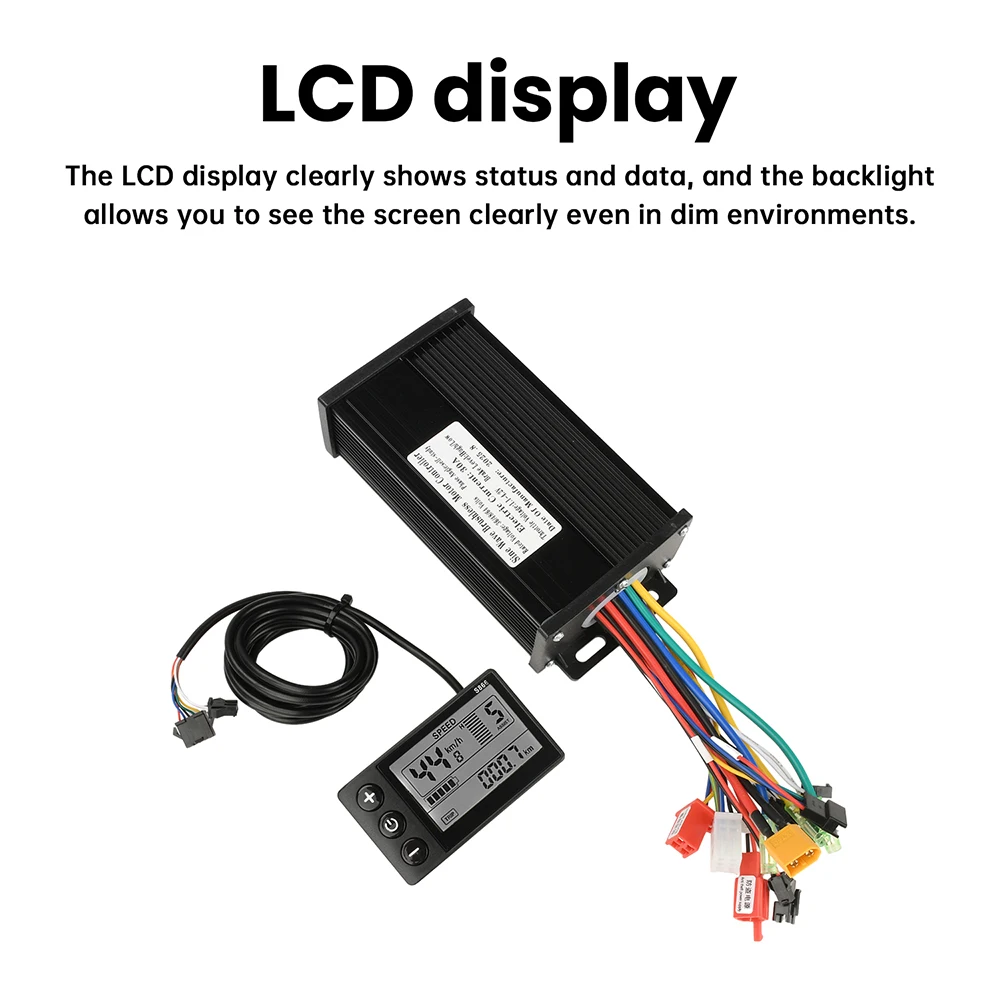

3. The LCD display clearly shows status and data, with backlighting allowing you to see the screen clearly in dim environments

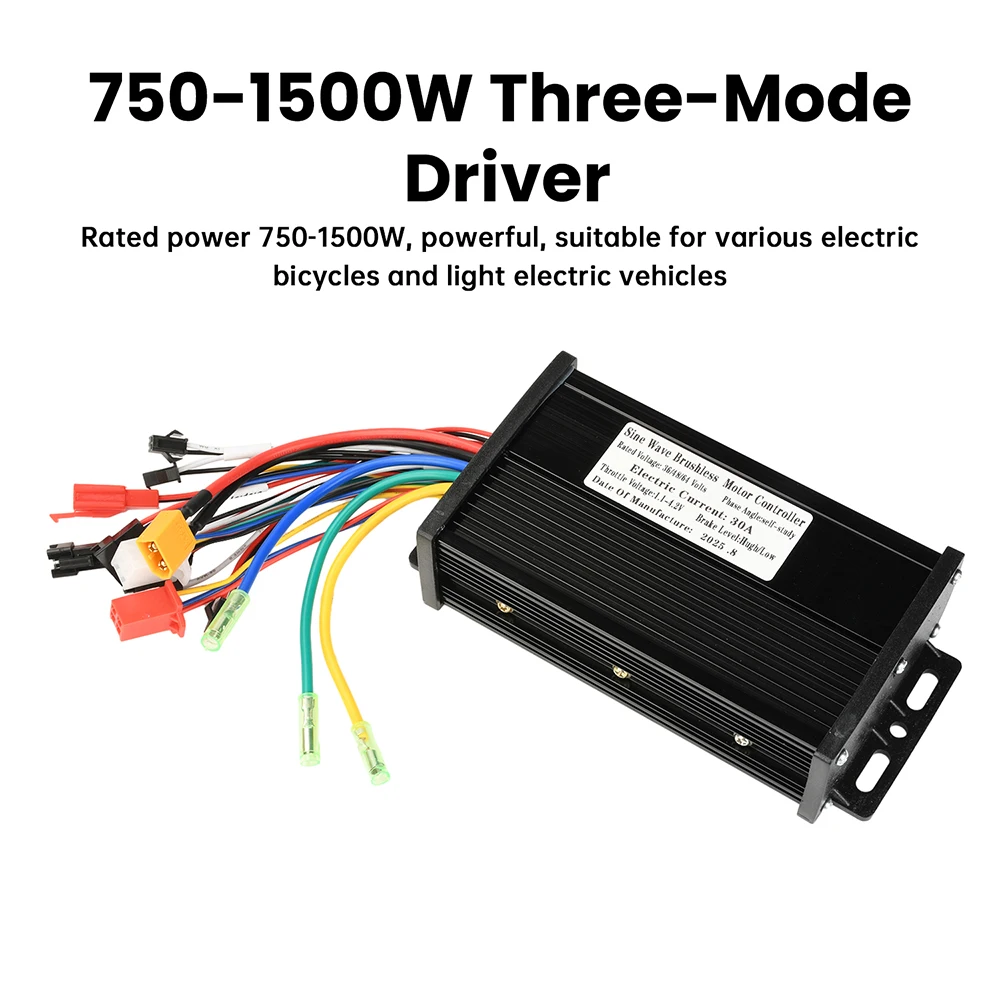

4. Rated power: 750-1500W, powerful performance, suitable for various electric bicycles and light electric vehicles

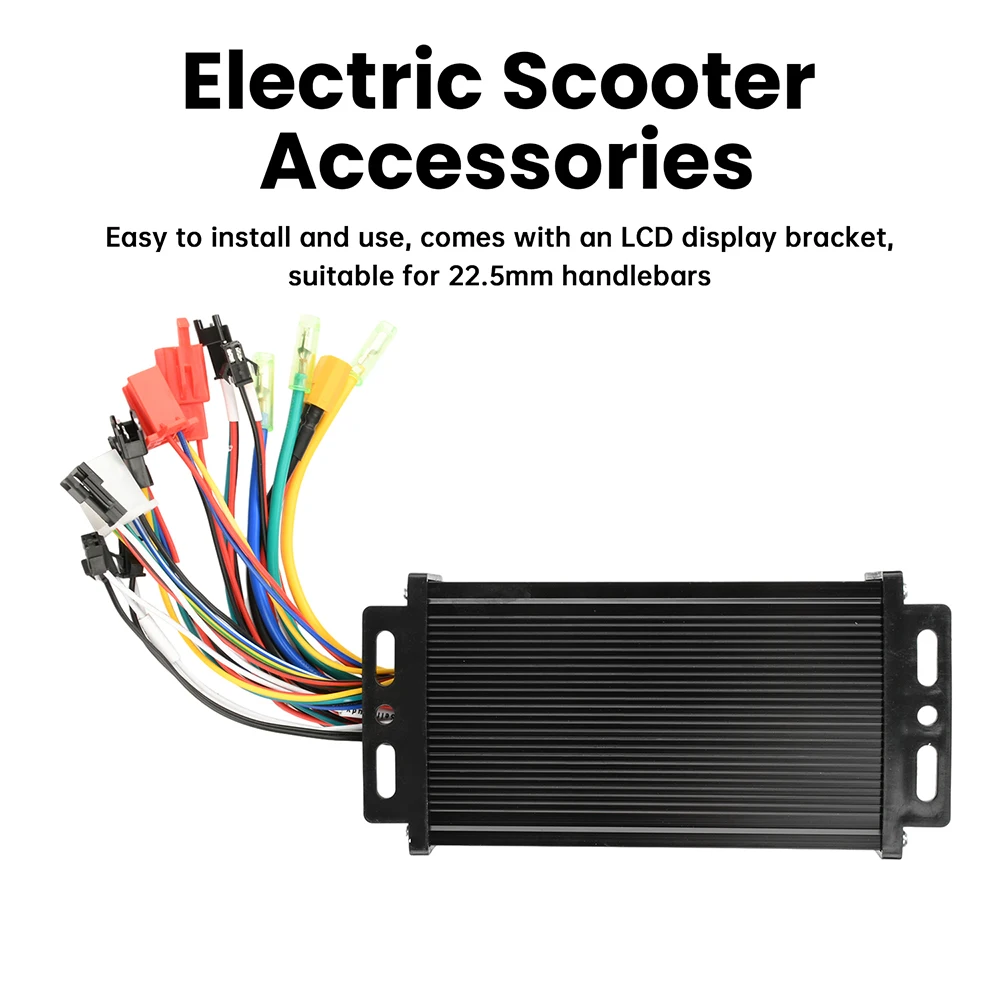

5. Easy to install and use, comes with an LCD display bracket, compatible with 22.5mm handlebars

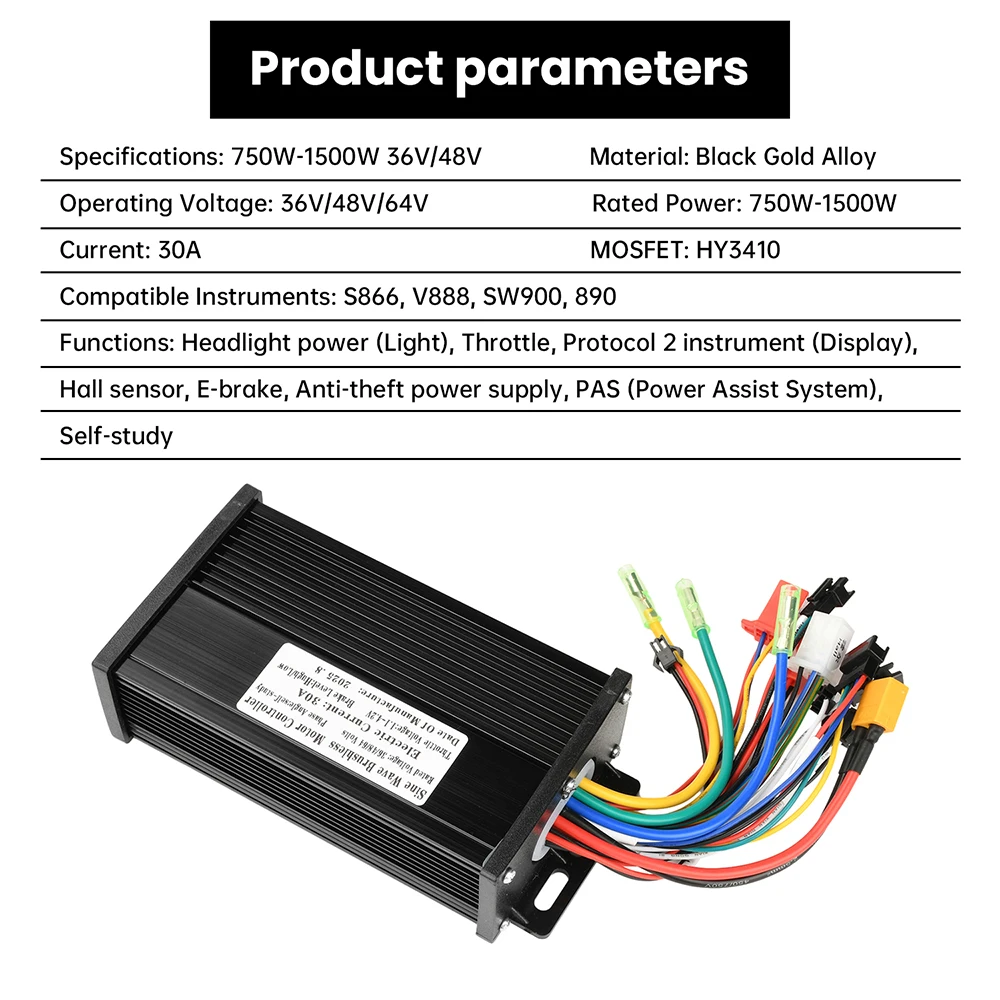

Parameter

Specifications: 750W-1500W 36V/48V

Material: Aluminum alloy black gold

Operating voltage: 36V/48V/64V

Rated power: 750W-1500W

Current: 30A

MOSFET: HY3410

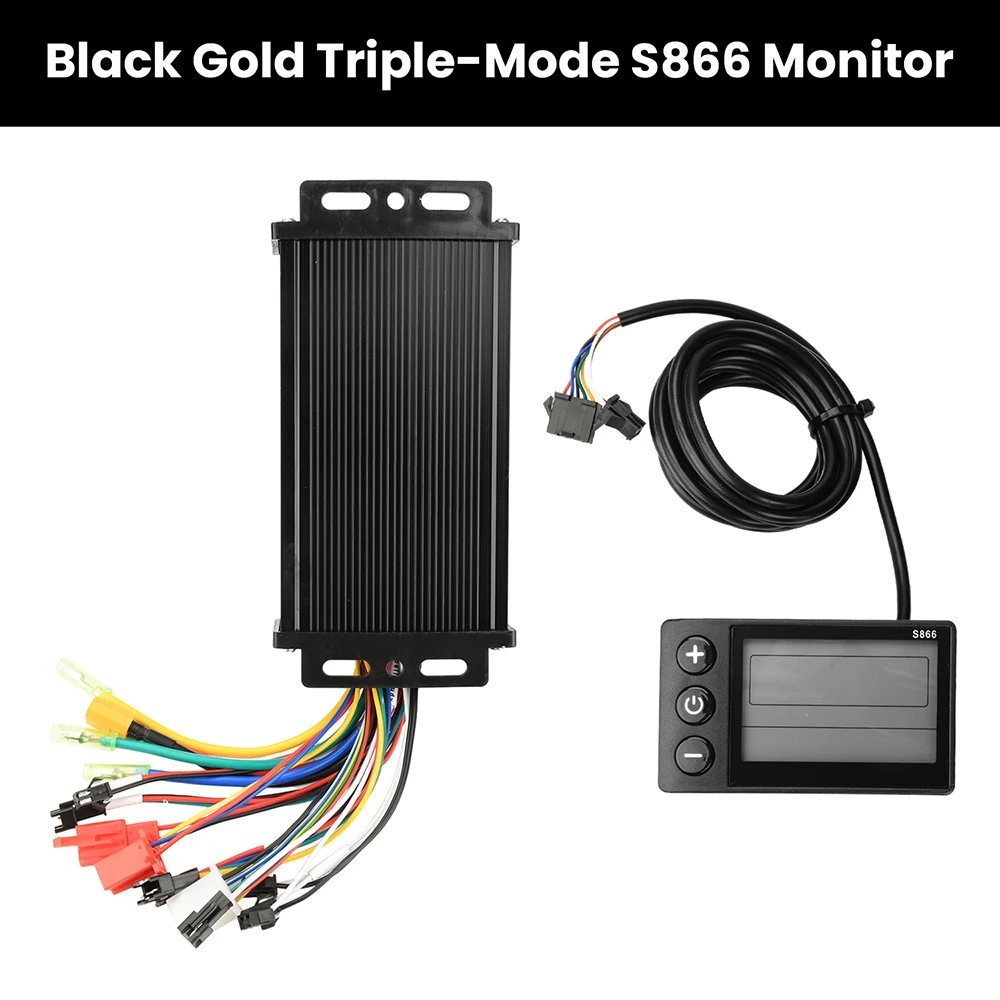

Compatible Instruments: S866, V888, SW900, 890

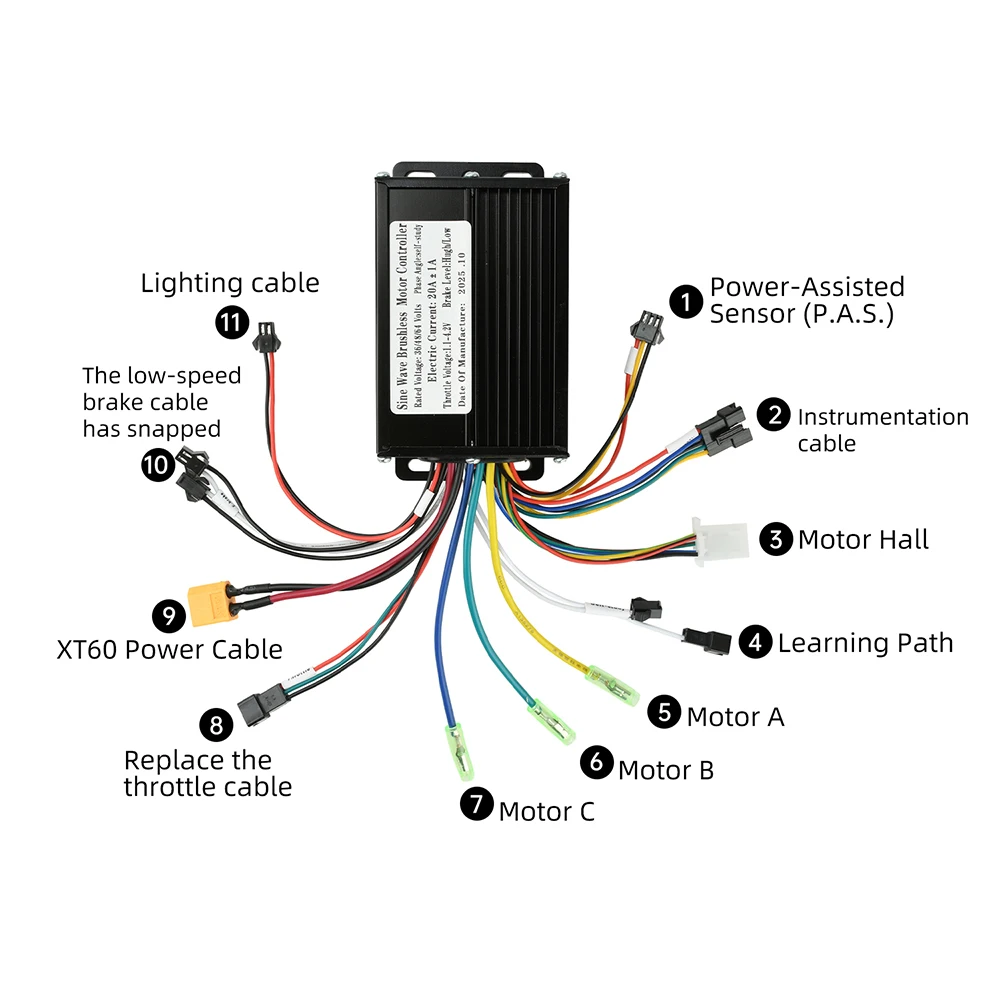

Functions: Headlight Power (Light), Throttle, Protocol 2 Instrument (Display), Hall Sensor, E-Brake, Anti-Theft Power Supply, PAS, Self-Study

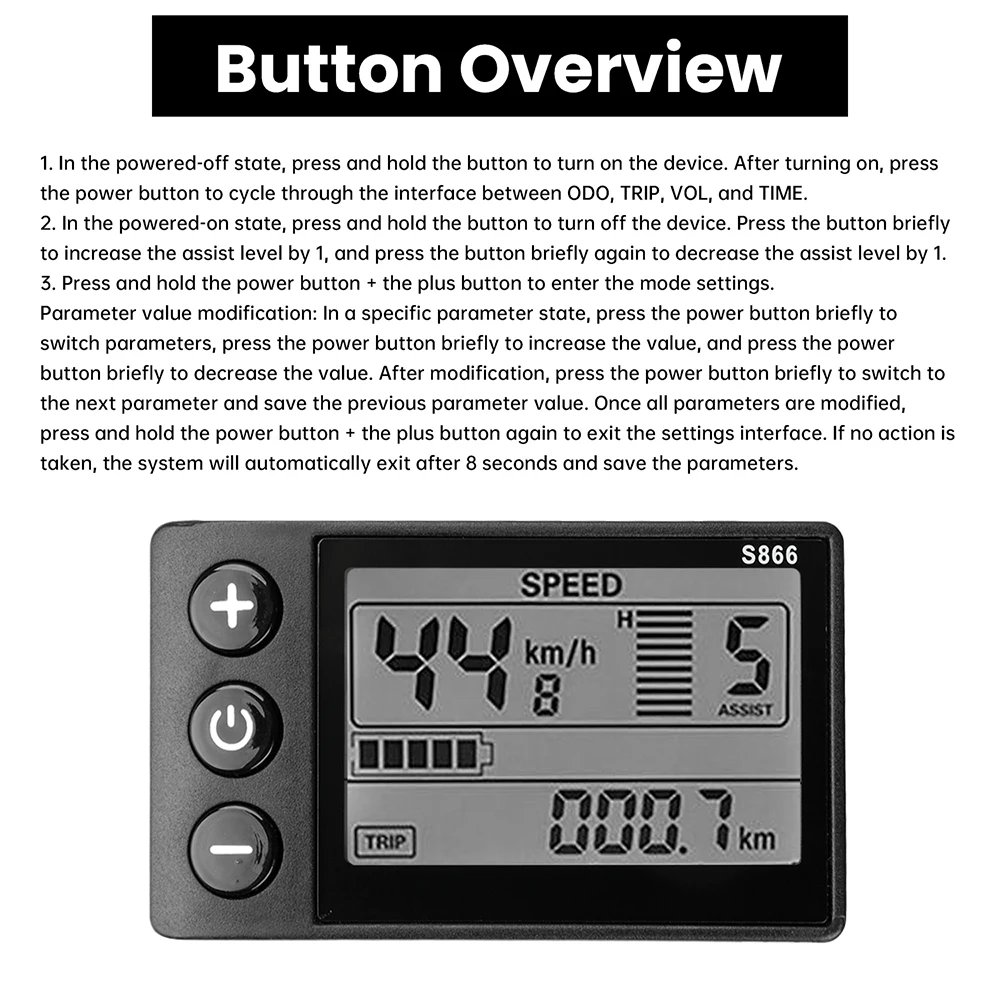

Button Overview:

1. In the off state, press and hold the button to turn on the device; after turning on, press the power button to cycle through the interface between ODO, TRIP, VOL, and TIME.

2. In the on state, press and hold the button to turn off the device; press the button briefly to increase the PAS level by 1, and press the button briefly to decrease the PAS level by 1.

3. Press and hold the button + key to enter mode settings. Parameter value modification: In a specific parameter state, press the button briefly to switch parameters, press briefly to increase the value, press briefly to decrease the value. After modification, press briefly to switch to the next parameter and save the previous parameter value. After completing parameter modification, press and hold the button + key again to exit the settings interface. If not pressed, the system will automatically exit and save parameters after 8 seconds.

Package include

Controller*1

Cable harness*1

Instrument panel*1
