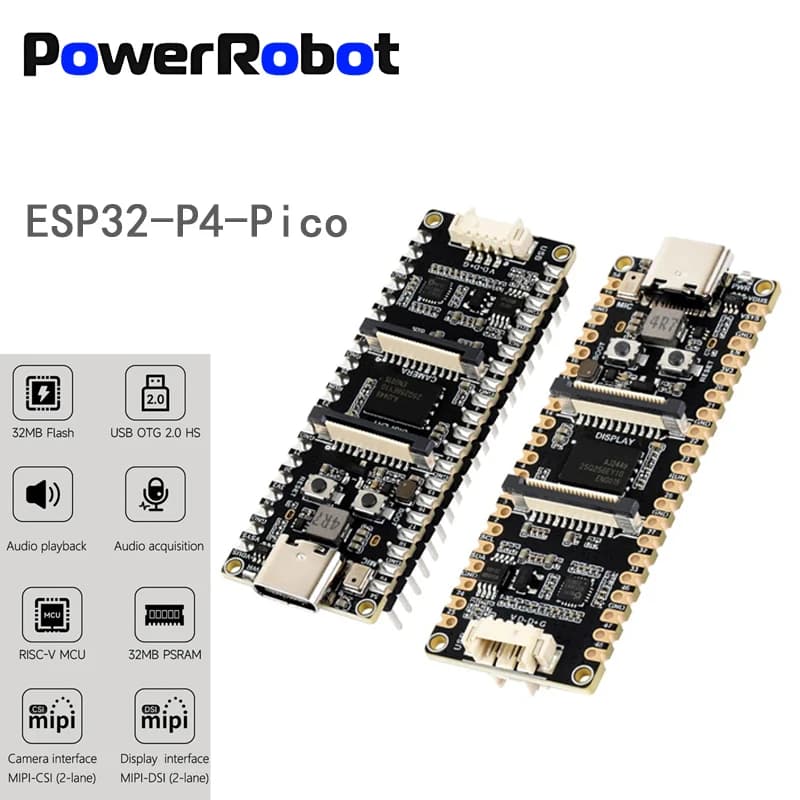

Waveshare ESP32-P4-Pico Development Board ESP32 P4 Module ESP32-P4 MCU Featuring 32-bit RISC-V Dual-Core and Single-Core

Description:

Introduction to the Development Board

This product is a multimedia development board based on ESP32-P4.It

offers a rich set of human-computer interaction interfaces, including

MIPI-CSI (Integrated Image Signal Processor ISP), MIPI-DSI, SPI, I2S,12C,

LED PWM, MCPWM, RMT, ADC, UART, and TWAl, etc.

Additionally, it supports USB OTG 2.0 HS and has a 40PIN GPIO expansion

interface on board, which is compatible with some Raspberry Pi Pico

expansion boards, enabling broader application compatibility.

The ESP32-P4 features a400MHz dual-coreRISC-V processor, supports up

to 32MB PSRAM, and has USB2.0, MIPI-CSI / MIPI-DSI, and H.264

encoding peripherals, meeting the requirements for low-cost,

high-performance, and low-power multimedia development. Moreover,

the ESP32-P4 integrates a digital signature peripheral and a dedicated key

management unit to ensure data and operation security.

The ESP32-P4-Pico is specifically designed for high-performance and

high-security applications, meeting the needs of embedded systems in

human-computer interaction, edge computing, and 10 expansion.

Main functional features:

● High-performance MCU equipped withRISC-V 32-bit dual-core and

single-core processors

●128KB high-performance ROM,16KB low-power ROM, 768KB

high-performance L2MEM,32KB low-power SRAM, 8KB TCM

Strong image and voice processing capabilities. Image and voice

processing interfaces include JPEG codec, pixel processing accelerator

(PPA), image signal processor (ISP), and H264 video encoder

Chip packaging includes 32MB PSRAM stacked inside, and 32MB Nor

Flash integrated externally

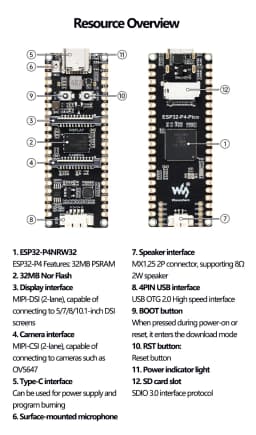

Board provides common peripheral interfaces such as MIPI-CSI,

MIPI-DSI, USB 2.0 OTG, SDIO 3.0 SD card slot, microphone and speaker

terminals

Board provides 2 x 20 pins, with 27 remaining programmable GPIOs

Security mechanisms: secure boot, Flash encryption,hardware

encryption accelerator and hardware random number generator. Also

supports hardware access protection, enabling access permission

management (APM) and permission separation
