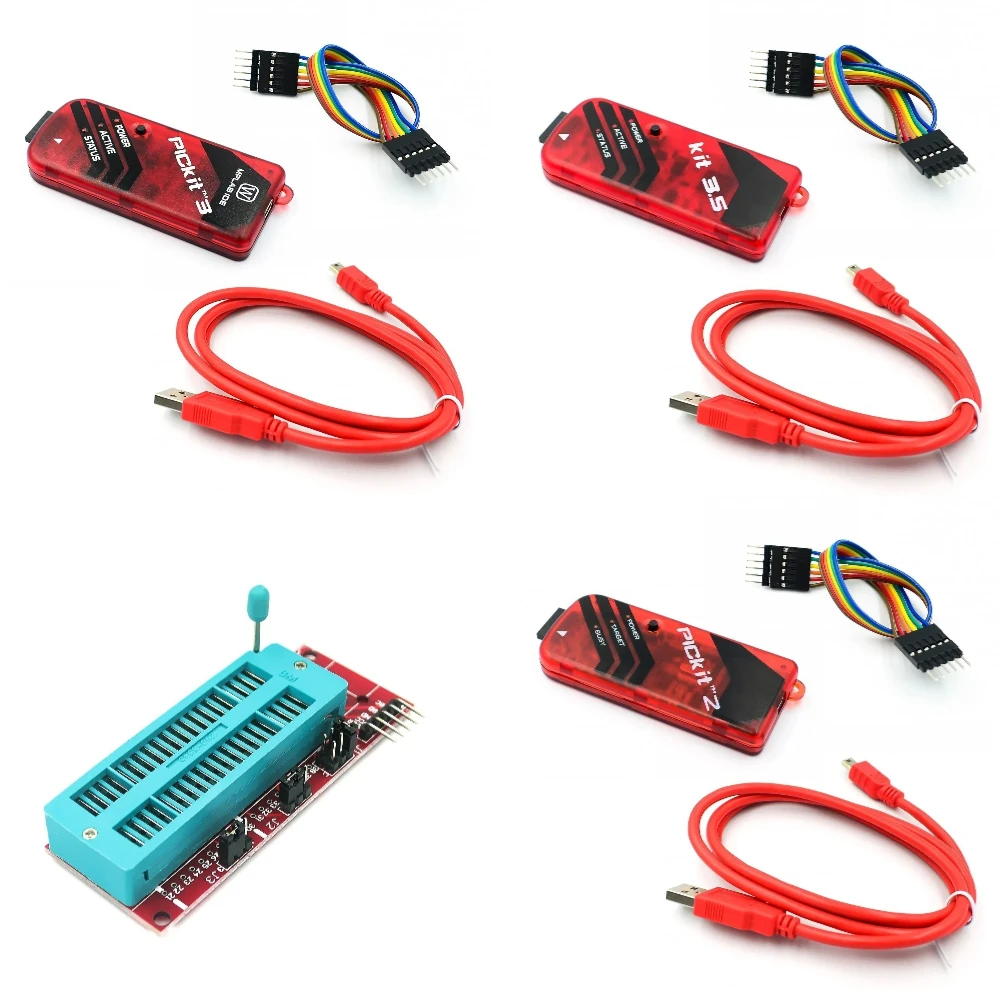

PICKit2 PICKIT3 PICKit3.5 Programmer + PIC ICD2 PICKit 2 PICKIT 3 PICKIT 3.5 Programming Adapter Universal Programmer Seat

The interface line batches are different. 5PIN and 6PIN will be delivered randomly.

PICkit3 is an online simulation and download PIC development tool!

PICkit3 is an online simulation and download development tool designed by Microchip for beginners to learn, evaluate and develop PIC series MCUS

PIC series MCU is connected with PICkit3 through ICSP interface

Supported Software

Direct support for Microchip's official IDE (integrated development environment software) MPLAB

Supported devices

Support all PIC series microcontroller with ICSP interface

The IC supported by PICKIT3 can be viewed through MPLAB IDE V8.92

Configure -> Select Device PICKIT3

8-bit Devices - PIC10F/12F/16F

PIC10F/12F/16F5X

PIC16F6xx

PIC16F7XX

PIC16F8XX

PIC16F9XX

PIC16F1XXX

8-bit Devices - PIC18F

PIC18CXX/FXX

PIC18F1XXX

PIC18F2XXX/4XXX/6XXX/8XXX

PIC18FXXJ

PIC18FXXK

16-bit Devices

dsPIC30F/33F, PIC24F/H

32-bit Devices

PIC32MX

Function and performance

Programming function: can burn FLASH ROM, EEPROM and so on.

Simulation function: support full speed running, single step debugging, breakpoint debugging and other debugging methods.

Simulation performance: USB interface for simulation debugging, single step debugging, breakpoint debugging, fast response!

Programming performance: USB interface, ICSP download, download fast!

The USB port is used to connect the PC

The PICkit3 development tool has built-in drivers for high-speed USB communication.

Connection interface with target board

PICkit3 specifies the ICSP standard interface.

Firmware upgradeable

In the future, Microchip will release more PIC models and add new device models to ICSP device support list. When you need to use a new model in future development, upgrade KIT3, upgrade firmware program, you can support the new model!

The upgrade mode is automatic. Microchip provides the upgrade program.

Tools that

The PICkit 3 Programmer/Debugger is a simple low-cost online debugger controlled by a PC running MPLAB IDE(V8.20 or later) software on the Windows® platform.

PICkit3 can program and debug the FLASH microcontroller chip of Microchip pic10/12/16/18/24/32, dsPIC30/dsPIC33 and so on. And PICkit3 CAN program the Microchip KEELOQ HCS series chip, MCP250xx CAN series chip and EEPROM memory chip.

PICkit3 has more simulation stability than PICkit2, support more models, fast and other advantages, can stably support PIC16 PIC18 PIC24 DSPIC and other MCU simulation and download.

The PIC ICSP interface has only one row of 6PIN connections, so when PICkit3 is connected to the PIC target board, please pay attention to the left and right directions of the connection. Do not insert the PICkit3 downloader in order to avoid burning it.

Status of PICkit3's LED indicator light

Indicators have the following meanings:

Power:

Green, lit when powering on or connecting to target board.

Active:

Blue, lit when PICkit 3 has established communication with the PC or sent/received commands.

Status:

Green, lit when the debugger is working properly (standby).

Yellow, light up when busy.

Red, lit when the debugger fails.
