Waveshare ESP32-S3-LCD-7,ESP32-S3 7inch Display Development Board, ESP32 With Display,800×480,Options For Touch Function,32-bit

SKU:27078

Part No.:ESP32-S3-Touch-LCD-7

Brand:Waveshare

SKU:30406

Part No.:ESP32-S3-LCD-7

Brand:Waveshare

ESP32-S3 7inch Display Development Board, ESP32 With Display, 800×480, Options For Touch Function, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna

ESP32-S3 7″ LCD Development Board

Integrates RGB interface LCD and 5-point capacitive touch (optional)

Version Options

ESP32-S3-LCD-7

without touch control

ESP32-S3-Touch-LCD-7

with touch control

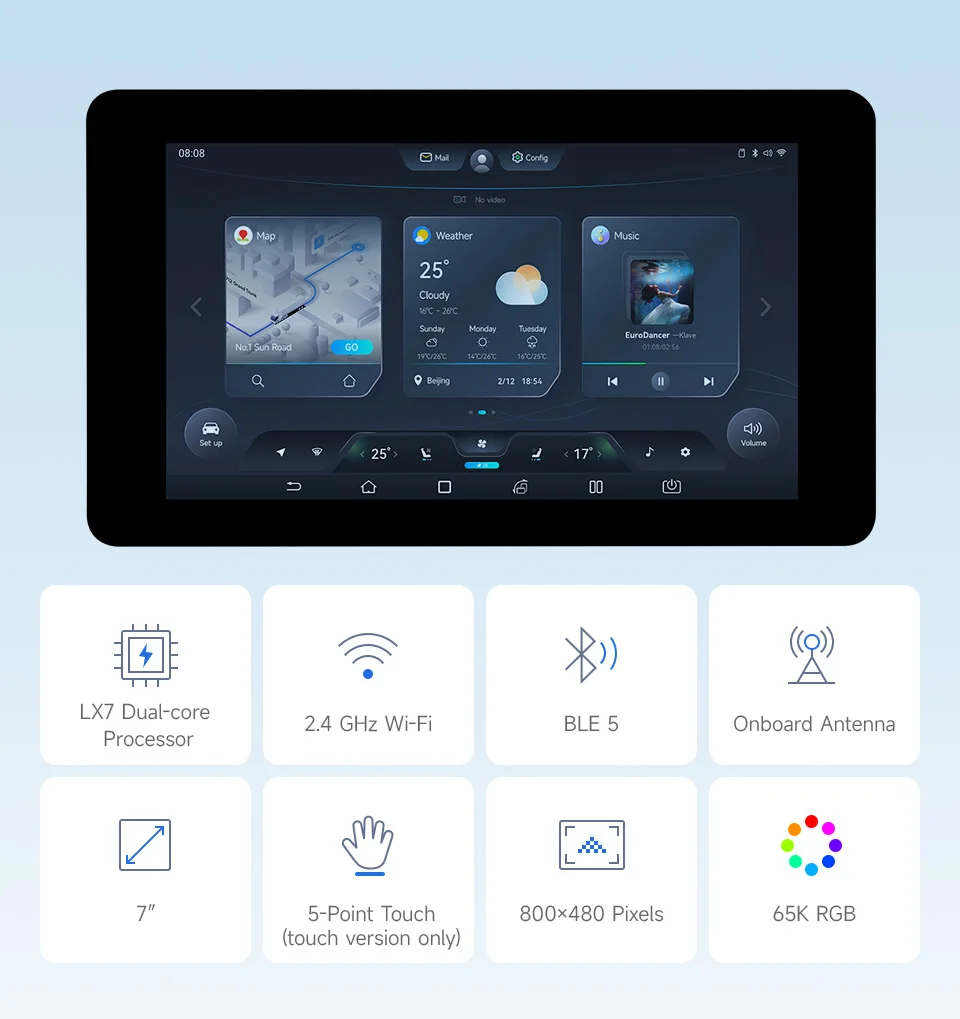

Features

This product is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 16MB Flash

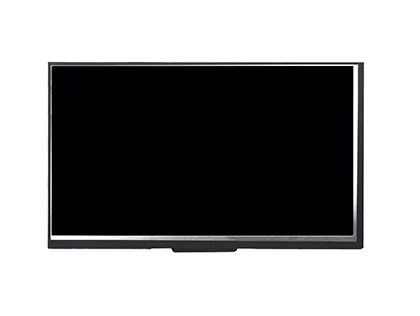

Onboard 7inch LCD display, 800×480 resolution, 65K color

Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)

Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port

Supports flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios

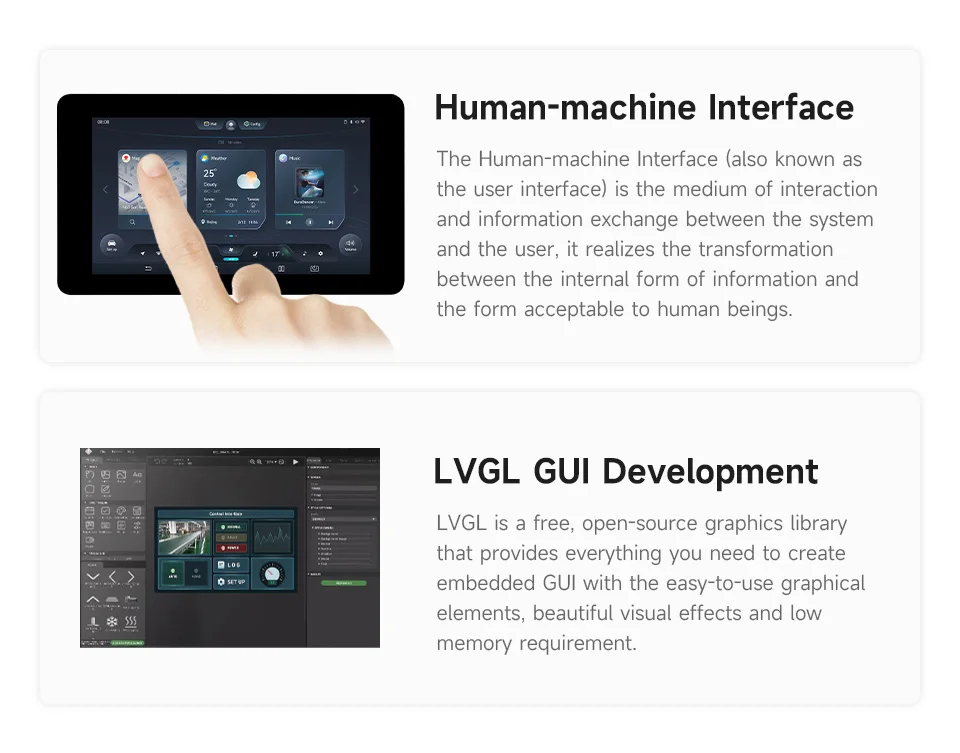

Application Scenarios

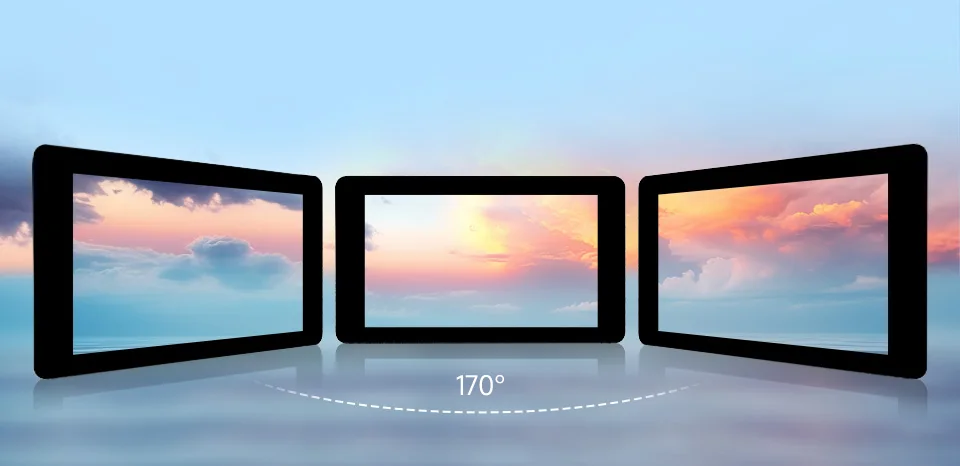

IPS Display Panel

Excellent display performance, 170° viewing angle

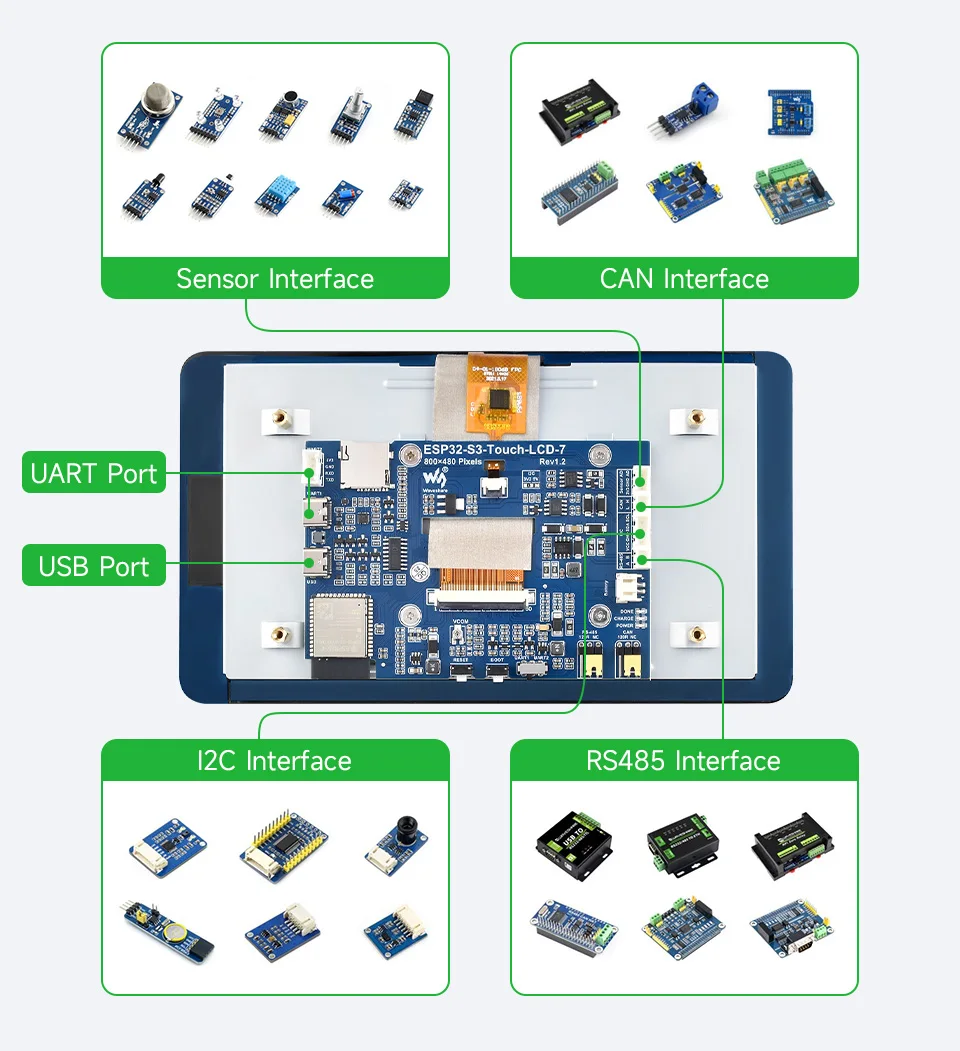

Supports multiple peripherals

Supports the expansion of multiple peripherals via Sensor, CAN, RS485, and I2C interfaces

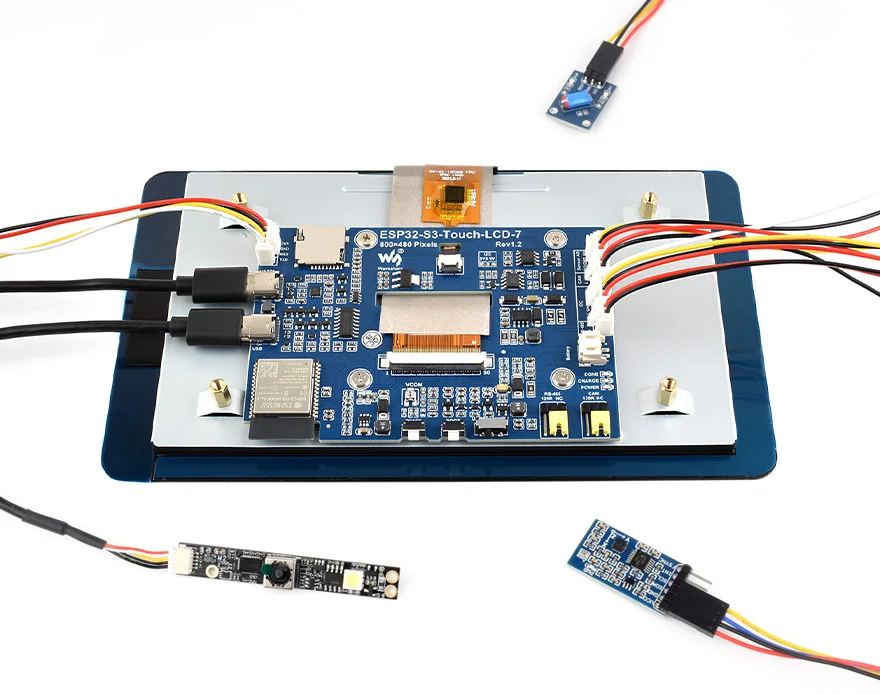

Application Example

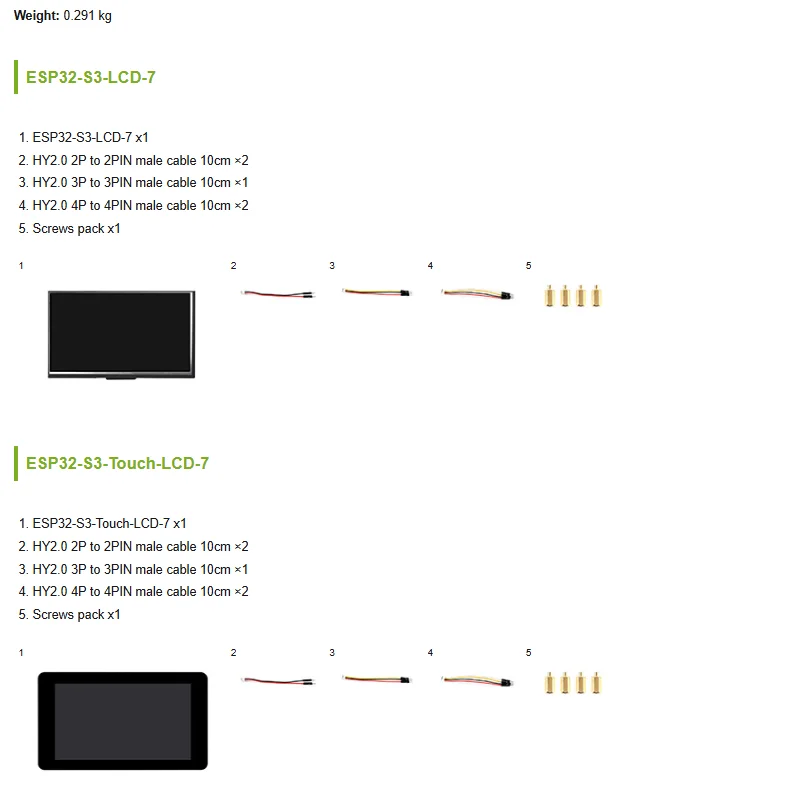

for reference only, please refer to the Package Content for the detailed part list

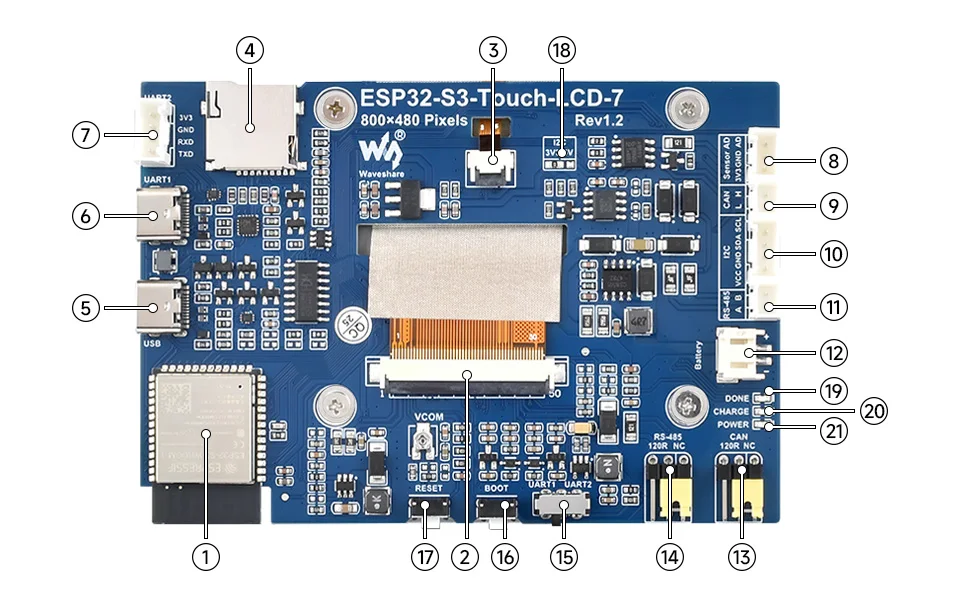

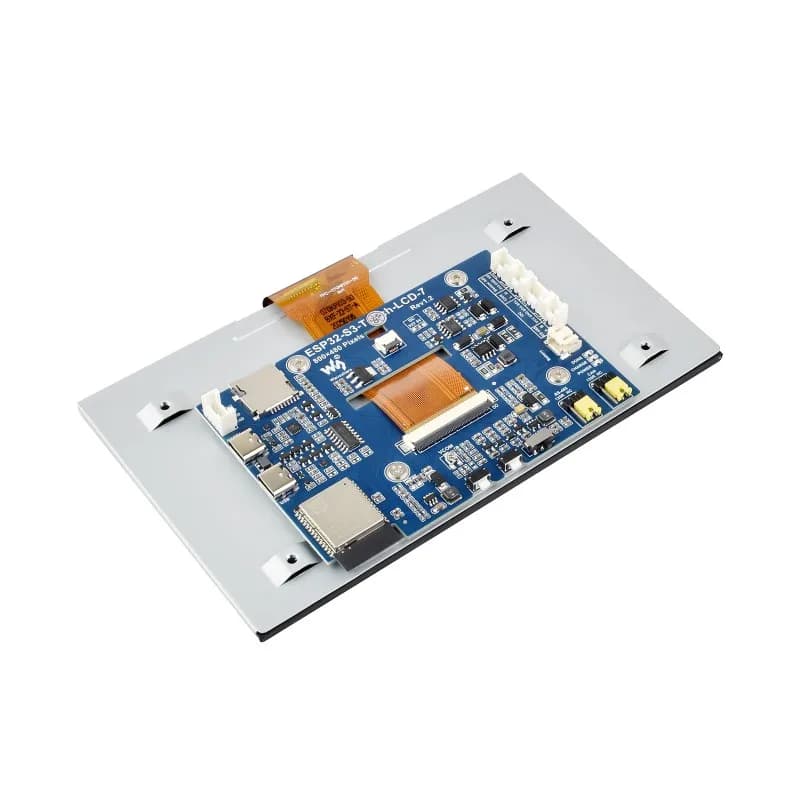

What's On Board

ESP32-S3N16R8

The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and 16MB Flash

7inch display panel connector

Touch panel connector

TF card slot

USB Type-C port

UART1 Port

USB TO UART Type-C port

UART2 connector

UART1 and UART2 are the same UART, selected by switch

Sensor header

CAN header

I2C header

RS485 header

3.7V single lithium battery PH2.0 header

CAN terminal resistor selection

RS485 terminal resistor selection

UART selection

select UART1 or UART2

BOOT button

Press and hold while powering on for program burning

RESET button

I2C level selection

3.3V / 5V

DONE

Lithium battery charging completed indicator

CHG

Lithium battery charging indicator

PWR

Power supply indicator

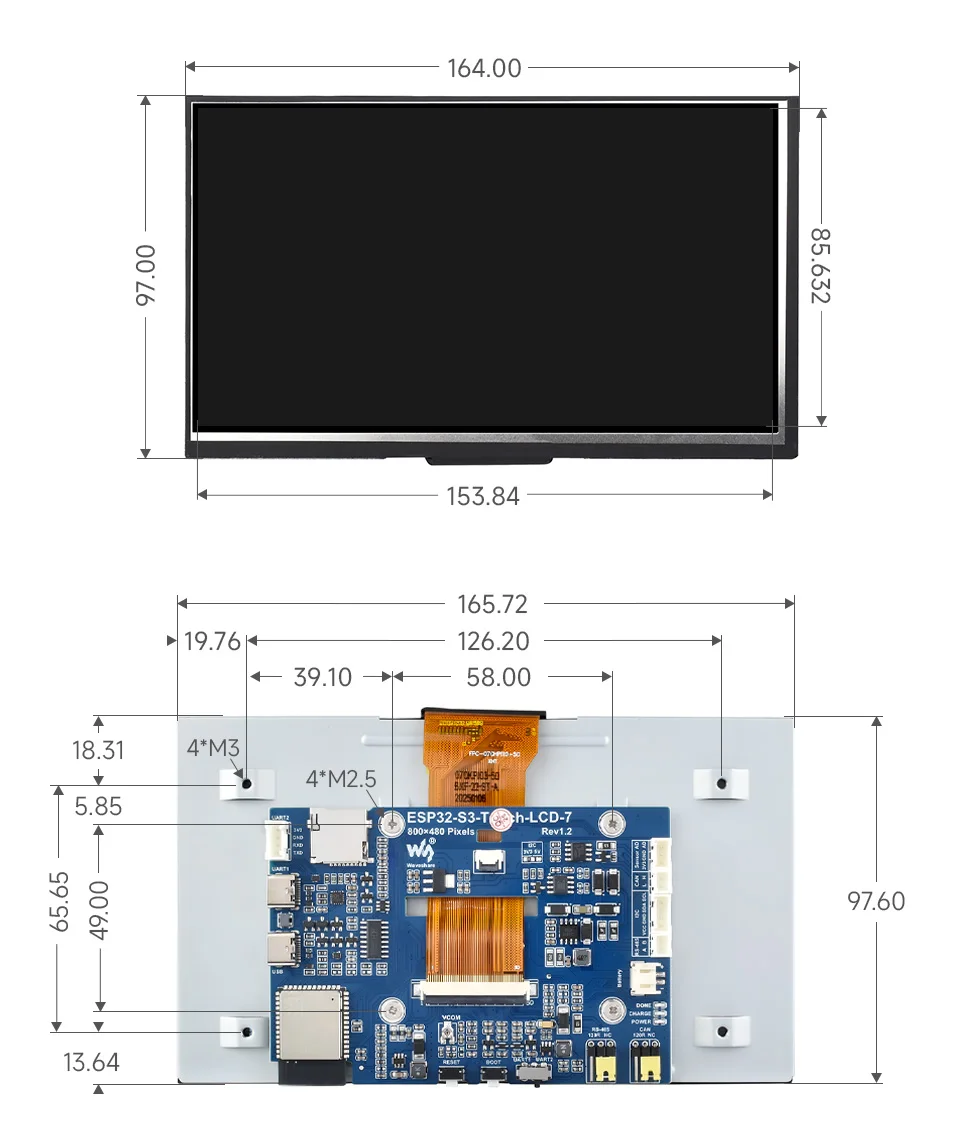

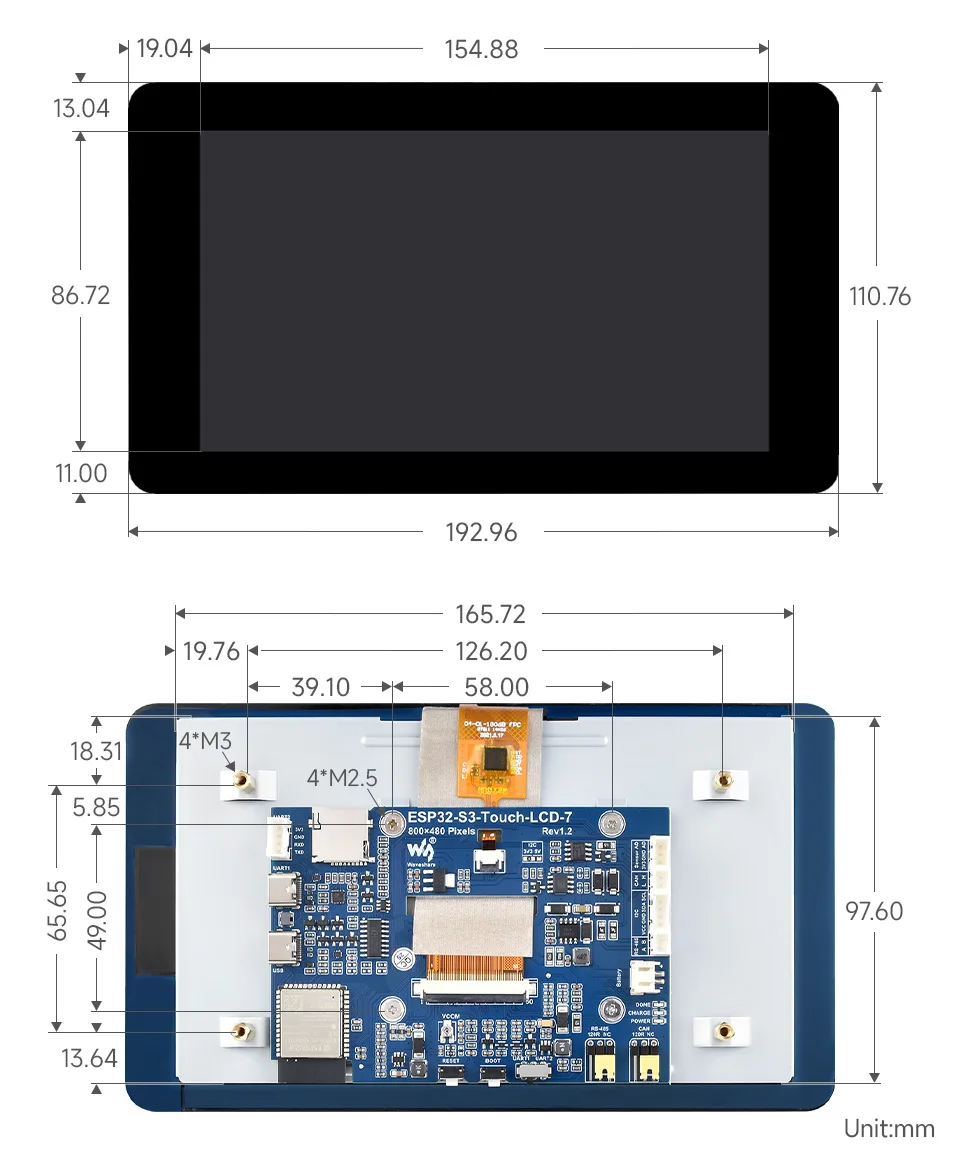

outline dimensions

ESP32-S3-LCD-7

ESP32-S3-Touch-LCD-7

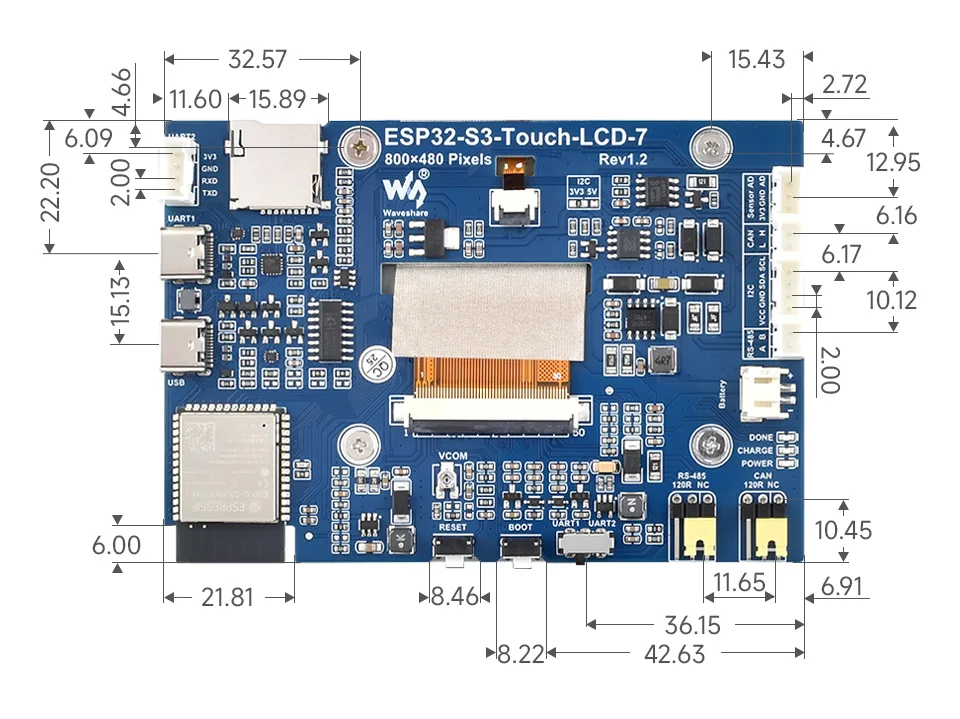

Development Board Size
