360MHz Filter UHF band bandpass BPF Filter module 2W 320MHz - 400MHz Filter module board CNC Al shielding shell SMA port
67.31$
67.19$
Quantity:
1
Availability:
Card Payments
Crypto Payments
Easy return
Reliable Shipping
The passband covers 320 ~ 400MHz UHF communication band, effectively eliminating signal interference from medium wave, long wave, FM radio and TV stations. Low insertion loss, minimum 2W load power, can be used for low-power transmitter output filtering.
Model: KFBP-320/400
System impedance: 50 Ohms
Center frequency: 360 MHz
Center frequency insertion loss: < 5 dB
3dB bandwidth: 320 to 400 MHz
Maximum load power: 2 W (33 dBm)

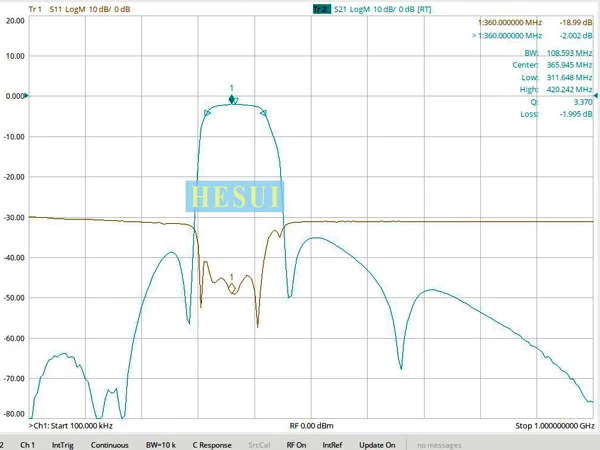

Frequency response diagram:
Interface: SMA-F, SMA-F

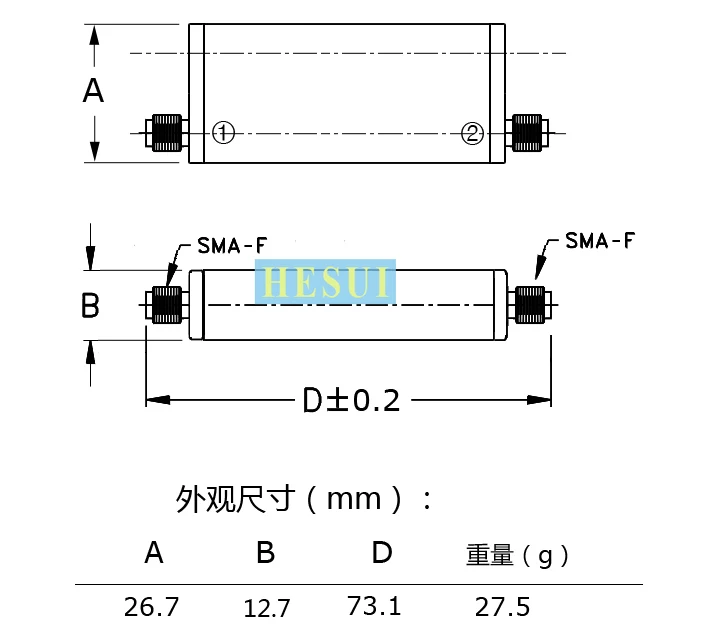

Appearance size:
