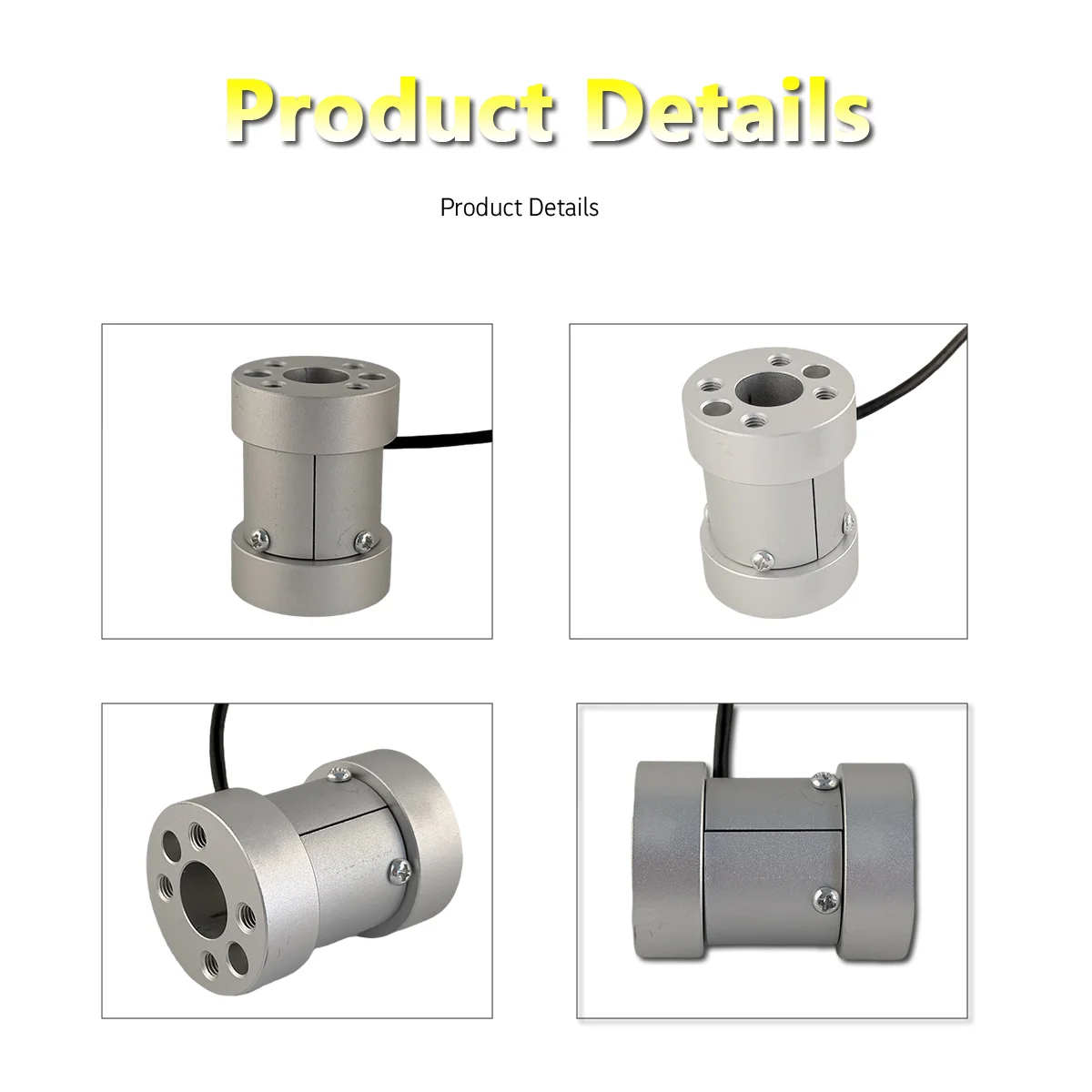

Static Torque Sensor 0-150N.m High Precision Flange Torque Transducer for Bolt Tightening & Structural Testing

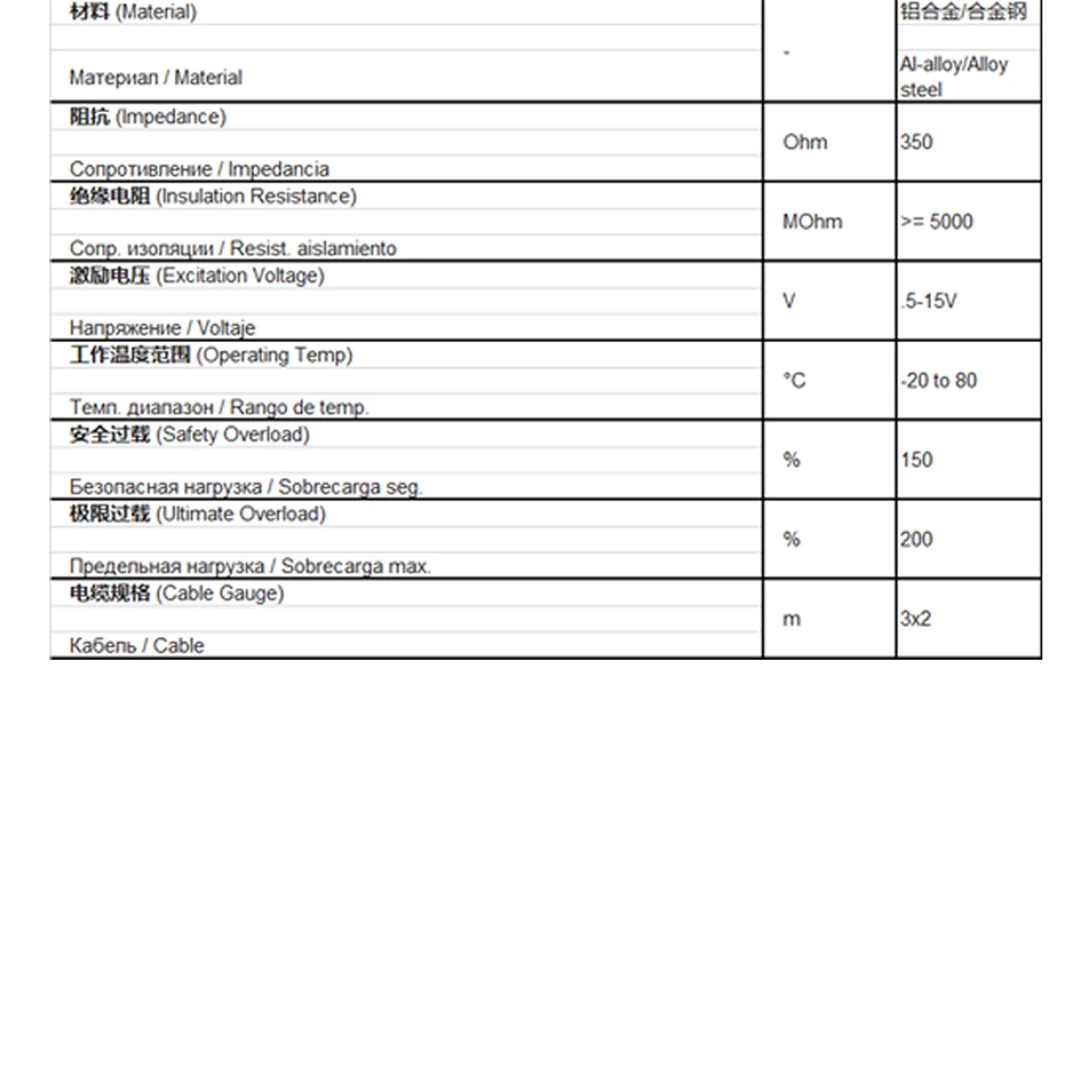

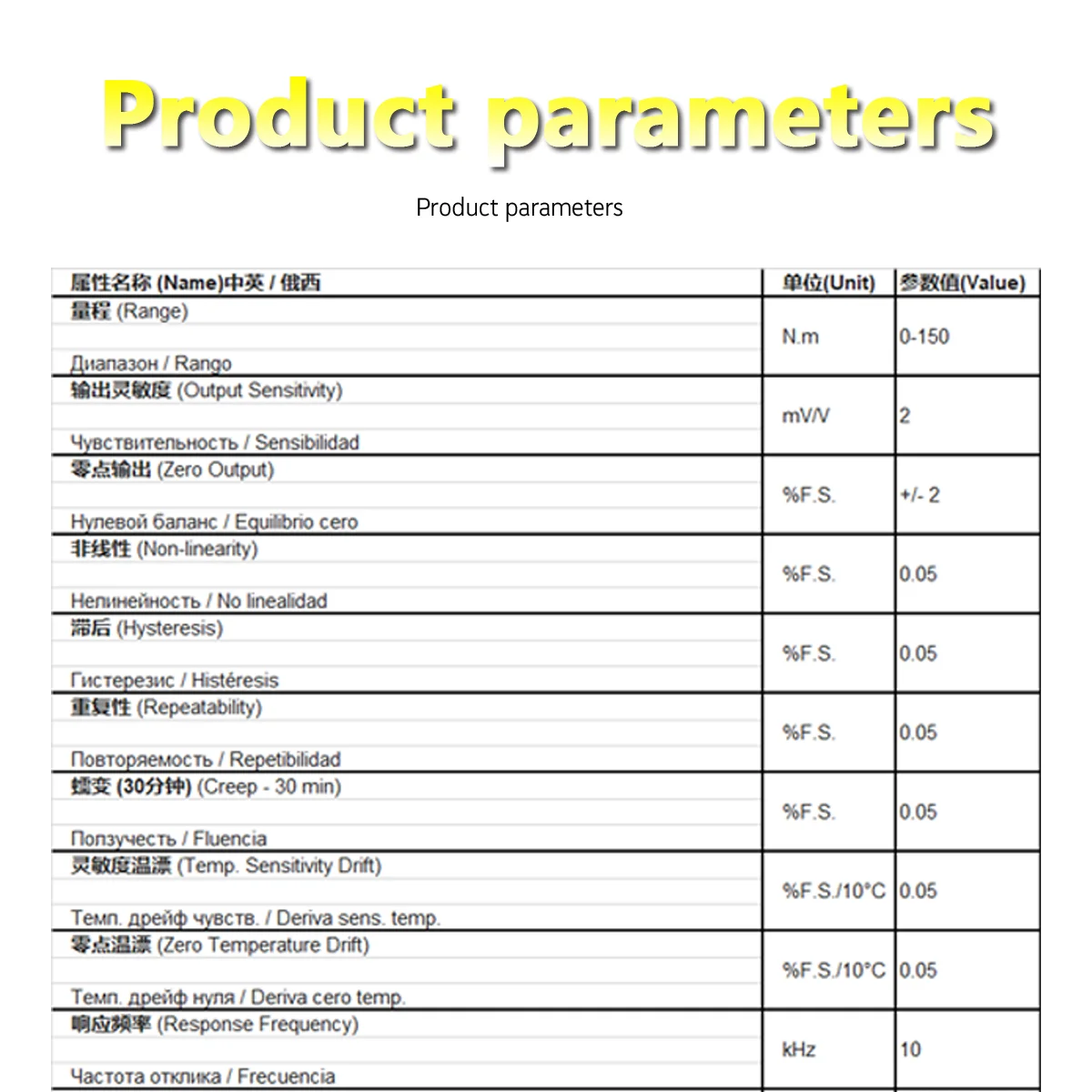

属性名称 (Name)中英 / 俄西 单位(Unit) 参数值(Value) 量程 (Range) N.m 0-150 　 Диапазон / Rango 输出灵敏度 (Output Sensitivity) mV/V 2 　 Чувствительность / Sensibilidad 零点输出 (Zero Output) %F.S. +/- 2 　 Нулевой баланс / Equilibrio cero 非线性 (Non-linearity) %F.S. 0.05 　 Нелинейность / No linealidad 滞后 (Hysteresis) %F.S. 0.05 　 Гистерезис / Histéresis 重复性 (Repeatability) %F.S. 0.05 　 Повторяемость / Repetibilidad 蠕变 (30分钟) (Creep - 30 min) %F.S. 0.05 　 Ползучесть / Fluencia 灵敏度温漂 (Temp. Sensitivity Drift) %F.S./10°C 0.05 　 Темп. дрейф чувств. / Deriva sens. temp. 零点温漂 (Zero Temperature Drift) %F.S./10°C 0.05 　 Темп. дрейф нуля / Deriva cero temp. 响应频率 (Response Frequency) kHz 10 　 Частота отклика / Frecuencia 材料 (Material) - 铝合金/合金钢 　 　 Материал / Material Al-alloy/Alloy steel 阻抗 (Impedance) Ohm 350 　 Сопротивление / Impedancia 绝缘电阻 (Insulation Resistance) MOhm >= 5000 　 Сопр. изоляции / Resist. aislamiento 激励电压 (Excitation Voltage) V .5-15V 　 Напряжение / Voltaje 工作温度范围 (Operating Temp) °C -20 to 80 　 Темп. диапазон / Rango de temp. 安全过载 (Safety Overload) % 150 　 Безопасная нагрузка / Sobrecarga seg. 极限过载 (Ultimate Overload) % 200 　 Предельная нагрузка / Sobrecarga max. 电缆规格 (Cable Gauge) m 3x2 　 Кабель / Cable

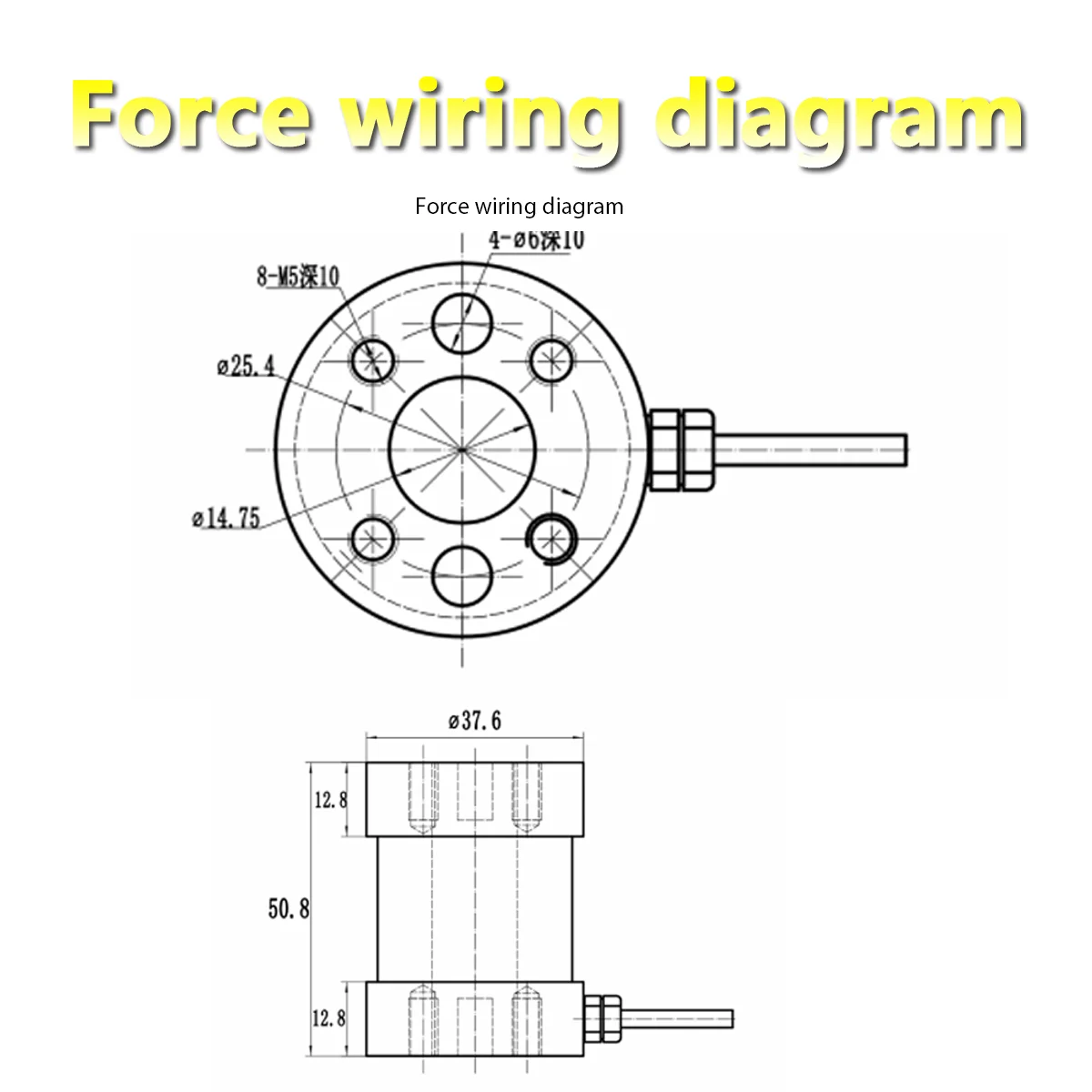

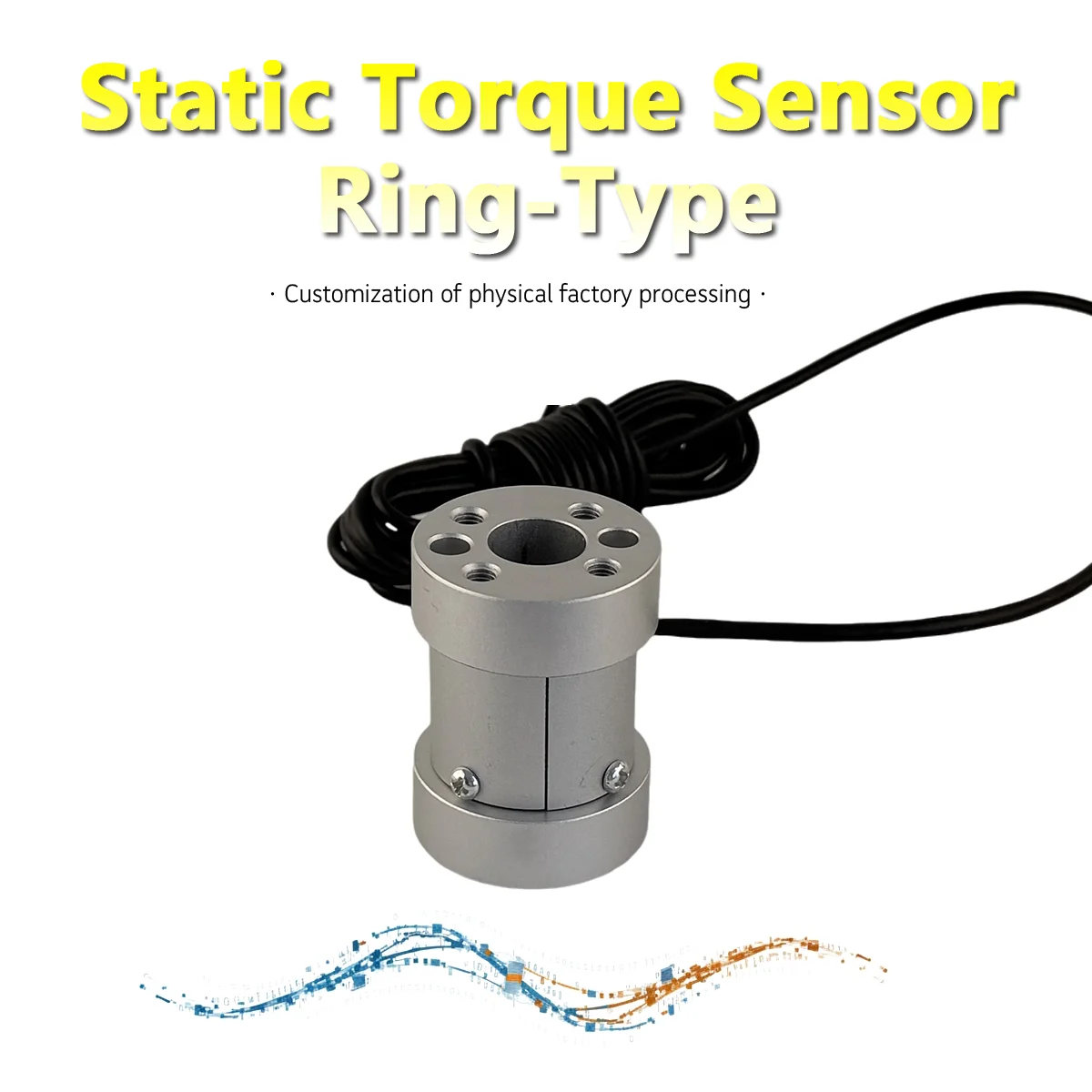

This static torque sensor is specifically designed for measuring non-continuous rotation or stationary torque. Utilizing high-precision resistance strain gauge technology, it features fast response, high reliability, and a long service life. The unique thru-hole flange design allows for easy integration between mechanical connections. It is widely used in testing machines, wrench calibration, fastener torque testing, valve inspection, and torque monitoring in various automated production lines.
