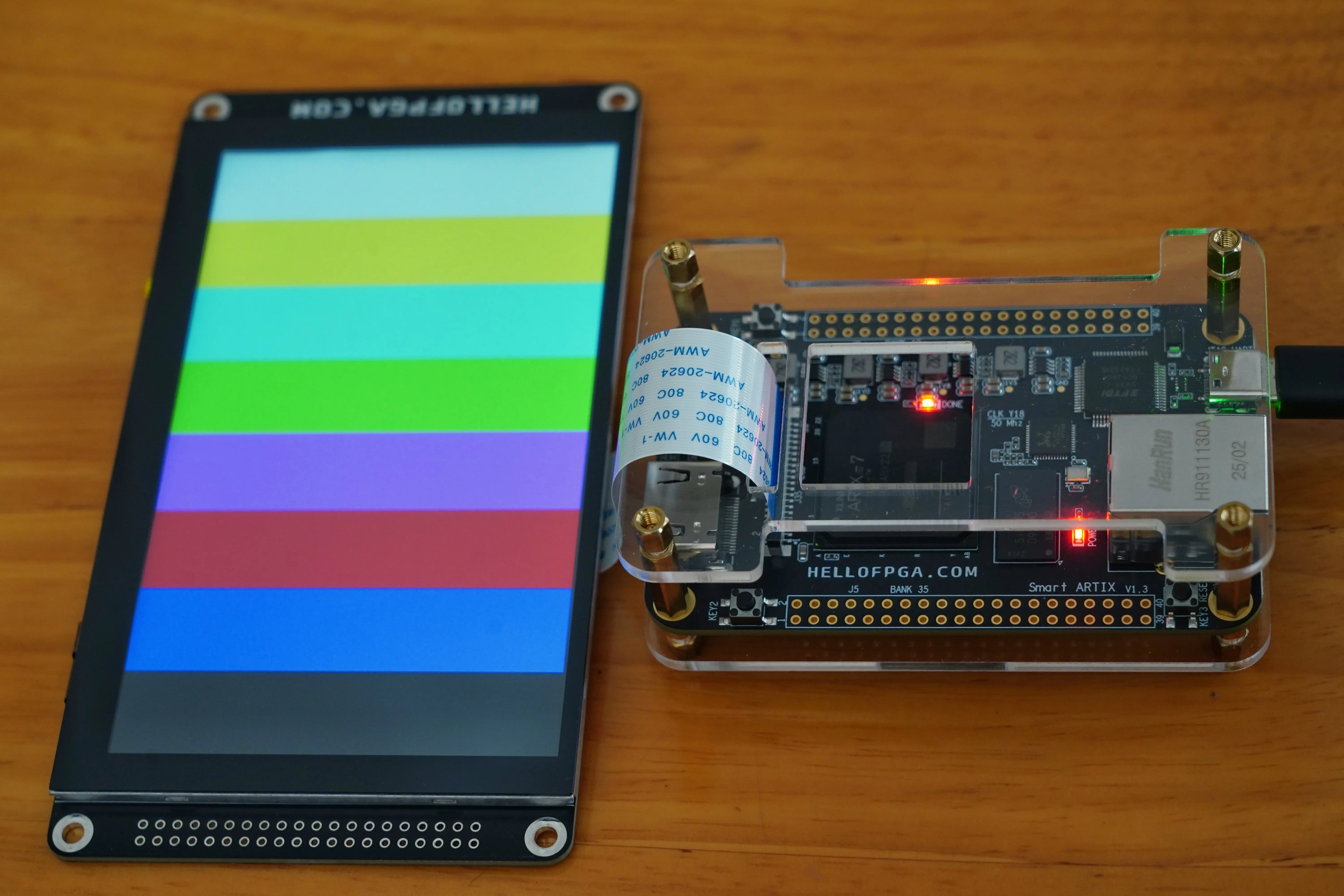

Smart ARTIX Development board FPGA Minimum System Board XC7A50T-FGG484 (Associated with XC7A35T XC7A100T)

The FPC interface with RGBLCD on the board can connect to the RGB screen of (HELLOPGA) and is also compatible with the RGB screen of (Zhengdian Yuanzi / ALIENTEK).

Regarding the development environment support:

Support for VIVADO (most of HELLOFPGA's demos are based on VIVADO 2018.3)

The onboard downloader does not support earlier ISE development environments

Shipping list:

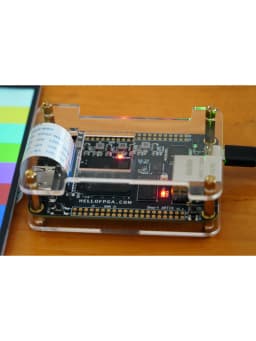

1 set of transparent acrylic protective case (including assembly copper posts and screws)

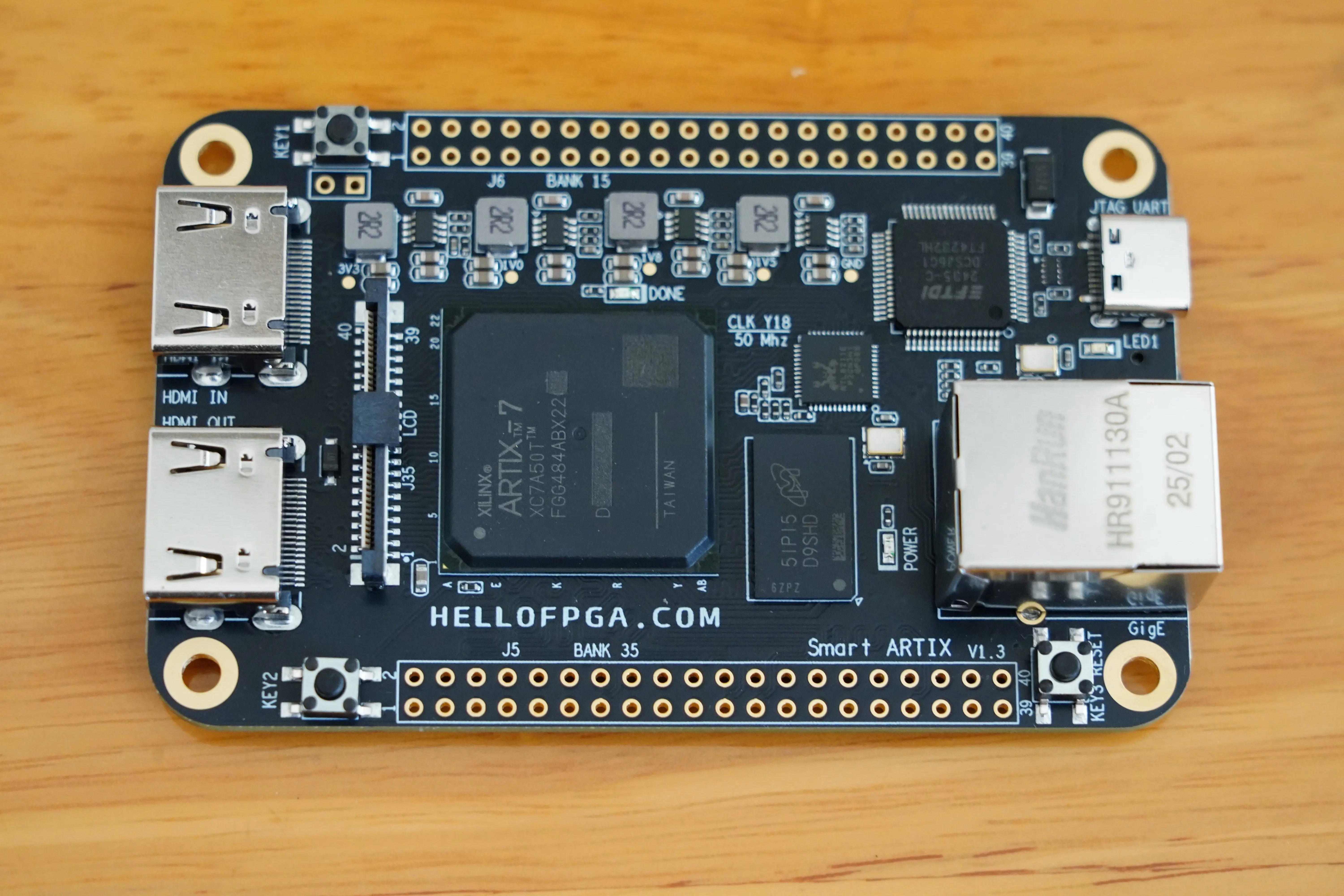

1 set of Smart Artix motherboard

1 TYPEC data cable (50cm)

1 metal heat sink

2 X 20PIN 2.54 pitch pin headers

1 row of colored DuPont cables

Regarding the materials：

1. All products sold in our store are various core boards, targeted at customers with certain development capabilities. There are no other introductory materials provided. The content of the materials mainly includes design drawings and test codes (the content of the complimentary materials is described below on the webpage).

2. Customers who need to select a model should refer to the product information introduction below the webpage. The materials will be downloaded through a Baidu Cloud Disk link or shared via email after shipment.

3. If you do not receive the data link after a long period of time after placing the order, please proactively contact customer service.

After-sales service：

1. Each development board undergoes testing before shipment, and in principle, there should be no quality issues.

2. Please ensure that the goods are intact before receiving them. To protect our rights and interests, all products will be photographed and saved before shipment.

3. Products sold are not eligible for return.
