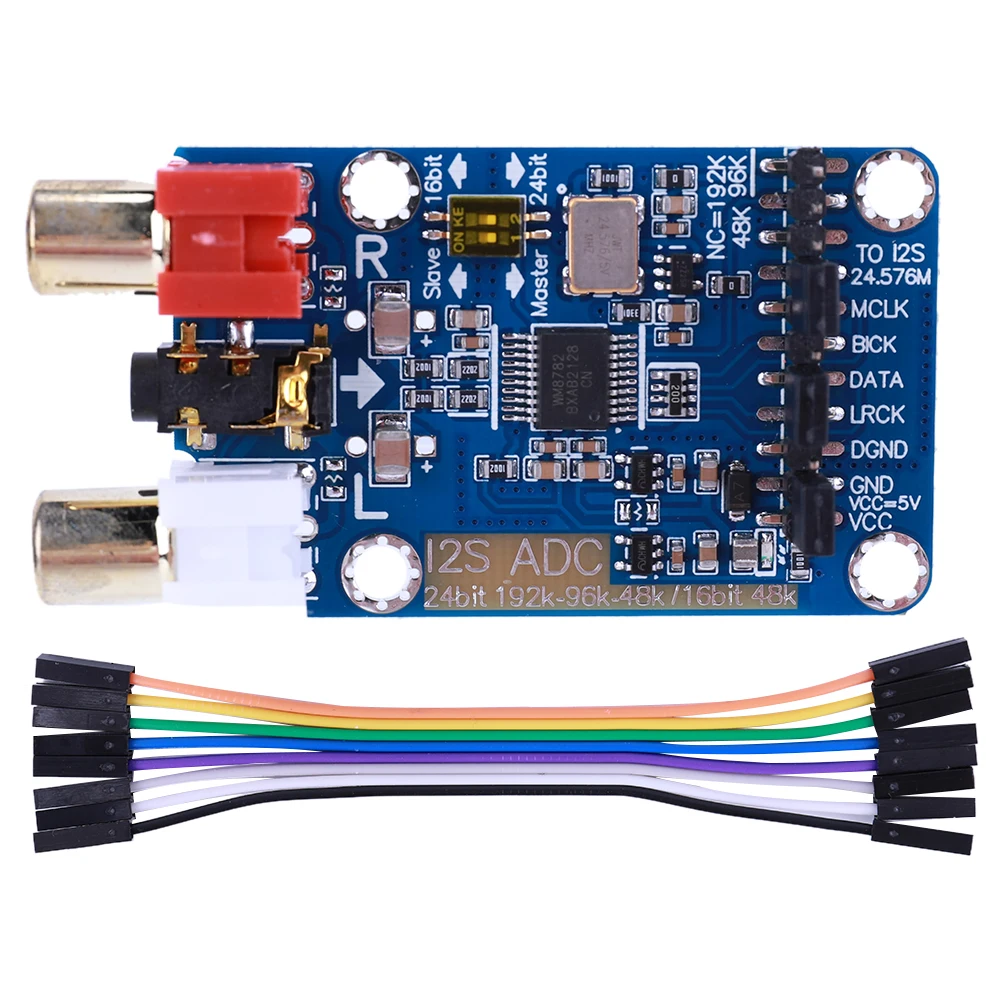

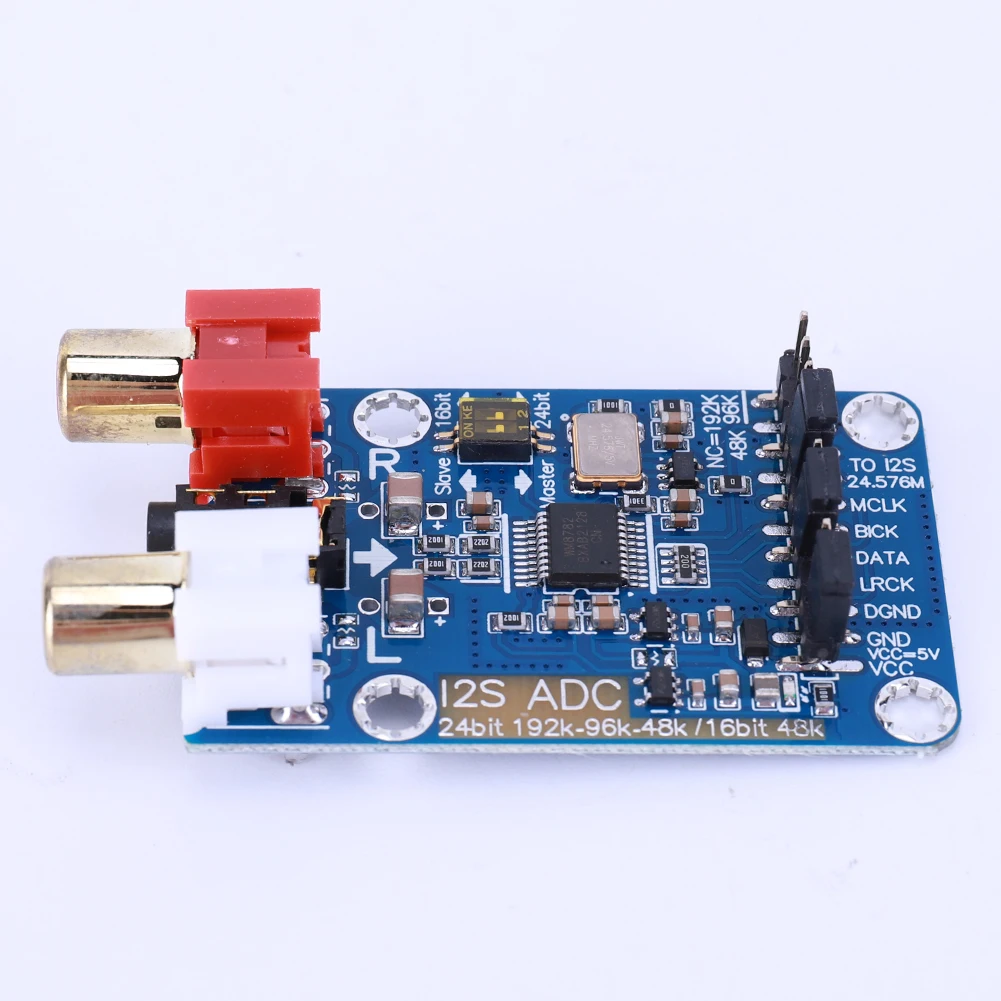

I2S ADC Audio I2S Capture Card Module 24BIT 192K 96K 48K Lossless Digital Audio Decoder Support 3.5MM/RCA Input

I2S ADC Master Slave Mode Development Board WM8782S Lossless Digital Audio Decoder 24BIT 192K 96K 48K Support 3.5MM/RCA Input
Features:
1. Versatile I2S Support: The I2S ADC hifi audio acquisition card module seamlessly converts analog signals into I2S format, offering flexibility with support for both master and slave modes, facilitating integration into various audio systems.
2. High-Resolution Master: Set the audio card module to master mode and achieve high-fidelity sound with 24-bit depth at 192kHz or 96kHz, creating studio-quality audio capture in your own setup.
3. Slave Mode Options: The master slave mode development board can be configured as a slave, allowing for 24-bit audio at sampling rates of 192K, 96K, or 48K, as well as a 16-bit 48K option, giving you a range of quality settings to match your project's requirements.
4. Auto-Conversion on Startup: With a default master output mode, the audio I2S capture card module automatically converts incoming audio signals to a 24-bit 192K/96K I2S signal upon power-up, ensuring an efficient and hassle-free startup process.
5. Flexible Input Compatibility: This audio card module for the sound card module accommodates 3.5mm jack inputs, with a default amplification of 6dB, providing compatibility and enhanced audio performance for a variety of external audio sources.
Specification:
Origin: Mainland China
Type: Module
Condition: New
Product Description:
The I2S ADC Supports Master-Slave Mode
Convert The Analog Signal To A 12S Signal
Default 6DB Magnification Effect
Supports 3.5mm Or Rca InputHost Mode:
24bit 192k /24bit 96kSlave Mode:
24bit 192k /24bit 96k/24bit 48k
16bit 48k
Parameter Properties:
I2S ADC Module Analog Audio AcquisitionUpgrades:
Host Mode:
Set The 24bit 192k Host Mode (2)
24bit 96k Host Mode Can Be SetSlave Mode:
1.24bit 192k Slave Mode Can Be Set
2.Can Be Set 24bit 96k Slave Mode
3.Can Be Set 24bit 48k Slave Mode Can Be Set
4.16bit 48k Slave Mode Can Be Set

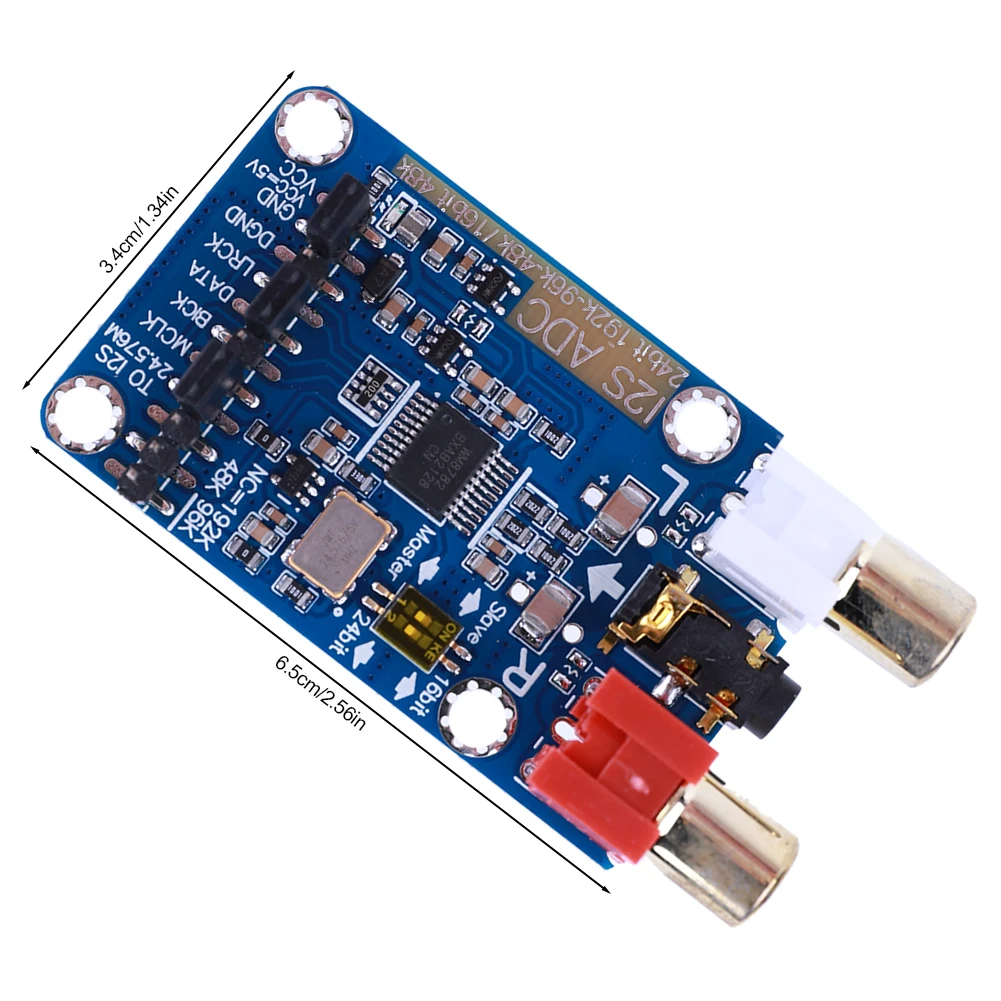

Product Size: 65.00*34.00*12.00mm/2.56*1.34*0.47inch Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1*HiFi Audio Acquisition Card Module
