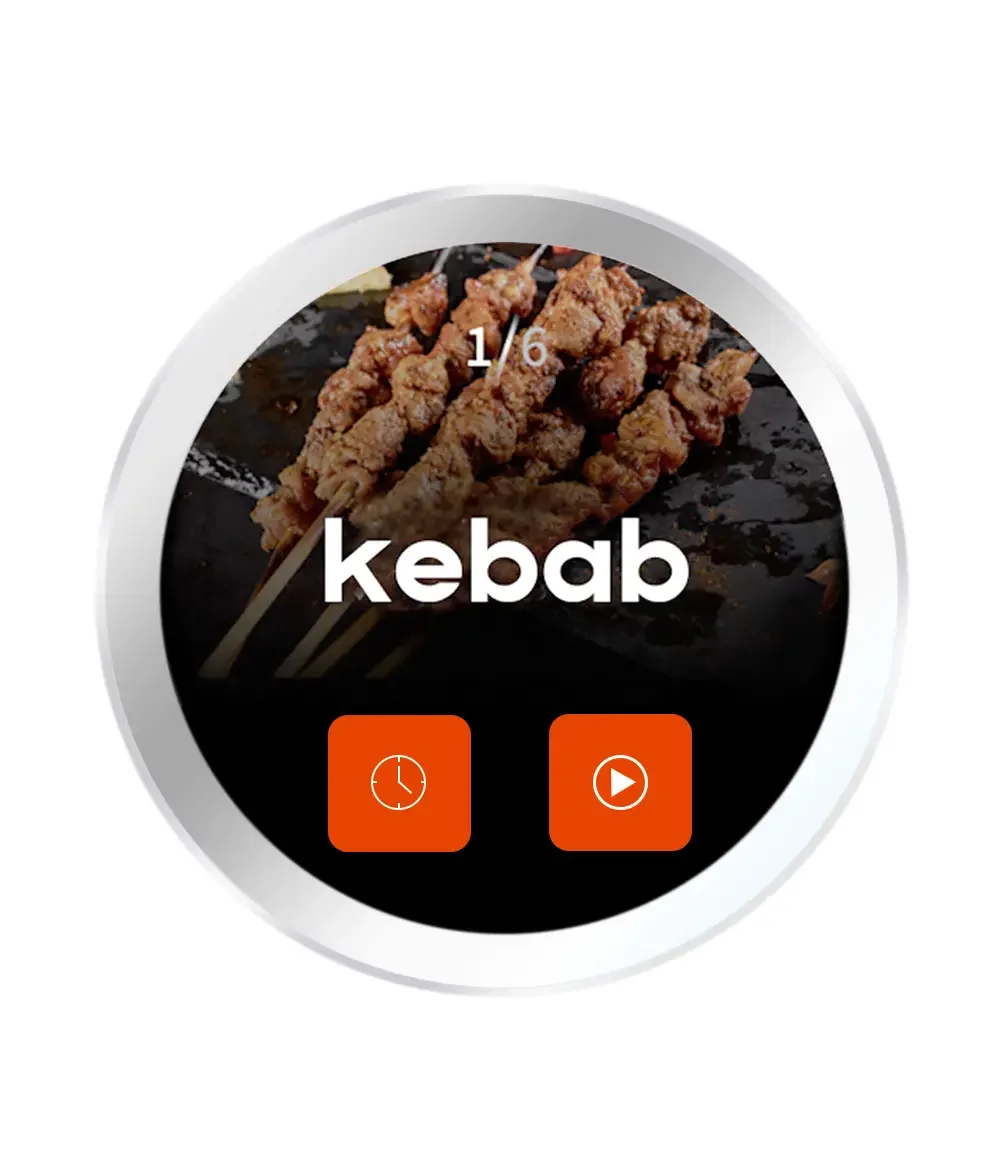

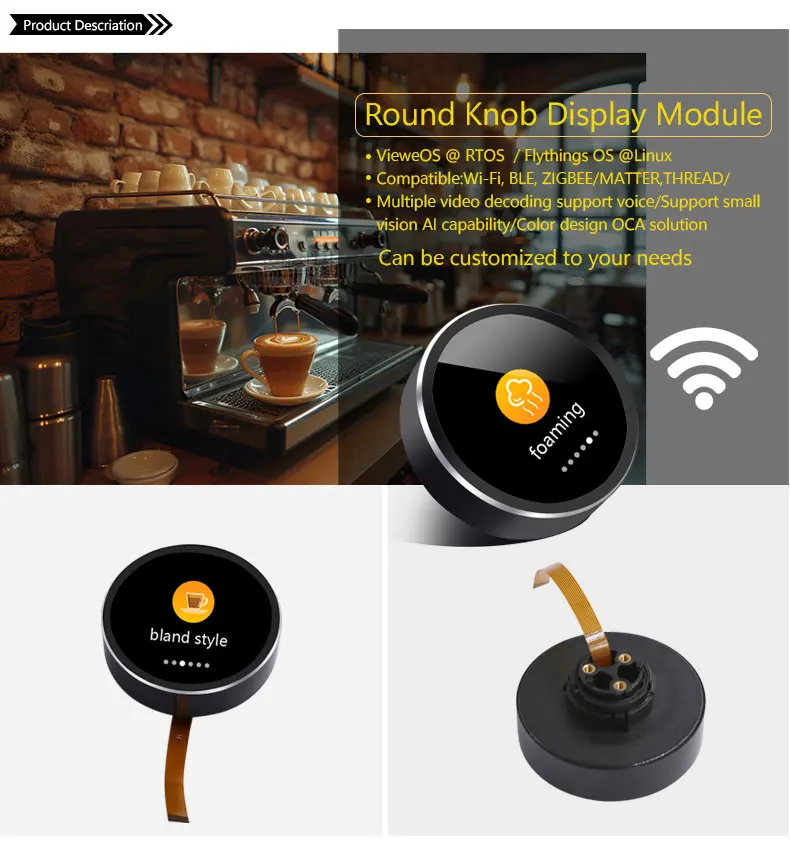

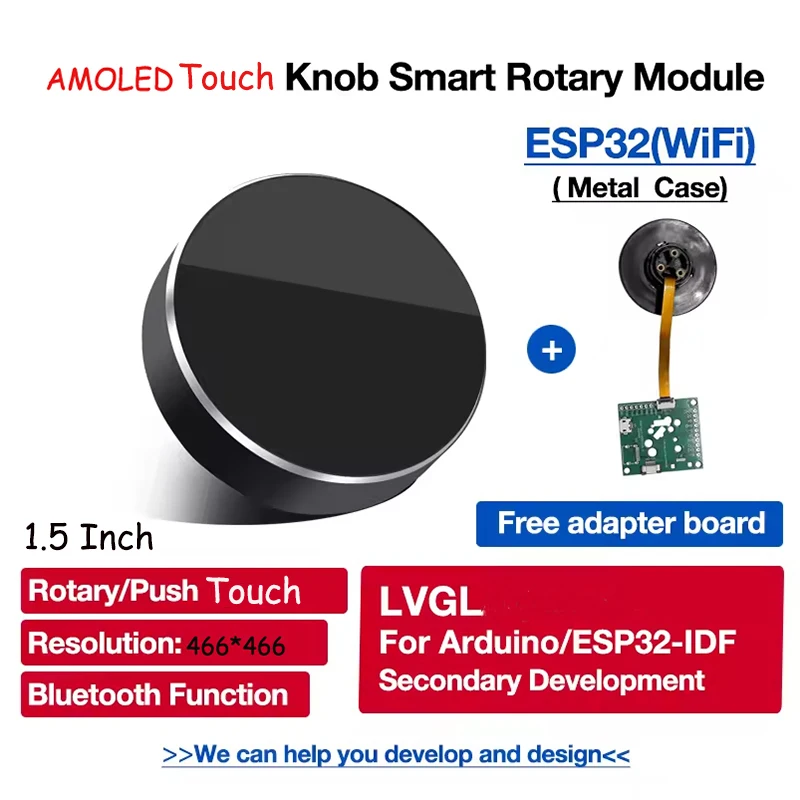

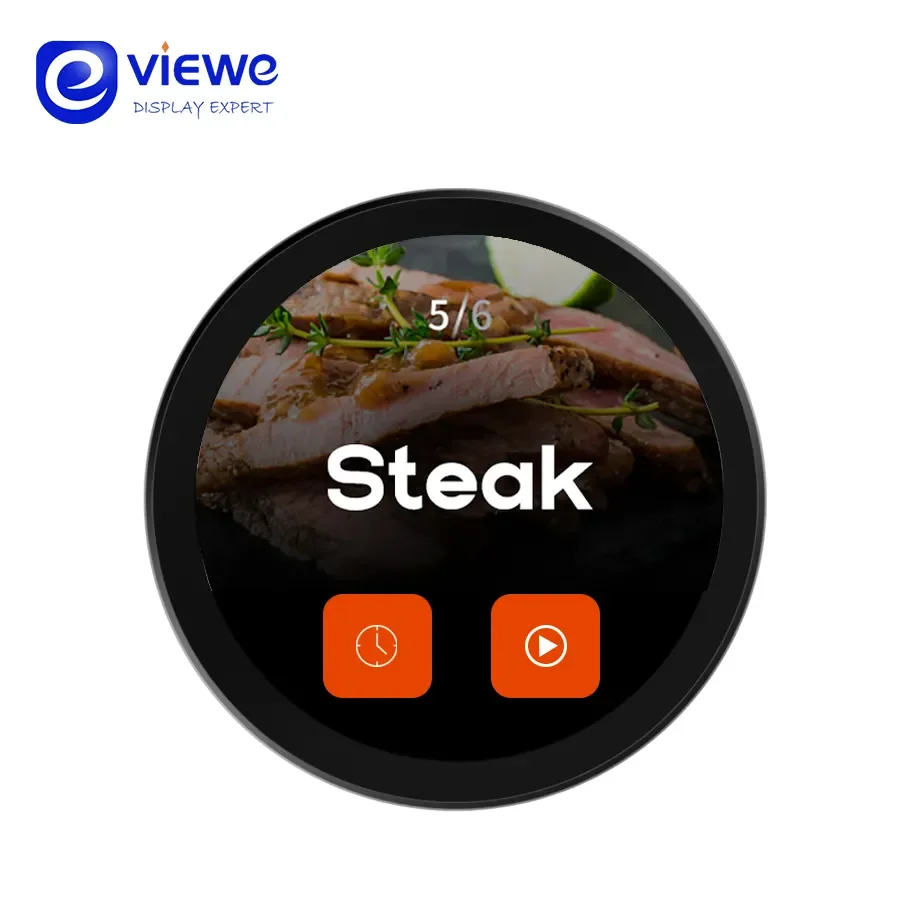

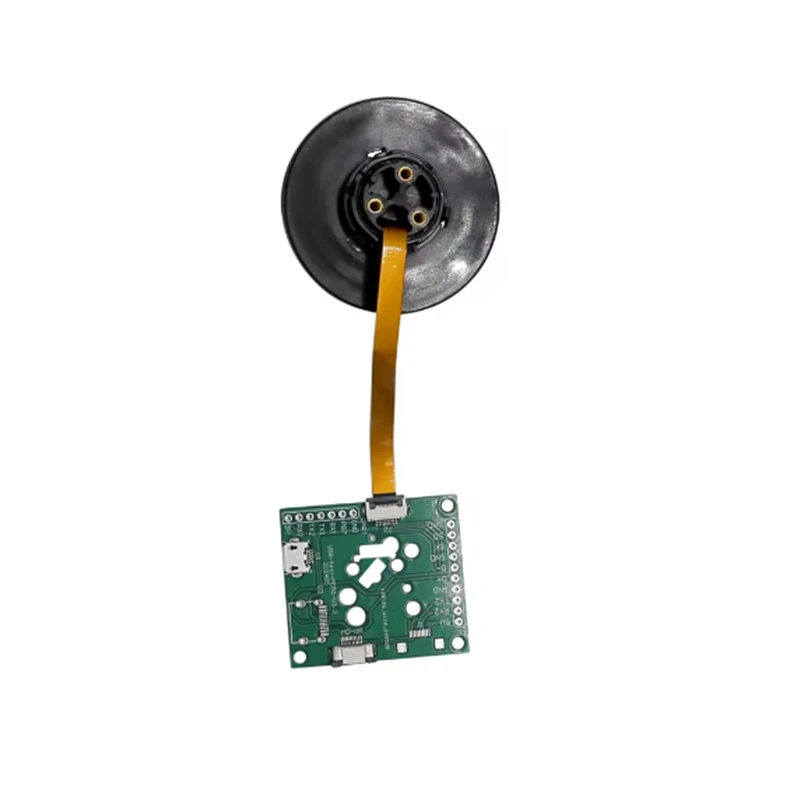

AMOLED ESP32 S3 LVGL Ar-duino 1.5 Inch 466*466 OLED IPS Circular Knob Rotary Round Touch Display with Wifi BLEs

Brief Info:

1) Outline Dimension: Ф51.6 Round

2) Interaction Method: Rotate, Press and Touch

3) Shell Color: Black/Silver/Customized

4) Power: DC 5V, 100mA

System

1) OS: RTOS

2) CPU: ESP32-S3 240Mhz

3) RAM: 8MB

4) Flash: 16MB

5) Interface: UART/USB

6) Support 2.4GHz Wi-Fi. BLE 5. BLE Mesh

Display

1) Size: 1.5 Inch OLED

2) Resolution: 466*466

3) Mode: IPS

4) Brightness: 1000 cd/m2

5) Touch: Yes

Other

1) Operation Temperature: -20-60°С

2) Storage Temperature: -30-70°С

Purchase Instructions:

Dear customers, welcome to Our shop ! Hope you have a good business trip in our store！

1. Please select the model you need. If you have any questions, please contact us.

2. The product can provide detailed development data and technical support. Please contact us !

3. For repair and replacement, if you are not familiar with LCD, pls contact us first !

4. If you have any questions about freight and price, please contact us.

5. Pls choose the right shipment .According to experience, we suggest to choose Aliexpress Standard shipping .

6.We are factory . We support customized products if you have big quantity .

7. If you have any questions, please contact us first. Thanks for your cooperation!

We will send you free small board for testing.
