Waveshare ESP32-S3 1.28 inch Touchscreen Round Display Development Board 240X240 Pixel GC9A01 Driver for Arduino IDE MicroPython

Wiki:

www.waveshare.com/wiki/ESP32-S3-LCD-1.28

Wiki:

www.waveshare.com/wiki/ESP32-S3-Touch-LCD-1.28

                 ESP32-S3-LCD-1.28

Features

ESP32-S3-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch LCD display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency

Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (BLE), with onboard antenna

Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory

Type-C connector, keeps it up to date, easier to use

Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color

Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture

Onboard 3.7V lithium battery recharge/discharge header and GPIO headers

Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions

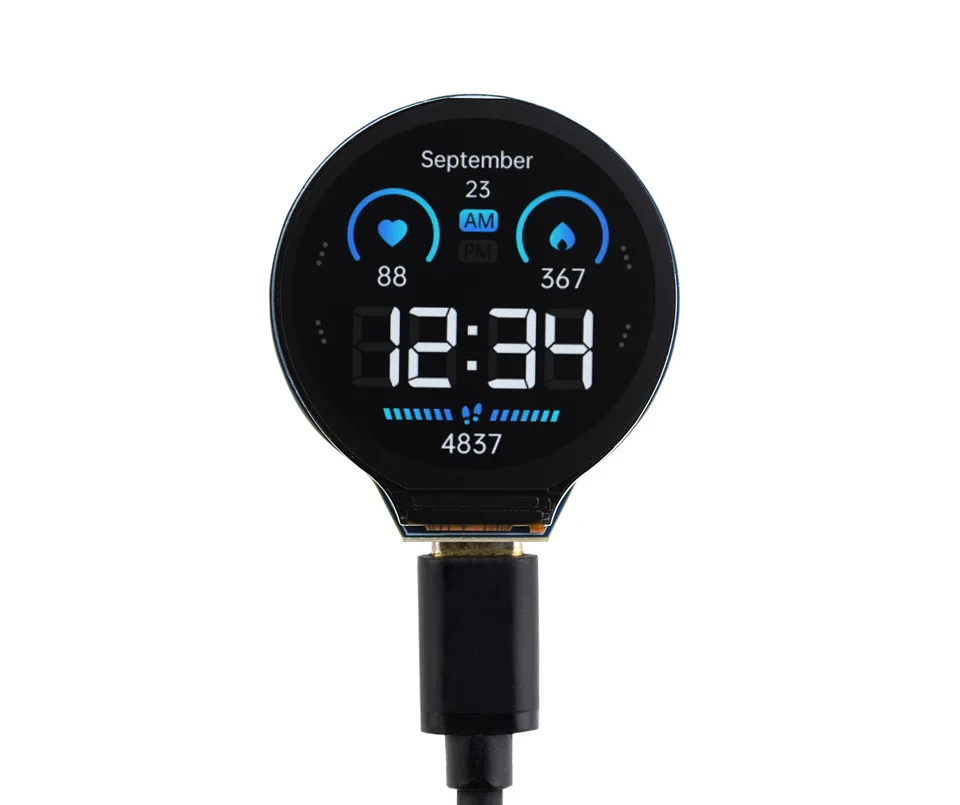

                               Onboard 1.28inch LCD Screen

                                       Round IPS Panel, 240×240 Resolution, 65K Color

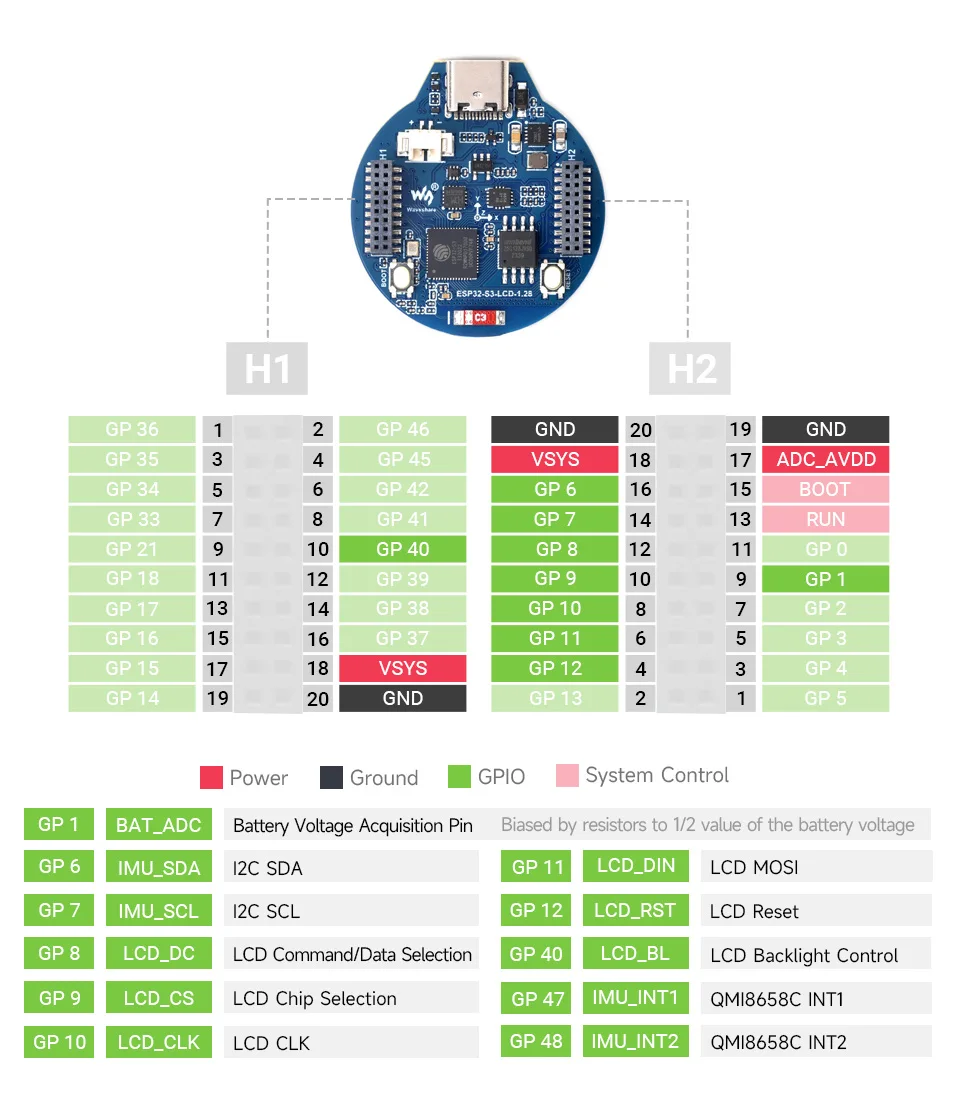

                                       30 × Multi-Function GPIO Pins

               Configurable Pin Function, Allows Flexible Development And Integration

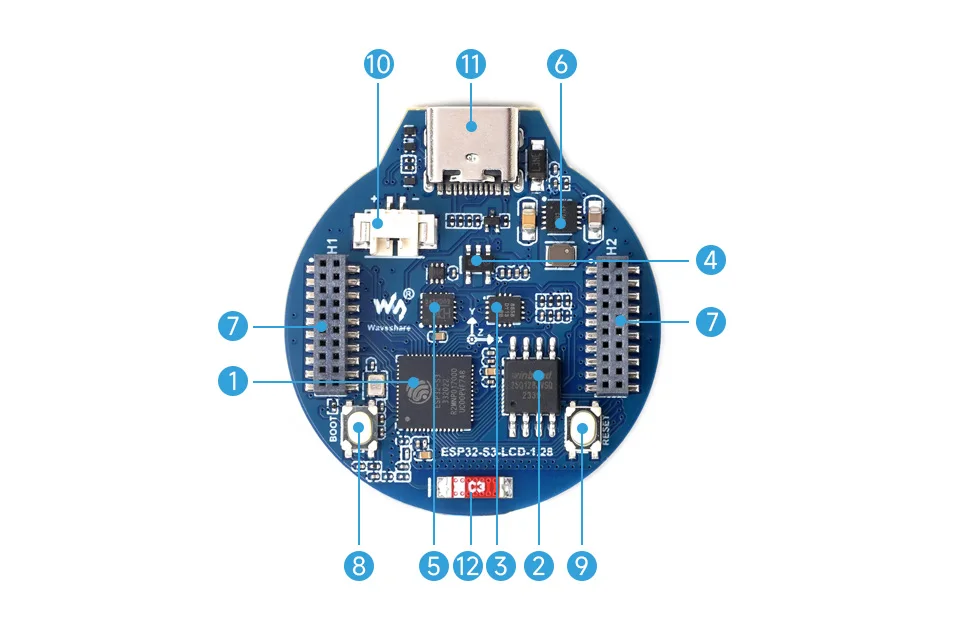

                       What's On Board

ESP32-S3R2

The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM

W25Q128JVSIQ

16MB NOR-Flash

QMI8658

6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.

ME6217C33M5G

800mA output, low dropout, high rejection rate

CH343P

USB to UART chip

ETA6096

high-efficiency Lithium battery recharge manager

1.27mm pitch headers

Adapting multiple GPIO pins

BOOT button

Press it before resetting to enter download mode

RESET button

MX1.25 battery header

MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging

USB Type-C connector

USB to UART, for programming and log printing

2.4GHz ceramic antenna

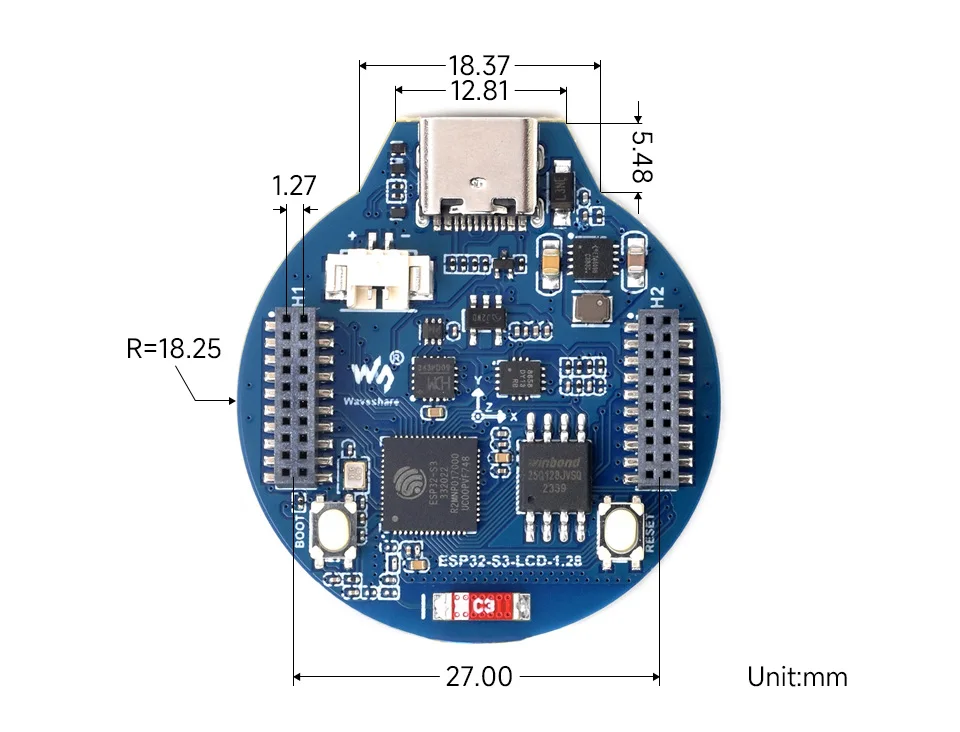

                        Outline Dimensions

ESP32-S3-Touch-LCD-1.28

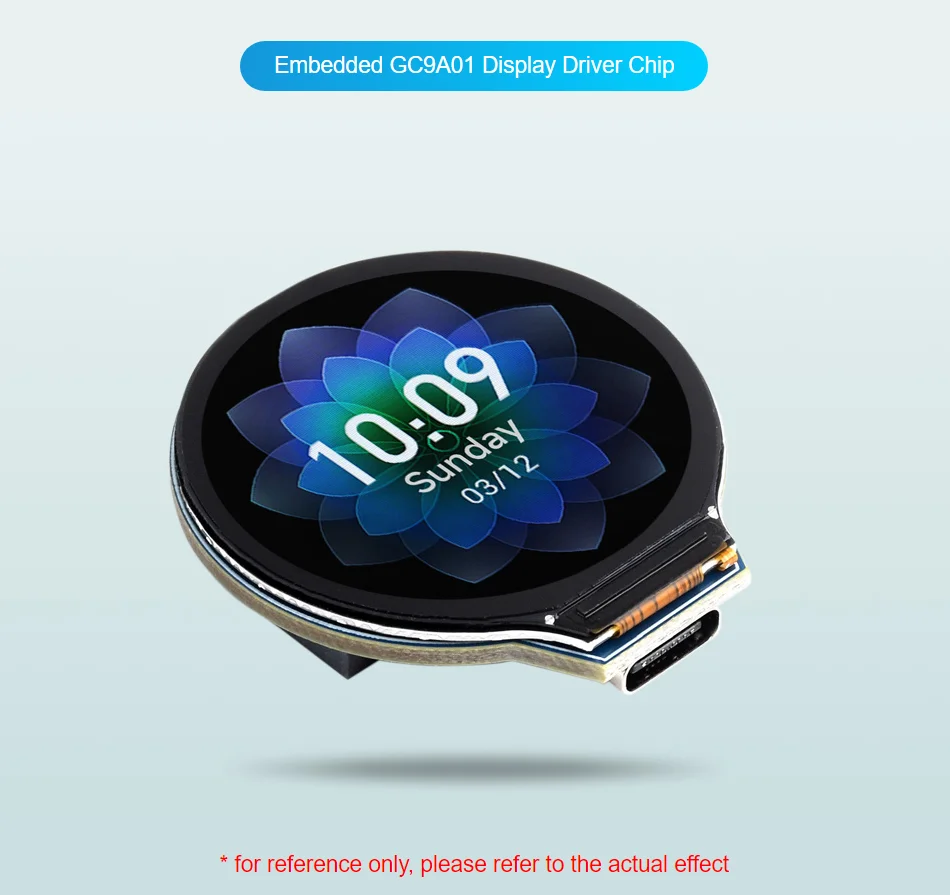

Embedded GC9A01 Display Driver And CST816S Capacitive Touch Control Chip

Features

ESP32-S3-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency

Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), with onboard antenna

Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory

Type-C connector, keeps it up to date, easier to use

Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color

Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture

Onboard 3.7V lithium battery recharge/discharge header and 6 × GPIO pins via SH1.0 connector

Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions

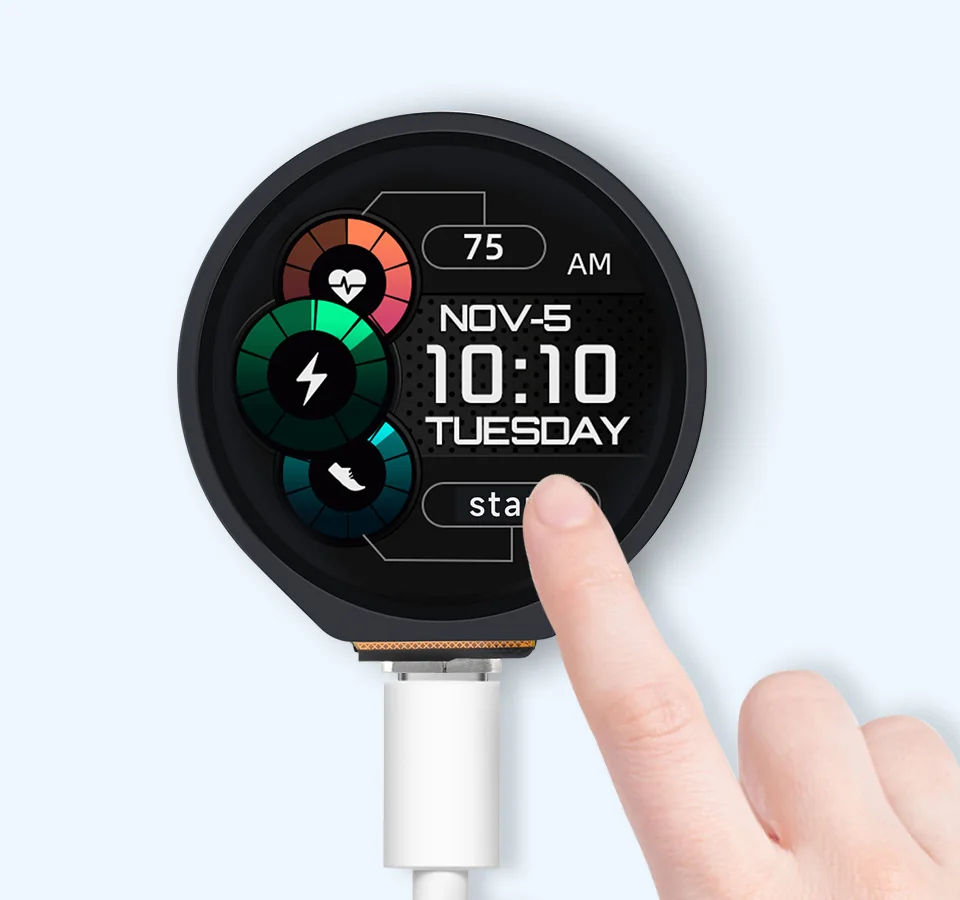

Small Size, Touch More Possibilities

Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function

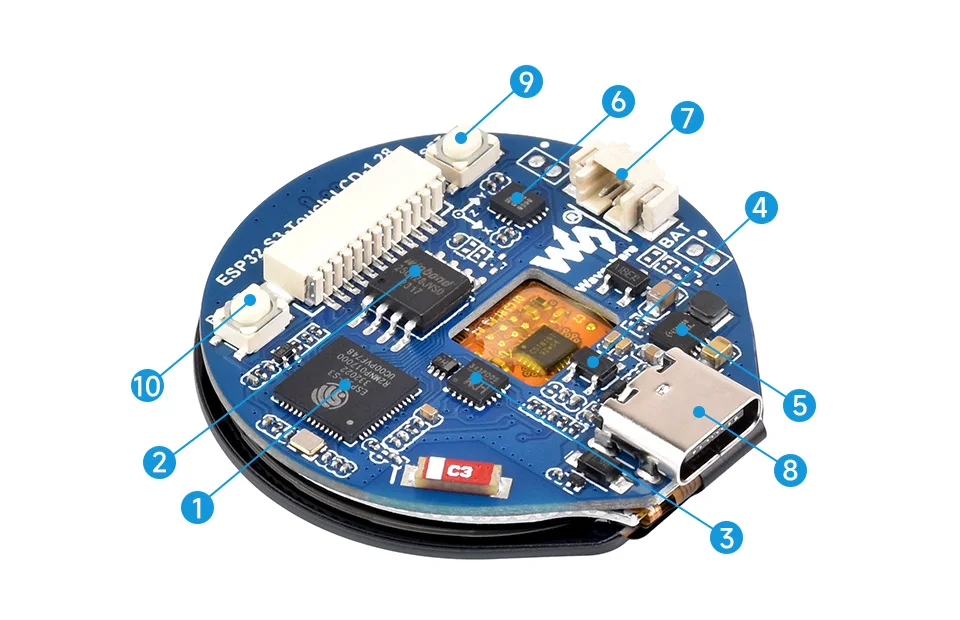

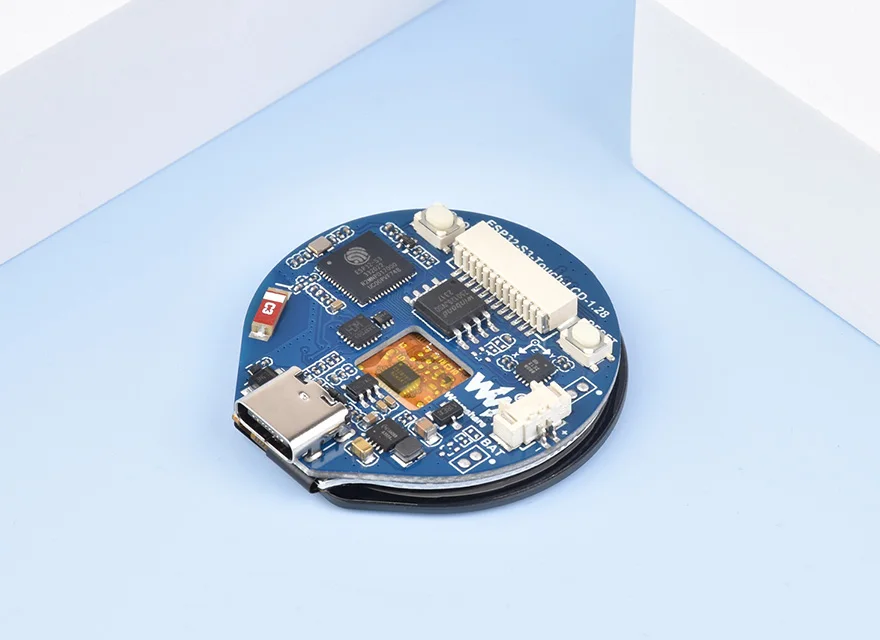

What's On Board

ESP32-S3R2

The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM

W25Q128JVSIQ

16MB NOR-Flash

CH343P

USB to UART chip

ME6217C33M5G

800mA output, low dropout, high rejection rate

ETA6096

high-efficiency Lithium battery recharge manager

QMI8658

6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.

MX1.25 battery header

MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging

USB Type-C connector

supports USB1.1 hosts and slave devices

RESET button

BOOT button

Press it before resetting to enter download mode

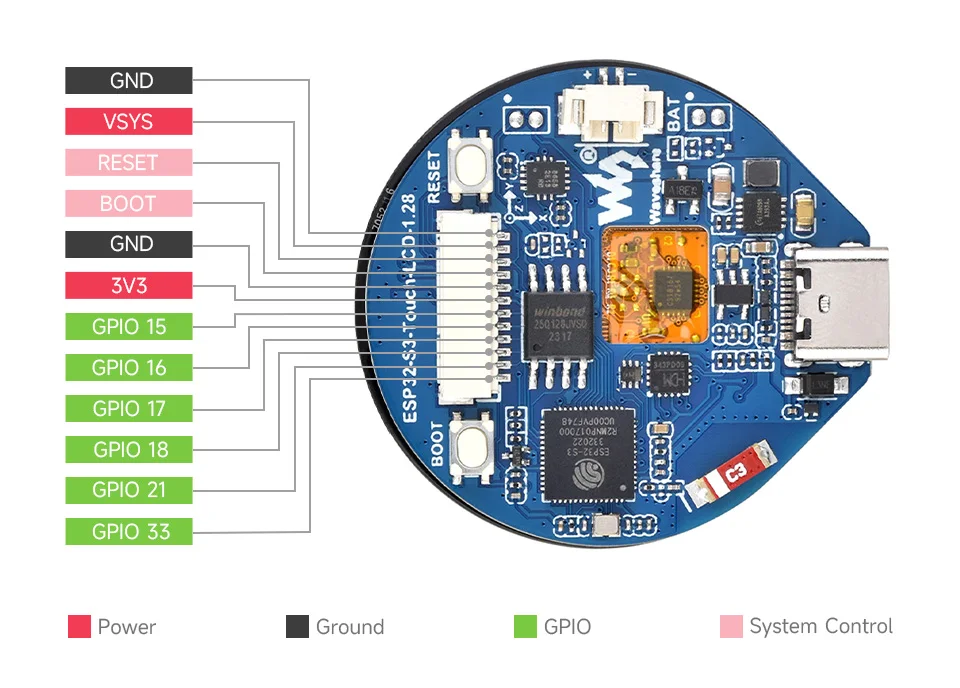

Pin Definition

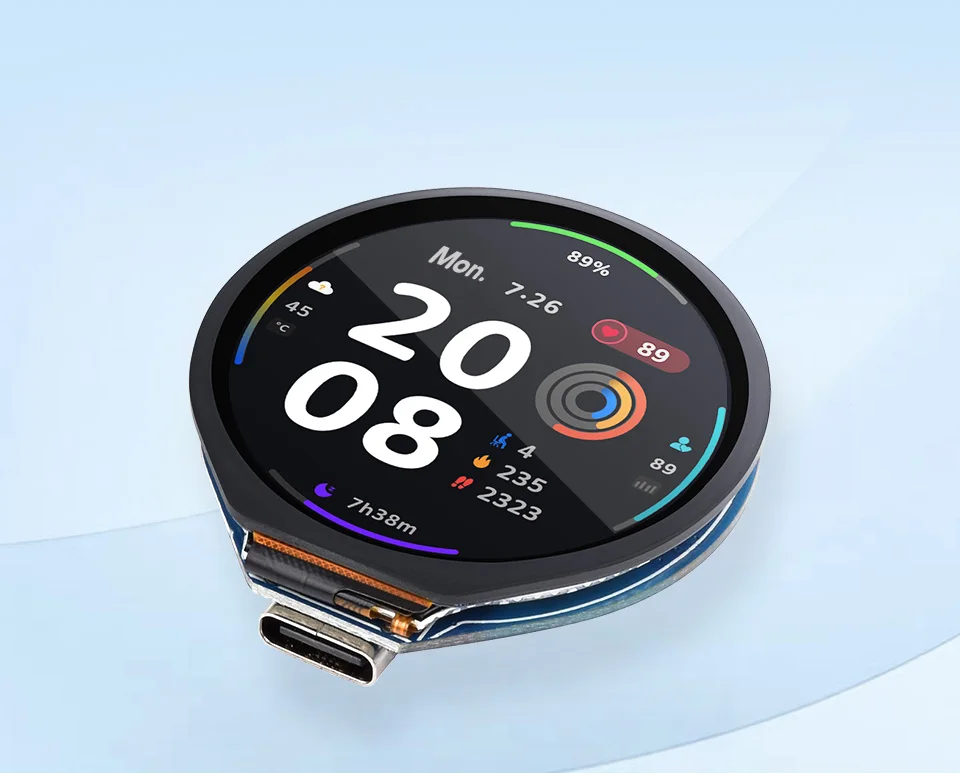

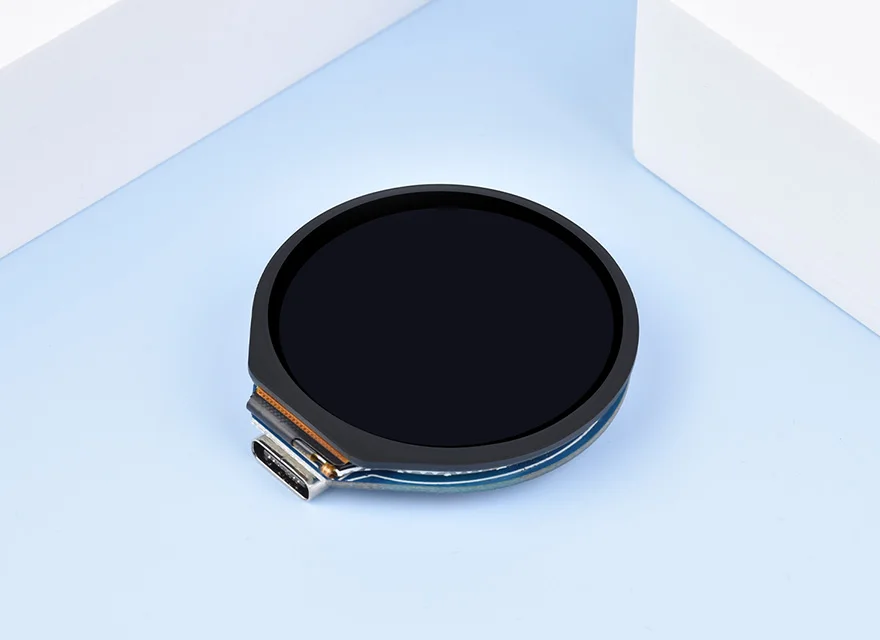

Product Show

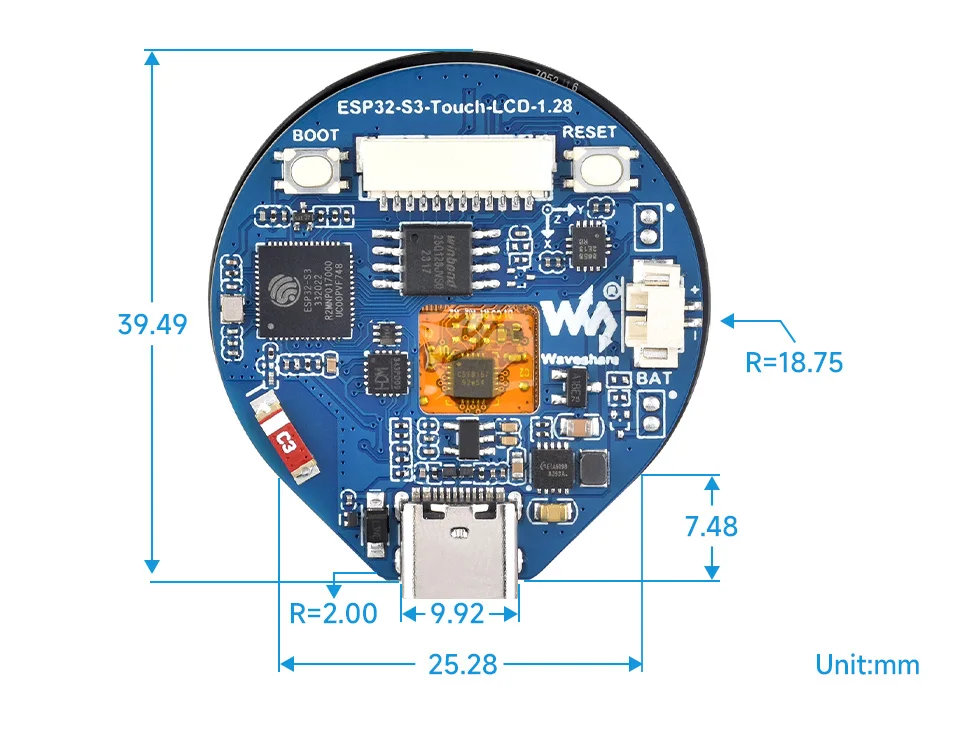

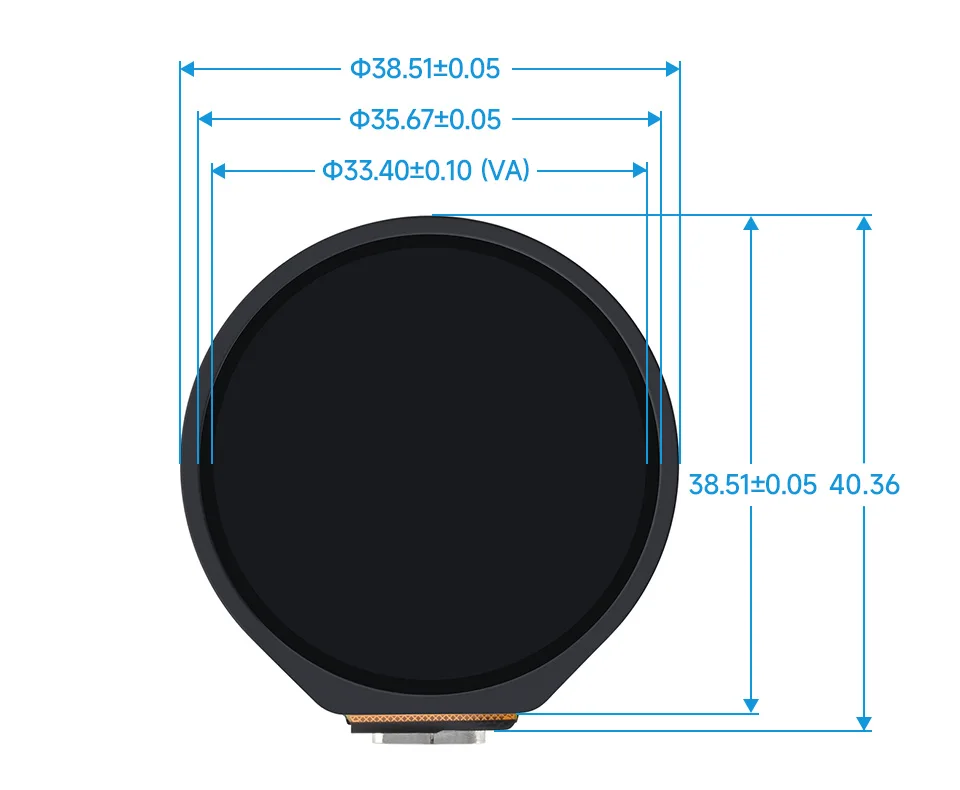

Outline Dimensions
