XKC-C383 Automatic Pumping and Drainage Water Liquid Level Controller,DC12V-24V/AC110V-220V Non-contact Level Sensors

1、Product selection model

AC:110V-220V

DC:12V-24V

XKC-C383-1P, (with 1 sensor);

XKC-C383-2P, (with 2 sensors);

XKC-C383-3P, (with 3 sensors);

2、Overview

XKC-C383-110V-220V-XP high and low level controller and two non-contact liquid level detection heads realize the function of liquid level high and low control: when the container liquid level is too low, the low liquid level alarm signal sent by the low liquid level sensor is triggered to trigger C383 The controller closes the relay and starts the water pump to add the liquid level. When the liquid level reaches a certain height, the high liquid level sensor sends out a signal to trigger the C383 controller to open the relay and automatically stop the water pump to work in this way. Thereby, the function of automatic control of the container liquid level is realized, and the container liquid level is kept stable.

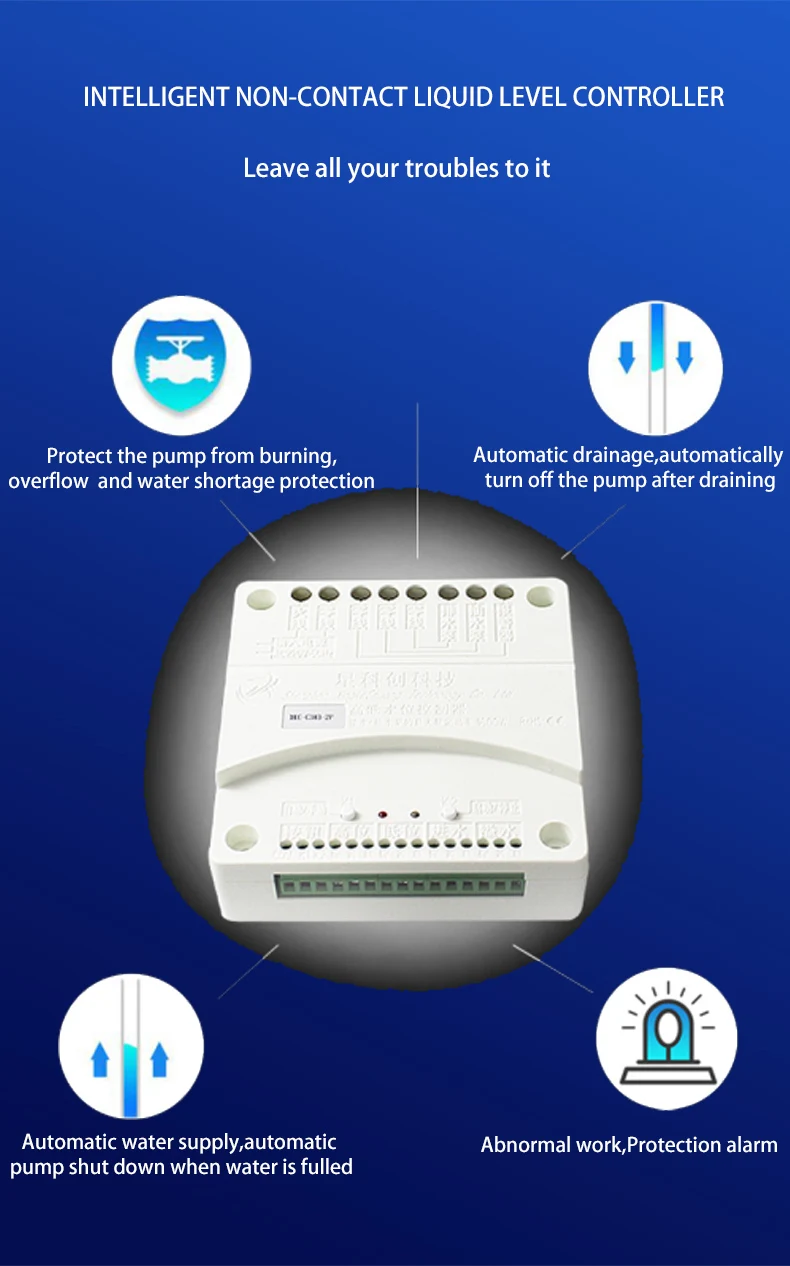

3、Product Features

AC110V-220V wide voltage power supply

Relay active contact output, suitable for various load control.

The control is diversified, and the pump can be controlled in manual or automatic mode.

Screw wall mounting is simple and convenient.

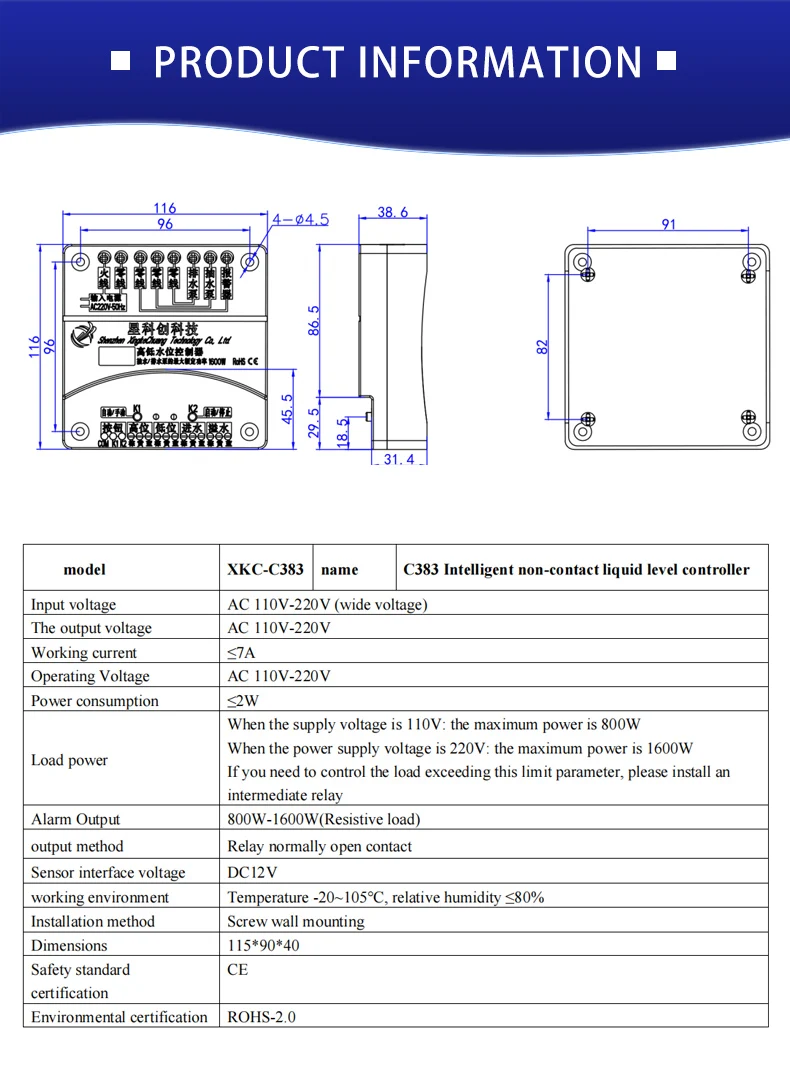

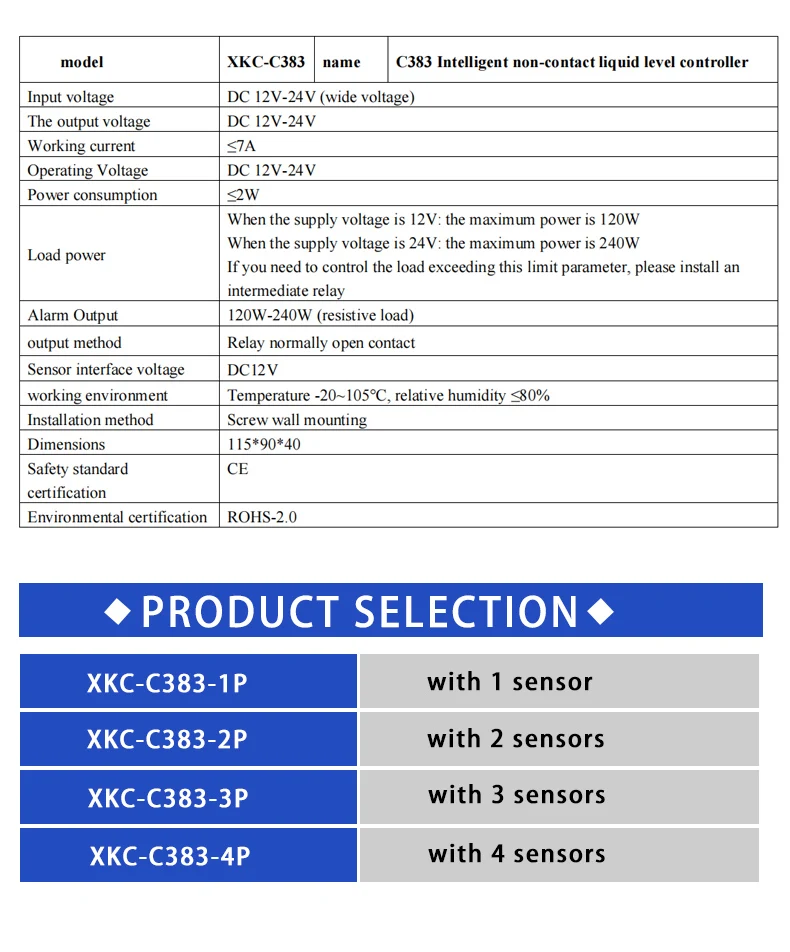

4、Technical Parameters

1.Input voltage：AC 110V-220V (wide voltage)

2.The output voltage：AC 110V-220V

3.Working current：≤7A

4.Operating Voltage：AC 110V-220V

5.Power consumption：≤2W

6.Load power：When the supply voltage is 110V: the maximum power is 800W

When the power supply voltage is 220V: the maximum power is 1600W

If you need to control the load exceeding this limit parameter, please install an intermediate relay

7.Alarm Output：800W-1600W(Resistive load)

8.output method：Relay normally open contact

9.working environment：Temperature -20~80℃, relative humidity ≤80%

10.Installation method：Screw wall mounting

11.Dimensions：115*90*40

12.Safety standard certification：CE

13.Environmental certification：CCC

14.Dimensions：ROHS-2.0

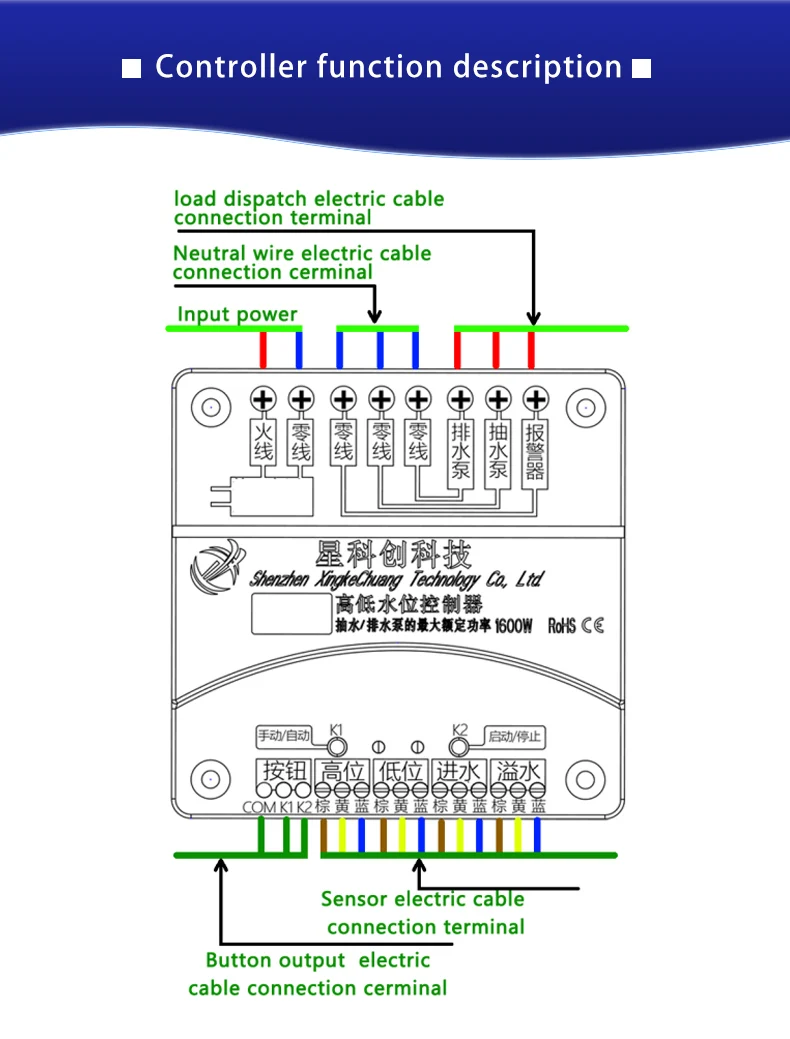

5、Button function description

K1 button: Press K1 to cycle between automatic control or manual control mode.

K2 button: K2 button can only be used in manual mode or alarm state. The function of the external button is parallel to the button on the controller panel, so the function of the external button is the

same as that of the panel button。

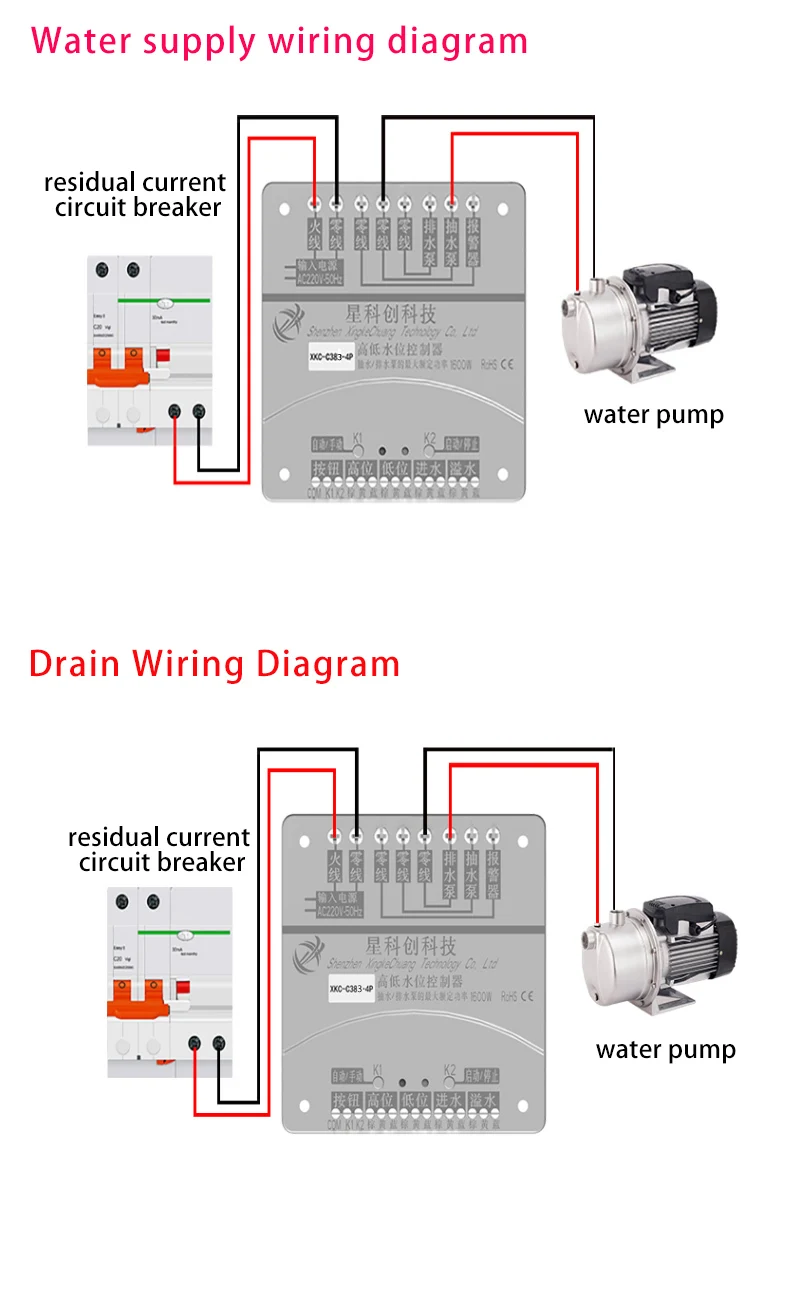

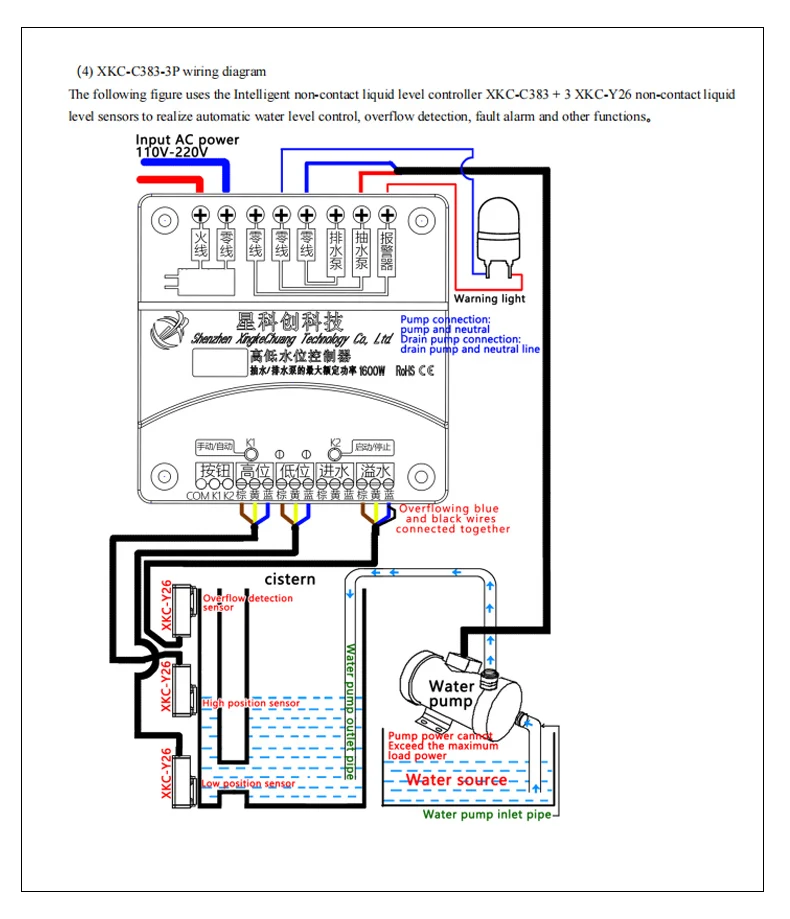

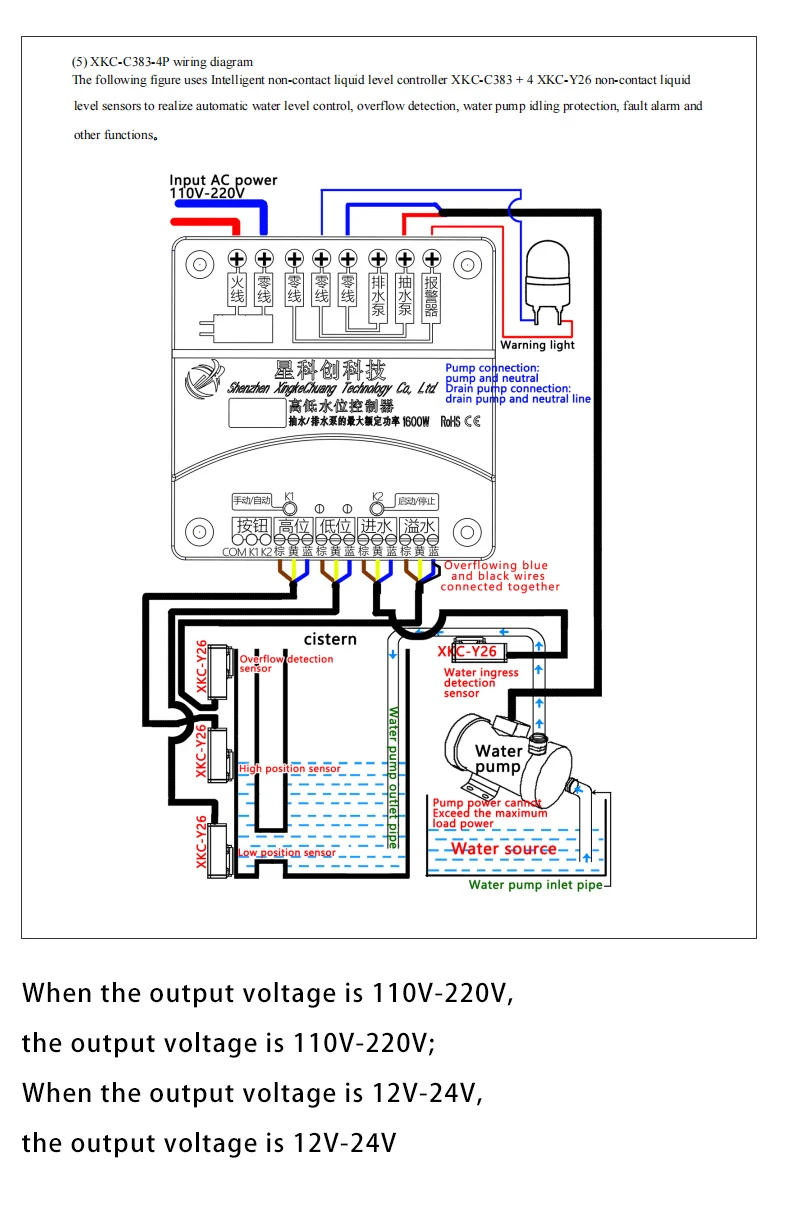

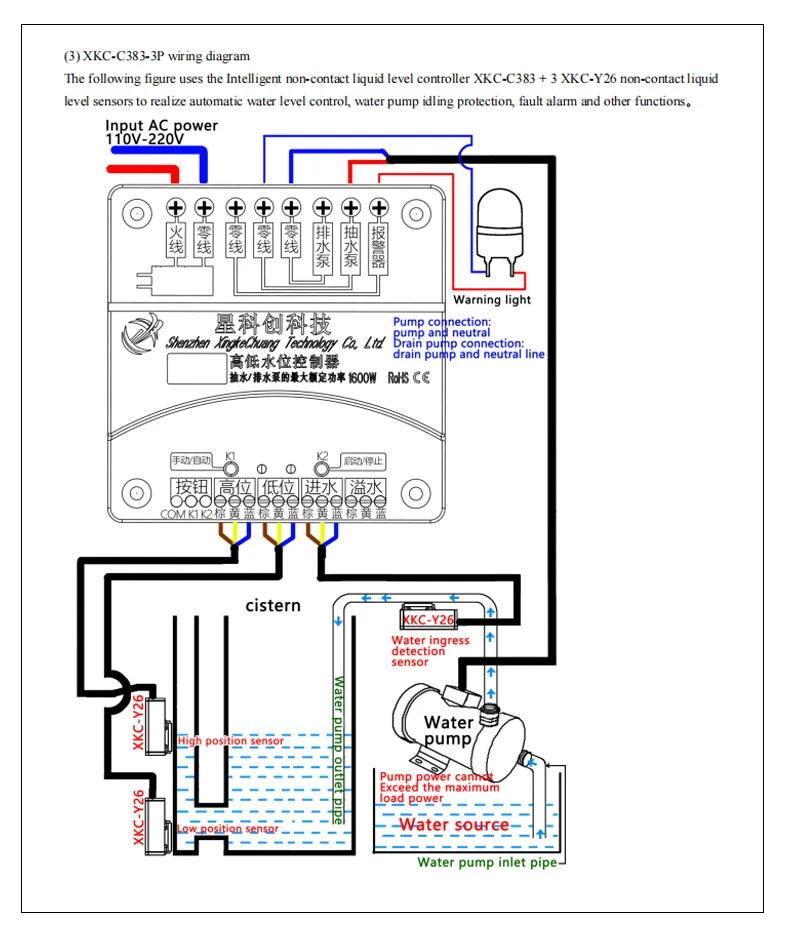

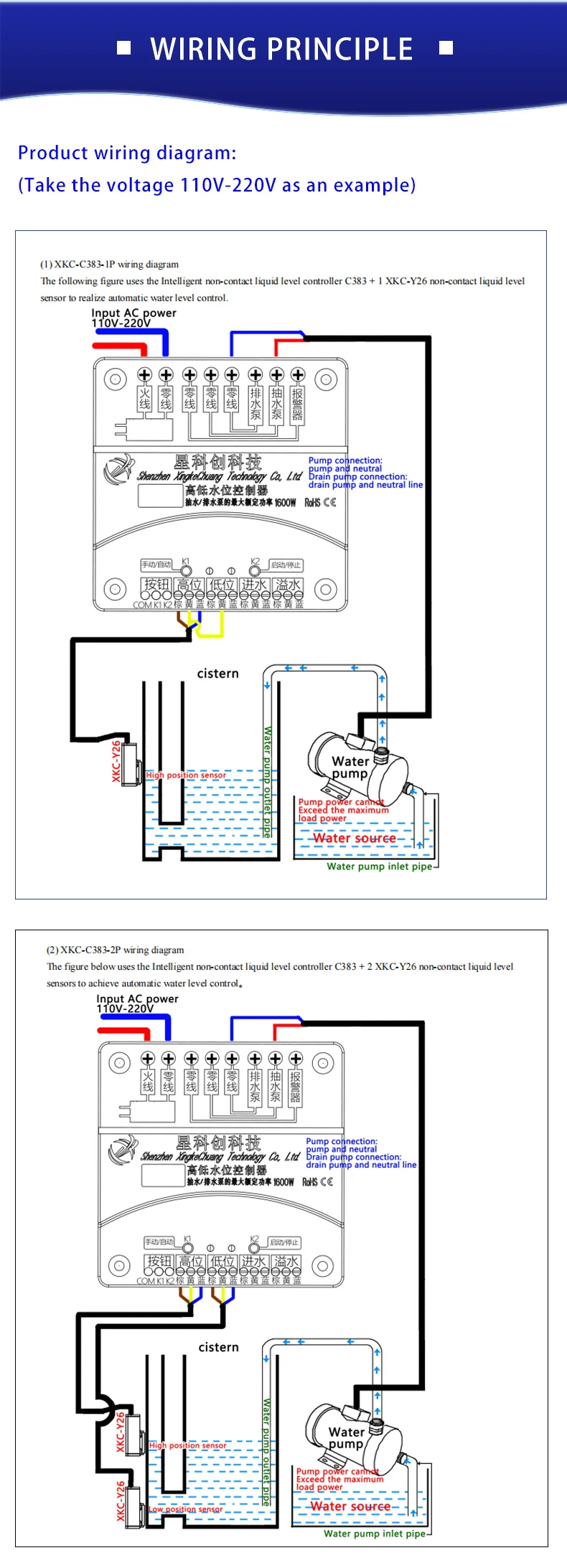

6、Recommended installation method description

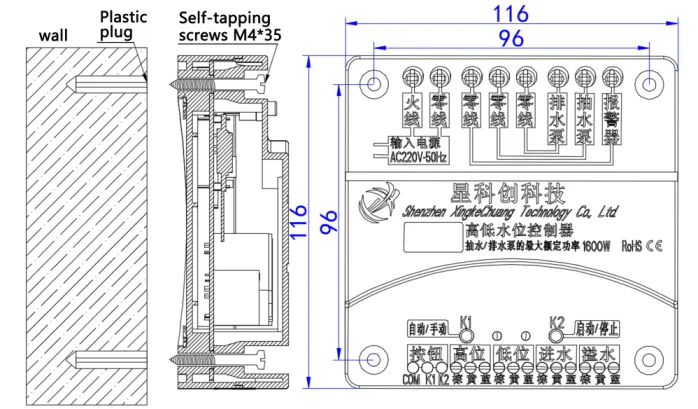

Controller installation method; XKC-C383 high and low water level controller can be directly installed on the wall or used in an electric box or electric cabinet, as shown in the figure below, and fix it on the wall with its own screws.

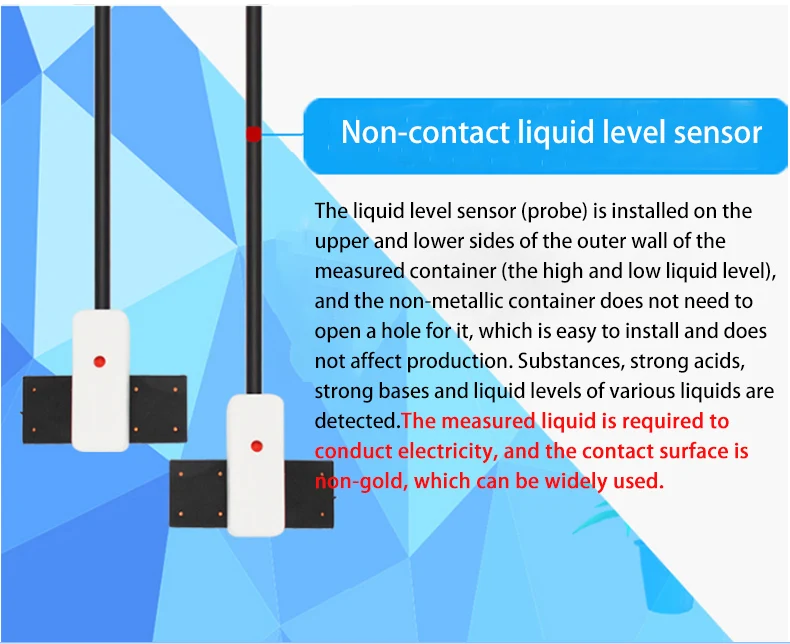

Sensor probe installation: different types of sensor probes have different installation methods, please refer to the relevant chapters of the specifications corresponding to the sensor model you are using. I won't repeat them here.
