Extension Board for Micro:Bit V2.0 Support 8 Servos and 4 DC Motors with Onboard Infrared Receiver and 4 RGB Full Color Lights
29.73$
21.33$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping
InstructionLink:
https://github.com/emakefun/pxt-motorbit

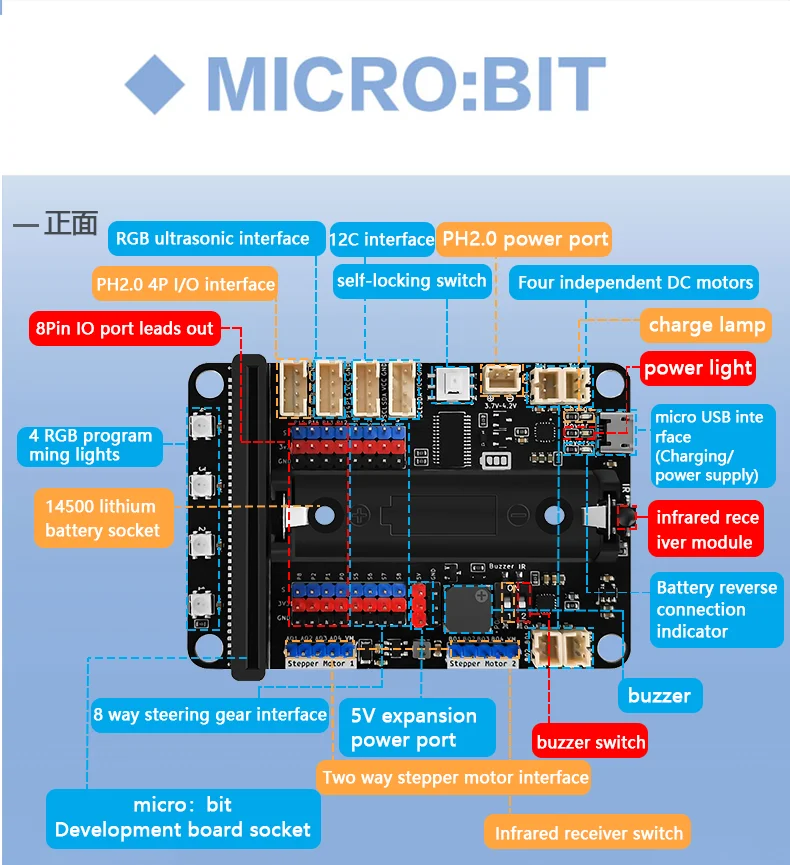

Features:
Onboard 4 RGB
Onboard 1 Passive buzzer
Onboard 1 infrared receiving head
Two I2C interfaces
RGB Ultrasonic interface
Can access 4 motor (maximum output current 1.2A)
Support access to 8-way steering gear
Support access to two 4-wire stepper motor
Onboard battery box
Onboard charging circuit
Parameter:
PCB board thickness: 1.6mm
Net weight:37.2g
Large round hole diameter: 4.6mm
Product size: 80mm × 56mm × 12mm
USB input voltage: 3.7~4.2V
Note: There no 14500 battery in the package.
Classic Cases:
Infrared remote control to control Mecanum car: https://makecode.microbit.org/_iX6Toq4saVHL
JoystickBit control Mecanum car JoystickBit Program: https://makecode.microbit.org/_bVj0r32qUaVo
Mecanum car Program: https://makecode.microbit.org/_5CzePW2wTTm8
