BPF-1.8-30 1.8-30MHz Band Pass Filter BPF Improve Selectivity and Suppress Clutter

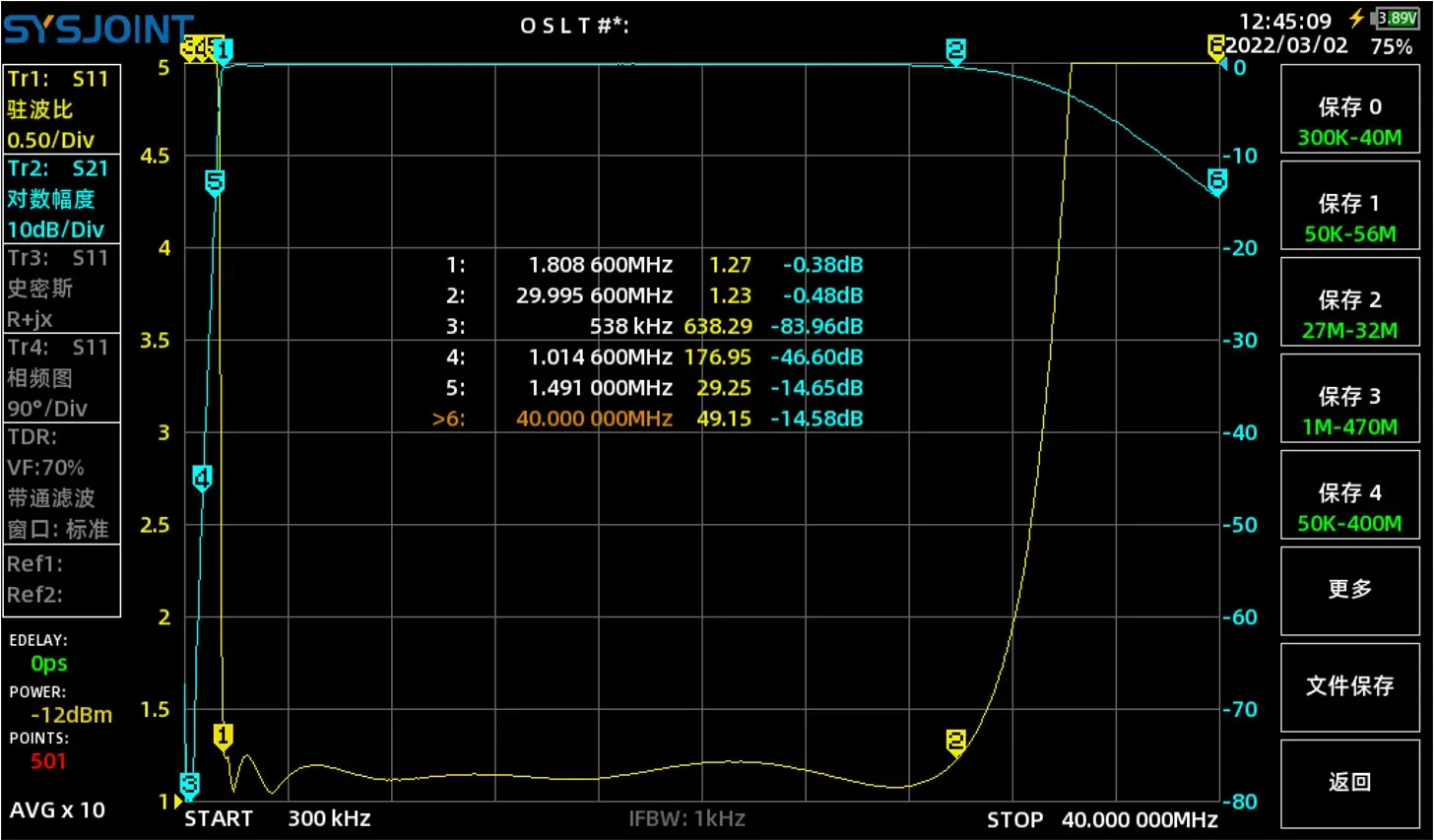

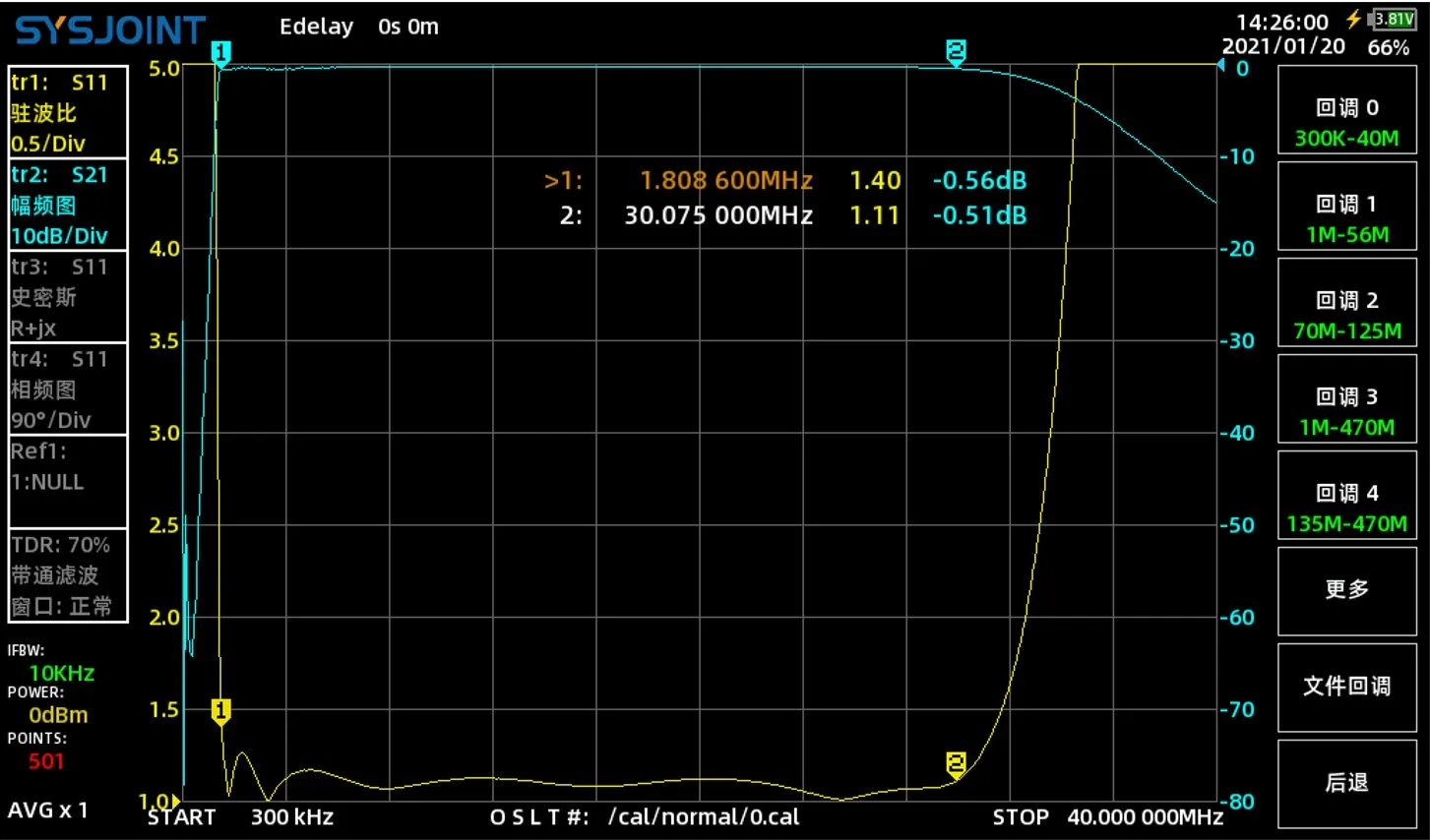

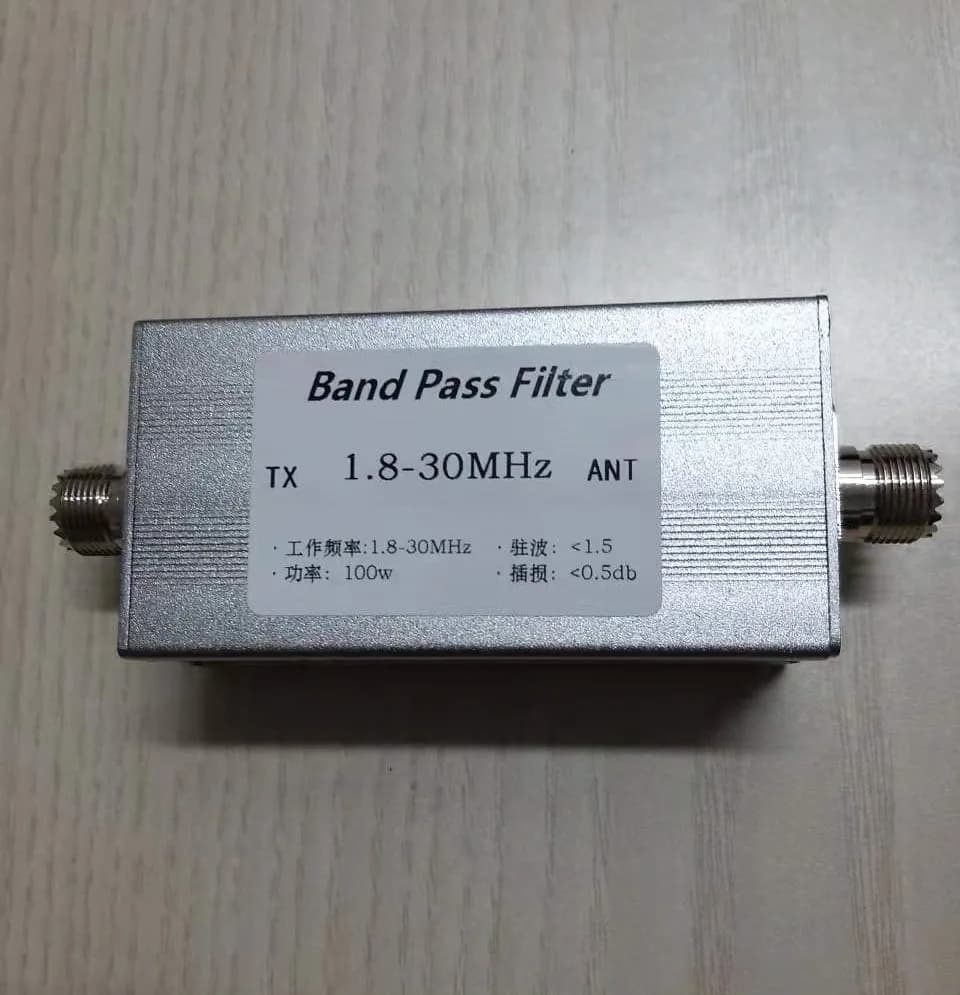

Short Wave Band Pass Filter (BPF): BPF-1.8-30

1. Please refer to the above information for detailed technical parameters (1.5-30MHz or 3.5-30MHz can also be customized)

2. Input impedance: 50 ohms; output impedance: 50 ohms.

3. The passable bandwidth is 1.8-30MHz

4. Insertion loss: less than 0.5db

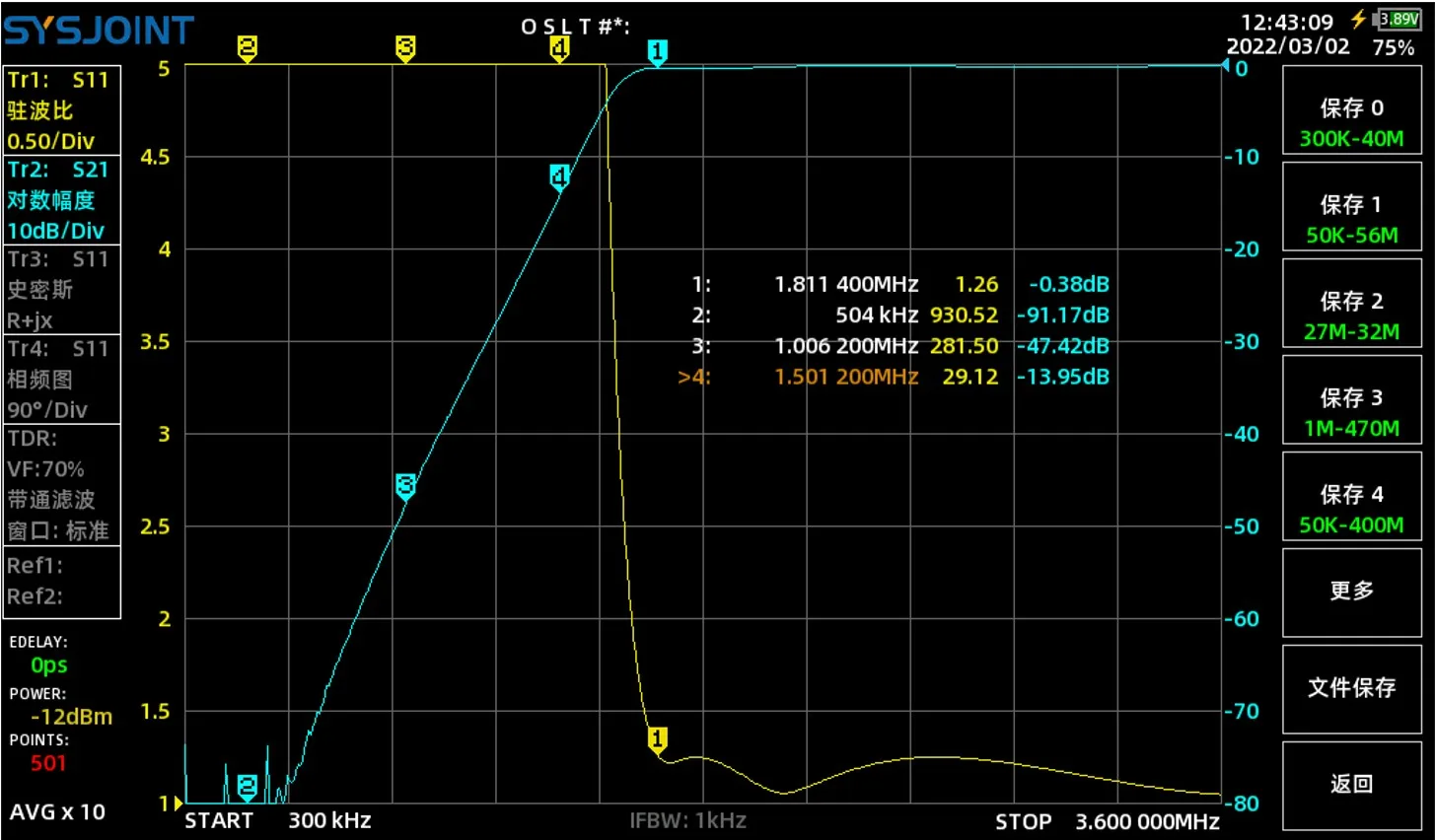

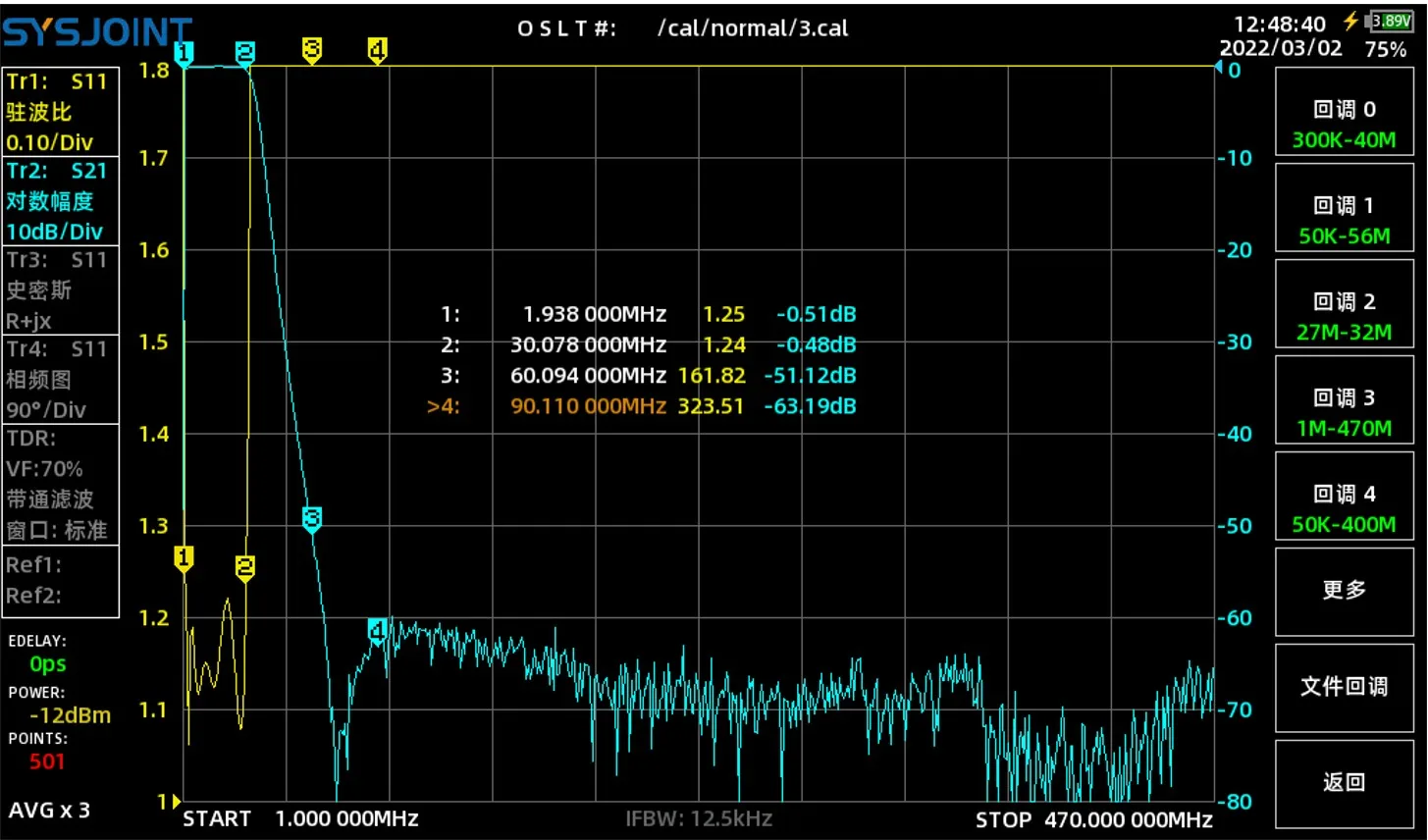

5. The attenuation at 1MHz is 45db, and the attenuation at 56MHz is 45db.

6. Power: 100w (SSB CW AM FM) higher power can be customized.

7. Standing wave: less than 1.5

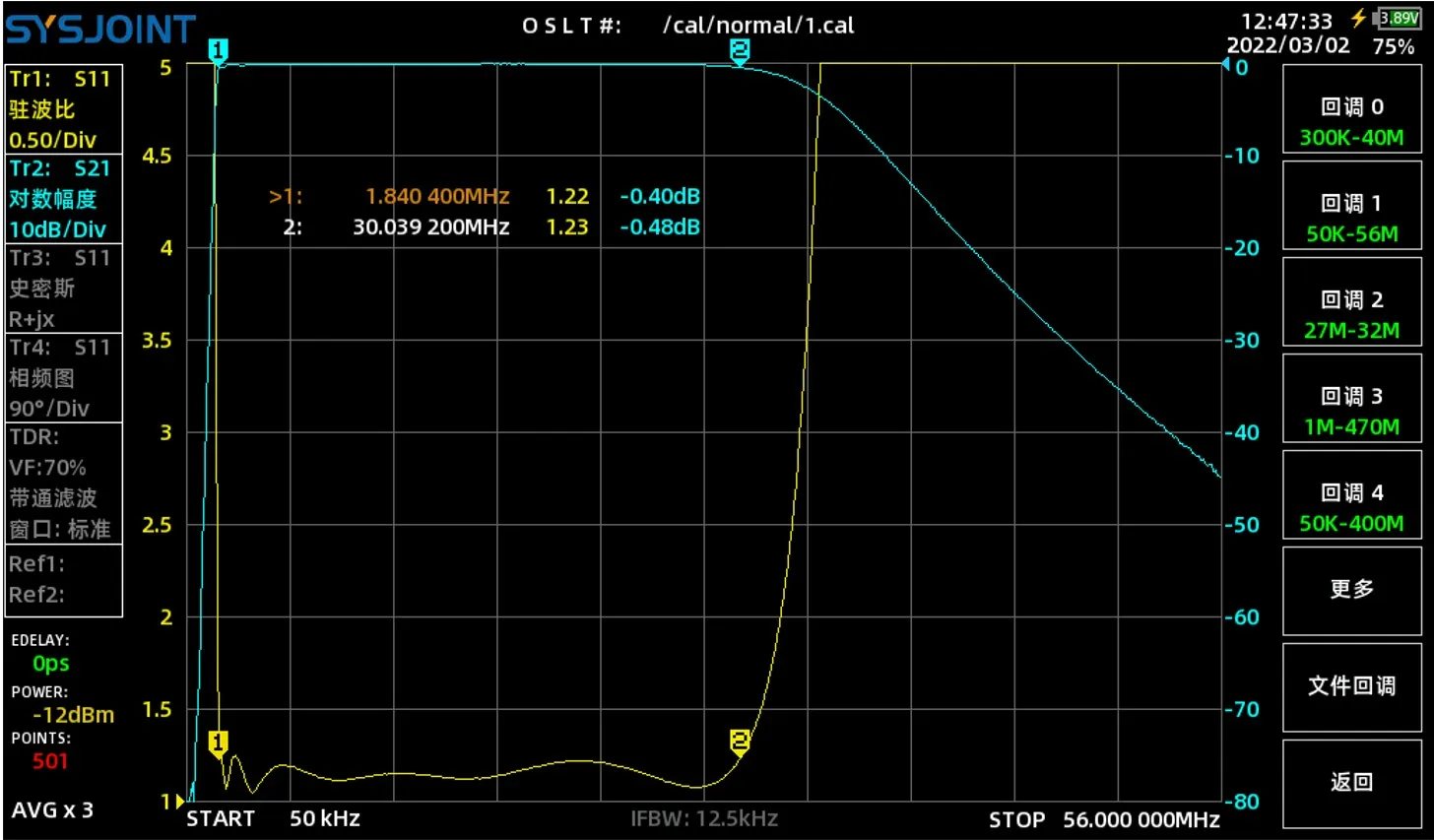

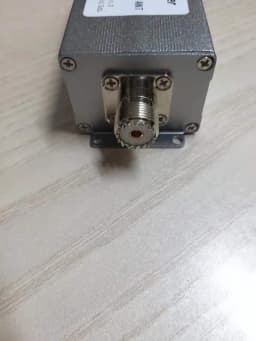

8. Interface: SL16-F (M seat)

9. Net weight: 190 grams

10. External dimensions: 140*53*38mm

11. If you need bandpass filters of other frequencies, you can contact the author,

After IC-718 radio and Diamond's SX-600 power meter test, the input power to this bandpass filter is 125w and the output is 110w-115w (slightly different depending on the frequency band)

Note:

Special Occasion:

This band-pass filter is suitable for use in short-wave communication where the radio station is very close to the medium-wave radio station or is subject to strong medium-wave interference, and can also be used in the occasion where the short-wave radio station interferes with cable TV users during transmission.

General occasions:

When the short-wave radio is working, in order to reduce the electromagnetic interference from the surrounding as much as possible, this band-pass filter can be connected, which will greatly improve the signal-to-noise ratio.
