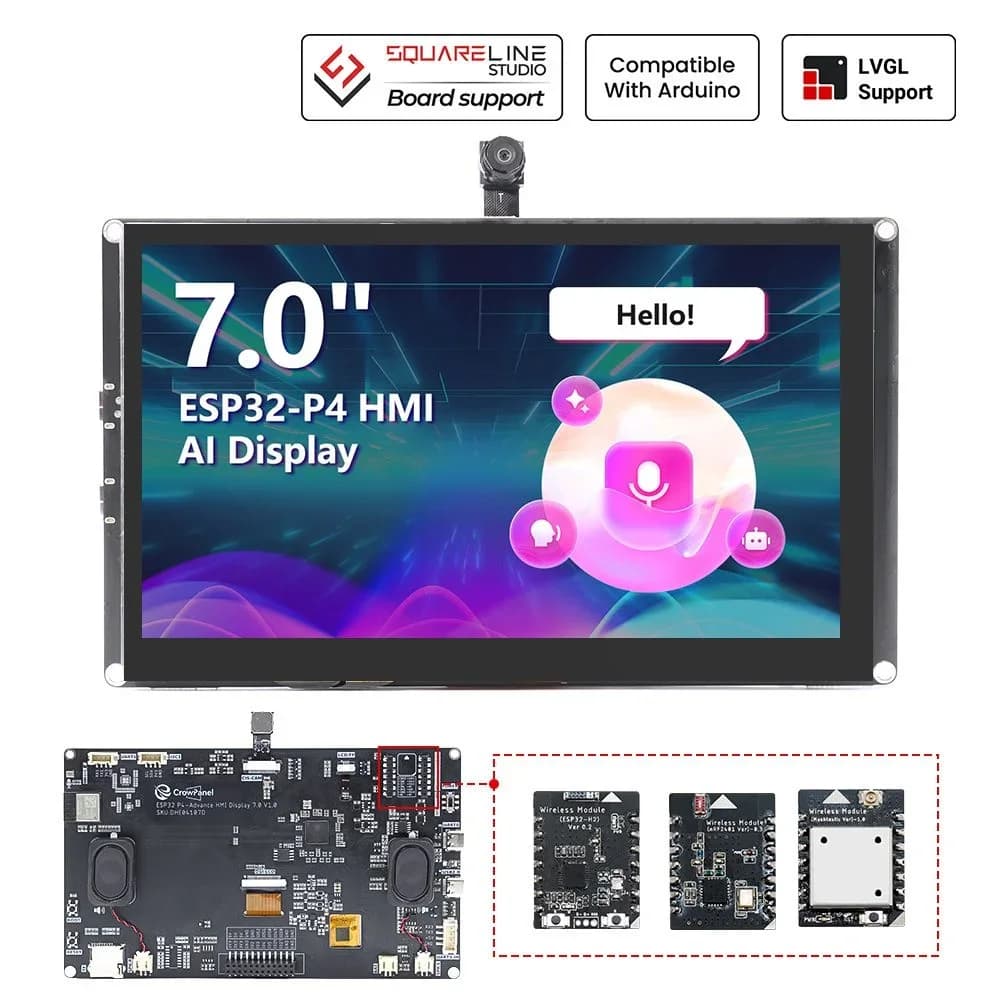

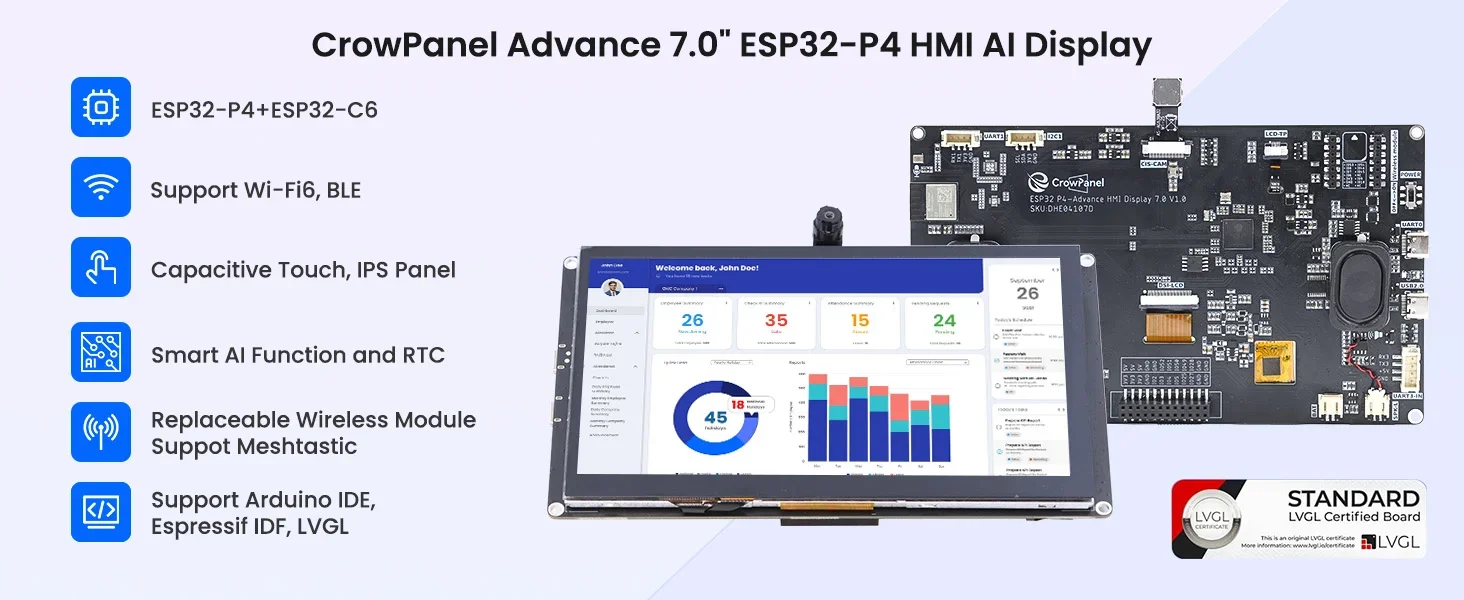

CrowPanel Advanced 7'' HMI AI Display 1024x600 IPS Touch Screen ESP32-P4 with Camera Optional Compatible with Arduino/LVGL

The CrowPanel Advance ESP32-P4 HMI seriesis a high-performance AI-powered intelligent interactive terminal designed for demanding applications. Its innovative dual-chip architecture combines powerful computing power, rich multimedia features, and ultimate expansion flexibility, making it the ideal core for driving the next generation of smart devices.

This 7-inch display is powered by the RISC-V-based ESP32-P4 SoC, featuring both high-performance and low-power cores, operating at frequencies up to 400MHz. Combined with the generous storage capacity of 16MB Flash and 32MB PSRAM, it provides ample power for complex graphical interfaces and real-time AI tasks.

The onboard ESP32-C6-MINI-1 module supports 2.4GHz Wi-Fi 6 and Bluetooth 5.3, ensuring stable and reliable connectivity with excellent power consumption.

The 7-inch IPS touchscreen integrates capacitive touch technology, providing an intuitive user experience. The integrated 2-megapixel MIPI-CSIcamera (optional) not only supports high-definition image capture but also efficiently runs edge AI applications such as real-time facial recognition and dynamic object tracking.

The onboard NS4168 audio codec and single-microphone array provide high-fidelity playback and accurate far-field voice recognition. Equipped with dual-channel speakers, it lays a solid foundation for voice interaction and is suitable for scenarios such as voice assistants and smart home control.

The 7-inch screen also offers ultimate expandability. Equipped with dual USB-C ports (UART adapter/USB 2.0 Device), 11-pin GPIO, multiple Crowtail ports (supporting I2C/UART protocols), and interchangeable wireless module slots (supporting Thread, Zigbee, etc.), it easily adapts to various sensors and communication protocols.

Why choose the P4 HMI series?

Compared to previous generations(

Basic

/

Advanced ESP32-S3

), the ESP32-P4 HMI series achieves a significant leap in machine learning inference and real-time data processing performance through an upgraded processor and AI instruction set. Whether it's a smart home central control, industrial control panel, commercial display device, or in AIoT fields,its comprehensive peripheral support can provide excellent solutions to help you quickly build powerful and interactive smart products.

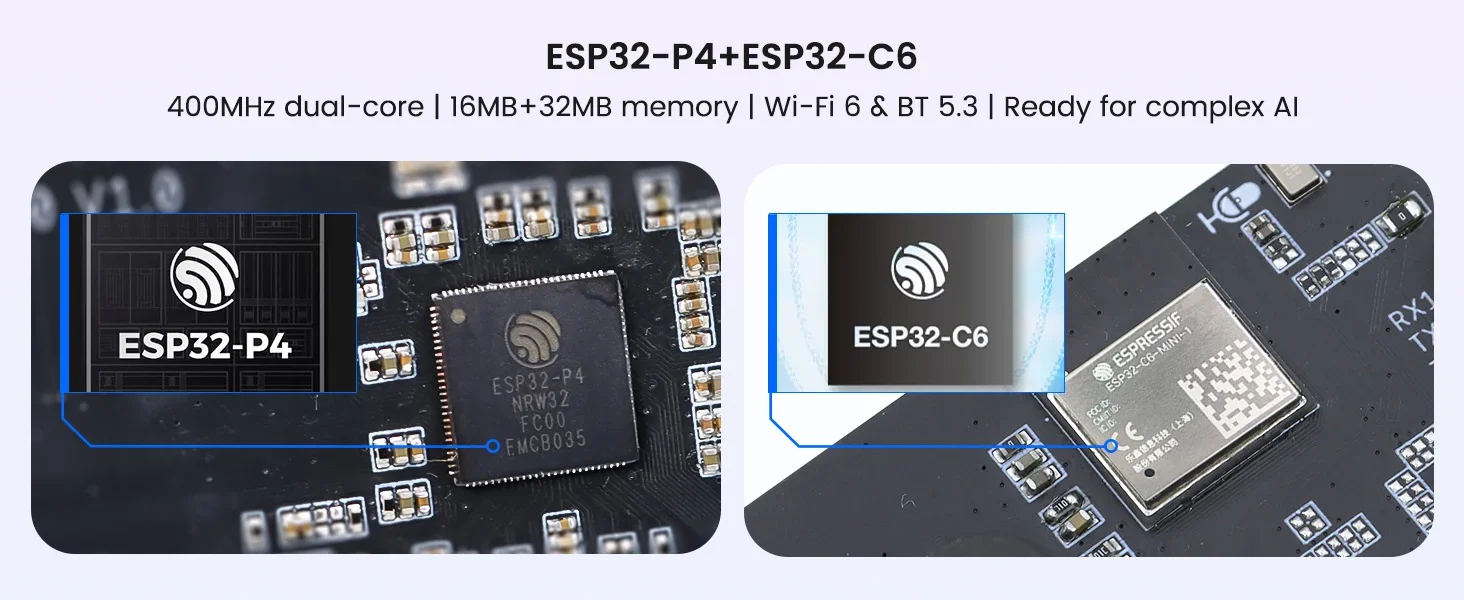

ESP32-P4+ ESP32-C6 dual chips

Integrated Intelligent AI Functions

Voice interaction is achieved through the microphone and speaker, allowing seamless conversations with the smart assistant and easy access to information.

The optional Camera provides AI Vision capabilities

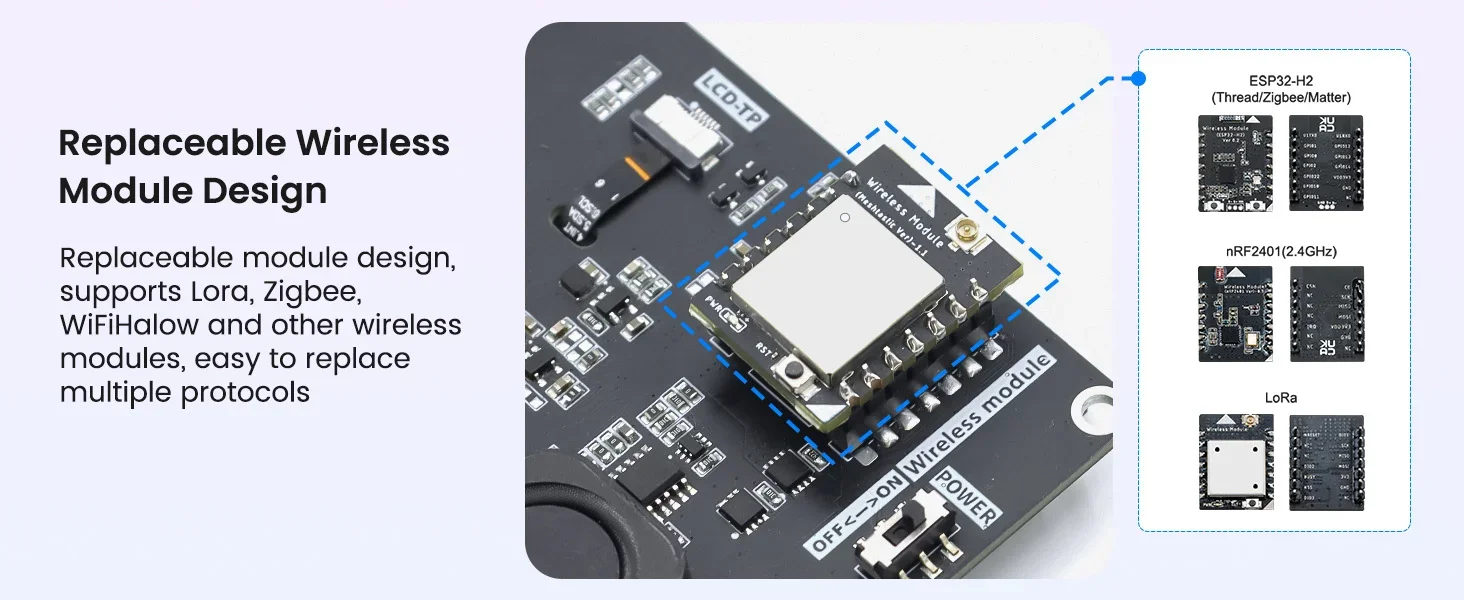

Replaceable Wireless module design, easy to replace multiple protocols

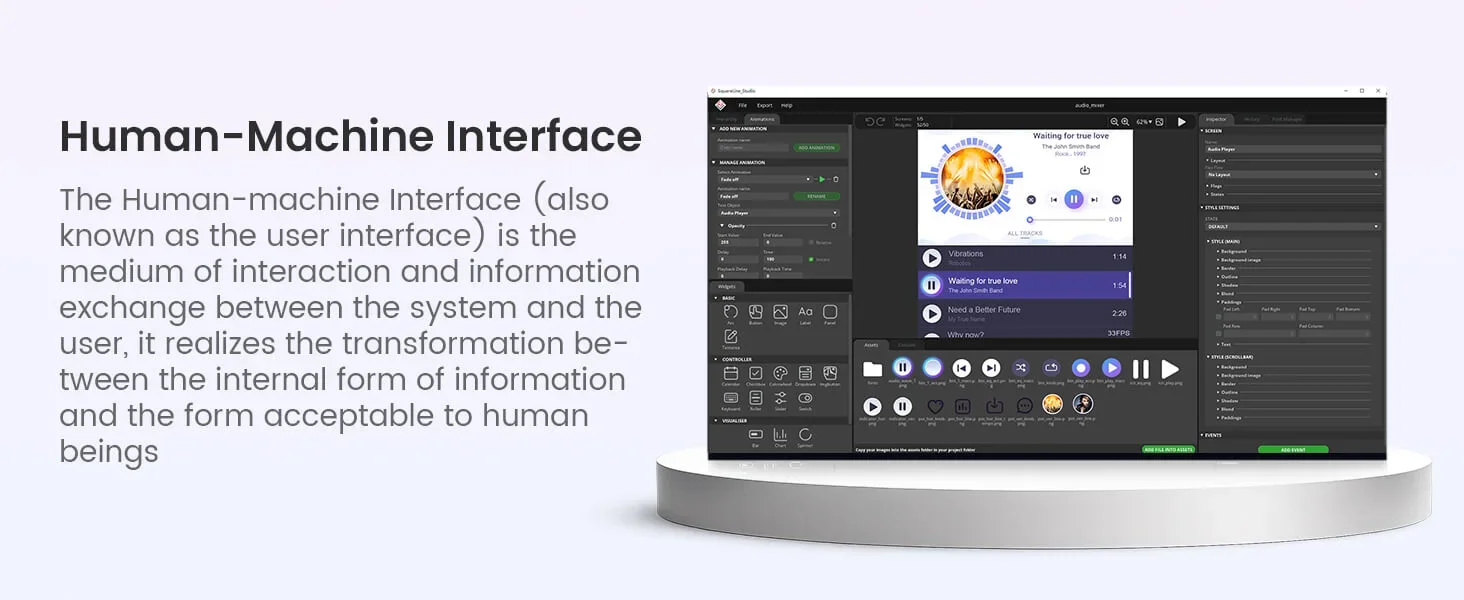

Human-Machine Interface

Support the LVGL development

Support multiple development environments

Application Scenario

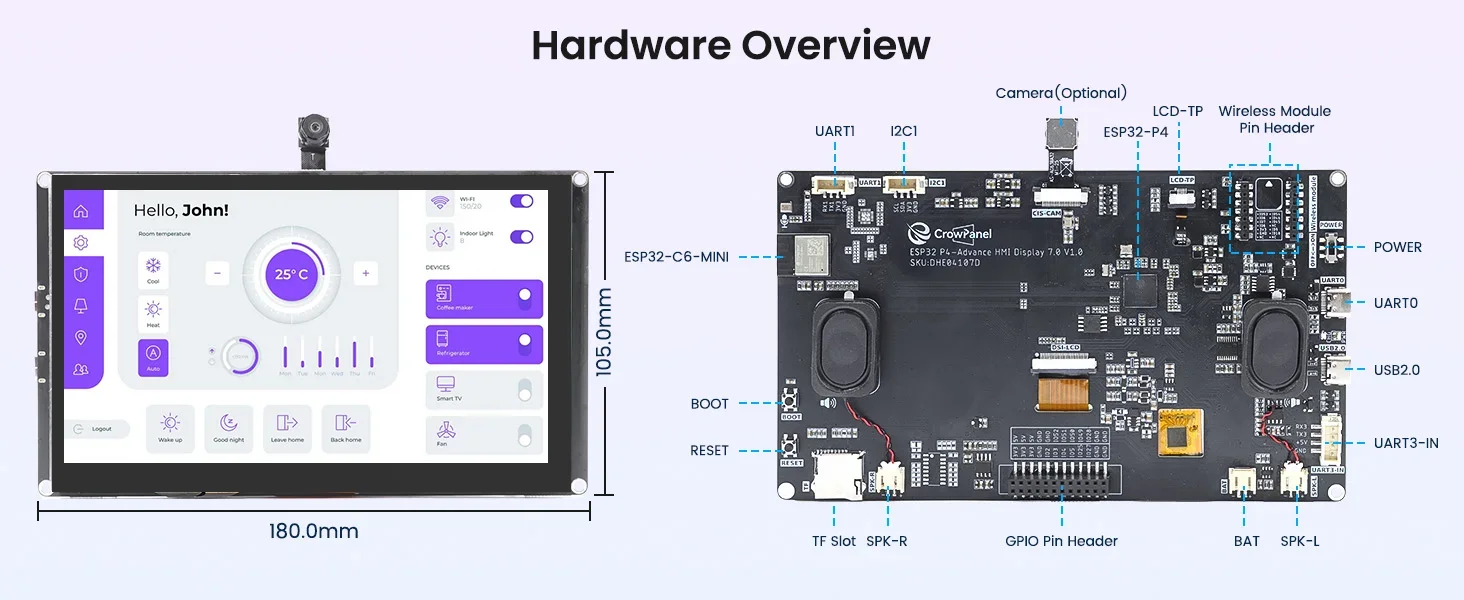

Hardware Overview

Feature

✅ Powerful dual-core architecture, enhanced performance

Equipped with the RISC-V architecture ESP32-P4 dual-core processor (400MHz high-performance core + low-power core), equipped with 16MB Flash and 32MB PSRAM, it easily handles complex graphical interfaces and real-time AI calculations.

An independent ESP32-C6-MINI-1 wireless module supports Wi-Fi 6 and Bluetooth 5.3, balancing stable connectivity with low power consumption.

✅ AI acceleration, fully upgraded performance

Significantly improved computing power compared to previous generations, suitable for high-load tasks such as real-time data analysis, and suitable for high-performance applications such as smart home appliances and industrial control.

Supports dual-channel speaker output, making it suitable for scenarios such as voice assistants and smart home control.

✅ High-definition IPS touchscreen for smooth and natural interaction

Available in multiple sizes: 5.0/7.0/9.0/10.1 inches, IPS TFT screens support capacitive touch, wide viewing angles, and smoother interaction.

✅ Integrated intelligent vision, empowering AI applications

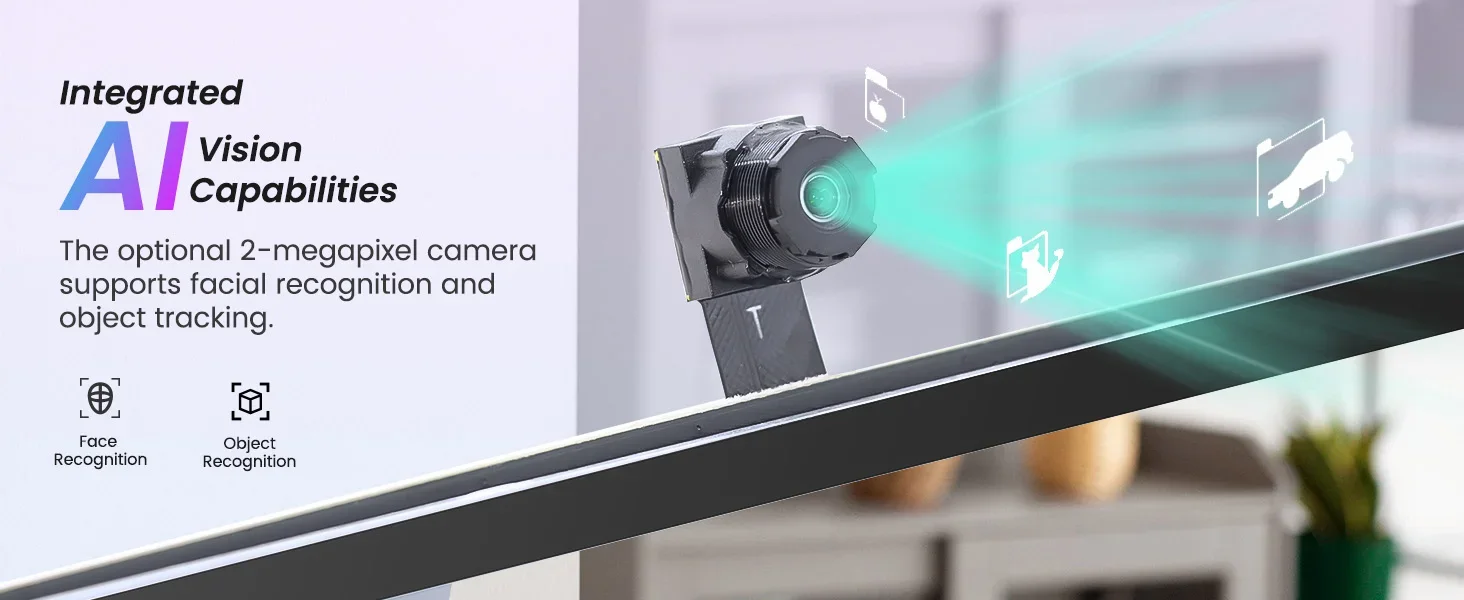

An integrated 2-megapixel MIPI-CSI camera smoothly runs AI vision algorithms like facial recognition and object tracking.

✅ Rich and comprehensive interfaces for flexible expansion

Dual USB-C (supporting UART debugging and USB 2.0 OTG), 11-pin GPIO, and Crowtail (I2C/UART) interfaces facilitate connection to various peripherals and sensors.

A replaceable wireless module slot supports multiple communication protocols, including Wi-Fi 6, Thread, Zigbee, allowing a single board to accommodate diverse IoT scenarios.

Application scenarios

Target Group

Engineers and technicians, system integrators, facility managers, R&D personnel, agricultural workers, environmental scientists, medical professionals, retailers and restaurant owners, educational institutions, energy companies, etc.

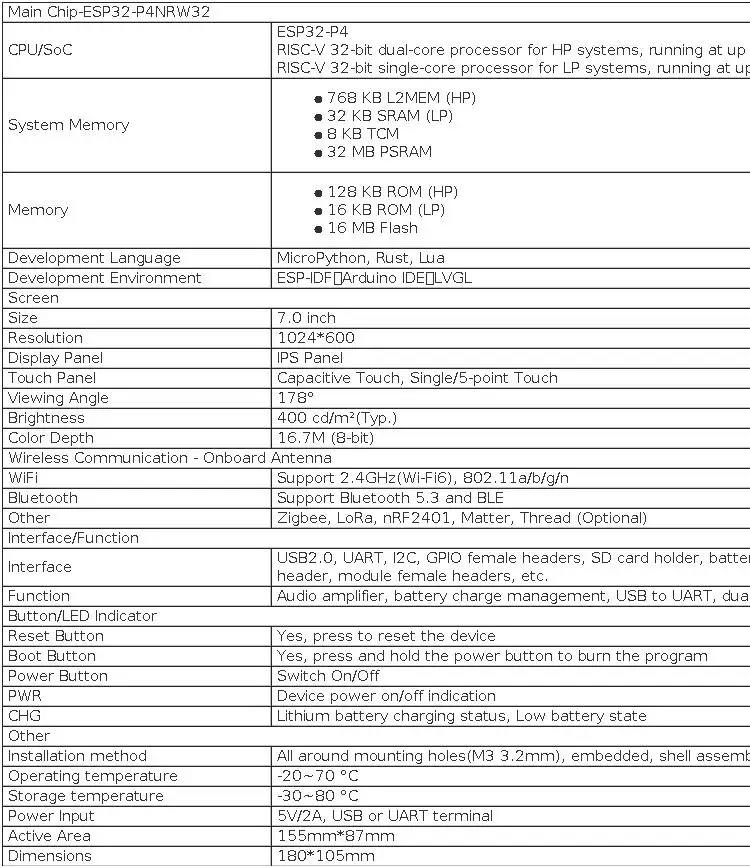

Specification

Three Wireless Module Details

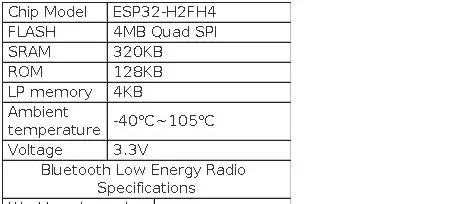

ESP32-H2 Wireless Module

Chip performance

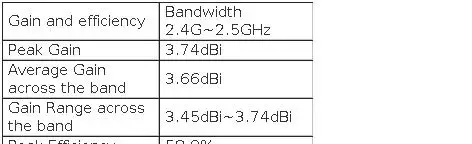

Patch Antenna Performance

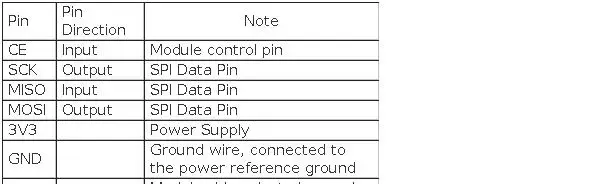

nRF2401 Wireless Module

Chip performance

Chip Model：nRF24L01+

Worldwide 2.4GHz ISM band operation

250kbps, 1Mbps and 2Mbps on air data rates

Ultra low power operation

11.3mA TX at 0dBm output power

13.5mA RX at 2Mbps air data rate

900nA in power down

On chip voltage regulator

1.9 to 3.6V supply range

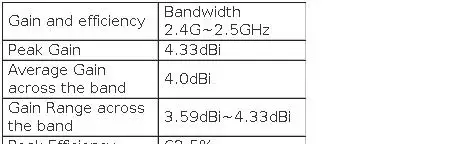

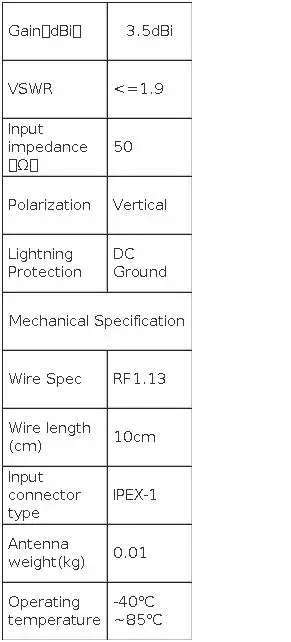

Patch Antenna Performance

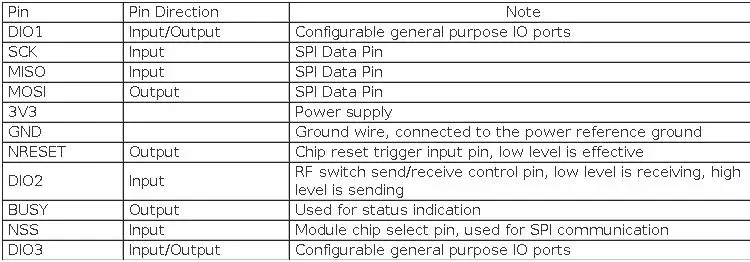

SX1262 Wireless Module

Antenna Performance

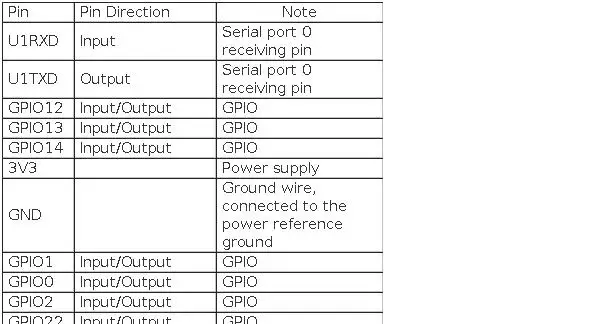

For more pin functions, see Wiki.

1x CrowPanel Advance ESP32-P4 Display-7.0 inch

1x USB-A to Type-C Cable

1x Crowtail/Grove4pin DuPont cable

Wiki & External links

Wiki

ESP32-P4 Datasheet
