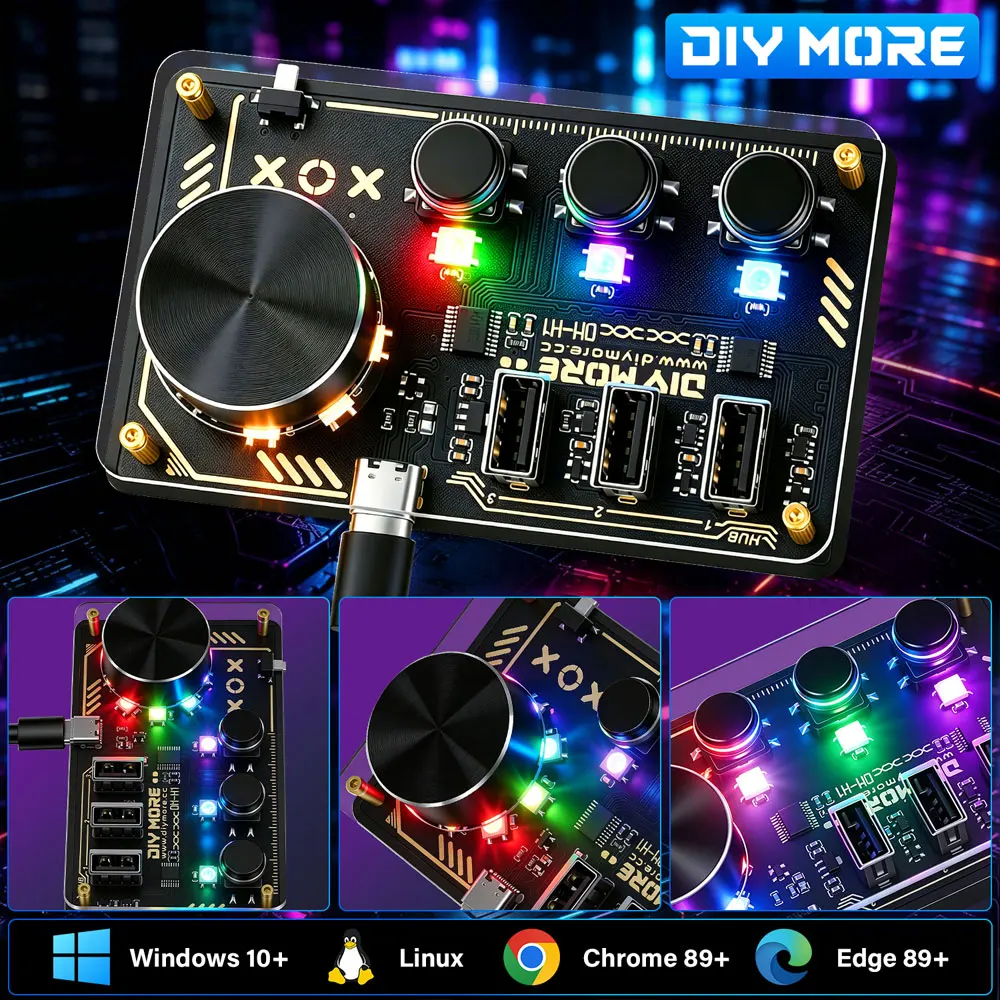

DC 5V Diymore Hub Dm-H1 Hub Docking Station 3 Programmable Keys WS2812B RGB LED Lights Custom Keyboard Desktop Controller Type C

Features:

1. Drive free plug and play, supports multiple systems, and allows for online visualization configuration through browsers

2. Multi functional HID controller, customizable combination of button and knob commands

3. Equipped with 11 RGB light beads, built-in 6 cool lighting effects, rich lighting effects

4. Set up local storage, power off configuration is not lost, and the device is equipped with an independent unique ID

5. Powered by USB, the hardware is streamlined and stable, with a low threshold for manual use

Product Introduction:

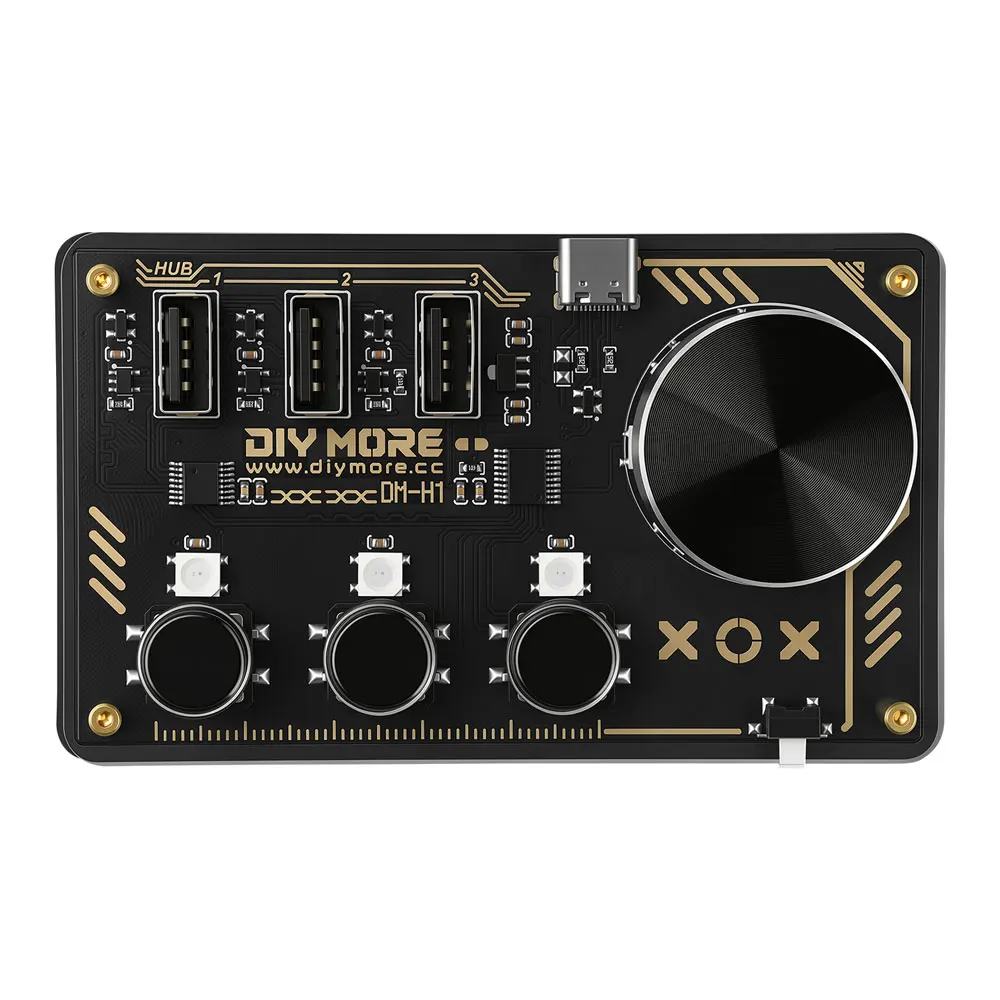

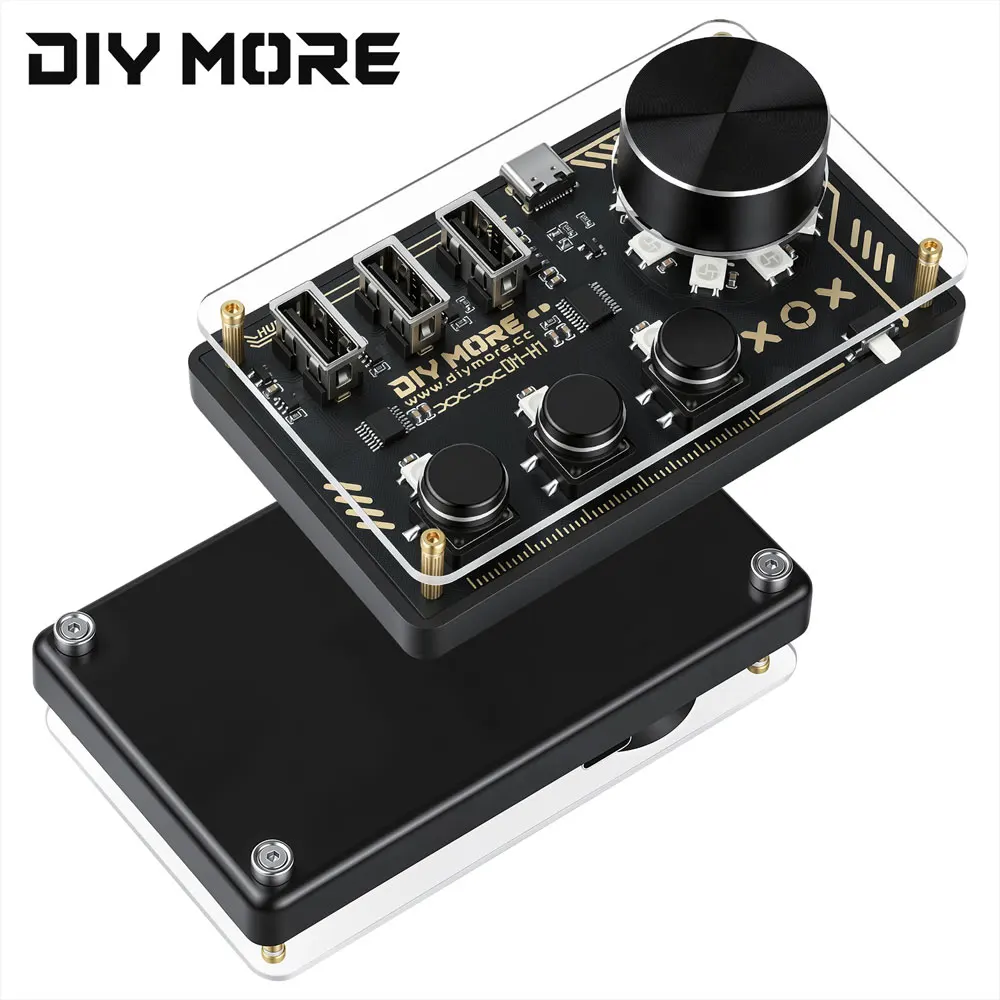

DIYMORE HUB is a three key+rotary USB HID controller equipped with 11 WS2812B RGB LEDs and a web configuration tool. Plug and play, no need to install any drivers, all settings can be adjusted in real-time through Chrome or Edge browsers.

Features

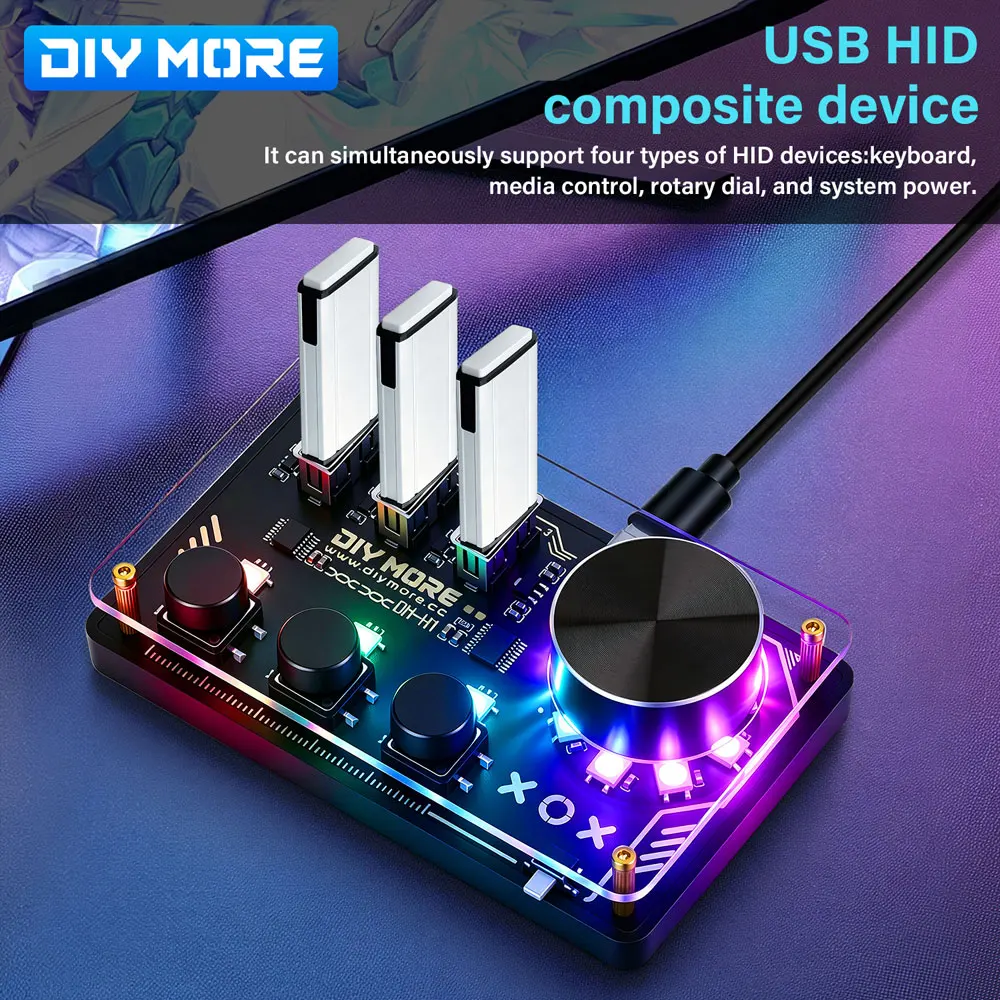

USB HID composite device: Supports four types of HID devices simultaneously: keyboard, media control, rotary dial, and system power

3 programmable keys: Each key can bind up to 3 key values, supporting modifier key+keyboard key+media key combinations

EC11 rotary encoder: a knob with buttons that rotates to send dial signals. Pressing it will enter the Bootloader

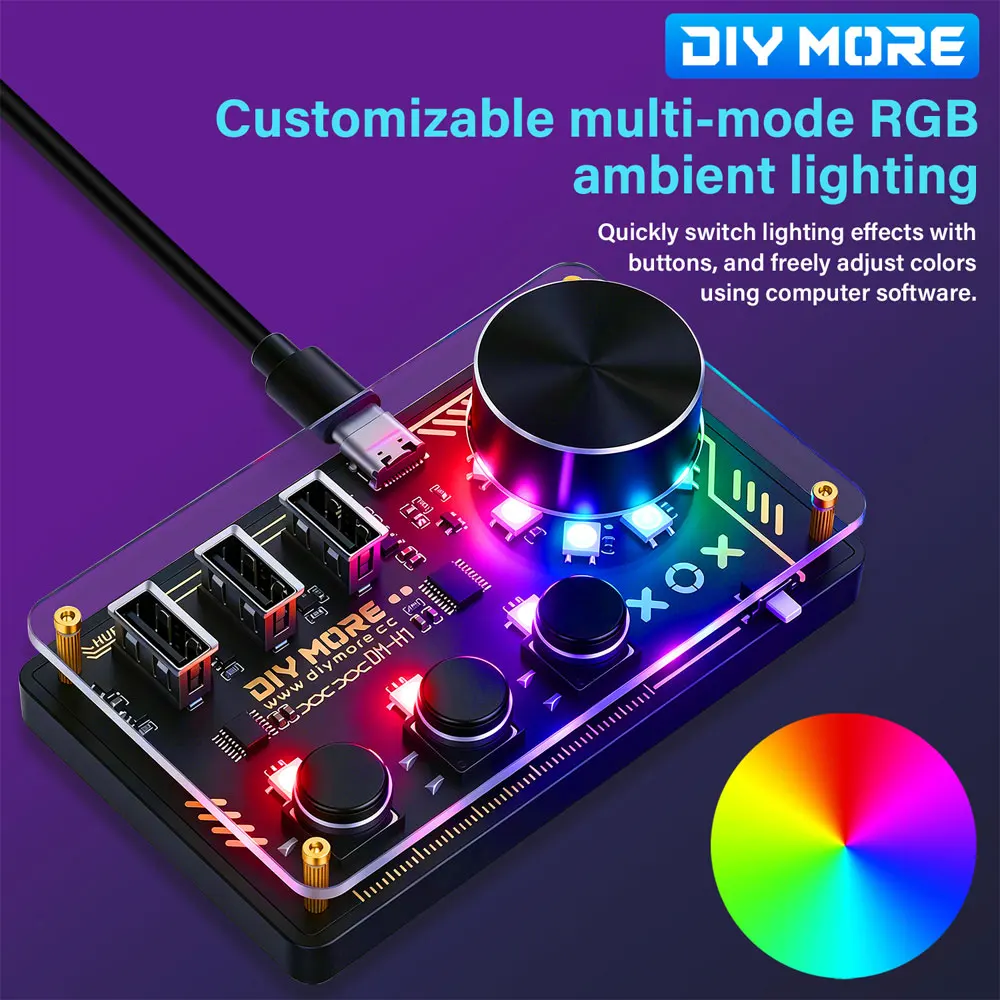

11 RGB LEDs: 3 button indicator lights+8 circular encoder light strips, 6 switchable light effects

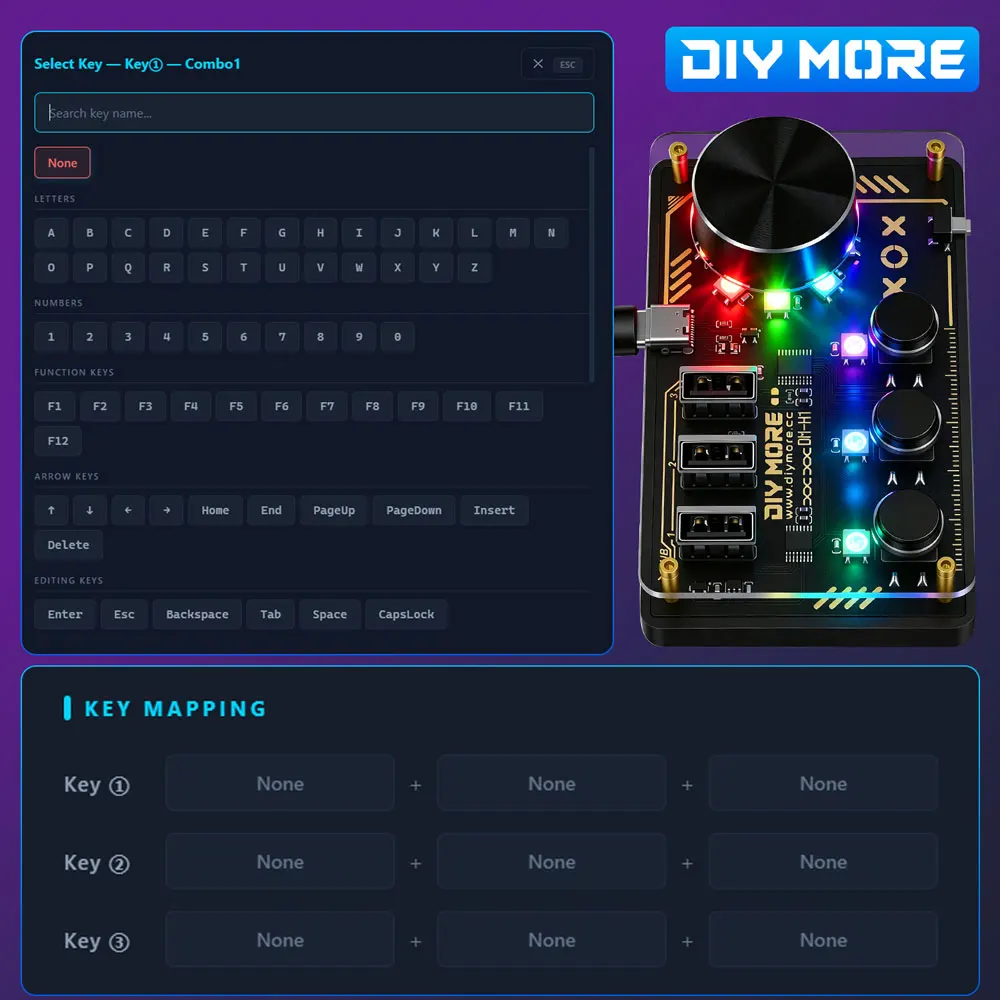

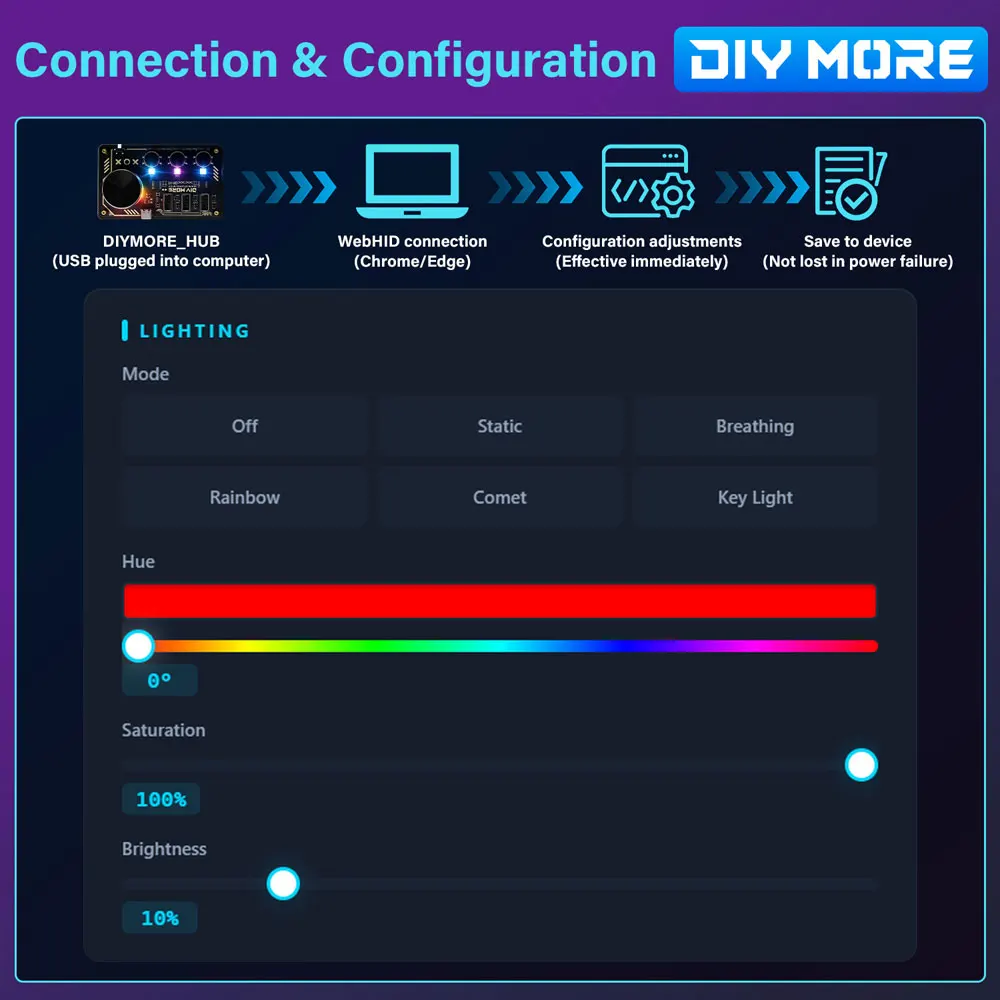

WebHID webpage configuration: No software installation required, all parameters can be configured by opening the webpage in the browser

Configuration persistence: All settings are saved in the internal memory of the device, and will not be lost when powered off

Unique Device ID: Each device has an independent 6-digit unique identifier

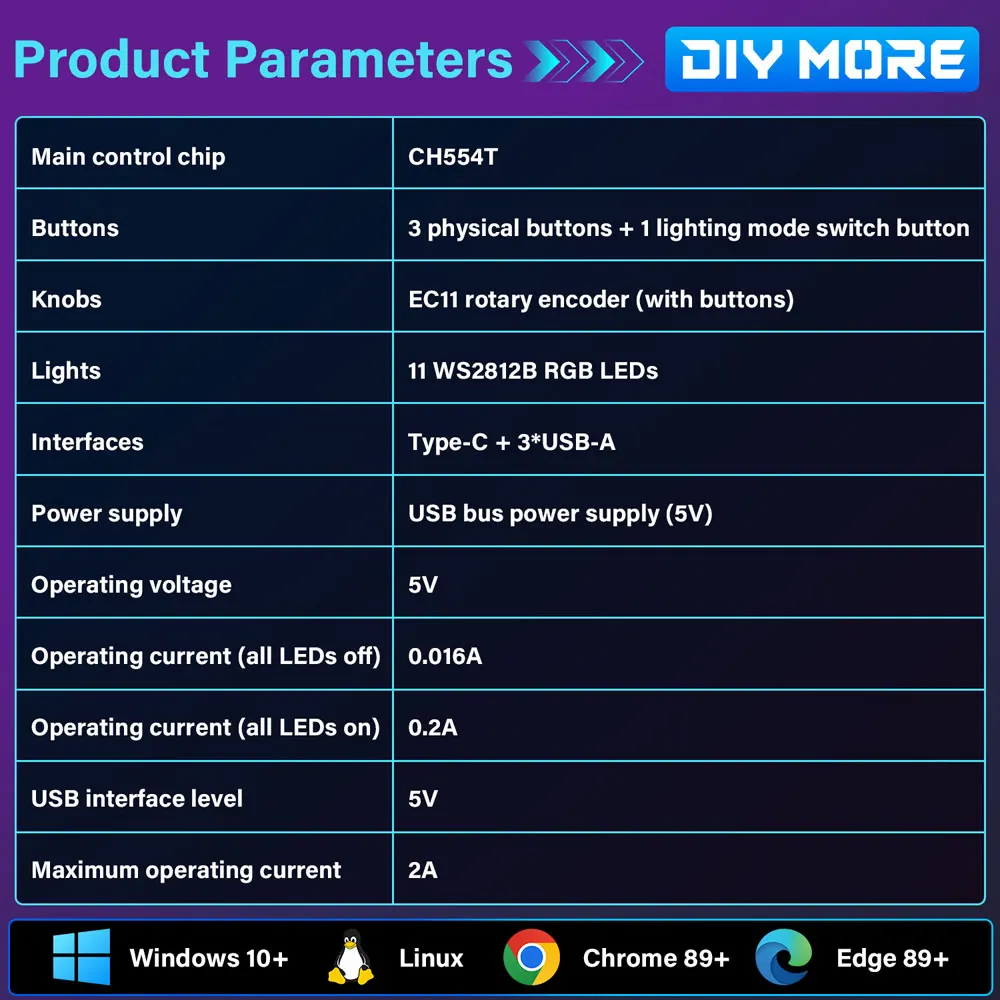

Hardware Specifications

Main control chip: CH554T (enhanced 8051 core)

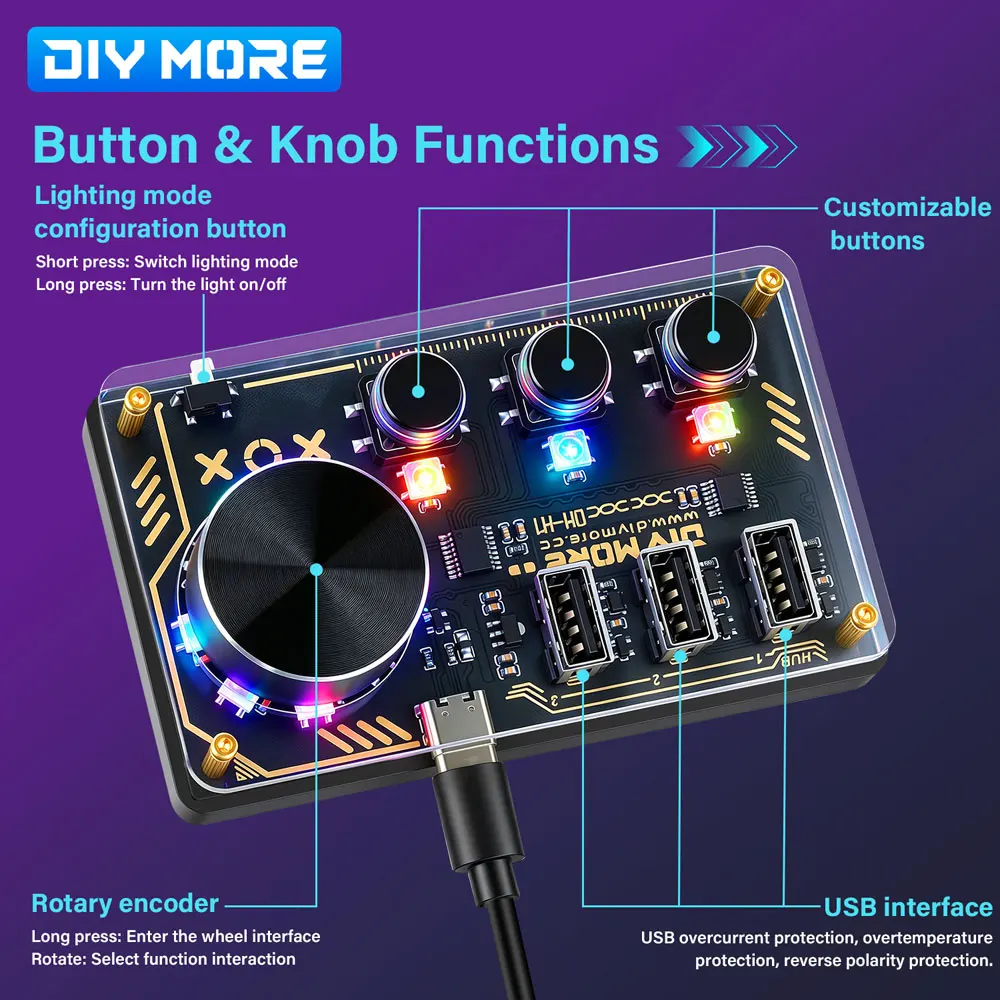

Button: 3 physical buttons+1 light mode switch button

Knob: EC11 rotary encoder (with button)

Lighting: 11 WS2812B RGB LEDs

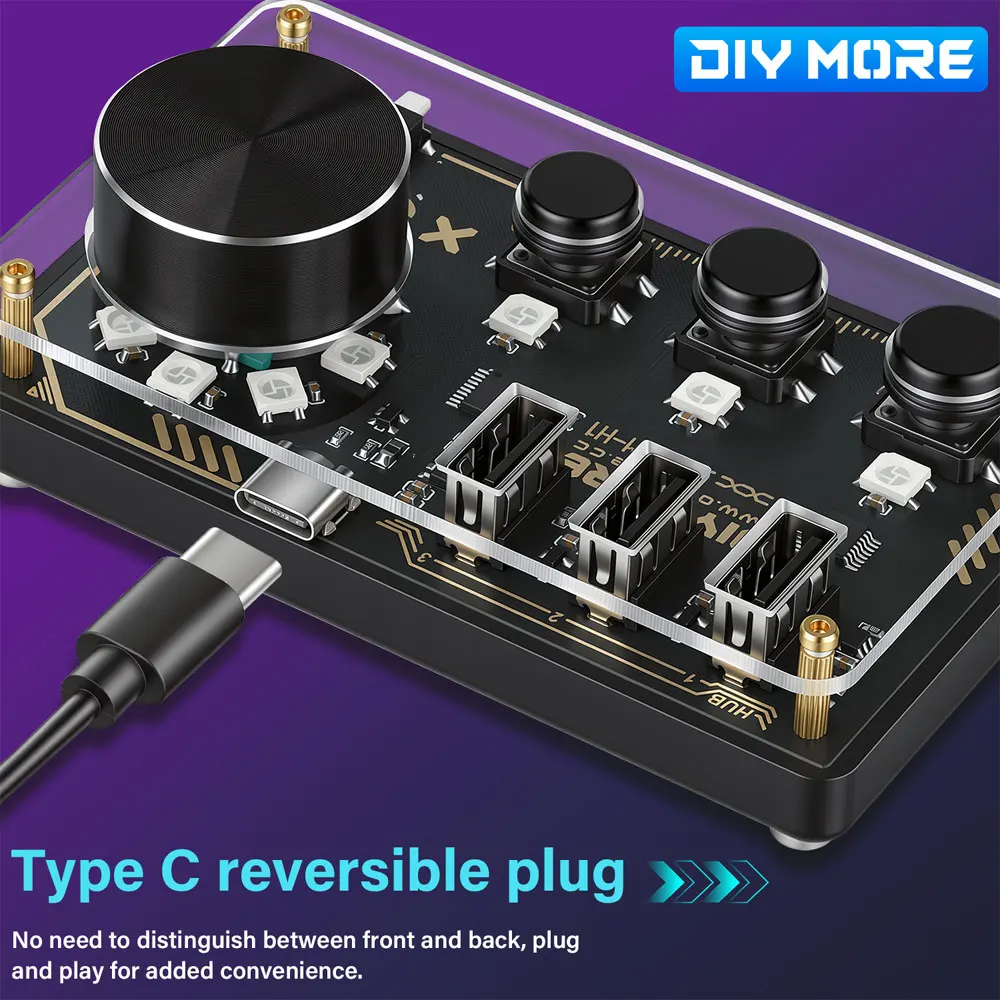

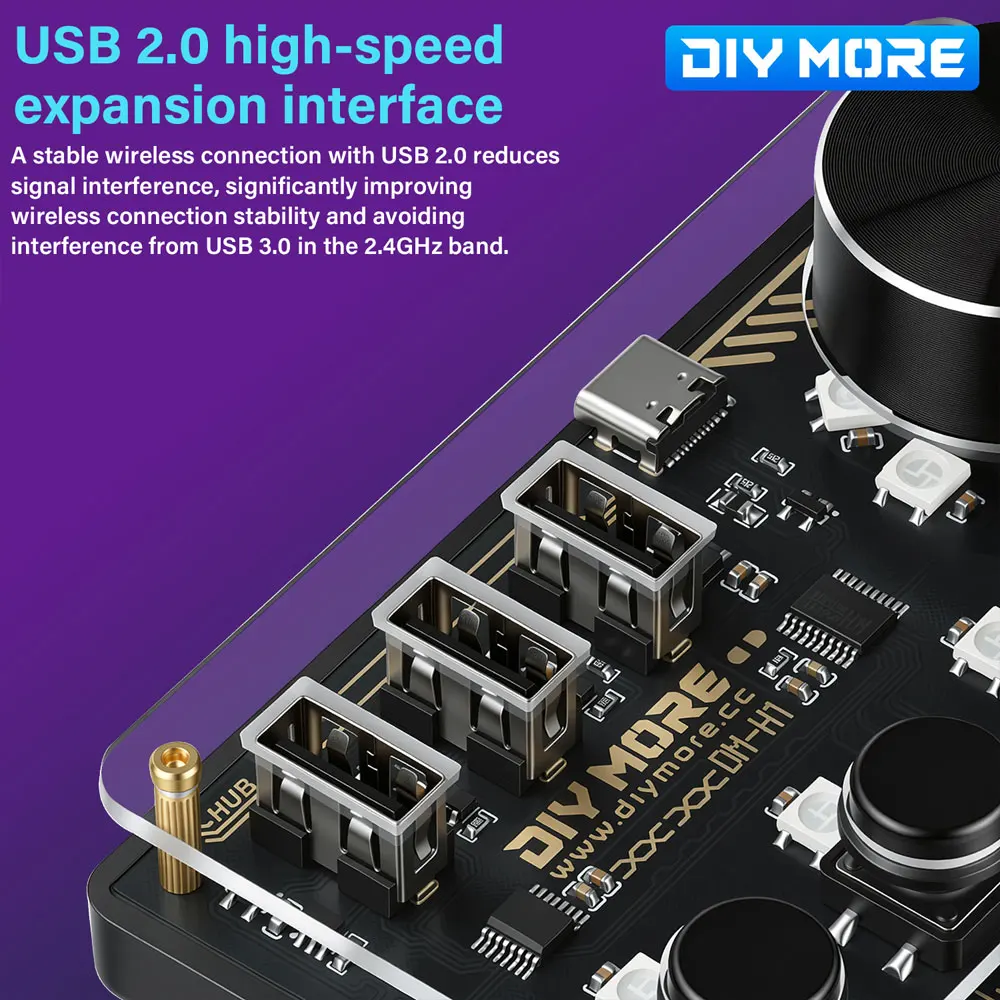

Interface: USB Type-A (driver free HID)

Power supply: USB bus power supply (5V)

System requirements:

Windows 10 or higher

MacOS macOS 11 or higher

Linux kernel 5.0+, requires libUSB

Chrome 89+, Edge 89+, Opera 75+(WebHID support required)

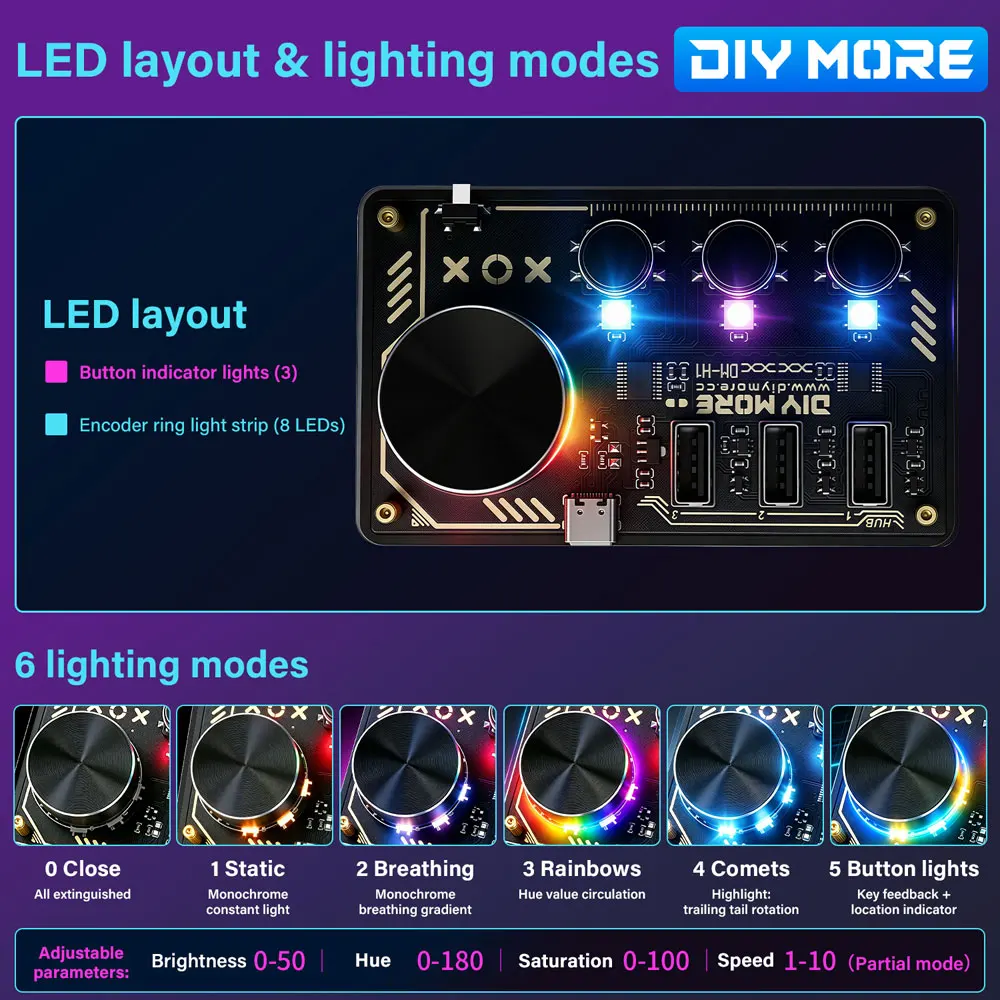

Lighting mode:

Mode Name Effect Description

0- Close: All off

1- Static: Monochrome constant brightness, adjustable color phase and saturation

2- Breathing: Monochrome breathing gradient, adjustable color phase and speed

3- Rainbow: Color cycle flow, adjustable speed

4- Comet: Bright spot trailing rotation, adjustable color phase, saturation, and velocity

5- Button light: When pressed, the corresponding light bulb lights up and gradually goes out, and the knob position is displayed on the light ring

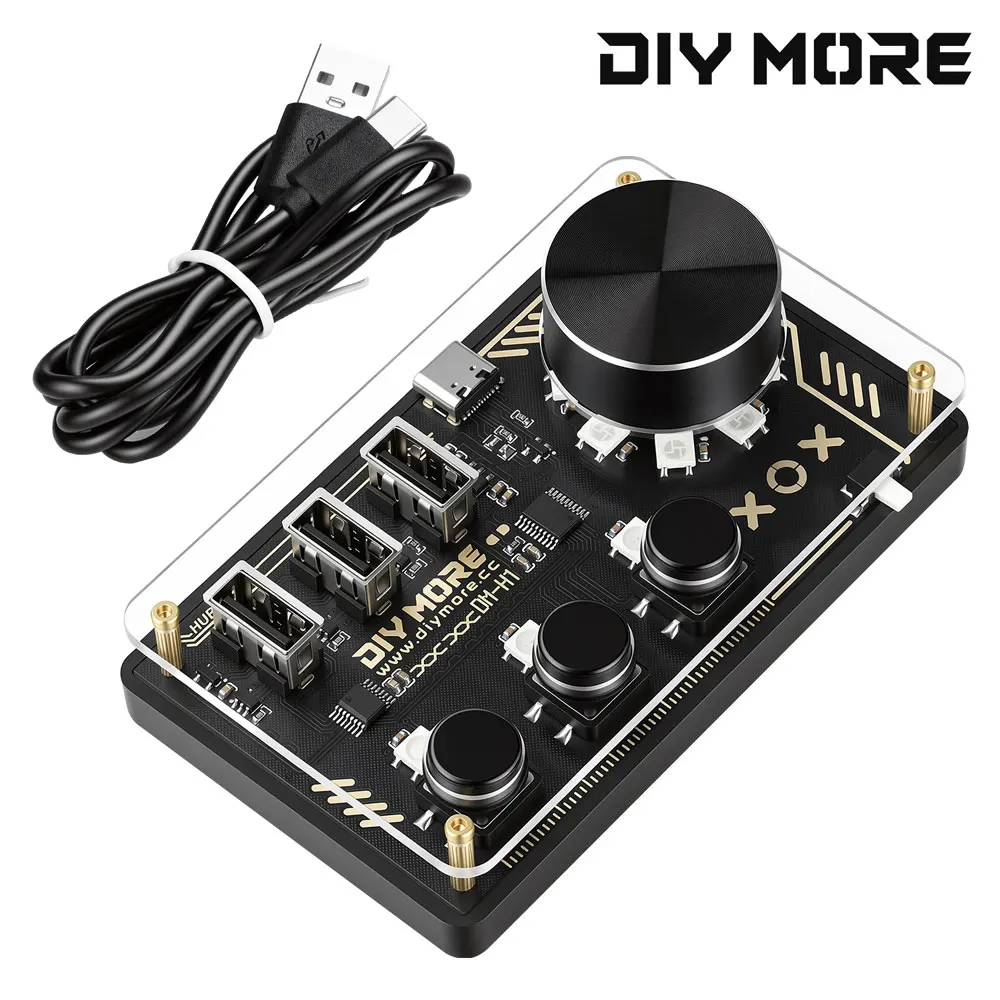

Product List:

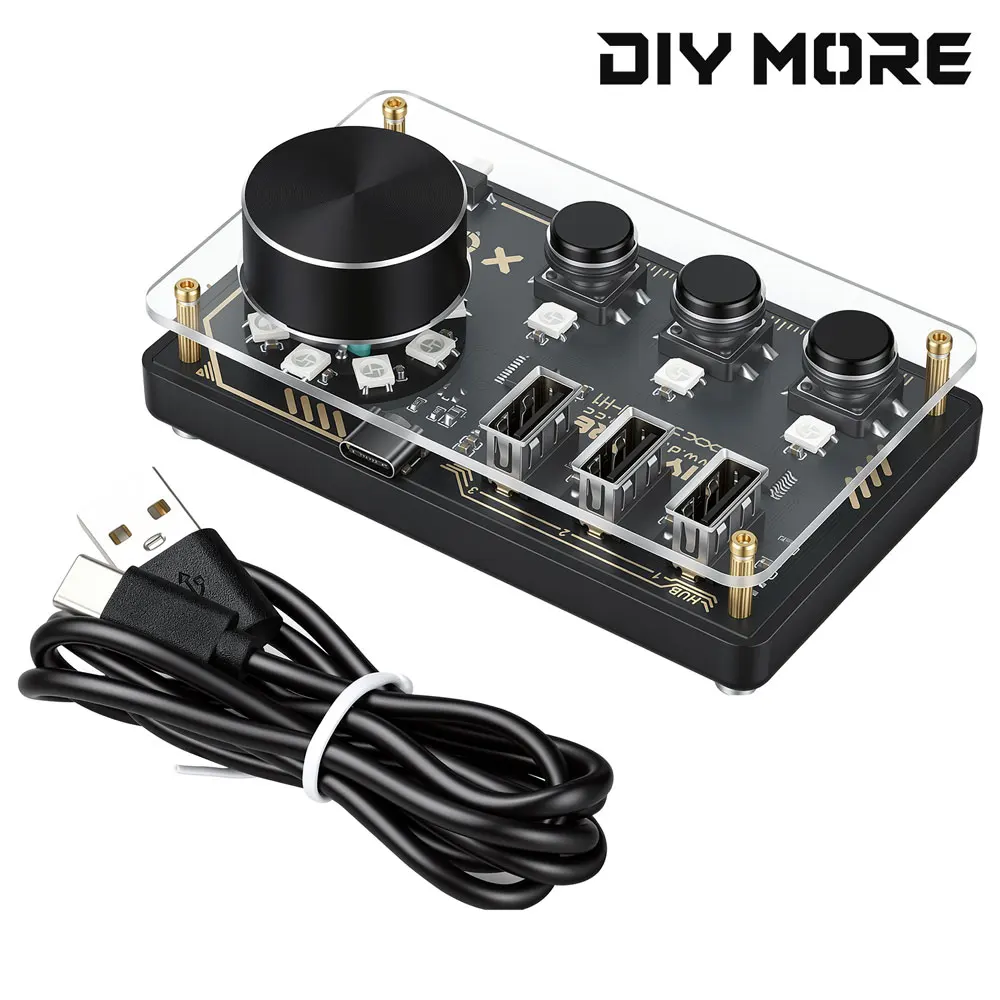

Controller * 1

100CM data cable * 1
