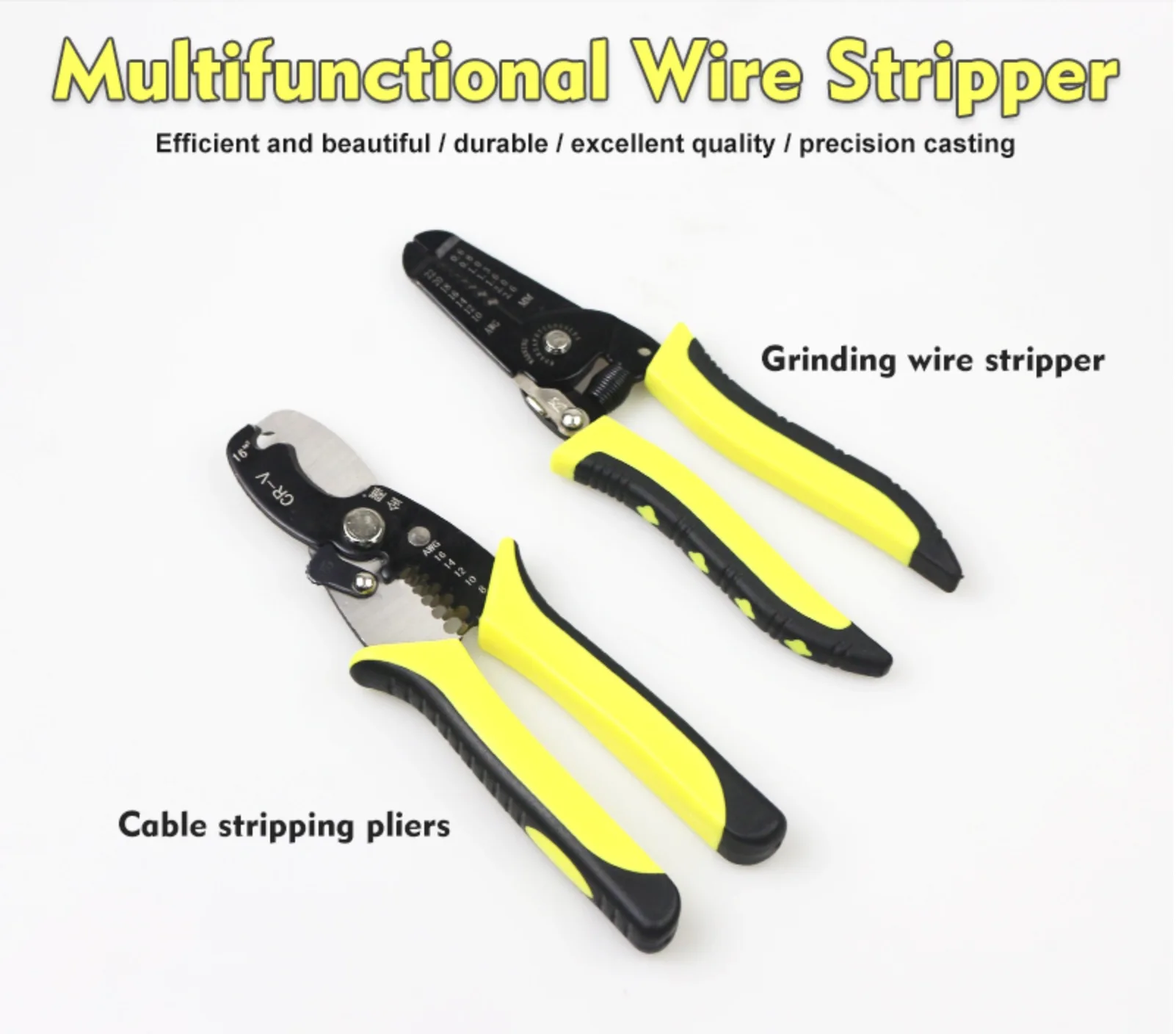

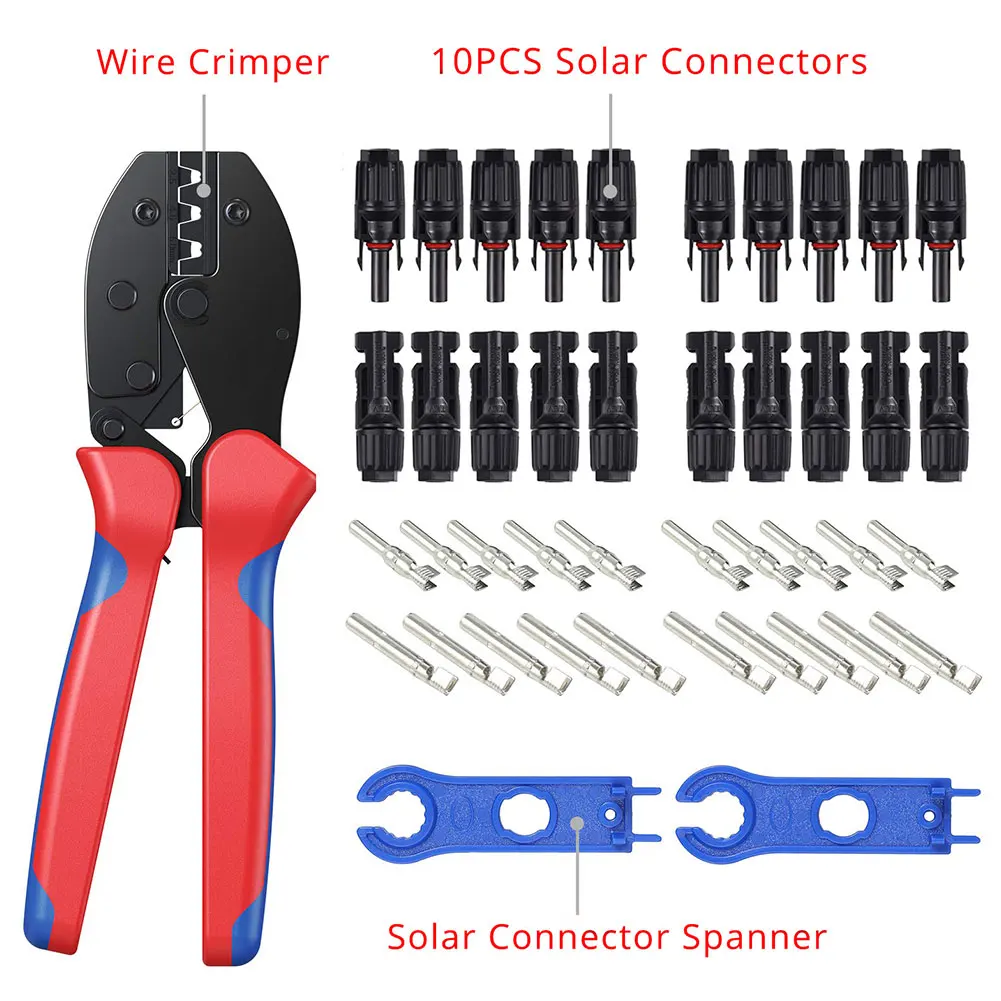

Free shipping 10/20/50 Pairs Solar Connectors 1000V 30A Solar Panel Branch PV Connectors Connect solar Tool Crimping pliers

Free shipping 10/20/50 Pairs Solar Connectors 1000V 30A Solar Panel Branch PV Connectors Connect solar Tool Crimping pliers

Description:

They are used to connect multiple solar panels or groups of solar panels together in a solar field, and typically used in parallel applications. The metal pin is made from high quality machined copper and sealed tip (compare to the cheap sheet metal pin) that can ensure excellent electrical contact.

Feature:

-Compatible with PV cables with different insulation diameters

-It can be used in harsh environment

-With excellent aging resistance and UV endurance

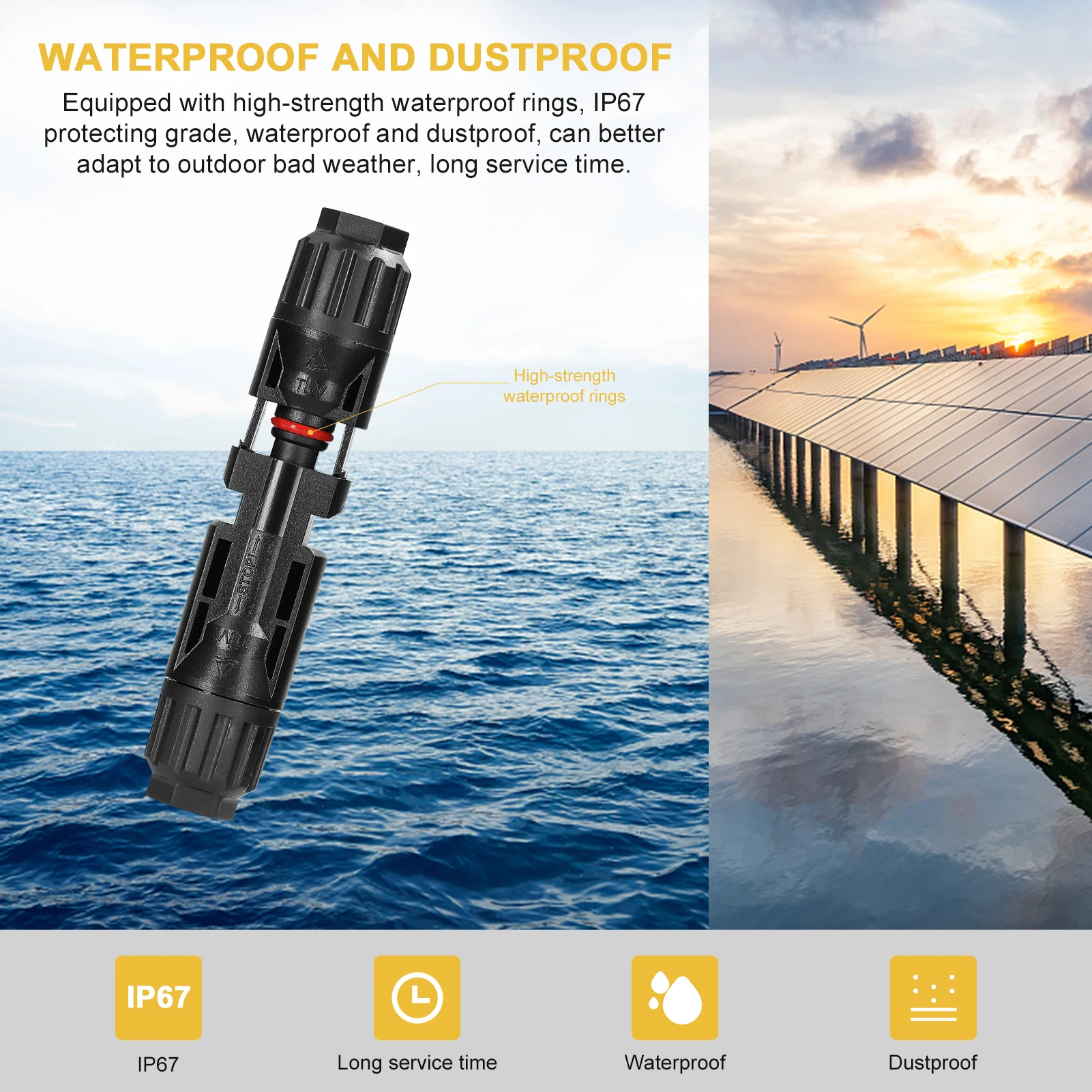

-Double seal rings for better waterproof effect

-Created seal, design of dust proof

-Load capability with big current and high voltage

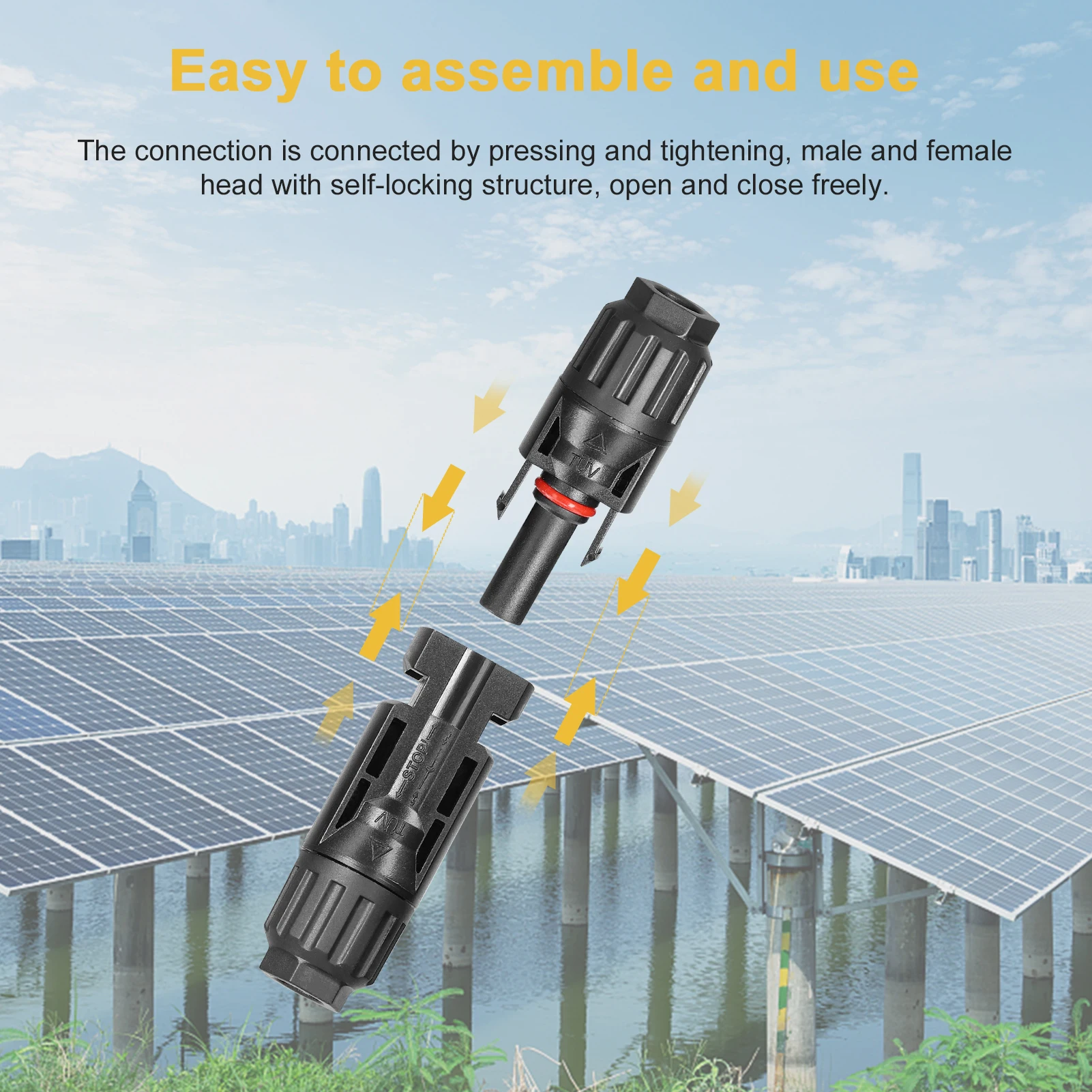

-Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

-Strong pulling force capability

-Resistance of extra high & low temperature and fireproof

-Lower contact resistance

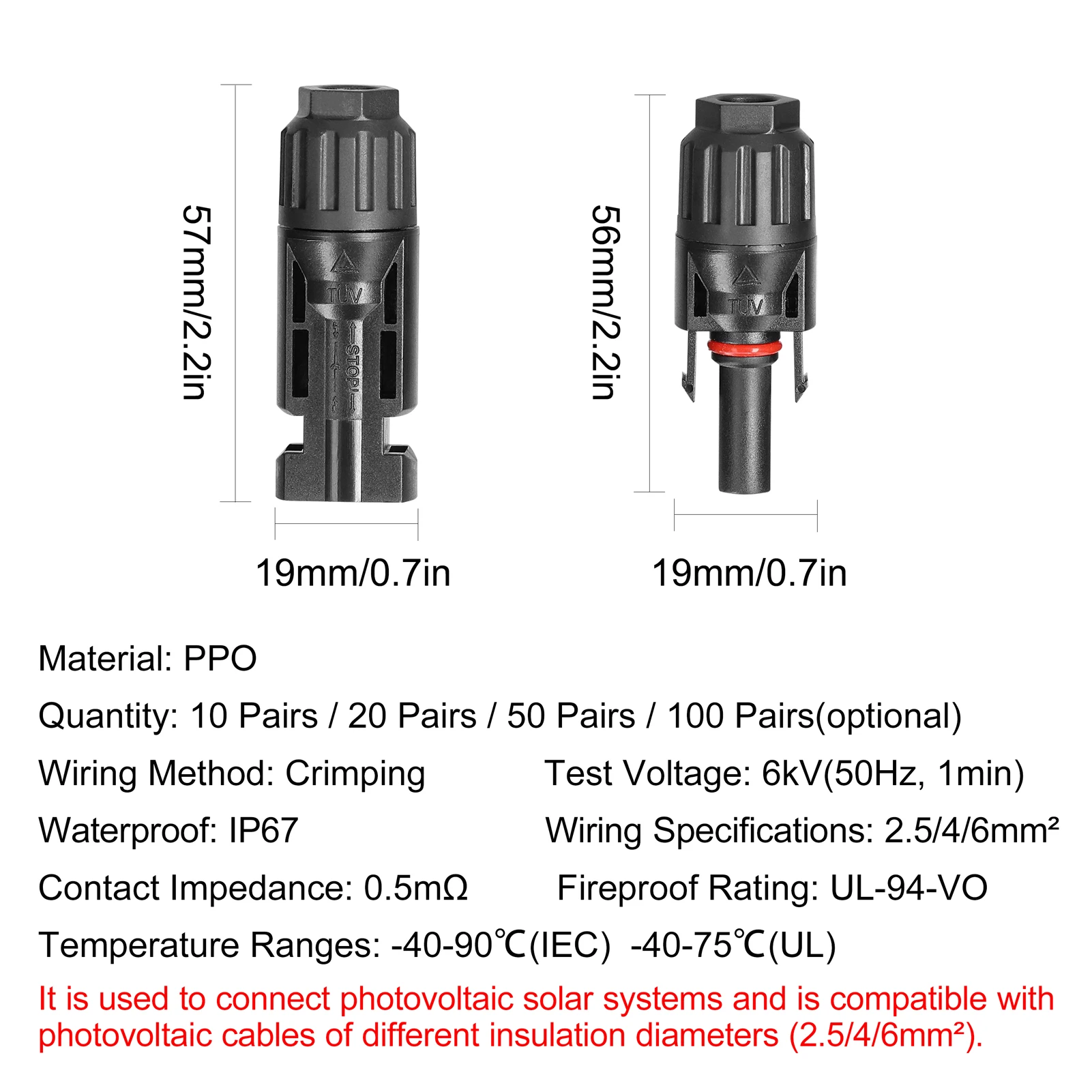

Technical parameters:

-Rated Current: 30A

-Rated voltage: 1000VDC

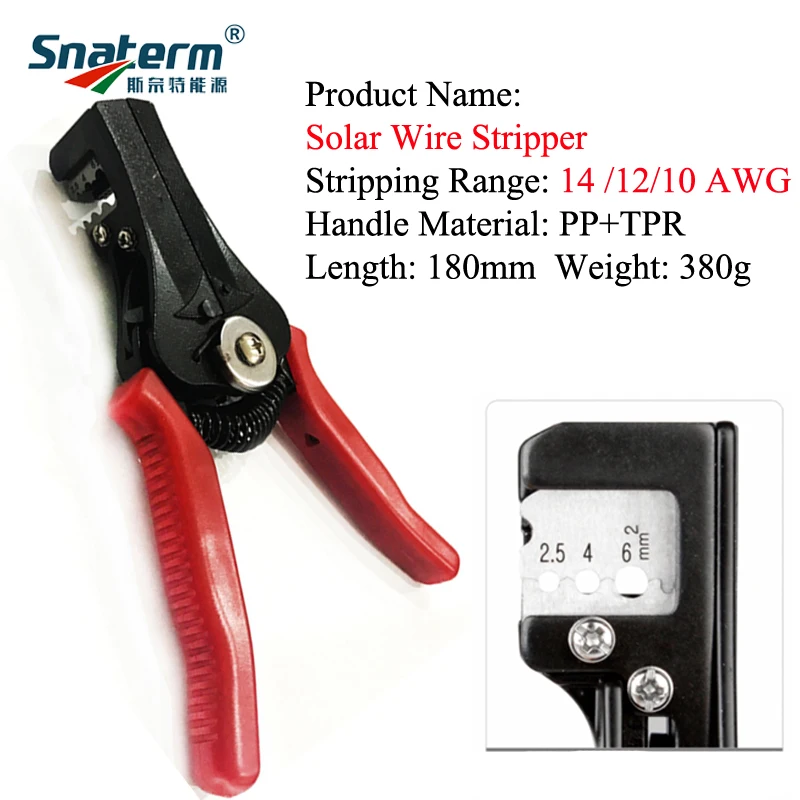

-Suitable cable: 2.5mm2, 4mm2, 6mm2(AWG14, AWG12, AWG10) -Contact resistance: ≤0.2mmΩ

-Waterproof degree:IP67

-Safety Class: II

-Withdrawal force: ≥50N

-Pin dimension: 4.0mm dia.

-Insertion force: ≤50N

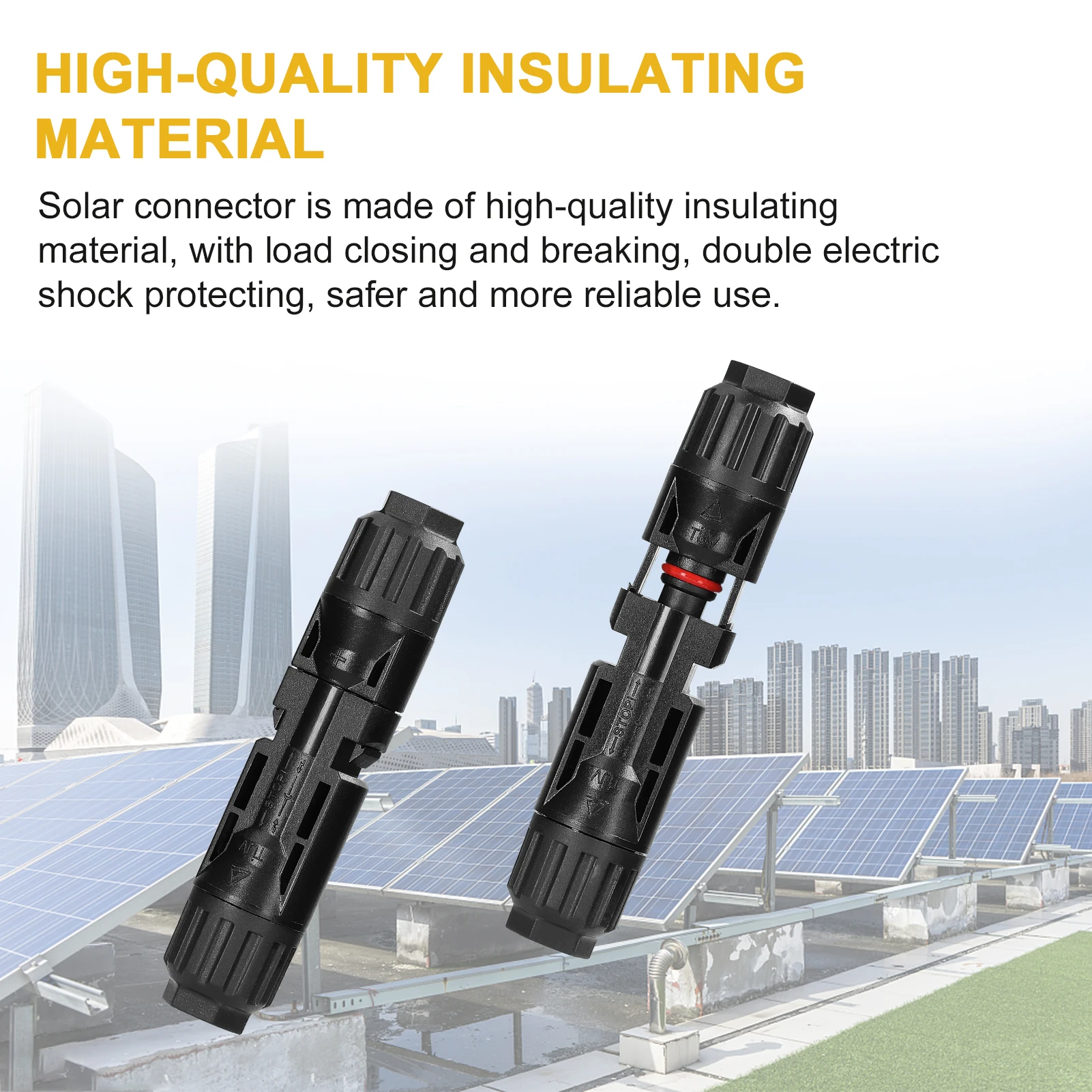

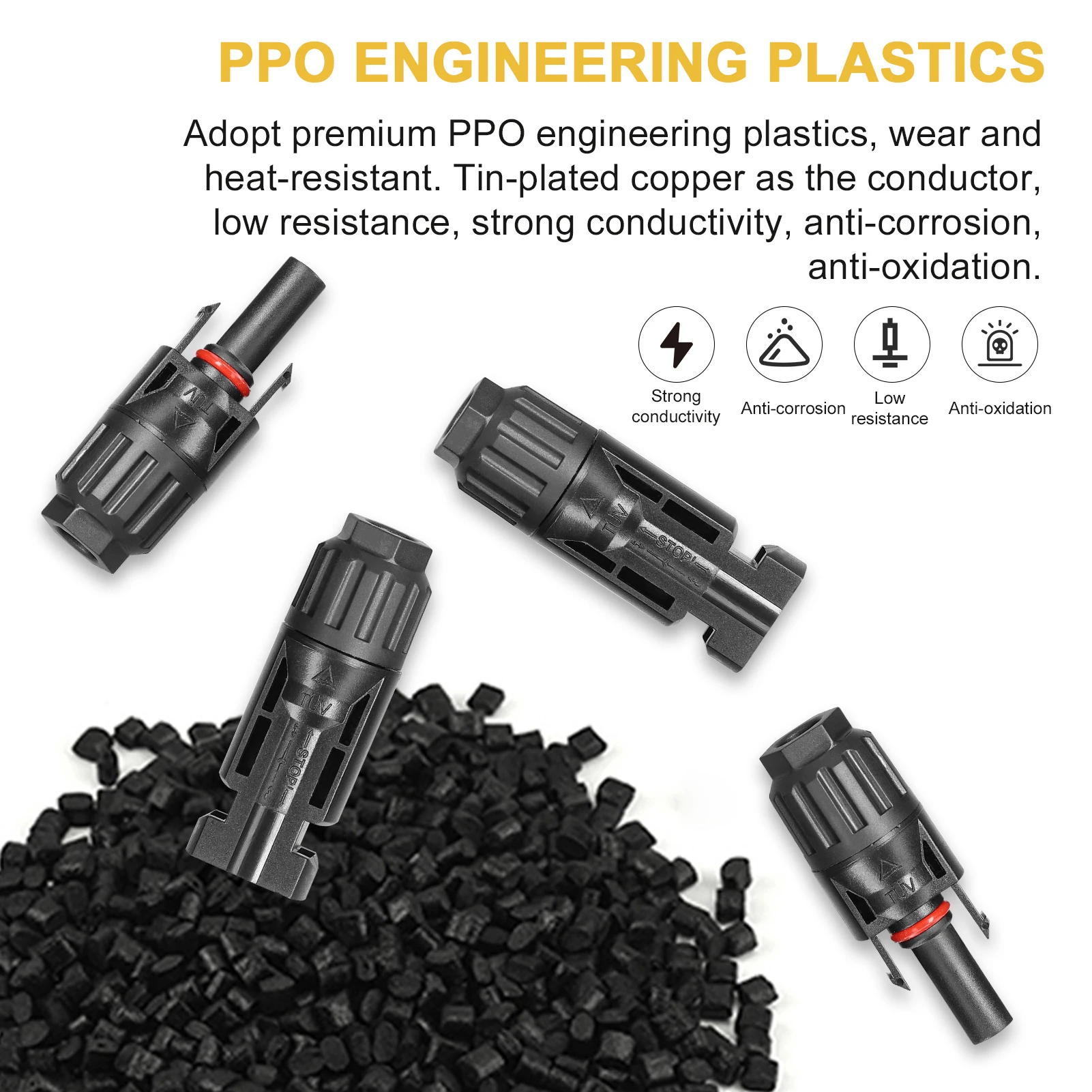

-Insulation material: PPO+PA

-Connecting system: crimping connection

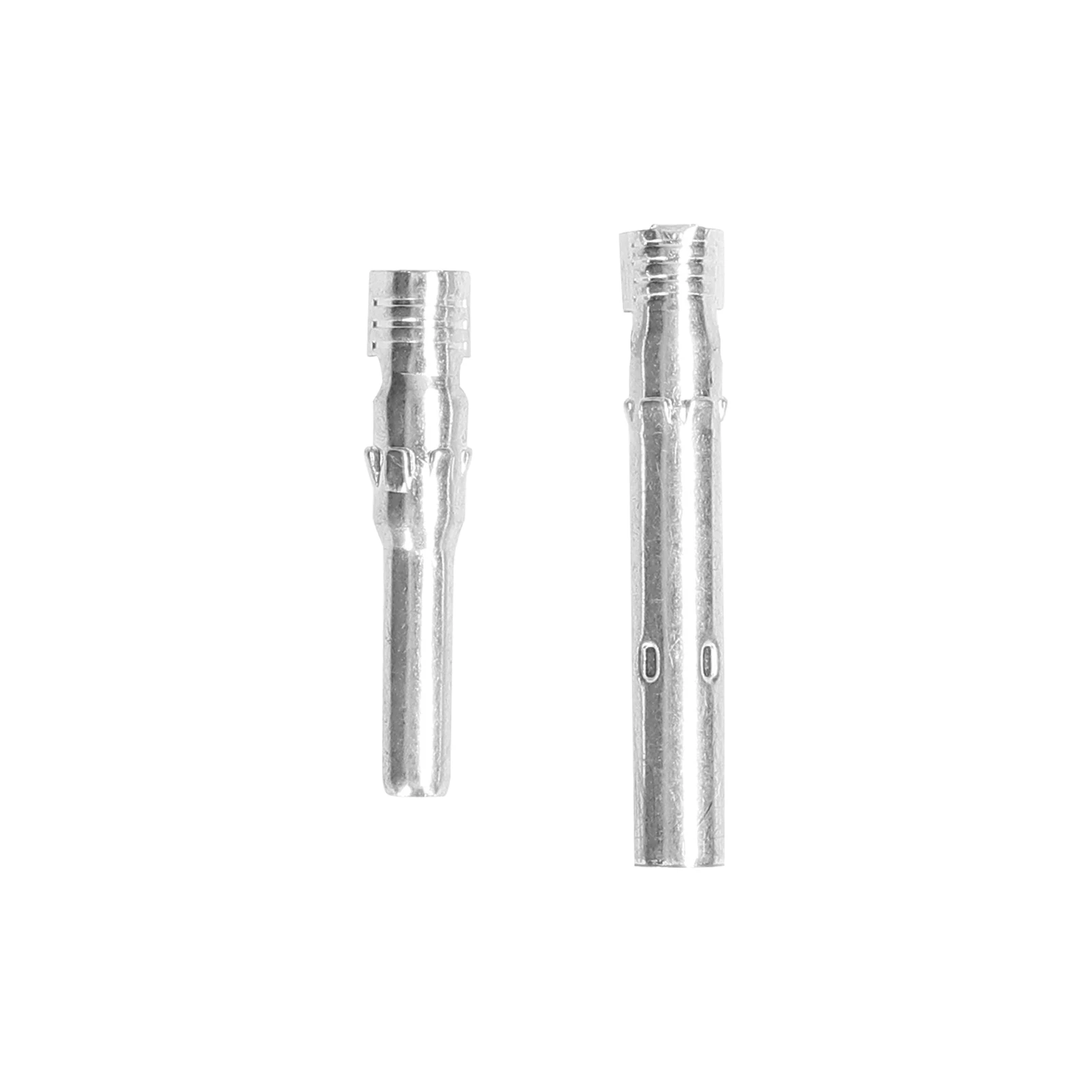

-Contact material: copper, tin plated

-Temperature range: -40 °C ~ +90 °C

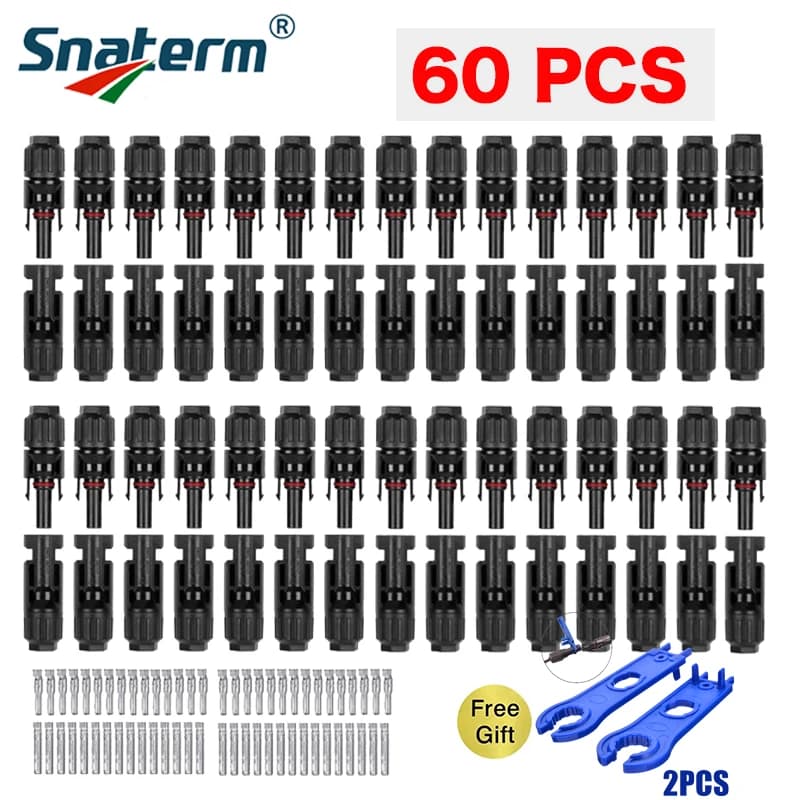

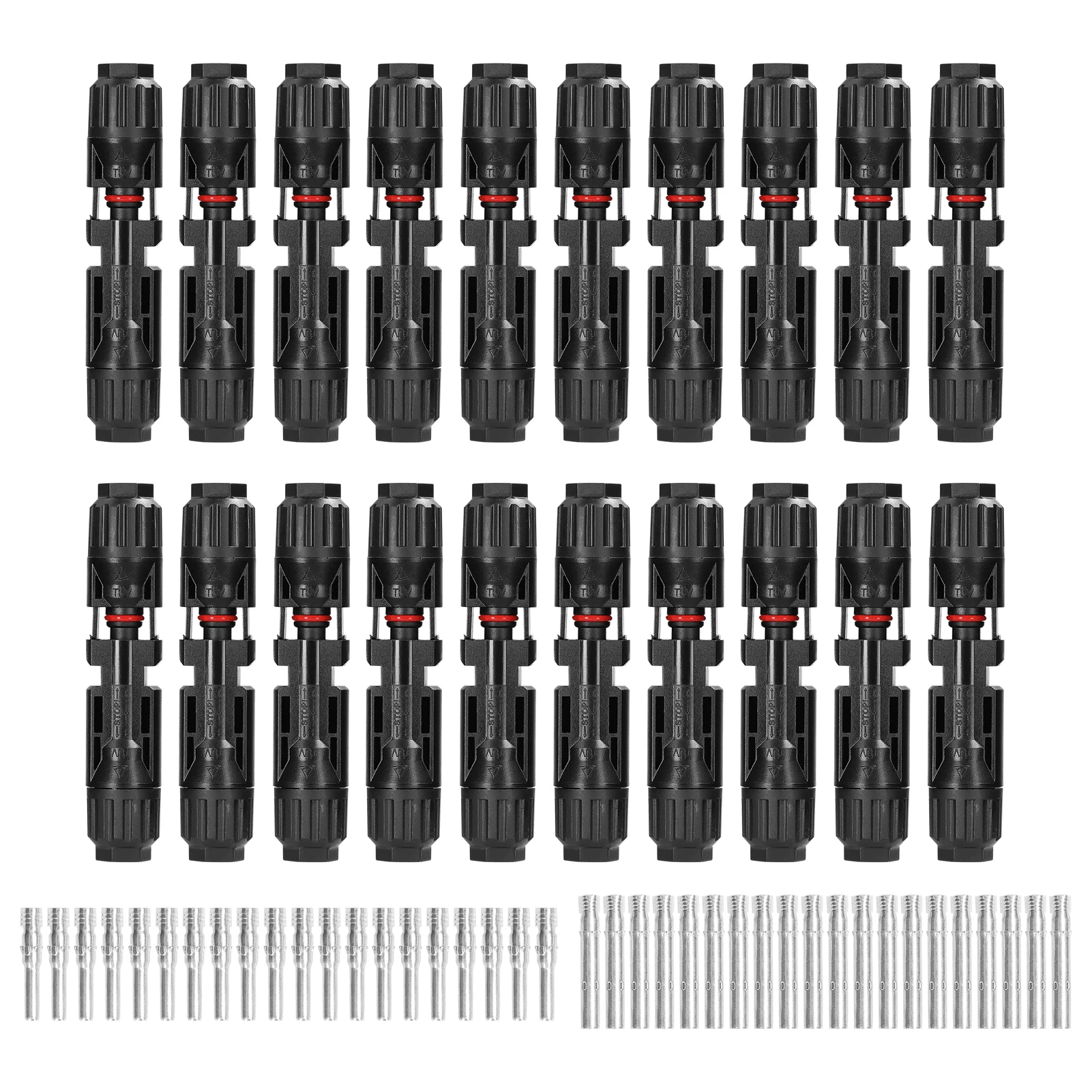

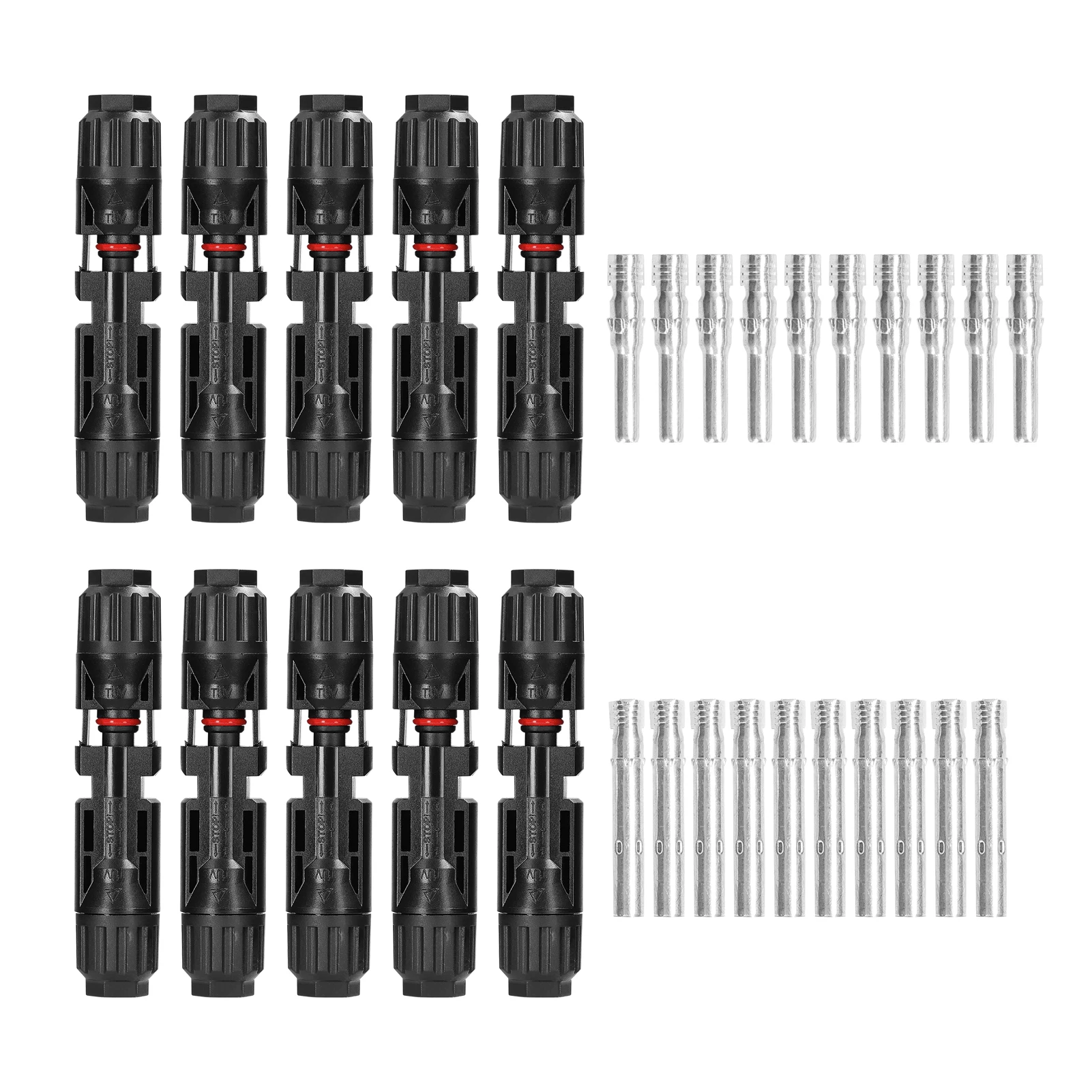

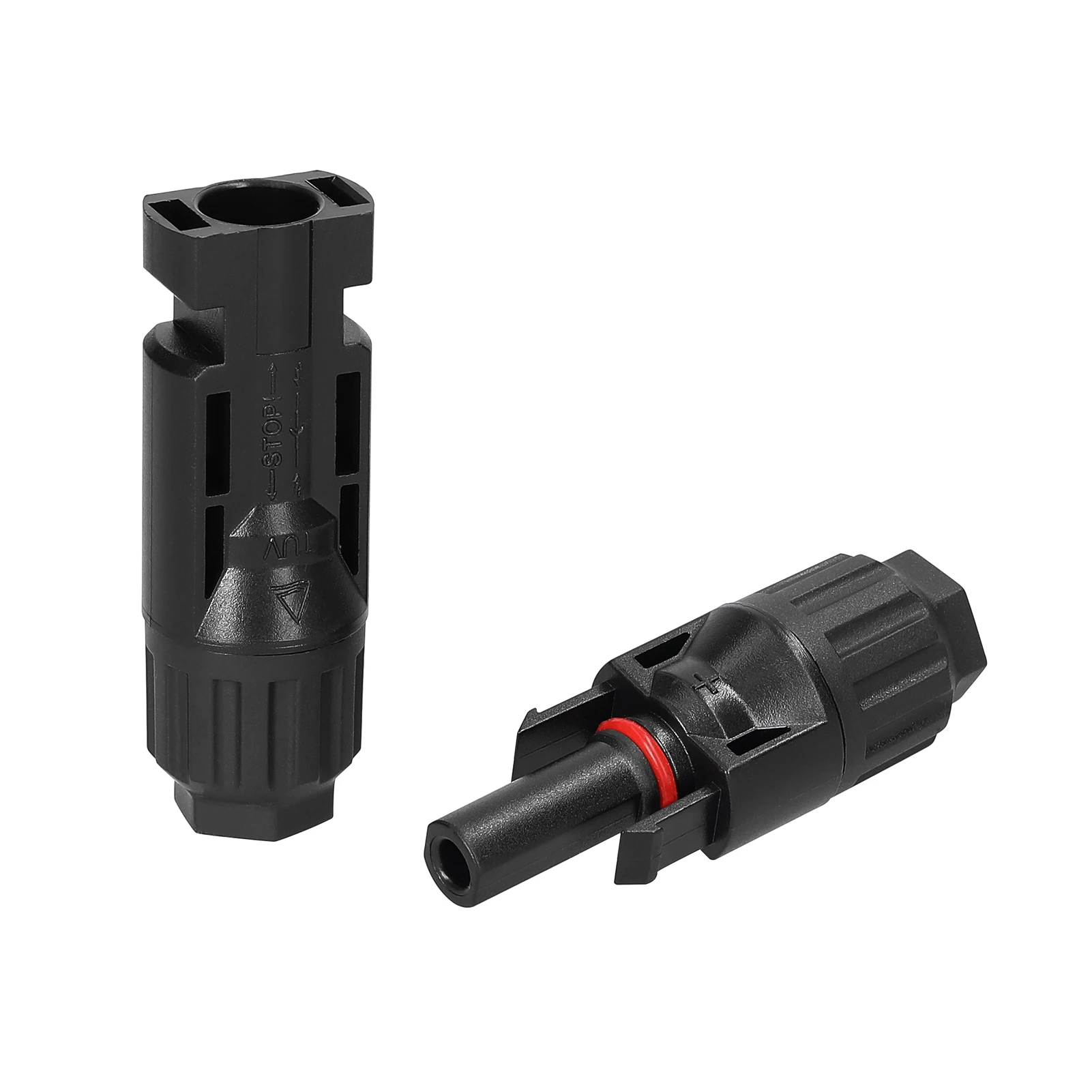

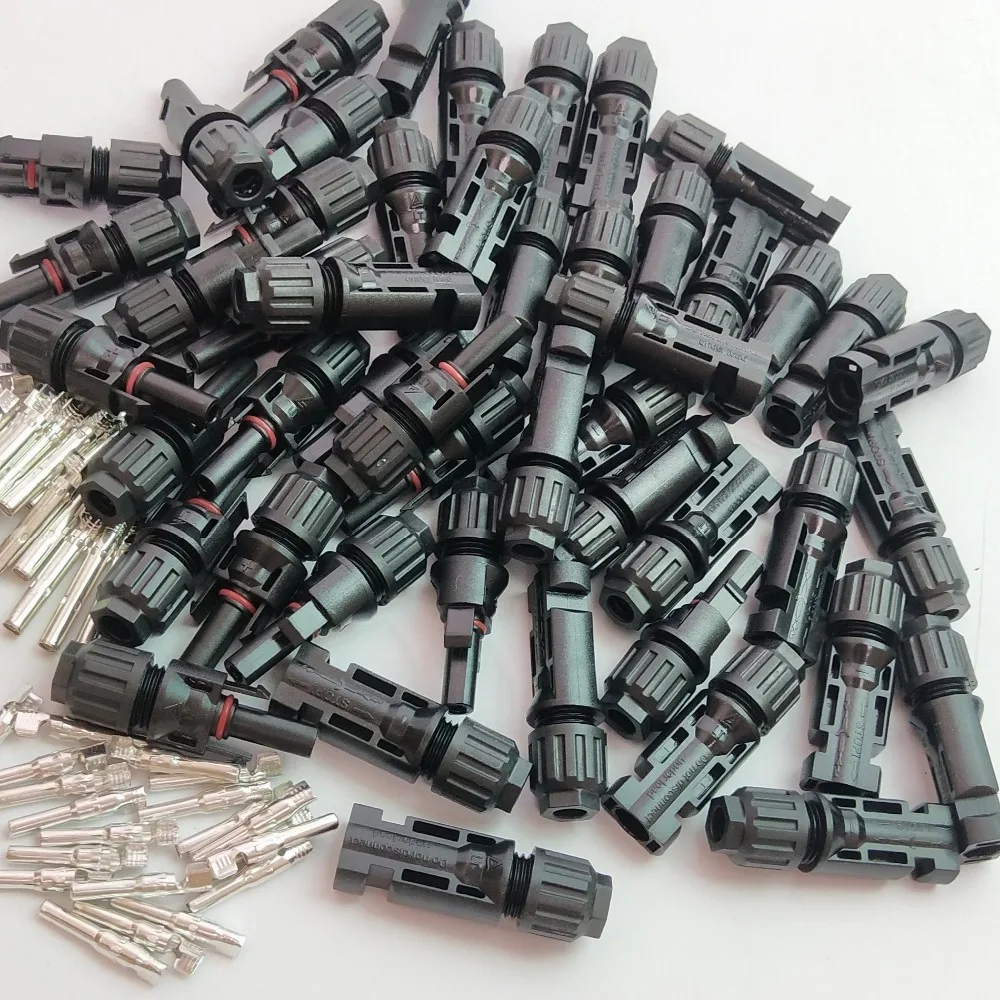

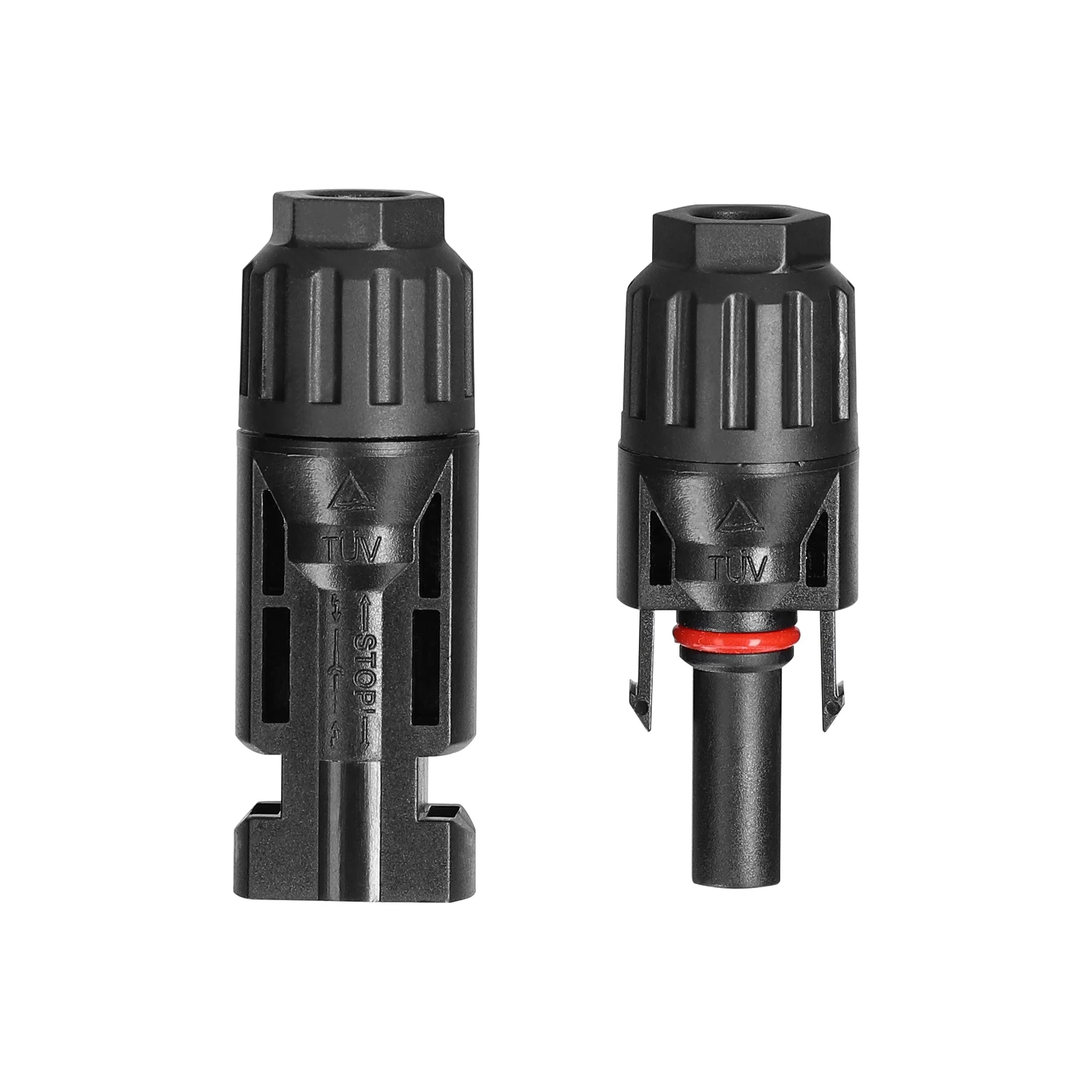

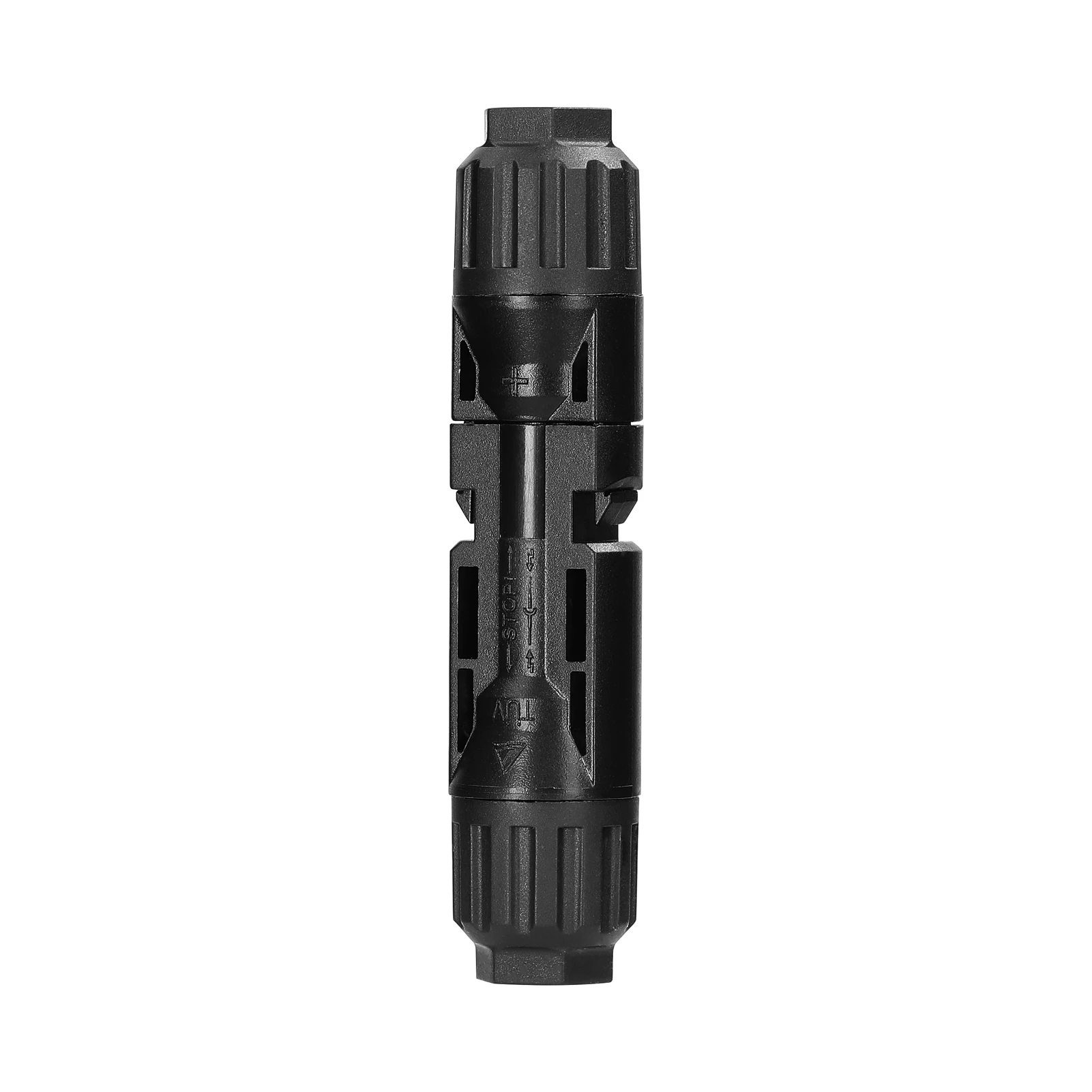

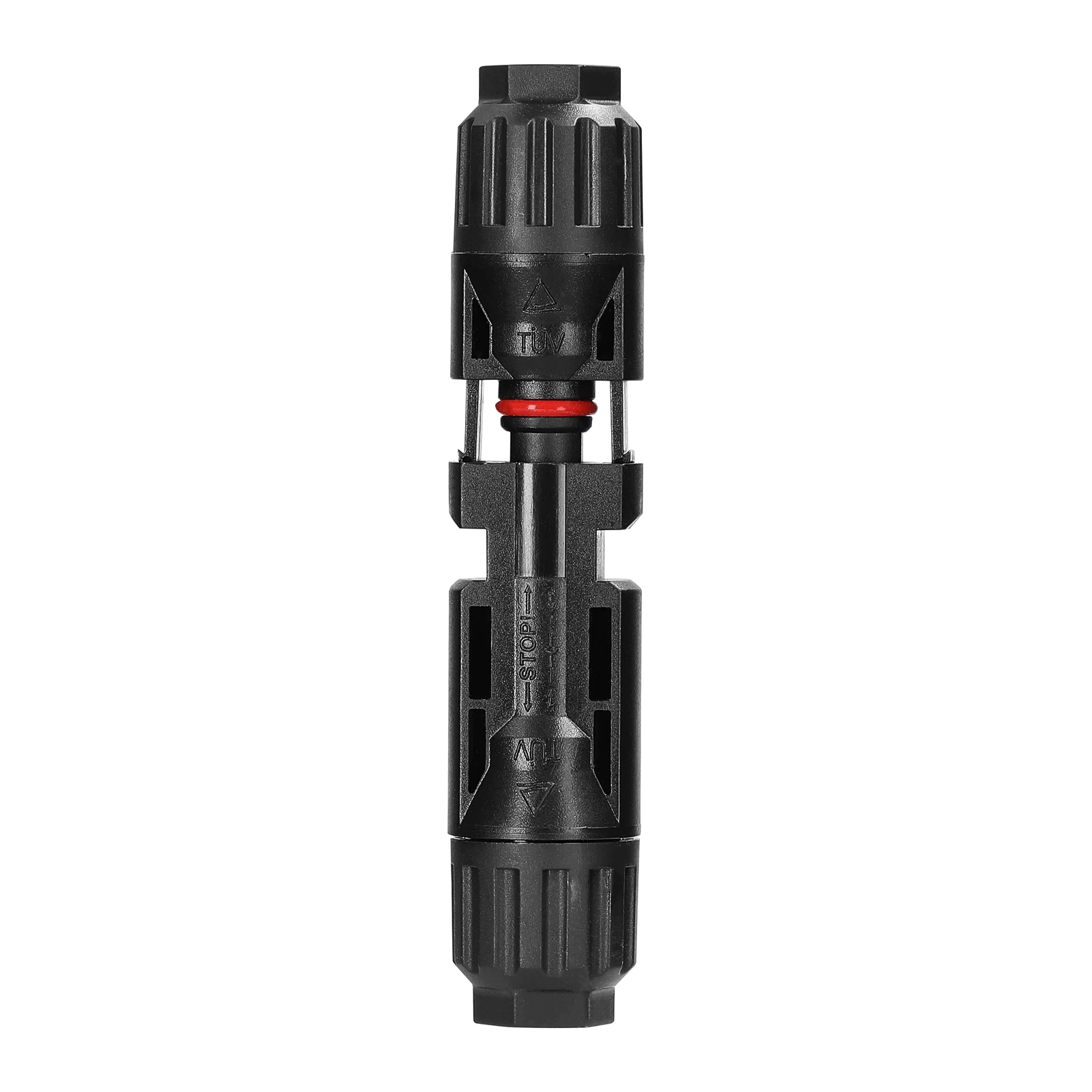

Product show:
